  1. Being Warren Buffett: a classroom and computer simulation of the stock market June 30, 2010 Nicholas J. Horton Department of Mathematics and Statistics Smith College, Northampton, MA nhorton@smith.edu http://www.math.smith.edu/~nhorton

  2. Acknowledgements and references • Activity developed by Robert Stine and Dean Foster (Wharton School, University of Pennsylvania) • Published paper: “Being Warren Buffett: A classroom simulation of risk and wealth when investing in the stock market”, The American Statistician (2006), 60:53-60. • More information, the handout form and copy of the TAS paper can be found at: http://www-stat.wharton.upenn.edu/~stine • A copy of these notes plus the R code to run the simulation and results from 5000 simulations can be found at: http://www.math.smith.edu/~nhorton/buffett Being Warren Buffett

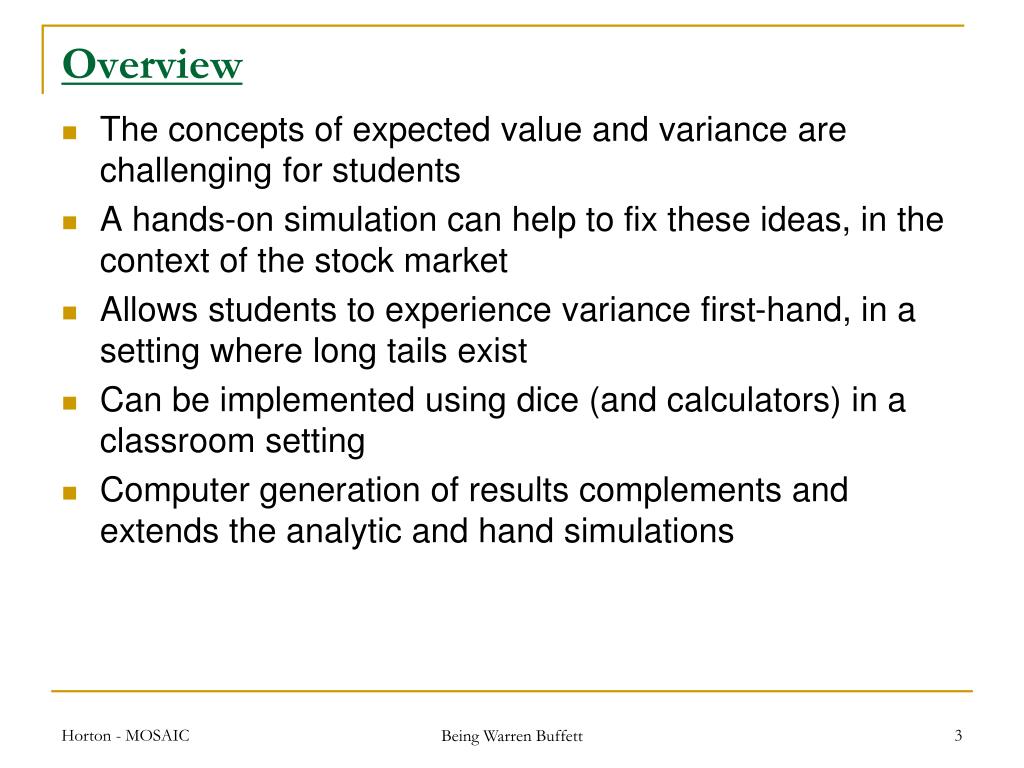

  3. Overview • The concepts of expected value and variance are challenging for students • A hands-on simulation can help to fix these ideas, in the context of the stock market • Allows students to experience variance first-hand, in a setting where long tails exist • Can be implemented using dice (and calculators) in a classroom setting • Computer generation of results complements and extends the analytic and hand simulations Being Warren Buffett

  4. Objectives • Understanding discrete random variables to model stock market returns • Calculate and interpret expectations for return from a given investment strategy • Calculate and interpret standard deviations of returns from a given investment strategy • Compare the risk and return for these strategies • Spark thinking about diversification and rebalancing of investments • Build complementary empirical and analytic problem solving skills Being Warren Buffett

  5. Background information • Imagine that you have $1000 to invest in the stock market, for 20 years • Three investment possibilities are presented to students working in groups of 2 or 3: • Question: Which of the three investments seems the most attractive to the members of your group? Being Warren Buffett

  6. Dice outcomes • The investments rise or fall based on the outcomes of a 6-sided die: Being Warren Buffett

  7. Example: • Suppose on the first roll your team gets the following outcomes (Green 2) (Red 5) (White 5), then on the second roll, you get (Green 4) (Red 2) (White 6) Being Warren Buffett

  8. Repeat the process for 20 years • 1 student to roll the dice (green, red and white) • 1 student to determine the return and calculate the new value on the results handout • 1 student to supervise and catch errant dice • At the end of class, each team enters their results on the classroom computer • Find out who are the “Warren Buffett’s” of the class Being Warren Buffett

  9. Group results form Being Warren Buffett

  10. Usually, red doesn’t do as well as green Being Warren Buffett

  11. But occasionally it wins big! Being Warren Buffett

  12. Expected returns for 20 years • Use property that the expectation of a product is the product of the expectation • GREEN: $1000*(1.083)^20= $ 4,927 • RED: $1000*(1.710)^20= $45,700,632 • WHITE: $1000*(1.008)^20= $ 1,173 • We’d always want to pick RED, no? Being Warren Buffett

  13. Observed returns (using simulation) • Used R to simulate 5000 20-year histories, available as “res.csv” • Observed Q1, median, Q3 • GREEN: $2,058 $3,621 $6,269 • RED: $ 0 $ 16 $1,993 • WHITE: $1,011 $1,141 $1,321 • Percentage ending with less than initial investment ($1000) • GREEN: 5.9% • RED: 72.7% • WHITE: 25.0% Being Warren Buffett

  14. Another strategy (“pink”) • Consider a strategy where you balance investments between RED (dangerous) and WHITE (boring) each year • Call this “PINK” • Smaller average returns, but far less variable • Can be calculated using existing rolls (average returns), using space on the results form Being Warren Buffett

  15. How to implement PINK Pink $1000 3 1 2 $1000 $3000 $2000 0.05 1 0.525 $150 $1000 $1050 Being Warren Buffett

  16. Implementation in R # Becoming Warren Buffett simulator (Foster et al TAS) # Nicholas Horton, nhorton@smith.edu # $Id: buffett.R,v 1.2 2010/06/29 13:01:17 nhorton Exp $ green = c(0.8, 0.9, 1.1, 1.1, 1.2, 1.4) red = c(0.05, 0.2, 1, 3, 3, 3) white = c(0.95, 1, 1, 1, 1, 1.1) years = 20; numsims = 5000 n = years*numsims Being Warren Buffett

  17. Implementation in R (cont.) library(Hmisc) process = function(color) { xmat = matrix(rMultinom(matrix(rep(1/6,6), 1 , 6), n), nrow=numsims) res = rep(1000,numsims) # starting investment for (i in 1:years) { res = res*color[xmat[,i]] } return(res) } Being Warren Buffett

  18. Implementation in R (cont.) pink = function(col1,col2) { xmat1 = matrix(rMultinom(matrix(rep(1/6,6), 1 , 6), n), nrow=numsims) xmat2 = matrix(rMultinom(matrix(rep(1/6,6), 1 , 6), n), nrow=numsims) res = rep(500,numsims) for (i in 1:years) { redtmp = res*col1[xmat1[,i]] whitetmp = res*col2[xmat2[,i]] res = (redtmp+whitetmp)/2 } return(res*2) } Being Warren Buffett

  19. Implementation in R (cont.) greenres = process(green) redres = process(red) whiteres = process(white) pinkres = pink(red,white) boxplot(greenres,redres,whiteres,pinkres) boxplot(greenres,redres[redres<50000],whiteres,pinkres[pinkres<50000]) # plotting on a log scale may be worth investigating results = data.frame(greenres,redres,whiteres,pinkres) write.csv(results,"res.csv") Being Warren Buffett

  20. Connections to reality and thoughts on “pink” • GREEN performs like the US stock market (adjusted for inflation) • WHITE represents the (inflation adjusted) performance of US Treasury Bills • Quote from authors: “We made up RED. We don’t know of any investment that performs like RED. If you know of one, please tell us so we can make PINK!” Being Warren Buffett

  21. Boxplots of results (needs rescaling) $80 billion! Being Warren Buffett

  22. Boxplots of results (where returns <=$50,000) Being Warren Buffett

  23. Implementation in SAGE (kudos to Randy P.) http://www.sagenb.org/home/pub/2184 Being Warren Buffett

  24. Teaching materials and checklist • Copies of handout describing the simulation (one per student) • Copies of results sheet (one per group) • Set of three die (though one will work in a pinch, one set per group) • Remind students to bring calculators (or run this in a lab rather than lecture) • Time requirements: between 50 and 80 minutes (depending in part on whether you calculate expected values, motivate the simulation parameters in terms of historical inflation and stock returns and whether “pink” is introduced) Being Warren Buffett

  25. Extensions and assessment • The activity was developed for use in both an MBA and PhD program • The paper introduces concepts of “volatility drag” and “volatility adjusted return” as more advanced topics (potentially applicable as a project at the end of a undergraduate probability class), as well as connections to calculus • Verifying the expected value and standard deviation of one of the investment strategies is a straightforward homework assignment (other assessments possible) • Students without formal exposure to expectations of discrete random variables can still fully participate in the simulation Being Warren Buffett

  26. Conclusions • Hands-on activity is popular with students • Helps to reinforce important but often confused concepts in the context of a real world application • Small group work helps to address questions as they arise • Students turn in results to allow review of results (in addition to immediate display of summary and graphical statistics) Being Warren Buffett

  27. Being Warren Buffett: a classroom and computer simulation of the stock market June 30, 2010 Nicholas J. Horton Department of Mathematics and Statistics Smith College, Northampton, MA nhorton@smith.edu http://www.math.smith.edu/~nhorton
