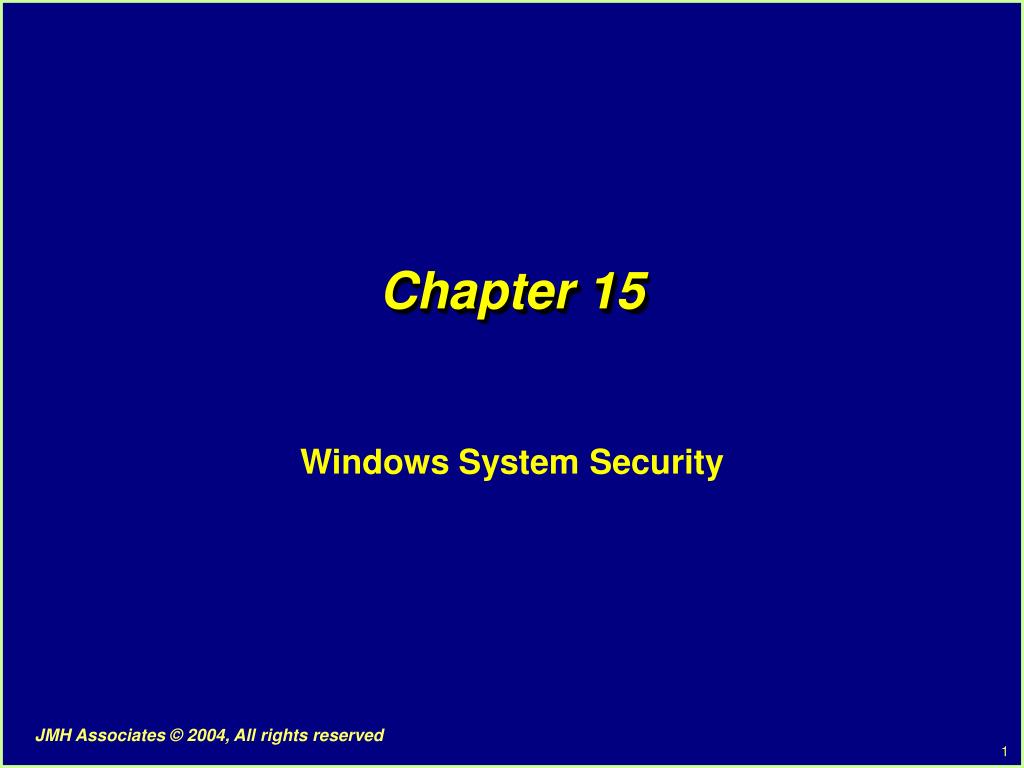

  1. Chapter 15 Windows System Security

  2. OBJECTIVES • Upon completion of this chapter, you will be able to: • Describe Windows NT/2000 security and its components • Access Control Lists • Security Descriptors • Security Identifiers, and more • Describe the differences between privileges and rights • Create programs to manage security for NTFS files • Be ready to apply security to other NT objects

  3. OVERVIEW (1 of 2) • Windows NT/2000 supports security; Windows 9x does not • Every (sharable) NT object is securable • Security applies to NTFS files • Not to FAT or other file systems • NT security is C2 compliant • (NSA “Orange Book” for single systems)

  4. OVERVIEW (2 of 2) • NT security supports the required Discretionary Access Control Lists (DACLs) and System ACLs (SACLs, for auditing) • Specific allow and deny entries for users and groups for different types of access • Security programming is difficult • Probably the most difficult in the Windows API

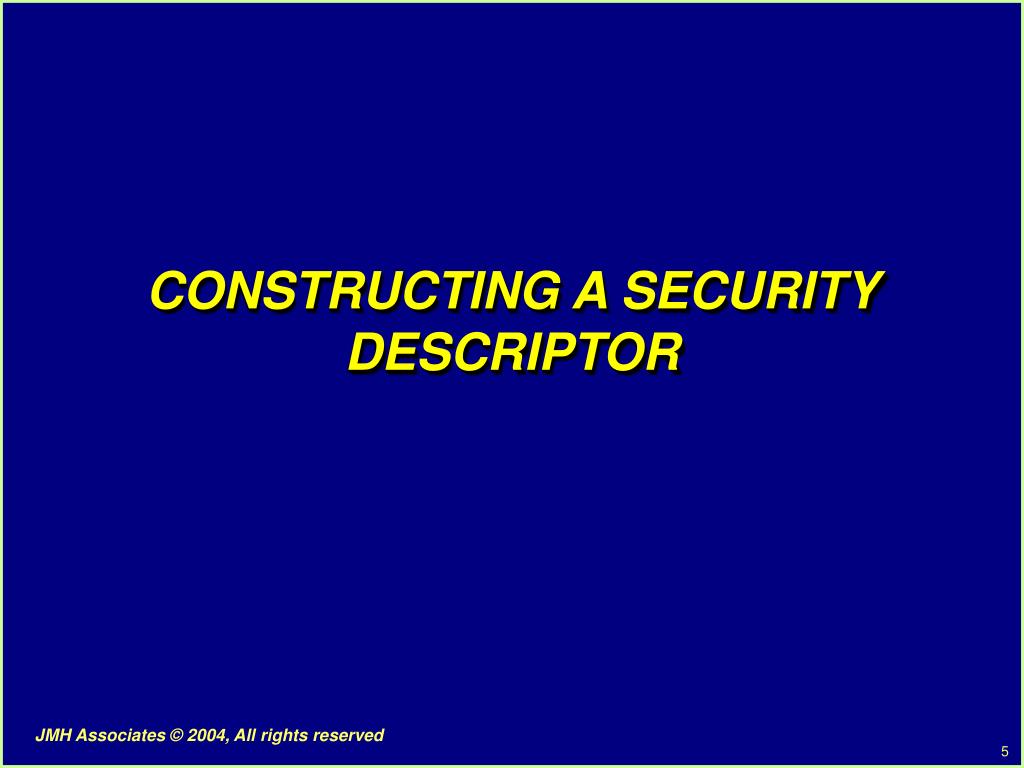

  5. CONSTRUCTING A SECURITY DESCRIPTOR

  6. Process Object Security Descriptor 1) InitializeSecurityDescriptor 2) SetSecurityDescriptorOwner 3) SetSecurityDescriptorGroup 4) InitializeAcl 5) AddAccessDeniedAce · · · 6) AddAccessAllowedAce · · · 7) SetSecurityDescriptorDacl Access Token Owner SID Group SID User SID Group SID Discretionary ACL Access Control Entry (Denied) " Access Control Entry (Allowed) · · ·

  7. SECURITY ATTRIBUTES • TYPEDEF struct _SECURITY_ATTRIBUTES { • DWORD nLength; • LPVOID lpSecurityDescriptor; • BOOL bInheritHandle; • } SECURITY_ATTRIBUTES; • nLength • Should be set to sizeof (SECURITY_ATTRIBUTES) • bInheritHandle • Should be FALSE for now

  8. SECURITY DESCRIPTOR (1 of 2) • BOOL InitializeSecurityDescriptor( • PSECURITY_DESCRIPTOR psd, • DWORD dwRevision) • psd • Should be set to address of a SECURITY_DESCRIPTOR • dwRevision • Set to SECURITY_DESCRIPTOR_REVISION, which contains: • Owner Security Identifier (SID) • Group SID • Discretionary Access Control List (DACL) • System ACL (SACL)

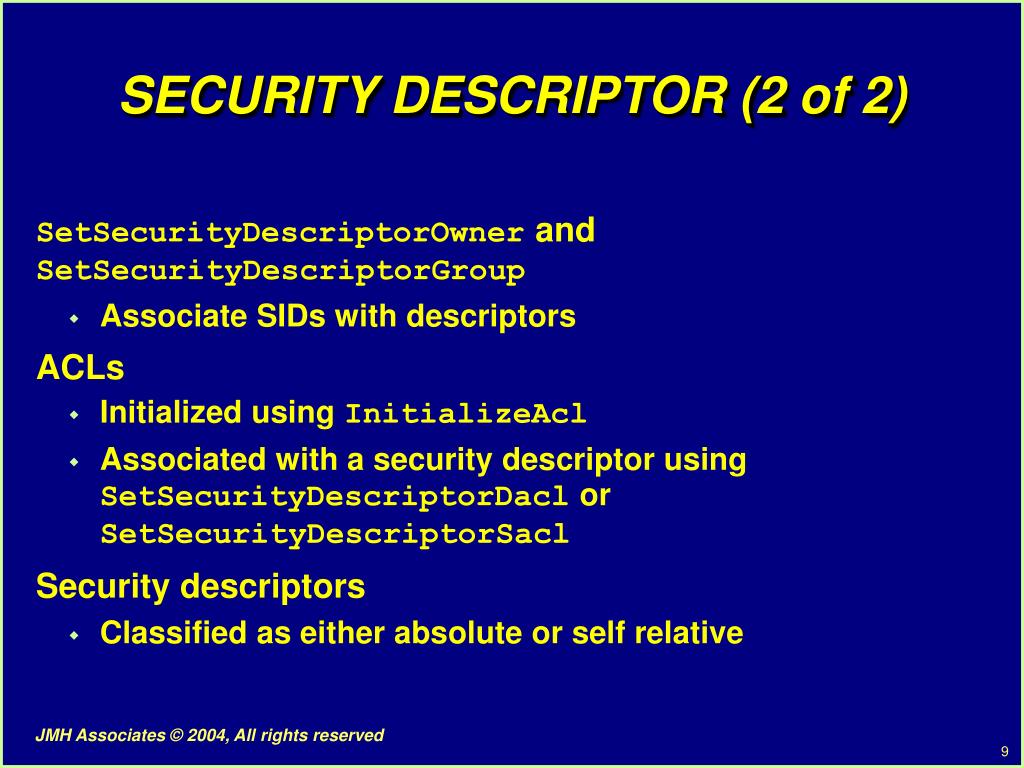

  9. SECURITY DESCRIPTOR (2 of 2) • SetSecurityDescriptorOwner and SetSecurityDescriptorGroup • Associate SIDs with descriptors • ACLs • Initialized using InitializeAcl • Associated with a security descriptor using SetSecurityDescriptorDacl or SetSecurityDescriptorSacl • Security descriptors • Classified as either absolute or self relative

  10. ACCESS CONTROL LISTS • Each ACL is a set of Access Control Entries (ACE) • Two types of ACE: • Access allowed and access denied • Initialize an ACL with InitializeAcl • Then add ACEs to discretionary ACLs: • AddAccessAllowedAce • AddAccessDeniedAce • AddAuditAccessAce is for adding to a SACL • Remove ACEs with DeleteAce • Retrieve them with GetAce

  11. SECURITY IDENTIFIERS (1 of 7) • BOOL LookupAccountName (LPCTSTR lpSystem, • LPCTSTR lpAccount, PSID psid, • LPDWORD lpcbSid, • LPTSTR lpReferencedDomain, • LPDWORD lpcchReferencedDomain, • PSID_NAME_USE psnu) • lpSystem • Points to the system name (is often NULL) • lpAccount • Points to the account name

  12. SECURITY IDENTIFIERS (2 of 7) • psid • Returned information of size *lpcbSid • lpcbSid • The DWORD should be initialized to the size of your SID structure (psid) • On return, you get the actual size • lpReferencedDomain • String of length *lpcchReferencedDomain • Should be initialized to the buffer size

  13. SECURITY IDENTIFIERS (3 of 7) • psnu • Points to a SID_NAME_USE (enumerated type) variable • Can be tested for values such as: SidTypeUser SidTypeGroup SidTypeWellKnownGroup

  14. SECURITY IDENTIFIERS (4 of 7) • To convert a SID to an account name: • BOOL LookupAccountSid ( • LPCTSTR lpSystem, • PSID psid, • LPTSTR lpAccount, • LPDWORD lpcchName, • LPTSTR lpReferencedDomain, • LPDWORD lpcchReferencedDomain, • PSID_NAME_USe psnu)

  15. SECURITY IDENTIFIERS (5 of 7) • BOOL GetUserName (LPTSTR lpBuffer, • LPDWORD lpcchBuffer) • Other functions: • InitializeSid • AllocateAndInitializeSid

  16. SECURITY IDENTIFIERS (6 of 7) • BOOL SetSecurityDescriptorOwner ( • PSECURITY_DESCRIPTOR psd, PSID psidOwner • BOOL fOwnerDefaulted) • BOOL SetSecurityDescriptorGroup ( • PSECURITY_DESCRIPTOR psd, PSID psidGroup, • BOOL fGroupDefaulted) • Return: The SID from a security descriptor • Owner or group

  17. SECURITY IDENTIFIERS (7 of 7) • Parameters • psd • Points to the appropriate security descriptor • psidOwner or psidGroup • The address of the owner’s (group’s) SID • fOwnerDefaulted or fGroupDefaulted • Use default information

  18. INITIALIZING ACLs • BOOL InitializeAcl (PACL pAcl, DWORD cbAcl, • DWORD dwAclRevision • Pacl • Address of a programmer-supplied buffer of cbAcl bytes • dwAclRevision • Should be ACL_REVISION

  19. ADDING ACEs (1 of 2) • BOOL AddAccessAllowedAce (PACL pAcl, • DWORD dwAclRevision • DWORD dwAccessMask, PSID pSid) • BOOL AddAccessDeniedAce (PACL pAcl, • DWORD dwAclRevision, • DWORD dwAccessMask, PSID pSid) • pAcl • Points to ACL structure initialized with InitializeAcl

  20. ADDING ACEs (2 of 2) • dwAclRevision • Use ACL_REVISION • pSid • Points to a SID • Might be obtained from LookupAccountName • Access Mask typical values: GENERIC_READ GENERIC_WRITE GENERIC_EXECUTE

  21. ACL WITH SECURITY DESCRIPTOR • BOOL SetSecurityDesciptorDacl ( • PSECURITY_DESCRIPTOR psd, • bool fDaclPresent, • PACL pAcl, BOOL fDaclDefaulted) • fDaclPresent • If TRUE, you have an ACL in the pAcl structure • If FALSE, the function ignores anything already in pAcl • fDaclDefaulted • If FALSE, indicates an ACL generated by the programmer • If TRUE, it was obtained by a default mechanism

  22. SECURITY DESCRIPTOR • BOOL GetFileSecurity (LPCTSTR lpFileName, • SECURITY_INFORMATION secInfo, • PSECURITY_DESCRIPTOR psd, • DWORD cbSd, • LPDWORD lpcbLengthNeeded) • BOOL SetFileSecurity (LPCTSTR lpFileName, • SECURITY_INFORMATION secInfo, • PSECURITY_DESCRIPTOR psd)

  23. SECURITY DESCRIPTOR • secInfo • An enumerated type • Takes on values such as: OWNER_SECURITY_INFORMATION GROUP_SECURITY_INFORMATION DACL_SECURITY_INFORMATION SACL_SECURITY_INFORMATION (which can be combined with the bitwise OR)

  24. SECURITY DESCRIPTOR • To find the GetFileSecurity return buffer size • Call it twice • The first call uses 0 as the cbSd value • After allocating a buffer, call the function a second time • You must have the correct permissions on the file

  25. OBTAIN AN ACL • BOOL GetSecurityDescriptorDacl ( • PSECURITY_DESCRIPTOR psd, • LPBOOL fDaclPresent, • PACL *pAcl, • LPBOOL lpfDaclDefaulted) • The parameters are nearly identical to SetSecurityDescriptorDacl

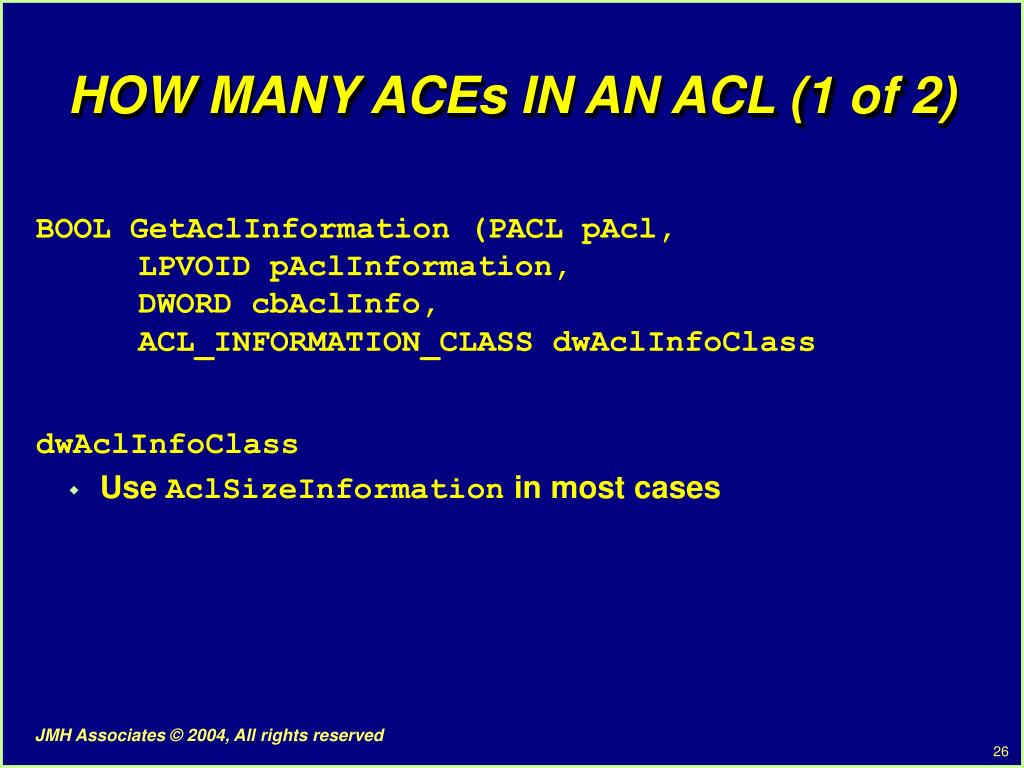

  26. HOW MANY ACEs IN AN ACL (1 of 2) • BOOL GetAclInformation (PACL pAcl, • LPVOID pAclInformation, • DWORD cbAclInfo, • ACL_INFORMATION_CLASS dwAclInfoClass • dwAclInfoClass • Use AclSizeInformation in most cases

  27. HOW MANY ACEs IN AN ACL (2 of 2) • pAclInformation • A structure of type ACL_SIZE_INFORMATION • Has three members: AceCount — How many entries are on the list AclBytesInUse AclBytesFree

  28. OBTAIN ACEs • BOOL GetAce (PACL pAcl, • DWORD dwAceIndex, LPVOID *pAce) • pAce • Points to an Ace structure • Ace structure has a member called “Header” • Header has an AceType member which can be tested for: ACCESS_ALLOWED_ACE ACCESS_DENIED_ACE

  29. SECURITY SUMMARY • Remove ACEs with DeleteAce function • For kernel security descriptors, use: GetKernelObjectSecurity SetKernelObjectSecurity • Associate security descriptors with programmer-generated objects: GetUserObjectSecurity SetUserObjectSecurity • Note difference between absolute and self-relative security descriptors • System administrators can manage system ACLs

  30. LAB D–A (1 of 2) • The functions in InitUnFp.c create and manage a SECURITY_ATTRIBUTES structure • With (Read, Write, and Execute) permissions • For (User, Group, and Other) • Similar to UNIX file permissions • You will need these functions in the two lab exercises

  31. LAB D–A (2 of 2) • 1. Write a program, chmod, to create a new file with specified permissions • Expressed as a 9-bit UNIX-style file permission • 2. Write an enhancement of the ls program, lsFP, to find the existing permissions on a specified file • Assume that the permissions were created with chmod
