Astrophysical applications of gravitational microlensing

1. Astrophysical applications of gravitational microlensing By Shude Mao Ziang Yan Department of Physics ,Tsinghua

2. Introduction: Gravitational Lensing According to GR, when a ray of light passes by a massive object, the gravitational field will deflect the ray just like light refraction. When the source is very close to the line between the observer and the massive object, the “gravitational refraction” make the massive object act like a “lens”. Fig.1

3. Introduction: Phenomenon of GL Fig.2 Cover of Gravitational Lensing:Strong, Weak and Micro

4. Introduction: Phenomenon of GL Fig.3 Einstein Ring (a lensing of a galaxy)

5. Introduction: Phenomenon of GL Fig.4 lensing by several galaxies

6. Introduction:Category of GL • Microlensing by stars(GM) • Multiple-images by galaxies • Giant arcs and large-separation lenses by clusters of galaxies

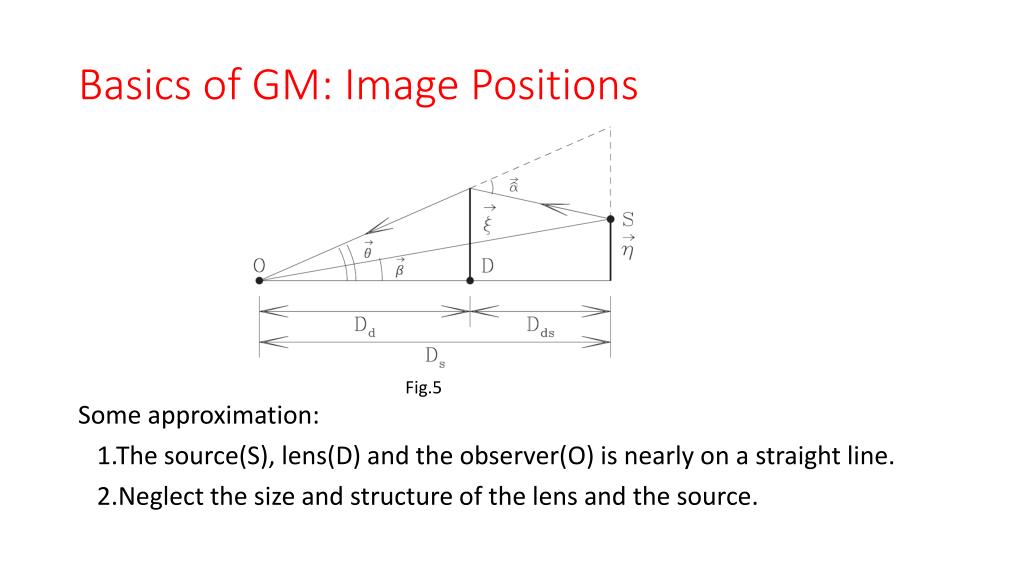

7. Basics of GM: Image Positions Some approximation: 1.The source(S), lens(D) and the observer(O) is nearly on a straight line. 2.Neglect the size and structure of the lens and the source. Fig.5

8. Basics of GM: Image Positions Lens equation: (1) The deflection angle is given by: (2) And the value of the scaled deflection angle is (3) where we have defined the angular Einstein radius as (4) is the Einstein radius. when η=0, is the angle between the image and the object and the image will form the Einstein Ring Fig.5

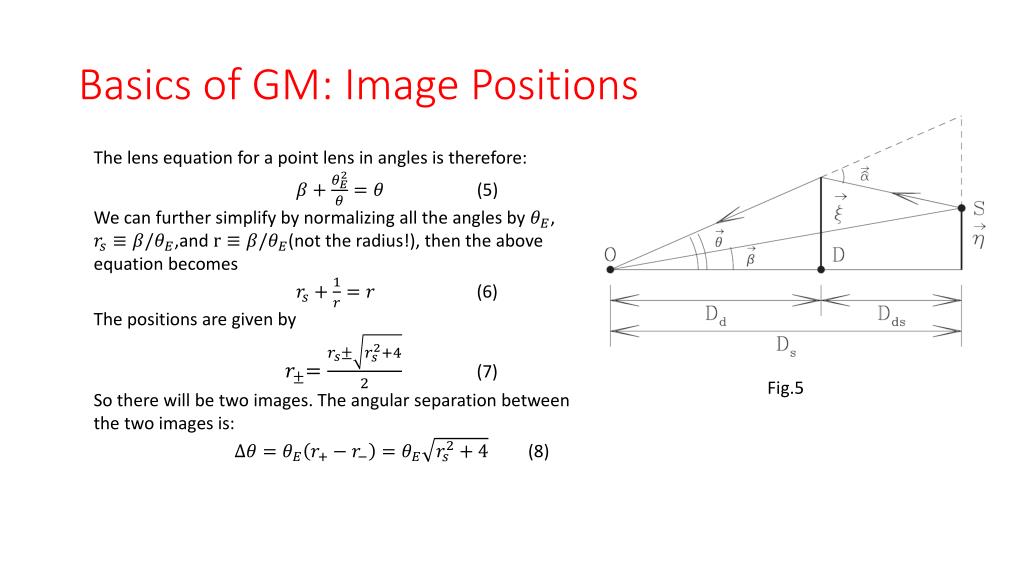

9. Basics of GM: Image Positions The lens equation for a point lens in angles is therefore: (5) We can further simplify by normalizing all the angles by , ,and (not the radius!), then the above equation becomes (6) The positions are given by (7) So there will be two images. The angular separation between the two images is: (8) Fig.5

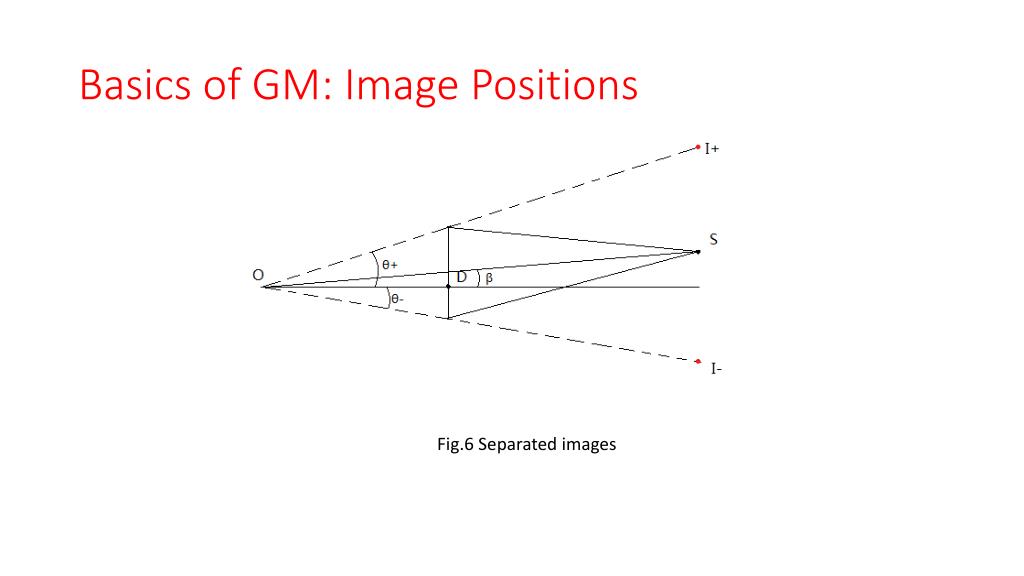

10. Basics of GM: Image Positions Fig.6 Separated images

11. Basics of GM: Magnifications Since gravitational lensing conserves surface brightness, the magnification of an image is simply given by the ratio of the image area and source area. For the source given by Fig.7,the magnifications can be given as: = (9) For two images given in (7),we find: (10) The total magnification is given by (11) Fig.7

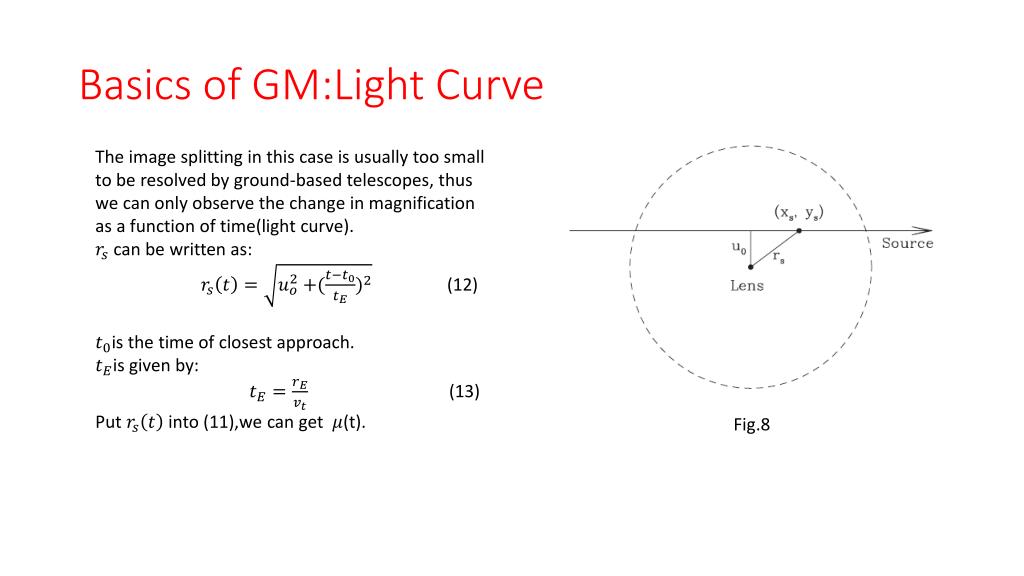

12. Basics of GM:Light Curve The image splitting in this case is usually too small to be resolved by ground-based telescopes, thus we can only observe the change in magnification as a function of time(light curve). can be written as: (12) is the time of closest approach. is given by: (13) Put into (11),we can get (t). Fig.8

13. Basics of GM: Light Curve Fig.8 Light curve of a lensing event

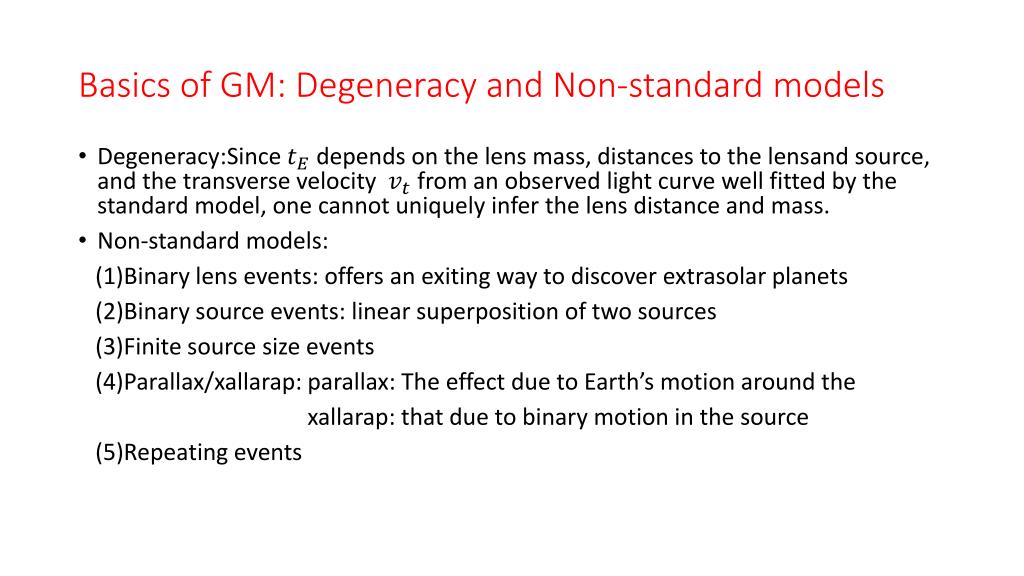

14. Basics of GM: Degeneracy and Non-standard models • Degeneracy:Since depends on the lens mass, distances to the lensandsource, and the transverse velocity from an observed light curve well fitted by the standard model, one cannot uniquely infer the lens distance and mass. • Non-standard models: (1)Binary lens events: offers an exiting way to discover extrasolar planets (2)Binary source events: linear superposition of two sources (3)Finite source size events (4)Parallax/xallarap: parallax: The effect due to Earth’s motion around the xallarap: that due to binary motion in the source (5)Repeating events

15. Basics of GM:N-point Lens GM Write the lens equation in vector form: , (14) is the position(normalized by Einstein radius) of lenses with mass . (14)can be solved use a complex form(see Witt(1990)): = (15) Where z=x+yi In the complex form, the magnification is: , (16) From (15),we have =(17) So (18)

16. Basics of GM: Critical Curves and Caustic When J=0 in (16), the magnification will turn to infinity(in fact because of the finite size of the source and lens the magnification just have a sharp peak). The image position satisfying J=0 forms critical curves, which are mapped into caustics in the source plane.

17. Basics of GM: Critical Curves and Caustic Fig.9 Critical curves and caustic in a binary system

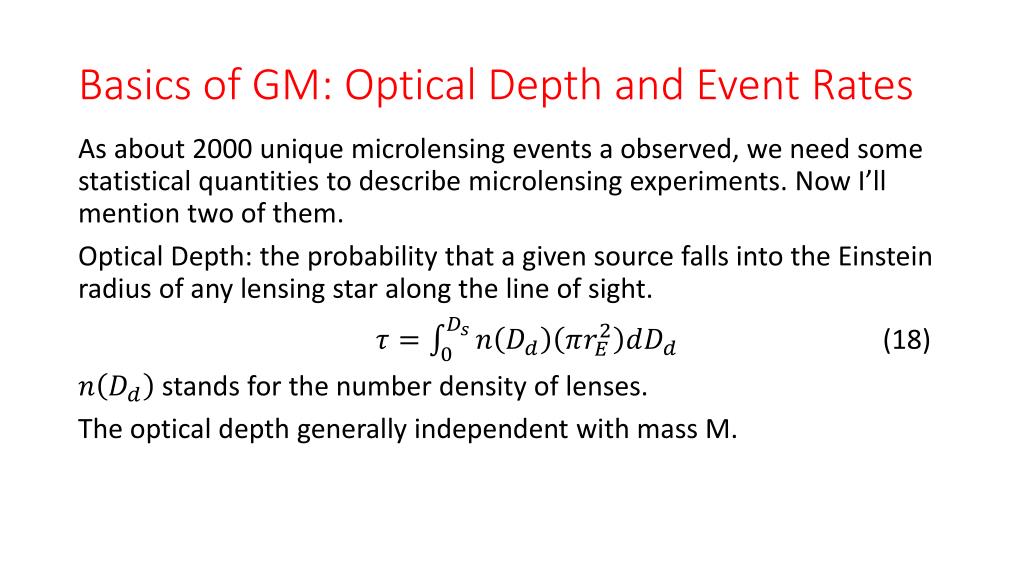

18. Basics of GM: Optical Depth and Event Rates As about 2000 unique microlensing events a observed, we need some statistical quantities to describe microlensing experiments. Now I’ll mention two of them. Optical Depth: the probability that a given source falls into the Einstein radius of any lensing star along the line of sight. (18) stands for the number density of lenses. The optical depth generally independent with mass M.

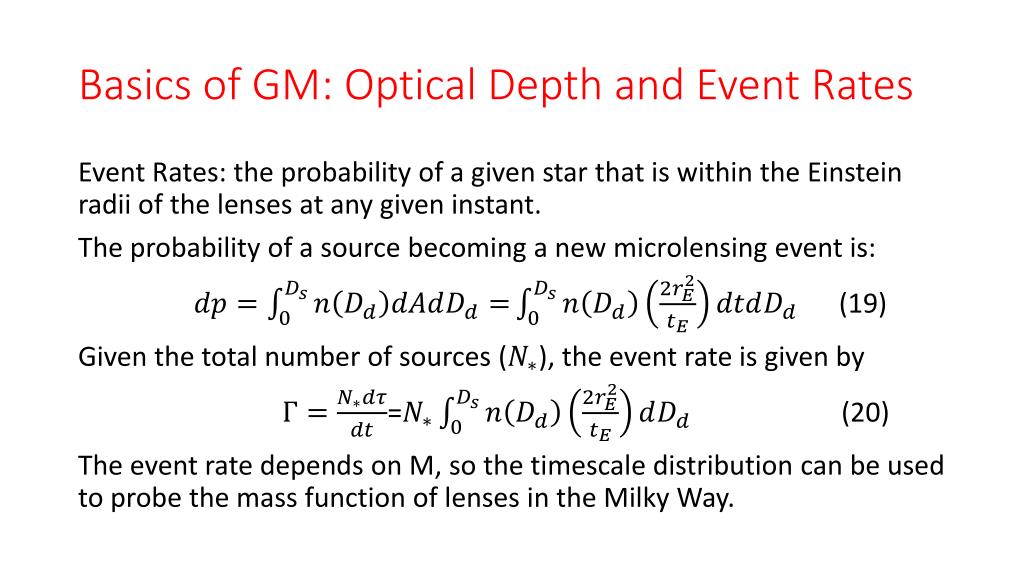

19. Basics of GM: Optical Depth and Event Rates Event Rates: the probability of a given star that is within the Einstein radii of the lenses at any given instant. The probability of a source becoming a new microlensing event is: (19) Given the total number of sources (), the event rate is given by = (20) The event rate depends on M, so the timescale distribution can be used to probe the mass function of lenses in the Milky Way.

20. Applications of GM 1.Detect the main composition in the galactic halo. From the detections of MACHOs by microlensing, it is concluded that only ≤2%of the halo could be MACHOs. While earlier research 20%. 2.Detect the galactic structure. With analyzing the optical depth and event rate. 3.Analyze the stellar atmosphere and bulge formation Microlensing can magnify the signal-to-noise ratio. 4.Detect exoplanets

21. Applications of GM: Detect Exoplanets Fig.10 A super-Earth (≈ 5.5M⊕) discovered by microlensing.

22. Applications of GM: Detecting Exoplanets Fig.11 The first two-planet system discovered by Gaudi et al.

23. Applications of GM: Detecting Exoplanets Fig.12 Extrasolar planets in the plane of mass vs. separation (in units of the snow line, indicated by the vertical dashed green line). The red filled circles with error bars indicate planets found by microlensing. The black triangles and blue squares indicate the planets discovered by radial velocities and transits, respectively. The magenta and green triangles indicate the planets detected via direct imaging and timing, respectively.

24. Future of GM • There are still much problems unsolved in the calculation of GM. e.g. The degenerate in the parallax events; how to distinguish exoplanet system with binary system; the number of critical curves and image numbers in a topological sense. • There are more and more collaborations participate in the detection of GM like OGLE, MOA, SKYMAPPER and so on. Chinese scientists also make their distributions.
