Sybase ToolsTechnology Preview

John Strano – Technology Evangelist

May 2006

Sybase Confidential Propriety.

microsoft s modified release schedule

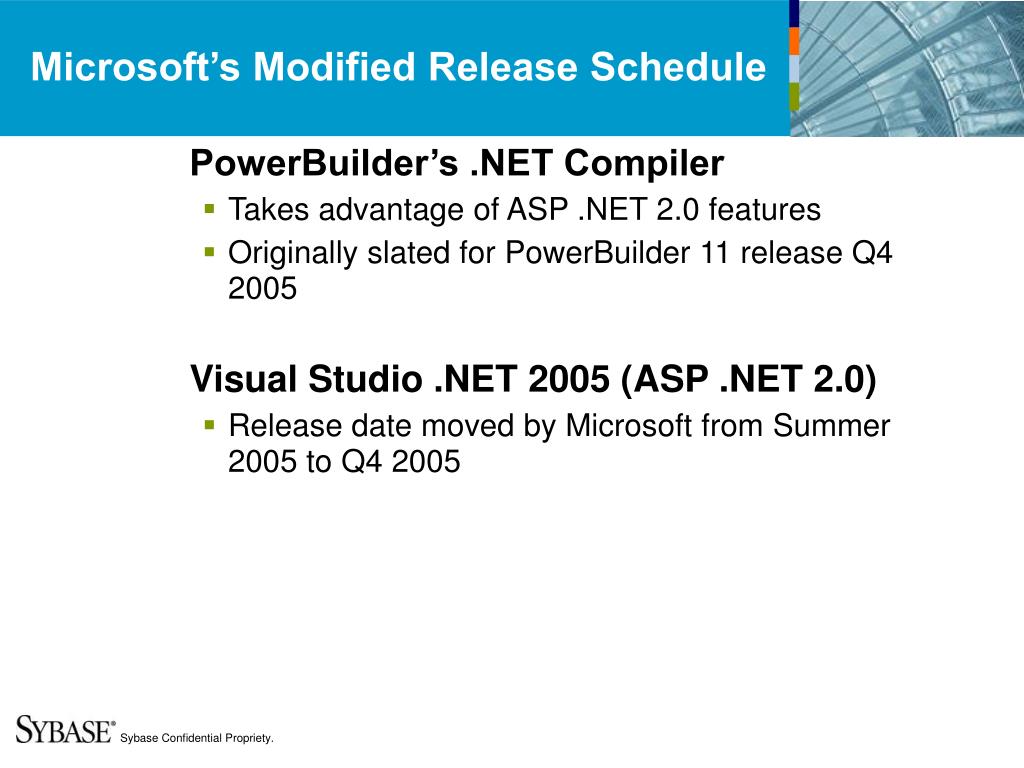

Microsoft’s Modified Release Schedule
  • PowerBuilder’s .NET Compiler
    • Takes advantage of ASP .NET 2.0 features
    • Originally slated for PowerBuilder 11 release Q4 2005
  • Visual Studio .NET 2005 (ASP .NET 2.0)
    • Release date moved by Microsoft from Summer 2005 to Q4 2005
powerbuilder 10 5 enhancements
PowerBuilder 10.5 Enhancements
  • Decimal data type upgrade
    • Provide support for 30 digits versus current 18
    • Position for support of .NET which handles 28 digits
    • DataWindow expression support
      • Currently all numerics converted to double before calculations
      • Add Decimal() DataWindow function for conversion
    • Implementation will replace current 3rd party implementation but should be completely transparent to user
  • Byte data type
powerbuilder 10 5 enhancements5
PowerBuilder 10.5 Enhancements
  • DateTime Picker
    • Wrapper for Microsoft Common Control
    • New control and/or enhancement to EditMask
    • New DataWindow edit mask style
powerbuilder 10 5 enhancements6
PowerBuilder 10.5 Enhancements

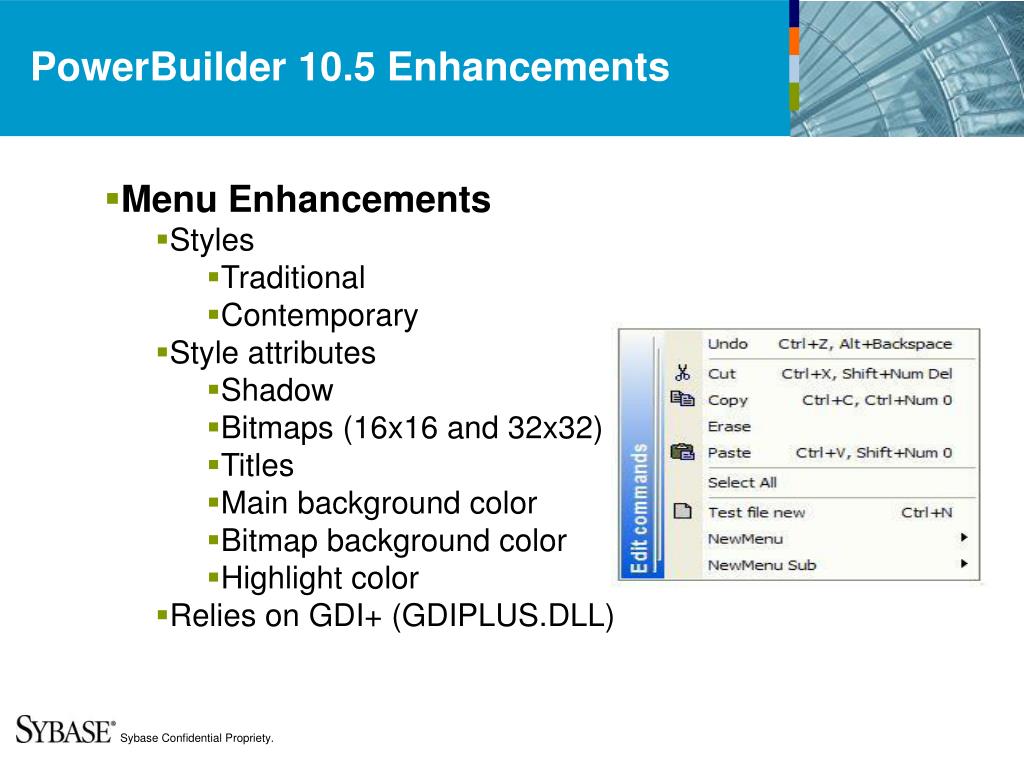

  • Menu Enhancements
    • Styles
      • Traditional
      • Contemporary
    • Style attributes
      • Shadow
      • Bitmaps (16x16 and 32x32)
      • Titles
      • Main background color
      • Bitmap background color
      • Highlight color
    • Relies on GDI+ (GDIPLUS.DLL)
powerbuilder 10 5 enhancements7
PowerBuilder 10.5 Enhancements

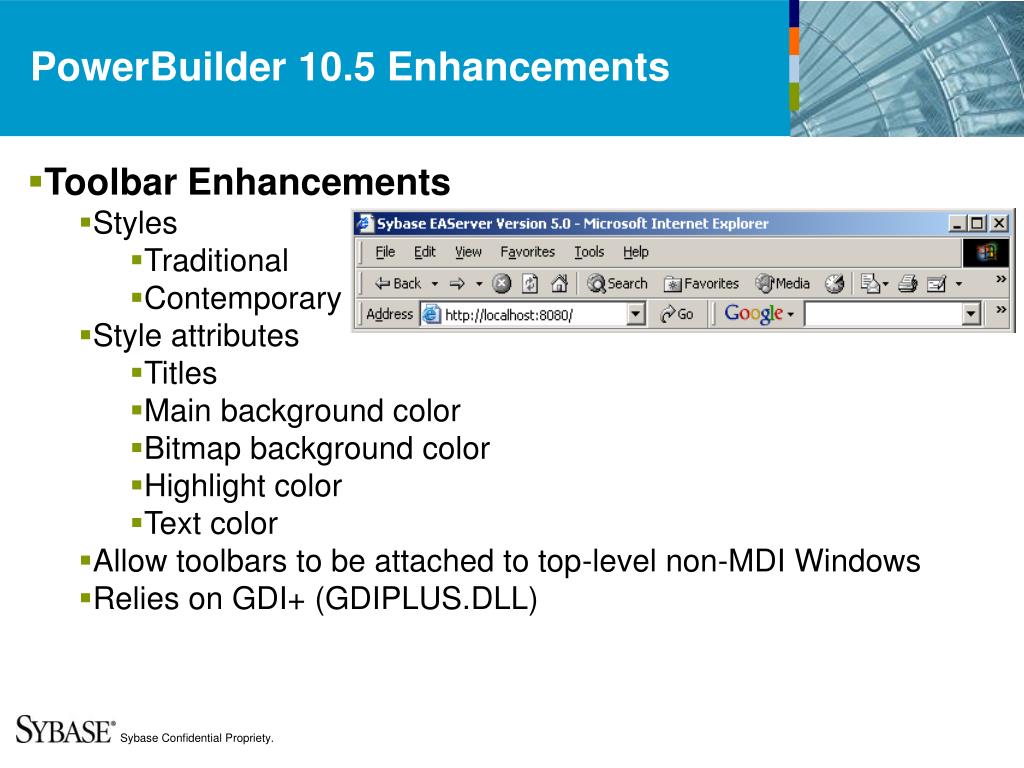

  • Toolbar Enhancements
    • Styles
      • Traditional
      • Contemporary
    • Style attributes
      • Titles
      • Main background color
      • Bitmap background color
      • Highlight color
      • Text color
    • Allow toolbars to be attached to top-level non-MDI Windows
    • Relies on GDI+ (GDIPLUS.DLL)
powerbuilder 10 5 enhancements8
PowerBuilder 10.5 Enhancements
  • New Rich Text Edit control
    • PB10 investigation of Microsoft control found it lacking in features necessary to support DataWindow
    • TX Text Control
      • http://www.textcontrol.com/
      • Minimal (if any) loss of current functionality
      • New functionality including saving as Microsoft Word DOC format
powerbuilder 10 5 enhancements9

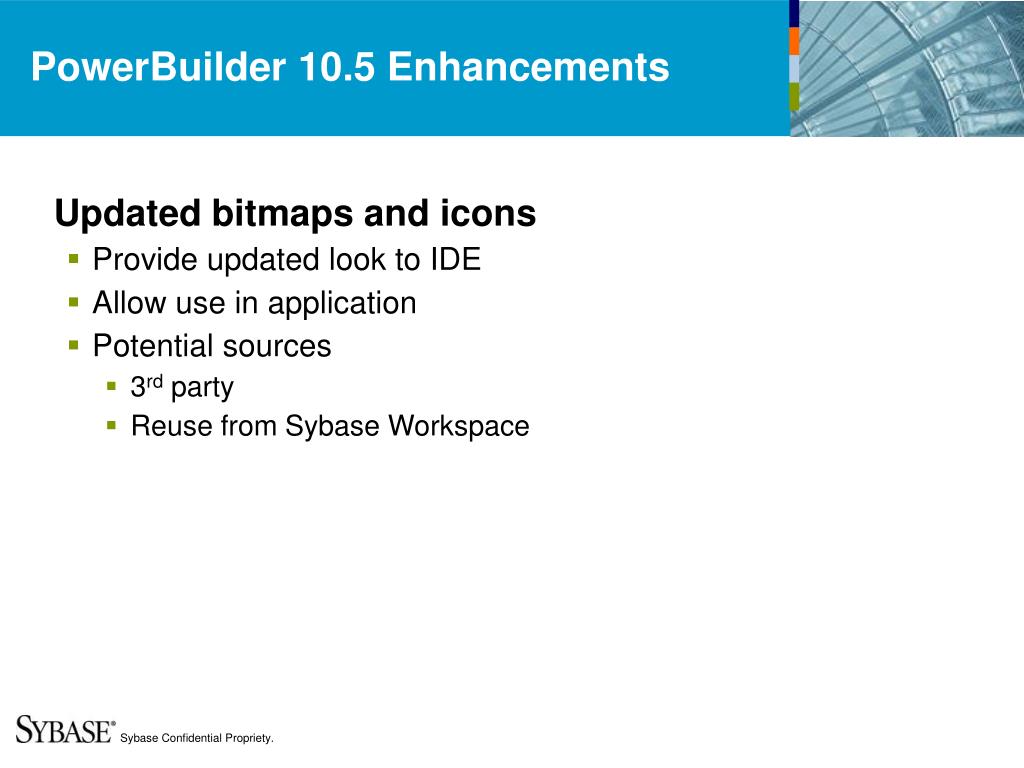

PowerBuilder 10.5 Enhancements
  • Updated bitmaps and icons
    • Provide updated look to IDE
    • Allow use in application
    • Potential sources
      • 3rd party
      • Reuse from Sybase Workspace
powerbuilder 10 5 enhancements10
PowerBuilder 10.5 Enhancements

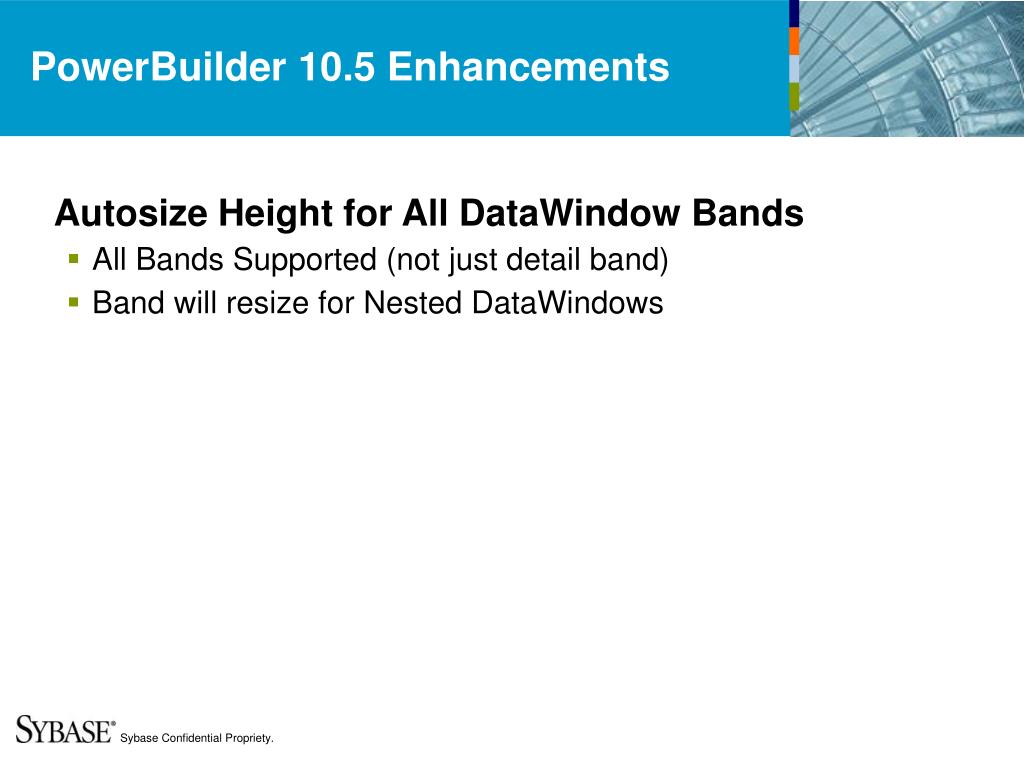

  • Autosize Height for All DataWindow Bands
    • All Bands Supported (not just detail band)
    • Band will resize for Nested DataWindows
powerbuilder 10 5 enhancements11
PowerBuilder 10.5 Enhancements
  • Treeview Presentation Style
    • Designed similar to group DataWindow
    • Property support
      • Node lines
      • Icons
      • Grid style
      • Indention size
    • Event support
      • Expanding / Expanded
      • Collapsing / Collapsed
    • Function support
      • Expand (multiple variations)
      • Collapse (multiple variations)
powerbuilder 10 5 enhancements treeview presentation style properties

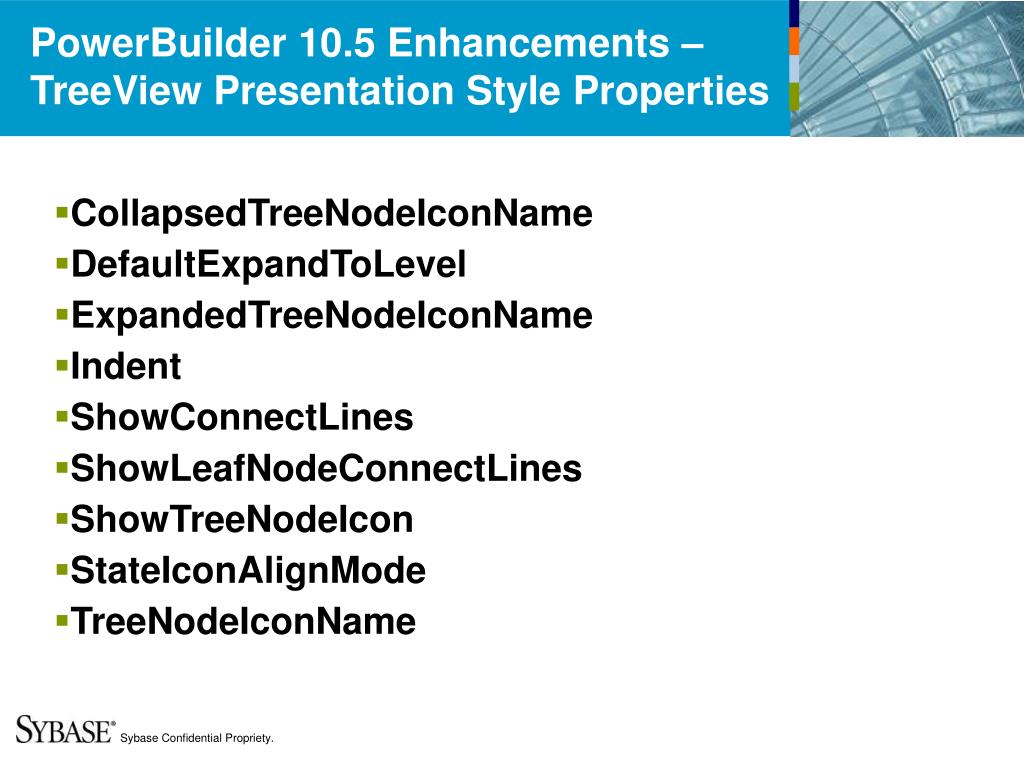

PowerBuilder 10.5 Enhancements – TreeView Presentation Style Properties
  • CollapsedTreeNodeIconName
  • DefaultExpandToLevel
  • ExpandedTreeNodeIconName
  • Indent
  • ShowConnectLines
  • ShowLeafNodeConnectLines
  • ShowTreeNodeIcon
  • StateIconAlignMode
  • TreeNodeIconName
powerbuilder 10 5 enhancements treeview presentation style functions

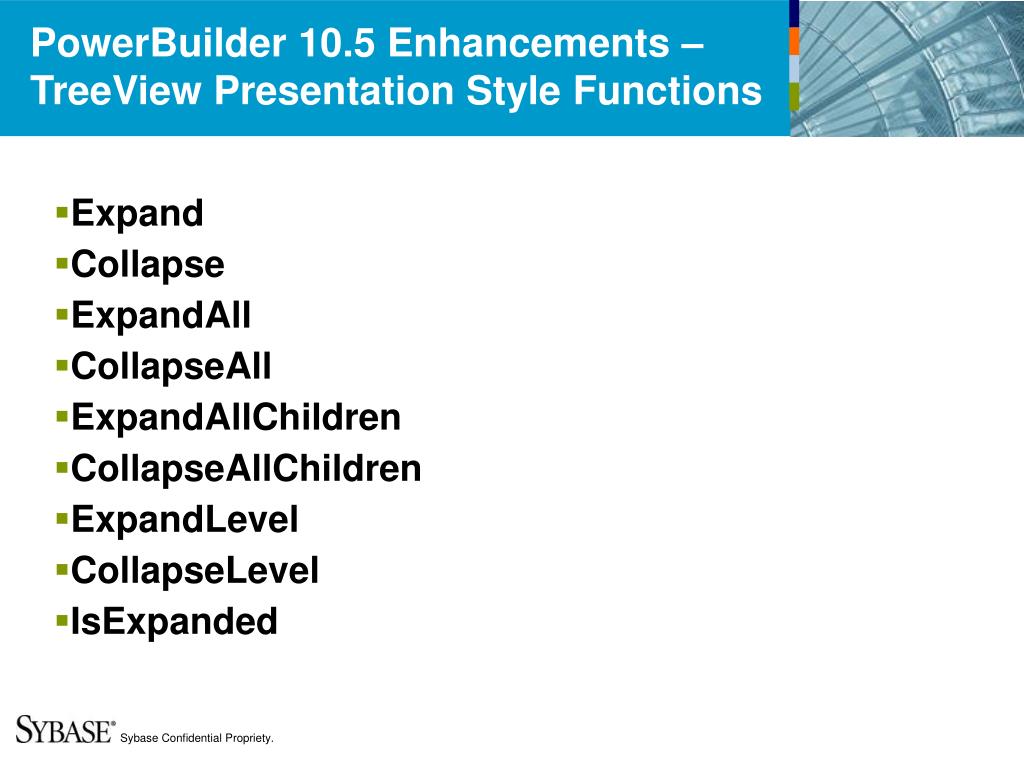

PowerBuilder 10.5 Enhancements – TreeView Presentation Style Functions
  • Expand
  • Collapse
  • ExpandAll
  • CollapseAll
  • ExpandAllChildren
  • CollapseAllChildren
  • ExpandLevel
  • CollapseLevel
  • IsExpanded
powerbuilder 10 5 enhancements14
PowerBuilder 10.5 Enhancements

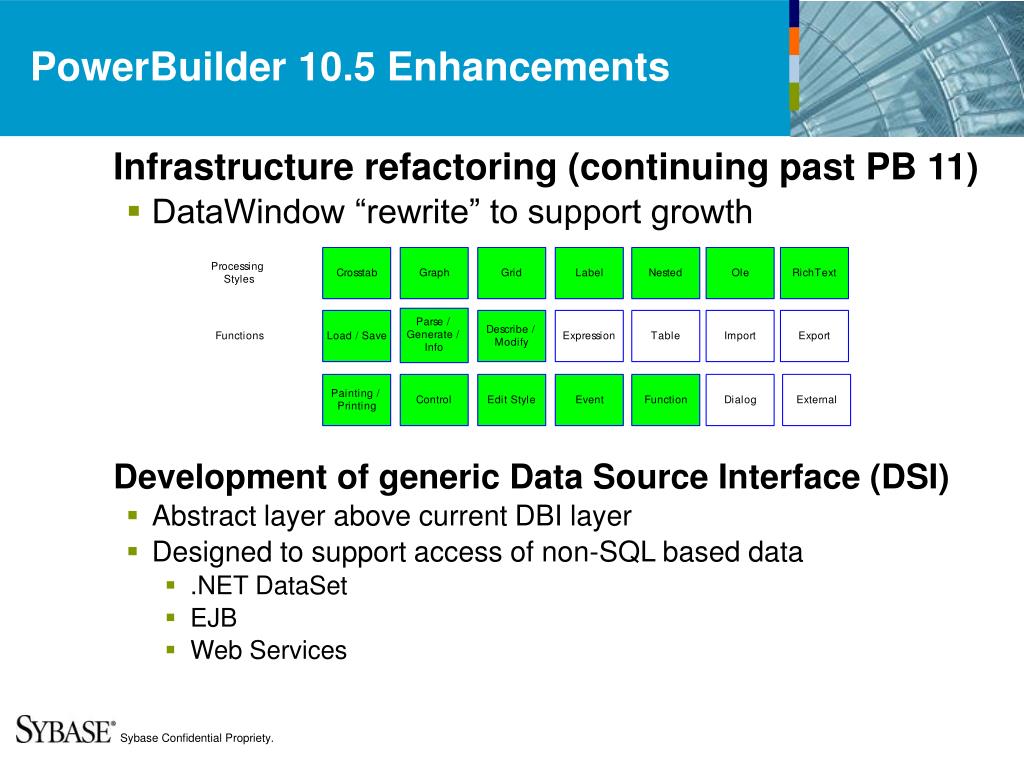

  • Infrastructure refactoring (continuing past PB 11)
    • DataWindow “rewrite” to support growth
  • Development of generic Data Source Interface (DSI)
    • Abstract layer above current DBI layer
    • Designed to support access of non-SQL based data
      • .NET DataSet
      • EJB
      • Web Services
powerbuilder 10 5 enhancements database enhancements

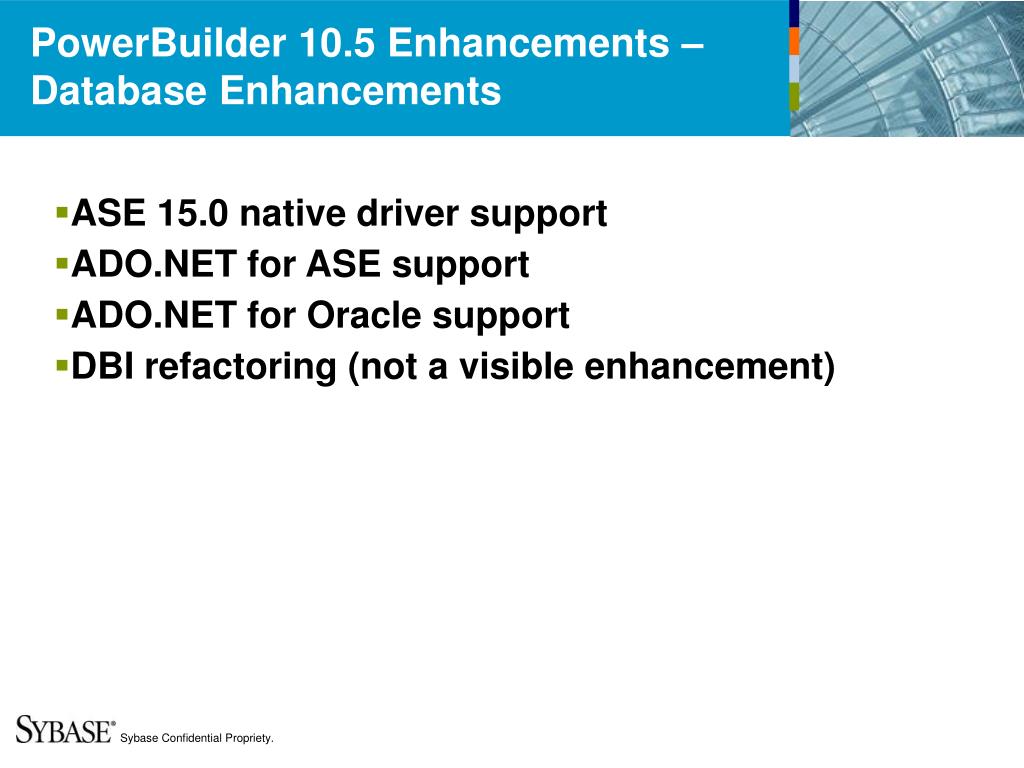

PowerBuilder 10.5 Enhancements – Database Enhancements
  • ASE 15.0 native driver support
  • ADO.NET for ASE support
  • ADO.NET for Oracle support
  • DBI refactoring (not a visible enhancement)
powerbuilder 10 5 enhancements web services enhancements

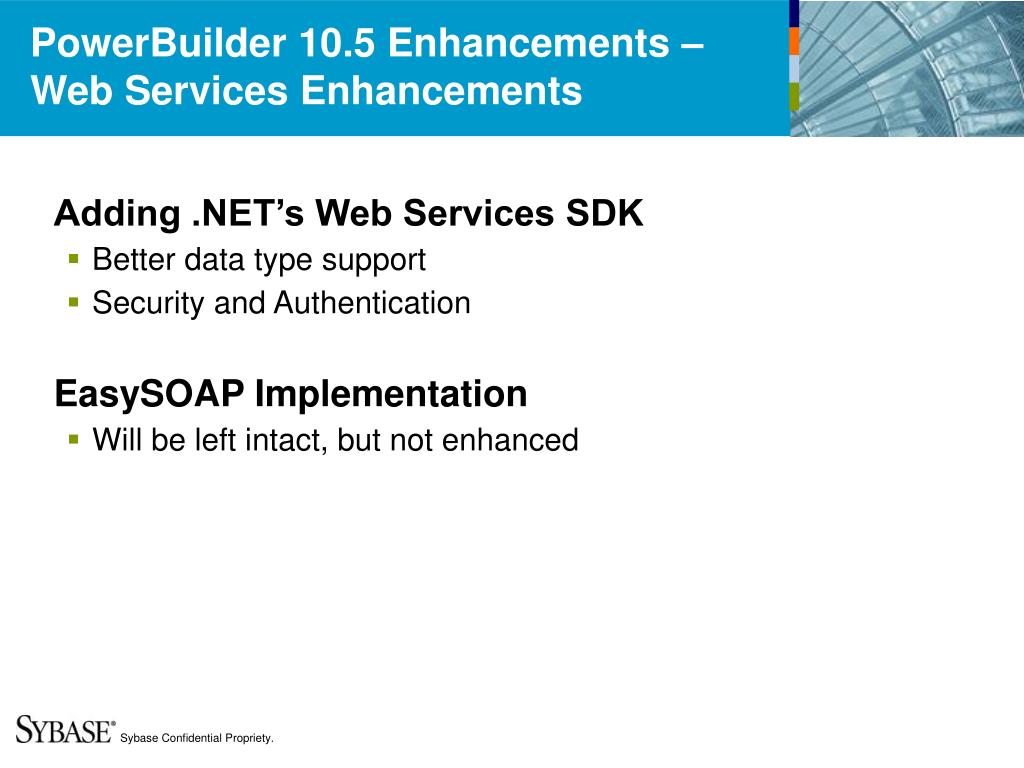

PowerBuilder 10.5 Enhancements – Web Services Enhancements
  • Adding .NET’s Web Services SDK
    • Better data type support
    • Security and Authentication
  • EasySOAP Implementation
    • Will be left intact, but not enhanced
demonstration

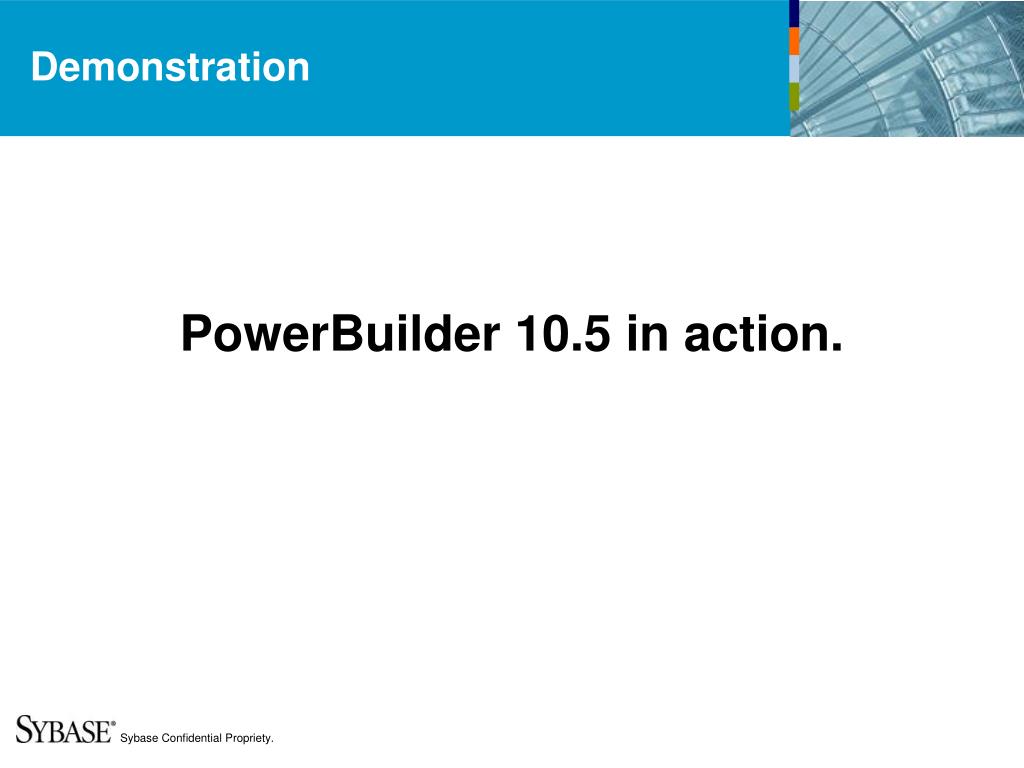

Demonstration
  • PowerBuilder 10.5 in action.
agenda

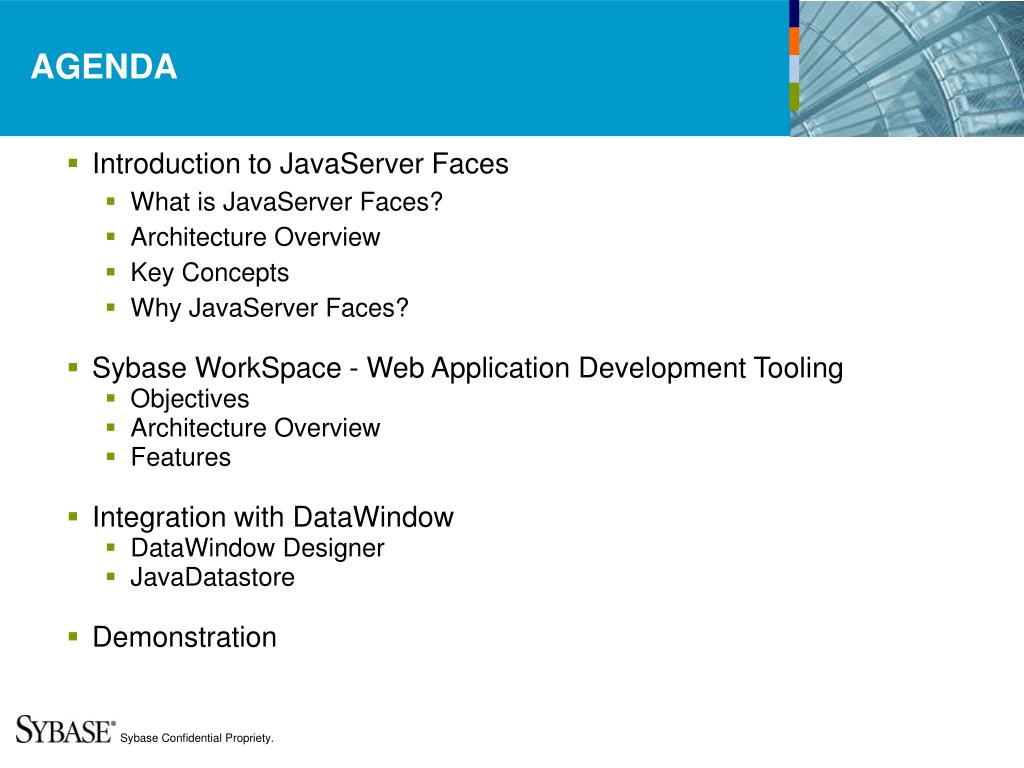

AGENDA
  • Introduction to JavaServer Faces
    • What is JavaServer Faces?
    • Architecture Overview
    • Key Concepts
    • Why JavaServer Faces?
  • Sybase WorkSpace - Web Application Development Tooling
    • Objectives
    • Architecture Overview
    • Features
  • Integration with DataWindow
    • DataWindow Designer
    • JavaDatastore
  • Demonstration
background

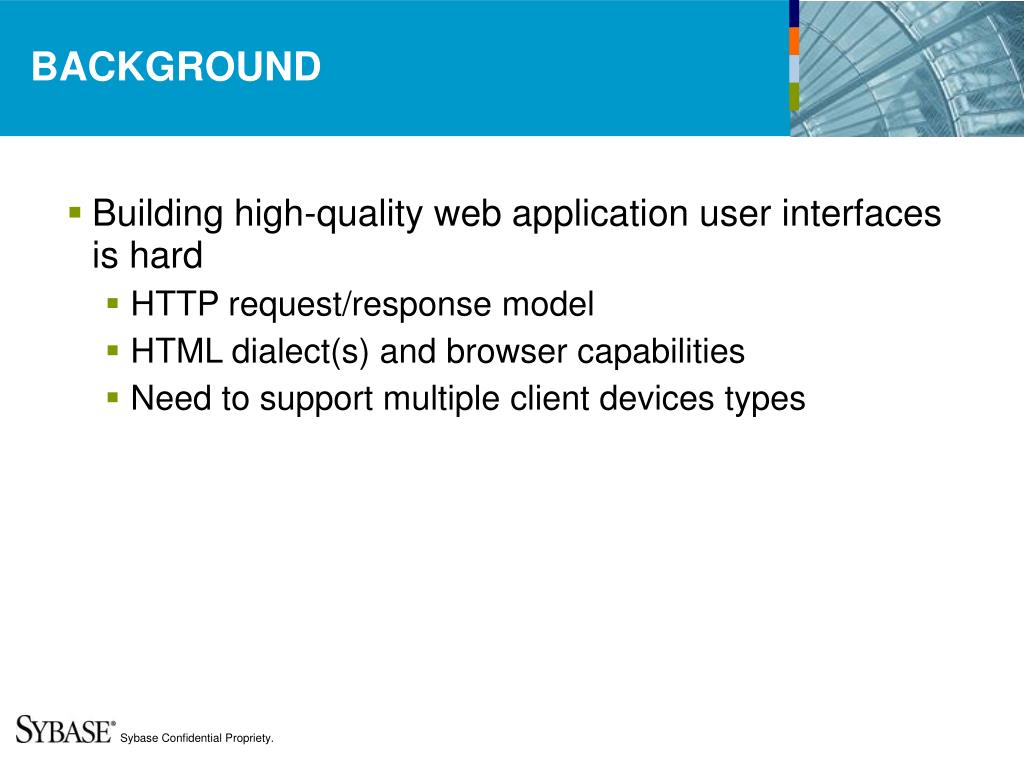

BACKGROUND
  • Building high-quality web application user interfaces is hard
    • HTTP request/response model
    • HTML dialect(s) and browser capabilities
    • Need to support multiple client devices types
what is java server faces
WHAT IS JAVA SERVER FACES?
  • JavaServer Faces (JSF) is a component userinterface(UI) framework for Java web applications.
  • It is designed to significantly ease the burden of writing and maintaining applications that run on a application server and render their User Interfaces back to a target client.
why jsf

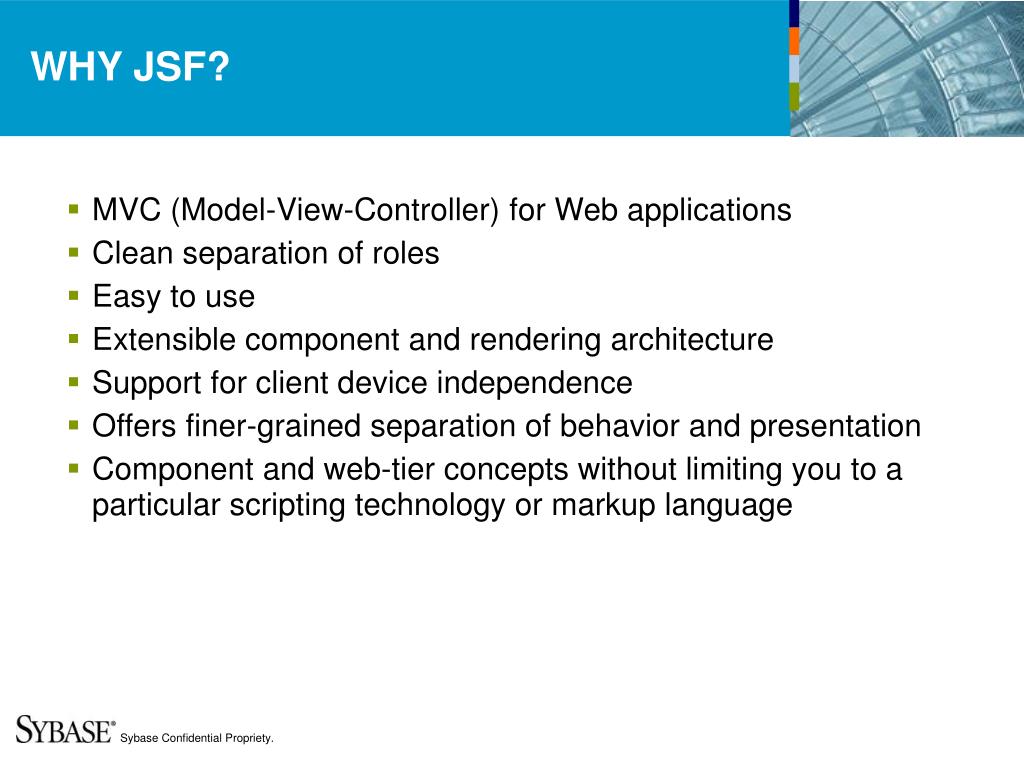

WHY JSF?
  • MVC (Model-View-Controller) for Web applications
  • Clean separation of roles
  • Easy to use
  • Extensible component and rendering architecture
  • Support for client device independence
  • Offers finer-grained separation of behavior and presentation
  • Component and web-tier concepts without limiting you to a particular scripting technology or markup language
component model

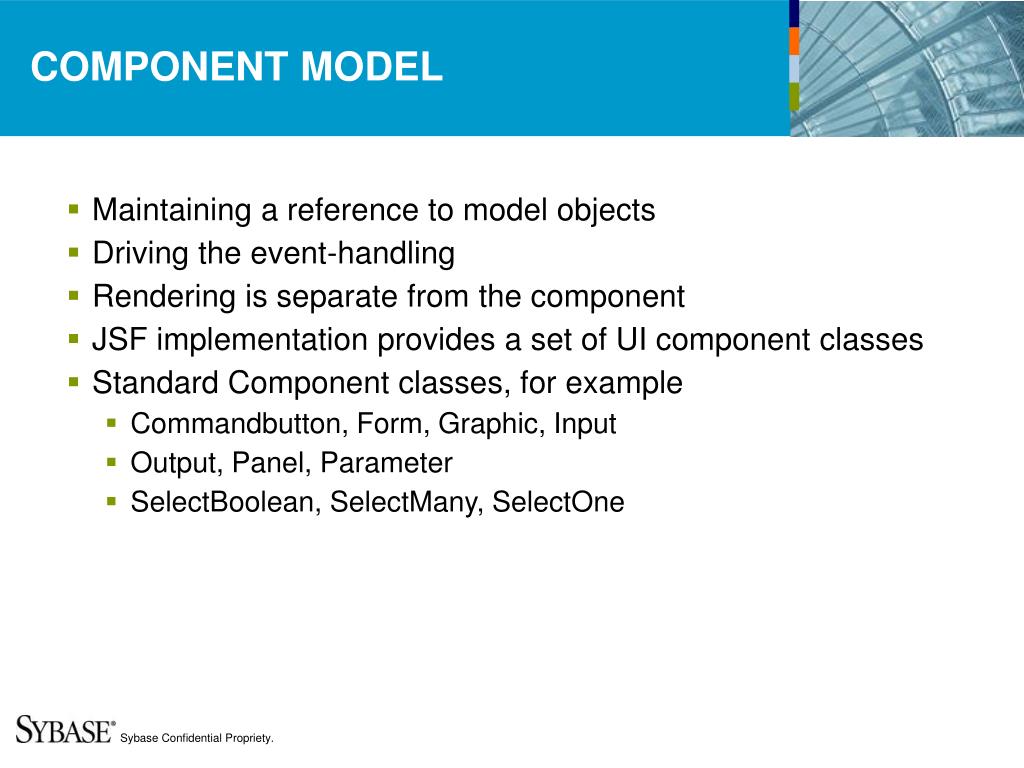

COMPONENT MODEL
  • Maintaining a reference to model objects
  • Driving the event-handling
  • Rendering is separate from the component
  • JSF implementation provides a set of UI component classes
  • Standard Component classes, for example
    • Commandbutton, Form, Graphic, Input
    • Output, Panel, Parameter
    • SelectBoolean, SelectMany, SelectOne
rendering model
RENDERING MODEL
  • Renderers – Adapt components to a specific markup language
    • Encoding – Create markup to represent value
    • Decoding – Retrieve request parameters and create new value
  • RenderKits – Library of Renders
    • Extensible at runtime
    • For JSP pages, represented as a custom tag library
    • Basic HTML RenderKit part of the standard

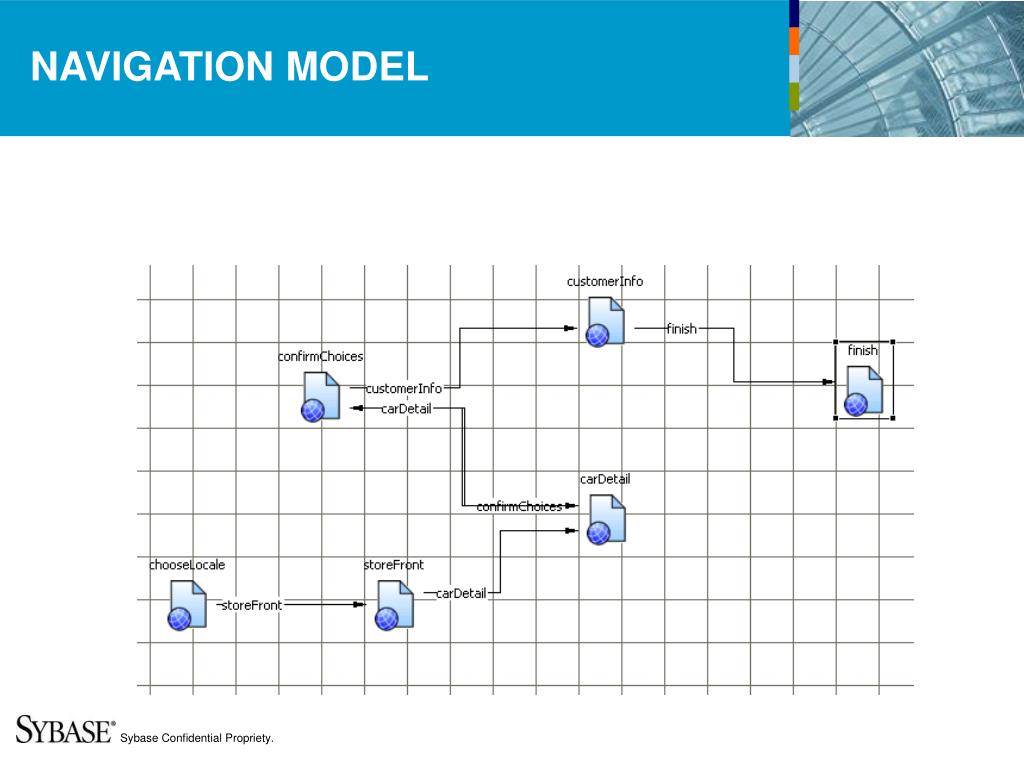

slide28
Sybase WorkSpace
  • Web Application Development
objective

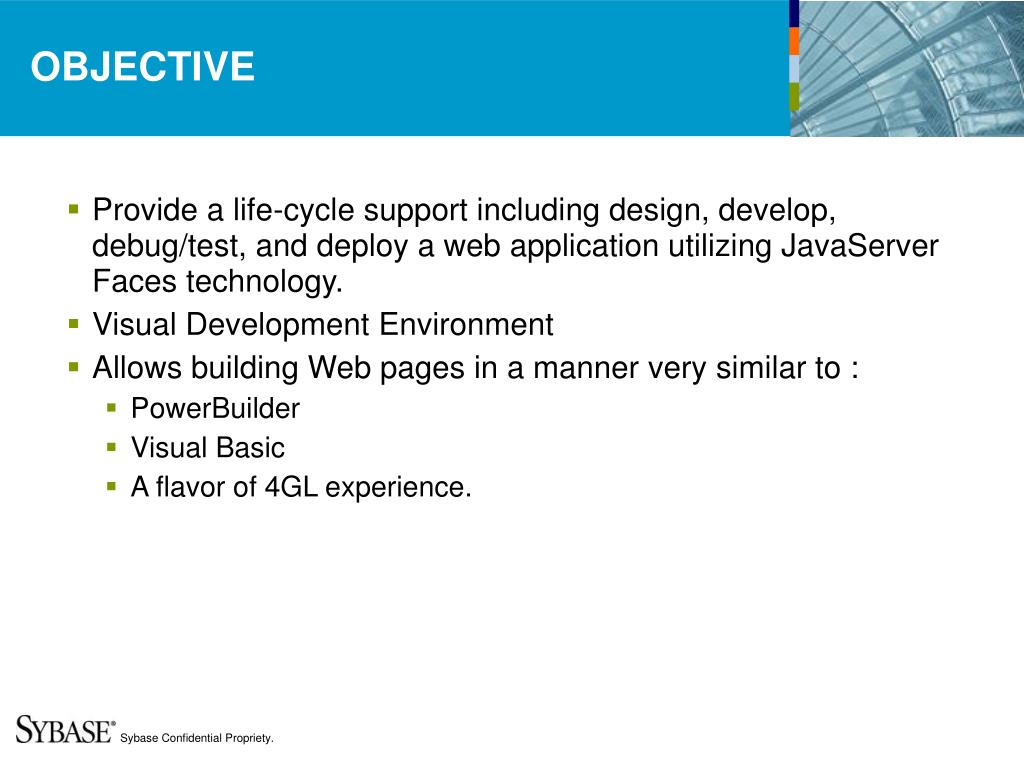

OBJECTIVE
  • Provide a life-cycle support including design, develop, debug/test, and deploy a web application utilizing JavaServer Faces technology.
  • Visual Development Environment
  • Allows building Web pages in a manner very similar to :
    • PowerBuilder
    • Visual Basic
    • A flavor of 4GL experience.
objective30
OBJECTIVE
  • Provides a component model
  • Allows users to think about components, events and scripting instead of the detail of HTTP request / response
  • Leverages standards JavaServerFaces runtime
  • Uses Java DataStore to make data access easy
  • Reuse existing Datawindows in your Web applications
  • Make service and EJB invocation in the Web application easy
architecture

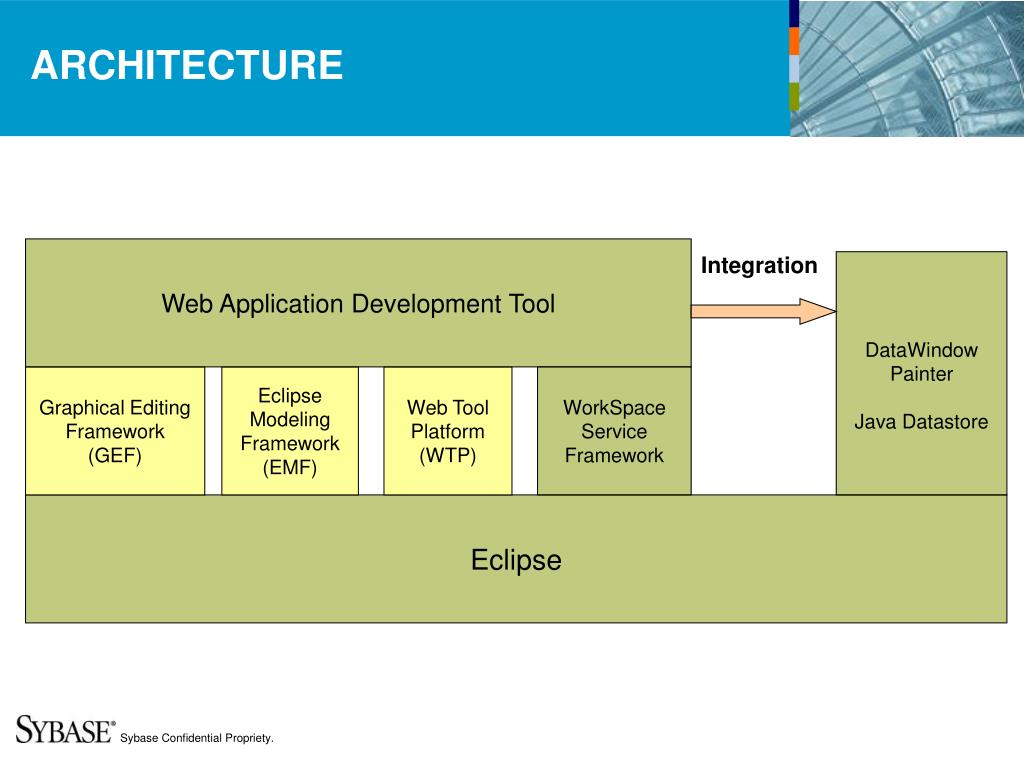

ARCHITECTURE

Web Application Development Tool

Integration

DataWindow Painter

Java Datastore

Graphical Editing Framework

(GEF)

Eclipse Modeling Framework

(EMF)

Web Tool Platform

(WTP)

WorkSpace Service Framework

Eclipse

components of the wad ide
COMPONENTS of the WAD IDE
  • Web Application Development Perspective
  • Creation wizards (application, page and resources)
  • Web Page Designer (graphical editor)
  • Tab-based Properties View
  • Databinding View
  • Resource Bundle Editor (tabular-based editor)
  • Faces-config Editor (graphical editor…navigation rules)
  • Web.xml Editor (form-based editor…
    • Deployment to runtime container
  • DataWindow Designer
  • DataWindow Library Importer
web application development perspective

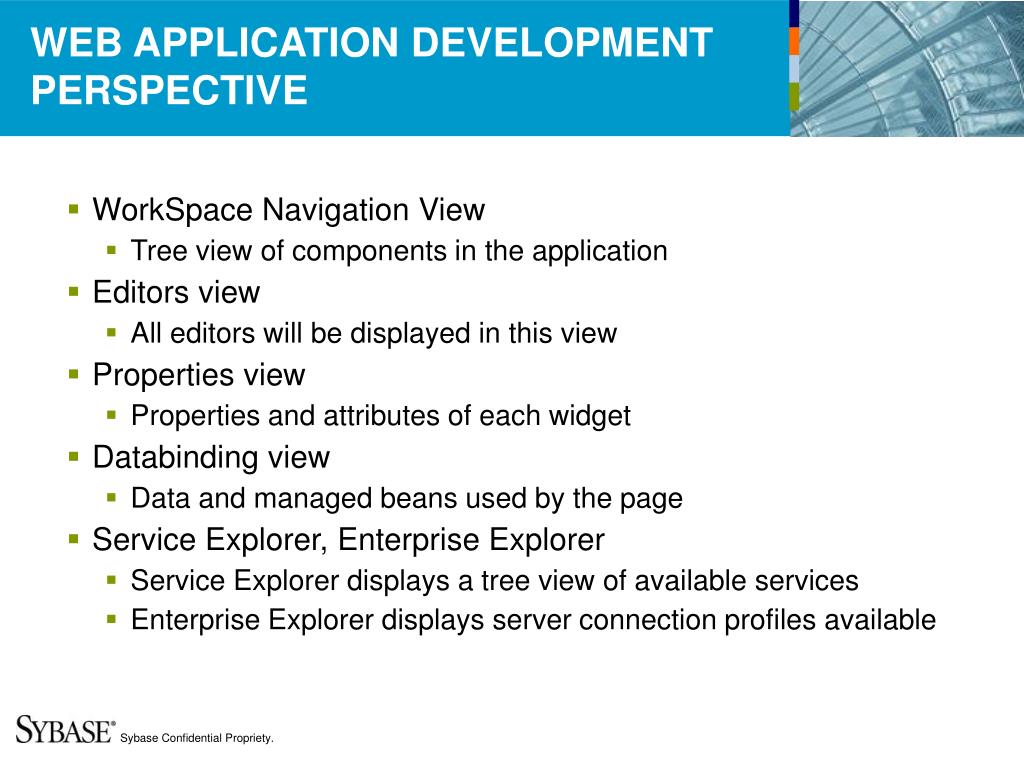

WEB APPLICATION DEVELOPMENT PERSPECTIVE
  • WorkSpace Navigation View
    • Tree view of components in the application
  • Editors view
    • All editors will be displayed in this view
  • Properties view
    • Properties and attributes of each widget
  • Databinding view
    • Data and managed beans used by the page
  • Service Explorer, Enterprise Explorer
    • Service Explorer displays a tree view of available services
    • Enterprise Explorer displays server connection profiles available
feature set in the interest of time just one sample

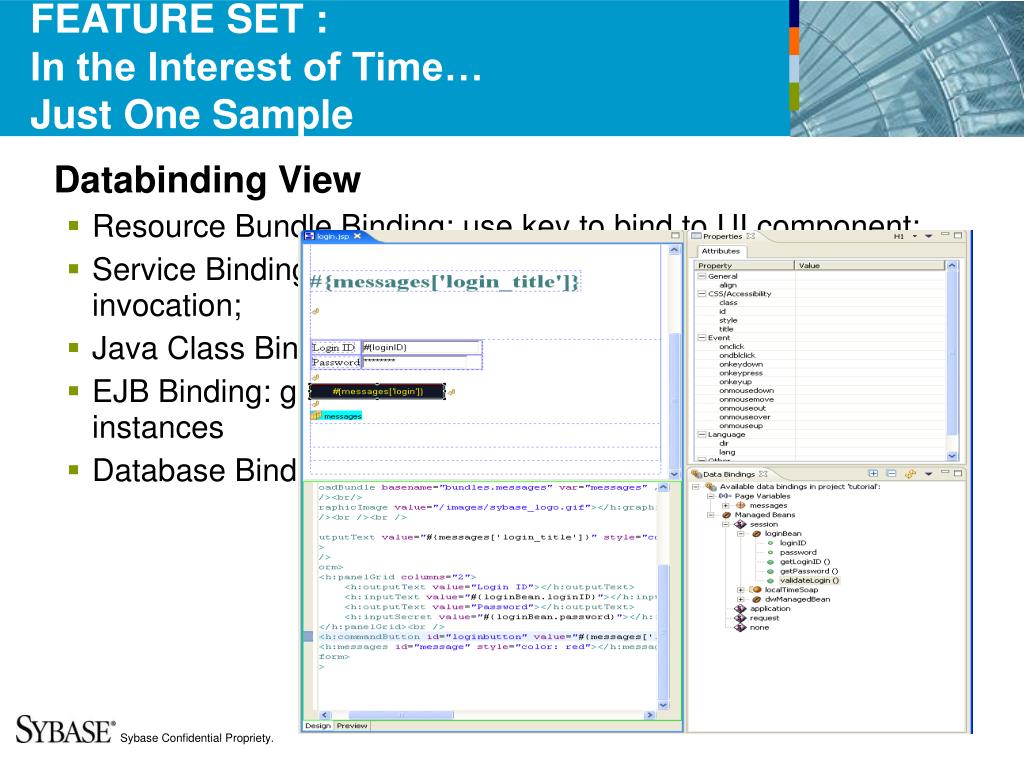

FEATURE SET :In the Interest of Time…Just One Sample
  • Databinding View
    • Resource Bundle Binding: use key to bind to UI component;
    • Service Binding: generate managed bean to wrap service invocation;
    • Java Class Binding: generate managed bean with getter/setter
    • EJB Binding: generate bean to lookup ejbs and create bean instances
    • Database Binding: support JSF DataWindow, or hibernate
slide35
Building JSF

Web App Demo

datawindow and the jsf technology
DATAWINDOW AND THE JSF TECHNOLOGY
  • Java DataStore.
    • A pure java package which provides the DataWindow functionality to the Java world.
  • JSF DataWindow Component.
    • A custom UI component written to fit the JSF model.
  • DataWindow Java Bean.
    • A Java Bean non-UI component written to fit the JSF model.
  • JSF DataWindow tag library
    • A tld file containing the attributes of the DataWindow for a JSP page.
datawindow and the jsf technology38
DATAWINDOW AND THE JSF TECHNOLOGY

DataWindow JSF tag library

DataWindow JSF Component

Java Datastore

JSF Web Application

DataWindow Bean

Faces-Config.xml

java datastore interface

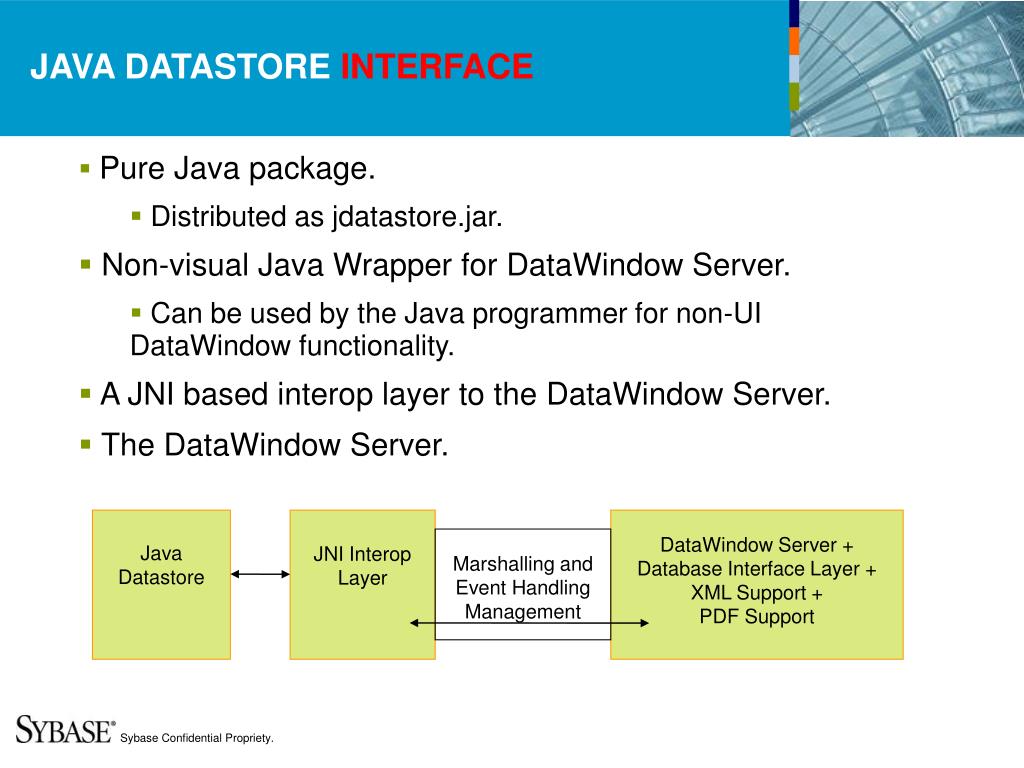

JAVA DATASTORE INTERFACE
  • Pure Java package.
    • Distributed as jdatastore.jar.
  • Non-visual Java Wrapper for DataWindow Server.
    • Can be used by the Java programmer for non-UI DataWindow functionality.
  • A JNI based interop layer to the DataWindow Server.
  • The DataWindow Server.

Java Datastore

JNI Interop Layer

DataWindow Server +

Database Interface Layer +

XML Support +

PDF Support

Marshalling and Event Handling

Management

java datastore

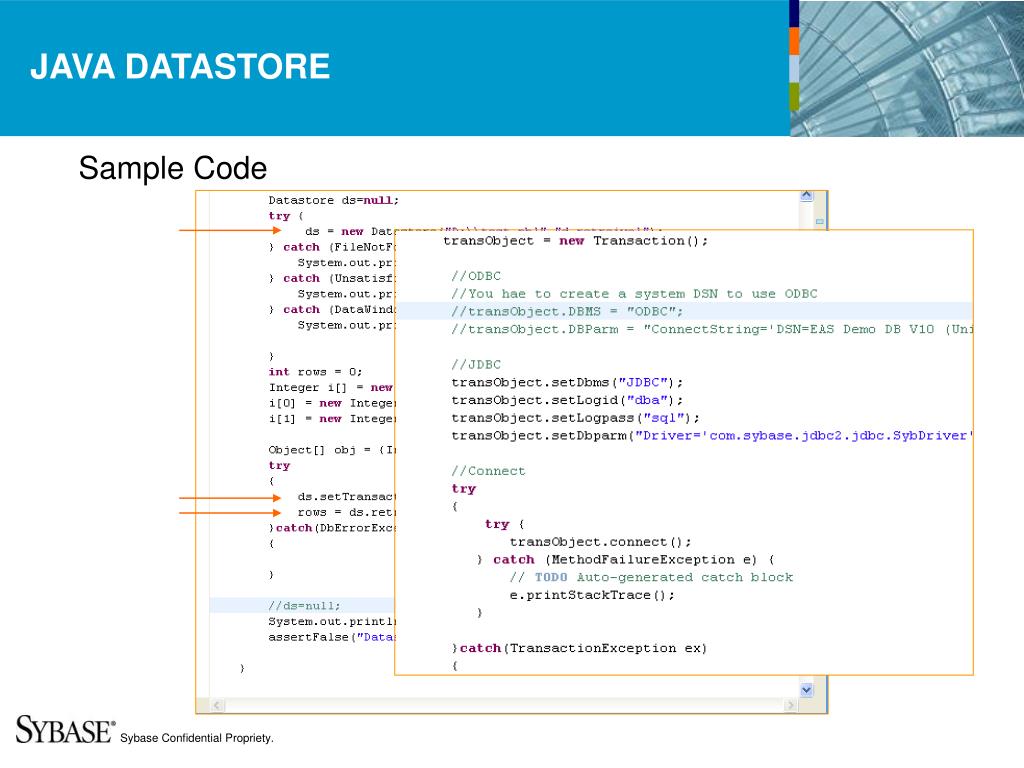

JAVA DATASTORE

Sample Code

jsf datawindow in design time

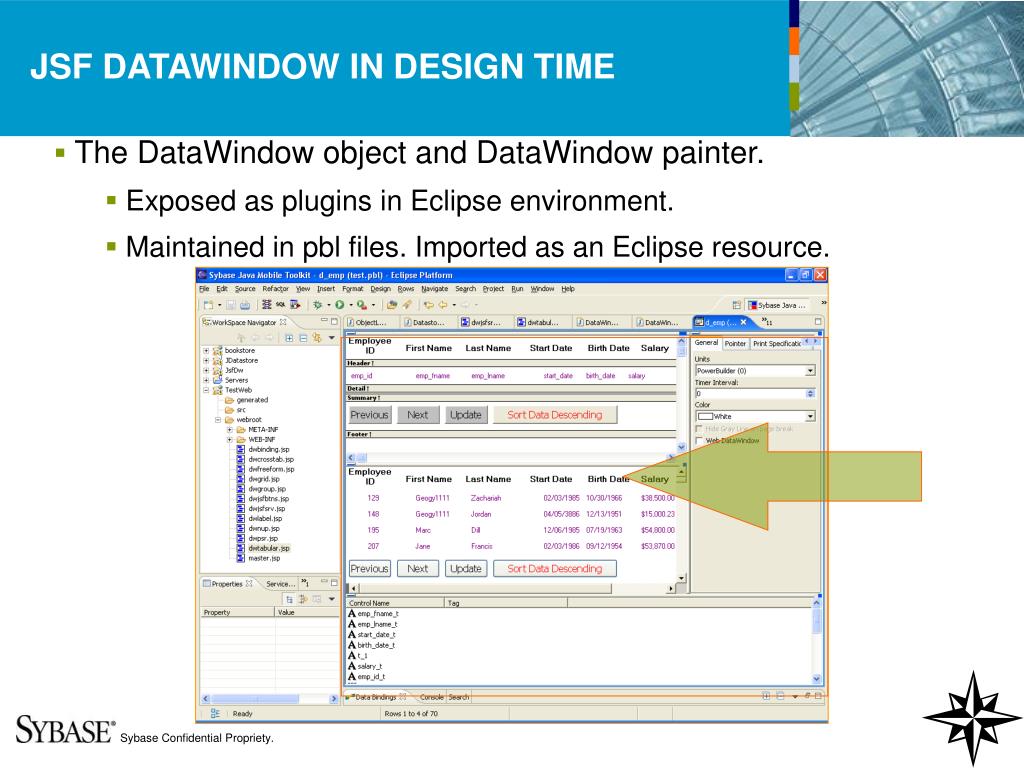

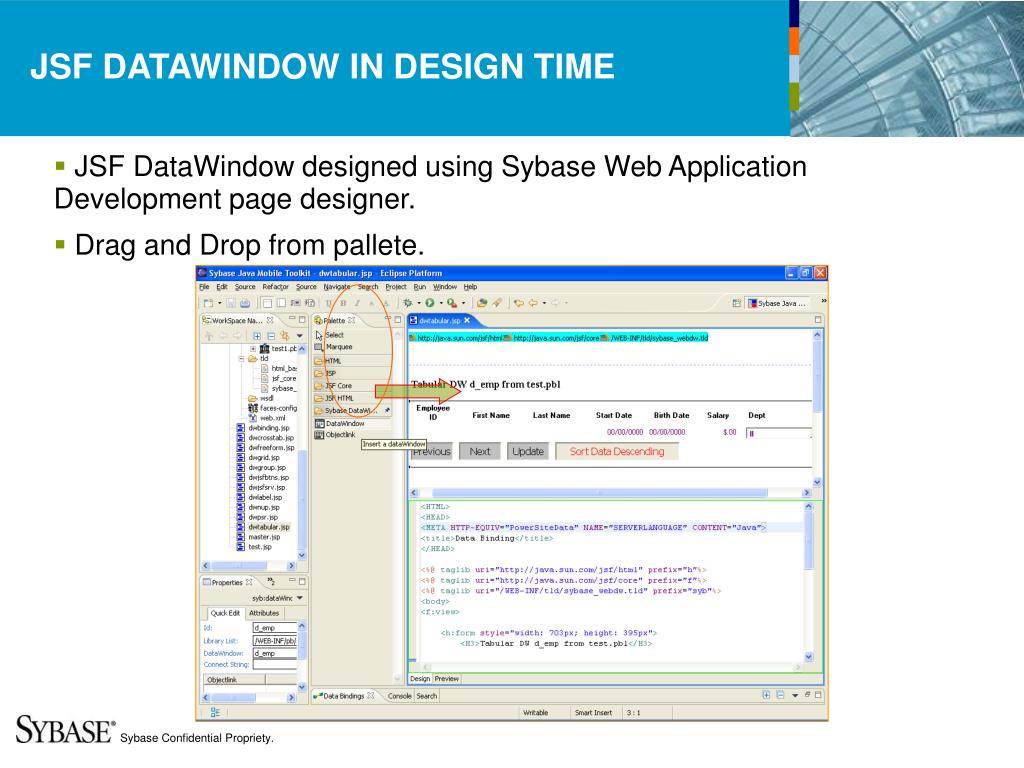

JSF DATAWINDOW IN DESIGN TIME
  • The DataWindow object and DataWindow painter.
    • Exposed as plugins in Eclipse environment.
    • Maintained in pbl files. Imported as an Eclipse resource.
jsf datawindow in design time42
JSF DATAWINDOW IN DESIGN TIME
  • JSF DataWindow designed using Sybase Web Application Development page designer.
  • Drag and Drop from pallete.
jsf datawindow in design time43

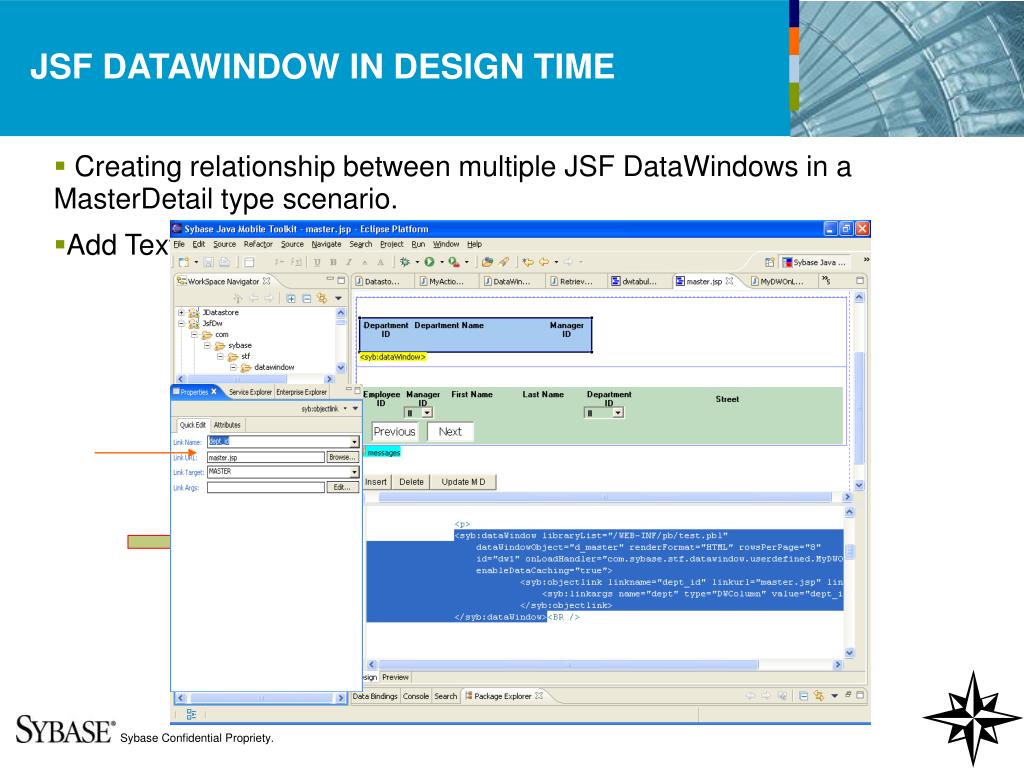

JSF DATAWINDOW IN DESIGN TIME
  • Drag and Drop DataWindow object from the navigator.

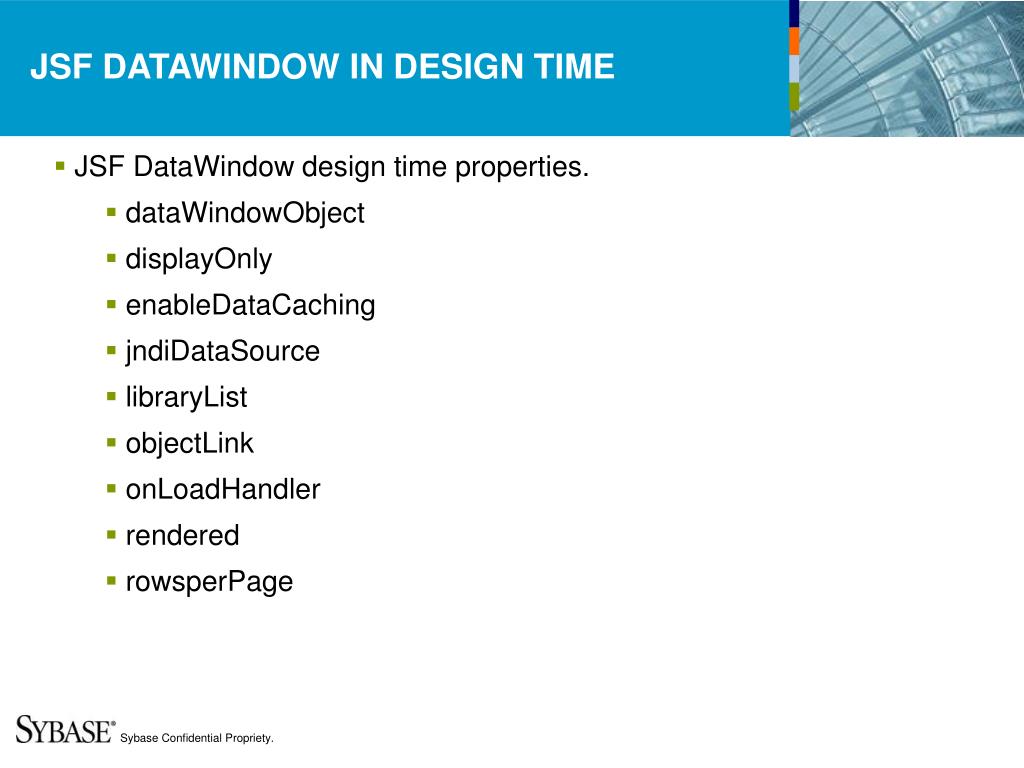

  • JSF DataWindow design time properties.
jsf datawindow in design time44
JSF DATAWINDOW IN DESIGN TIME
  • JSF DataWindow design time properties.
    • dataWindowObject
    • displayOnly
    • enableDataCaching
    • jndiDataSource
    • libraryList
    • objectLink
    • onLoadHandler
    • rendered
    • rowsperPage
jsf datawindow in design time45
JSF DATAWINDOW IN DESIGN TIME
  • Creating relationship between multiple JSF DataWindows in a MasterDetail type scenario.
  • Add Text
jsf datawindow properties methods and events
JSF DATAWINDOW PROPERTIES,METHODS AND EVENTS
  • The Rich DataWindow API is accesible through the JSF DataWindow.
    • More than 100 methods are available.
    • Categorized as
      • Dynamic DataWindow creation function.
      • Retrieve functions
      • Search functions
      • Get / Set functions
      • Import / Export Functions
jsf datawindow properties methods and events47
JSF DATAWINDOW PROPERTIES,METHODS AND EVENTS

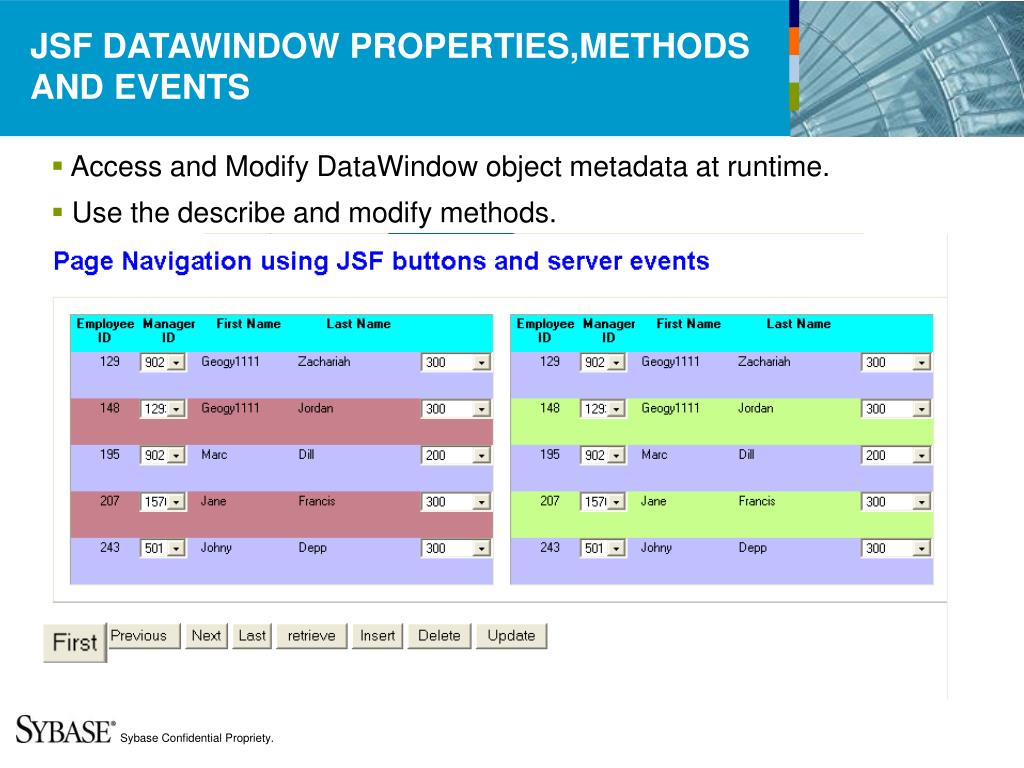

  • Access and Modify DataWindow object metadata at runtime.
  • Use the describe and modify methods.
jsf datawindow properties methods and events48
JSF DATAWINDOW PROPERTIES,METHODS AND EVENTS
  • JSF DataWindow generated server events.
    • RetrieveEvents (BeginRetrieve,EndRetrieve,RowRetrieved)
    • UpdateEvents (BeginUpdate, EndUpdate)
    • SqlPreview Events (SQLPreviewEvent)
    • Print Events (BeginPrint,EndPrint,PrintPage)
    • DWLoadedEvent

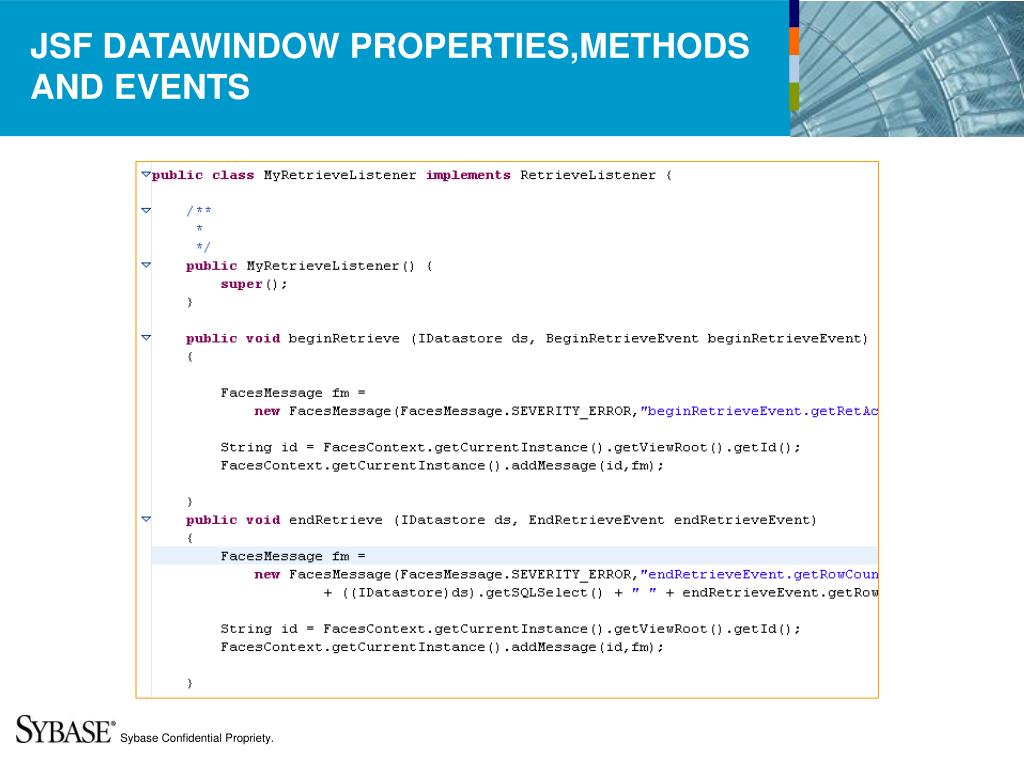

  • JSF DataWindow server event listeners
    • RetrieveListener
    • UpdateListener
    • SqlPreviewListener
    • PrintListener
    • DataWindowOnLoadListener

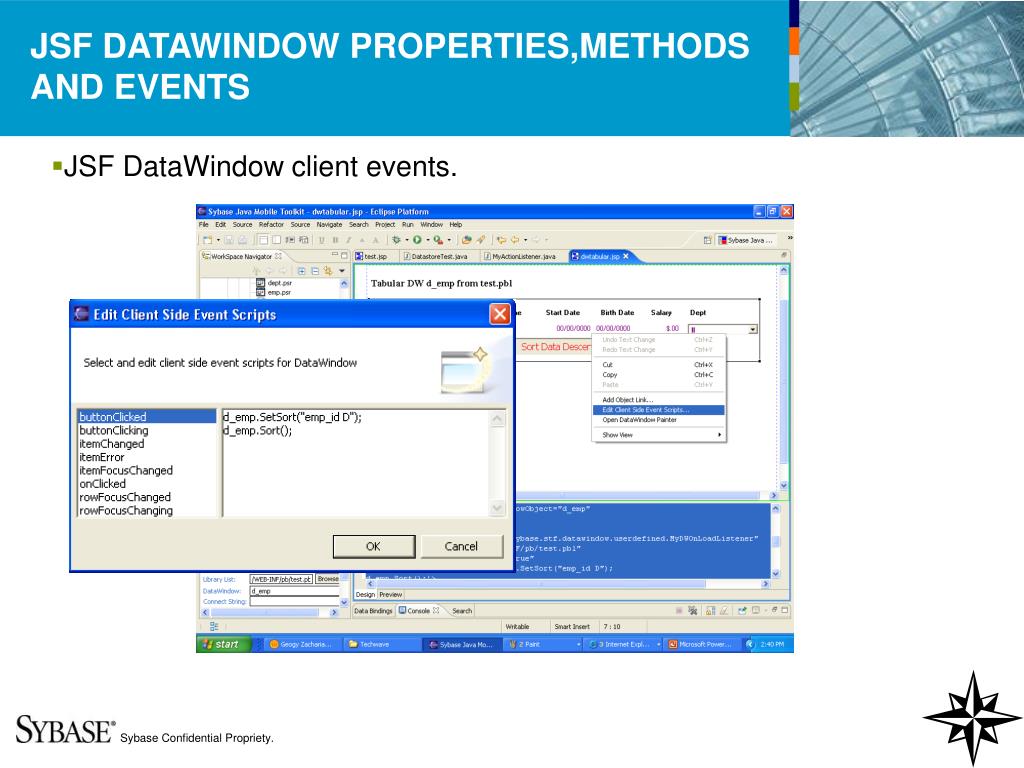

jsf datawindow transaction management
JNDI

DataSource

DataWindow JSF Component

“jndiDataSource”

tag

Bind the Connection to a DataWindow

Transaction object

Extract JDBC connection from the DataSource

Database

Connection

JSF DATAWINDOW TRANSACTION MANAGEMENT
  • JNDI datasource as the database connection information.
    • Configure the JNDI datasource in the respective App Server.
    • Use that JNDI name in the jndiDataSource property of the JSF DataWindow UI component.
jsf datawindow transaction management52
JSF DATAWINDOW TRANSACTION MANAGEMENT

Sharing of Transaction information among multiple JSF DataWindows on a page.

  • The user can persist the Transaction information in a JSF “session variable” and share it between multiple DataWindows.
  • This can be accomplished in the DWLoadedEvent Handler.
jsf datawindow transaction management53
JSF DATAWINDOW TRANSACTION MANAGEMENT
  • User Controlled Transaction Management.
    • Manage the Transaction information through the DWLoadedEvent handler.
what is it
What is it?
  • A Deployment Tool
    • that wraps PowerBuilder NVOs as EJB Session Beans (optionally as J2EE 1.4 Web Services) for deployment into a J2EE 1.3+ compliant application server.
  • A Server Runtime Library
    • that integrates the PowerBuilder Virtual Machine with the EJB container and transaction and connection managers of the application server.
  • A Remote Debugging Component
    • that permits debugging from the PowerBuilder IDE.
  • A Web DataWindow Component
    • that permits browser-based clients to utilize DataWindow functionality.
  • A Proxy Server
    • that permits PB clients to call deployed PB NVOs without the use of a client side Java virtual machine.
architecture diagram
Architecture Diagram

Developer Machine

Server Machine

Application Server

PowerBuilder IDE

Web Container

(EJB Web Services)

EJB Container

PB Components(EJB Session Beans)

PowerBuilder VM

Client Machine

Server Runtime Library

Deployment Tool(JaguarCompiler)

Web Clients

Remote Debugging Component

EJB Clients

Proxy Server

Web DataWindow Component

PB Clients

supported application servers
Supported Application Servers
  • JBoss 4.0
  • WebLogic 8.1 (9.0 at GA)
  • WebSphere 6.0
  • Post-1.0
    • Geronimo 1.0
    • Oracle 10 (OC4J)
  • Others may work, but are not tested by Sybase and configuration instructions may vary from what we document.
supported operating systems
Supported Operating Systems
  • Development environment
    • Windows
  • Server runtime environment - same as the supported platforms for PBVM with Sybase EAServer.
    • Windows
    • Solaris
    • AIX
    • HP/UX
powerbuilder ide integration
PowerBuilder IDE Integration
  • This deployment tool runs on your application server machine, and emulates the Sybase EAServer PB NVO deployment API.
  • To create a component (in PowerBuilder IDE)
    • New -> Target -> EAServer Component, or
    • New -> Project -> EAServer Component, or
    • New -> Project -> EAServer Component Wizard
  • To deploy a component (in project painter)
    • “Deploy Button”, or Design -> Deploy Project
  • No changes to PowerBuilder IDE are needed!
    • Sort of…
installation
Installation
  • The PB server plugin is installed on the application server host.
  • This does not need to be the same machine where the PowerBuilder IDE is running.
  • The PowerBuilder server VM (or full IDE for Windows) must also be separately installed on the application server host.
development components
Development – Components
  • Develop components as if you were writing NVOs for deployment to Sybase EAServer.
  • Check the PowerBuilder documentation for general instructions.
  • The deployment tool will wrap your PB NVOs as standard EJB session beans.
    • Target-specific deployment descriptors are generated to automate the binding of JNDI names and JDBC data source resource references.
development data access
Development – Data Access
  • PowerScript (in NVO source code):

sqlca.dbms = “JDBC”

sqlca.dbparm = “CacheName=’DefaultDS’”

connect; // check error code

... // use embedded SQL or DataStore

disconnect; // check error code

  • Use your application server’s facilities to define JDBC data sources and assign JNDI names to them.
  • The %PB_SERVER_HOME%/config/pb-server-XXX.xml can be edited to map PB “cache names” to JNDI names for JDBC Data Sources. This applies even when using native drivers.
data sources odbc
Data Sources – ODBC
  • PowerScript (in NVO source code):

sqlca.dbms = ‘ODBC’

sqlca.dbparm=“CacheName=’OdbcDS_JCM’”

...

  • When setting up your data source, use:
    • JDBC driver class:
      • com.sybase.jaguar.jcm.OdbcDriver
    • Database URL:
      • jcm:TBD;...
  • If you need XA (2 phase commit), use JDBC.
  • You don’t need to use the cache name OdbcDS_JCM. You can define custom cache names in config/pb-server-XXX.xml.
development data types
Development – Data Types
  • This table shows the mapping of PB data types to Java data types that is applied when an NVO package is wrapped as an EJB module.
development array results
Development – Array Results
  • PowerBuilder does not permit methods to directly return arrays.
  • To return an array, embed it inside a PB structure type.
  • PB structure types are mapped to Java classes with public instance fields.
development datastore
Development - DataStore
  • The PB DataStore type, in combination with the ResultSet return type, is particularly useful for PB NVOs running in an application server.
  • For improved performance, use PB NVO instance variables and create the DS and assign the “dataobject” in your NVO constructor.
    • But check application server memory usage!
pb errorlogging class
PB ErrorLogging Class
  • Writes to plugin log file.
    • %PB_SERVER_HOME%\logs\pb-server.log
  • PowerScript Usage:

ErrorLogging logger

getContextService(“ErrorLogging”, logger)

logger.log(“My Message”)

pb transactionserver class
PB TransactionServer Class
  • Supported methods:
    • CreateInstance, DisableCommit, EnableCommit, IsCallerInRole, IsTransactionAborted, SetAbort, SetComplete.
  • CreateInstance notes (for NVO to NVO inter-component calls):
    • Use the two argument form and specify full JNDI name of target component, e.g. (error checking code omitted for brevity)

TransactionServer ts

getContextService(“TransactionServer”, ts)

pbtest_MyComp comp // remember to generate and use proxies

ts.createInstance(comp, “pbtest/MyComp”)

// call methods on comp

    • If the target NVO is not in the same EJB-JAR as the calling NVO, you might encounter issues with your application server’s class loader (e.g. ClassCastException). Sybase will NOT support NVO inter-component calls across EJB-JAR boundaries if you encounter class loader issues. Consult your application server vendor for assistance with class loader issues across EJB-JAR boundaries.
development ejb clients
Development – EJB Clients
  • For EJB clients, use your application server’s facilities for EJB client access.
  • If your package is named “MyPackage”, and your component is named “MyComp”:
    • The generated EJB home interface is named ejb.components.mypackage.MyCompHome
    • The generated EJB remote interface is named ejb.components.mypackage.MyComp
    • The Java package for home and remote interfaces can be overridden. See “Deployment – Java Packages”.
    • The JNDI name is “MyPackage/MyComp”.
development pb clients
Development – PB Clients
  • PowerBuilder has built in facilities for calling EJBs in third party application servers.
  • Check the PowerBuilder documentation for the EJBConnection class and your application server documentation for general instructions.
  • Alternatively, we provide a proxy server to permit native IIOP communication (without client-side JVM) from PB clients to NVOs running in your EJB server.
web datawindow
Web DataWindow
  • Supports browser-based clients using XML, XHTML, HTML.See DataWindow Programmer's Guide.
    • http://sybooks.sybase.com/onlinebooks/group-pb/pbg1000e/dwprgug
  • Note change - to configure (generate and deploy EJB-JAR):
    • cd %PB_SERVER_HOME%\bin
    • configure web-data-window
  • Note change - to instantiate (from JSF, JSP, servlet etc.):

import com.sybase.pb.datawindow.*;

InitialContext nc = new InitialContext();

HtmlGenerator100Home home = (HtmlGenerator100Home)javax.rmi.PortableRemoteObject.narrow(nc.lookup(“DataWindow/HTMLGenerator100”), HTMLGenerator100Home.class);

HTMLGenerator gen = home.create();

deployment general
Deployment – General
  • In the PB Project Painter, for your component project(s), use the “EAServer Host” tab in the “Project Properties” dialog:
    • Host name: TCP host name for server machine
    • Port - 9000
    • Login ID - [email protected]
    • Login password - (remember, you set it!)
  • You can override the host name and port number that the server uses for its deployment listener by changing the iiopListeners property in config/pb-server.xml.
deployment web services
Deployment – Web Services
  • Not generated by default.
  • In the Project Painter Properties dialog, General tab, use the Comments box to specify which components must be generated as webServices, e.g.

javaPackage=“...”;webServices=“MyComp1,MyComp2”;

  • Remember the semicolon at the end of this entry.
  • Your application server must support J2EE 1.4.
  • The ResultSet return type is not supported for web services. Use array and structure types instead.
  • Don’t use the WebService tab, or the “wizard” option to expose a component as a web service. These are only for Sybase EAServer (with Web Services Toolkit).
deployment naming conventions
Deployment – Naming Conventions
  • PowerScript identifiers with underscore are mapped to Java “camel case” for structure fields and NVO methods, e.g. “my_simple_method” maps to “mySimpleMethod”.
  • A leading capital is used for structure types e.g. “my_structure” maps to “MyStructure”.
  • Component names are not changed from what you specify in the Project Painter. We recommend using the Java class naming conventions (e.g. “MyComp”).
  • Your NVO implementation class can use any name.
deployment validation test
Deployment – Validation Test
  • Using the PowerBuilder IDE, define a component with package name “pbtest” and component name “MyComp”.
  • Add some business methods of your choice. You might want to try some methods with database access.
  • Deploy to your application server.
  • Run the following commands:
    • cd %PB_SERVER_HOME%
    • bin/pb-server-test
  • The test program will try to call all methods of your component with “fake” parameter values (e.g. 1, 2, “S1”, S2”, …)
  • If you have a method named “perftest”, the test program will call it repeatedly to provide basic performance metrics.
  • Source code for the test client program can be found in src/java/com/sybase/pb/server/PbServerTest.java.
remote debugging
Remote Debugging
  • Use the “Start Remote” button in the PowerBuilder debugger to start a remote debugging session, as if debugging a component in Sybase EAServer.
  • Check the PowerBuilder documentation for detailed instructions.
troubleshooting
Troubleshooting
  • PB application server plugin log:
    • %PB_SERVER_HOME%\logs\pb-server.log
  • Your application server log file(s).
  • Your application server console window (if applicable).
licensing pricing release
Licensing, Pricing, Release…
  • Licensing model: TBD
  • Packaging: TBD
  • Pricing: TBD
  • Release date: August 2006
  • PowerBuilder IDE Accomodating Enhancements
    • Replacement of semicolon-delimited string in Comments field of General tabpage of Project Properties
    • Post PowerBuilder 10.5 EBF
sybase tools
Sybase Tools

Thank You

ad
