  1. Microsoft Windows NT 4.0 Authentication Protocols • Password Authentication Protocol (PAP) • Challenge Handshake Authentication Protocol (CHAP) • Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) • Shiva Password Authentication Protocol (SPAP) • Point-to-Point Tunneling Protocol (PPTP)

  2. Microsoft Windows 2000 Authentication Protocols • Support the Windows NT 4.0 authentication protocols • Extensible Authentication Protocol (EAP) • Remote Authentication Dial-In User Service (RADIUS) • Internet Protocol Security (IPSec) • Layer Two Tunneling Protocol (L2TP) • Bandwidth Allocation Protocol (BAP)

  3. Extensible Authentication Protocol (EAP) • Is an extension to the Point-to-Point protocol (PPP) • Works with dial-up, PPTP, and L2TP clients • Allows arbitrary authentication mechanisms to validate a dial-in connection • Supports authentication by using generic token cards, MD5-CHAP, and TLS • Allows vendors to supply new client and server authentication modules

  4. Remote Authentication Dial-In User Service (RADIUS) • RADIUS provides • Remote user authentication that is vendor-independent. • Scaleable authentication designs for performance. • Fault-tolerant designs for reliability. • Windows 2000 can act as a RADIUS client or server.

  5. Windows 2000 Can Act as a RADIUS Client • A RADIUS client • Is typically an ISP dial-up server • Receives authentication requests • Forwards the requests to a RADIUS server • A Windows 2000 RADIUS client • Can also forward accounting information • Is configured on the remote access server’s Securities tab

  6. Windows 2000 Can Act as a RADIUS Server • A RADIUS server validates the RADIUS client request. • Windows 2000 uses Internet Authentication Services (IAS) to perform authentication. • IAS stores accounting information from RADIUS clients in log files. • IAS is one of the optional components you can add.

  7. Internet Protocol Security (IPSec) • Consists of a set of security protocols and cryptographic protection services • Ensures secure private communications over IP networks • Provides aggressive protection against private network and Internet attacks • Negotiates a security association (SA) with clients that acts as a private key to encrypt the data flow

  8. Layer Two Tunneling Protocol • Similar to PPTP • Creates an encrypted tunnel • Does not provide encryption • Works with encryption technologies such as IPSec

  9. Differences Between L2TP and PPTP • L2TP does not require an IP-based transit network. • L2TP supports header compression. • L2TP supports tunnel authentication. • L2TP uses IPSec for encryption and PPTP uses PPP encryption.

  10. Bandwidth Allocation Protocol (BAP) and Bandwidth Allocation Control Protocol (BACP) • Dynamically add or drop links on demand • Are PPP control protocols • Provide bandwidth on demand 10

  11. Allowing Inbound Dial-Up Connections

  12. Configuring Devices for Incoming Connections

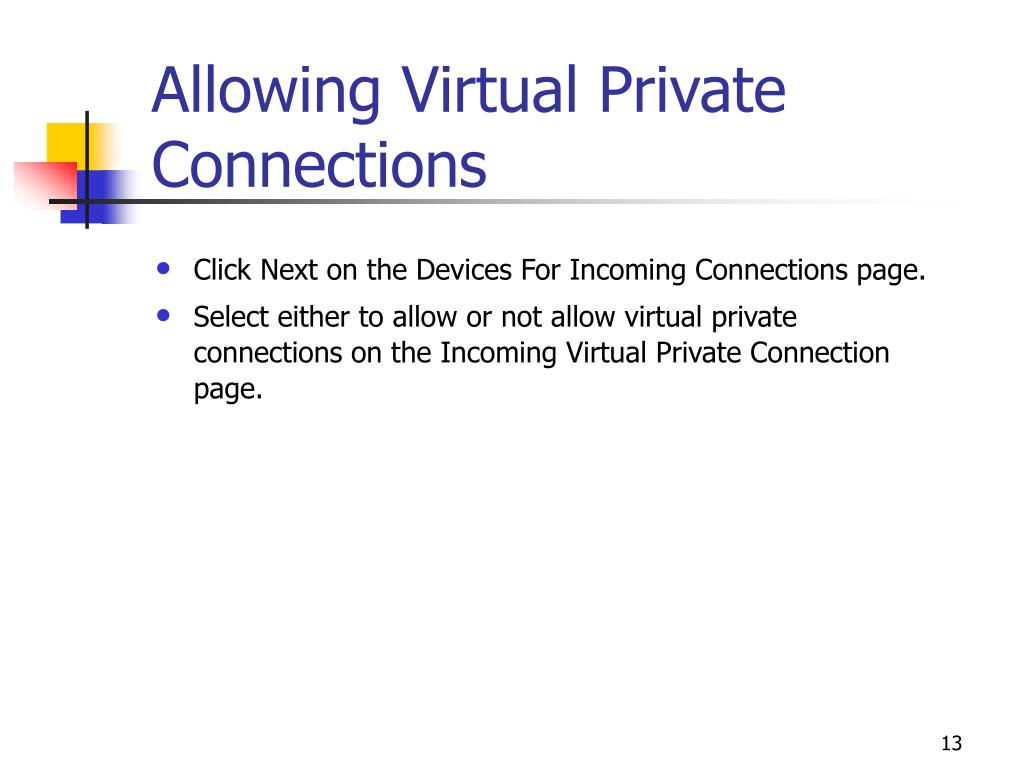

  13. Allowing Virtual Private Connections • Click Next on the Devices For Incoming Connections page. • Select either to allow or not allow virtual private connections on the Incoming Virtual Private Connection page.

  14. Specifying Users and Callback Options

  15. Selecting Networking Components • Choose the networking components to enable for incoming calls. • Install additional networking components.

  16. Dial-Up Connections

  17. Connections to a Virtual Private Network (VPN) • Create a VPN by using tunneling protocols such as PPTP or L2TP. • Create secure connections across an untrusted network. • Select Connect To A Private Network Through The Internet. • Decide if you want to select Automatically Dial This Initial Connection. • Enter the host name or IP address to which you are connecting. • Specify who can use the connection.

  18. Direct Connection to Another Computer Through a Cable • Select Connect Directly To Another Computer. • Select whether your computer will be the host or the guest for the connection. • Select the port that is connected to the other computer. • Specify the users who can use this connection. • Decide if you want a shortcut icon on your desktop.
