RADWG 3 rd - 2014 22 th May 2014. G. Spiezia (EN/STI/ECE). AGENDA. Matters arising Summary of workshop on FPGA CHARM: update and news Status report of radiation test campaigns at Fraunhofer Radiation damage studies at F4E for ITER. RADWG mandate.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'RADWG 3 rd - 2014 22 th May 2014' - anja


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
radwg 3 rd 2014 22 th may 2014
RADWG 3rd - 201422th May 2014

G. Spiezia (EN/STI/ECE)

agenda
AGENDA
  • Matters arising
  • Summary of workshop on FPGA
  • CHARM: update and news
  • Status report of radiation test campaigns at Fraunhofer
  • Radiation damage studies at F4E for ITER
radwg mandate
RADWG mandate
  • Working group to share information among accelerator sectors groups dealing with radiation
  • Presentation and discussion on radiation facilities, test setups and results
  • Organization of the Radiation Test plan
    • Out side CERN (PSI, CEA, Fraunhofer and others)
    • At CERN (CNRAD, H4IRRAD  CHARM)
  • Communication on calculations and measurements of the radiation levels in the CERN machines
  • Report of the equipment failure due to radiations and their follow-up Review
  • Discussion of the mitigation actions
  • Update/Summary of relevant workshop and conferences
facilities

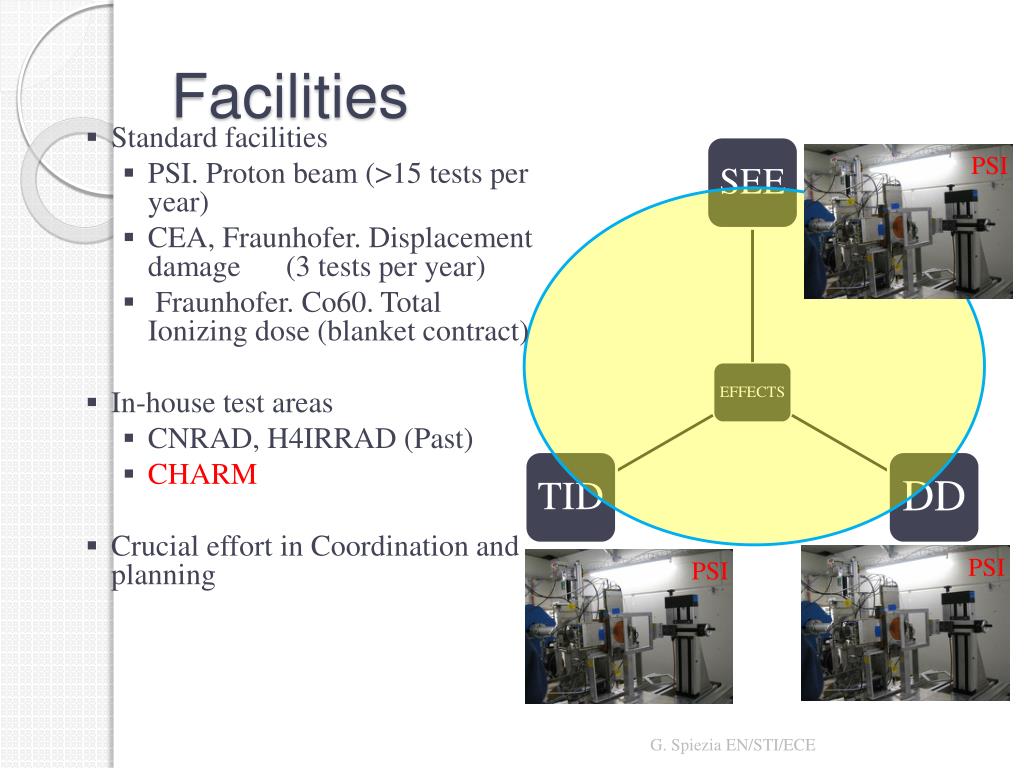

Facilities
  • Standard facilities
    • PSI. Proton beam (>15 tests per year)
    • CEA, Fraunhofer. Displacement damage (3 tests per year)
    • Fraunhofer. Co60. Total Ionizing dose (blanket contract)
  • In-house test areas
    • CNRAD, H4IRRAD (Past)
    • CHARM
  • Crucial effort in Coordination and planning

PSI

PSI

PSI

Co60 source

CEA

G. Spiezia EN/STI/ECE

psi test next slots
PSI test – Next slots
  • PIF facility will stop from July to October
  • http://radwg.web.cern.ch/RadWG/Pages/PSI_tests/2014_PSI.htm
psi test
PSI test
  • MCP1826-Adjustable (BE/BI)
    • Output stable up to 1kGy
    • Vin threshold decreases (minor effect)
  • Opto TLP 127 (TE/EPC)
    • CTR degradation
psi test1
PSI test

Cypress

Toshiba

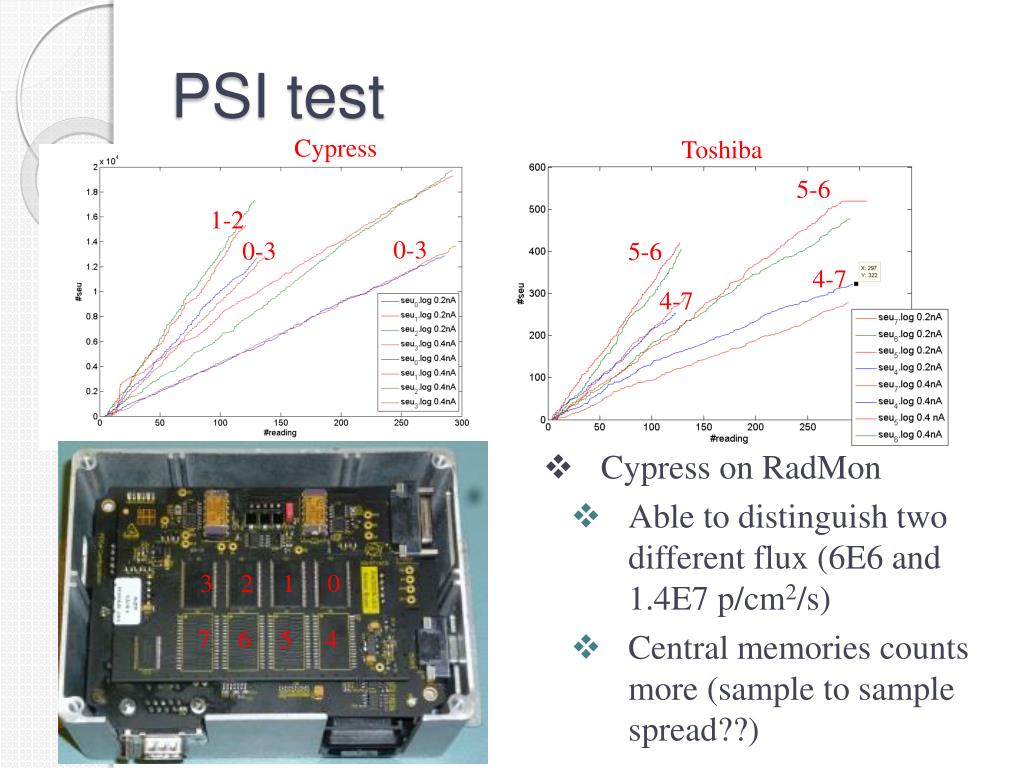

  • Cypress on RadMon
    • Able to distinguish two different flux (6E6 and 1.4E7 p/cm2/s)
    • Central memories counts more (sample to sample spread??)

5-6

1-2

0-3

0-3

5-6

4-7

4-7

3

2

1

0

7

6

5

4

psi test2
PSI test
  • SRAM Cypress CY7C1059 8Mbit
    • Cross section of ~2.3-3 10-14 cm2
workshops
Workshops
  • AMICSA
    • Workshop organized by ESA with CERN collaboration
    • ASICS and mixed signal components
    • Talks from industries
    • 30 June-1 July 2014
    • http://indico.cern.ch/conferenceTimeTable.py?confId=277669#20140630
conferences
Conferences
  • NSREC 2014 - Paris
    • Combined with RADECS
    • July 14-18 2014
    • http://www.nsrec.com/ details on the call for papers and the short course program
  • SEE symposium
    • 19-22 May
    • http://radhome.gsfc.nasa.gov/radhome/see_mapld/#
displacement damage tests

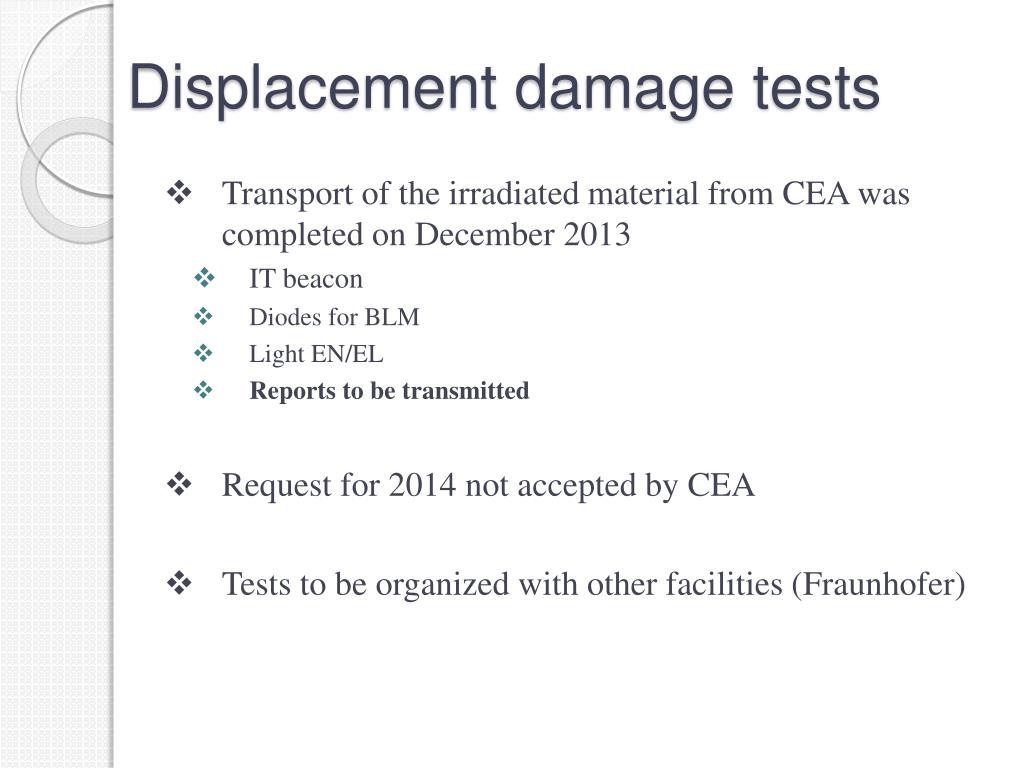

Displacement damage tests
  • Transport of the irradiated material from CEA was completed on December 2013
    • IT beacon
    • Diodes for BLM
    • Light EN/EL
    • Reports to be transmitted
  • Request for 2014 not accepted by CEA
  • Tests to be organized with other facilities (Fraunhofer)
fraunhofer institute germany
Fraunhofer institute - Germany
  • All the information and the news are on the web: https://twiki.cern.ch/twiki/bin/view/FraunhoferRadTests/WebHome
rad tol projects
Rad-Tol projects
  • The list of the projects with R2E concerns was presented last year
  • Reviews are organized for the project follow-ups; last one was for the Beam Instrumentation equipment http://indico.cern.ch/e/R2E_BI_2013
  • List of Rad-tol projects are on the website:
    • http://radwg.web.cern.ch/RadWG/Pages/Rad-related_projects.htm
