  1. April 2012 WIRELESS INTERNET FLEET & WEB INTELLIGENCE FORMULA High tech Solutions for m2m, real time tracking http://www.wif.it

  2. Wif Hw and Sw Solutions 2011 WIF Remote HW systems: WIF X2i family:Mx2,SX1 and Cx1 Vehicles, people, assets,Trailers, RFID,Iridium, Containers… WIF Sw solutions Turnkey Tracking virtual machines Customized Sw solutions for Gps, Bluetooth, RFID Tracking, Web intelligence

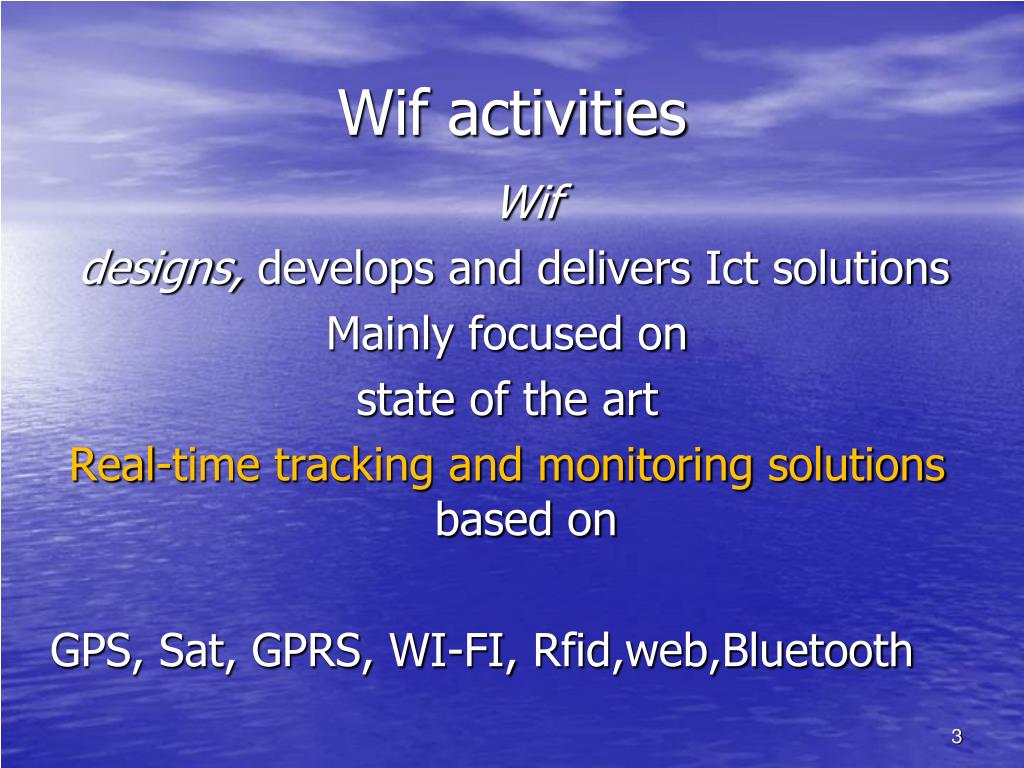

  3. Wif activities Wif designs, develops and delivers Ict solutions Mainly focused on state of the art Real-time tracking and monitoring solutions based on GPS, Sat, GPRS, WI-FI, Rfid,web,Bluetooth

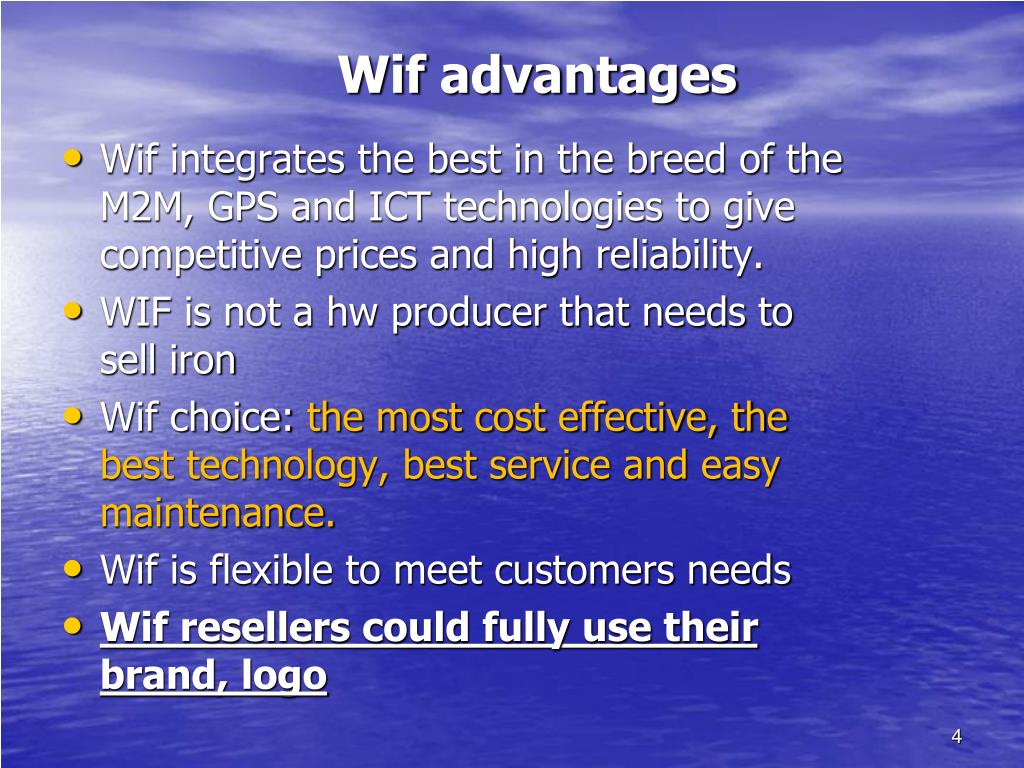

  4. Wif advantages • Wif integrates the best in the breed of the M2M, GPS and ICT technologies to give competitive prices and high reliability. • WIF is not a hw producer that needs to sell iron • Wif choice: the most cost effective, the best technology, best service and easy maintenance. • Wif is flexible to meet customers needs • Wif resellers could fully use their brand, logo

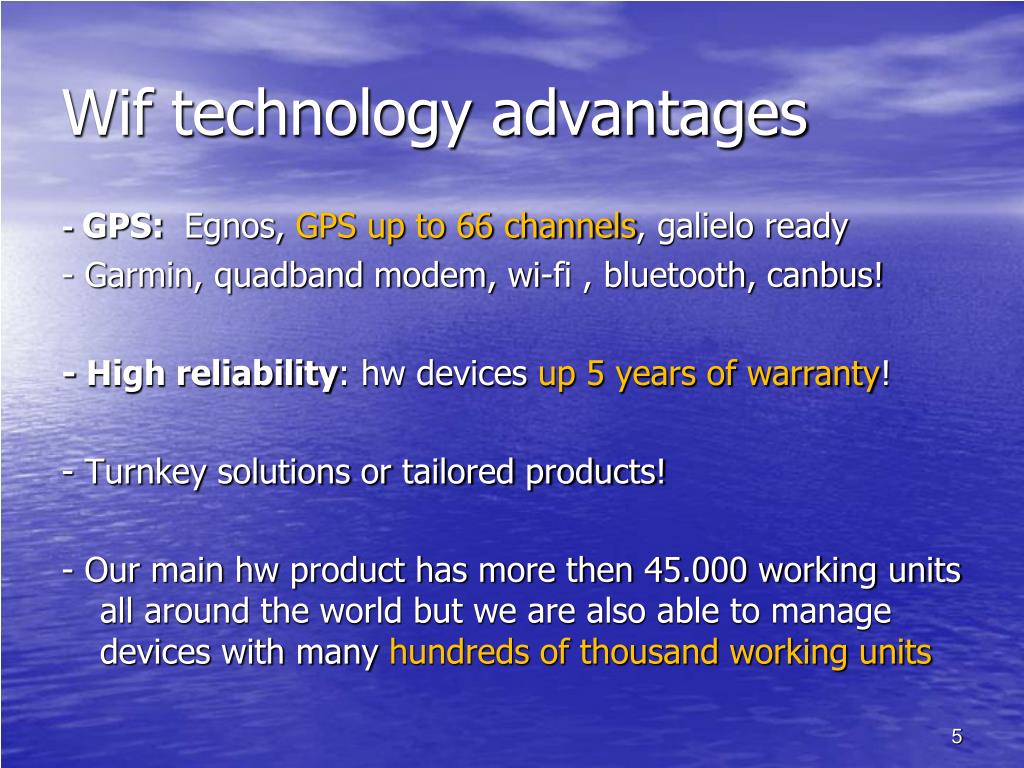

  5. Wif technology advantages - GPS: Egnos, GPS up to 66 channels, galielo ready - Garmin, quadband modem, wi-fi , bluetooth, canbus! - High reliability: hw devices up 5 years of warranty! - Turnkey solutions or tailored products! - Our main hw product has more then 45.000 working units all around the world but we are also able to manage devices with many hundreds of thousand working units

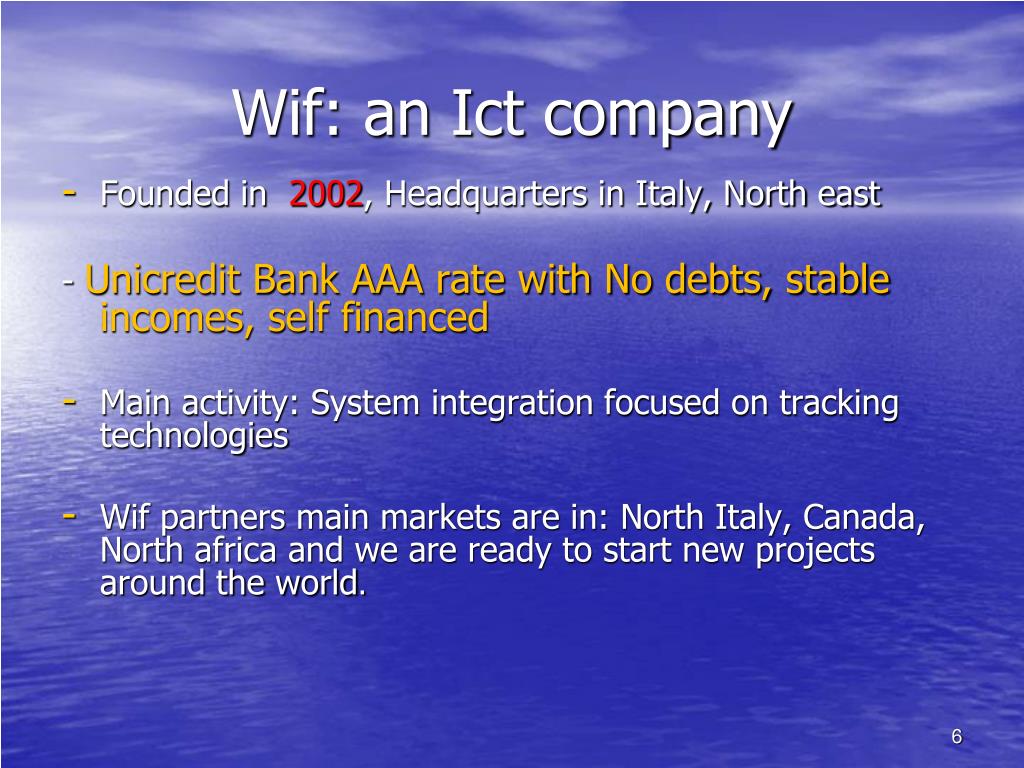

  6. Wif: an Ict company • Founded in 2002, Headquarters in Italy, North east - Unicredit Bank AAA rate with No debts, stable incomes, self financed • Main activity: System integration focused on tracking technologies • Wif partners main markets are in: North Italy, Canada, North africa and we are ready to start new projects around the world.

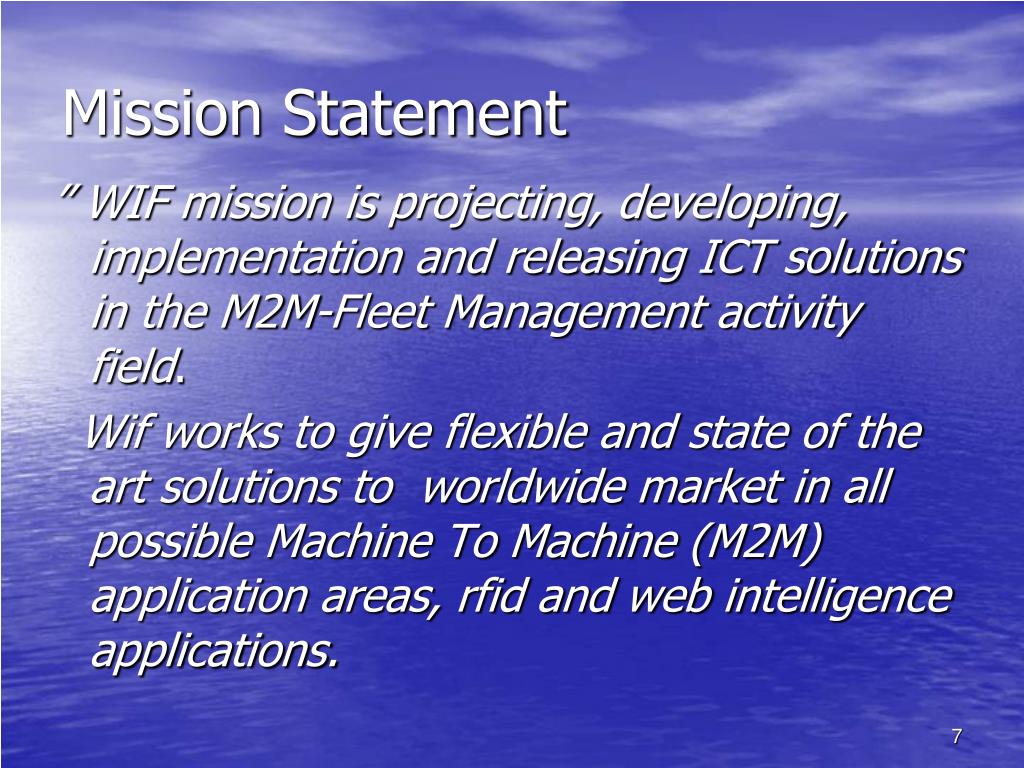

  7. Mission Statement ” WIF mission is projecting, developing, implementation and releasing ICT solutions in the M2M-Fleet Management activity field. Wif works to give flexible and state of the art solutions to worldwide market in all possible Machine To Machine (M2M) application areas, rfid and web intelligence applications.

  8. Differences from competitors There are some points that really set Wif apart from the competition. • First Our company background and our way to build the company and do business put Wif at the forefront to sell the best products with maximum state of the art technology of the moment. • We are not talking about the future: we are already up-and-running, wif design started in 1999.

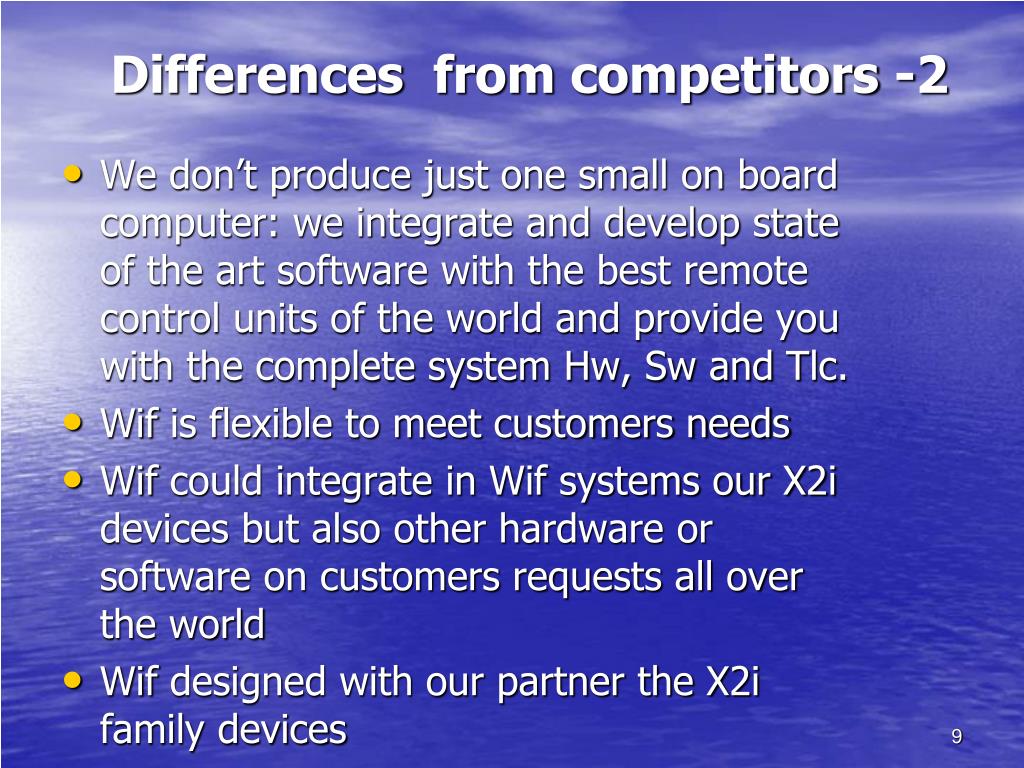

  9. Differences from competitors -2 • We don’t produce just one small on board computer: we integrate and develop state of the art software with the best remote control units of the world and provide you with the complete system Hw, Sw and Tlc. • Wif is flexible to meet customers needs • Wif could integrate in Wif systems our X2i devices but also other hardware or software on customers requests all over the world • Wif designed with our partner the X2i family devices

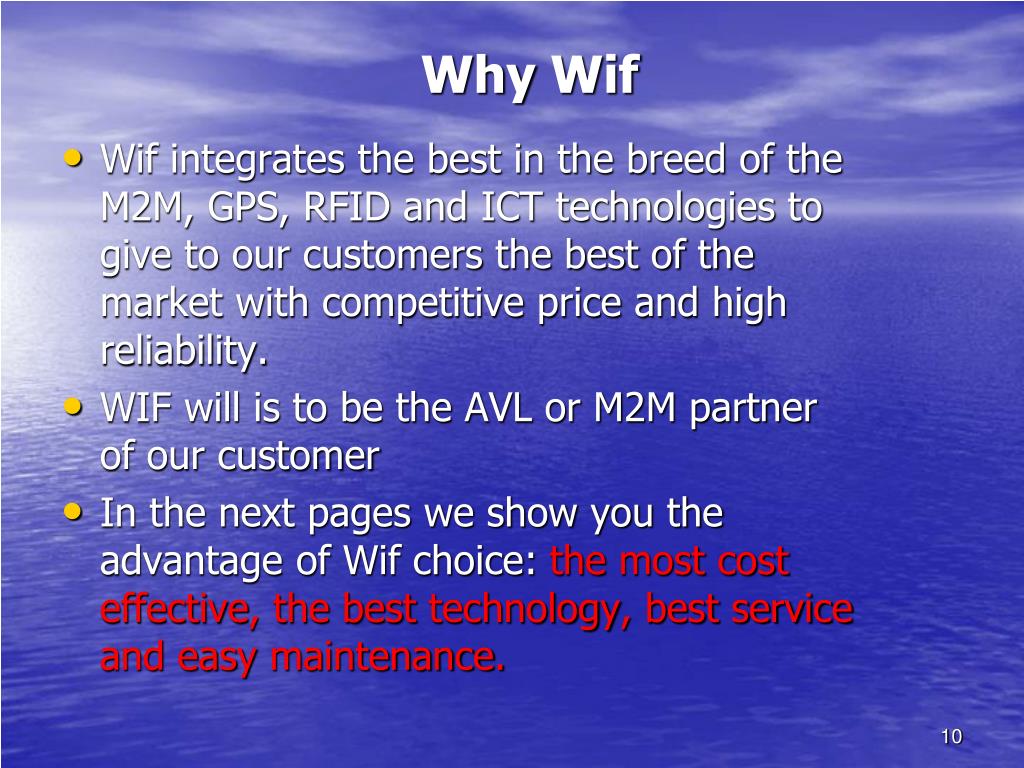

  10. Why Wif • Wif integrates the best in the breed of the M2M, GPS, RFID and ICT technologies to give to our customers the best of the market with competitive price and high reliability. • WIF will is to be the AVL or M2M partner of our customer • In the next pages we show you the advantage of Wif choice: the mostcosteffective, the best technology, best service and easy maintenance.

  11. Application Areas:Telemetry / Telematics TelemetryAMR (utility meters) parking meters • industrial meteringM2M Applications • elevator control • vending machine controlTelematics / in-vehicle applications driver navigation • driver safety • vehicle diagnostics • mobility services • traffic information Public traffic services • traffic information • electronic tolling • schedule synchronisation • optimising road usage • speed cameras • changing traffic signs • Industrial applications • process automation • Security and surveillance • access and mobility control • surveillance cameras • asset monitoring • Sales & payments • vending machines • POS terminals • gaming • Fleet management • cargo tracking • route planning • order management • Telemedicine • remote patient monitoring • remote diagnostics • equipment status tracking • staff scheduling • Public services • information kiosks • web access points Rfid indoor tracking for healthcare systems • bluetooth trackingSource: M2M White Paper Nokia

  12. Turnkey solutions • Fleet tracking on Web or windows • Emergency & Total control+Fast reaction: systems for alert centers • Virtual machine or web systems • Openstreetmaps, Google maps or ms mappoint • Dedicated Customizable solutions • Easy integration with other software • Bluetooth tracking • Reseller Brand solutions • Gsm, iridium, 66 channels gps, 5ys warranty,RFID, smart bluetooth

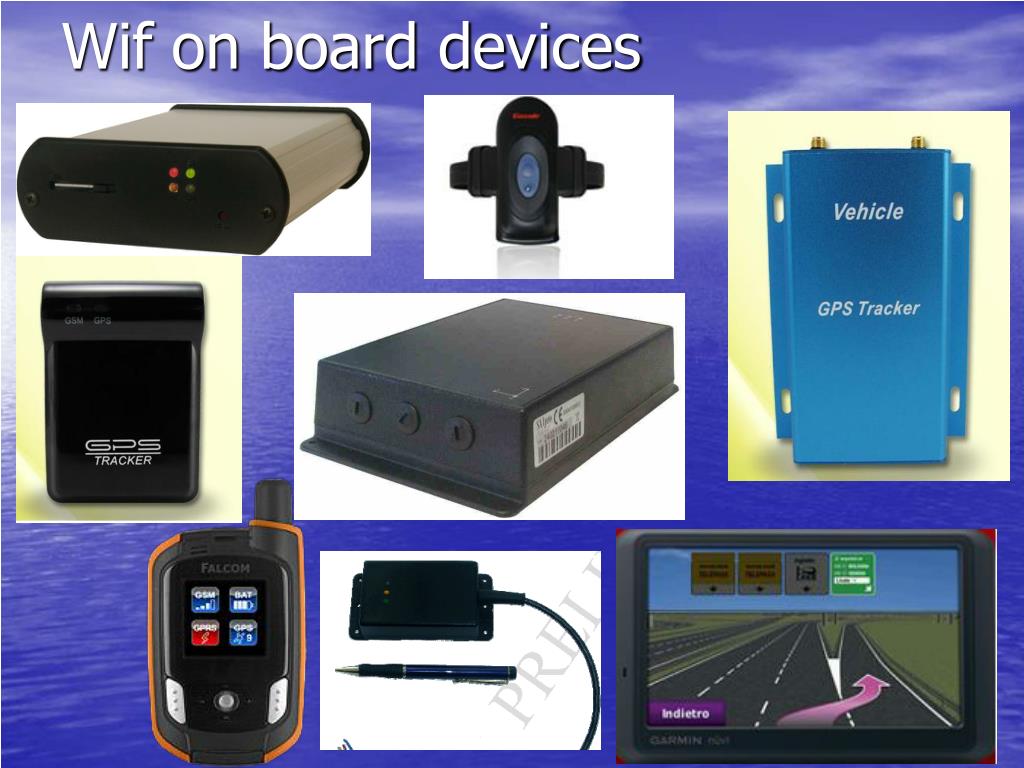

  13. Wif on board devices

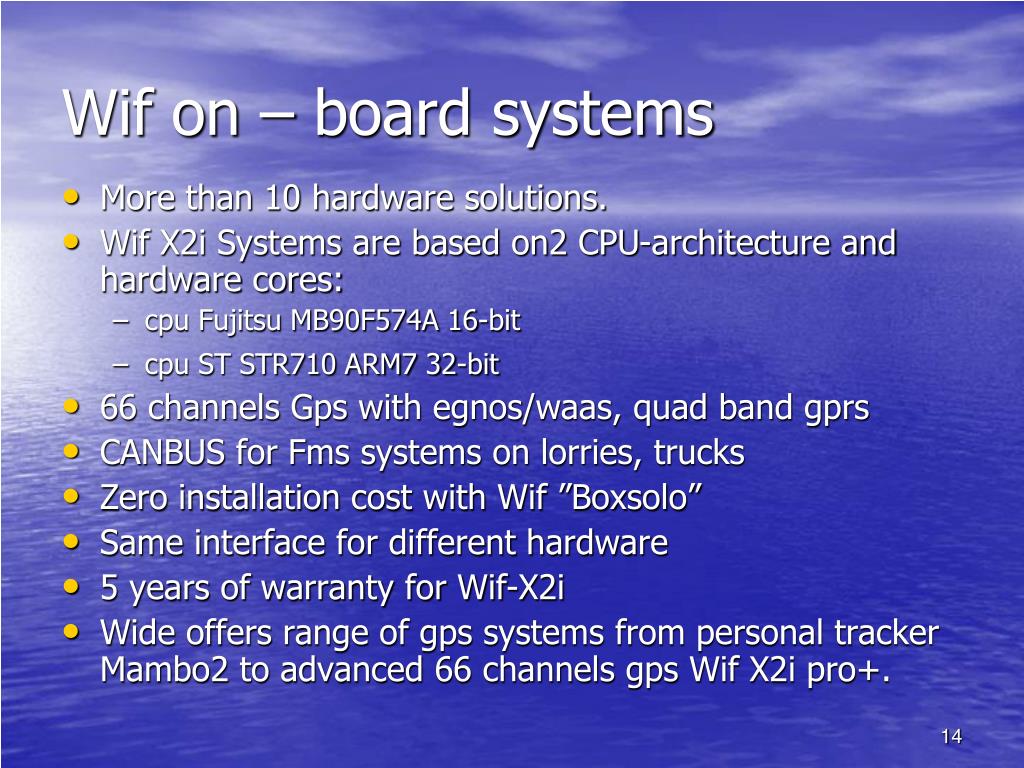

  14. Wif on – board systems • More than 10 hardware solutions. • Wif X2i Systems are based on2 CPU-architecture and hardware cores: • cpu Fujitsu MB90F574A 16-bit • cpu ST STR710 ARM7 32-bit • 66 channels Gps with egnos/waas, quad band gprs • CANBUS for Fms systems on lorries, trucks • Zero installation cost with Wif ”Boxsolo” • Same interface for different hardware • 5 years of warranty for Wif-X2i • Wide offers range of gps systems from personal tracker Mambo2 to advanced 66 channels gps Wif X2i pro+.

  15. Wif X2i • 2, 3,4 or 5 years of Warranty! • X32-Generation - ”Next generation” • Powerfull ARM processor  Faster execution and more features! • More memory capacity • Vibration sensor • SD-CARD reader • FAT32 file system support. Upto 4 GB Flash! • Internal Flashdrive with FAT32 support • Exploits advanced write wear-levelling technology • CAN Bus • Connection to vehicle communication bus systems • Quad-band GSM support • Utilizes state-of the art Texas Instrument GSM chipset solution • 66 channel uBlox GPS receiver, Egnos/Waas, galileo ready • Very fast startup! • High sensivity GPS receiver for indoor tracking (option) • GPS Antenna Open / Short circuit detection • On-board high-capacity Li-Ion battery • 5 to 19 digital inputs, 2 to 6 analog inputs with input extension Modbus

  16. Wif-X2i common basic features • 5 Digital input / 4 digital outputs for external sensors and actuators • 2 Analog inputs for monitoring fuel levels and similars values • Quadband GSM Module with SIM card-reader • RTC with 2200 mAh battery backup • Power saving modes • Advanced datalogger • Persistent memory:Flash (limited writes), FRAM (fast, unlimited writes) • DIP switch and LED indicators • Up to 16 1-wire temperature sensors • RS232 programming / general purpose port • RS485 support (option) • VSMS • Text and PDU (binary) • Offfers an abstraction of a communication ”package” that can be sent over Cable, SMS, CSD and GPRS/Edge  + future communication methods! • CSD support (datacall) • Voice/DTMF support  voice response system • Availability of Different case from internal to IP65 usage and magnetic supports for fast installation

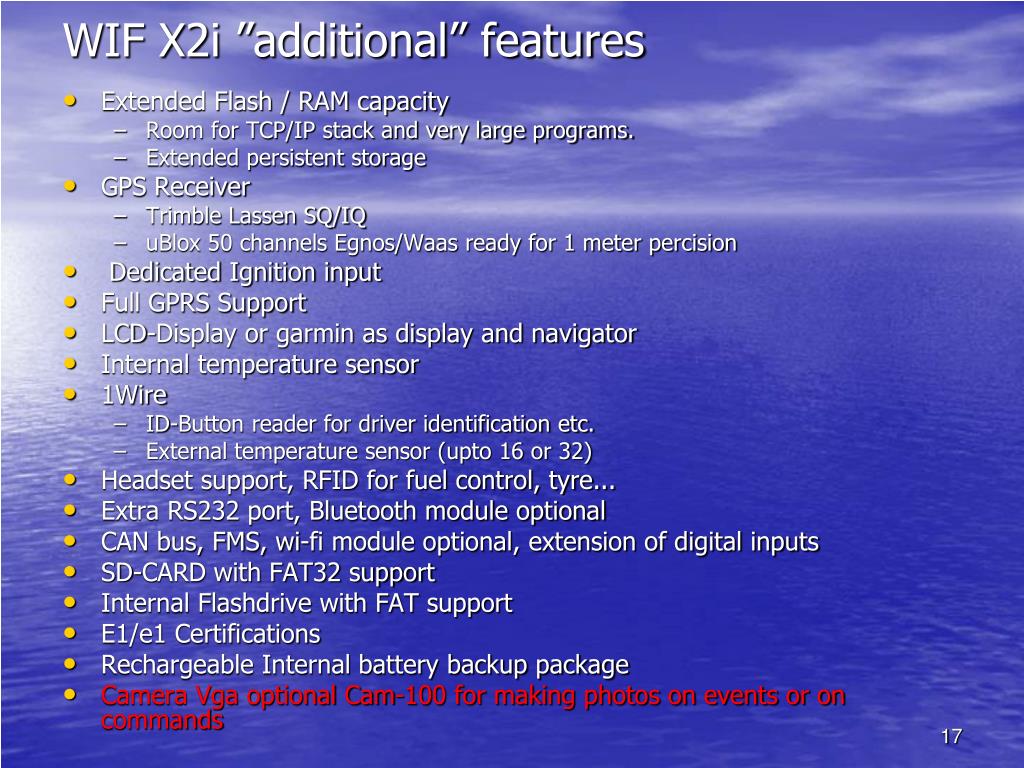

  17. WIF X2i ”additional” features • Extended Flash / RAM capacity • Room for TCP/IP stack and very large programs. • Extended persistent storage • GPS Receiver • Trimble Lassen SQ/IQ • uBlox 50 channels Egnos/Waas ready for 1 meter percision • Dedicated Ignition input • Full GPRS Support • LCD-Display or garmin as display and navigator • Internal temperature sensor • 1Wire • ID-Button reader for driver identification etc. • External temperature sensor (upto 16 or 32) • Headset support, RFID for fuel control, tyre... • Extra RS232 port, Bluetooth module optional • CAN bus, FMS, wi-fi module optional, extension of digital inputs • SD-CARD with FAT32 support • Internal Flashdrive with FAT support • E1/e1 Certifications • Rechargeable Internal battery backup package • Camera Vga optional Cam-100 for making photos on events or on commands

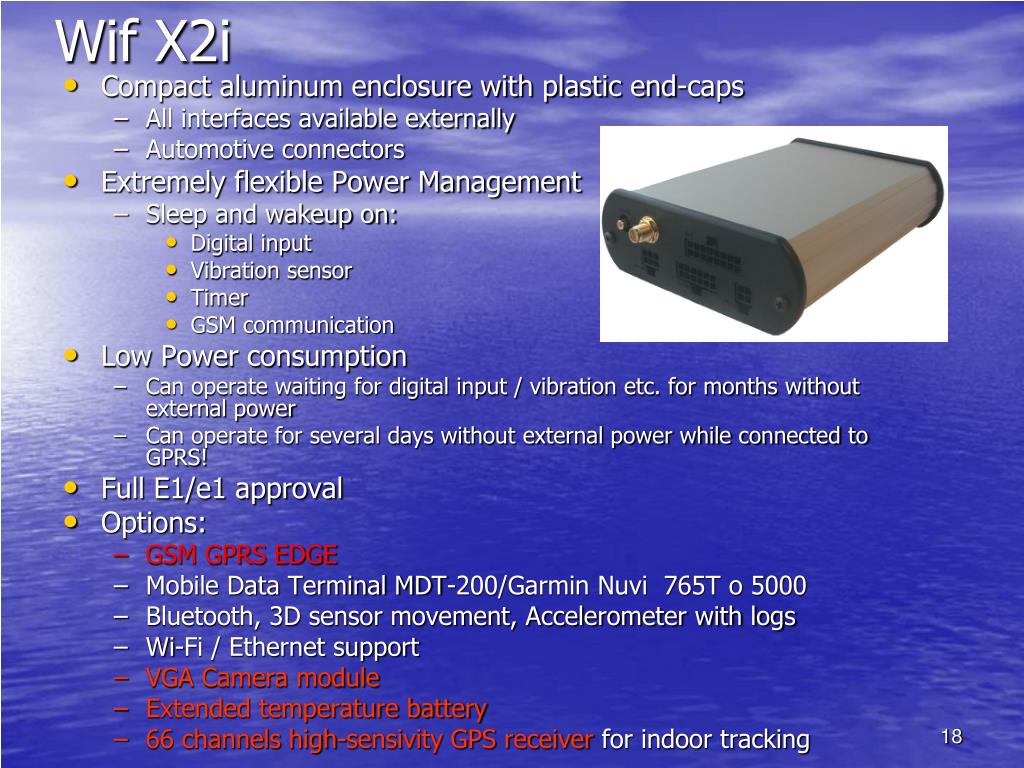

  18. Wif X2i • Compact aluminum enclosure with plastic end-caps • All interfaces available externally • Automotive connectors • Extremely flexible Power Management • Sleep and wakeup on: • Digital input • Vibration sensor • Timer • GSM communication • Low Power consumption • Can operate waiting for digital input / vibration etc. for months without external power • Can operate for several days without external power while connected to GPRS! • Full E1/e1 approval • Options: • GSM GPRS EDGE • Mobile Data Terminal MDT-200/Garmin Nuvi 765T o 5000 • Bluetooth, 3D sensor movement, Accelerometer with logs • Wi-Fi / Ethernet support • VGA Camera module • Extended temperature battery • 66 channels high-sensivity GPS receiver for indoor tracking

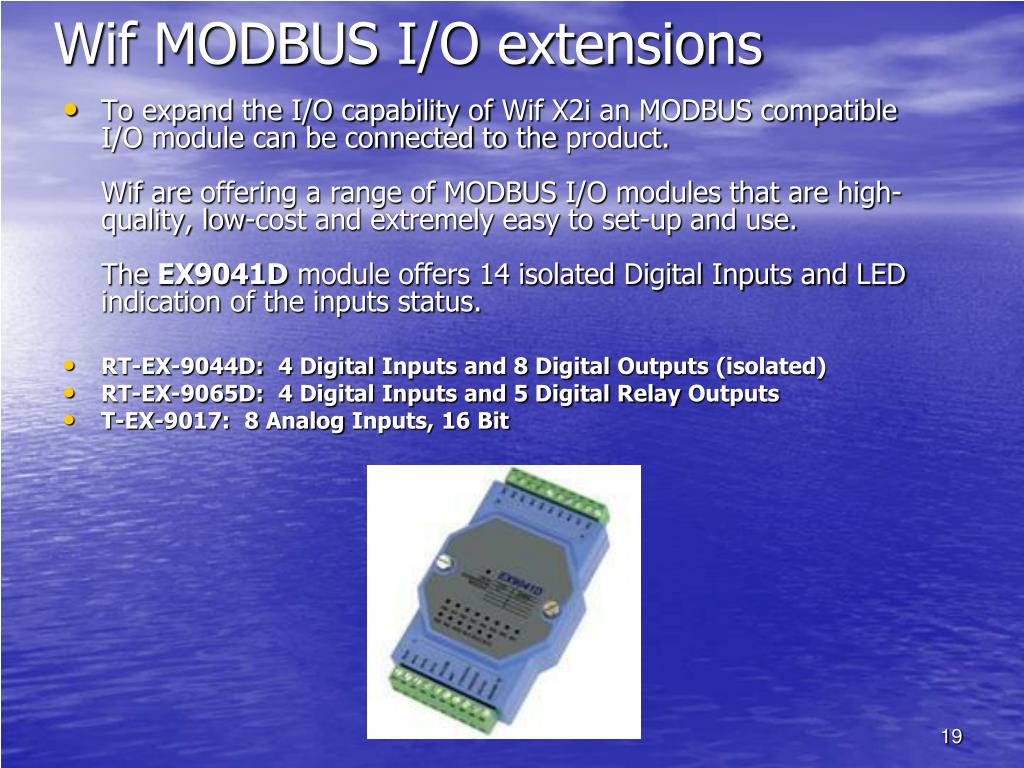

  19. Wif MODBUS I/O extensions • To expand the I/O capability of Wif X2i an MODBUS compatible I/O module can be connected to the product.Wif are offering a range of MODBUS I/O modules that are high-quality, low-cost and extremely easy to set-up and use.The EX9041D module offers 14 isolated Digital Inputs and LED indication of the inputs status. • RT-EX-9044D:  4 Digital Inputs and 8 Digital Outputs (isolated) • RT-EX-9065D:  4 Digital Inputs and 5 Digital Relay Outputs • T-EX-9017:  8 Analog Inputs, 16 Bit

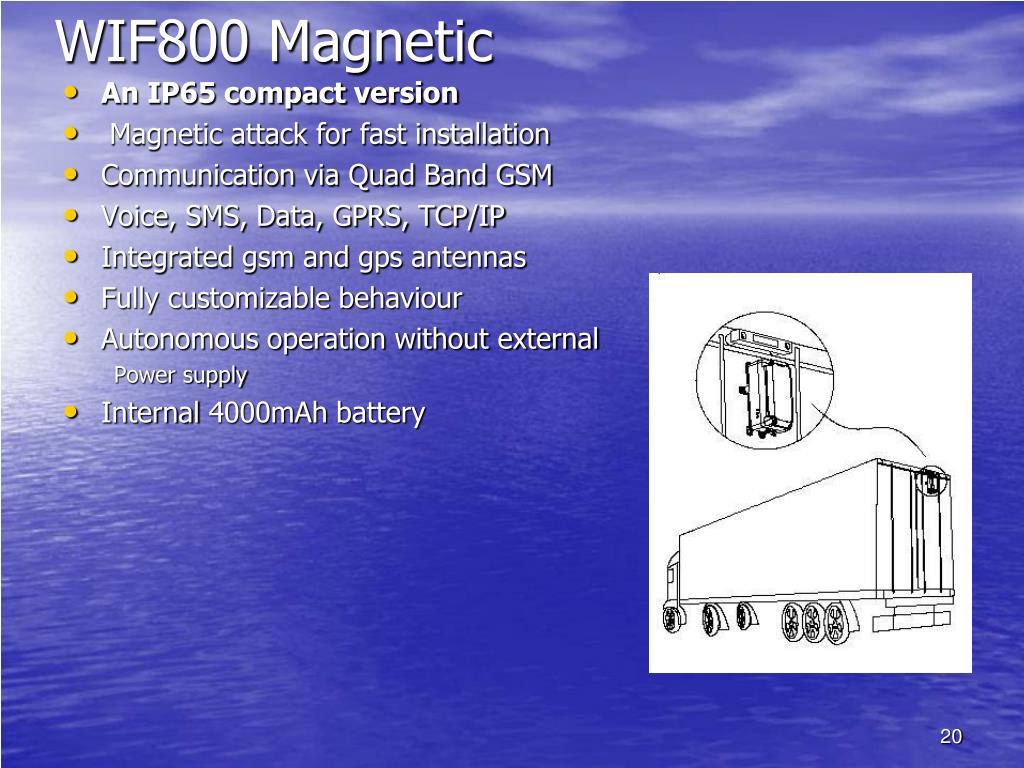

  20. WIF800 Magnetic • An IP65 compact version • Magnetic attack for fast installation • Communication via Quad Band GSM • Voice, SMS, Data, GPRS, TCP/IP • Integrated gsm and gpsantennas • Fully customizable behaviour • Autonomous operation without external Power supply • Internal 4000mAh battery

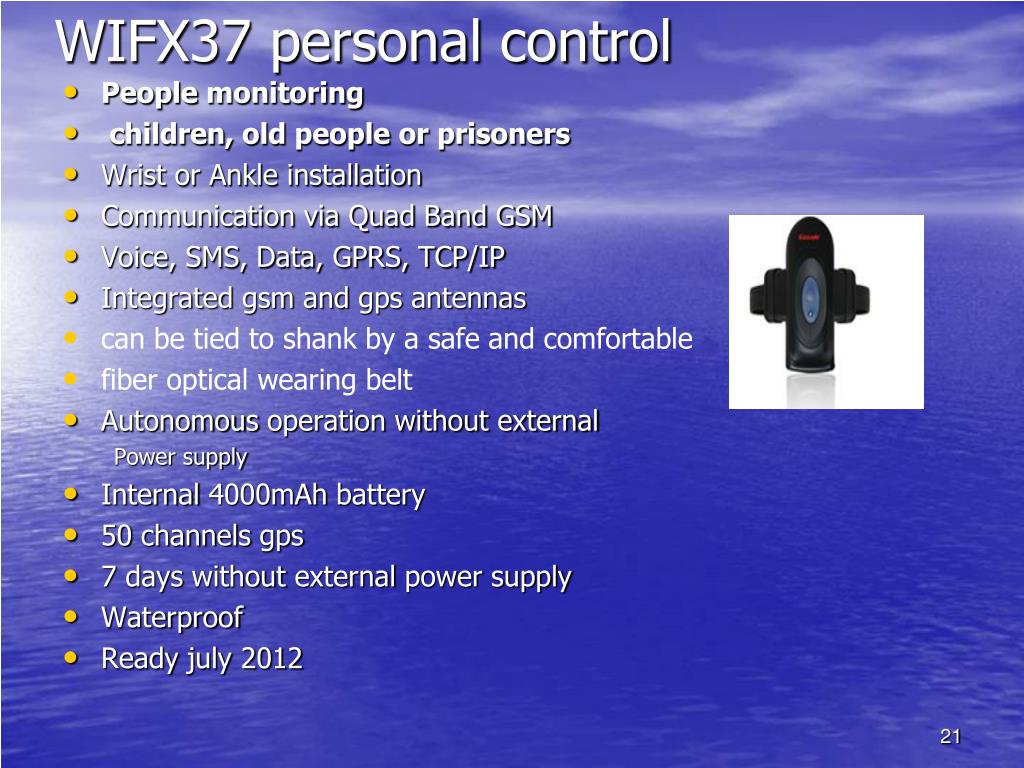

  21. WIFX37 personal control • People monitoring • children, oldpeopleor prisoners • Wrist or Ankle installation • Communication via Quad Band GSM • Voice, SMS, Data, GPRS, TCP/IP • Integrated gsm and gpsantennas • can be tied to shank by a safe and comfortable • fiber optical wearing belt • Autonomous operation without external Power supply • Internal 4000mAh battery • 50 channels gps • 7 dayswithoutexternalpowersupply • Waterproof • Ready july 2012

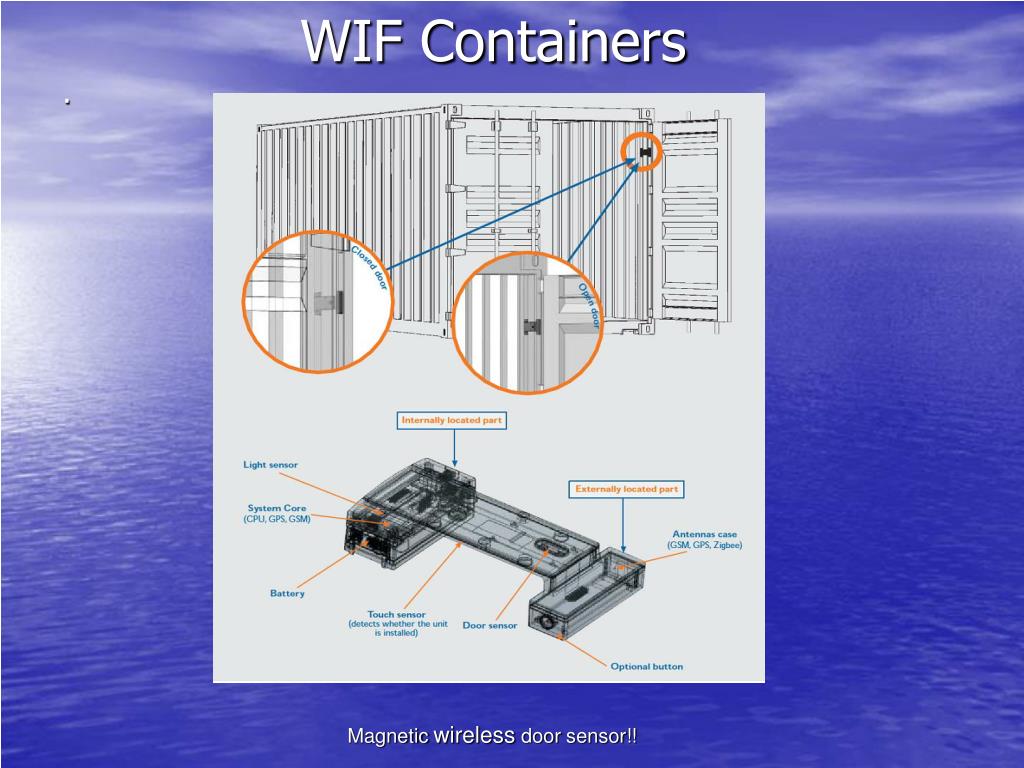

  22. WIF Containers .

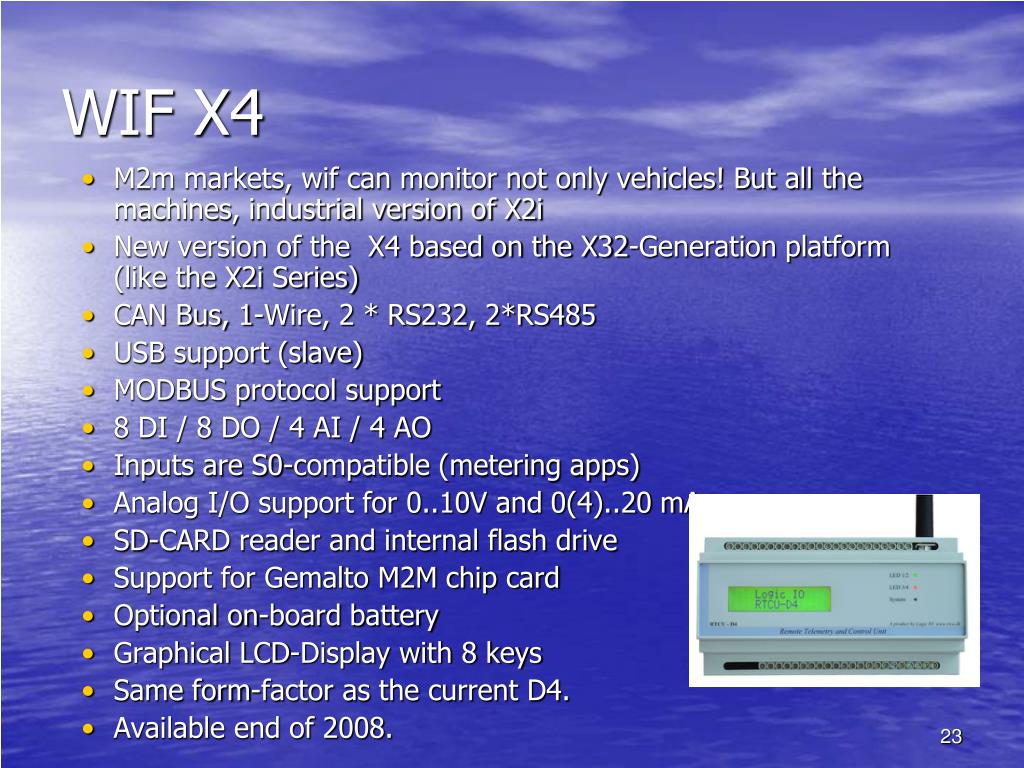

  23. WIF X4 • M2m markets, wif can monitor not only vehicles! But all the machines, industrial version of X2i • New version of the X4 based on the X32-Generation platform (like the X2i Series) • CAN Bus, 1-Wire, 2 * RS232, 2*RS485 • USB support (slave) • MODBUS protocol support • 8 DI / 8 DO / 4 AI / 4 AO • Inputs are S0-compatible (metering apps) • Analog I/O support for 0..10V and 0(4)..20 mA • SD-CARD reader and internal flash drive • Support for Gemalto M2M chip card • Optional on-board battery • Graphical LCD-Display with 8 keys • Same form-factor as the current D4. • Available end of 2008.

  24. WIF Cx1 & Sx1 • Compact and highly integrated device, fully autonomous and without external connections especially designed for high level security applications with minimum installation time.Its high environmental protection grade and its architecture make it especially suited for applications in those section where robustness and portability are key factors. • Approved according to 2004/104/CE. • R&TTE Full Type Approved. • SMS, Data communication, Gprs. • Gps ublox 66 channels with egnos/waas • Location via GPRS, IP65 for SX1. • Time management based on GPS or internal clock. • Autonomy with internal batteries (SX1):> up to 10 years with con 4 GSM wakes up per day and one location per week with configuration pre-loaded ex-factory • Flexible management of communication channels. • Period between wakes up and location fully programmable • Continuous tracking activation upon command from remote

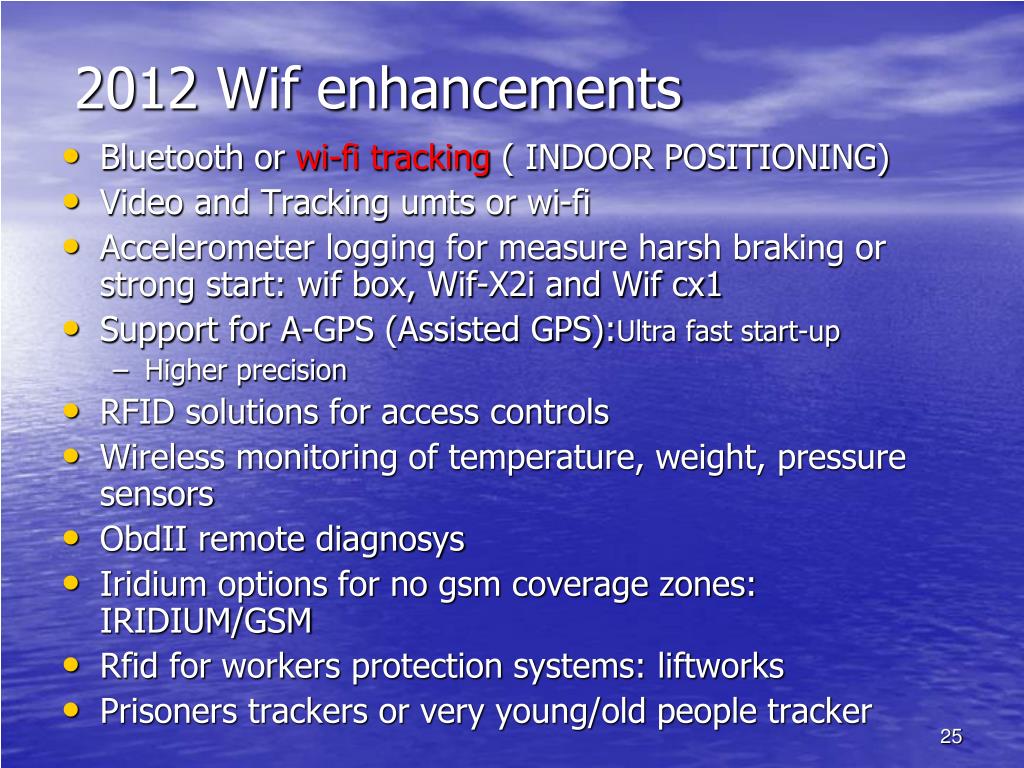

  25. 2012 Wif enhancements • Bluetooth or wi-fi tracking ( INDOOR POSITIONING) • Video and Tracking umts or wi-fi • Accelerometer logging for measure harsh braking or strong start: wif box, Wif-X2i and Wif cx1 • Support for A-GPS (Assisted GPS):Ultra fast start-up • Higher precision • RFID solutions for access controls • Wireless monitoring of temperature, weight, pressure sensors • ObdII remote diagnosys • Iridium options for no gsm coverage zones: IRIDIUM/GSM • Rfid for workers protection systems: liftworks • Prisoners trackers or very young/old people tracker

  26. Wif and Garmin Wif navigator solution with our Wif-X2i device mx2, cx2 and Sx1: Nuvi 465T for trucks or Nuvi 13xx, 14xx000! 26

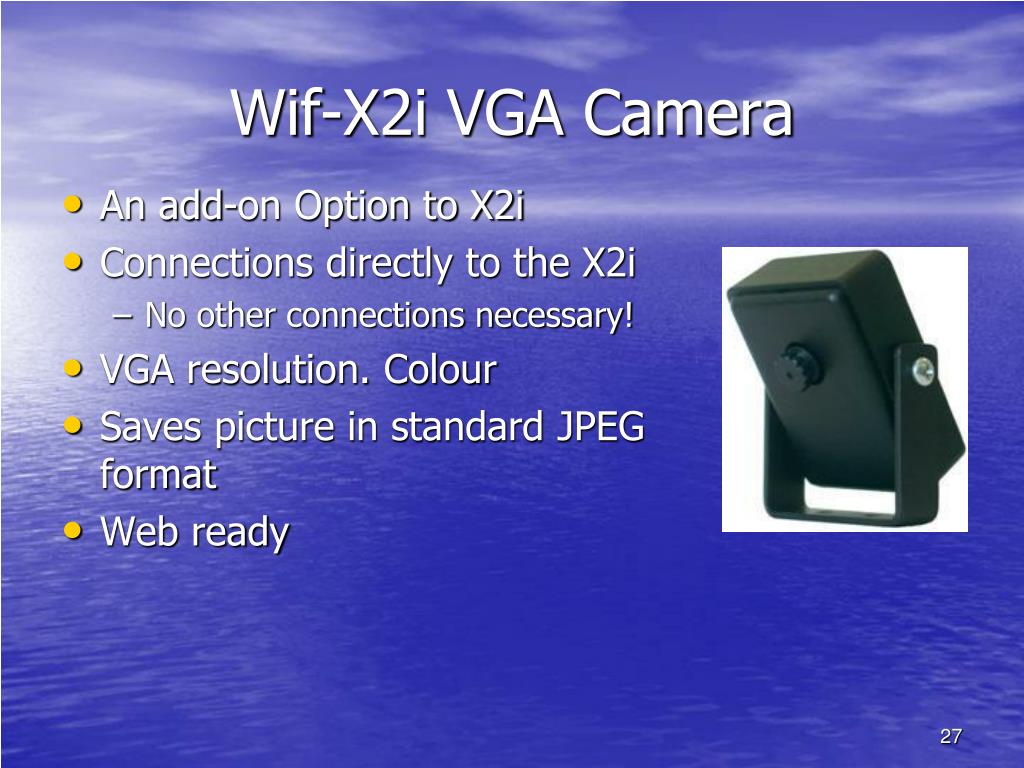

  27. Wif-X2i VGA Camera • An add-on Option to X2i • Connections directly to the X2i • No other connections necessary! • VGA resolution. Colour • Saves picture in standard JPEG format • Web ready

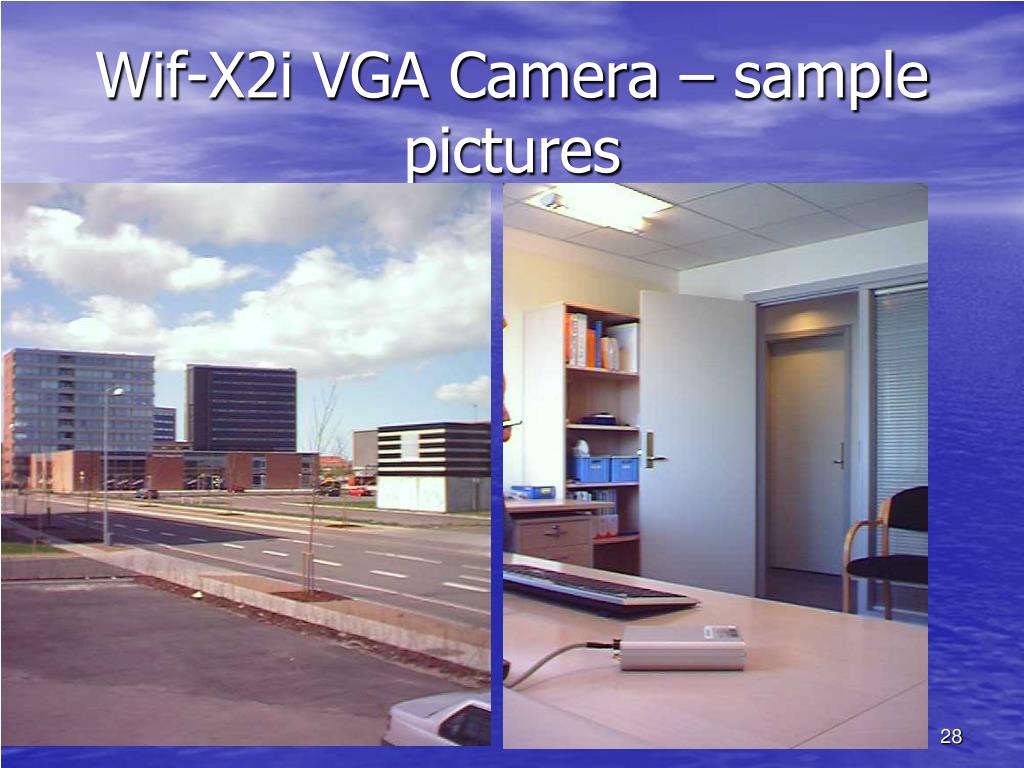

  28. Wif-X2i VGA Camera – sample pictures

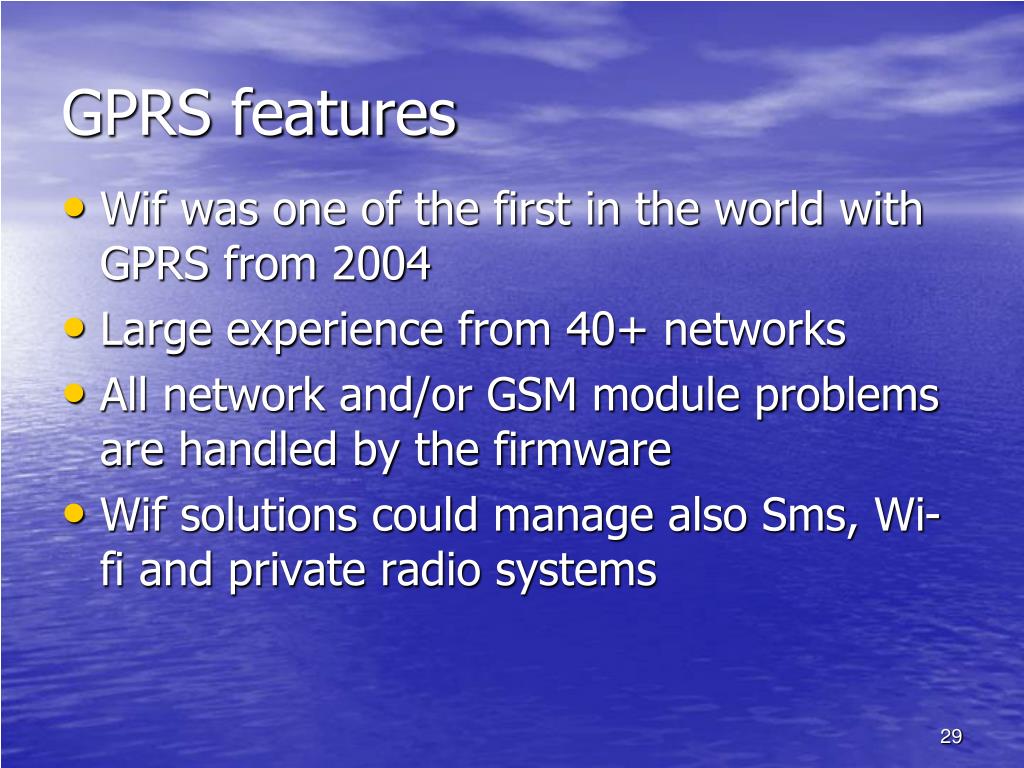

  29. GPRS features • Wif was one of the first in the world with GPRS from 2004 • Large experience from 40+ networks • All network and/or GSM module problems are handled by the firmware • Wif solutions could manage also Sms, Wi-fi and private radio systems

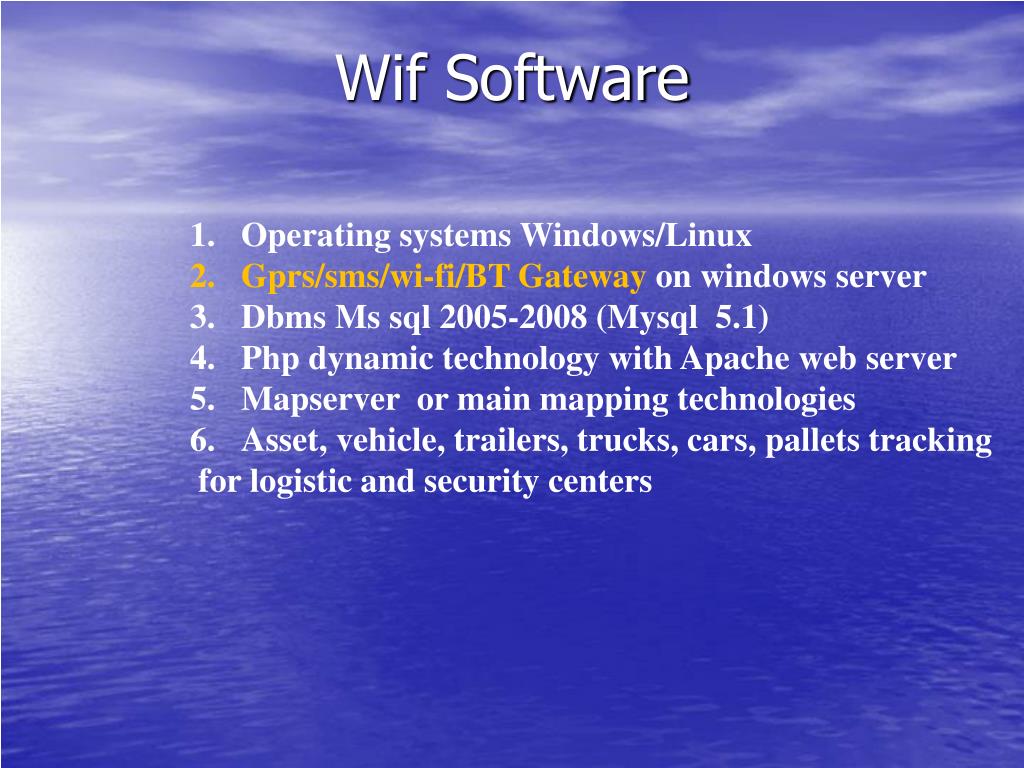

  30. Wif Software Operating systems Windows/Linux Gprs/sms/wi-fi/BT Gateway on windows server Dbms Ms sql 2005-2008 (Mysql 5.1) Php dynamic technology with Apache web server Mapserver or main mapping technologies Asset, vehicle, trailers, trucks, cars, pallets tracking for logistic and security centers

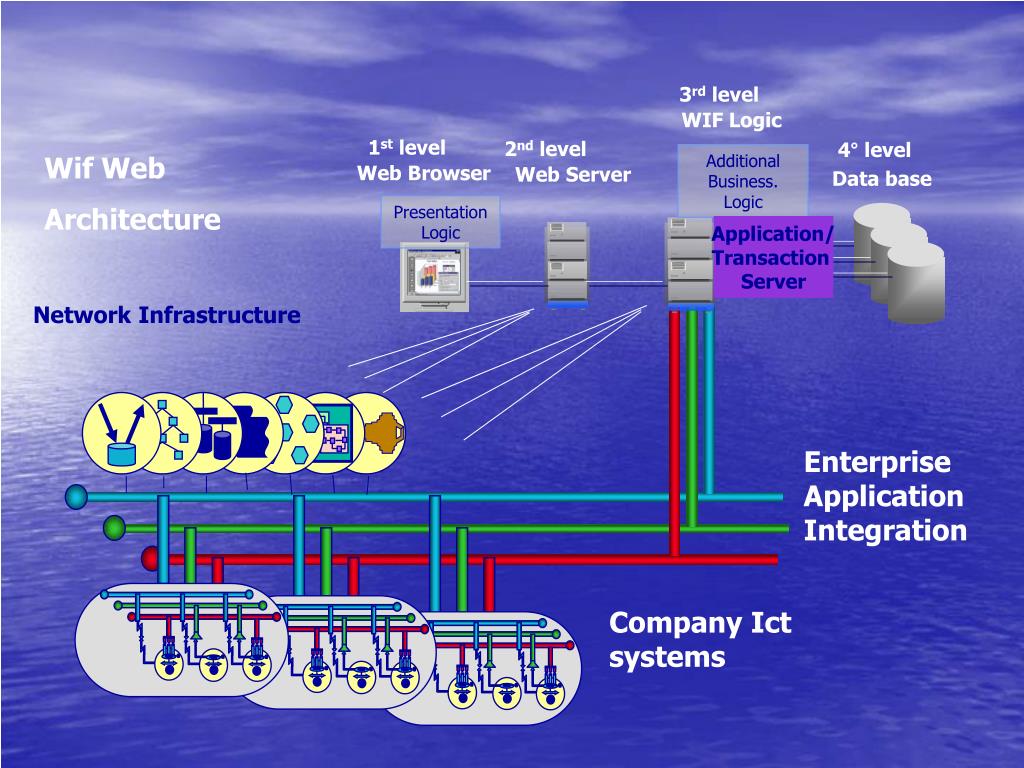

  31. 1st level Web Browser 4° level 2nd level Data base Web Server 3rd level WIF Logic Additional Business. Logic Wif Web Architecture Presentation Logic Application/ Transaction Server Network Infrastructure Enterprise Application Integration Company Ict systems

  32. Any questions? For more info contact : Phone +39 0432 730070 e-mail info@wif.it http://www.wif.it Skype: wadriano
