  1. MagWeld Technologies LLC MIAB Applications Case Studies Dr.

  2. OurApplication Liquid Propellant Tankage Our Niche

  3. OurApplication Liquid Propellant Tank Tensile-Tests (No Weld Failures) Our Niche

  4. OurApplication Liquid Propellant Tank Face Bend-Test (End-View) Face Bend-Test (Top-View) Our Niche

  5. OurApplication Automotive Industry Our Niche

  6. OurApplication A Case Study – Delphi Corp. Division: Chassis Systems Location: Kettering, OH Applications: Automotive Front Suspension, Strut, Steering & Shock Assemblies Our Niche

  7. OurApplication A Case Study - John Deere Application: Hydraulic Cylinder Material Combination: Cast Forging to HRS 1020 Wall Thickness: .154-.528 inches Automatic MIAB – 42 sec. Cycle Our Niche

  8. OurApplication A Case Study - John Deere Application: Hydraulic Cylinder Material Combination: Cast Forging to HRS 1020 Wall Thickness: .232 inches Robotic GMAW – 2.8 min. Cycle Automatic MIAB – 42 sec. Cycle Our Niche

  9. OurApplication A Case Study - Magna Application: Truck Structural Frame - Bracket Material Combination: 1010 HRS to HRS 1020 Wall Thickness: .120 inches Robotic GMAW – 32 sec. cycle Automatic MIAB – 14 sec. cycle Our Niche

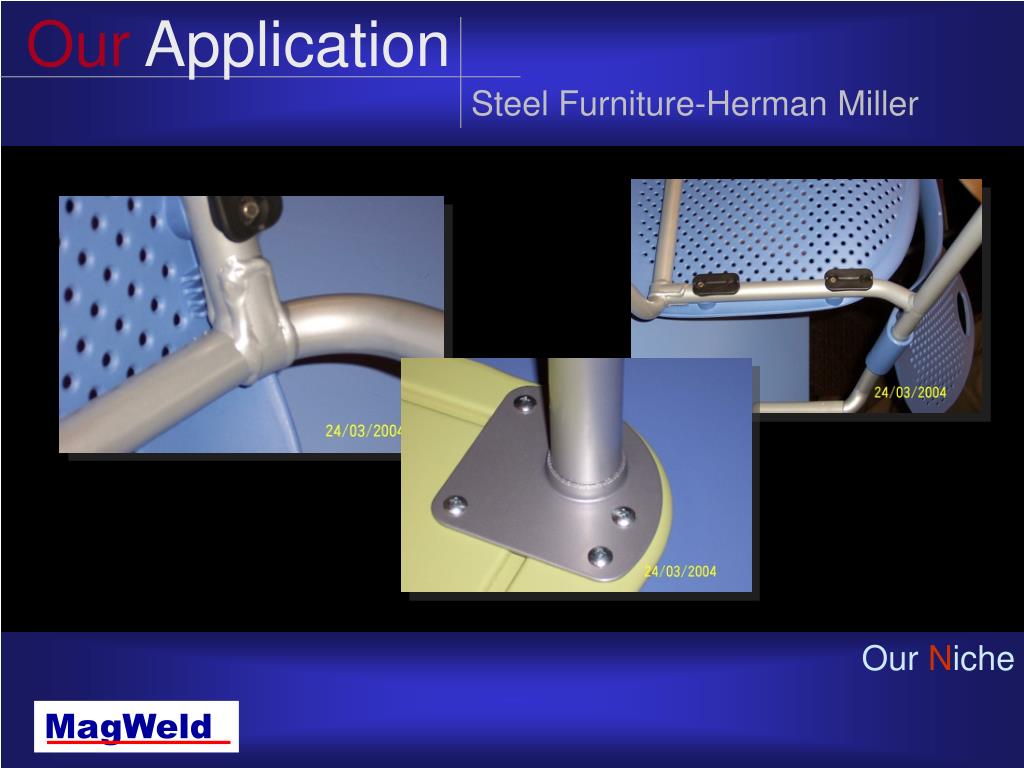

  10. OurApplication Steel Furniture-Herman Miller Our Niche

  11. OurApplication Weld Joint Configurations Our Niche

  12. OurApplication Evaluation Our Niche

  13. OurProducts Specifications Our Niche

  14. Innovation, Before You Ask! MagWeld Technologies LLC
