  1. Capture Server 4.4 For SharePoint 2010

  2. Capture Server 4.4 • In This Presentation • Overview • Requirements • Installation • Configuration • Process Designer • Capture Server Agent • Capture Server Monitor • Web Capture • Release to Capture Server • Test Capture Server • Import Designer

  3. Overview

  4. Capture Server Overview • Capture Server is an enterprise-friendly batch processing application. • A batch of captured documents follows a configurable Processconsisting of any number of Activities. • The Capture Server architecture provides scalability and flexibility to handle the most demanding business needs.

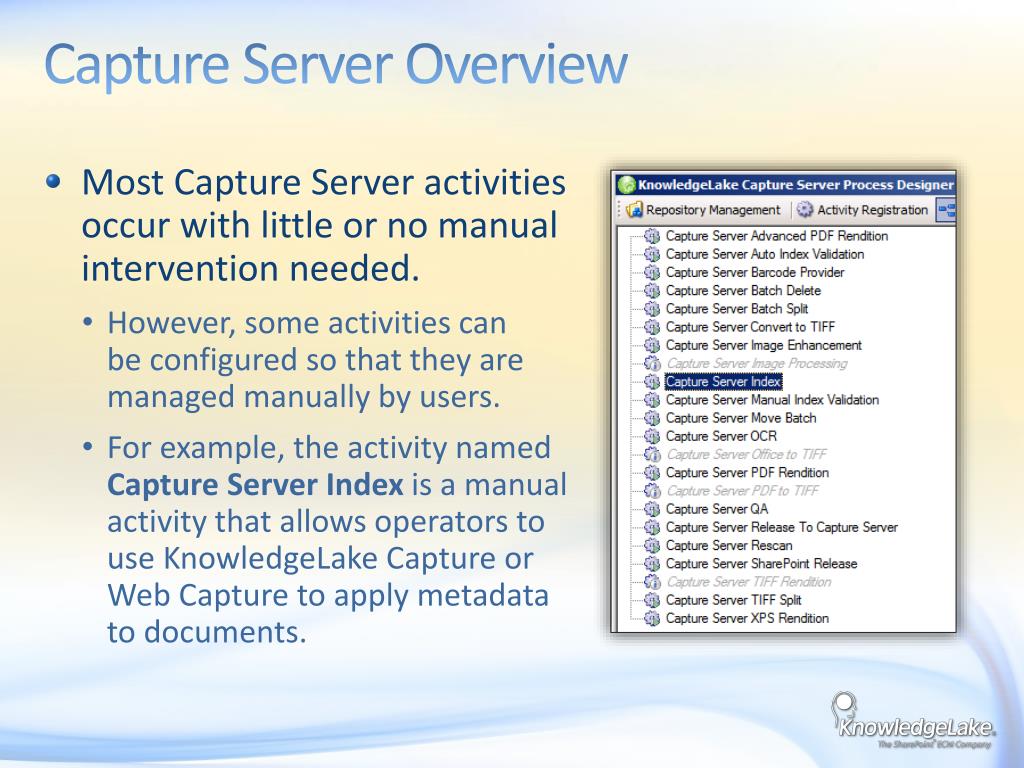

  5. Capture Server Overview • Most Capture Server activities occur with little or no manual intervention needed. • However, some activities can be configured so that they are managed manually by users. • For example, the activity named Capture Server Index is a manual activity that allows operators to use KnowledgeLake Capture or Web Capture to apply metadata to documents.

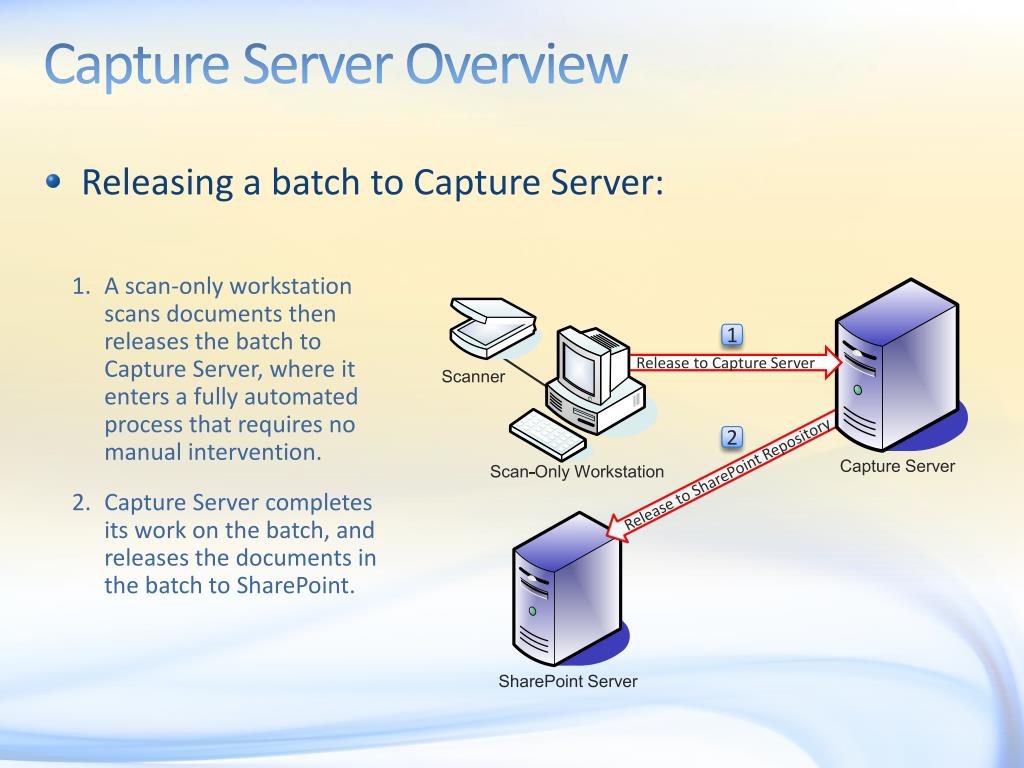

  6. Capture Server Overview • Releasing a batch to Capture Server: • A scan-only workstation scans documents then releases the batch to Capture Server, where it enters a fully automated process that requires no manual intervention. • Capture Server completes its work on the batch, and releases the documents in the batch to SharePoint. Release to Capture Server Scanner 1 Capture Server Release to SharePoint Repository Scan-Only Workstation 2 SharePoint Server

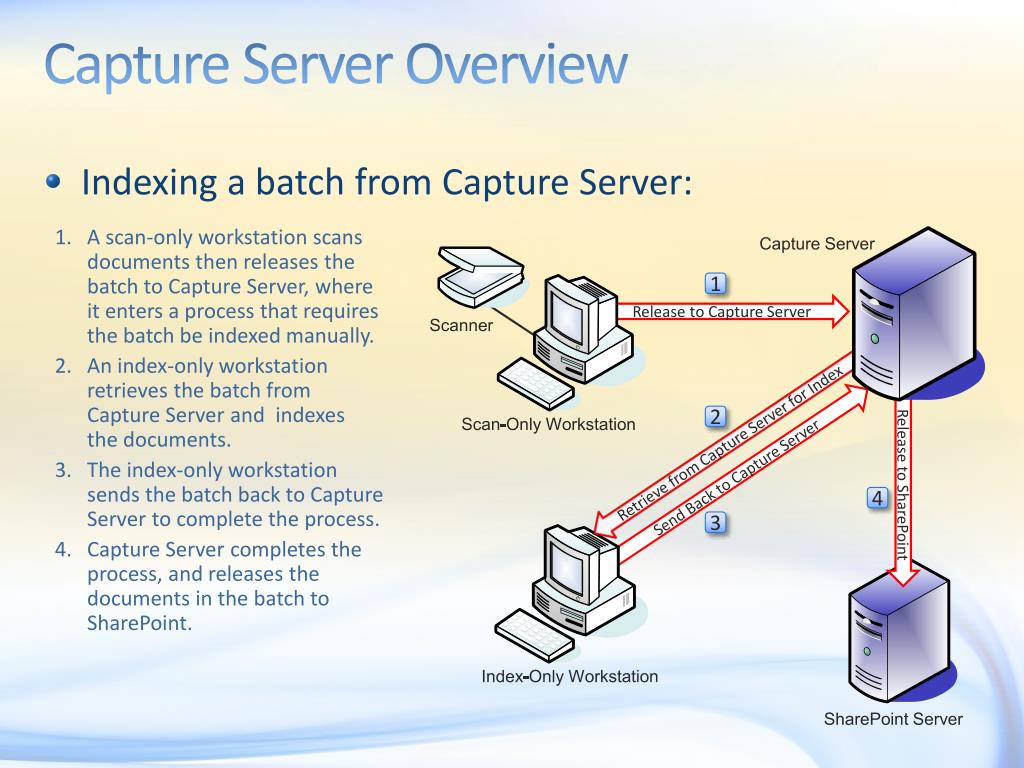

  7. Capture Server Overview • Indexing a batch from Capture Server: • A scan-only workstation scans documents then releases the batch to Capture Server, where it enters a process that requires the batch be indexed manually. • An index-only workstation retrieves the batch from Capture Server and indexes the documents. • The index-only workstation sends the batch back to Capture Server to complete the process. • Capture Server completes the process, and releases the documents in the batch to SharePoint. Capture Server 1 Release to Capture Server Scanner 2 Scan-Only Workstation Retrieve from Capture Server for Index Send Back to Capture Server Release to SharePoint 4 3 Index-Only Workstation SharePoint Server

  8. Capture Server Architecture • Capture Server consists of various components. • These components may exist on a single server in a Basic installation, or may be installed among multiple servers in an Advanced installation. • This architecture provides scalability, and the option to maximize efficiency regardless of the volume of documents. • Communication Server • Batch Server • Activity Server • Import Server • Image Processing Server • Agent Server • Index Client • Web Monitor • Web Capture

  9. Communication Server • The Communication Server is the hub of Capture Server, and is the only component that communicates directly with the Capture Server SQL database. • All other components of Capture Server communicate to the Communication Server

  10. Batch Server • The Batch Server analyzes and tracks Capture Server batches by talking with the Communication Server. • The Batch Server: • Locates queued jobs. • Assigns the appropriate activities for the batch to follow. • Tracks the progress of these jobs.

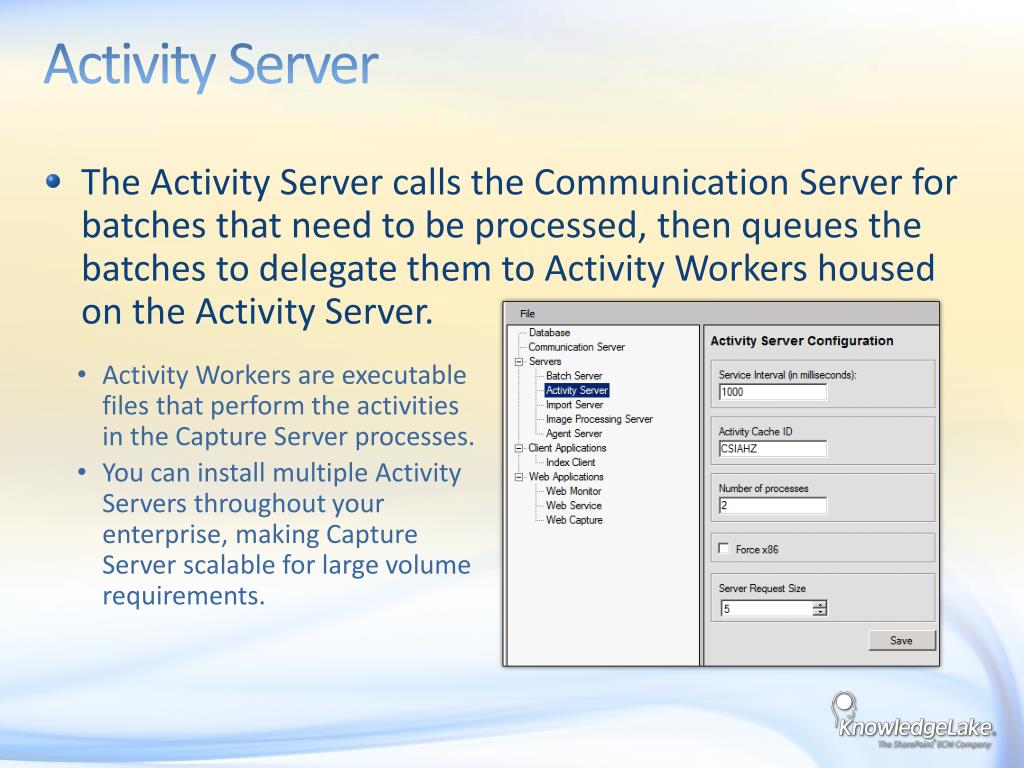

  11. Activity Server • The Activity Server calls the Communication Server for batches that need to be processed, then queues the batches to delegate them to Activity Workers housed on the Activity Server. • Activity Workers are executable files that perform the activities in the Capture Server processes. • You can install multiple Activity Servers throughout your enterprise, making Capture Server scalable for large volume requirements.

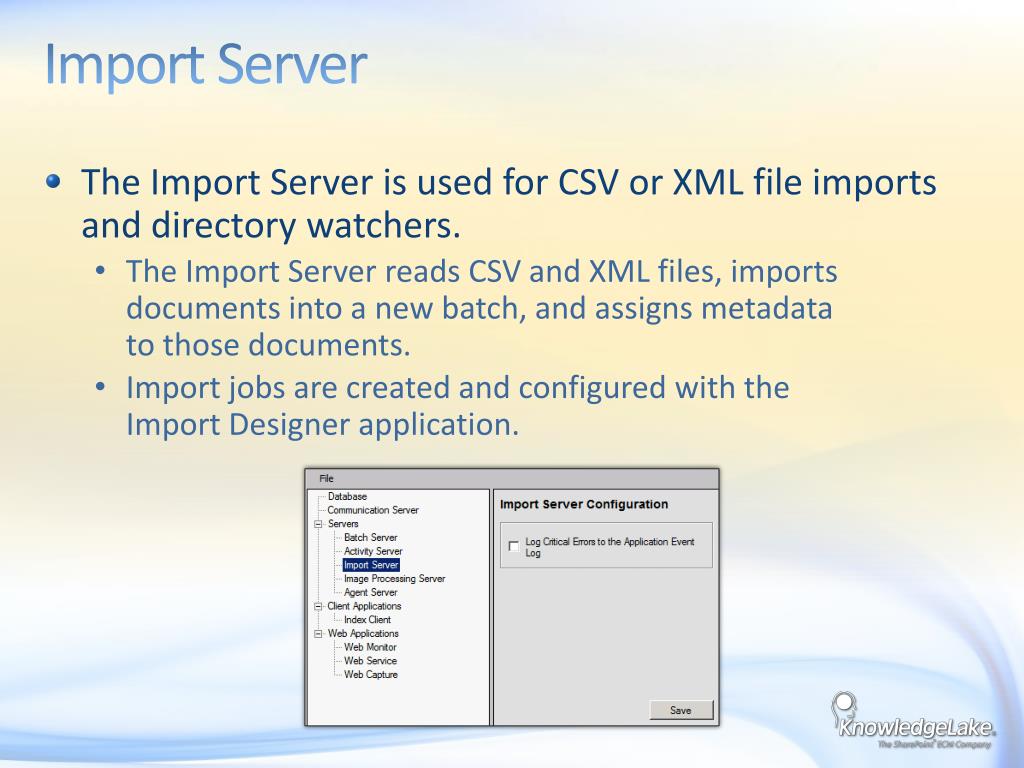

  12. Import Server • The Import Server is used for CSV or XML file imports and directory watchers. • The Import Server reads CSV and XML files, imports documents into a new batch, and assigns metadata to those documents. • Import jobs are created and configured with the Import Designer application.

  13. Image Processing Server • The Image Processing Server is a type of Activity Server that detects barcodes and patch codes for document separation and auto-population of index fields. • It also performs image cleanup with technologies such as deskew, border removal, page orientation, and despeckle.

  14. Capture Server Agent • Capture Server Agent is a tray application installed on all Capture Server servers. • Through the Communication Server, it monitors the Capture Server SQL database and allows an administrator to start and stop Capture Server components on that server.

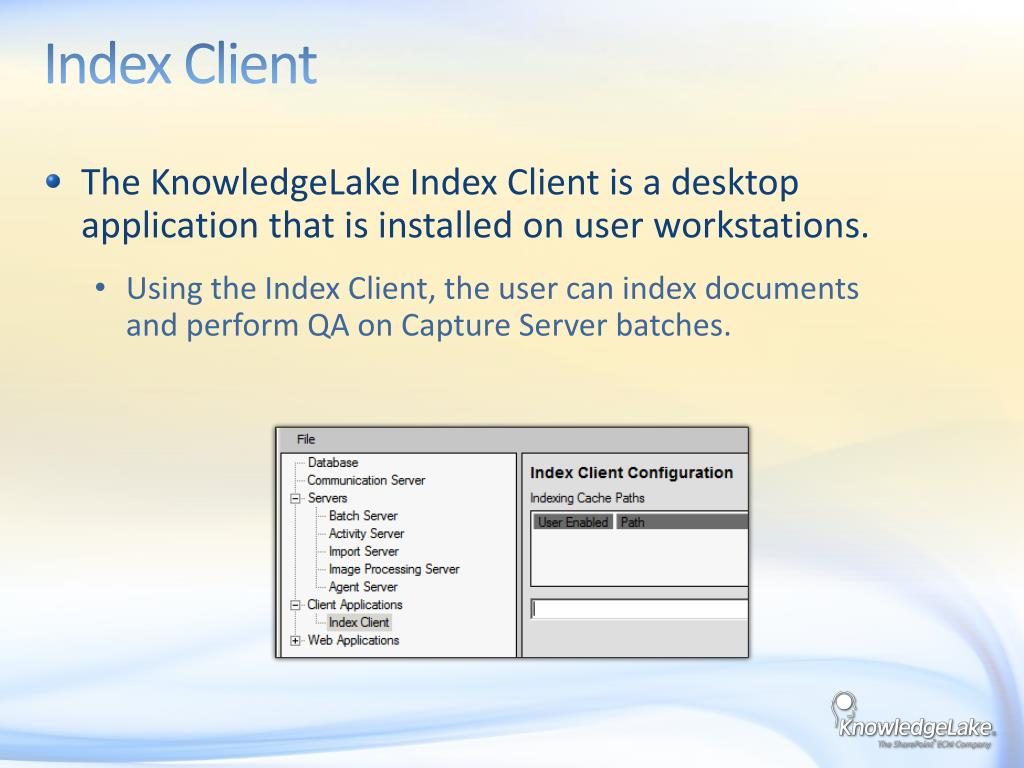

  15. Index Client • The KnowledgeLake Index Client is a desktop application that is installed on user workstations. • Using the Index Client, the user can index documents and perform QA on Capture Server batches.

  16. Capture Server Web Monitor • The Capture Server Web Monitor is used by Capture Server administrators. • It allows administrators to: • Check the status of Capture Server and related services. • View errors and re-submit batches. • Remotely start and stop servers through the Agent Server.

  17. Branch Capture Server Web Service • Branch Capture Server is used in conjunction with Capture Server, typically in a remote or satellite office. • Users in the remote office release batches from KnowledgeLake Capture to Branch Capture Server. • The Web Service configuration is the path that Branch Capture Server will release batches into.

  18. Capture Server Web Capture • Web Capture permits users to scan and index documents from within a browser window. • Users can also perform document assembly, annotate documents, and perform ad-hoc scanning. • The Web Monitor and Web Capture components must be installed on an IIS Server.

  19. Process Designer • The Process Designer is used to configure Processes and register Activities with the various activity servers.

  20. Requirements

  21. Capture Server Requirements Supported Systems: • Microsoft Windows SharePoint Services 2.0 or Microsoft SharePoint Portal Server 2003 -or- Microsoft Windows SharePoint Services 3.0 or Microsoft Office SharePoint Server 2007 -or- Microsoft SharePoint Server (“SharePoint 2010”) -or- KnowledgeLake Imaging for SharePoint 2.x, 3.x, 4.xKnowledgeLake Imaging for SharePoint 2.x, 3.x, 4.x • Microsoft Windows Server 2003 or 2008 or 2008 R2 (32-bit or 64-bit) • Microsoft .NET Framework 4 • Microsoft SQL Server 2005, Microsoft SQL Server 2008 or 2008 R2, or Microsoft SQL Server 2012. NOTE: To use Web Capture, Microsoft SQL must be configured for mixed-mode authentication. • Internet Information Services 6.0 or 7.0 (for Web Capture, Web Monitor and Web Service) • Microsoft Windows XP, Windows 7, or Vista (for Index Client on client machines) • ASP.Net server role (Windows Server 2008) -or- ASP.Net enabled in IIS (Windows Server 2003) • IIS 6 Management Compatibility server role (Windows Server 2008) • Windows Authentication server role (Windows Server 2008)

  22. Capture Server Requirements Server Hardware Requirements: • 2.5 gigahertz (GHz) or faster dual core processor (quad core recommended) • 4 gigabyte (GB) RAM minimum, 6 GB recommended • 1 gigabyte (GB) hard disk space for installation files • Additional hard disk space large enough for batch creation and document storage

  23. Capture Server Requirements Index Client Hardware Requirements: • 2.5 gigahertz (GHz) processor or faster, dual core processor recommended • 1 gigabyte (GB) RAM minimum, 2 GB recommended • 100 megabyte (MB) hard disk space • 64 MB Video Card that supports 1024x768 resolution • TWAIN compatible device required for scanning Additional Requirements: • Internet Explorer 6.0, 7.0, 8.0, or 9.0 on workstations using Web Capture and Web Monitor

  24. Capture Server Requirements • Additional considerations apply when installing Capture Server on a Windows Server 2008 machine: • The Application Pool running any Capture Server Web Application must have the Managed Pipeline Mode configured to Classic.

  25. Capture Server Requirements • Additional considerations apply when installing Capture Server on a Windows Server 2008 machine: • In the Role Services section, you must also install: • IIS 6.0 Management Compatibility • ASP.NET • Static Content • Windows Authentication

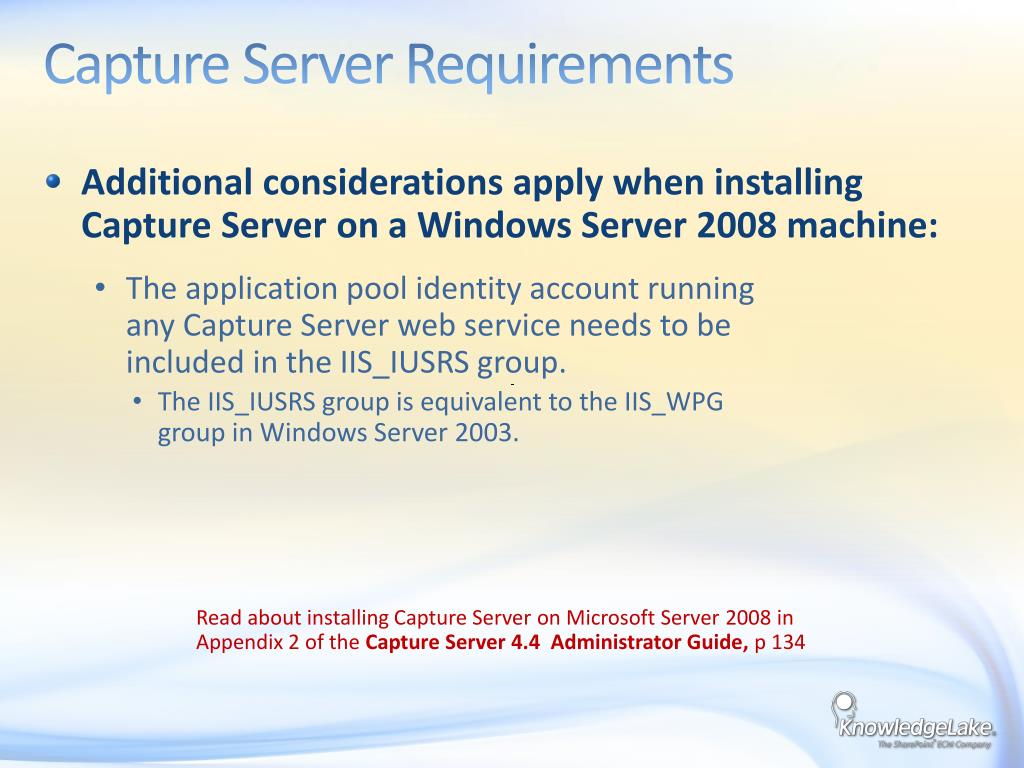

  26. Capture Server Requirements • Additional considerations apply when installing Capture Server on a Windows Server 2008 machine: • The application pool identity account running any Capture Server web service needs to be included in the IIS_IUSRS group. • The IIS_IUSRS group is equivalent to the IIS_WPG group in Windows Server 2003. Read about installing Capture Server on Microsoft Server 2008 in Appendix 2 of the Capture Server 4.4 Administrator Guide, p 134

  27. Capture Server Requirements Configuring the Web Capture Silverlight Index Panel (1 of 4) • Client Access Policy for MSS (2010) • When connecting to an MSS (2010) site, the Web Capture index panel uses the Microsoft Silverlight™ 4 plug-in. • For Web Capture’s index panel to retrieve columns for SharePoint content types, a clientaccesspolicy.xml file must be added to the virtual directory for each web front end.

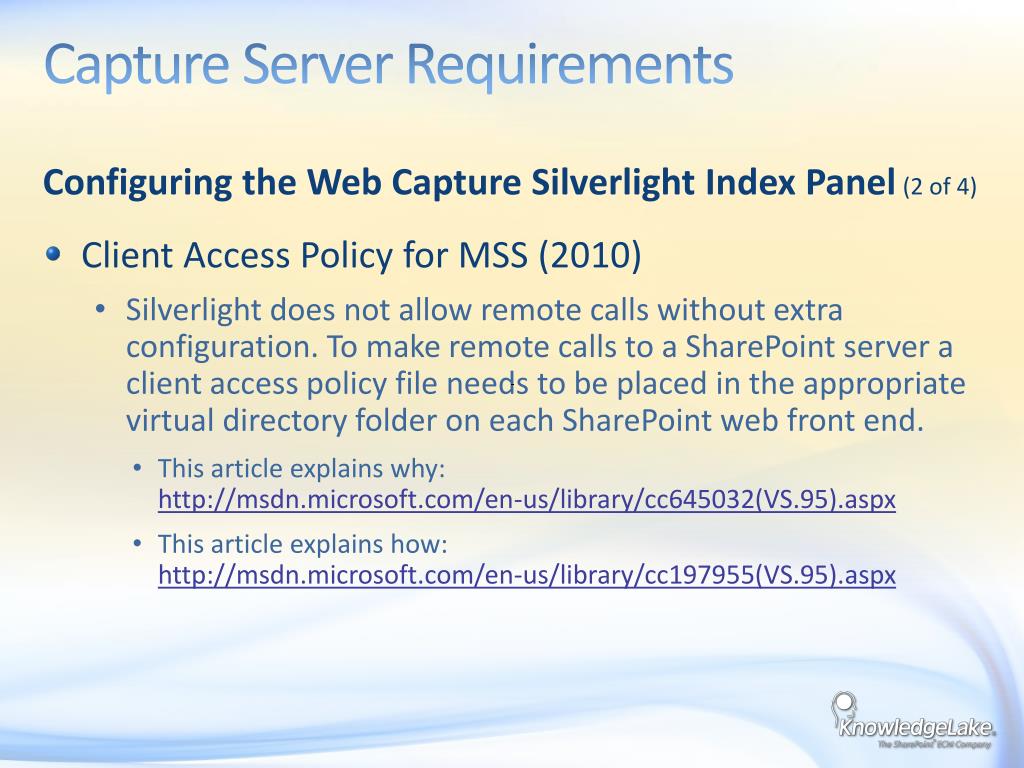

  28. Capture Server Requirements Configuring the Web Capture Silverlight Index Panel (2 of 4) • Client Access Policy for MSS (2010) • Silverlight does not allow remote calls without extra configuration. To make remote calls to a SharePoint server a client access policy file needs to be placed in the appropriate virtual directory folder on each SharePoint web front end. • This article explains why: http://msdn.microsoft.com/en-us/library/cc645032(VS.95).aspx • This article explains how: http://msdn.microsoft.com/en-us/library/cc197955(VS.95).aspx

  29. Capture Server Requirements Configuring the Web Capture Silverlight Index Panel (3 of 4) • Client Access Policy for MSS (2010) • Here is an example of the XML: <?xml version="1.0" encoding="utf-8" ?> <access-policy> <cross-domain-access> <policy> <allow-from http-request-headers="*"> <domain uri="*" /> </allow-from> <grant-to> <resource path="/" include-subpaths="true" /> </grant-to> </policy> </cross-domain-access> </access-policy>

  30. Capture Server Requirements Configuring the Web Capture Silverlight Index Panel (4 of 4) • Client Access Policy for MSS (2010) • To apply the required XML file in the proper configuration, enable and run the KnowledgeLake Client Access Policy Deployment timer job from Central Administration. • The XML file will need to be customized to suit the security requirements at your location. • In the KLU SharePoint 2010 training environment, the clientaccesspolicy.xml file is found on the SharePoint Server at: C:\inetpub\wwwroot\wss\VirtualDirectories\80 Read about the Client Access Policy in the Capture Server 4.4 Administrator Guide, p 29

  31. Installation

  32. Installation • Use Existing Communication Server or Select Next

  33. Installation • Nota Bene: • Installation of Capture Server must be performed by a user with the “SecurityAdmin” and “DBCreator” roles in Microsoft SQL Server. • You can do an installation with all Capture Server components on a single server, or an installation with selected components installed on multiple servers. The license you purchased from KnowledgeLake determines what installation type you can successfully use.

  34. Installation • Run KL_CS.exe. • An extraction utility window opens. • Enter a destination for the Capture Server setup files. • You may keep the default location on the desktop, or browse to a location of your own choosing. • Select whether or not you would like to Launch Setup When Finished  • Click Extract.

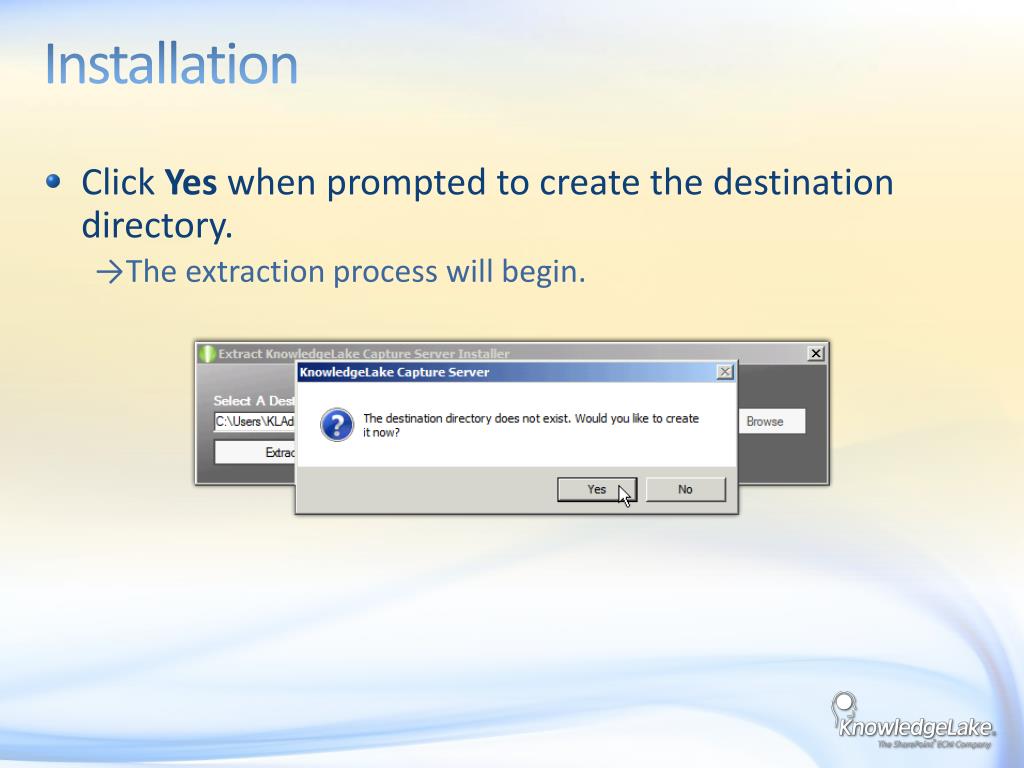

  35. Installation • Click Yes when prompted to create the destination directory. • The extraction process will begin.

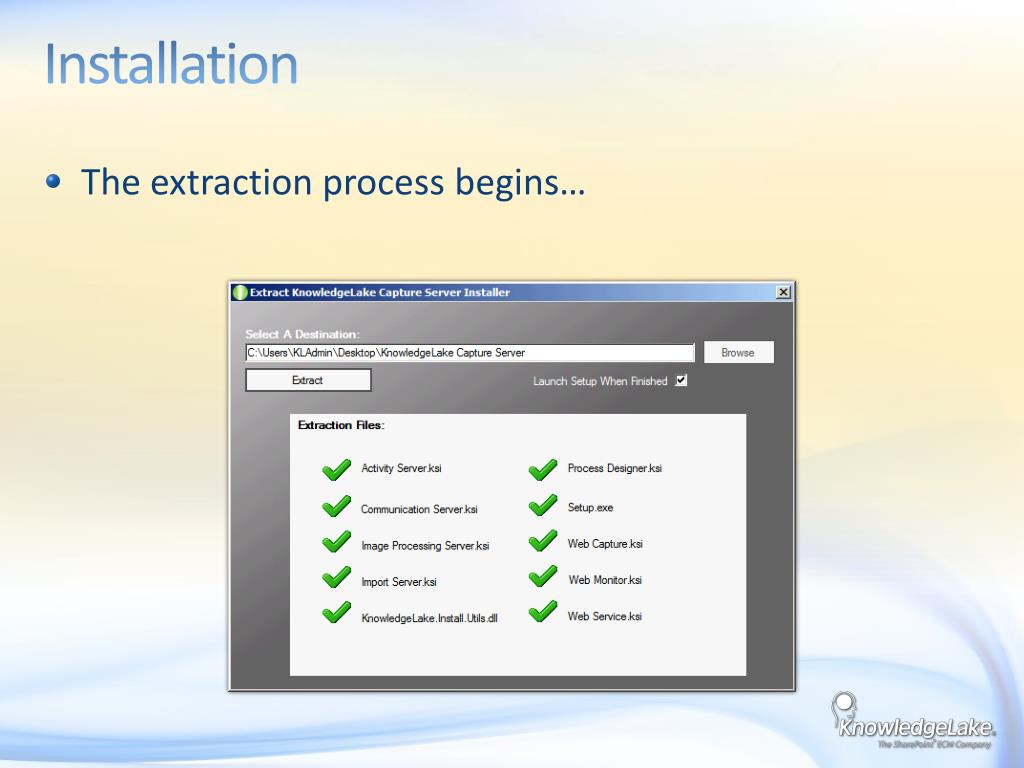

  36. Installation • The extraction process begins…

  37. Installation • …and will prompt you when the extraction is complete. • Click OK to continue the installation. • Wait a moment for the installation to begin automatically.

  38. Installation • Select Basic Capture Server for your installation type. • Click Next to continue.

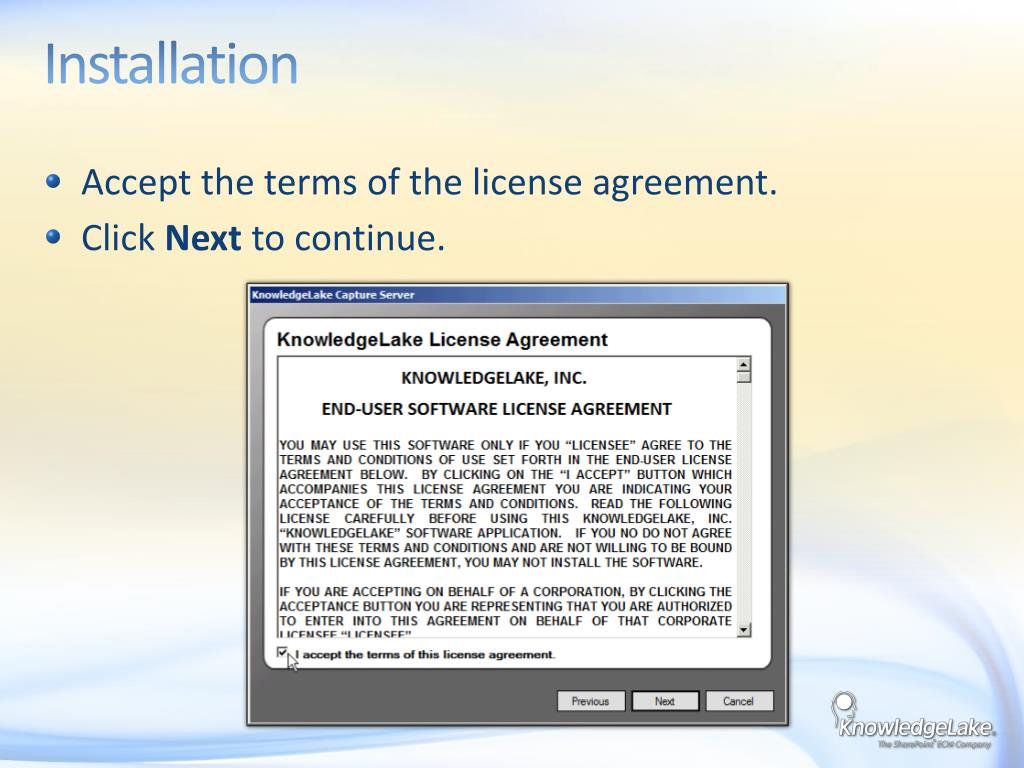

  39. Installation • Accept the terms of the license agreement. • Click Next to continue.

  40. Installation • You may keep the default installation directory or define one of your own choosing. • Capture Server components that will be installed are listed. • If you use an existing Communication Server you will not select this option. • Click Next.

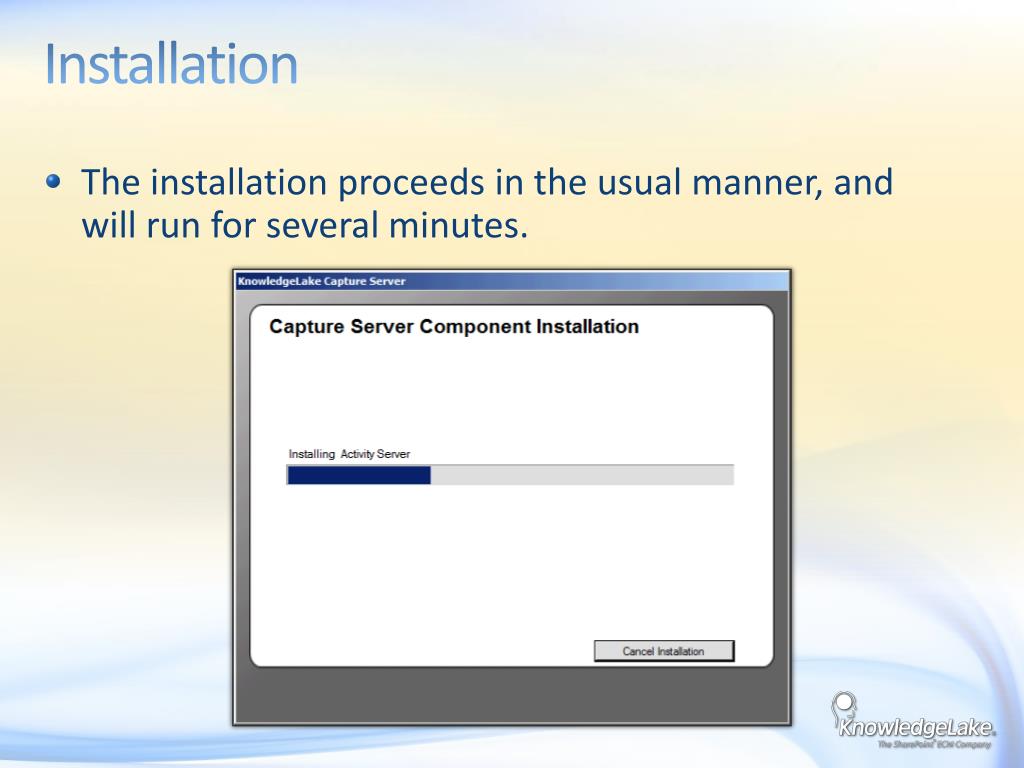

  41. Installation • The installation proceeds in the usual manner, and will run for several minutes.

  42. Installation • You are notified when the installation is complete. • Prior to using Capture Server, you must run Capture Server Configuration. • If you want to run it immediately, leave  Launch Configuration checked prior to clicking Finish. • If you choose to not run configuration after the Capture Server installation is complete, Configuration may be launched at any time from the Start menu, in the KnowledgeLake program group. • Click Finish.

  43. Configuration

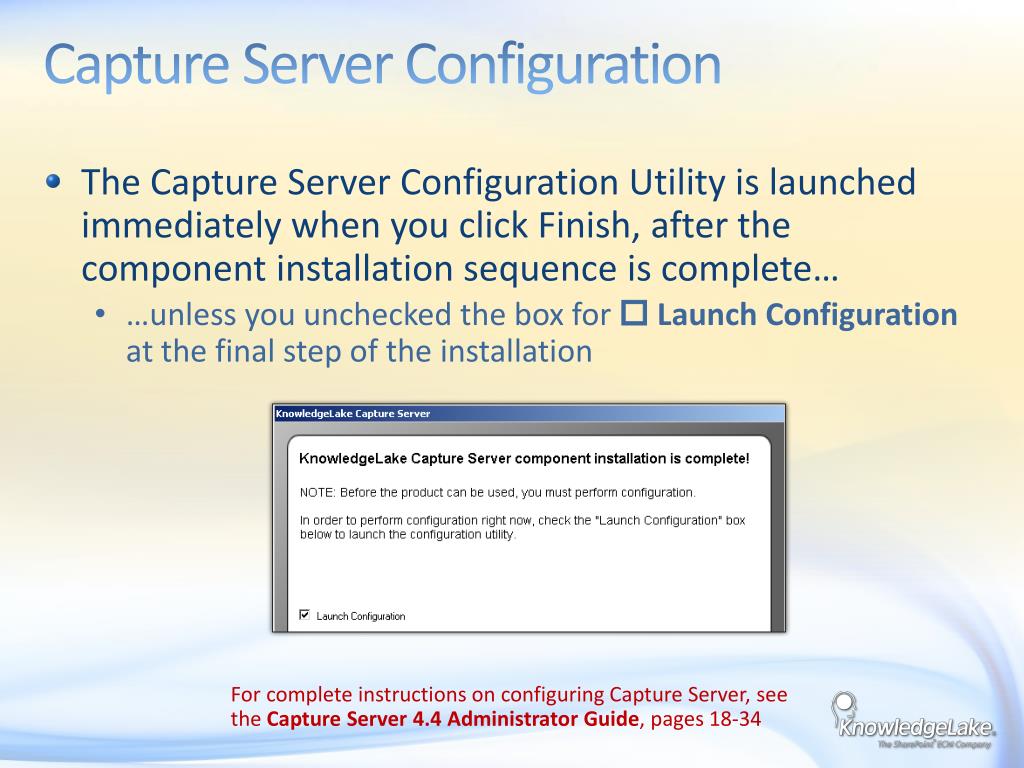

  44. Capture Server Configuration • The Capture Server Configuration Utility is launched immediately when you click Finish, after the component installation sequence is complete… • …unless you unchecked the box for Launch Configuration at the final step of the installation For complete instructions on configuring Capture Server, see the Capture Server 4.4 Administrator Guide, pages 18-34

  45. Capture Server Configuration • Capture Server Configuration may be launched at any time after installation is complete. • Find it in the Start Menu of the computer running Capture Server, in the KnowledgeLake program group.

  46. Capture Server Configuration • Installation of Capture Server must be performed by a user with the “SecurityAdmin” and “DBCreator” roles in Microsoft SQL Server.

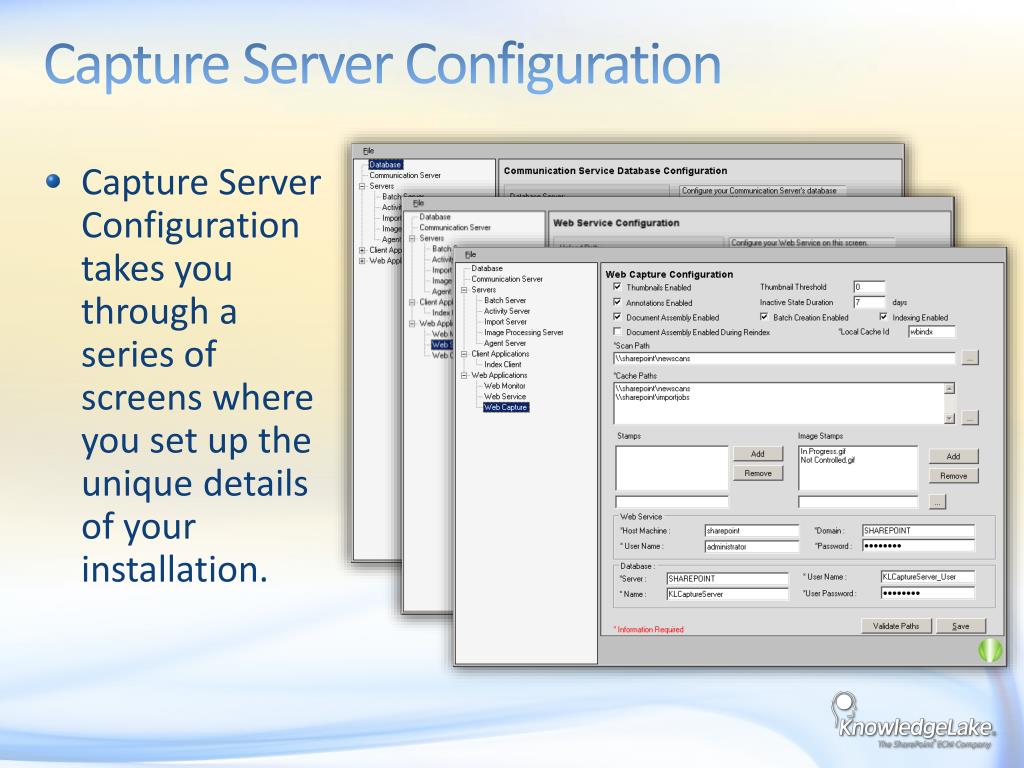

  47. Capture Server Configuration • Capture Server Configuration takes you through a series of screens where you set up the unique details of your installation.

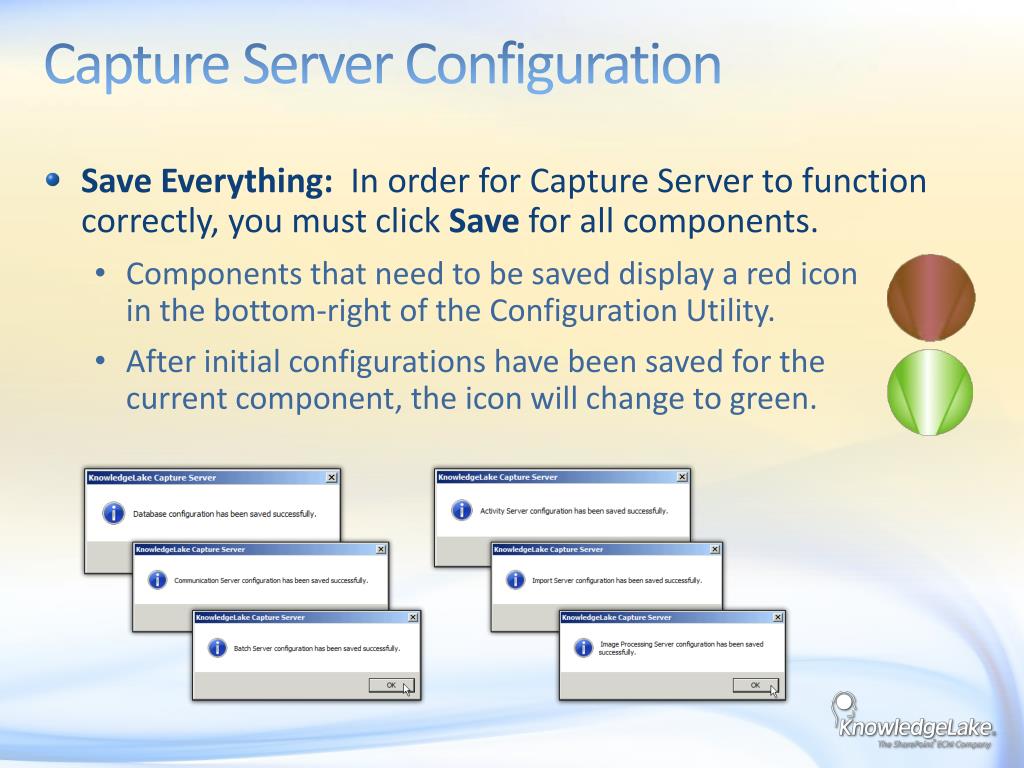

  48. Capture Server Configuration • Save Everything: In order for Capture Server to function correctly, you must click Save for all components. • Components that need to be saved display a red icon in the bottom-right of the Configuration Utility. • After initial configurations have been saved for the current component, the icon will change to green.

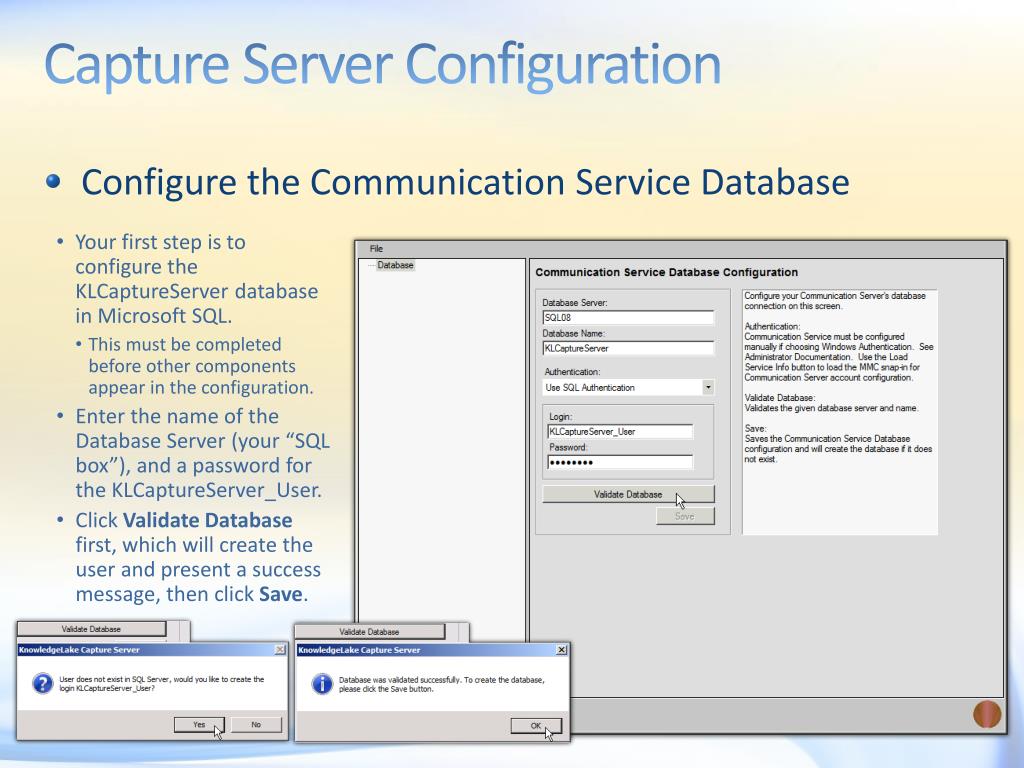

  49. Capture Server Configuration • Configure the Communication Service Database • Your first step is to configure the KLCaptureServer database in Microsoft SQL. • This must be completed before other components appear in the configuration. • Enter the name of the Database Server (your “SQL box”), and a password for the KLCaptureServer_User. • Click Validate Database first, which will create the user and present a success message, then click Save.
