setuid demystified examining the api of security operation in os using formal models

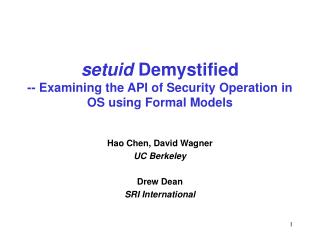

setuid Demystified-- Examining the API of Security Operation in OS using Formal Models

Hao Chen, David Wagner

UC Berkeley

Drew Dean

SRI International

objective
Objective
  • Understand the semantics of security operation API in OS precisely
  • Applications
    • Using these system calls properly in programs
    • Verifying their documentations
    • Detecting inconsistency in OS kernels
    • Building security properties and checking them in programs automatically (e.g. by modelchecker)
what is setuid
What is setuid
  • Access control in Unix is based the User ID model
  • Each process has 3 user Ids:
    • Real uid (ruid)
    • Effective uid (euid)
    • Saved uid (suid)
  • Uid-setting system calls
    • setuid() seteuid() setreuid() setresuid()
the setuid mystery
The setuid Mystery
  • Uid-setting system calls are a semantic mess
    • Counter-intuitive semantics
    • Subtle differences among different calls
    • Incompatible semantics of the same call in different Unix systems (e.g.: Linux, Solaris, FreeBSD)
    • Incomplete, inaccurate, or even wrong documentation
  • Reason: historical artifacts
solution formal model
Solution: Formal Model
  • Use a formal model to describe the user ID model
  • Build an FSA where
    • The states describe the user IDs of a process
    • The transitions describe the semantics of the uid-setting system calls
determine the states of the fsa
Determine the States of the FSA
  • Each state is a tuple (ruid, euid, suid)
  • The range of user ID values determines the number of states
  • Example:
    • A process switches between a privileged user ID and an unprivileged ID
    • 2 user IDs: 0(root), x(non-root)
    • 8 states
problem difficult to determine transitions
Problem: Difficult to Determine Transitions
  • Large number of transitions. E.g.
    • Range of user ID values: {0, x} where x!=0
    • Number of states: 8
    • Number of transitions per state:
      • setuid(uid): 2 transitions
      • seteuid(euid): 2 transitions
      • setreuid(ruid, euid): 4 transitions
      • setresuid(ruid, euid, suid): 8 transitions
    • Total transitions: 8*(2+2+4+8)=128
  • A laborious, error-prone process
determine transitions automatically by simulation
Determine Transitions Automatically by Simulation
  • Idea: Exhaustively make all system calls at each state

For each state s=(ruid, euid, suid) where

ruid, euid, suid {0, uid1 , uid2 , …}

For each system call c

{setuid(e), seteuid(e), setreuid(r,e), setresuid(r,e,s)}

{

Make the system call c in the state s

Observe the ensuing state s’

Add the transition

}

benefits
Benefits
  • Correctness: the FSA reflects what programs experience
  • Efficiency: the automatic method is portable to
    • Different Unix systems
    • Different kernel versions
application understanding the semantics of the system calls
Application: Understanding the semantics of the system calls
  • Find subtle semantic differences
    • Among different uid-setting system calls
    • Among the same system call on different Unix systems
  • Find surprising, counter-intuitive semantics
application verifying man pages
Application: Verifying Man Pages
  • Incompete man page
    • Man page for setuid() in Linux fails to mention capabilities which affect how setuid() behaves
  • Wrong man pages
    • FreeBSD 4.4:Unprivileged users may change the ruid to the euid and vice versa
    • Redhat Linux 7.2:The setgid function checks if the egid of the caller and if it is the superuser, …
application detecting inconsistency in os kernel
Application: Detecting Inconsistency in OS Kernel
  • Linux has fsuid
    • Used for filesystem permission checking
    • Normally follows euid
  • Invariant in Linux 2.4.18 (kernel/sys.c)
    • fsuid is 0 only if at least one of ruid, euid, suid is 0
  • Rationale
    • ensuring that an fsuid-unware cross-platform application can automatically drop root privilege in fsuid by dropping it in ruid, euid, suid
application detecting inconsistency in os kernel cont
Application: Detecting Inconsistency in OS Kernel (cont)
  • A bug breaks the invariant:
    • The invariant is satisfied in setuid(), seteuid(), setreuid()
    • But it is broken in setresuid()
  • We found the bug using the simulator
  • The bug has been confirmed by Linus and Alan and will be fixed using our patch.
application checking proper usage of syscalls in programs
Application: Checking Proper Usage of Syscalls in Programs
  • Modelchecking security properties in programs
    • Model a program as a PDA
    • Intersect the PDA (program) with the FSA of uid-setting system calls to get a new PDA
    • Check reachability of risky states in the new PDA
  • Can answer questions like:
    • Can a uid-setting system call fail in this program?
    • Can this program fail to drop privilege?
    • Which part of this program run with privilege?
  • Result: Found known bugs in sendmail 8.10.1 and 8.12.0
conclusion
Conclusion
  • Formal models are useful in
    • Understanding the APIs of security operations
    • Verifying their documentations
    • Detecting inconsistency in OS kernels
    • Checking proper usage of security-relevant APIs in programs
