Presentation Transcript
normal spinal curvature
Normal Spinal Curvature

There are

4 natural curves

in the vertebral column

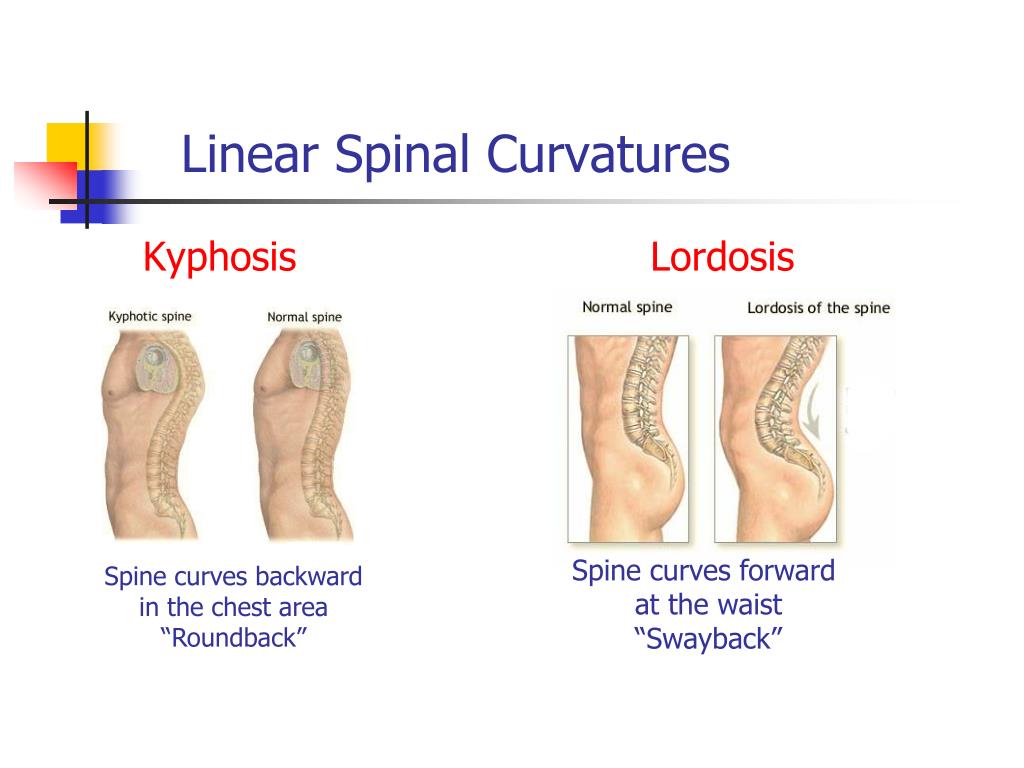

linear spinal curvatures
Kyphosis

Lordosis

Linear Spinal Curvatures

Spine curves forward

at the waist

“Swayback”

Spine curves backward

in the chest area

“Roundback”

scoliosis
Sideways curvature of the spine

Spine turns on its axis like a corkscrew

Normal spine has a “l” appearance

Scoliosis produces an “S” or “C” appearance

Scoliosis
degrees of curvature
Degrees of Curvature

Scoliosis is a lateral deviation of the normal

vertical line of the spine which, when measured

by an X-ray, is greater than 10 degrees.

MILD

MODERATE

SEVERE

causes for scoliosis
Causes for Scoliosis

Congenital

  • Problem with the formation of vertebrae or

fused ribs during prenatal development

  • Present at birth

Neuromuscular, Connective Tissue & Chromosomal Abnormalities

  • Caused by a neurological disorder of CNS or muscular weakness
  • Cerebral palsy, Muscular dystrophy, Spina bifida, Paralysis
  • Marfan’s Syndrome
  • Down’s syndrome

Idiopathic

  • Structural spinal curvature with no established cause
  • Appears in a previously straight spine
  • 80-85% of cases

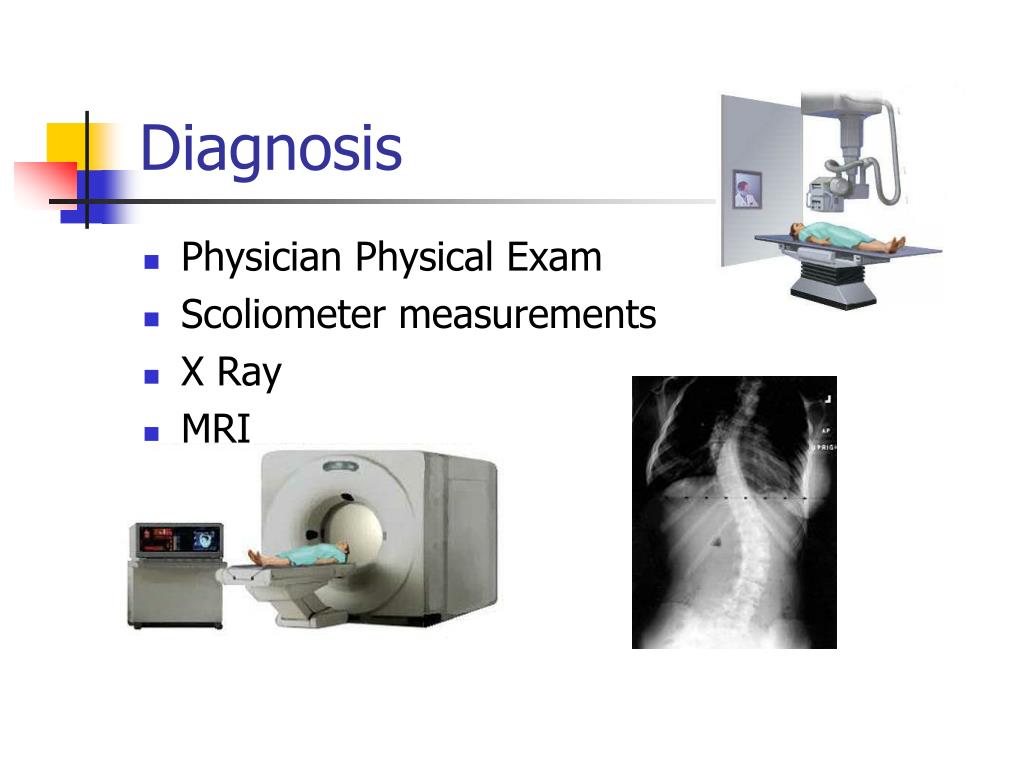

diagnosis
Diagnosis
  • Physician Physical Exam
  • Scoliometer measurements
  • X Ray
  • MRI
incidence
Incidence

Most common onset around puberty & growth spurt, ages 9-16

Affects 2-4% of the general population (can affect adults, most seen in adolescents)

Higher incidence in females than males (4:1)

Females often have a larger degree of curve

20% of individuals with scoliosis, the curve continues to progress (especially in females)

screening
Screening
  • Purpose- to identify the child at risk for postural deviation, not to diagnosis
  • 704 KAR 4:020 (2)(12)- requires 6th & 8th grades be screened annually.
  • The Kentucky Commission for Children with Special Health Care Needs recommends school age children in grades 5-9 yearly

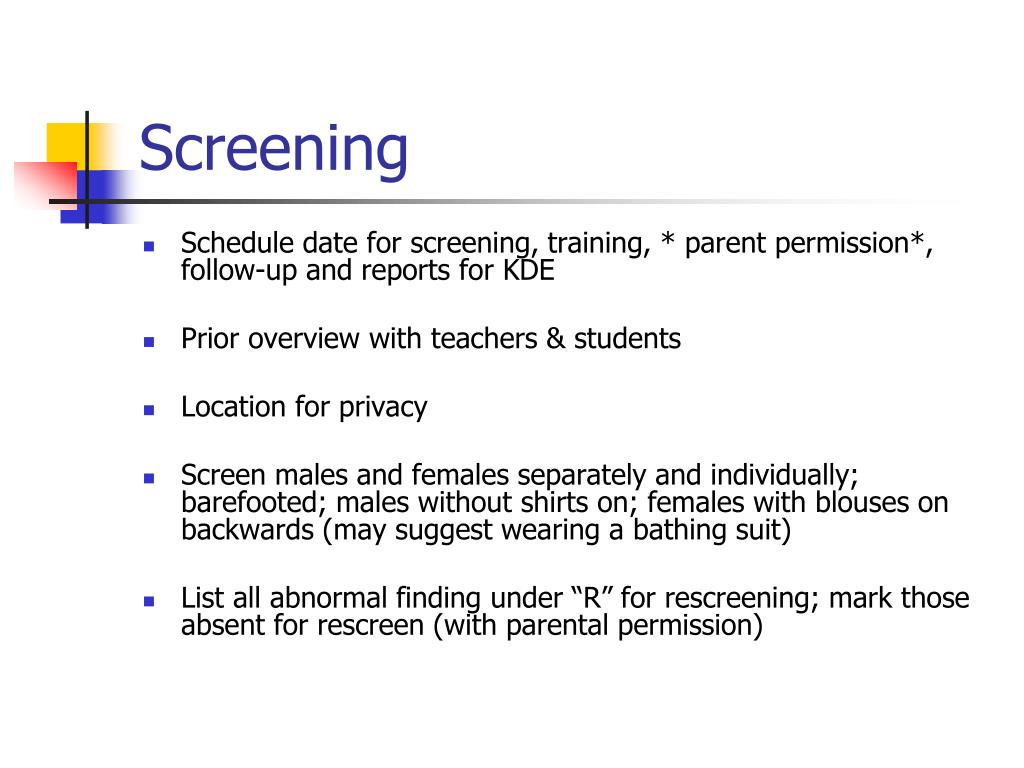

screening10
Screening
  • Schedule date for screening, training, * parent permission*, follow-up and reports for KDE
  • Prior overview with teachers & students
  • Location for privacy
  • Screen males and females separately and individually; barefooted; males without shirts on; females with blouses on backwards (may suggest wearing a bathing suit)
  • List all abnormal finding under “R” for rescreening; mark those absent for rescreen (with parental permission)
slide11
Positive findings MUST be re-screened by a health professional (this step may be omitted if doctor or RN does the initial screening)
  • Refer those needing financial assistance for PMD evaluation to the Commission for Children with Special
  • Use criteria for referral to PMD. The PMD should complete the referral letter with his/her findings and the originals returned & placed in the students health record
  • Students with questionable findings should be re-screened in 4-6 months (within the annual year)
  • Good communication is essential for the parents (* Parents should always be notified if their child failed the screening
  • Resources are available from the National Scoliosis Foundation website (http://www.scoliosis.org/)

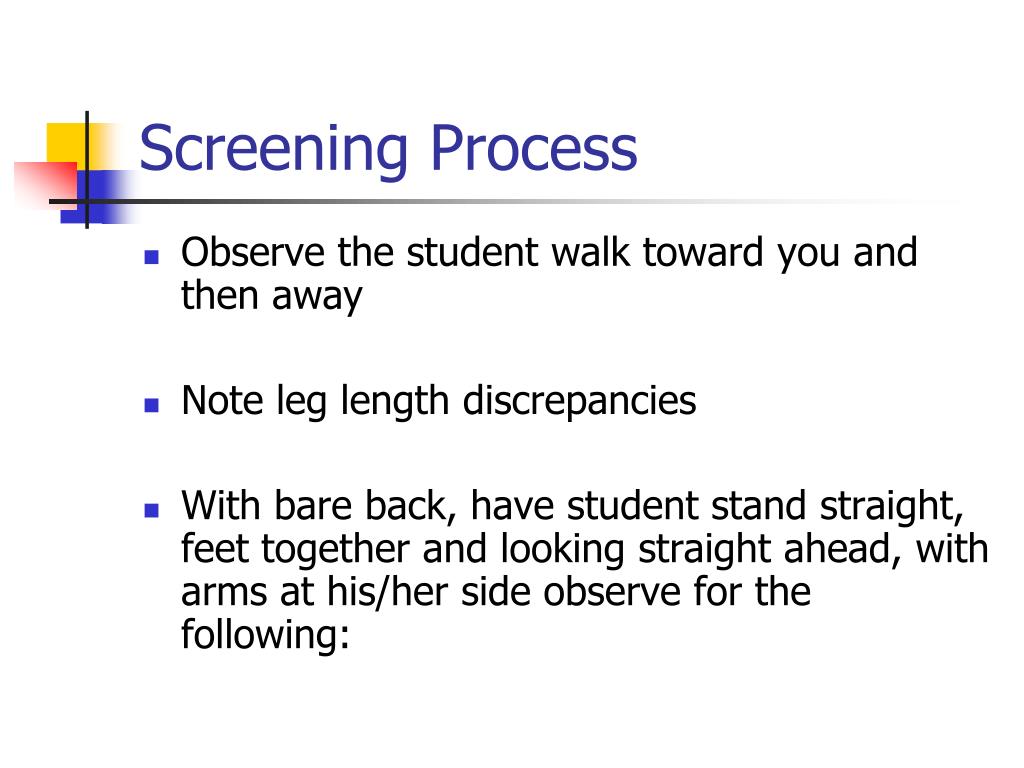

screening process
Screening Process
  • Observe the student walk toward you and then away
  • Note leg length discrepancies
  • With bare back, have student stand straight, feet together and looking straight ahead, with arms at his/her side observe for the following:
step 1 front view
Step 1Front View
  • Shoulders should be level
  • and at the same height
  • Distance between arm and
  • torso equal on both sides
  • Crest of hips level on
  • horizontal plane
  • Head straight and centered

Normal

Abnormal

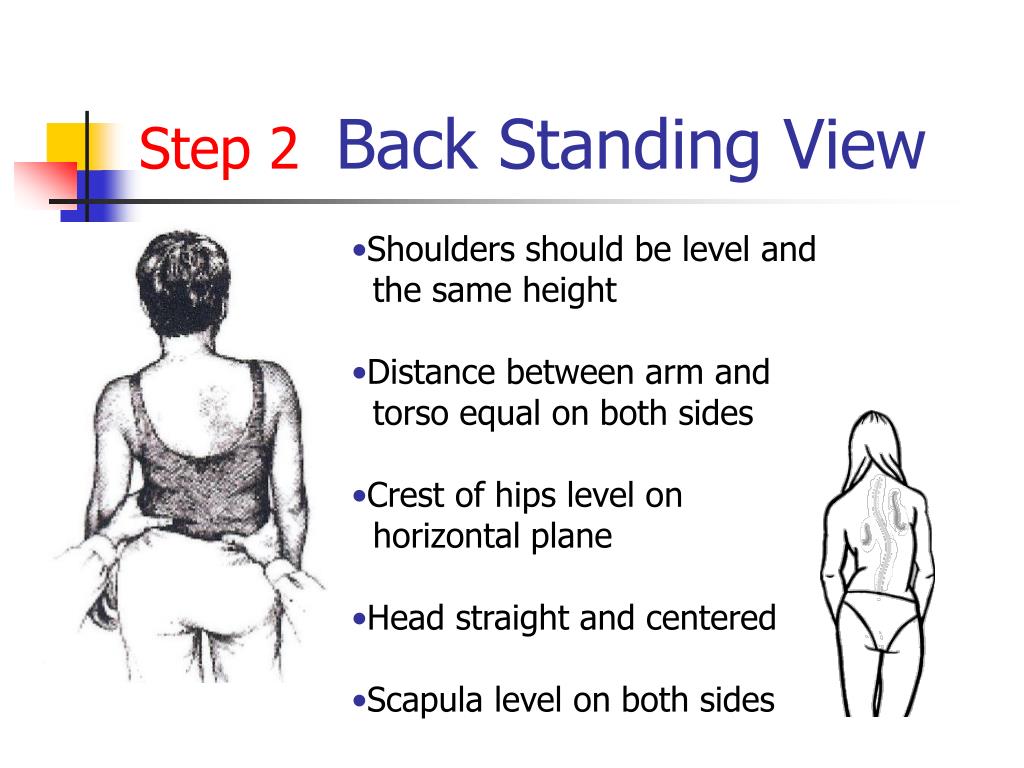

step 2 back standing view
Step 2Back Standing View
  • Shoulders should be level and
  • the same height
  • Distance between arm and
  • torso equal on both sides
  • Crest of hips level on
  • horizontal plane
  • Head straight and centered
  • Scapula level on both sides

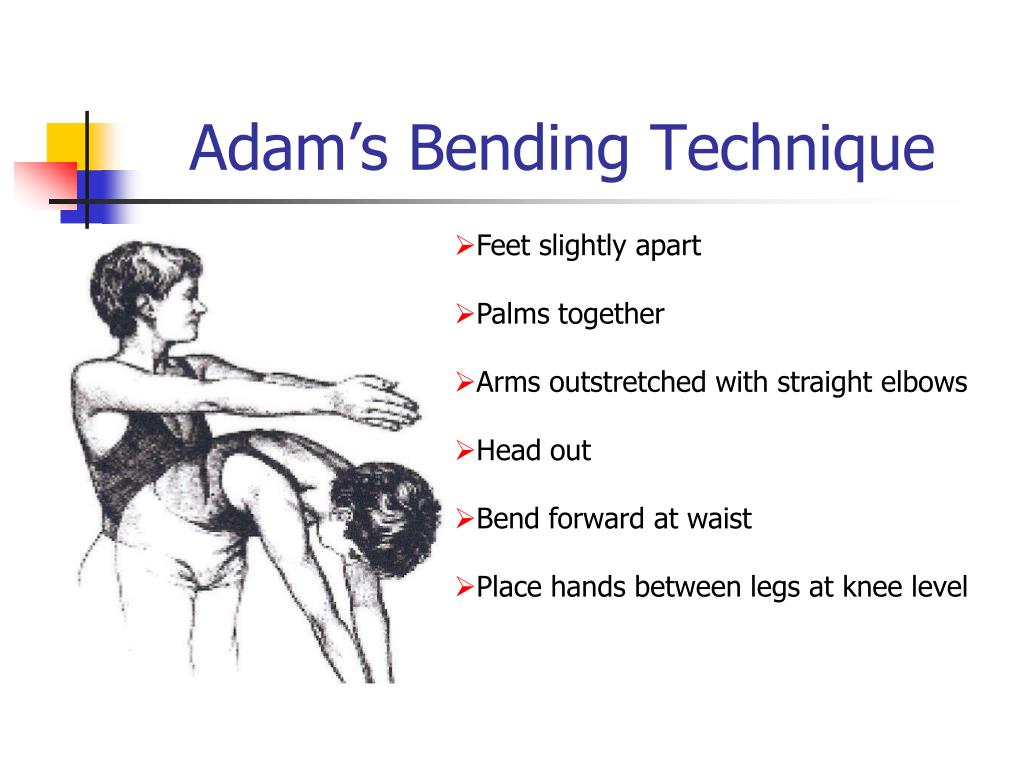

adam s bending technique
Adam’s Bending Technique
  • Feet slightly apart
  • Palms together
  • Arms outstretched with straight elbows
  • Head out
  • Bend forward at waist
  • Place hands between legs at knee level
step 3 back bending away
Step 3Back Bending Away
  • Look For:
  • Rib prominence
  • Lumbar Prominence
  • Differences in height of hip
  • crests
step 4 side view
Step 4Side View
  • Look for exaggerated rounding of the back
  • Kyphosis

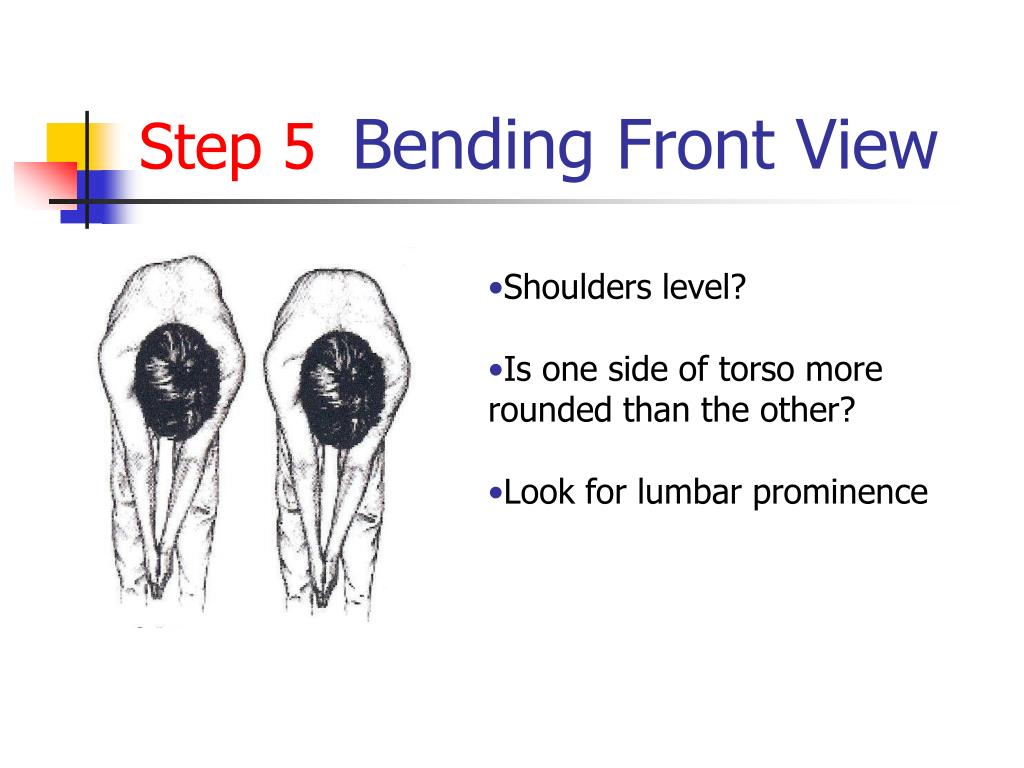

step 5 bending front view
Step 5Bending Front View
  • Shoulders level?
  • Is one side of torso more
  • rounded than the other?
  • Look for lumbar prominence
step 6 side bends
Step 6Side Bends

Ask the student to bend at

The waist to each side

Look for S curvatures

results
Results
  • Any one of the findings suggests an underlying scoliosis curve, which deserves further evaluation
  • Scoliometer- is a device that provides a way to measure the angle of trunk rotation in spinal screening, providing objectives guidelines for referral. It should be used in conjunction with routine screening. Follow manufacturer's guidelines.
  • Document and notify parents according to school policies

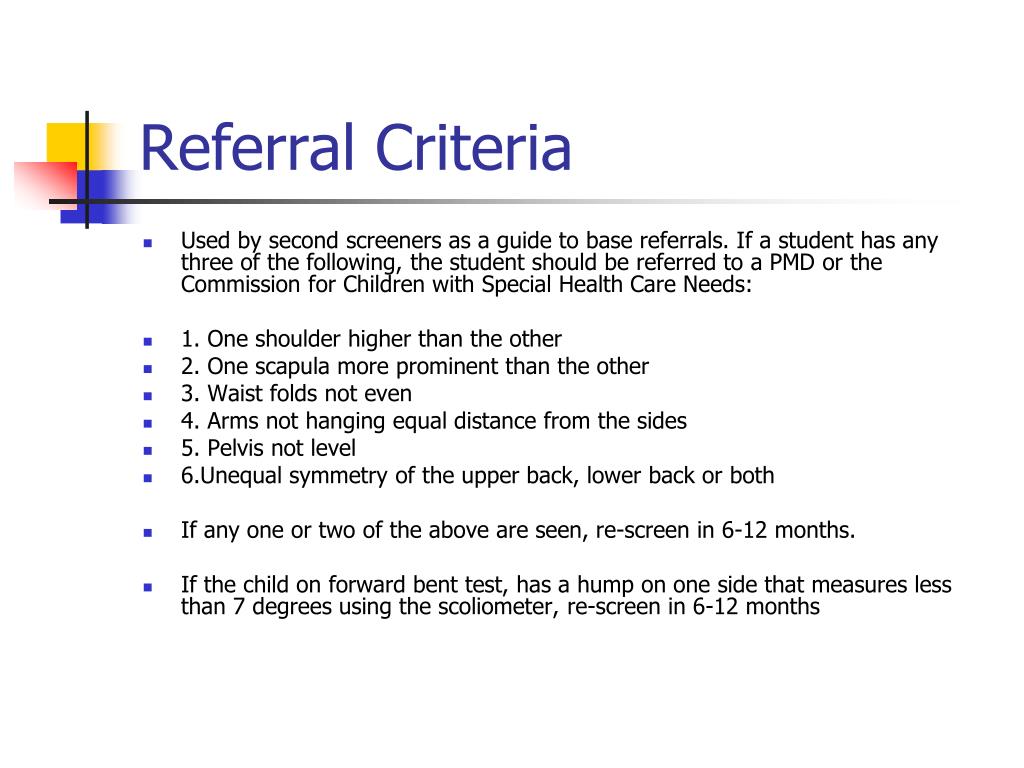

referral criteria
Referral Criteria
  • Used by second screeners as a guide to base referrals. If a student has any three of the following, the student should be referred to a PMD or the Commission for Children with Special Health Care Needs:
  • 1. One shoulder higher than the other
  • 2. One scapula more prominent than the other
  • 3. Waist folds not even
  • 4. Arms not hanging equal distance from the sides
  • 5. Pelvis not level
  • 6.Unequal symmetry of the upper back, lower back or both
  • If any one or two of the above are seen, re-screen in 6-12 months.
  • If the child on forward bent test, has a hump on one side that measures less than 7 degrees using the scoliometer, re-screen in 6-12 months

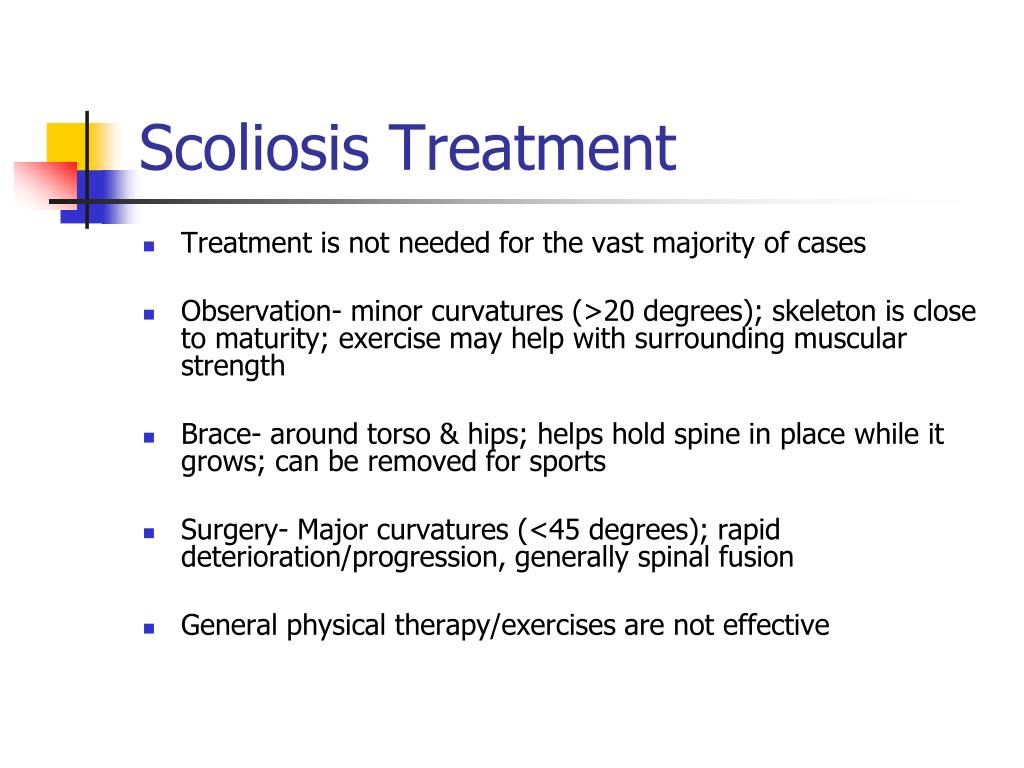

scoliosis treatment
Scoliosis Treatment
  • Treatment is not needed for the vast majority of cases
  • Observation- minor curvatures (>20 degrees); skeleton is close to maturity; exercise may help with surrounding muscular strength
  • Brace- around torso & hips; helps hold spine in place while it grows; can be removed for sports
  • Surgery- Major curvatures (<45 degrees); rapid deterioration/progression, generally spinal fusion
  • General physical therapy/exercises are not effective

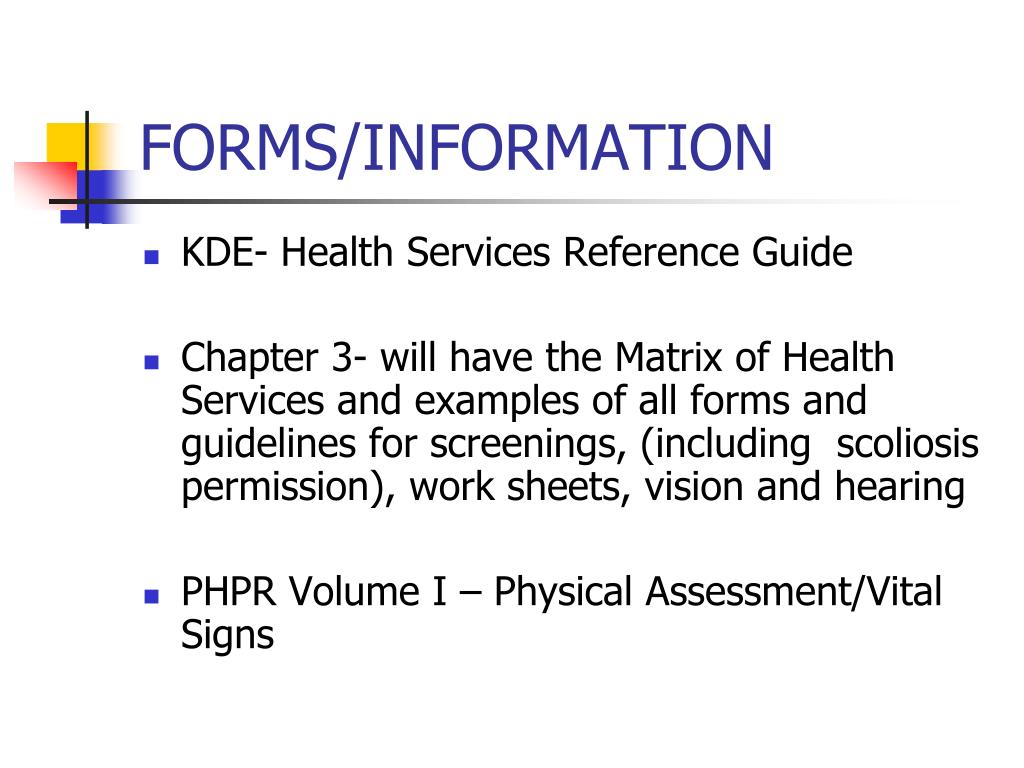

forms information
FORMS/INFORMATION
  • KDE- Health Services Reference Guide
  • Chapter 3- will have the Matrix of Health Services and examples of all forms and guidelines for screenings, (including scoliosis permission), work sheets, vision and hearing
  • PHPR Volume I – Physical Assessment/Vital Signs
