### Realization of solver based techniques for Dynamic Software Verification

Andreas S Scherbakov

Intel Corporation

andreas.s.scherbakov@intel.com

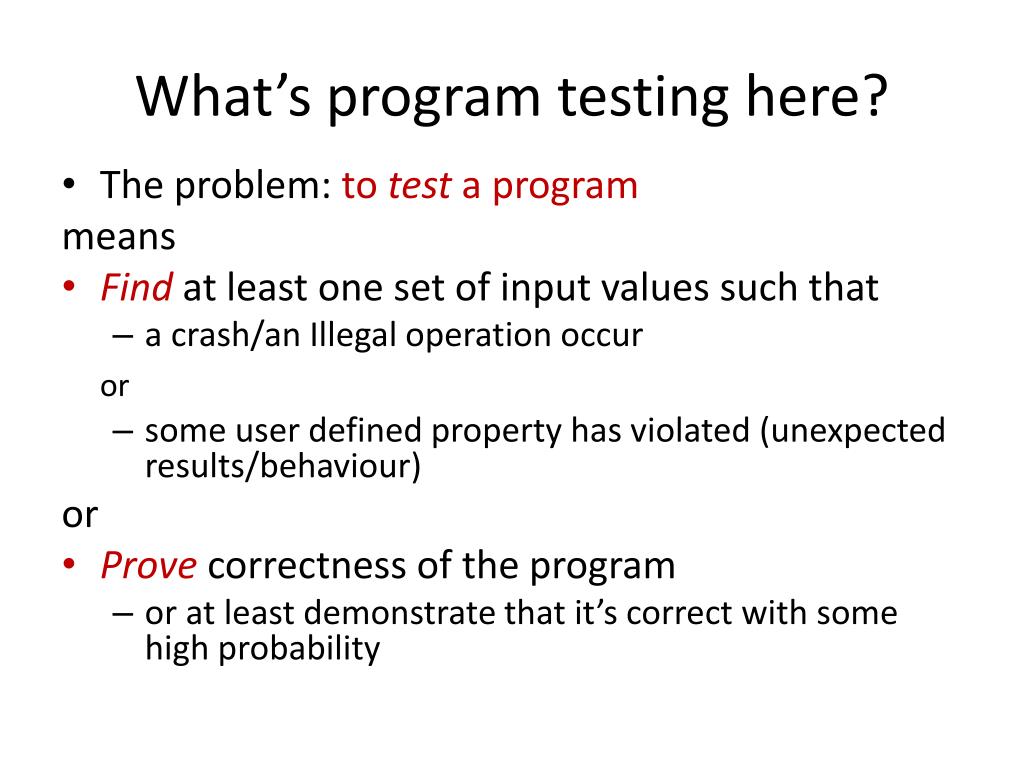

What’s program testing here?

- The problem: to test a program

means

- Find at least one set of input values such that
- a crash/an Illegal operation occur

or

- some user defined property has violated (unexpected results/behaviour)

or

- Prove correctness of the program
- or at least demonstrate that it’s correct with some high probability

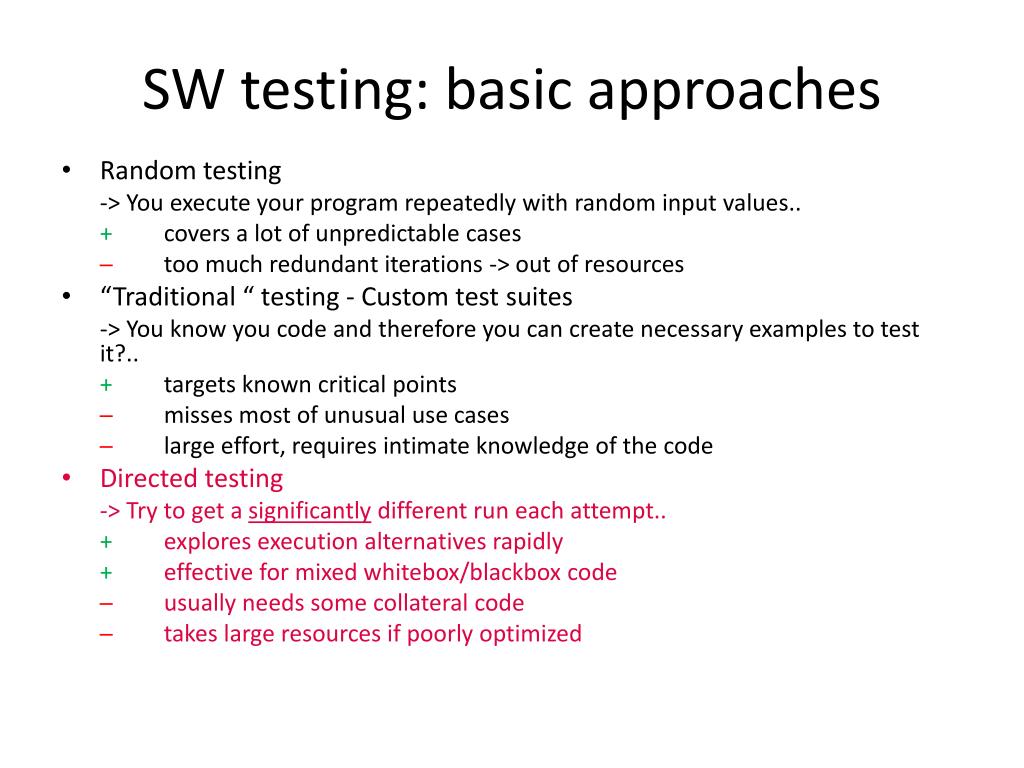

SW testing: basic approaches

- Random testing

-> You execute your program repeatedly with random input values..

+ covers a lot of unpredictable cases

─ too much redundant iterations -> out of resources

- “Traditional “ testing - Custom test suites

-> You know you code and therefore you can create necessary examples to test it?..

+ targets known critical points

─ misses most of unusual use cases

─ large effort, requires intimate knowledge of the code

- Directed testing

-> Try to get a significantly different run each attempt..

+ explores execution alternatives rapidly

+ effective for mixed whitebox/blackbox code

─ usually needs some collateral code

─ takes large resources if poorly optimized

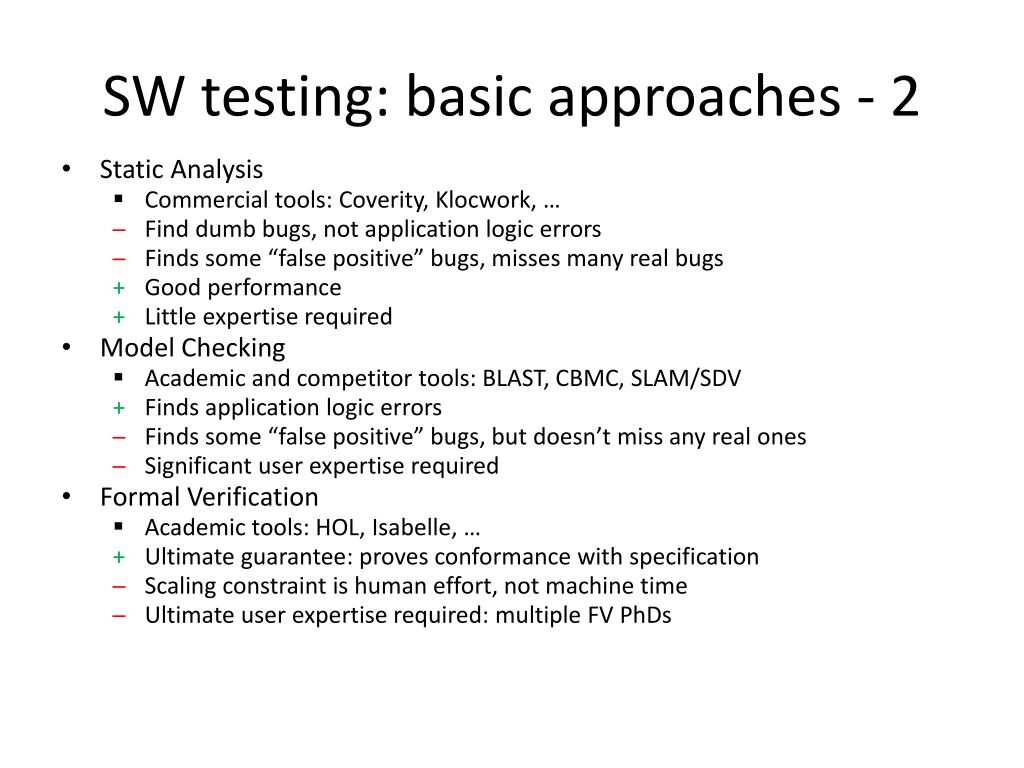

SW testing: basic approaches - 2

- Static Analysis
- Commercial tools: Coverity, Klocwork, …

─ Find dumb bugs, not application logic errors

─ Finds some “false positive” bugs, misses many real bugs

+ Good performance

+ Little expertise required

- Model Checking
- Academic and competitor tools: BLAST, CBMC, SLAM/SDV

+ Finds application logic errors

─ Finds some “false positive” bugs, but doesn’t miss any real ones

─ Significant user expertise required

- Formal Verification
- Academic tools: HOL, Isabelle, …

+ Ultimate guarantee: proves conformance with specification

─ Scaling constraint is human effort, not machine time

─ Ultimate user expertise required: multiple FV PhDs

Directed Testing:as few runs as possible

- executes the program with two test cases: i=0 and i=5
- 100% branch coverage

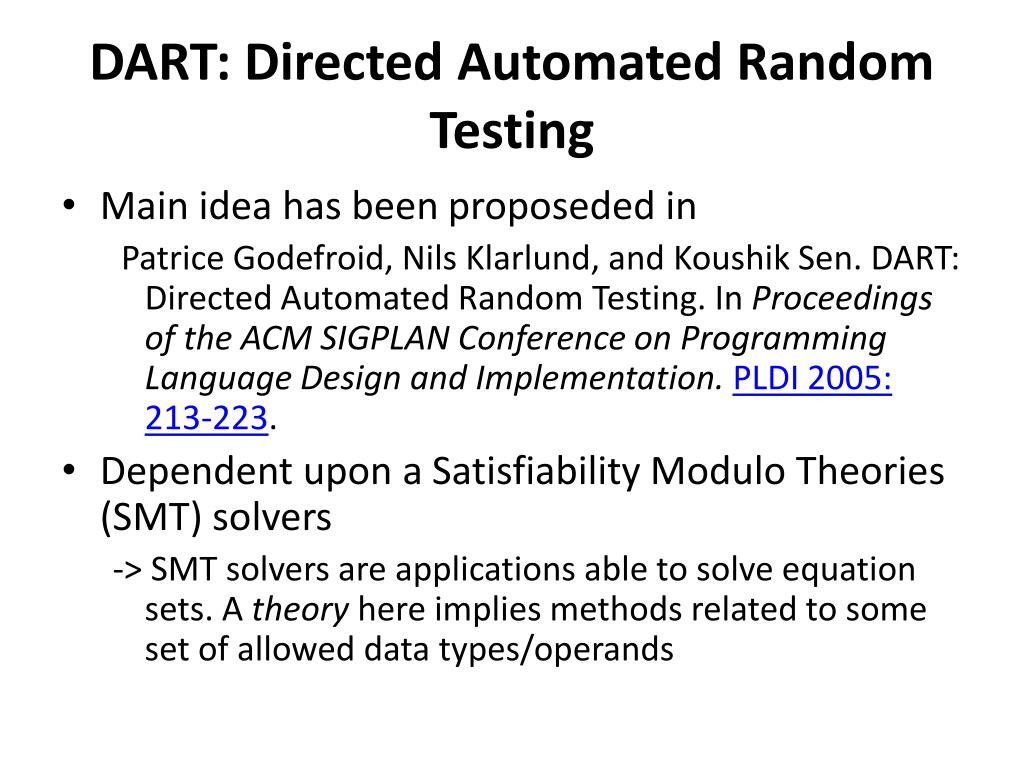

DART: Directed Automated Random Testing

- Main idea has been proposeded in

Patrice Godefroid, Nils Klarlund, and Koushik Sen. DART: Directed Automated Random Testing. In Proceedings of the ACM SIGPLAN Conference on Programming Language Design and Implementation. PLDI 2005: 213-223.

- Dependent upon a Satisfiability Modulo Theories (SMT) solvers

-> SMT solvers are applications able to solve equation sets. A theory here implies methods related to some set of allowed data types/operands

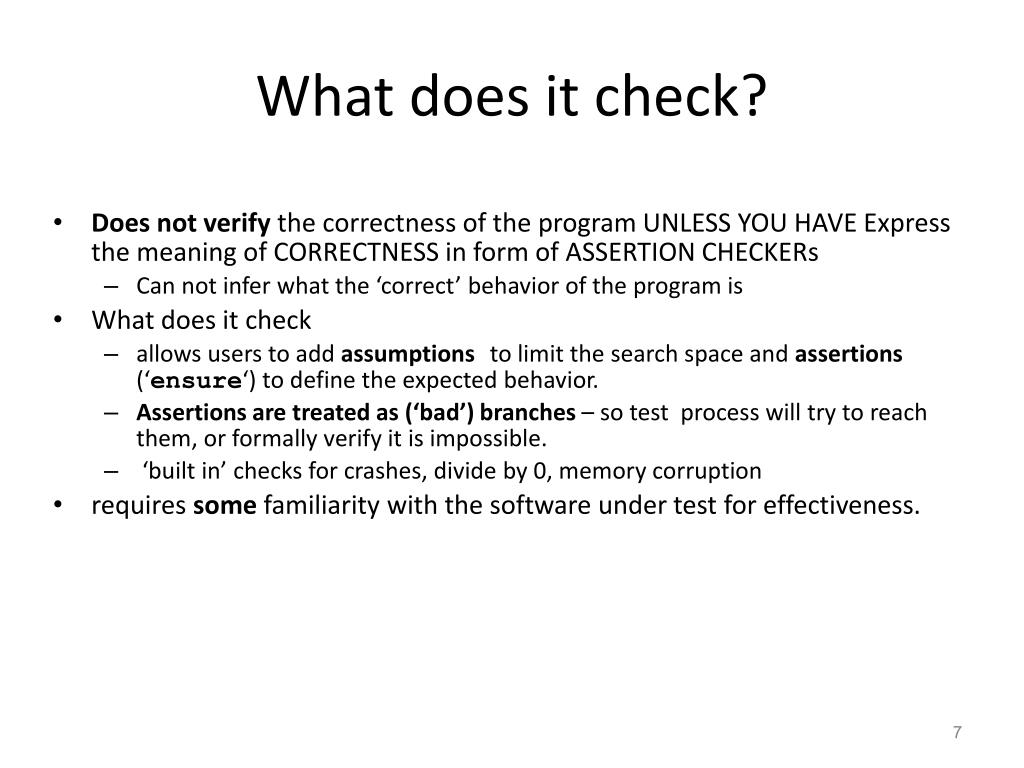

What does it check?

- Does not verify the correctness of the program UNLESS YOU HAVE Express the meaning of CORRECTNESS in form of ASSERTION CHECKERs
- Can not infer what the ‘correct’ behavior of the program is
- What does it check
- allows users to add assumptionsto limit the search space and assertions (‘ensure‘) to define the expected behavior.
- Assertions are treated as (‘bad’) branches– so test process will try to reach them, or formally verify it is impossible.
- ‘built in’ checks for crashes, divide by 0, memory corruption
- requires some familiarity with the software under test for effectiveness.

Looking for a Snark in a Forest

Looking for a Bug in a Program- A bug is a like a snark
- A program is like a forest with many paths
- Source code is like a map of the forest

Just the place for a Snark!

I have said it twice:

That alone should encourage the crew.Just the place for a Snark!

I have said it thrice:

What I tell you three times is true.

The Hunting of the Snark

Lewis Carroll

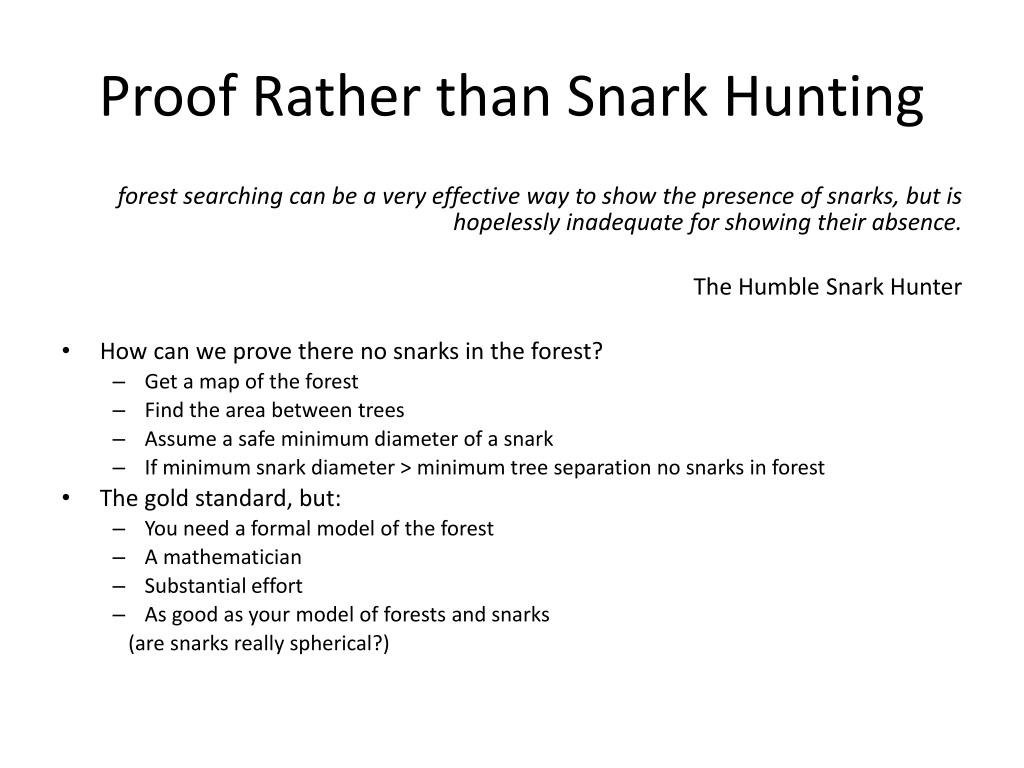

Proof Rather than Snark Hunting

forest searching can be a very effective way to show the presence of snarks, but is hopelessly inadequate for showing their absence.

The Humble Snark Hunter

- How can we prove there no snarks in the forest?
- Get a map of the forest
- Find the area between trees
- Assume a safe minimum diameter of a snark
- If minimum snark diameter > minimum tree separation no snarks in forest
- The gold standard, but:
- You need a formal model of the forest
- A mathematician
- Substantial effort
- As good as your model of forests and snarks

(are snarks really spherical?)

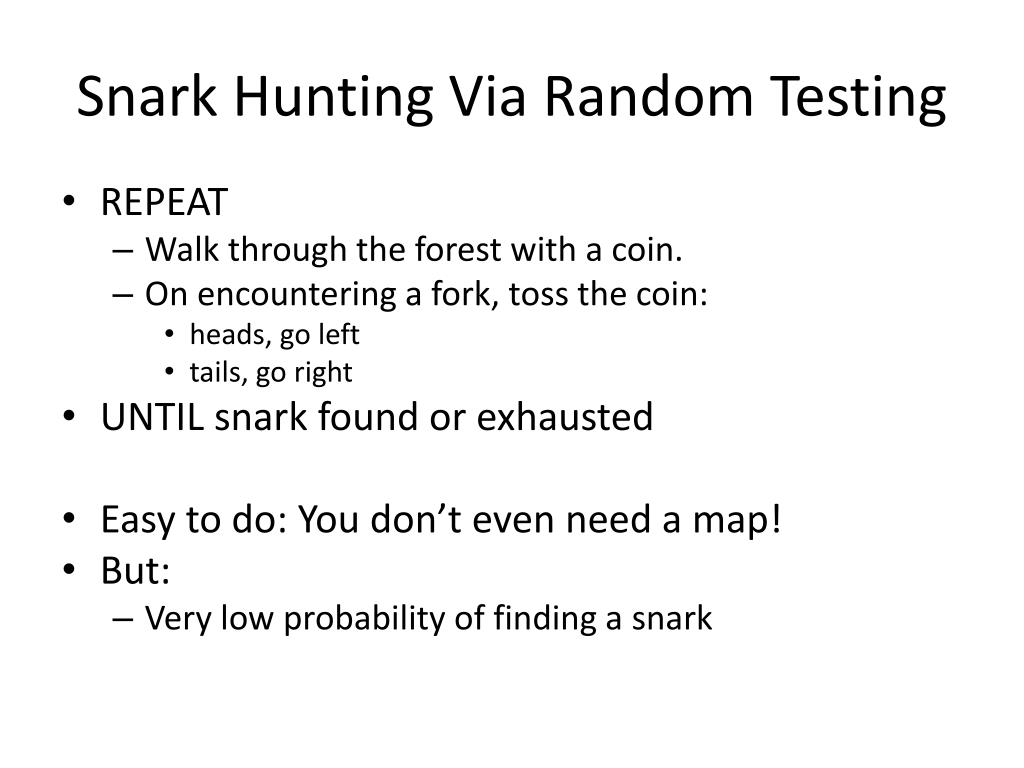

Snark Hunting Via Random Testing

- REPEAT
- Walk through the forest with a coin.
- On encountering a fork, toss the coin:
- heads, go left
- tails, go right
- UNTIL snark found or exhausted
- Easy to do: You don’t even need a map!
- But:
- Very low probability of finding a snark

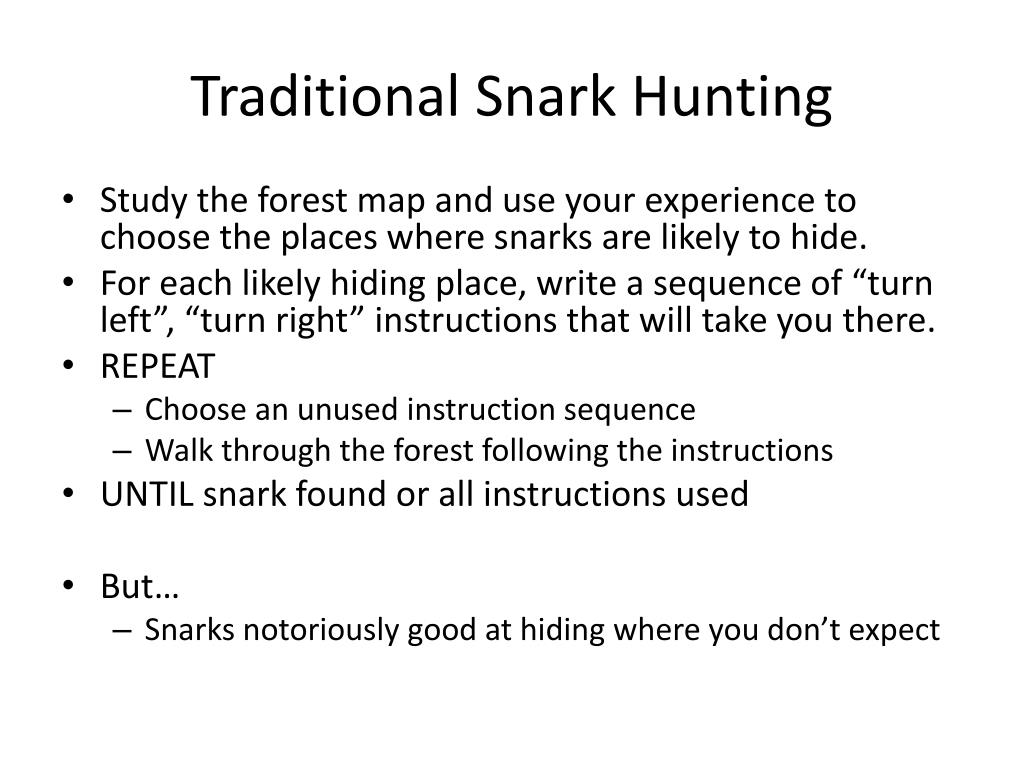

Traditional Snark Hunting

- Study the forest map and use your experience to choose the places where snarks are likely to hide.
- For each likely hiding place, write a sequence of “turn left”, “turn right” instructions that will take you there.
- REPEAT
- Choose an unused instruction sequence
- Walk through the forest following the instructions
- UNTIL snark found or all instructions used
- But…
- Snarks notoriously good at hiding where you don’t expect

Snark Hunting Via Static Coverage Analysis

- Get a map of the forest
- Have a computer calculate instruction sequences that go through all locations in the forest.
- REPEAT
- Choose an unused instruction sequence
- Walk through the forest following the instructions
- UNTIL snark found or enough of the forest covered
- But…
- Lot of computing power to calculate the paths
- there will be a lot of paths

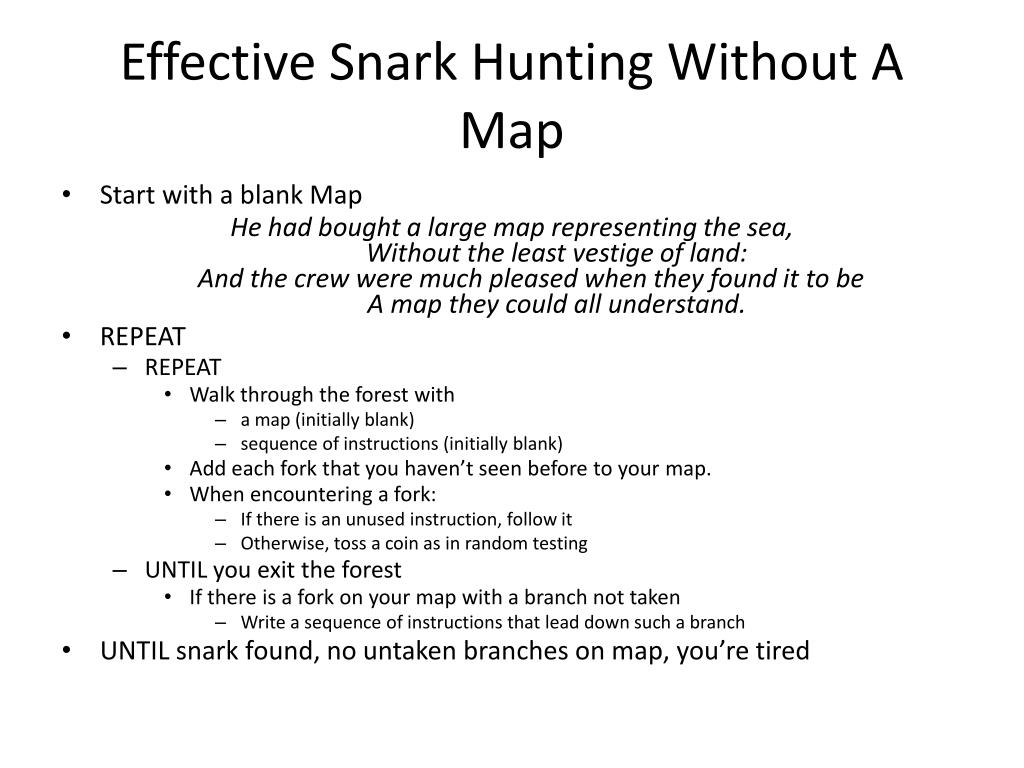

Effective Snark Hunting Without A Map

- Start with a blank Map

He had bought a large map representing the sea, Without the least vestige of land:And the crew were much pleased when they found it to be A map they could all understand.

- REPEAT
- REPEAT
- Walk through the forest with
- a map (initially blank)
- sequence of instructions (initially blank)
- Add each fork that you haven’t seen before to your map.
- When encountering a fork:
- If there is an unused instruction, follow it
- Otherwise, toss a coin as in random testing
- UNTIL you exit the forest
- If there is a fork on your map with a branch not taken
- Write a sequence of instructions that lead down such a branch
- UNTIL snark found, no untaken branches on map, you’re tired

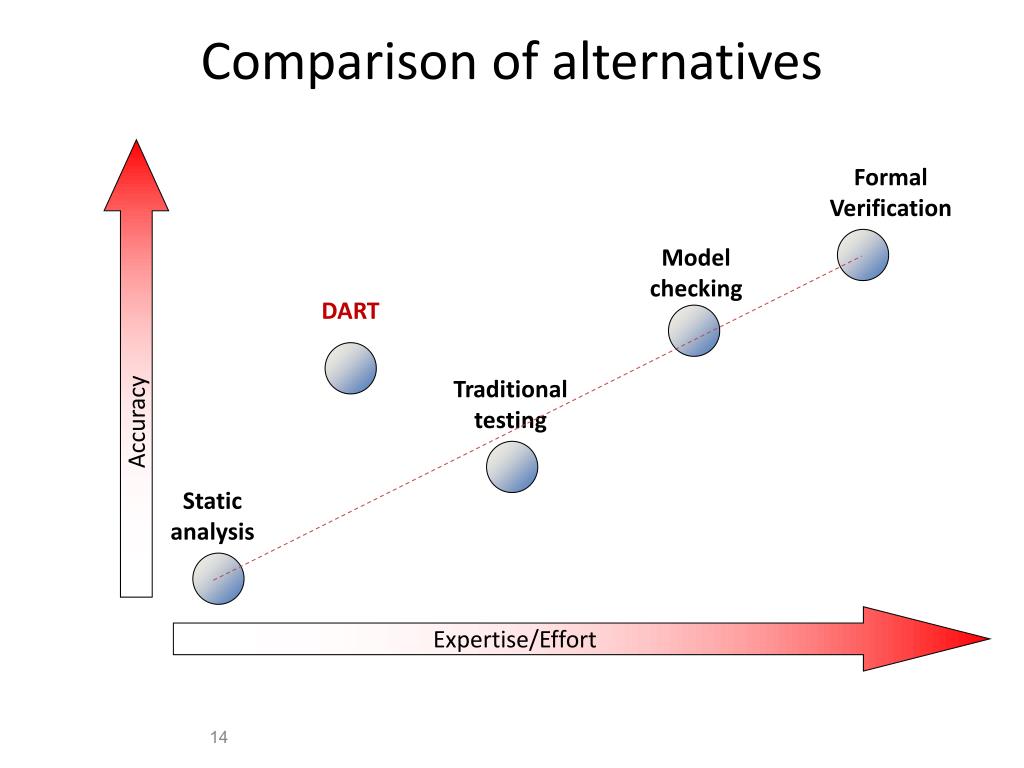

Comparison of alternatives

Formal Verification

Model checking

DART

Accuracy

Traditional testing

Static analysis

Expertise/Effort

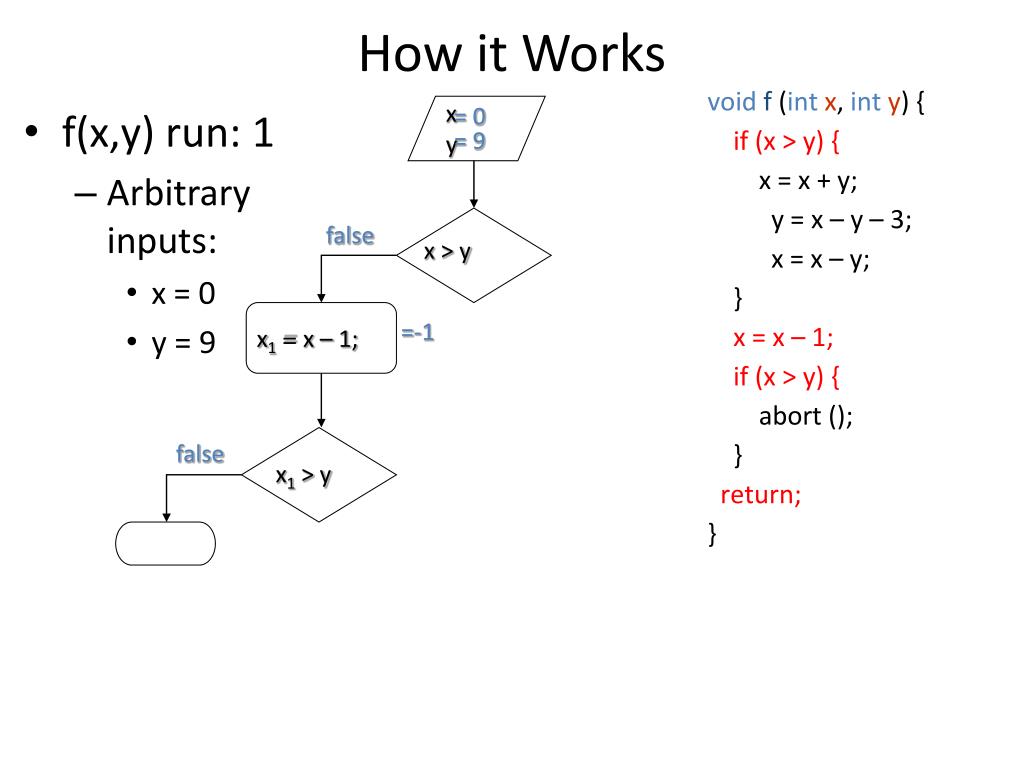

How it Works

voidf (intx, inty) {

if (x > y) {

x = x + y;

y = x – y – 3;

x = x – y;

}

x = x – 1;

if (x > y) {

abort ();

}

return;

}

= 0

x

y

= 9

- f(x,y) run: 1
- Arbitrary inputs:
- x = 0
- y = 9

false

x > y

=-1

x1= x – 1;

false

x1 > y

How it Works

x

y

voidf (intx, inty) {

if (x > y) {

x = x + y;

y = x – y – 3;

x = x – y;

}

x = x – 1;

if (x > y) {

abort ();

}

return;

}

- f(x,y) run: 2
- choose x, y so
- (x > y) = false
- x1 = x – 1
- (x1 > y) = true
- no such x, y!

x > y

x1= x – 1;

x1 > y

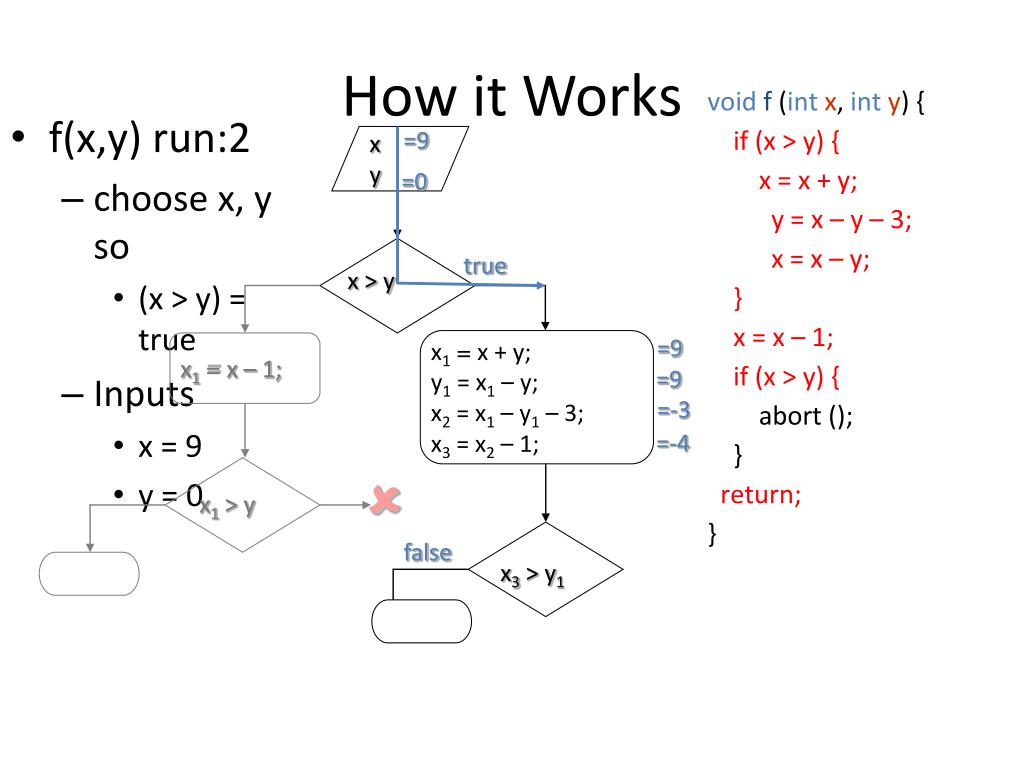

How it Works

voidf (intx, inty) {

if (x > y) {

x = x + y;

y = x – y – 3;

x = x – y;

}

x = x – 1;

if (x > y) {

abort ();

}

return;

}

=9

x

y

=0

- f(x,y) run:2
- choose x, y so
- (x > y) = true
- Inputs
- x = 9
- y = 0

true

x > y

=9

x1= x + y;

y1 =x1 – y;

x2 =x1 – y1 – 3;

x3 = x2 – 1;

x1= x – 1;

=9

=-3

=-4

x1 > y

false

x3 > y1

How it Works

=1

x

y

voidf (intx, inty) {

if (x > y) {

x = x + y;

y = x – y – 3;

x = x – y;

}

x = x – 1;

if (x > y) {

abort ();

}

return;

}

=0

- f(x,y) run: 3
- choose x, y so
- (x > y) = true
- x1 = x + y
- y1 =x1 – y
- x2 =x1 – y1 + 3
- x3 = x2 – 1
- (x3 > y1) = true
- Inputs:
- x = 1
- y = 0

true

x > y

=1

x1= x + y;

y1 =x1 – y;

x2 =x1 – y1 – 3;

x3 = x2 – 1;

=1

=-3

=-4

true

x3 > y1

abort

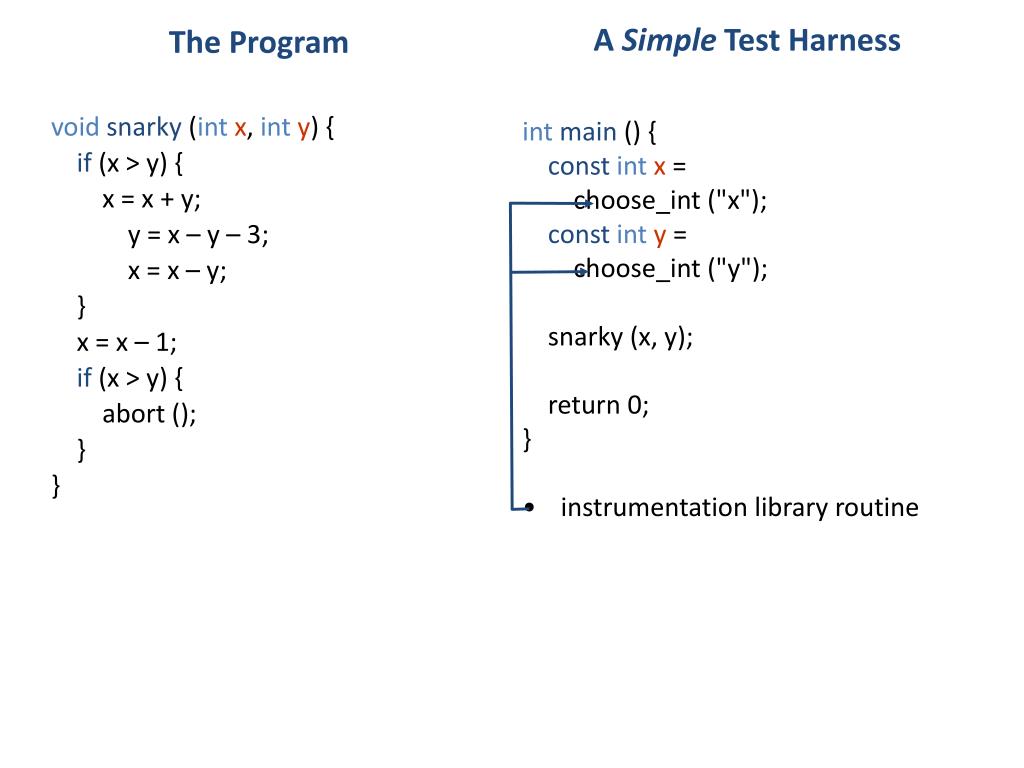

The Program

- intmain () {
- constintx =
- choose_int ("x");
- constinty =
- choose_int ("y");
- snarky (x, y);
- return 0;
- }
- instrumentation library routine

voidsnarky (intx, inty) {

if (x > y) {

x = x + y;

y = x – y – 3;

x = x – y;

}

x = x – 1;

if (x > y) {

abort ();

}

}

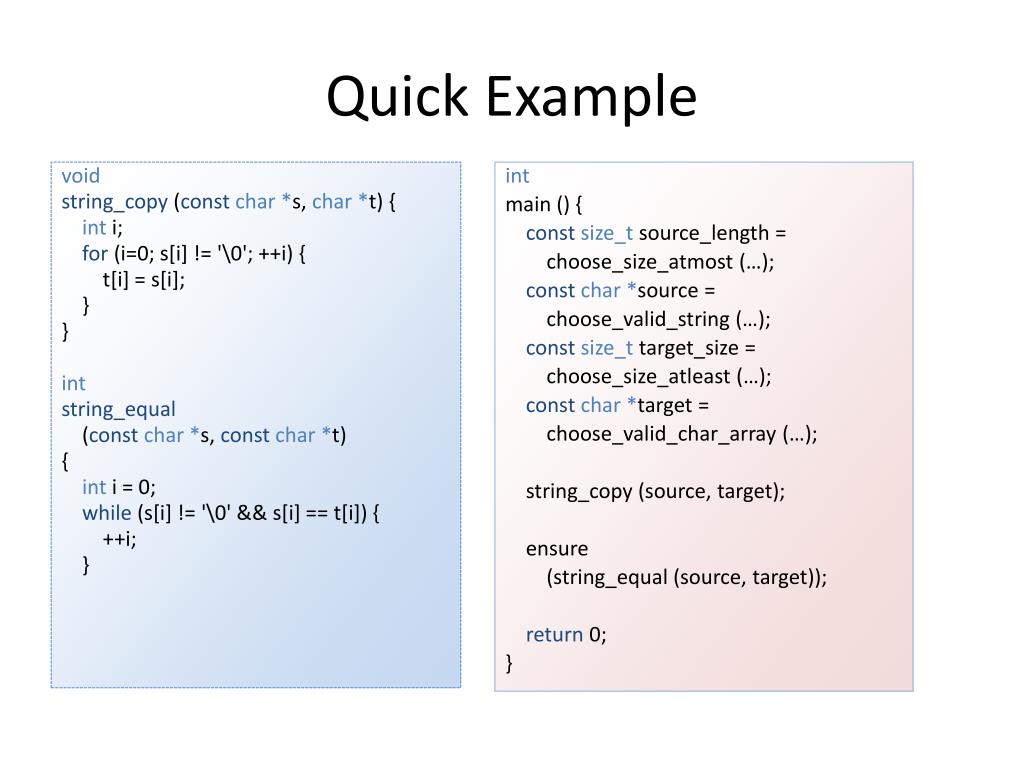

Quick Example

int

main () {

constsize_tsource_length =

choose_size_atmost (…);

constchar *source =

choose_valid_string (…);

constsize_ttarget_size =

choose_size_atleast (…);

constchar *target =

choose_valid_char_array (…);

string_copy (source, target);

ensure

(string_equal (source, target));

return 0;

}

void

string_copy (constchar *s, char *t) {

inti;

for (i=0; s[i] != '\0'; ++i) {

t[i] = s[i];

}

}

int

string_equal

(constchar *s, constchar *t)

{

inti = 0;

while (s[i] != '\0' && s[i] == t[i]) {

++i;

}

Quick example: Bug found

Bug found with the parameters:

target_size = 1

target[0] = 1

source_length = 0

(Killed by signal)

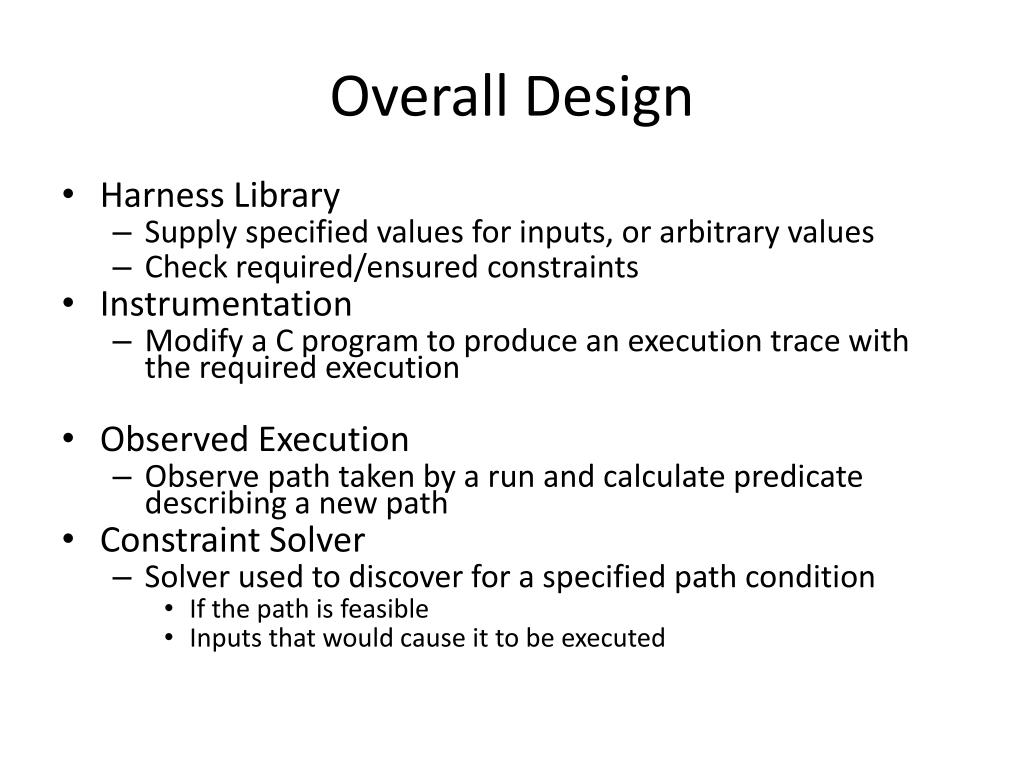

Overall Design

- Harness Library
- Supply specified values for inputs, or arbitrary values
- Check required/ensured constraints
- Instrumentation
- Modify a C program to produce an execution trace with the required execution
- Observed Execution
- Observe path taken by a run and calculate predicate describing a new path
- Constraint Solver
- Solver used to discover for a specified path condition
- If the path is feasible
- Inputs that would cause it to be executed

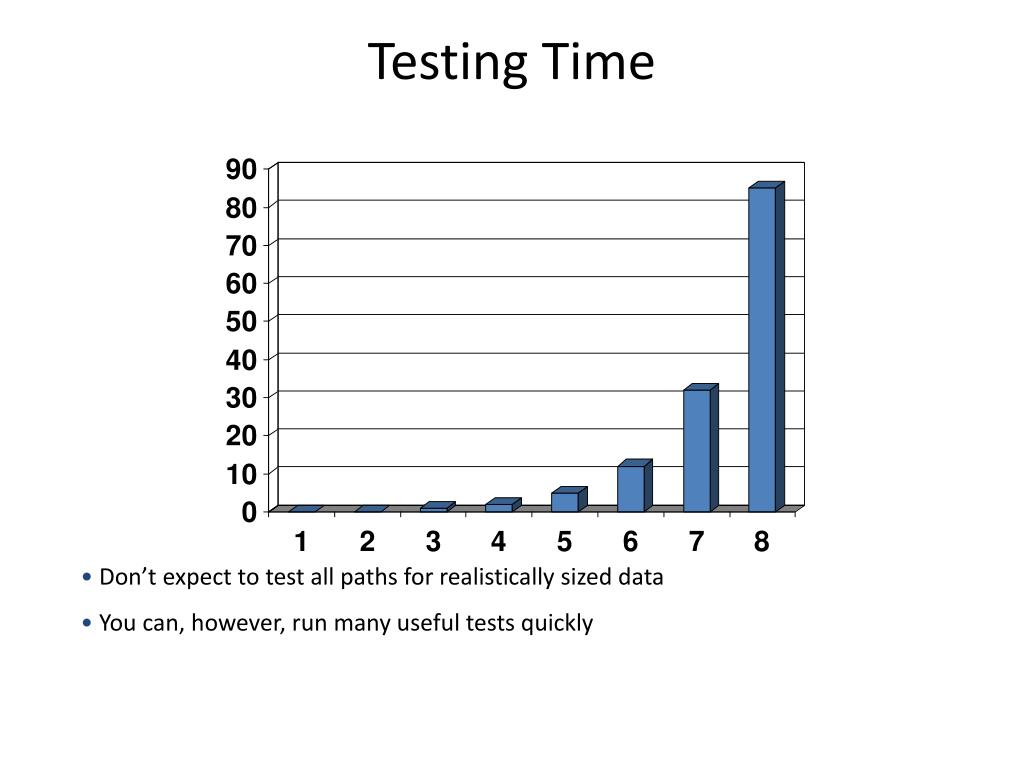

Testing Time

- Don’t expect to test all paths for realistically sized data
- You can, however, run many useful tests quickly

Code under test

Stub code

You Provide The Controllability- For each “unit” you write
- A harness to call unit’s functions
- Stubs for functions the unit calls
- Provides functions to generate values
- For harnesses to call with
- For stubs to return with
- Declarative specification of constraints on the values
- This provides
- A model of the unit’s environment
- Controllability over the unit

Instrumentation

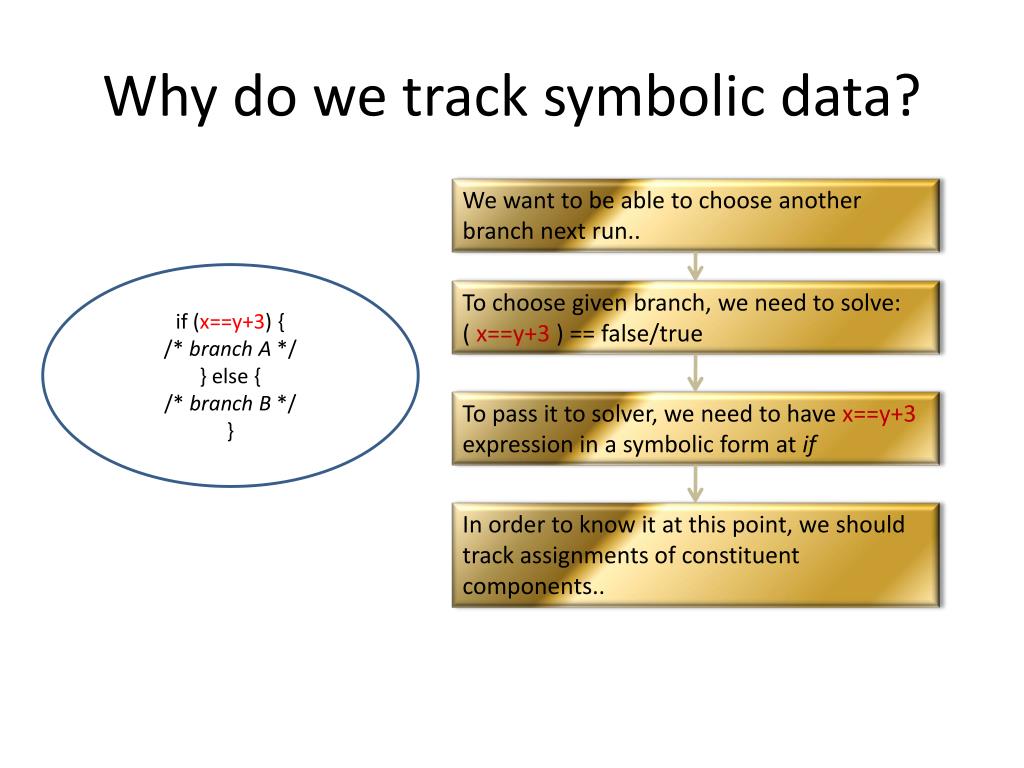

Why do we track symbolic data?

We want to be able to choose another branch next run..

if (x==y+3) {

/* branch A */

} else {

/* branch B */

}

To choose given branch, we need to solve:

( x==y+3 ) == false/true

To pass it to solver, we need to have x==y+3 expression in a symbolic form at if

In order to know it at this point, we should track assignments of constituent components..

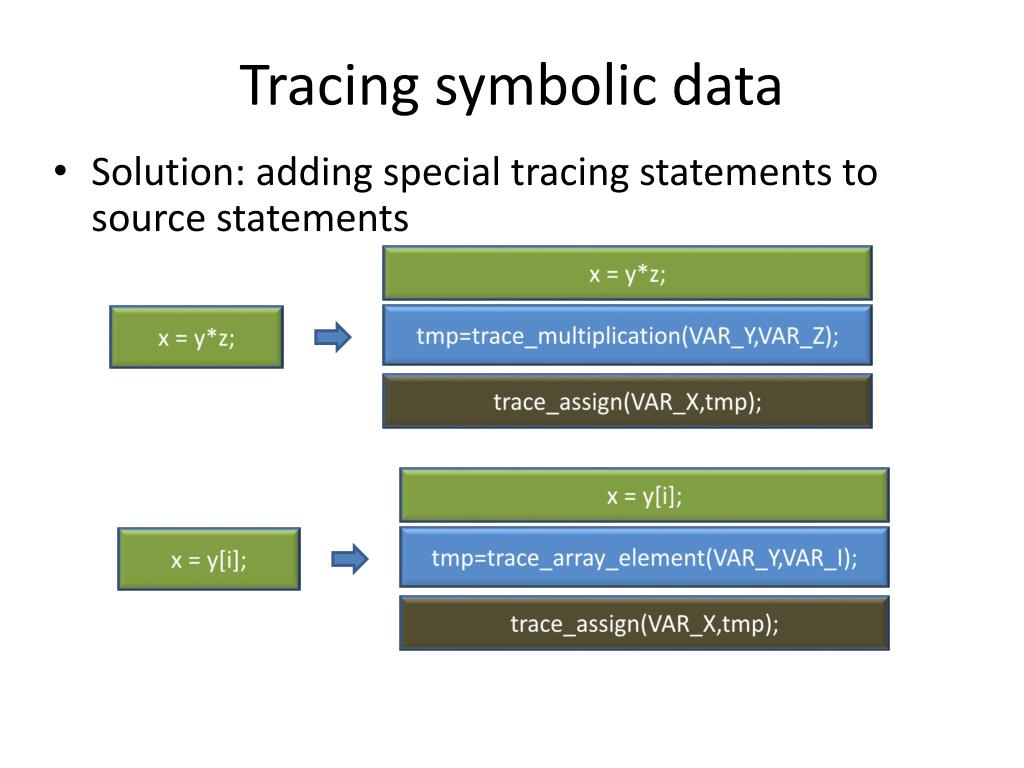

Tracing symbolic data

- Solution: adding special tracing statements to source statements

x = y*z;

tmp=trace_multiplication(VAR_Y,VAR_Z);

x = y*z;

trace_assign(VAR_X,tmp);

x = y[i];

tmp=trace_array_element(VAR_Y,VAR_I);

x = y[i];

trace_assign(VAR_X,tmp);

CIL

- “CIL (CIntermediate Language) is a high-level representation along with a set of tools that permit easy analysis and source-to-source transformation of C programs.”

http://www.cs.berkeley.edu/~necula/cil/

- CIL enables user application to explore and re-factor various types of C source constructs (functions, blocks, statements, instructions, expressions, variables etc) in a convenient way while keeping the remaining code structure.

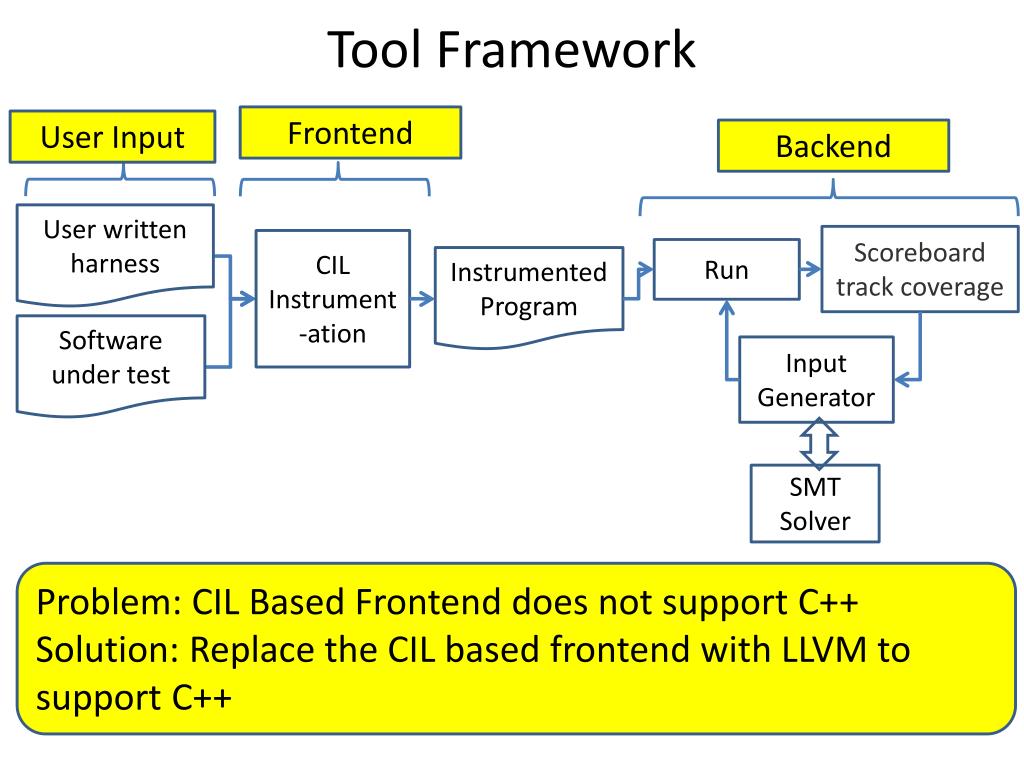

Tool Framework

Frontend

User Input

Backend

User written harness

Scoreboard track coverage

CIL Instrument -ation

Run

Instrumented Program

Software under test

Input Generator

SMT

Solver

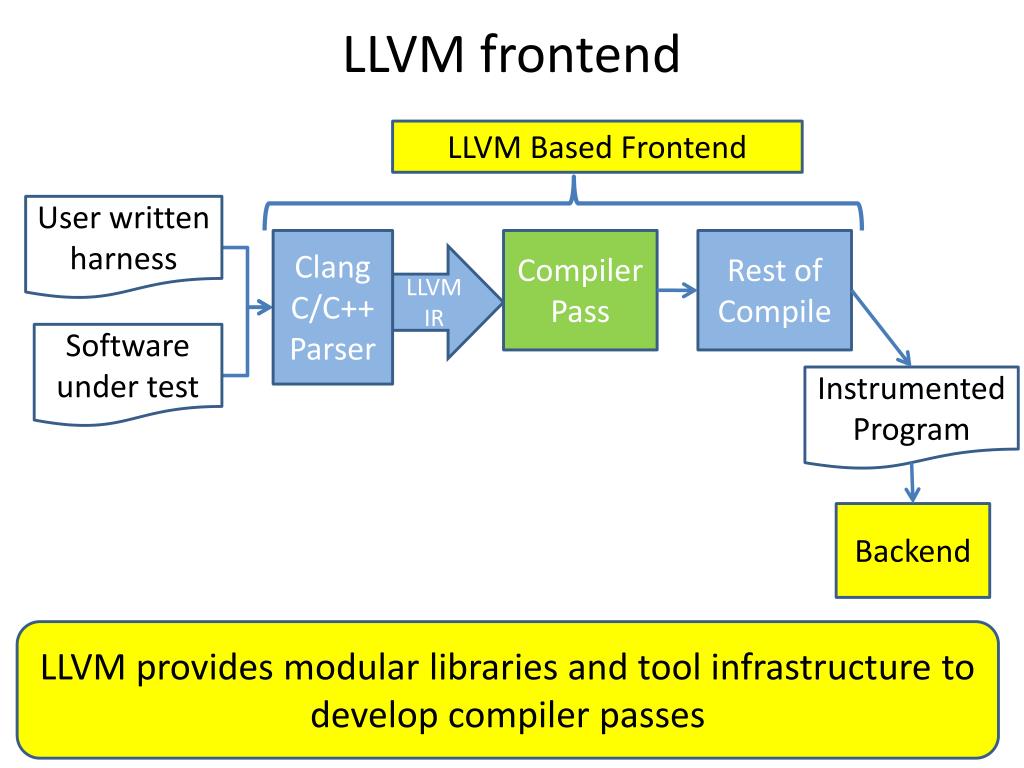

Problem: CIL Based Frontend does not support C++

Solution: Replace the CIL based frontend with LLVM to support C++

How CIL simplifies handling the code..

- Automatically rewrites C expressions with side effects:

a = b+= --c---> c = c-1; b = b+c; a = b;

- Uniformly represents memory references: (base+offset)
- Converts do,for,while loops to

while (1) {if (cond1) break; /* if needed */if (cond2) continue; /* if needed */ body;}

- Traces control flow

What is LLVM?

- LLVM – Low Level Virtual Machine
- Modular and reusable collection of libraries
- Developed at UIUC and at Apple®
- LLVM Intermediate Representation (IR) is well designed and documented.
- Has a production quality C++ frontend that is compatible with GCC
- Open-source with industry friendly license.
- More info at www.llvm.org

LLVM frontend

LLVM Based Frontend

User written harness

Clang C/C++ Parser

Compiler Pass

Rest of Compile

LLVM IR

Software under test

Instrumented Program

Backend

LLVM provides modular libraries and tool infrastructure to develop compiler passes

Using C++ overloads

- Idea: redefine operators such a way that they output trace data:

my_intoperator + (my_int x, my_int y) {

symbolic s = trace_addition(x.symbol(),y.symbol());

int c = x.val() + y.vall();

returnmy_int (s,c);

}

- Instrumentation is still needed (control tracing, types..)

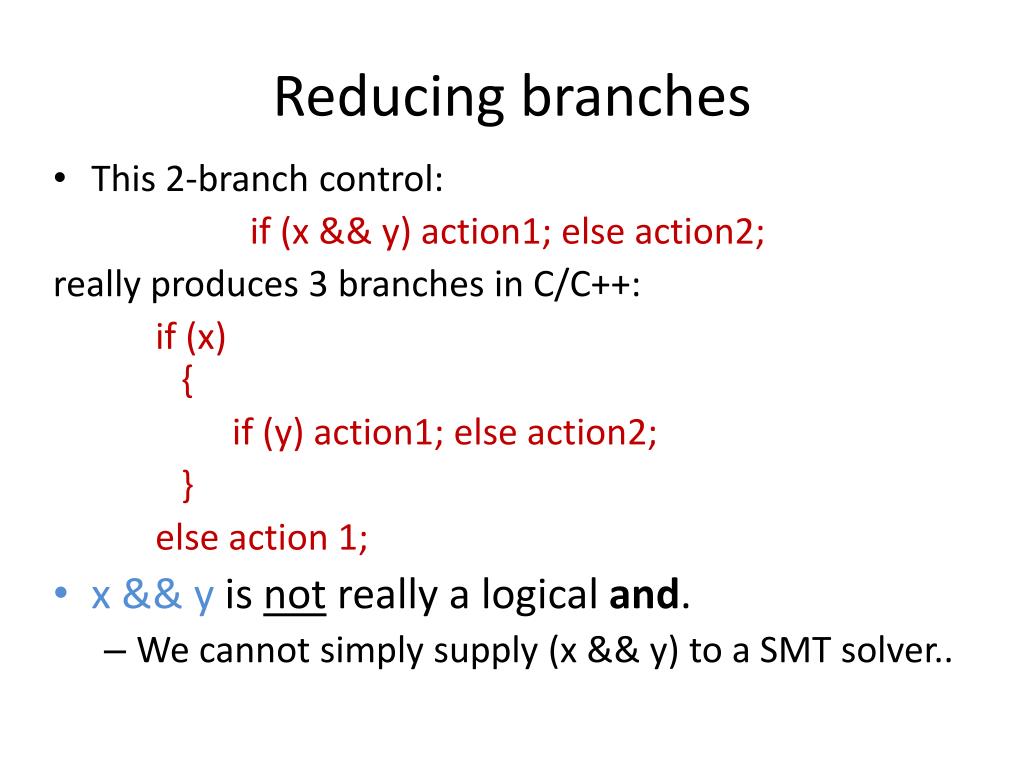

Reducing branches

- This 2-branch control:

if (x && y) action1; else action2;

really produces 3 branches in C/C++:

if (x){

if (y) action1; else action2;

}

else action 1;

- x && y is not really a logical and.
- We cannot simply supply (x && y) to a SMT solver..

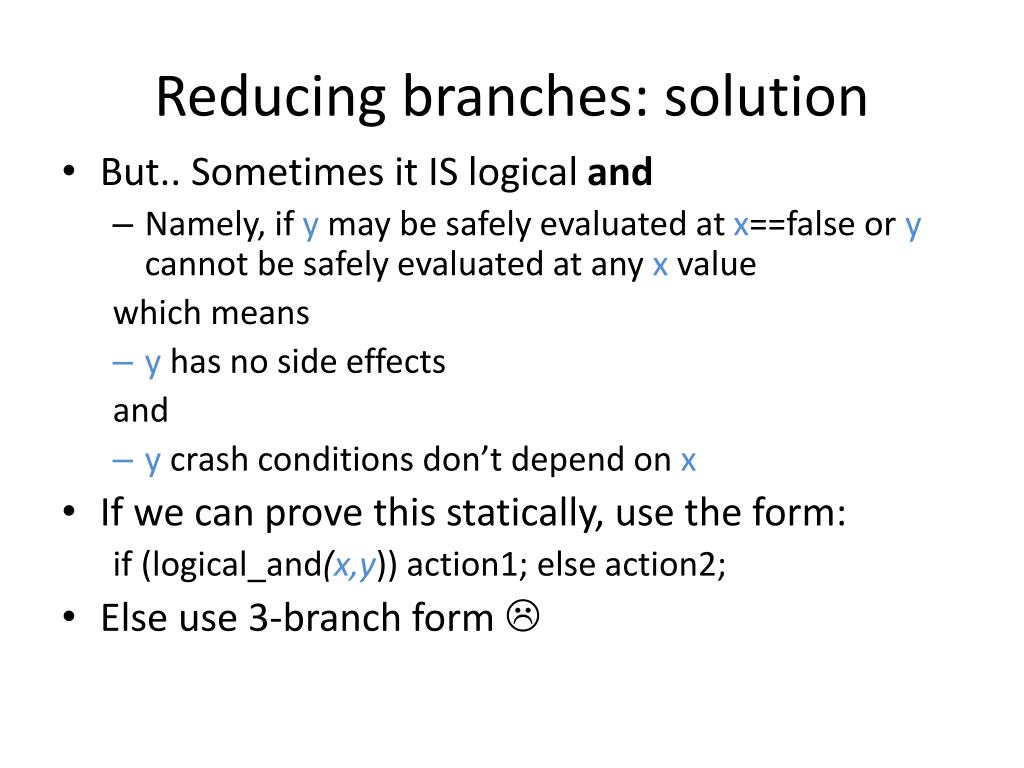

Reducing branches: solution

- But.. Sometimes it IS logical and
- Namely, if y may be safely evaluated at x==false or y cannot be safely evaluated at any x value

which means

- y has no side effects

and

- y crash conditions don’t depend on x
- If we can prove this statically, use the form:

if (logical_and(x,y)) action1; else action2;

- Else use 3-branch form

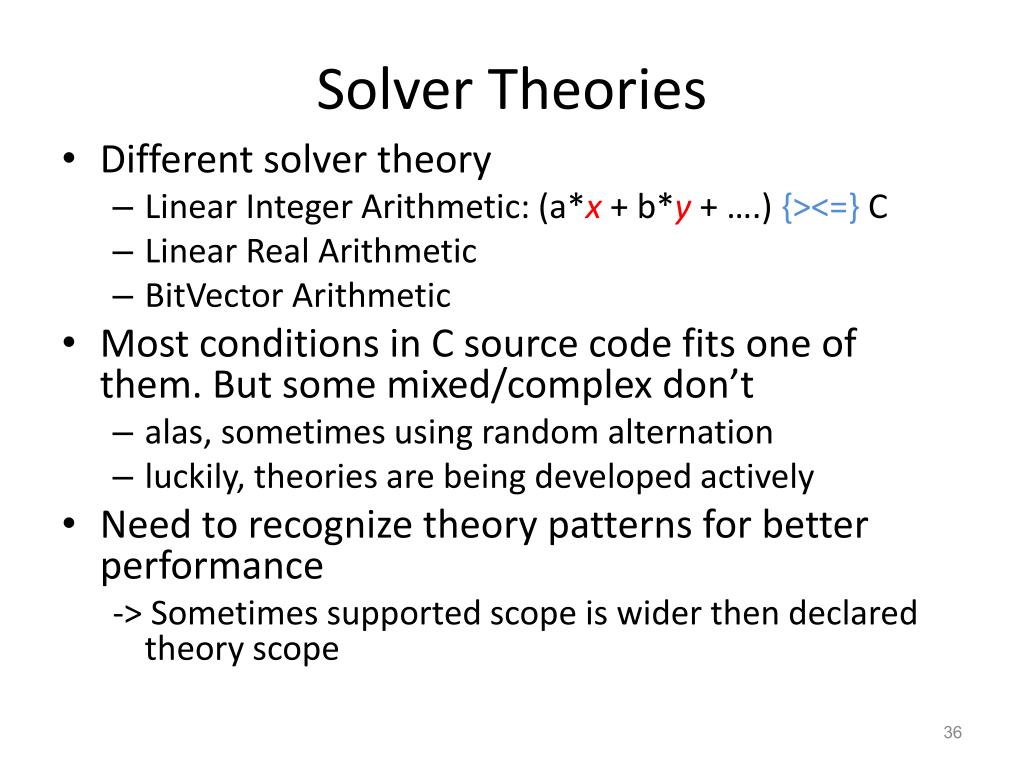

Solver Theories

- Different solver theory
- Linear Integer Arithmetic: (a*x + b*y + ….) {><=} C
- Linear Real Arithmetic
- BitVector Arithmetic
- Most conditions in C source code fits one of them. But some mixed/complex don’t
- alas, sometimes using random alternation
- luckily, theories are being developed actively
- Need to recognize theory patterns for better performance

-> Sometimes supported scope is wider then declared theory scope

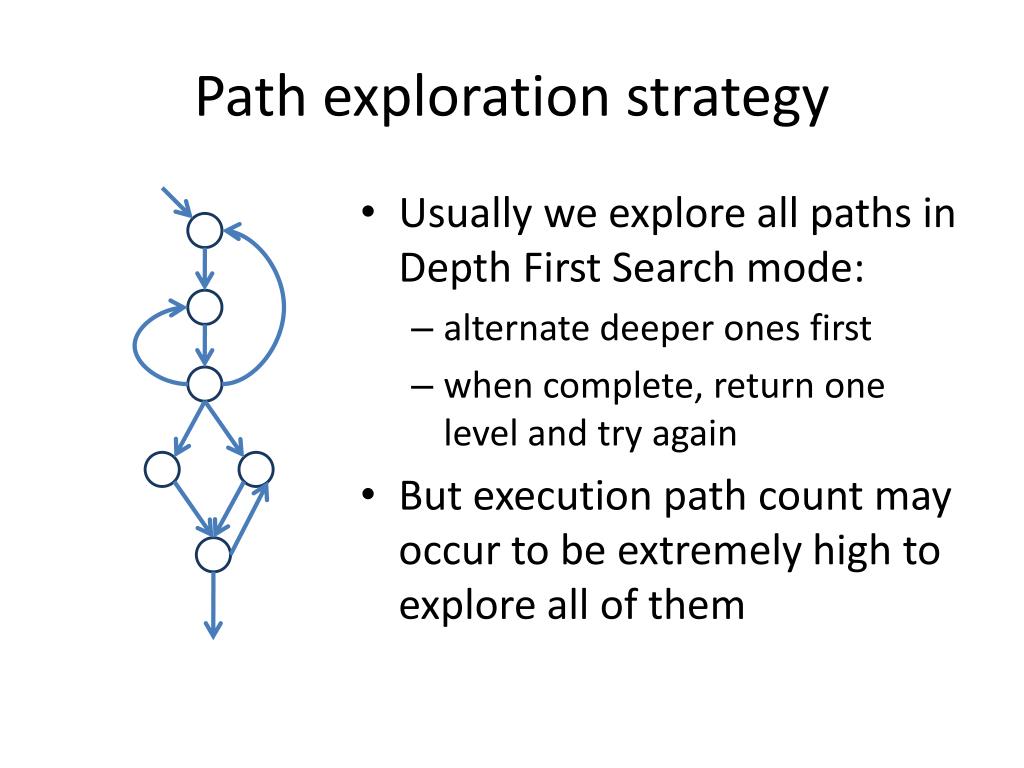

Path exploration strategy

- Usually we explore all paths in Depth First Search mode:
- alternate deeper ones first
- when complete, return one level and try again
- But execution path count may occur to be extremely high to explore all of them

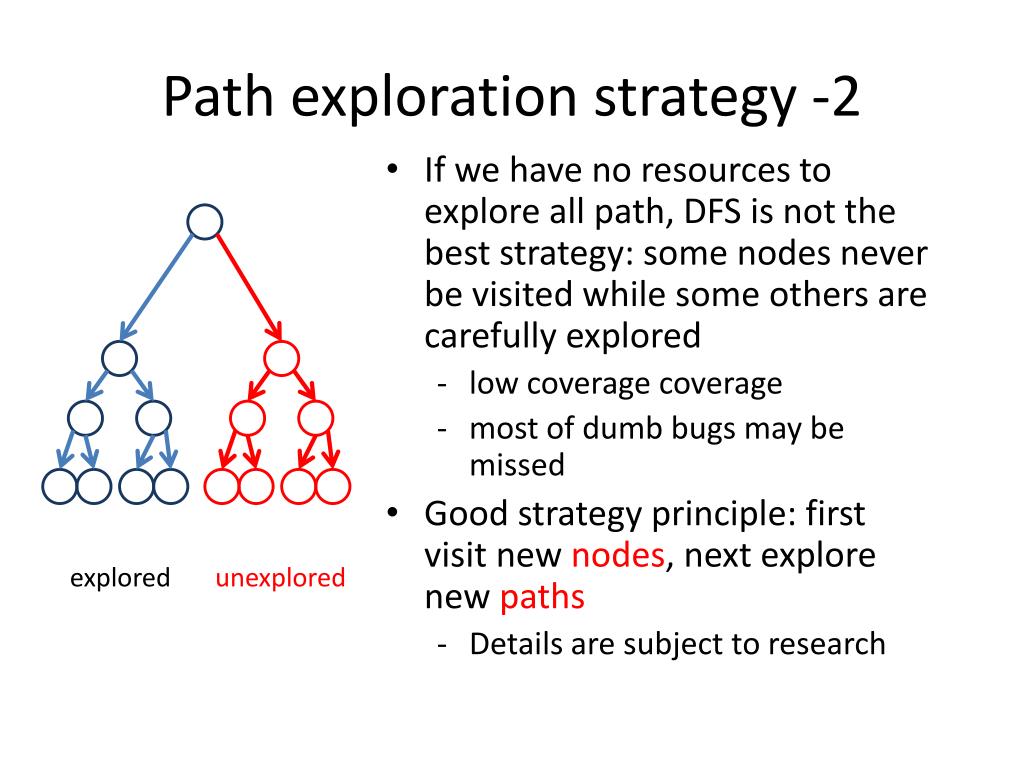

Path exploration strategy -2

- If we have no resources to explore all path, DFS is not the best strategy: some nodes never be visited while some others are carefully explored
- low coverage coverage
- most of dumb bugs may be missed
- Good strategy principle: first visit new nodes, next explore new paths
- Details are subject to research

explored

unexplored

An optimization: Get function properties

- Idea: Taking advantage of code hierarchy: using I/O properies for function/procedure call

-> try to go with the assumptions only rather than deepening into subroutine body

- Example: y = string_copy(x)

require valid_pointer(x)

property valid_pointer(y) /* assuming we have yet memory */

property length(x) == length(y)

property i < length(x) y[i] == x [i]

- For black box (external library) code, assumptions should be supplied as collaterals
- For available source code, they can also be extracted automatically

-> but it’s a question what to extract

If (length(s) > 2) {

p = string_copy(s);

if (length(s) >1) {

} else {

do_something();

}}

If (length(s) > 2) {

p = ???; assumelength(p) == length(s);

if (length(p) >1) {

} else {

/* lenghts(p) <=1 && length(p) == length(s) && lengths(s) > 2) ---- Infeasible */

}}

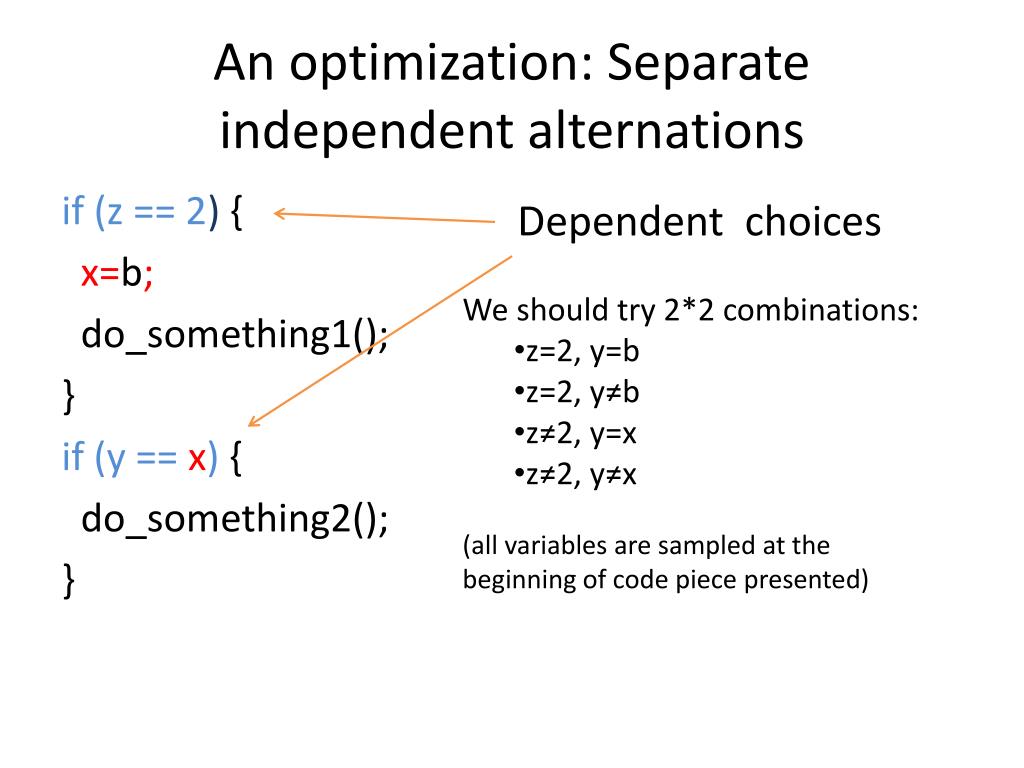

An optimization: Separate independent alternations

if (z == 2) {

x=b;

do_something1();

}

if (y == x) {

do_something2();

}

- Dependent choices
- We should try 2*2 combinations:
- z=2, y=b
- z=2, y≠b
- z≠2, y=x
- z≠2, y≠x
- (all variables are sampled at the beginning of code piece presented)

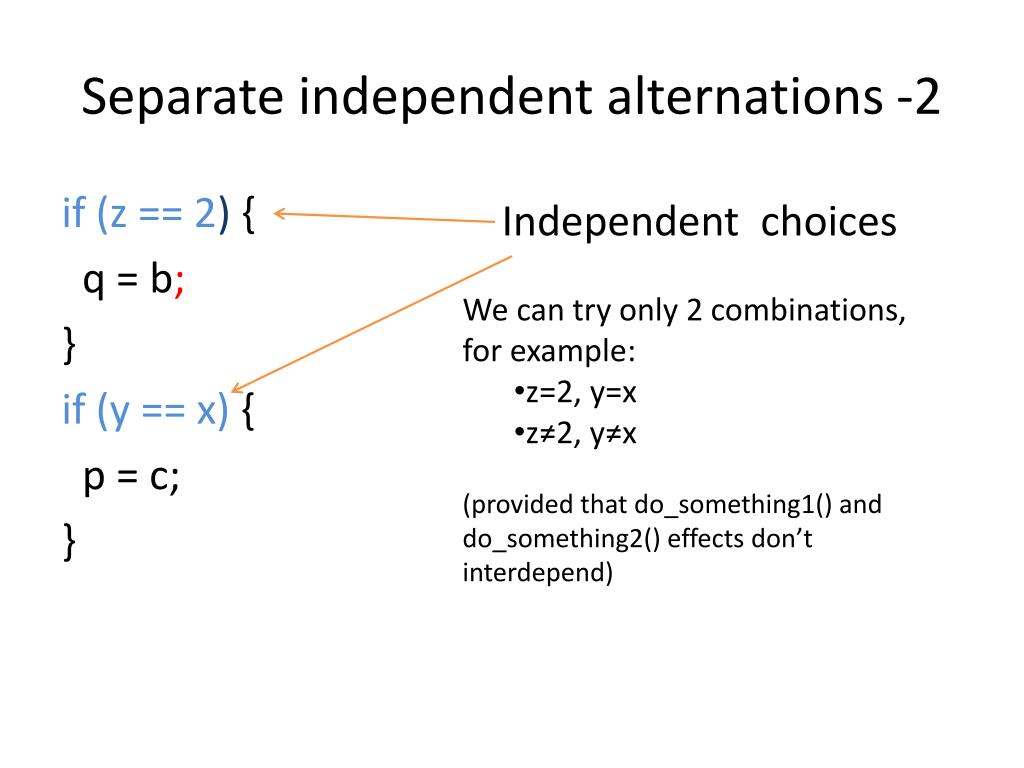

Separate independent alternations -2

if (z == 2) {

q =b;

}

if (y == x) {

p = c;

}

- Independent choices
- We can try only 2 combinations, for example:
- z=2, y=x
- z≠2, y≠x
- (provided that do_something1() and do_something2() effects don’t interdepend)

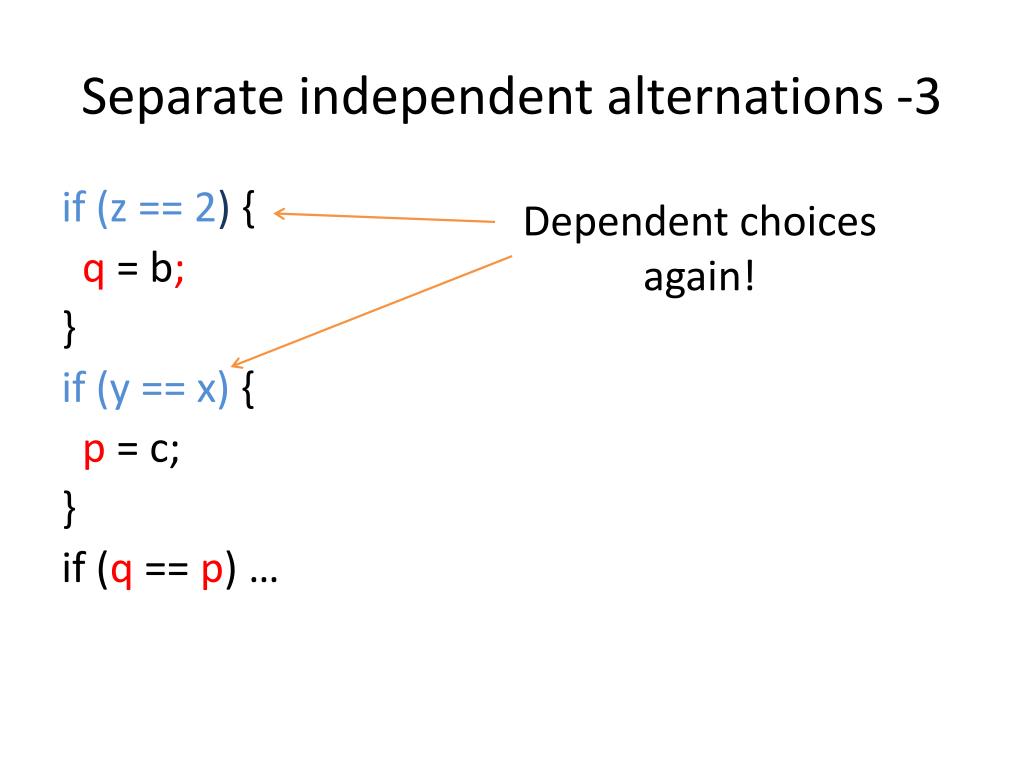

Separate independent alternations -3

if (z == 2) {

q =b;

}

if (y == x) {

p = c;

}

if (q == p) …

Dependent choices again!

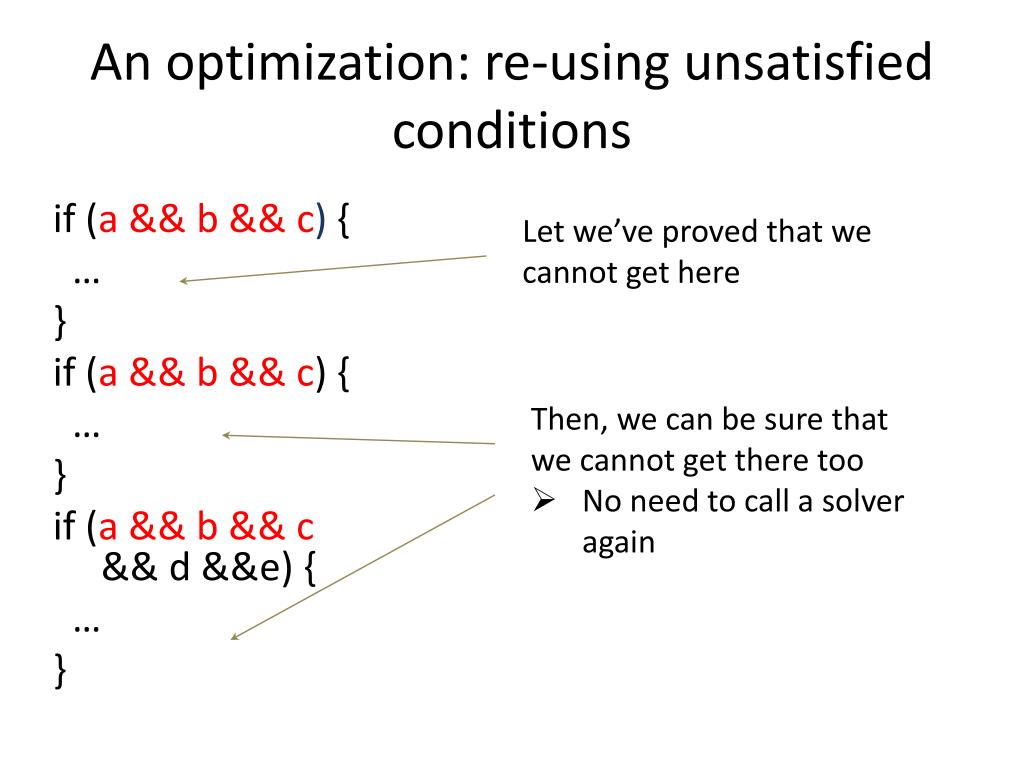

An optimization: re-using unsatisfied conditions

if(a && b && c) {

…

}

if (a && b && c) {

…

}

if (a && b && c&& d &&e) {

…

}

Let we’ve proved that we cannot get here

- Then, we can be sure that we cannot get there too
- No need to call a solver again

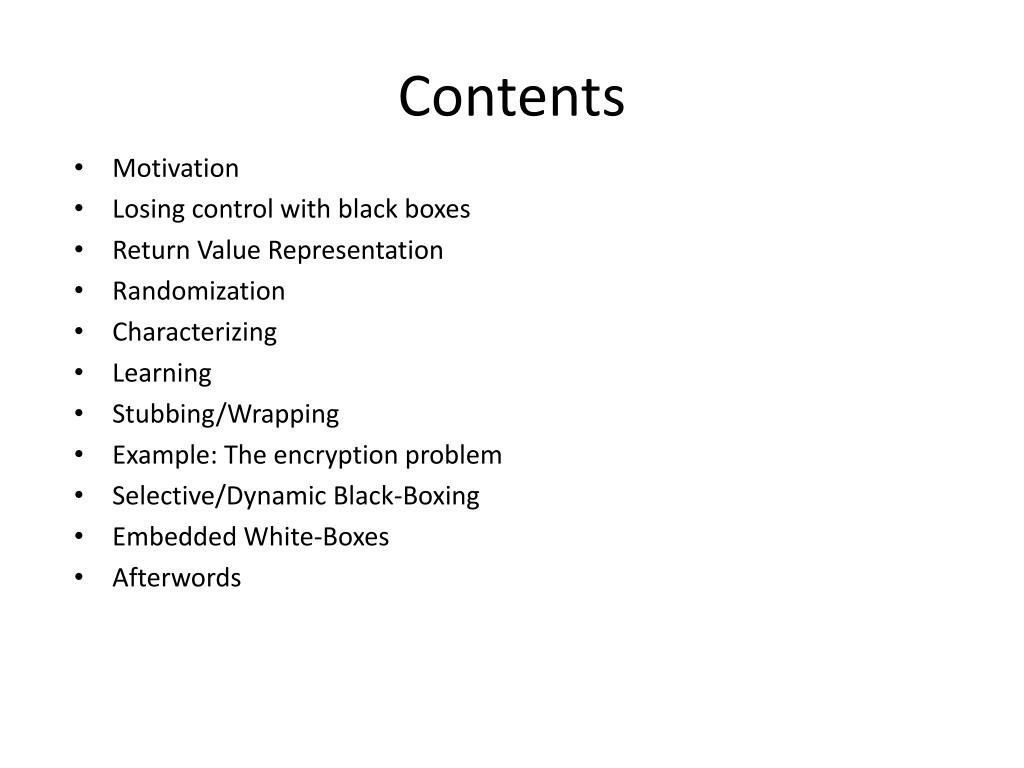

Contents

- Motivation
- Losing control with black boxes
- Return Value Representation
- Randomization
- Characterizing
- Learning
- Stubbing/Wrapping
- Example: The encryption problem
- Selective/Dynamic Black-Boxing
- Embedded White-Boxes
- Afterwords

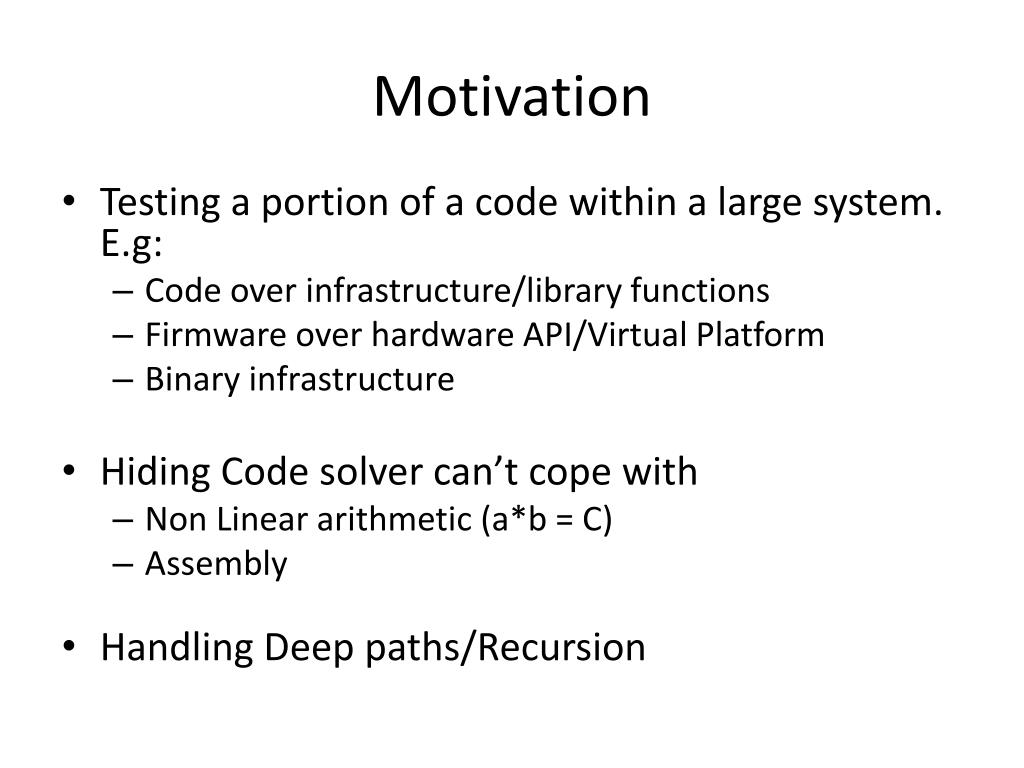

Motivation

- Testing a portion of a code within a large system. E.g:
- Code over infrastructure/library functions
- Firmware over hardware API/Virtual Platform
- Binary infrastructure
- Hiding Code solver can’t cope with
- Non Linear arithmetic (a*b = C)
- Assembly
- Handling Deep paths/Recursion

Losing Control with Black Boxes

- Black-boxes impair our controllability when program paths are influenced by black-box outputs.
- We have no information to pick “a” such that it drives (b > 10) in both directions.

int a = choose_int(“a”);

int b = bb(a);

if (b > 10) { … } else { … }

Return Value Representation

- The flow treats the return value of an uninstrumented function as concrete only (not symbolic).
- But it can be explicitly assigned a fresh symbolic variable with fresh_*
- The reverse could be done as well with concrete_* (later).

int a = blackboxed_func(…); // a is concrete fresh_integer(a, “a”); // a is symbolic

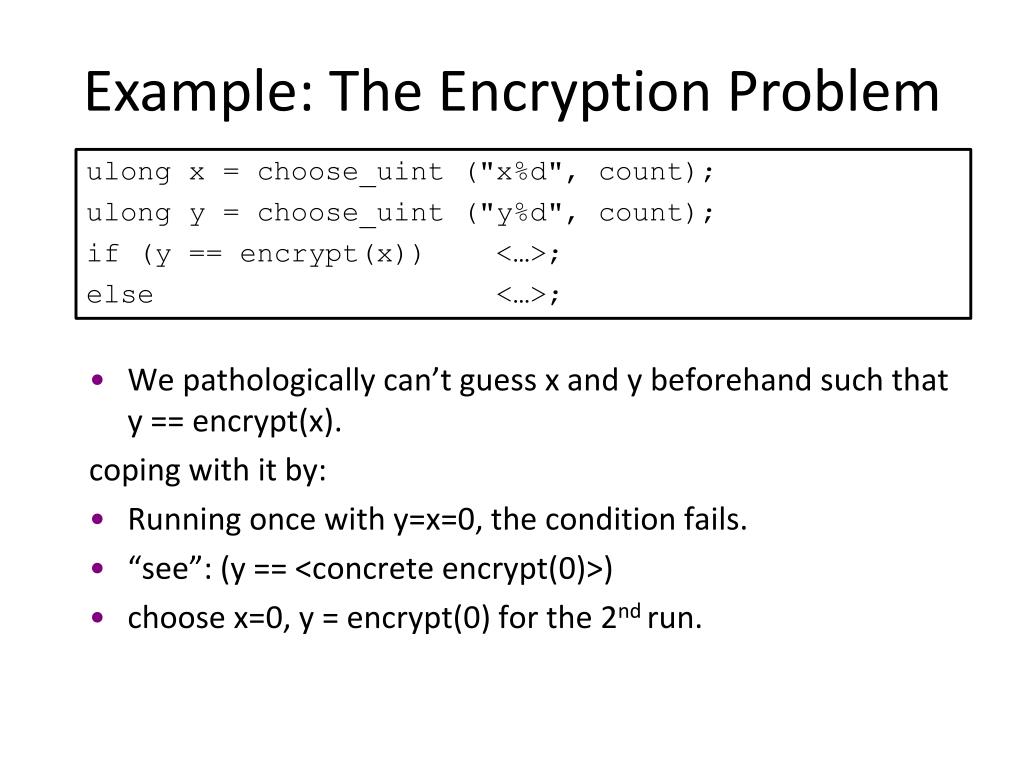

Example: The Encryption Problem

ulong x = choose_uint ("x%d", count);

ulong y = choose_uint ("y%d", count);

if (y == encrypt(x)) <…>;

else <…>;

- We pathologically can’t guess x and y beforehand such that y == encrypt(x).
- coping with it by:
- Running once with y=x=0, the condition fails.
- “see”: (y == <concrete encrypt(0)>)
- choose x=0, y = encrypt(0) for the 2nd run.

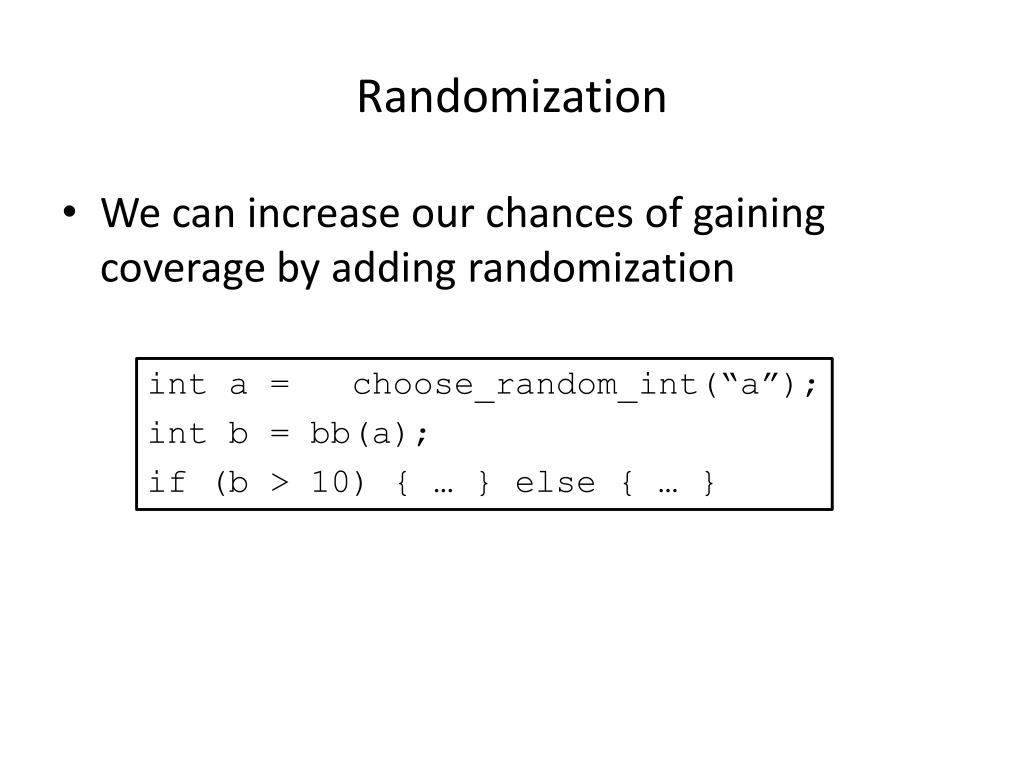

Randomization

- We can increase our chances of gaining coverage by adding randomization

int a = choose_random_int(“a”);

int b = bb(a);

if (b > 10) { … } else { … }

Characterizing: assert

- Our first step to gain back control is having the user tell us something about the function.
- A new construct is added: assert(<cond>)Reminder:
- require(<cond>) : Assume <cond> holds. If it doesn’t ignore current path and move on. This is actually a branch equivalent toif (!cond) exit(0);
- ensure(<cond>) : Make sure <cond> holds. If it doesn’t - stop execution and report it. If it does, try to make it fail. This is actually a branch equivalent toif (!cond) abort();

assert – 2.

- Eg: a strictly monotonic black boxed function.
- assert(<cond>): Assume <cond> holds. If it doesn’t – stop execution and report. But don’t try to make it fail.
- Must use with fresh_*
- Full characterization: solves the problem, but impractical.
- Partial characterization:
- May help the solver – depending on its internal heuristics.
- The more assertions the better.

int a = choose_int(“a”);

int b = bb(a);

fresh_integer(b, “b”);

assert(b > a);

if (b > 10) { … } else { … }

Learning

- Learn from concrete inputs and outputs of a black-boxed function – and use if future runs.
- But what to learn?:Function is not always deterministic: has implicit “inputs” and “outputs” / internal state.
- Instead of learning functions, we learn a “subject” in many lessons. Each lesson can have multiple inputs and outputs.

Learning - 2.

int a = choose_int(“a”);

lesson l = begin_lesson();

learn_integer(l, a, LEARN_INPUT);

int b = bb(a);

fresh_integer(b, “b”);

learn_integer(l, b, LEARN_OUTPUT);

end_lesson(l);

if (b > 10) { … } else { … }

Learning - 3.

- When it misses a path it can retry it several times, and learn new concrete values in each try.
- Previous learning will add constraints to the solver, so previous inputs will not be reused when trying to get a different outputs.

Learning – 4.

- The “subject” is supposed to be common to all invocations of a black-boxed function, but is different from function to function.
- An easier function: begin_lesson() implicitly creates a unique subject from the code location.
- Problem: the function is invoked from different places in the code. We want to write learning once.
- Solution: We shall later see how we can easily write wrappers to divert all calls to one place.

Stubbing / Wrapping

- User will write a wrapper to add characterization and learning sugaring to all invocations of a function:

intbb_wrap(int a)

{

lesson l =begin_lesson();

learn_integer(l, a, LEARN_INPUT);

int b = bb(a);

fresh_integer(b, “b”);

learn_integer(l, b, LEARN_OUTPUT);

end_lesson(l);

assert(b > a);

return(a);

}

Stubbing / Wrapping – 2.

- Now we want to call the wrapper bb_wrap, instead of bb.
- But we don’t want to manually change all invocations in our code.
- instrument does it for us: instrument –stub bb:bb_wrap –stub … -stub …
- Conveniently it won’t replace calls within the stub code itself.

Selective Blackboxing

- We can selectively blackbox instrumented code:
- We must use fresh_* or concrete_* on values that were defined/modified inside the blackbox and are visible outside of it.
- Otherwise it might think it is uninitialized, or miscalculate paths.

begin_blackbox(true);

int x = 10;

end_box();

concrete_integer(x);

Dynamic Blackboxing - 1.

- Sometimes we just have too many paths:
- If we can’t change the string length it will see 2^100 paths…

char* s = choose_valid_string("str", 100);

intcount_a = 0;

for(inti=0; i<100; i++)

{

if (s[i] == 'a') {

count_a++;

}

}

Dynamic Black-boxing – 2.

- We can dynamically hide code:
- Now XXX sees only 2^2 paths.

char* s = choose_valid_string("str", 100);

intcount_a = 0;

for(inti=0; i<100; i++)

{

begin_blackbox(i>2);

if (s[i] == 'a') {

count_a++;

}

end_box();

}

Embedded White-boxes

- What if we want to look into some code that is called from black-boxed code? E.g a callback:

void callback(int x)

{ … } // we want to see this code

int main ()

{

int x = choose_uint("x");

bb_foo(x, callback); // bb_foo is blackboxed

return 0;

}

Embedded White-boxes - 2.

- On the “inside” we “whitebox” it expicitly, and freshen (or concretize) the inputs:

void callback(int x)

{

static int count = 0;

begin_whitebox(true);

fresh_integer(x, “new_x%d”, count);

end_box();

++count;

} // we want to see this code

Afterwords

- We have established a “Swiss army knife” of features to support future black-box challenges.
- This helps overcome some simple synthetic examples.
- Since the loss of controllability is generally hard, we expect we’d need to refine this set of features as we hit real life test-cases.

Download Presentation

Connecting to Server..
