IP Convergence:

The Future of Satellite Communications

Simon Stewart

Satellite Gateway Technician

what is ip convergence
What is IP Convergence?
  • The transmission of different types of traffic over a single “converged” network
    • Voice
    • Video
    • Data
the benefits of ip convergence

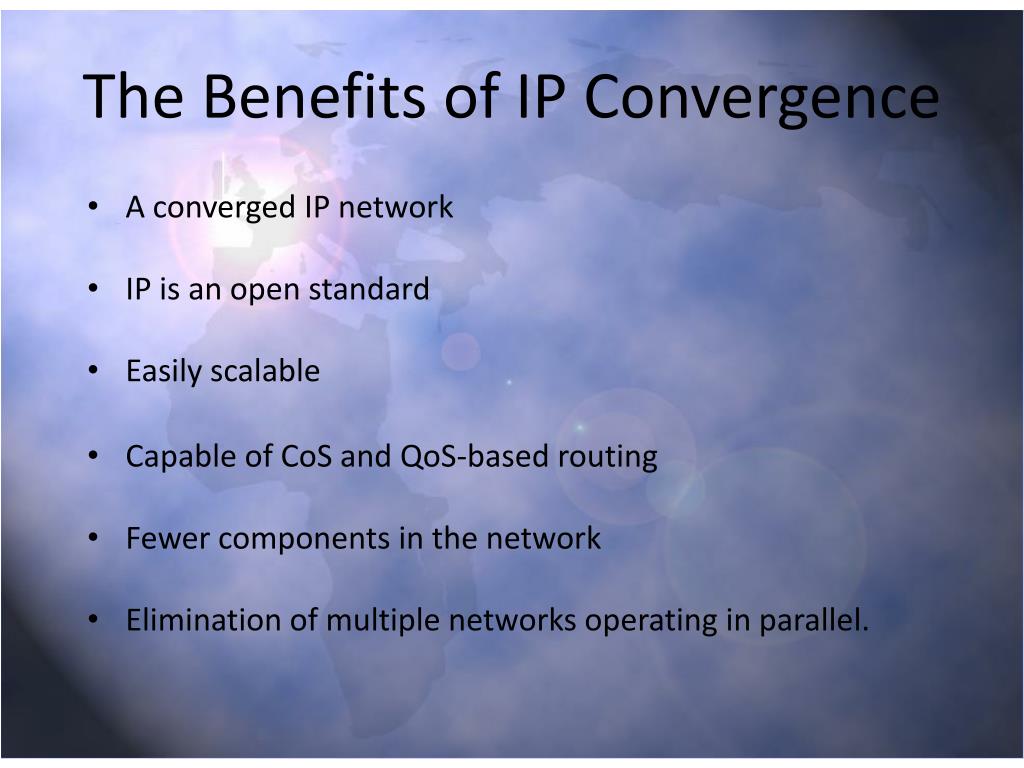

The Benefits of IP Convergence
  • A converged IP network
  • IP is an open standard
  • Easily scalable
  • Capable of CoS and QoS-based routing
  • Fewer components in the network
  • Elimination of multiple networks operating in parallel.
slide4

IP Modem Architecture

IP Modems Provide Efficient Bandwidth Utilization

  • Differs From Basic Satellite Modems in Their Ability to Efficiently Transport IP Data Over the Satellite Link
  • Uses Time Division Multiple Access (TDMA) Framing Structure Bandwidth on a Single Carrier
timeline for development transformational communications architecture tca
Timeline for Development:Transformational Communications Architecture (TCA)
  • Legacy Design – 2004 - 2005
  • Phase One Limited IP – 2006
  • Phase Two Expanded IP – 2007 - 2008
  • Phase Three Full IP – 2008 - 2012
phase one limited ip system overview
Phase One: Limited IP System Overview
  • Net-centric Router
  • Voice Gateways
  • HAIPE
  • Intrusion detection devices
  • The Performance Enhancing Proxy
slide7

Phase Two:

Expanded IP System Overview

  • IP Modems are installed (iDirect, Linkway)
    • Support 4 Wideband RF Interfaces
    • Support Hub/spoke and Mesh Topology
    • Utilize Dynamic Bandwidth Resource Allocation
  • Upgraded Converged IP Suites
  • Ensure Compatibility With various terminals
  • Enhances Bandwidth availability
phase two linkway

Ku-band

(Eutelsat EB4)

Phase Two Linkway

Equipment

Shelter

Terminal 6

Modem: Linkway

Services: Voice, Video, Data

2.25 MSPS x 4

Pre-Positioned

Services

2.25 MSPS

Terminal 7

Modem: Linkway

Services: Voice, Video, Data

2.25 MSPS

Central

Network

2.25 MSPS

2.25 MSPS

Linkway

Terminal 8

Modem: Linkway IP

Services: Voice, Video, Data

Terminal 9

Modem: Linkway IP

Services: Voice, Video, Data

Network Manager

Network Controller

phase two idirect

Ku-band

(Intelsat IS-903)

Phase Two iDirect

Equipment

Shelter

Terminal 1

Modem: iDirect 7350

Services: Voice, Video, Data

512 Kbps

Pre-Positioned Services

Central

Network

Terminal 2

Modem: iDirect 7350

Services: Voice, Video, Data

2048 Kbps

iDirect

512 Kbps

Terminal 3

Modem: iDirect 7350

Services: Voice, Video, Data

Network Manager

Network Controller

slide11

Net-Centric Enterprise Service integrated

  • Future IP modem with Embedded TRANSEC
  • Enhances bandwidth capability further
  • Other future requirements yet to be determined

Phase Three:

Full IP Implementation

summary
Summary
  • Taking Steps Toward Realizing the Transformational Communications Architecture (TCA)
  • IP Transition Will be Incremental
      • Benefits of IP Convergence
      • Limited IP
      • Expanded IP
      • Fully Implemented IP
  • Keys to Success: Requirement Solidification, Program Synchronization, and Funding
