  1. Gas Free Engineering AFLOAT GAS FREE ENGINEERING PART 1 of 4 VISUAL MANAGEMENT TOOL

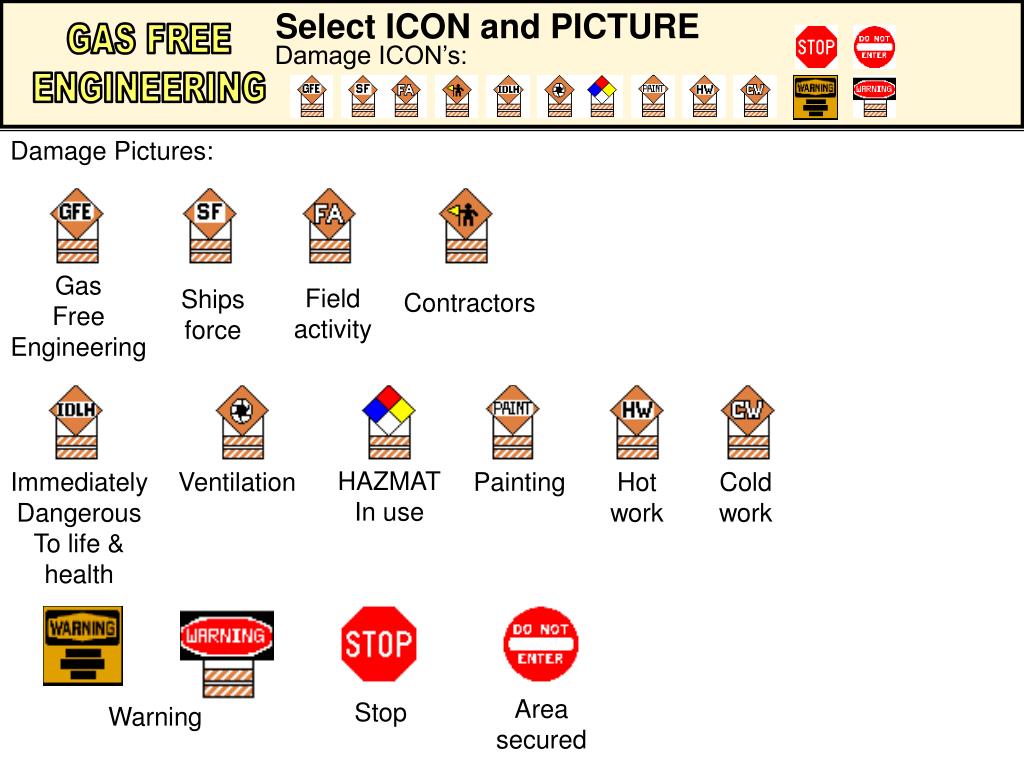

  2. Select ICON and PICTURE GAS FREE ENGINEERING Damage ICON’s: Damage Pictures: Gas Free Engineering Field activity Ships force Contractors HAZMAT In use Immediately Dangerous To life & health Ventilation Painting Hot work Cold work Area secured Stop Warning

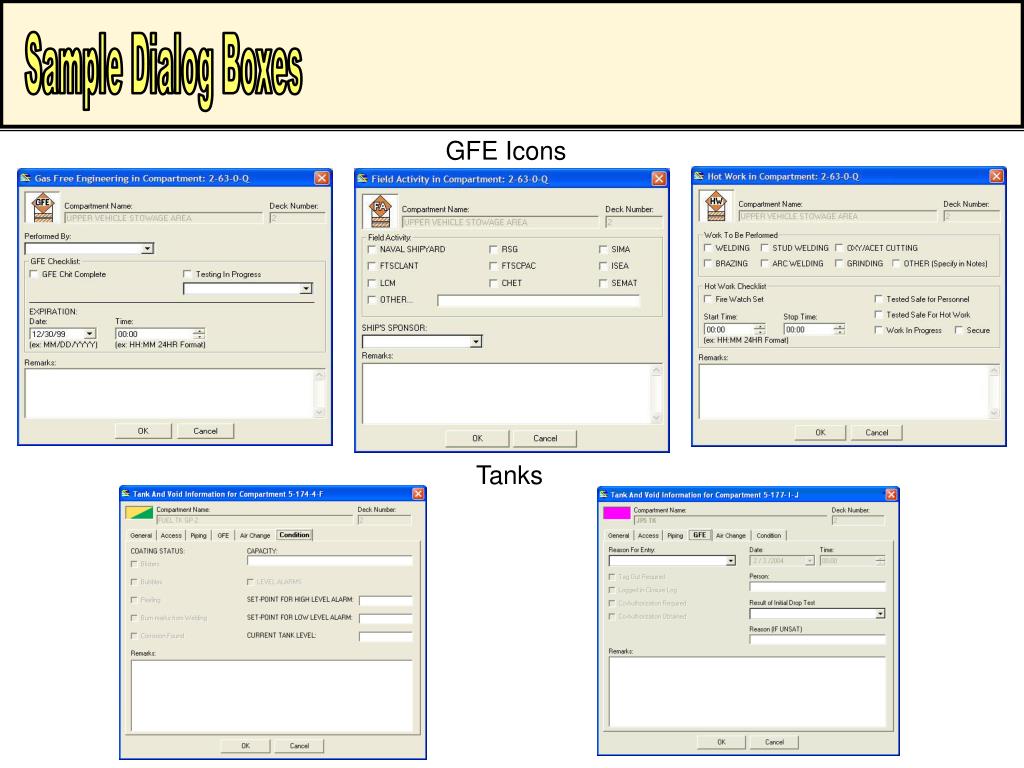

  3. Sample Dialog Boxes GFE Icons Tanks

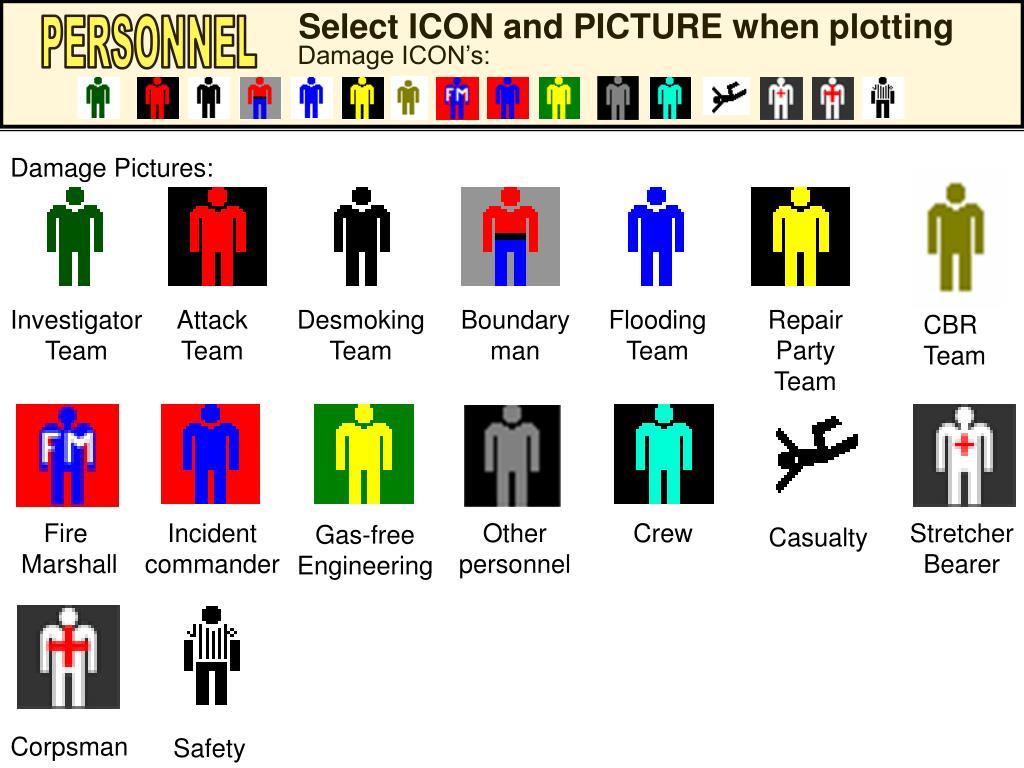

  4. Select ICON and PICTURE when plotting PERSONNEL Damage ICON’s: Damage Pictures: Repair Party Team Investigator Team Attack Team Desmoking Team Boundary man Flooding Team CBR Team Fire Marshall Incident commander Other personnel Crew Stretcher Bearer Gas-free Engineering Casualty Corpsman Safety

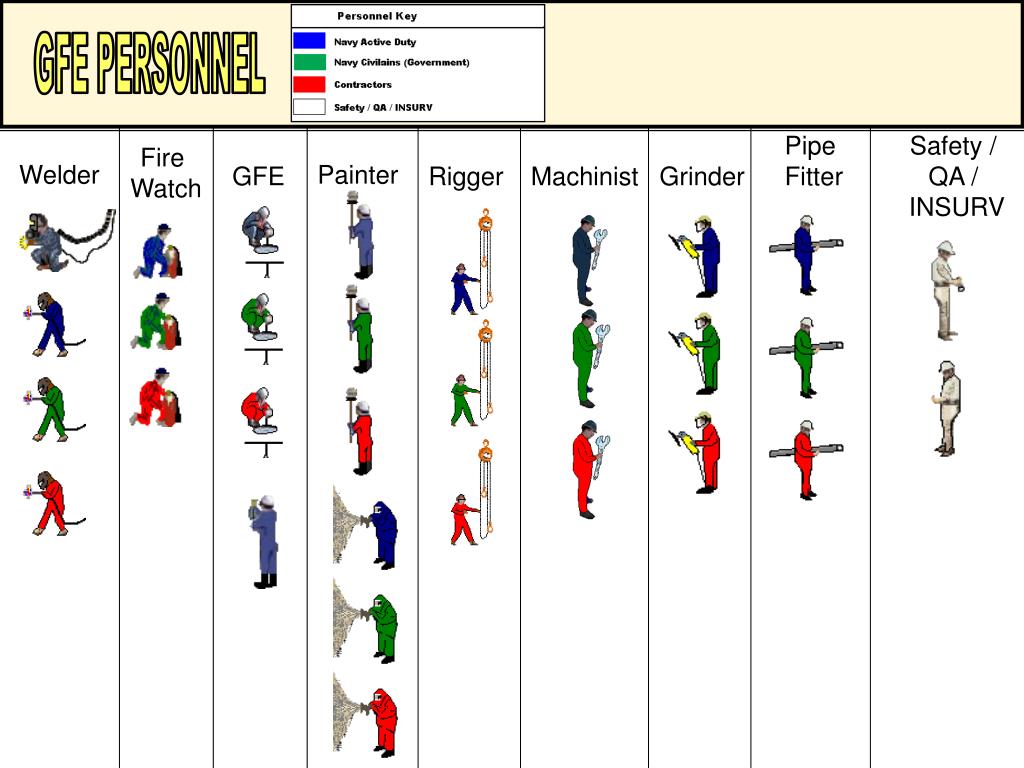

  5. GFE PERSONNEL Pipe Fitter Safety / QA / INSURV Fire Watch Welder Painter GFE Rigger Machinist Grinder

  6. GAS

  7. GFE EQUIPMENT & TANK LIQUIDS Box Fan RAM Fan Emergency Lights Scaffolding Vent Trunks Contractor Fan Ladders Welder Tank Liquids

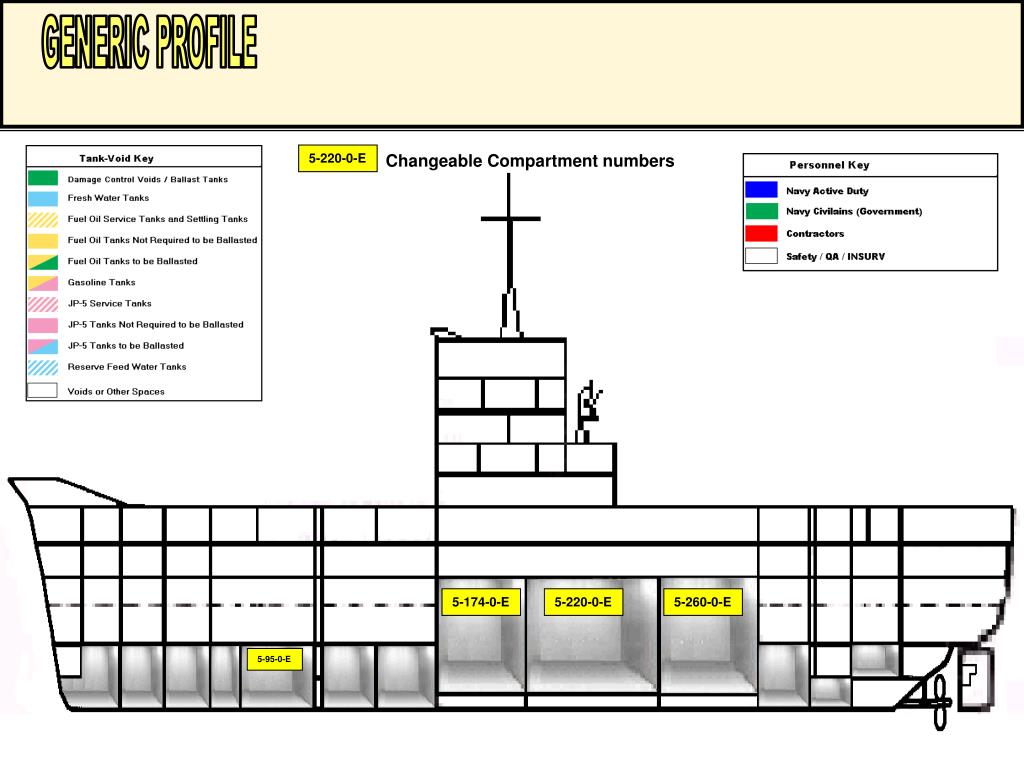

  8. GENERIC PROFILE 5-220-0-E Changeable Compartment numbers 5-174-0-E 5-220-0-E 5-260-0-E 5-95-0-E

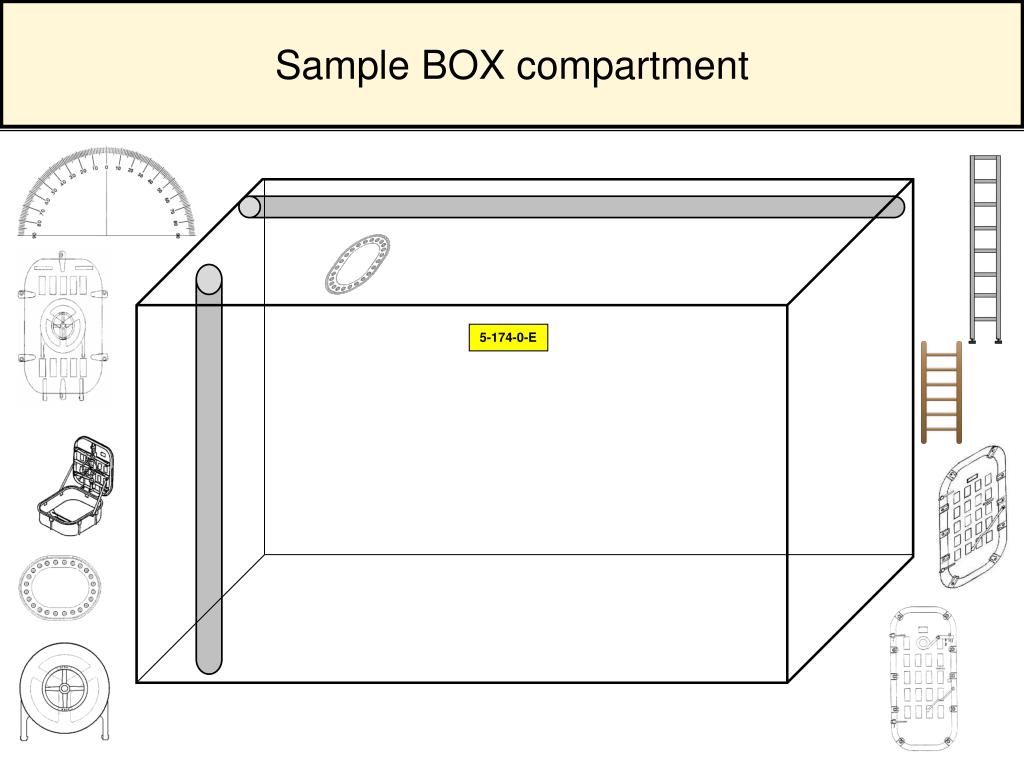

  9. Sample BOX compartment 5-174-0-E
