Band Pass Filters

Anatech Electronics is an ISO 9001:2015 certified company offers Standard Band Pass Filters database contains previously designed band pass filters in a variety of technologies, including Cavity Band Pass Filters, Waveguide Band Pass Filters, Ceramic Band Pass Filters, and Lumped Elements Band Pass Filters, SAW band pass filters, Helical band pass filters and Crystal band pass filters.

anatech
Download Presentation

Band Pass Filters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

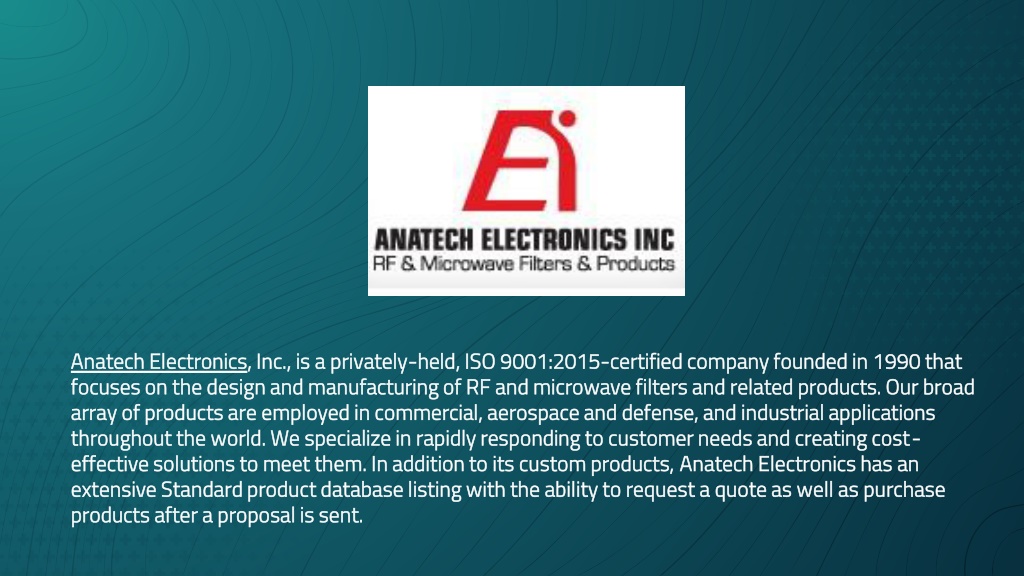

  1. Anatech Electronics, Inc., is a privately-held, ISO 9001:2015-certified company founded in 1990 that focuses on the design and manufacturing of RF and microwave filters and related products. Our broad array of products are employed in commercial, aerospace and defense, and industrial applications throughout the world. We specialize in rapidly responding to customer needs and creating cost-effective solutions to meet them. In addition to its custom products, Anatech Electronics has an extensive Standard product database listing with the ability to request a quote as well as purchase products after a proposal is sent.

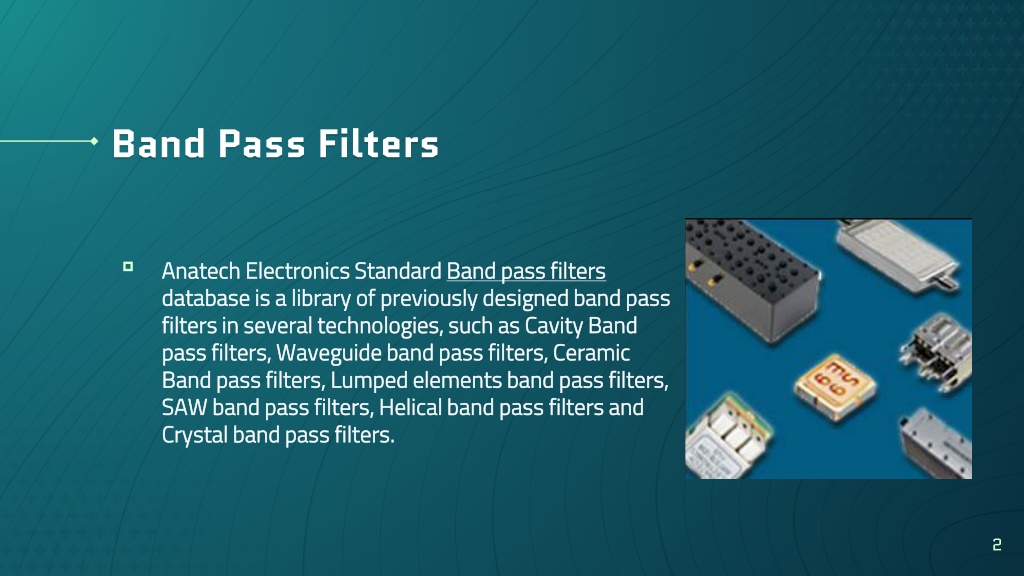

  2. Band Pass Filters • AnatechElectronics Standard Band pass filters database is a library of previously designed band pass filters in several technologies, such as Cavity Band pass filters, Waveguide band pass filters, Ceramic Band pass filters, Lumped elements band pass filters, SAW band pass filters, Helical band pass filters and Crystal band pass filters.

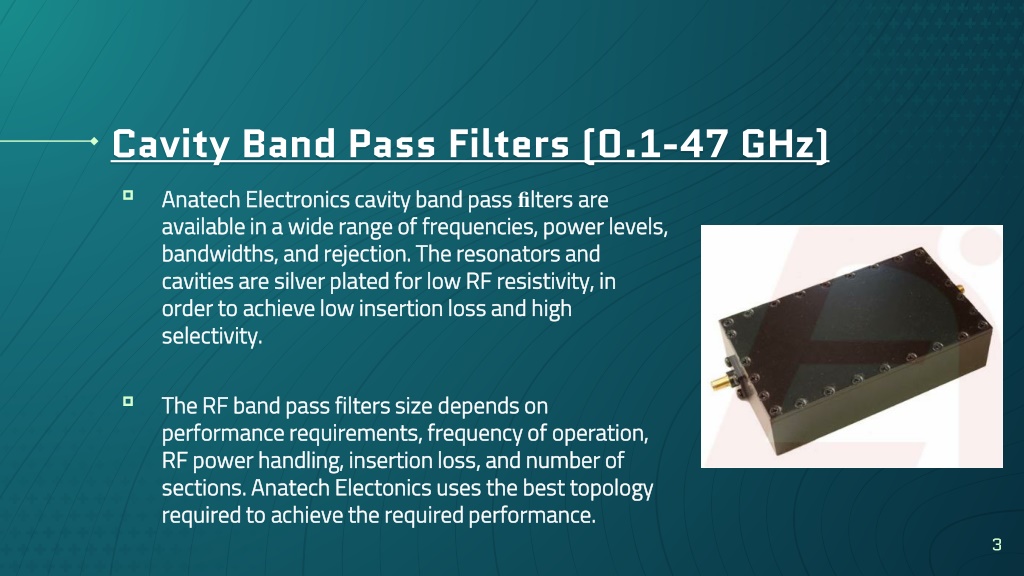

  3. Cavity Band Pass Filters (0.1-47 GHz) • AnatechElectronics cavity band pass filters are available in a wide range of frequencies, power levels, bandwidths, and rejection. The resonators and cavities are silver plated for low RF resistivity, in order to achieve low insertion loss and high selectivity.  • TheRF band pass filters size depends on performance requirements, frequency of operation, RF power handling, insertion loss, and number of sections. AnatechElectonics uses the best topology required to achieve the required performance.

  4. Ceramic Band Pass Filters • Anatech Electronics ceramic band pass filters deliver good performance and reliability and serve a broad array of applications from 200 MHz to 8000 MHz.  The size of a Ceramic Band Pass Filter depends on the dielectric constant of the ceramic resonator (typically between 30 and 90), the lower the dielectric constant, the larger the resonator, the better the temperature coefficient, and vice versa. • AnatechElectronics Ceramic band pass filters can be made from discrete ceramic resonators or as a single piece of a ceramic material called a “Monoblock” structure.

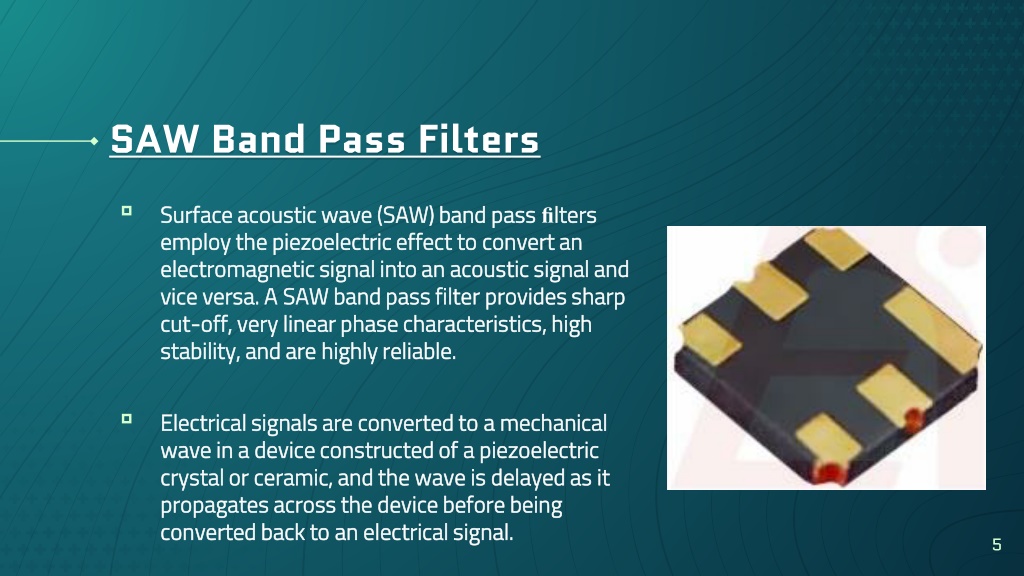

  5. SAW Band Pass Filters • Surface acoustic wave (SAW) band pass filters employ the piezoelectric effect to convert an electromagnetic signal into an acoustic signal and vice versa. A SAW band pass filter provides sharp cut-off, very linear phase characteristics, high stability, and are highly reliable.  • Electrical signals are converted to a mechanical wave in a device constructed of a piezoelectric crystal or ceramic, and the wave is delayed as it propagates across the device before being converted back to an electrical signal.

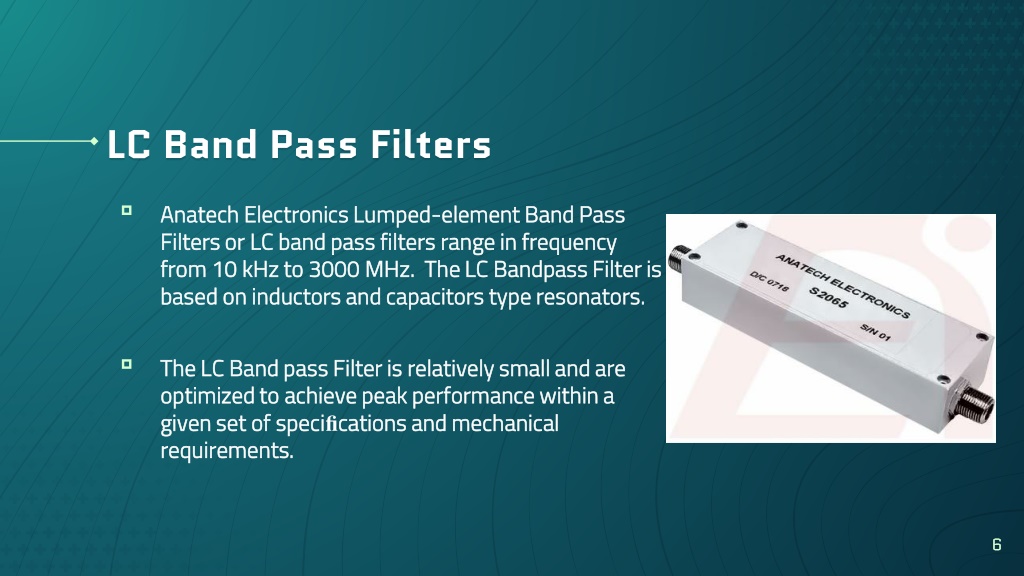

  6. LC Band Pass Filters • Anatech Electronics Lumped-element Band Pass Filters or LCband pass filters range in frequency from 10 kHz to 3000 MHz.  The LC Bandpass Filter is based on inductors and capacitors type resonators.  • The LC Band pass Filter is relatively small and are optimized to achieve peak performance within a given set of specifications and mechanical requirements.

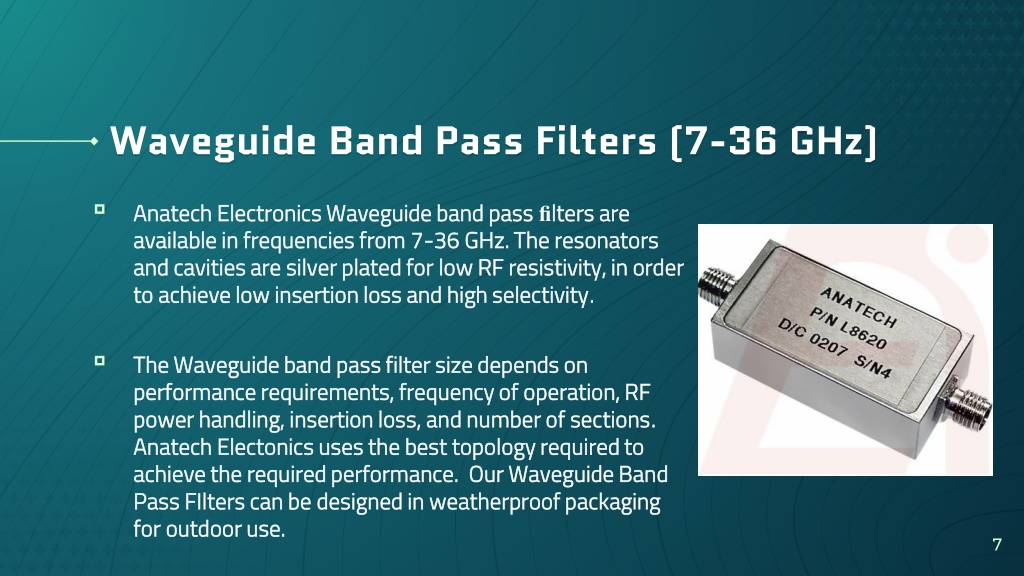

  7. Waveguide Band Pass Filters (7-36 GHz) • Anatech Electronics Waveguide band pass filters are available in frequencies from 7-36 GHz. The resonators and cavities are silver plated for low RF resistivity, in order to achieve low insertion loss and high selectivity. • The Waveguide band pass filter size depends on performance requirements, frequency of operation, RF power handling, insertion loss, and number of sections.AnatechElectonics uses the best topology required to achieve the required performance.  Our Waveguide Band Pass FIlters can be designed in weatherproof packaging for outdoor use.

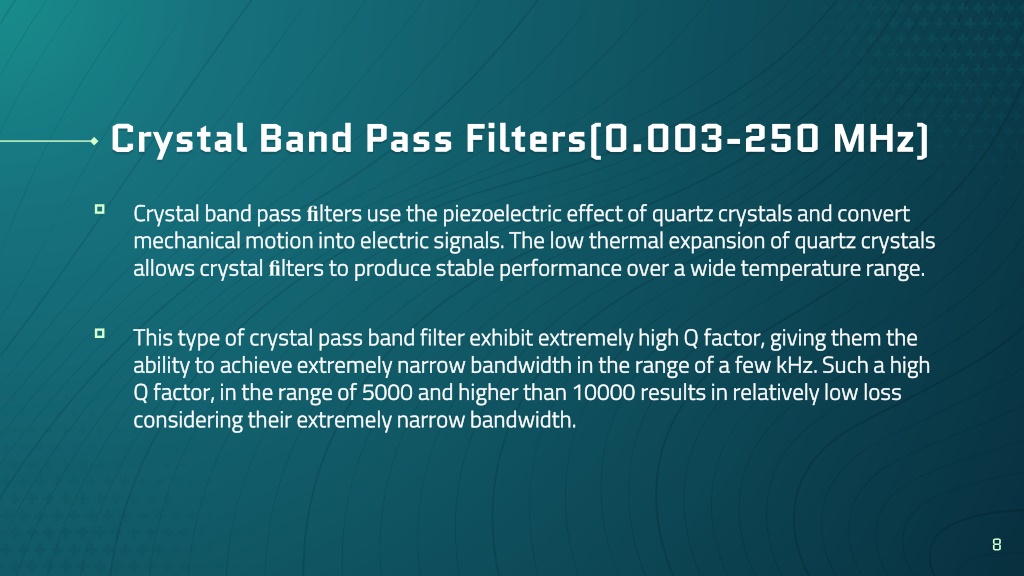

  8. Crystal Band Pass Filters(0.003-250 MHz) • Crystal band pass filters use the piezoelectric effect of quartz crystals and convert mechanical motion into electric signals. The low thermal expansion of quartz crystals allows crystal filters to produce stable performance over a wide temperature range.  • This type of crystal pass band filter exhibit extremely high Q factor, giving them the ability to achieve extremely narrow bandwidth in the range of a few kHz. Such a high Q factor, in the range of 5000 and higher than 10000 results in relatively low loss considering their extremely narrow bandwidth.

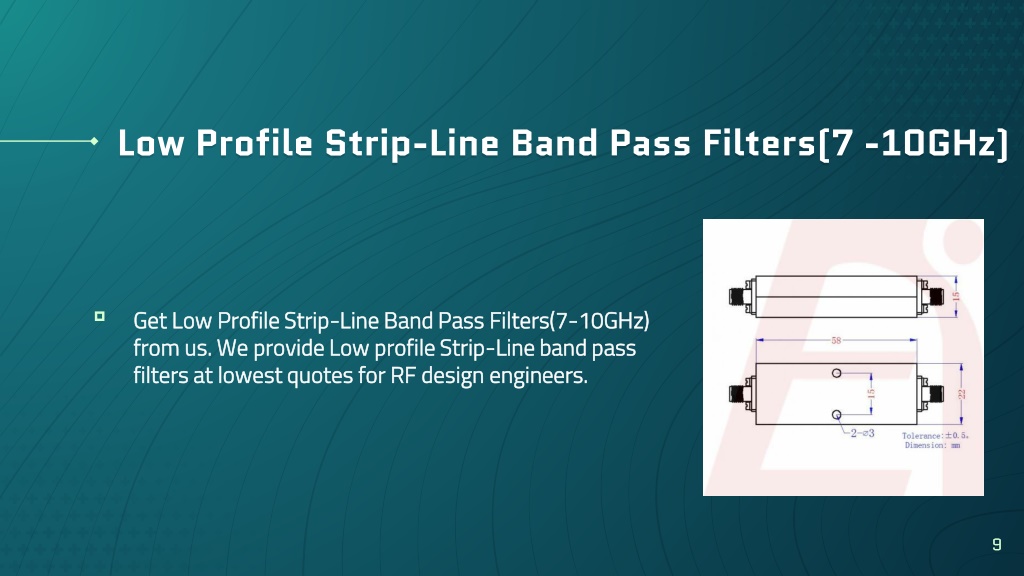

  9. Low Profile Strip-Line Band Pass Filters(7 -10GHz) • Get Low Profile Strip-Line Band Pass Filters(7-10GHz) from us. We provide Low profile Strip-Line band pass filters at lowest quotes for RF design engineers.

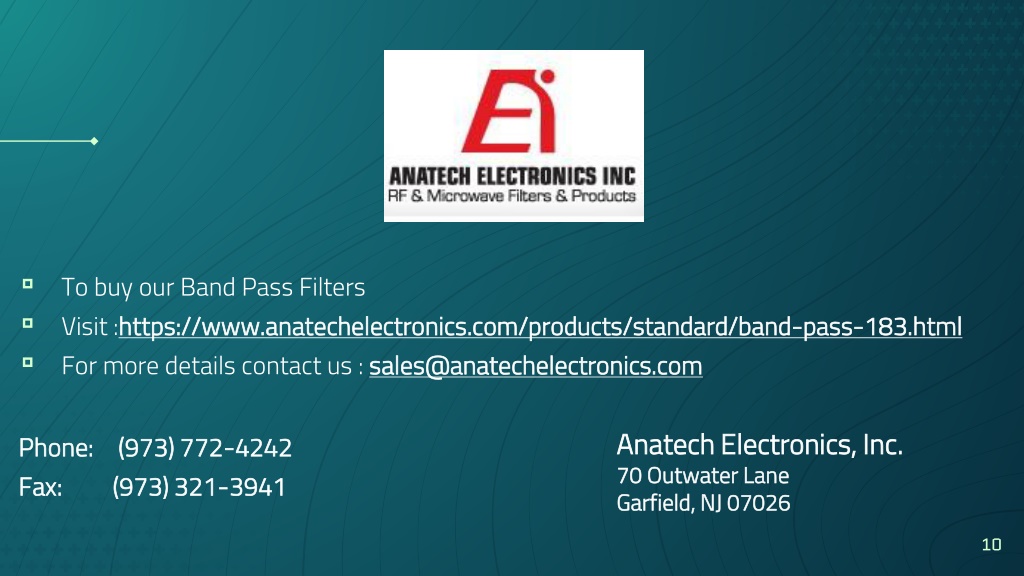

  10. To buy our Band Pass Filters • Visit :https://www.anatechelectronics.com/products/standard/band-pass-183.html • For more details contact us : sales@anatechelectronics.com Phone: (973) 772-4242 Fax: (973) 321-3941 Anatech Electronics, Inc.70 Outwater LaneGarfield, NJ 07026
