Presentation Transcript
cooling system

Cooling System

For

Gear Box

gear box cooler
Gear Box Cooler
  • Air/Oil cooler fan driven
  • Wash down Motor
  • Gear Pump
    • Moves oil from gear box through cooler
    • Optional Oil filter
  • Temperature Switch
    • Control the cooler fan to regulate the oil temperature.
top view
Top View

Electric Motor

Air/Oil

Cooler

Gear pump

front view
Front View

Adjustable Temperature

Switch

feature and benefits
Feature and Benefits
  • Cooler
    • Protects gears from varnish due to high oil temperature
    • Protects seals
    • Reduces Moisture due to large changes in temperature.
    • Extends Oil life.
    • Extends life of gear box.

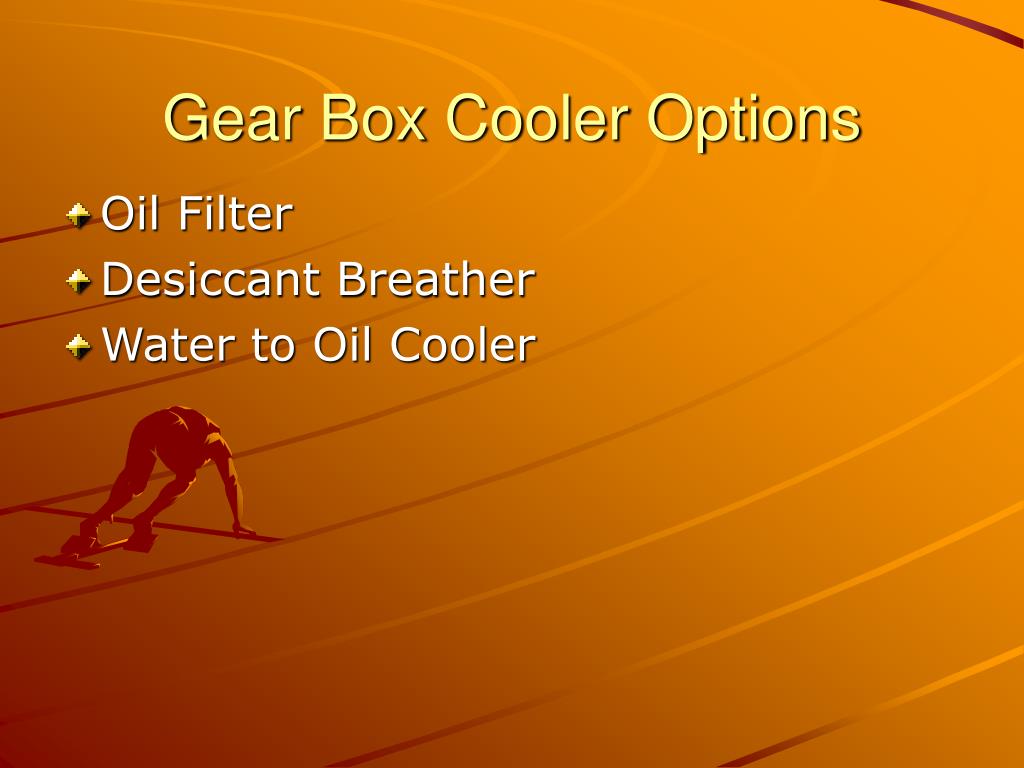

gear box cooler options
Gear Box Cooler Options
  • Oil Filter
  • Desiccant Breather
  • Water to Oil Cooler

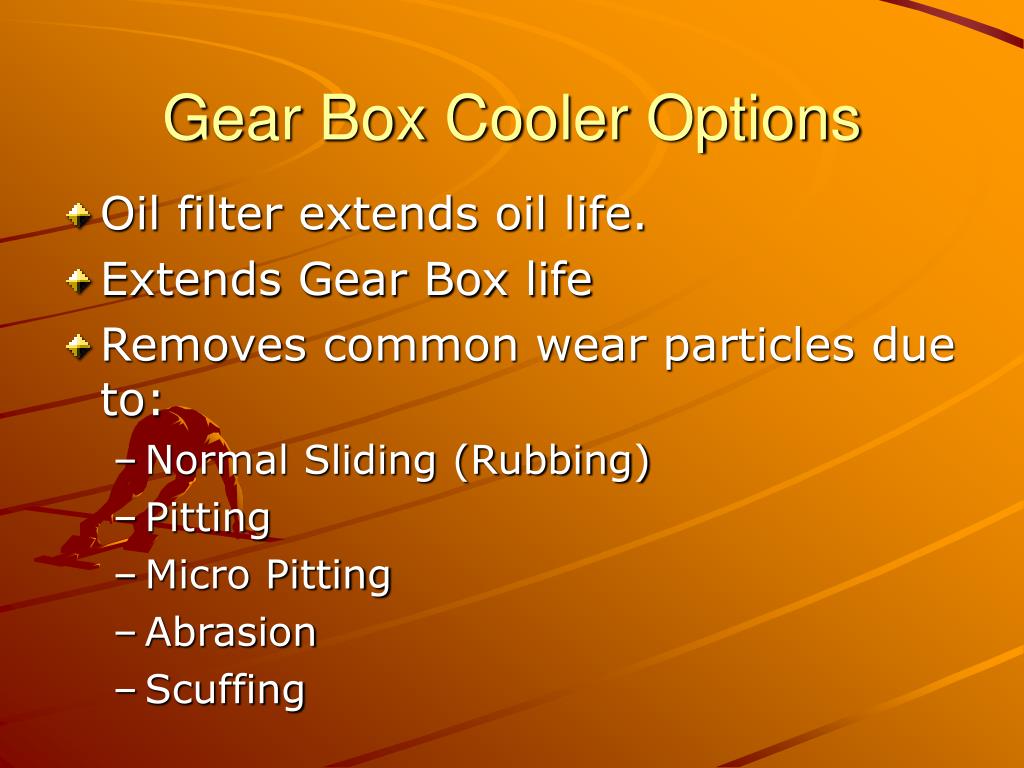

gear box cooler options1
Gear Box Cooler Options
  • Oil filter extends oil life.
  • Extends Gear Box life
  • Removes common wear particles due to:
    • Normal Sliding (Rubbing)
    • Pitting
    • Micro Pitting
    • Abrasion
    • Scuffing
gear box cooler options2
Gear Box Cooler Options
  • Desiccant Breather
    • Removes Moisture from humid ambient air.
    • Prevents particles larger than 3 microns entering gear box.
    • Desiccant Beads change color as they become saturated.
gear box cooler options3
Gear Box Cooler Options
  • Water/Oil Heat Exchanger
    • Provides better cooling in high ambient conditions.
    • Can lower oil temperature below ambient temperature.
gear box coolers
Gear Box Coolers
  • E-mail us your requirements.
