  1. Base Add on Gate Software Components Data Acquisition Components The "Base" software components require neither technical expertise nor programming, enabling you to easily setup hardware and start operating your data acquisition system as soon as possible. High Added-Value Components The “Add-on” software components offer advanced functions such as customized windows, monitoring clients, multi-logging, and data acquisition trigger conditions. Interface Components The “Gate” software components enable data acquisition using power measuring instruments and Modbus devices in combination with data acquisition units. With these components, you can quickly connect OPC servers and network cameras.

  2. Model Codes and Pricing

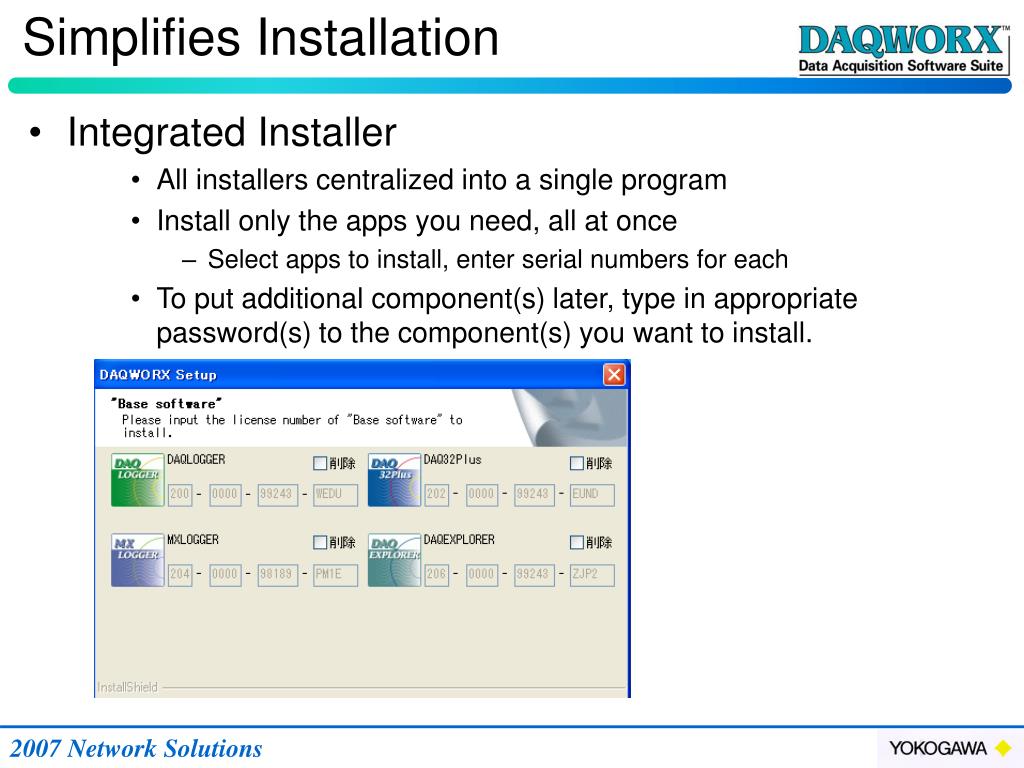

  3. Integrated Installer All installers centralized into a single program Install only the apps you need, all at once Select apps to install, enter serial numbers for each To put additional component(s) later, type in appropriate password(s) to the component(s) you want to install. Simplifies Installation

  4. Model Description Note Price Upgrade from Upgrade for Data Acquisition Components WX101UP/CD1 DAQLOGGER license with CD-ROM. General purpose, 1600ch capability. 295.00 VA510-01,VA510-02, VA510-03 WX102UP/CD1 DAQ32Plus license with CD-ROM. For DARWIN, 300ch capability. 295.00 DP320-13 WX104UP/CD1 DAQEXPLORER license with CD-ROM For DAQStation DX/CX/MV, with auto file conversion 150.00 DXA200-02, DXA200-02/XF1 Value-added Components WX11UP/CD1 AddObserver license with CD-ROM. For custom screen monitoring. Contains builder and runtime. 195.00 VA600-02 WX12UP/CD1 AddMulti license and CD-ROM. For multi-interval data logging. 195.00 VA700-01, VA700-02 Model Codes and Pricing for “UPGRADING”

  5. DAQLOGGER WX101 • Real-time trend, numerical, meter, and bar graph display modes • Supports most YOKOGAWA DAQ products DAQStation DX, DXA, MV, CX, FX DARWIN, MX100, uR recorders - Supports up to 32 devices in a single system • Supports up to 1600 channels and 3 communication interfaces • Ethernet, RS-232C, RS-422/485 - 1 sec maximum (fastest) data logging interval - Client & Server system

  6. DAQLOGGER Connectivity Image Support up to 32 devices / 1600ch multi connection RS-232C/422A Converter Ethernet RS-232C Lantronix Terminal Server With Redirector RS-422A RS-232C

  7. Unique Functions on DAQLOGGER Event Processor E-Mail (with text data, PNG or message), FTP data transfer and Data Conversion are activated by Event detection. File utility File merge/divide on viewer software Tag editor Beep Sound for Alarm Monitoring

  8. What is “Event Processor” This software can send a message by e-mail when a selected event condition occurs, and attach predefined files to the message, transfer them through FTP, or automatically convert them to ASCII, Excel or Lotus1-2-3 format. Event Conditions Alarm, Regular time interval, End of data file creation, End of report file creation, User event Target files Data file, Report file, PNG file, User file(text file or instantaneous values) Actions E-mail transfer, FTP transfer, File conversion

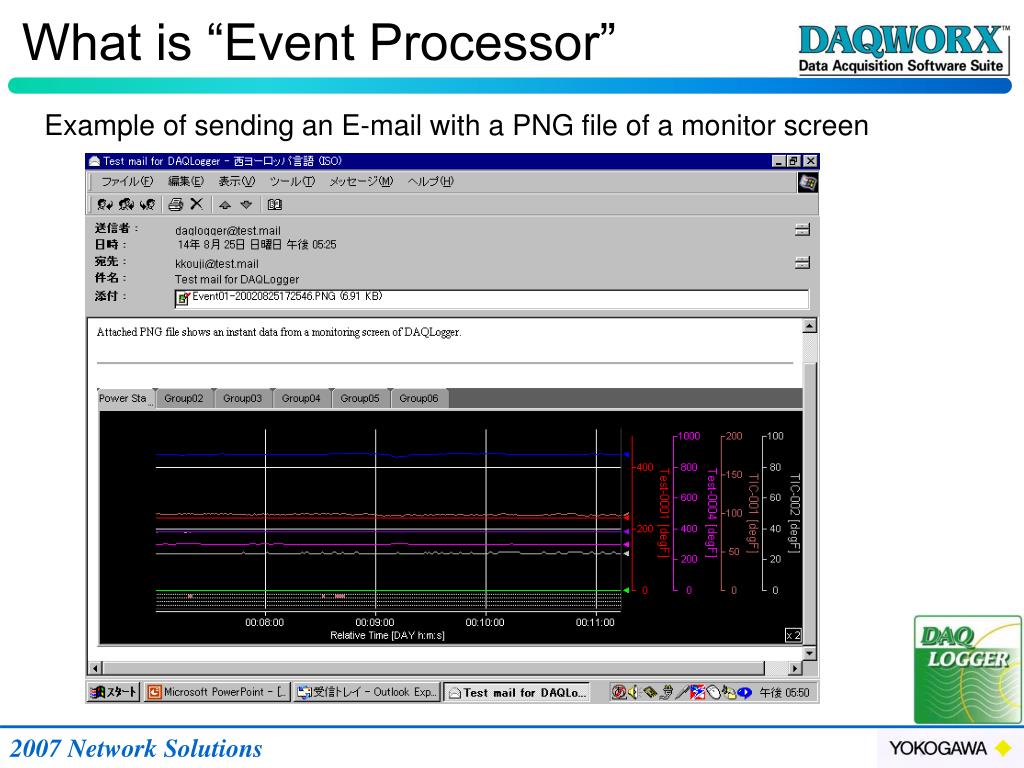

  9. What is “Event Processor” Example of sending an E-mail with a PNG file of a monitor screen

  10. - Works with all DARWIN Series DAQ32- standard software DAQ32Plus- optional software - Supports everything from Setup to Data Processing. - Supports DARWIN IP setting - 500msec/300ch data logging - Wide Variety of Display options DAQ32 Plus WX102 (for DARWIN)

  11. Software components Launcher, Configuration, Monitor, Viewer, Monitor server Functions - Supports up to 20 MX100 units and up to 1200 channels with single PC system. - 600ch/100msec, 1200ch/200msec interval data logging available. - 3 individual log-intervals in one system - Support Math (same as MX100 standard) - Manual alarm output via MX100 unit - Monitor server function for remote monitoring with DAQLogger and/or DAQLogger client MXLOGGER WX103 (for MX100)

  12. Client/Server with MXLOGGER Unit1, 10msec DAQLogger Client MXLOGGER 10msec/100msec Monitor Server Unit1, 100msec Unit2, 100msec Unit2, 1sec Use MXLOGGER and DAQLogger Client - Supports up to 960ch as client/server system. • 960ch=60chx16units or 16connections - Individual windows for each hardware and sampling speed. • Data update rate at client PC is same as MXLogger setting. - $495.00 + $195.00/each (up to 16 connections)

  13. DAQExplorer WX104 Supporting DAQ devices • DAQStation DX, MV, CX and FX Desktop • Easy icon operation • Download, upload data and setup files through easy operation like clicking, dragging and dropping icons. Remote Monitor(16 connections) • Data monitoring & alarm overview on the PC via network Configuration Data viewer File Conversion • Conversion to ASCII, Lotus1-2-3 or Microsoft Excel file

  14. AddObserver WX11 - Add-on software for DAQ32Plus, DAQLOGGER, DAQEXPLORER - Easy screen design without requiring specialized knowledge - Creates a realistic image of the site using background bitmapped images. - Wealth of picture elements including trend/level, analog, digital meters and thermometer

  15. AddMulti WX12 Multiple Interval & File Data Logging software running as a simple add-on to existing DAQ32Plus/DAQLogger software - 50 measurement groups with 32 channels per group. - Each group has individual measurement interval. - Each group has individual start/stop conditions with a wide range of triggers. - Each group logs to an independent data file of separate folder on PC. - Simultaneous multi-group start or single group start.

  16. AddMulti Functional Image Target DAQs hardware Measurement Group Measurement Conditions of each Group A Gr.1 B Gr.2 C Gr.3 ▼ ▼ ▼▼▼▼▼▼ ▼▼▼▼▼▼ n GR.n

  17. Logging start/end conditions A wide range of data acquisition start/end conditions are provided to each group. - Start conditions: Immediate, Timer, Alarm Trigger, Level Trigger - End conditions: Continuous, Timer, Alarm Trigger, Level Trigger, Data Records

  18. Chm. A Chm. B Chm. C Considerable application of AddMulti Data monitoring of multiple test chambers DAQLogger & AddMulti Centralized monitor, Data storage Remote monitor from Developing Manager Remote monitor from QA Manager Chamber Chamber Chamber Chamber /////////////////// - Create individual file to each chamber. - Each file is created with individual measurement interval, if required. • Each file can be created only when the chamber is running. Various start/stop condition setting allows to collect only the necessary data. - Centralized monitoring, remote monitoring is also available.

  19. Unique application of AddMulti When you want to create a long term continuous data file with a slower measurement interval, and when you need faster interval for an abnormal data, AddMulti can provide a solution. Stored into file A with slower sampling interval Stored into file B with faster sampling interval when alarm is detected The same tag data can be assigned into the different groups of AddMulti. If the different intervals are set to the groups, you can get two individual files created with the different intervals. If an alarm condition is set to the group, the data collecting starts just when the alarm is detected.

  20. Software components Launcher, Monitor, Logger, Viewer Functions - Various trigger - Pre-Trigger Pre-trigger up to 1800 data - Channel level, Alarm, Daily fixed time trigger - Auto Conversion - Excel/Lotus/ASCII AddTrigger WX13

  21. Gate Functions Gate applications handle the special communication needs of certain Yokogawa products <OR> They handle special communication protocols Gate applications serve this data to other DAQWORX applications Gate Series WX1

  22. GateOPC Functions - Get data from OPC servers - Supports 16 OPC servers - Supports OPC browsing function - Fastest log rate is 500ms Gate Series WX1

  23. GateMODBUS Functions - Gets data from the hardware which support MODBUS RTU protocol - Fastest log rate is 500ms - Scaling function - Supports various data type16bit integer/unsigned 16bit integer,32bit integer/unsigned 32bit integer

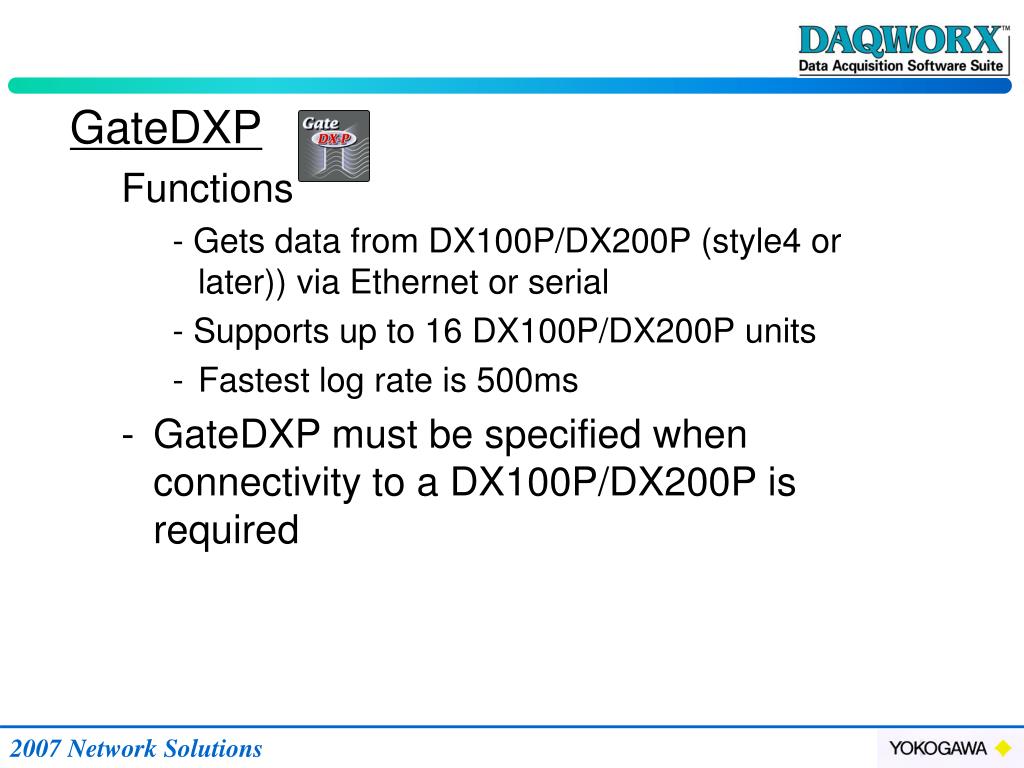

  24. GateDXP Functions - Gets data from DX100P/DX200P (style4 or later)) via Ethernet or serial - Supports up to 16 DX100P/DX200P units Fastest log rate is 500ms GateDXP must be specified when connectivity to a DX100P/DX200P is required

  25. GateMX/MW Functions - Acquires data from the MW100 or MX100, and outputs the latest data to connected DAQLOGGER and Add-on software groups. - Supports up to 32 MW100 or MX100 units in any combination GateMX/MW must be specified when connectivity to MW100 or MX100 is required

  26. Gr.A Gr.B Gr.C Gr.D Gr.E Gr.F Gr.G Gr.H Gr.J Gr.K Gr.L Gr.M Measurement Groups Measurement Groups Measurement Groups Measurement Groups Gate MX100 ( Group Connection Mode) GateMW/MX functional image When used with MX100, GateMW/MX acquires data on a measurement group basis, serving the latest data to connected DAQLOGGER and Add-on software groups. Max. 10ms Max. 10ms Max. 10ms Max. 10ms Max. 1sec Gr.C Gr.E Gr.H Gr.M Gr.A Max. 10ms Max. 10ms Max. 10ms Max. 10ms Max. 10ms Measurement Groups Measurement Groups Measurment Groups Measurement Groups

  27. GateWT Functions - Gets data from WT(GPIB/RS232C) - Output data to DAQLOGGER via DAQWORX data highway - Supports 16 WTs max - Fastest time interval is 500ms Support WT series - WT100 series(WT110/110E/130) - WT200 series (WT200/210/230) - WT1000 series (1010/1030/1030M) - WT2000 series (2010/2030)

  28. GateEye Functions - Get image data from network camera - Get DX/CX/MV snapshot data - Supports 4 DX/CX/MV/network cameras max - Fastest time interval is 500ms Always AddObserver is required as client software. Proven compatibility with WEB cameras from AXIS communications Model: AXIS2100(basic model), AXIS2120(motion detection model) WEB: http://www.axis.com/us/index.htm Price: AXIS2100 $ 274.99 @ insight.com to 299.00 @ CDW.com AXIS2120 $ 899.99 @ insight.com

  29. Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Runtime Multi Clients Builder&Run timer Build 15 different screens. Monitor Server Run-time Only. 15 AddObserver licenses. Each PC has a different license and a different screen.

  30. LabView SCADA With LabView DAQLogger GateOPC OPC Server

  31. High redundancy system GateOPC OPC Server Secure redundancy DA100 100ch
