Siemens 6SL3120-1TE28-5AA3 Single Motor Module

The Siemens 6SL3120-1TE28-5AA3 is part of the renowned SINAMICS S120 drive system series, designed for dynamic, high-precision motor control applications. This German-engineered module provides an efficient and flexible drive solution, making it ideal for modern industrial automation.

anadi1
Download Presentation

Siemens 6SL3120-1TE28-5AA3 Single Motor Module

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

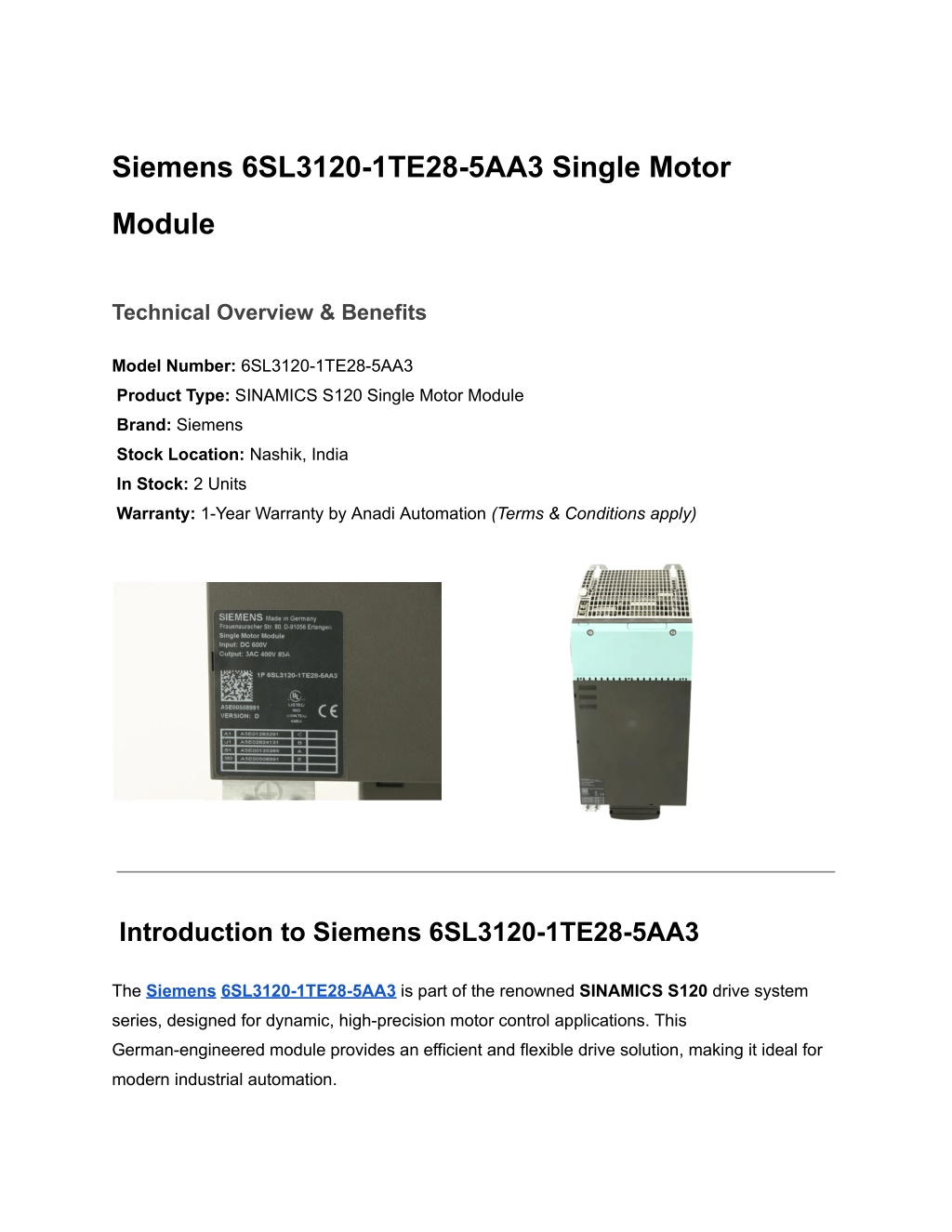

  1. Siemens 6SL3120-1TE28-5AA3 Single Motor Module Technical Overview & Benefits Model Number: 6SL3120-1TE28-5AA3 Product Type: SINAMICS S120 Single Motor Module Brand: Siemens Stock Location: Nashik, India In Stock: 2 Units Warranty: 1-Year Warranty by Anadi Automation (Terms & Conditions apply) Introduction to Siemens 6SL3120-1TE28-5AA3 The Siemens6SL3120-1TE28-5AA3 is part of the renowned SINAMICS S120 drive system series, designed for dynamic, high-precision motor control applications. This German-engineered module provides an efficient and flexible drive solution, making it ideal for modern industrial automation.

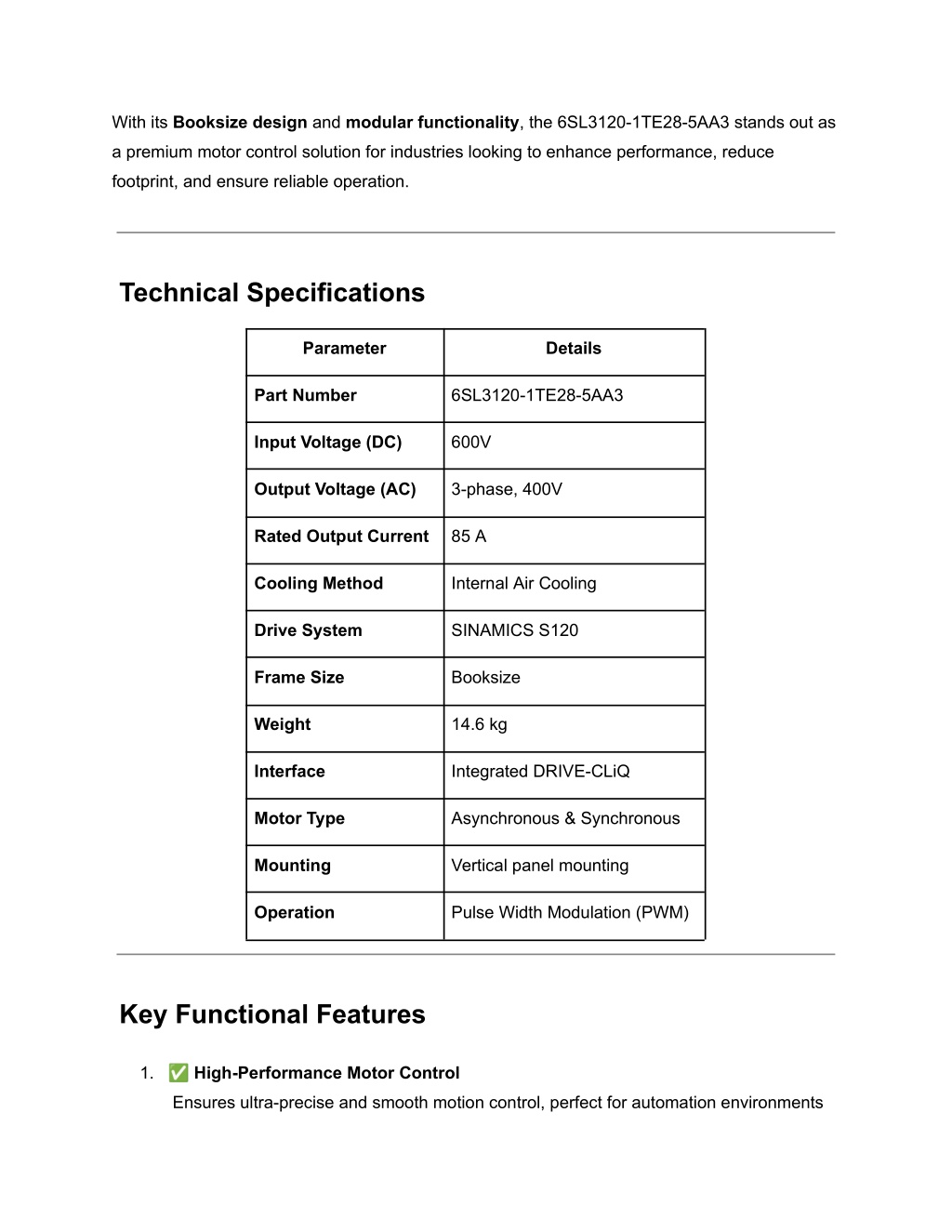

  2. With its Booksize design and modular functionality, the 6SL3120-1TE28-5AA3 stands out as a premium motor control solution for industries looking to enhance performance, reduce footprint, and ensure reliable operation. Technical Specifications Parameter Details Part Number 6SL3120-1TE28-5AA3 Input Voltage (DC) 600V Output Voltage (AC) 3-phase, 400V Rated Output Current 85 A Cooling Method Internal Air Cooling Drive System SINAMICS S120 Frame Size Booksize Weight 14.6 kg Interface Integrated DRIVE-CLiQ Motor Type Asynchronous & Synchronous Mounting Vertical panel mounting Operation Pulse Width Modulation (PWM) Key Functional Features 1. ✅High-Performance Motor Control Ensures ultra-precise and smooth motion control, perfect for automation environments

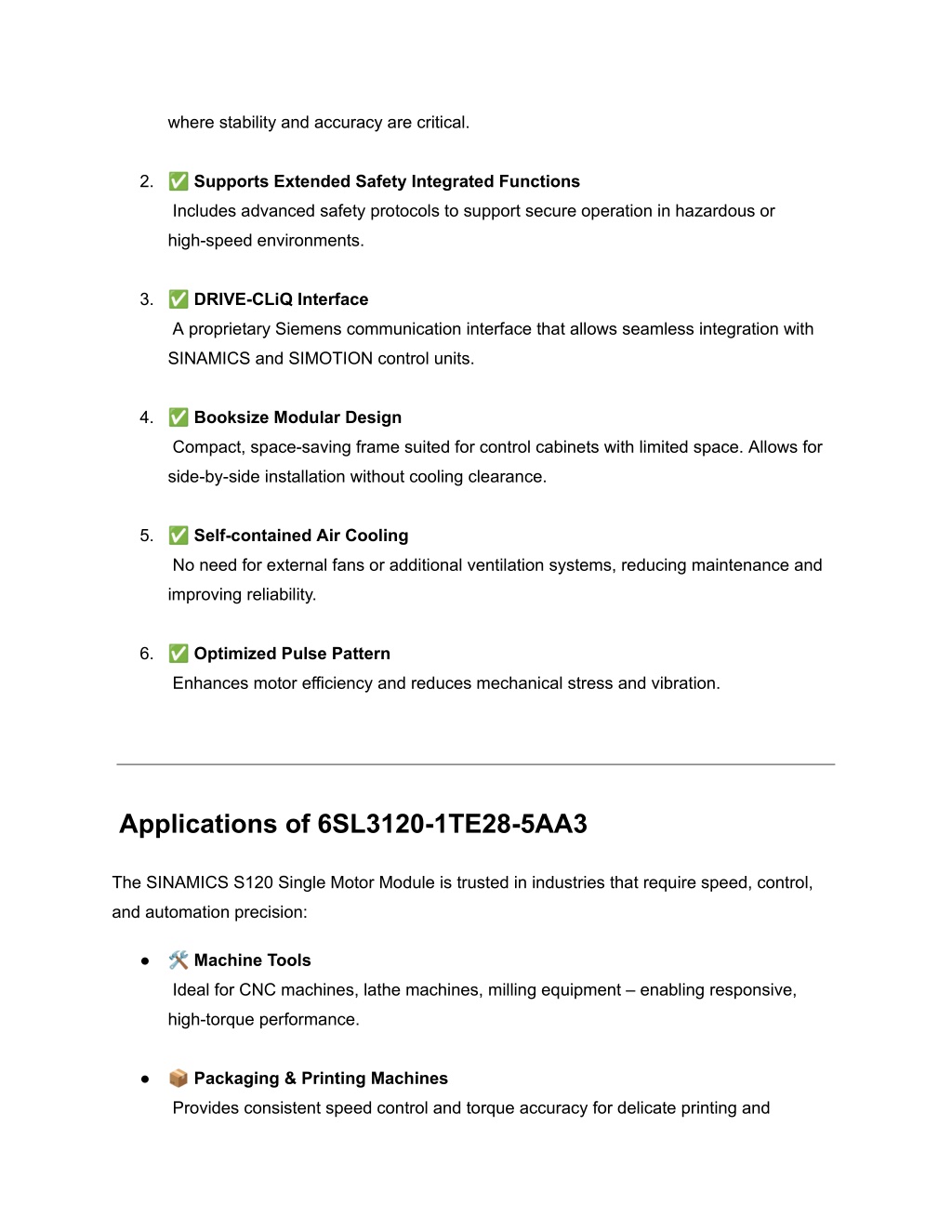

  3. where stability and accuracy are critical. 2. ✅Supports Extended Safety Integrated Functions Includes advanced safety protocols to support secure operation in hazardous or high-speed environments. 3. ✅DRIVE-CLiQ Interface A proprietary Siemens communication interface that allows seamless integration with SINAMICS and SIMOTION control units. 4. ✅Booksize Modular Design Compact, space-saving frame suited for control cabinets with limited space. Allows for side-by-side installation without cooling clearance. 5. ✅Self-contained Air Cooling No need for external fans or additional ventilation systems, reducing maintenance and improving reliability. 6. ✅Optimized Pulse Pattern Enhances motor efficiency and reduces mechanical stress and vibration. Applications of 6SL3120-1TE28-5AA3 The SINAMICS S120 Single Motor Module is trusted in industries that require speed, control, and automation precision: ● ? Machine Tools Ideal for CNC machines, lathe machines, milling equipment – enabling responsive, high-torque performance. ● ? Packaging & Printing Machines Provides consistent speed control and torque accuracy for delicate printing and

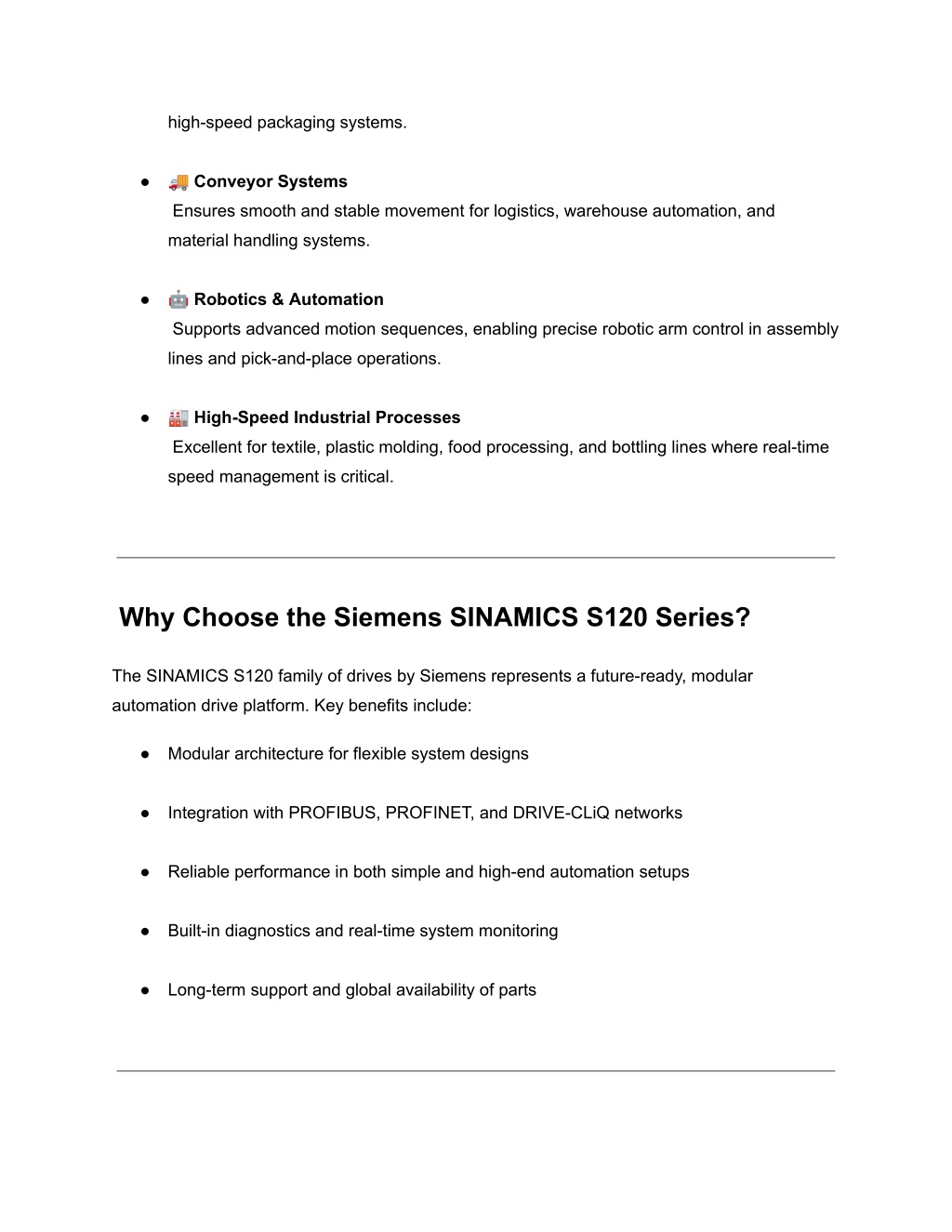

  4. high-speed packaging systems. ● ? Conveyor Systems Ensures smooth and stable movement for logistics, warehouse automation, and material handling systems. ● ? Robotics & Automation Supports advanced motion sequences, enabling precise robotic arm control in assembly lines and pick-and-place operations. ● ? High-Speed Industrial Processes Excellent for textile, plastic molding, food processing, and bottling lines where real-time speed management is critical. Why Choose the Siemens SINAMICS S120 Series? The SINAMICS S120 family of drives by Siemens represents a future-ready, modular automation drive platform. Key benefits include: ● Modular architecture for flexible system designs ● Integration with PROFIBUS, PROFINET, and DRIVE-CLiQ networks ● Reliable performance in both simple and high-end automation setups ● Built-in diagnostics and real-time system monitoring ● Long-term support and global availability of parts

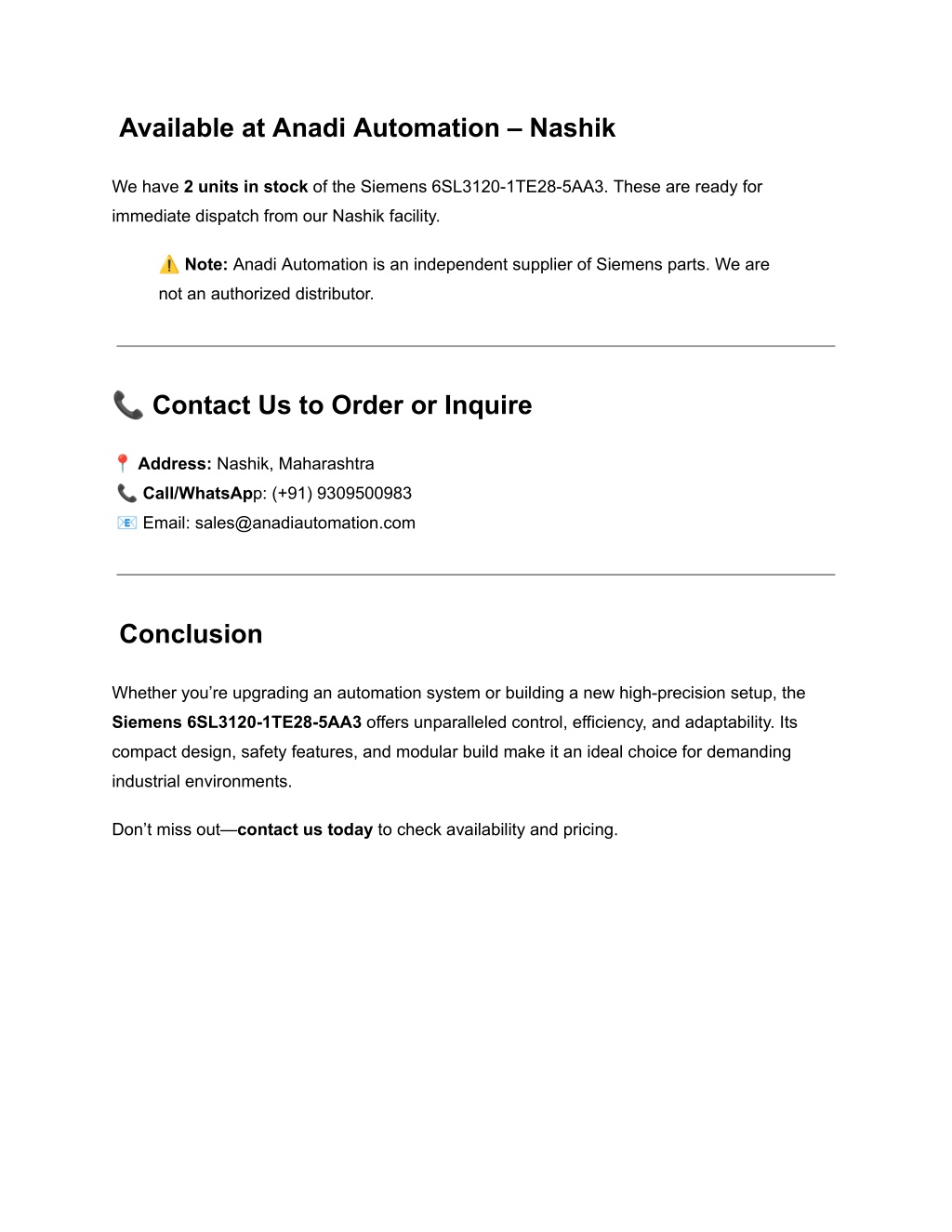

  5. Available at Anadi Automation – Nashik We have 2 units in stock of the Siemens 6SL3120-1TE28-5AA3. These are ready for immediate dispatch from our Nashik facility. ⚠Note: Anadi Automation is an independent supplier of Siemens parts. We are not an authorized distributor. ? Contact Us to Order or Inquire ? Address: Nashik, Maharashtra ? Call/WhatsApp: (+91) 9309500983 ? Email: sales@anadiautomation.com Conclusion Whether you’re upgrading an automation system or building a new high-precision setup, the Siemens 6SL3120-1TE28-5AA3 offers unparalleled control, efficiency, and adaptability. Its compact design, safety features, and modular build make it an ideal choice for demanding industrial environments. Don’t miss out—contact us today to check availability and pricing.
