King Fahd University of Petroleum & Minerals. Mechanical Engineering Dynamics ME 201 BY Dr. Meyassar N. Al-Haddad Lecture # 29. Summary. Relative Motion Analysis: Velocity. y. x. Indicate the direction of velocities of points A, B, C. Example 16-9. Rolling wheels. C.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'King Fahd University of Petroleum & Minerals' - amity-meadows


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

King Fahd University of Petroleum & Minerals

Mechanical Engineering

Dynamics ME 201

BY

Dr. Meyassar N. Al-Haddad

Lecture # 29

slide4

y

x

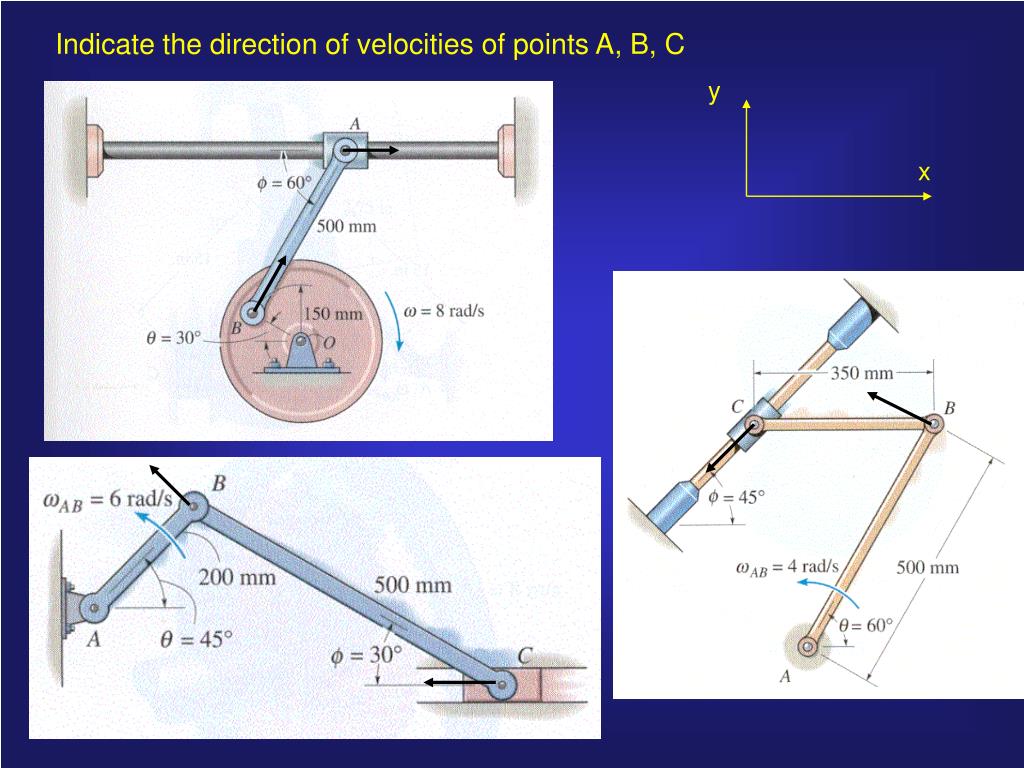

Indicate the direction of velocities of points A, B, C

slide6

Rolling wheels

C

Rolls without slipping

slide7

D

C

IC

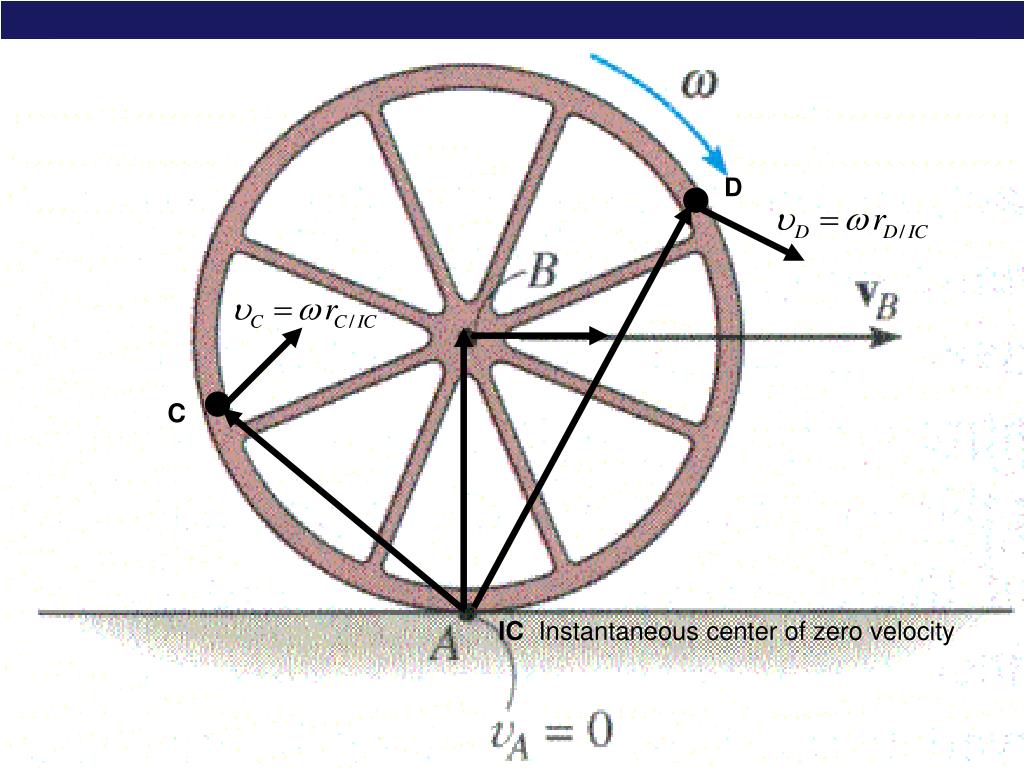

Instantaneous center of zero velocity

slide10

Relative-Acceleration equation

aB = acceleration of point B

aA = acceleration of the base point A

a = angular acceleration of the body

w = angular velocity of the body

rB/A = relative-position vector drawn from A to B

slide11

at=0

Rolling wheel with-out slipping

G

slide13

Examples of Non-Relative-Motions

)sliding connections and has two independent motion)

slide15

Acceleration of origin

Acceleration of the object

a r

Tangential acceleration

w2 r

Normal acceleration

Coriolis acceleration

Acceleration

slide17

Example 16-20

aC/D = ?

wDE = ?

aDE= ?

slide18

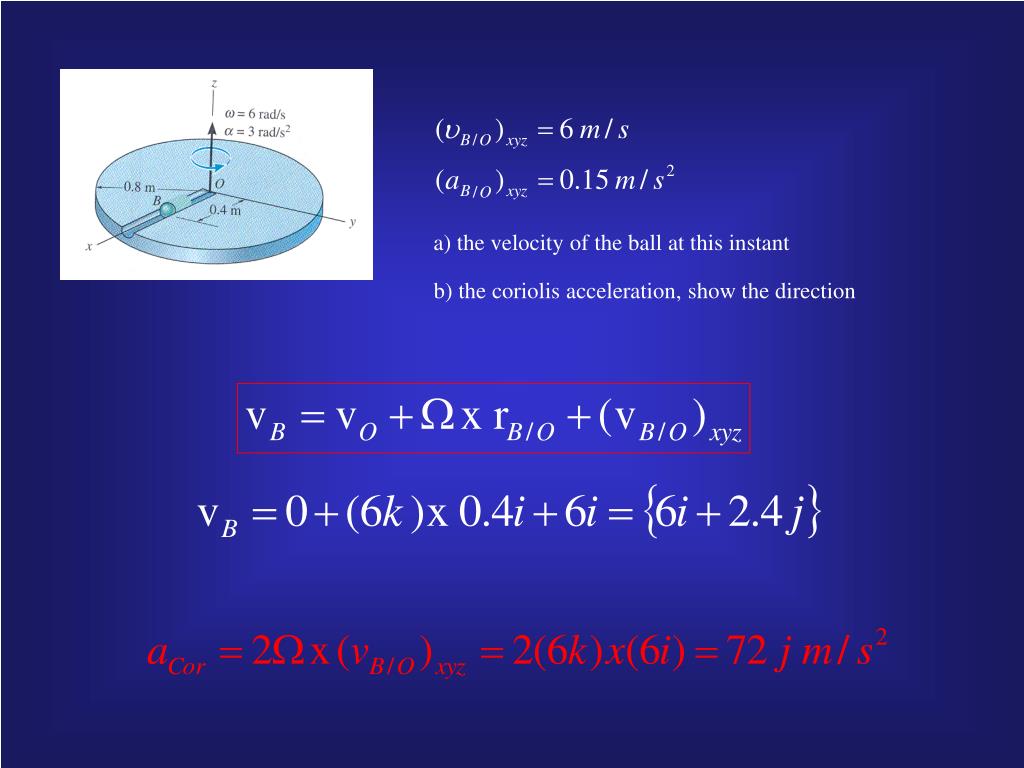

a) the velocity of the ball at this instant

b) the coriolis acceleration, show the direction
