A Review of Photovoltaic Cells. David Toub ECE423 12/16/06. Agenda. Introduction Functionality Semiconductor Properties VTC Efficiency and PV Design Auxiliary Design Applications Research Conclusions. Introduction. Clean Energy PV System Cells Energy storage Charge Controller

amir-hart
Download Presentation

A Review of Photovoltaic Cells

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. A Review of Photovoltaic Cells David ToubECE42312/16/06

  2. Agenda • Introduction • Functionality • Semiconductor Properties • VTC • Efficiency and PV Design • Auxiliary Design • Applications • Research • Conclusions

  3. Introduction • Clean Energy • PV System • Cells • Energy storage • Charge Controller • AC/DC converter • Ventre, Gerard. Messenger, Roger A. Ventre, Jerry. Photovoltaic Systems Engineering. CRC Press Technology and Industrial. 2004

  4. Functionality • pn diode • No illumination • Diode behavior • e, h separated • Illumination • Incident photons create e-h pairs • E fielde-h pairs separate • Photovoltaics.” Wikipeda, The Free Encyclopedia. Downloaded from www.wikipedia.org on 12/02/06.

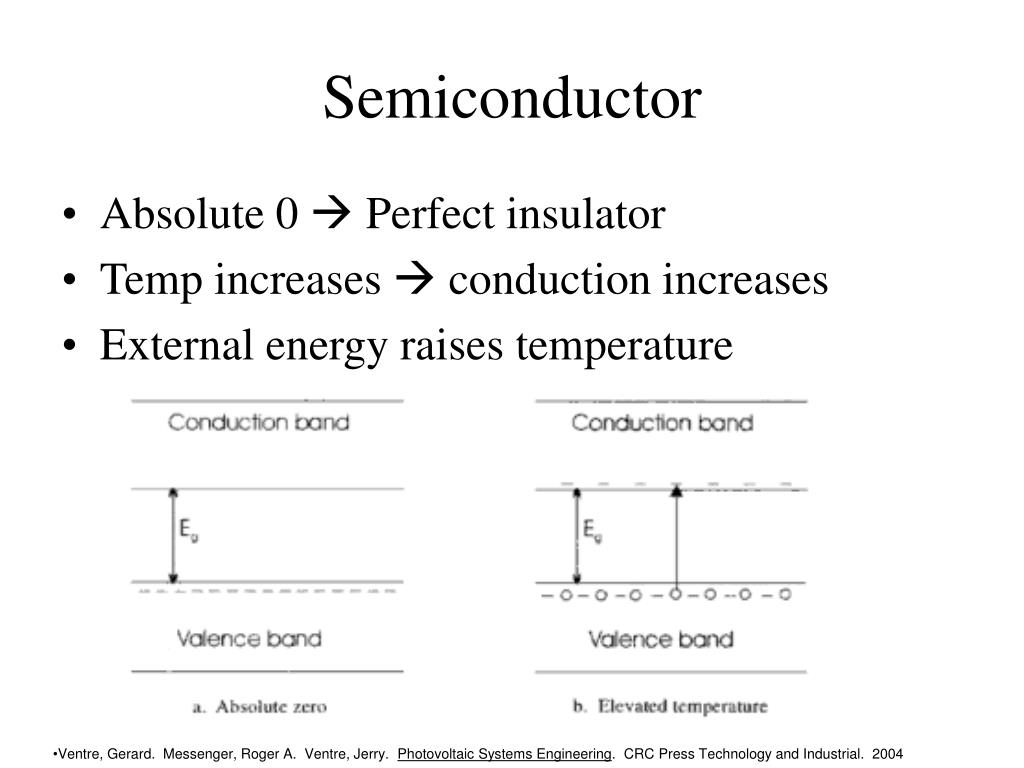

  5. Semiconductor • Absolute 0  Perfect insulator • Temp increases  conduction increases • External energy raises temperature • Ventre, Gerard. Messenger, Roger A. Ventre, Jerry. Photovoltaic Systems Engineering. CRC Press Technology and Industrial. 2004

  6. VTC • Performance Limits • Pm = Vmax x Imax • Incorporate load • Ventre, Gerard. Messenger, Roger A. Ventre, Jerry. Photovoltaic Systems Engineering. CRC Press Technology and Industrial. 2004

  7. Energy Conversion Efficiency • η=Pm/(E x Ac) • Primary Challenge • Incident photons • Ep<Ebg  Elost • Ep>Ebg  Ee- + Elost • Ep=Ebg  Ee- • Silicon tradeoff • High bg  loss • Low bg  E, V reduced • Optimal at bg=1.4eV

  8. Loss Tradeoffs • Cell Top • Must be transparent • Too thin  bad conduction • Cell Interior grid • Large grid helps e-’s • Large grid blocks photons

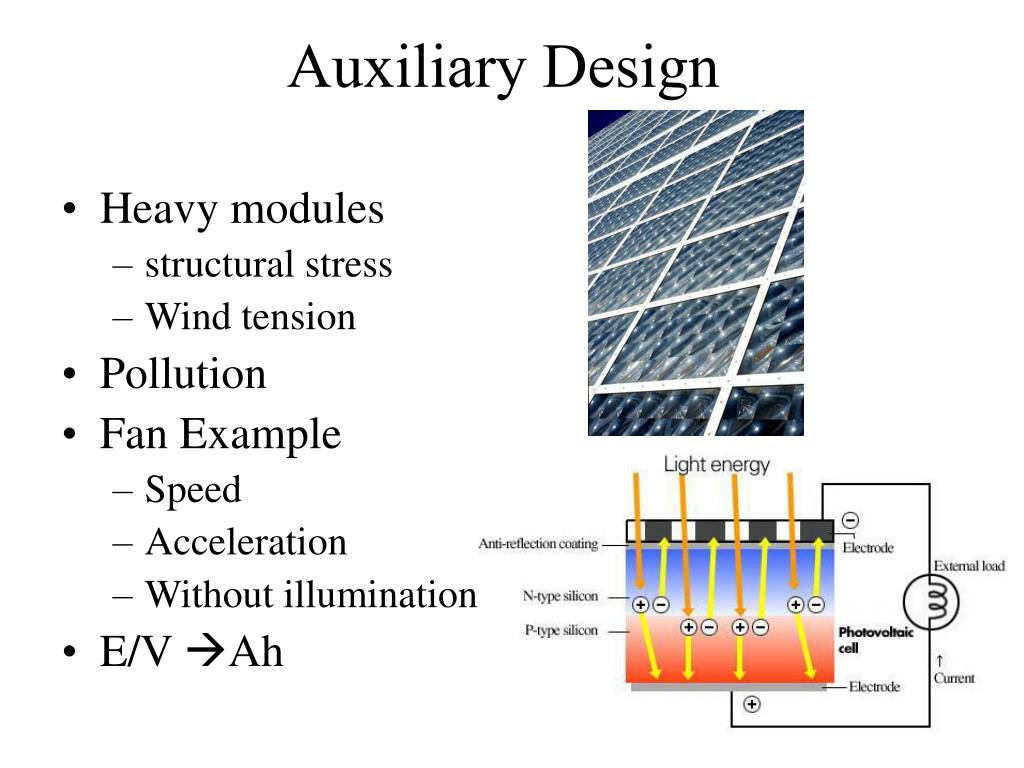

  9. Auxiliary Design • Heavy modules • structural stress • Wind tension • Pollution • Fan Example • Speed • Acceleration • Without illumination • E/V Ah

  10. Applications • Electric grid extensions not offered • Clean • Solar powered house • Water pumping systems • Garden lights • Automobiles • Source utility grid • Satellites, shuttles • Ventre, Gerard. Messenger, Roger A. Ventre, Jerry. Photovoltaic Systems Engineering. CRC Press Technology and Industrial. 2004

  11. Research • Thin Film • Cheap • Increased unit loss • Multilayer Efficiency • Nanocrystalline • Thin film + mesoporous MO • Increased internal reflection • Great efficiency  expensive

  12. Conclusions • Environmentally benign • Inefficient  uncommon  Still fuel • Future  Efficiency increasing Cheaper

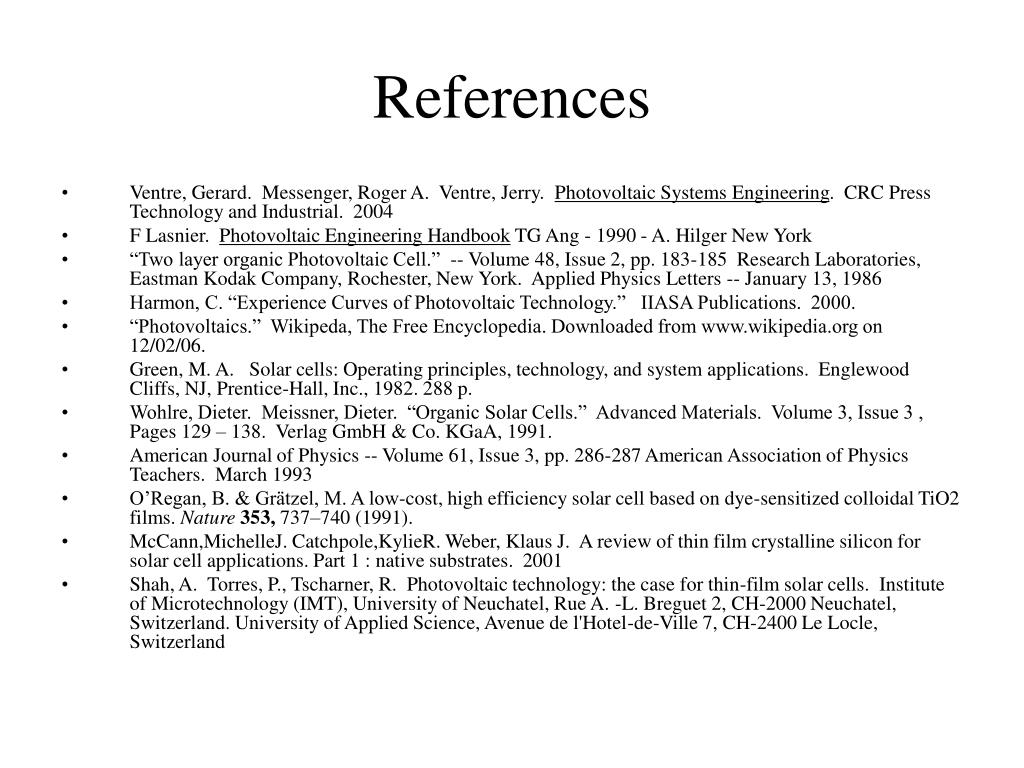

  13. References • Ventre, Gerard. Messenger, Roger A. Ventre, Jerry. Photovoltaic Systems Engineering. CRC Press Technology and Industrial. 2004 • F Lasnier. Photovoltaic Engineering Handbook TG Ang - 1990 - A. Hilger New York • “Two layer organic Photovoltaic Cell.” -- Volume 48, Issue 2, pp. 183-185 Research Laboratories, Eastman Kodak Company, Rochester, New York. Applied Physics Letters -- January 13, 1986 • Harmon, C. “Experience Curves of Photovoltaic Technology.” IIASA Publications. 2000. • “Photovoltaics.” Wikipeda, The Free Encyclopedia. Downloaded from www.wikipedia.org on 12/02/06. • Green, M. A. Solar cells: Operating principles, technology, and system applications. Englewood Cliffs, NJ, Prentice-Hall, Inc., 1982. 288 p. • Wohlre, Dieter. Meissner, Dieter. “Organic Solar Cells.” Advanced Materials. Volume 3, Issue 3 , Pages 129 – 138. Verlag GmbH & Co. KGaA, 1991. • American Journal of Physics -- Volume 61, Issue 3, pp. 286-287 American Association of Physics Teachers. March 1993 • O’Regan, B. & Grätzel, M. A low-cost, high efficiency solar cell based on dye-sensitized colloidal TiO2 films. Nature 353, 737–740 (1991). • McCann,MichelleJ. Catchpole,KylieR. Weber, Klaus J. A review of thin film crystalline silicon for solar cell applications. Part 1 : native substrates. 2001 • Shah, A. Torres, P., Tscharner, R. Photovoltaic technology: the case for thin-film solar cells. Institute of Microtechnology (IMT), University of Neuchatel, Rue A. -L. Breguet 2, CH-2000 Neuchatel, Switzerland. University of Applied Science, Avenue de l'Hotel-de-Ville 7, CH-2400 Le Locle, Switzerland
