research on 3 d parasitic extraction and interconnect analysis

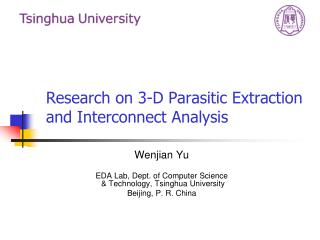

Research on 3-D Parasitic Extraction and Interconnect Analysis

Wenjian Yu

EDA Lab, Dept. of Computer Science & Technology, Tsinghua University

Beijing, P. R. China

outline
Outline
  • Background
  • BEM Solver for Capacitance/ Resistance Extraction
  • Frequency-Dependent Reluctance / Impedance Extraction
  • Substrate Parasitic Extraction
  • Other Works on Interconnect Modeling/ Analysis
background
Background
  • Parasitic extraction in deep-submicron VLSI
    • Interconnect dominates circuit performance
      • Interconnect delay > device delay
      • Crosstalk, signal integrity, power, reliability
    • Other parasitics in SOC
      • Substrate coupling in mixed-signal circuit
  • Interconnect parasitic extraction
    • Resistance, Capacitance and Inductance
    • Becomes a necessary step for performance verification in the iterative design flow
    • Parasitic parameters should be extracted accurately
slide4

Parasitic extraction

/ Electromagnetic analysis

Filament with uniform current

Panel with uniform charge

Model order

reduction

Thousands of R, L, C

Reduced circuit

From electro-magnetic analysis to circuit simulation

background5
Background
  • Research Focus
    • Fast numerical methods for 3-D field solver
    • Considering emerging problems for interconnect modeling and analysis
  • Team & Collaboration
    • 1 Ph.D student, 3 master students
    • 2 undergraduates/spring semester
    • Collaborate with Prof. Hong’s team
    • With Prof. Z. Yu’s team at IME of Tsinghua Univ.
    • With Prof. C-K Cheng’s team at UCSD
outline6
Outline
  • Background
  • BEM Solver for Capacitance/ Resistance Extraction
  • Frequency-Dependent Reluctance / Impedance Extraction
  • Substrate Parasitic Extraction
  • Other Works on Interconnect Modeling/ Analysis
qbem qmm accelerated bem
QBEM - QMM accelerated BEM
  • Features of QBEM
    • 3D field solver in the LPE flow
    • Has similar input format to Raphael RC3
    • Same boundary assumption as Raphael
    • Several tens to hundreds faster thanRaphael; 10x faster than FastCap
  • Algorithms inside
    • Based on the multi-zone boundary element analysis.
    • The original dielectrics are cut into fictitious medium regions, to maximize the sparsity of matrix A (Ax=b is solved).
    • Efficient techniques of storing sparse matrix and Krylov iterative solver are used to exploit the matrix sparsity for performance improvement.
qbem qmm accelerated bem8
QBEM - QMM accelerated BEM

A 3-D multi-dielectric case for capacitance extraction

qbem qmm accelerated bem9
QBEM - QMM accelerated BEM
  • Handling of complex structures
    • Bevel conductor line; conformal dielectric
    • Structure with floating dummy fill
    • Multi-plane dielectric in copper technology
    • Metal with trapezoidal cross section
  • 3-D resistance extraction
    • Complex 3-D structure with multiple vias
    • Improved BEM coupled with analytical formula
    • Extract DC resistance network
    • Hundreds/thousands times fast thanRaphael, while maximum error <3%
hbbem hierarchical block bem

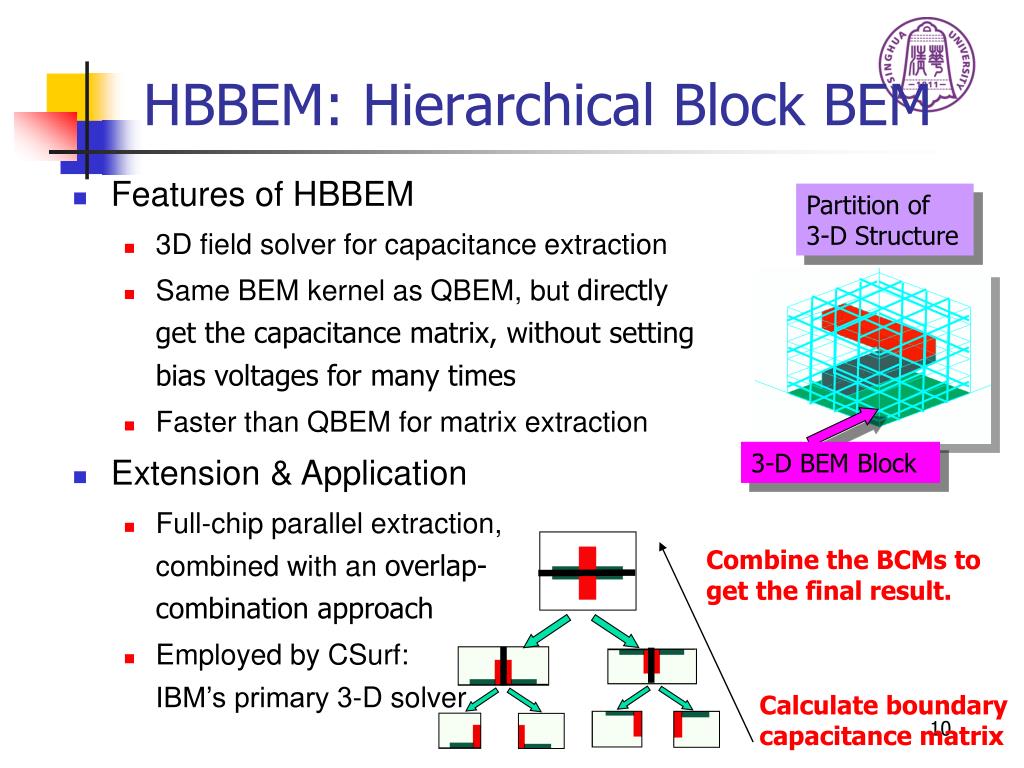

HBBEM: Hierarchical Block BEM

Combine the BCMs to get the final result.

3-D BEM Block

  • Features of HBBEM
    • 3D field solver for capacitance extraction
    • Same BEM kernel as QBEM, but directly get the capacitance matrix, without setting bias voltages for many times
    • Faster than QBEM for matrix extraction
  • Extension & Application
    • Full-chip parallel extraction, combined with an overlap-combination approach
    • Employed by CSurf:IBM’s primary 3-D solver

Partition of 3-D Structure

Calculate boundary capacitance matrix

relevant publications
Relevant publications
  • W. Yu, Z. Wang, J. Gu, “Fast capacitance extraction of actual 3-D VLSI interconnects using quasi-multiple medium accelerated BEM,” IEEE Trans. Microwave Theory Tech., Jan 2003 , 51(1): 109-120
  • W. Yu, Z. Wang, “Enhanced QMM-BEM solver for 3-D multiple-dielectric capacitance extraction within finite domain,” IEEE Trans. Microwave Theory Tech., Feb 2004, 52(2): 560-566
  • X. Wang, D. Liu, W. Yu, Z. Wang, “Improved boundary element method for fast 3-D interconnect resistance extraction,” IEICE Trans. on Electronics, Feb. 2005, E88-C(2): 232-240
  • M. Zhang, W. Yu, Z. Wang, “Efficient 3-D extraction of interconnect capacitance considering floating metal-fills with boundary element method,” IEEE Trans. Computer-Aided Design, Jan 2006, 25(1): 12-18
  • T. Lu, Z. Wang, W. Yu, “Hierarchical block boundary-element method (HBBEM): A fast field solver for 3-D capacitance extraction,” IEEE Trans. Microwave Theory Tech., Jan. 2004, 52(1): 10-19
outline12
Outline
  • Background
  • BEM Solver for Capacitance/ Resistance Extraction
  • Frequency-Dependent Reluctance / Impedance Extraction
  • Substrate Parasitic Extraction
  • Other Works on Interconnect Modeling/ Analysis
background of inductive effect
Background of inductive effect
  • Inductive effects becomes increasingly significant
    • Long metal interconnects
    • Higher clock frequency
    • Reduction in on-chip resistance and capacitance (copper, wider upper-layer metal, low-k dielectric)
  • Frequency-dependent inductance / impedance
    • High-frequency skin effect and proximity effect
    • Model off-chip structures, or
    • on-chip high-lever wide interconnects
    • Different electromagnetic analysis: MQS, EMQS, full-wave
    • Methods: PEEC(volume discretization), BEM, FEM
reluctance k extraction
Reluctance (K) extraction
  • Reluctance is the inverse of partial inductance
    • K was proposed by Devgan et. al (ICCAD’2000): [K] = [L]-1
    • Has the locality property like capacitance
    • Easily sparsified for acceleration of extraction and simulation
  • Frequency-dependent reluctance extraction
    • General window technique
    • Efficient intra-window extraction
      • Directly extract K without inversion from L
      • Matrix condensation and GMRES solution
      • Reuse of filament inductances
    • At least 50 times faster than FastHenryfor off-chip structures, or on-chip P/G nets
bem based impedance extraction

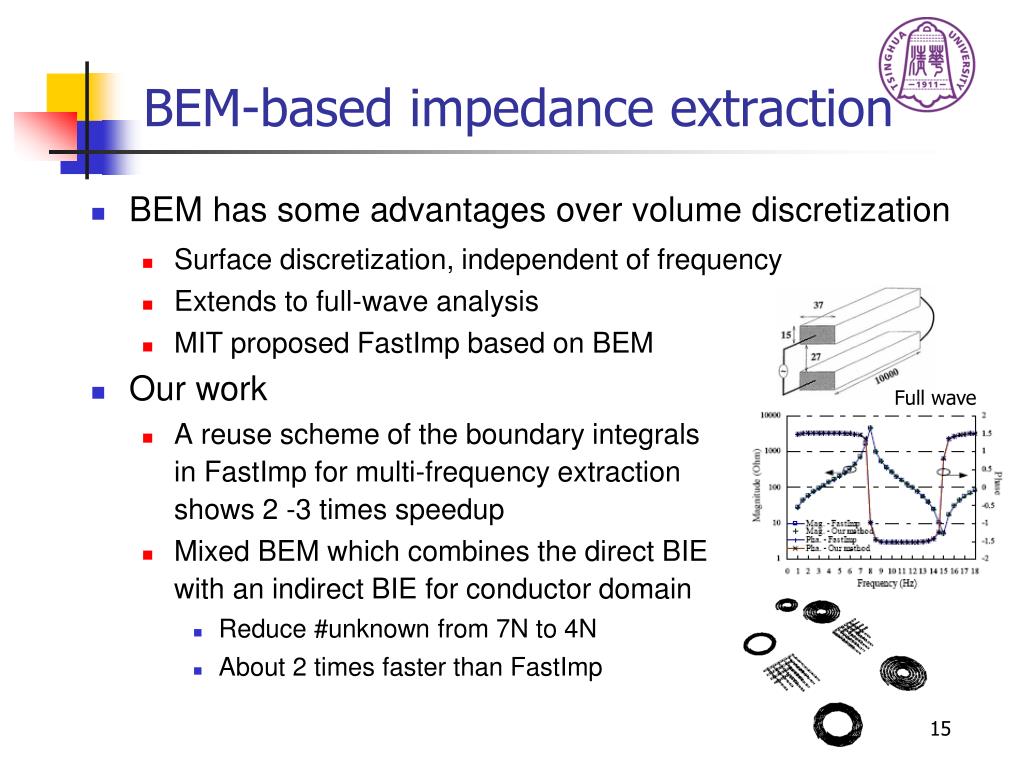

BEM-based impedance extraction
  • BEM has some advantages over volume discretization
    • Surface discretization, independent of frequency
    • Extends to full-wave analysis
    • MIT proposed FastImp based on BEM
  • Our work
    • A reuse scheme of the boundary integrals in FastImp for multi-frequency extractionshows 2 -3 times speedup
    • Mixed BEM which combines the direct BIE with an indirect BIE for conductor domain
      • Reduce #unknown from 7N to 4N
      • About 2 times faster than FastImp

Full wave

relevant publications16
Relevant publications
  • Papers
    • M. Zhang, W. Yu, Y. Du, Z. Wang, “An efficient algorithm for 3-D reluctance extraction considering high frequency effect,” ASP-DAC 2006, Japan, Jan. 2006, pp. 521-526
    • C. Yan, W. Yu, Z. Wang, “Application of the complete multiple reciprocity method for 3D impedance extraction with multiple frequency points,” Engineering Analysis with Boundary Elements, Aug. 2006, 30(8): 640-649
    • W. Yu, C. Yan, Z. Wang, “A mixed surface integral formulation for frequency-dependent inductance calculation of 3D interconnects,” Engineering Analysis with Boundary Elements, 2007, 31(10): 812-818
    • F. Gong, W. Yu, et. al, “Efficient techniques for 3-D impedance extraction using mixed boundary element method” accepted by ASP-DAC’2008
outline17
Outline
  • Background
  • BEM Solver for Capacitance/ Resistance Extraction
  • Frequency-Dependent Reluctance / Impedance Extraction
  • Substrate Parasitic Extraction
  • Other Works on Interconnect Modeling/ Analysis
bem based substrate extraction
BEM-based substrate extraction
  • Substrate coupling in mixed-signal IC
    • f< GHz, resistive coupling is primary
    • Higher frequency, both resistive and capacitive (even L) coupling are considered
  • Problem solved with BEM
    • Resistive model:
    • Plate contact, multi-layer substrate,substrate with lateral resistivity variation
    • Analog of capacitance extraction
      • Steady current field
      • Three kinds of boundary
    • Extend to resistive & capacitive model:
    • Introduce complex-valued conductivity
bem based substrate extraction19
BEM-based substrate extraction
  • subDBEM
    • Non-uniform element partition
    • Condense linear system
    • QMM technique
    • Several or tens times faster than Green’s function based method reported in literatures
    • Easily handle non-stratified substrate
  • subRCbem
    • Calculate equivalent Z considering R, C coupling
    • A two-step approach for multiple frequencies
    • For each frequency, only solve a matrix whose order is the number of elements on layer interface
    • Experiments exhibit advantages over ASITIC of UCB
relevant papers

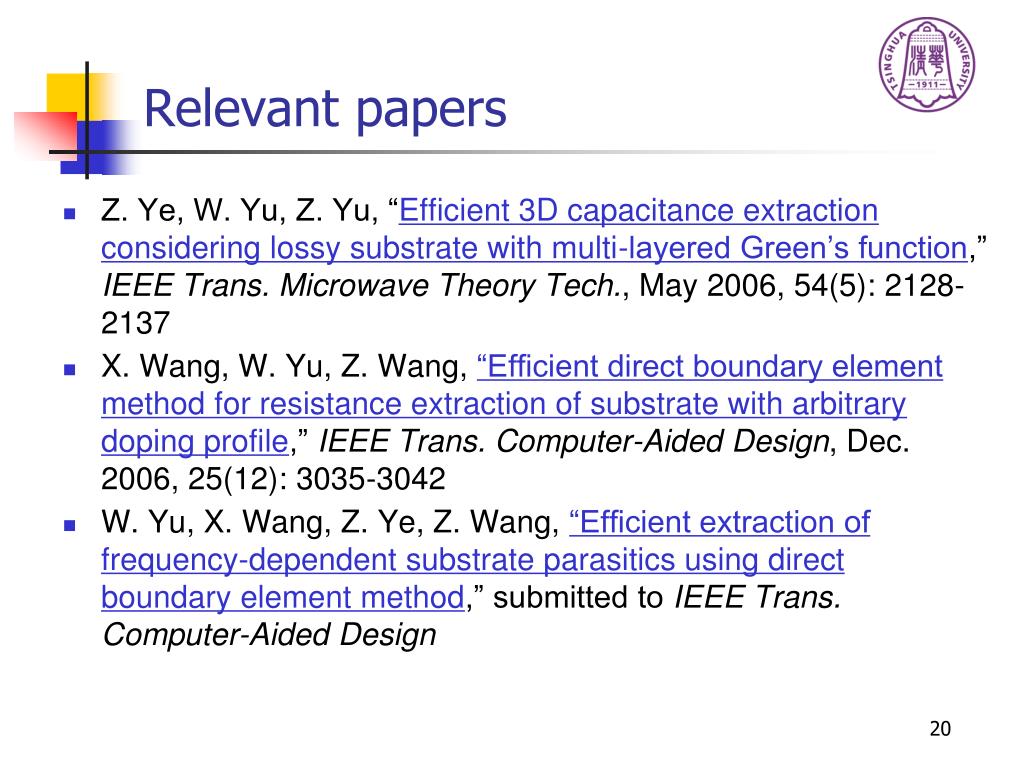

Relevant papers
  • Z. Ye, W. Yu, Z. Yu, “Efficient 3D capacitance extraction considering lossy substrate with multi-layered Green’s function,” IEEE Trans. Microwave Theory Tech., May 2006, 54(5): 2128-2137
  • X. Wang, W. Yu, Z. Wang, “Efficient direct boundary element method for resistance extraction of substrate with arbitrary doping profile,” IEEE Trans. Computer-Aided Design, Dec. 2006, 25(12): 3035-3042
  • W. Yu, X. Wang, Z. Ye, Z. Wang, “Efficient extraction of frequency-dependent substrate parasitics using direct boundary element method,” submitted to IEEE Trans. Computer-Aided Design
outline21
Outline
  • Background
  • BEM Solver for Capacitance/ Resistance Extraction
  • Frequency-Dependent Reluctance / Impedance Extraction
  • Substrate Parasitic Extraction
  • Other Works on Interconnect Modeling/ Analysis
other works on interconnect
Other works on interconnect
  • Capacitance extraction considering process variation
    • Consider window-based chip-level extraction
    • Propose technique for inter-window capacitance covariance induced by spatial correlation
    • Practical for full-chip or full-path variation-aware extraction
  • Transient simulation through frequency domain
    • Solve for frequency-domain response
    • Rational approximation using vector fitting
    • Applied to analysis of P/G grid and clock network
  • Eye-diagram prediction for LTI system
    • Predict the worst-case metrics of signaling quality, like eye-opening voltage, timing jitter, from the system’s step response
    • Used in transmission line design
relevant papers23
Relevant papers
  • Papers
    • W. Zhang, W. Yu, et. al, “An efficient method for chip-level statistical capacitance extraction considering process variations with spatial correlation,” accepted by DATE’ 2008
    • L. Zhang, W. Yu, et. al, “Clock skew analysis via vector fitting in frequency domain,” accepted by ISQED’2008
    • W. Yu, R. Shi, et. al, “Accurate eye-diagram prediction and its application for off-chip signaling schemes,” submitted
    • L. Zhang, W. Yu, et. al, “Low power passive equalizer optimization using tritonic step response,” submitted
thank you

Thank you!
