    1. Understanding the Internet’s Underlying Architecture

    2. Transmission Control Protocol (TCP) • The language that computers use to communicate over the internet • Breaks information into packets • Packets are then sent throughout the network to their destination • At the destination, packets are assembled back to their original form

    3. Internet Protocol (IP) • Ensures that packets are sent to the right destination • Each packet is put in a separate IP envelope that has the destination address on it • All packets go to the same destination • Routers determine most efficient path (they could be different for different packets)

    4. Networking Hardware • Hubs: Link groups of computers together • Bridges: Link Local Area Networks (LAN) • Gateways: Similar to bridges but translate data from one type to another • Repeaters: Amplify data signals for long distance transmission • Routers: Transmit data packets between two different networks

    5. Caching • To make browsing faster, different computers will save web pages — called caching • Cache can be: • On your computer • On your ISP’s computer • On the web server

    6. DNS Server Types • Domain Name Service • special Host servers dotted around the Internet • They help translate computer identifiers that humans can use into the IP addresses computers need to route information • three different types of these (DNS) servers • Root name servers • Primary name servers • Local name servers

    7. Root Name Servers • Only thirteen of them throughout the world • Control a database that contains the location of DNS primary name servers for every top-level domain (TLD) • .com, .edu, .gov, .us, … • There over one hundred of top-level domains, counting country codes • Local name servers send them the top-level portion of a domain name • they look-up and return the IP Address of the primary name server for that particular top-level domain

    8. Primary & Local Name Servers • A primary name server controls the DNS database for a given top-level domain • The edu primary name server knows where to find the local server for uwm.edu • A local name server keep track of the sub-domains and computers for that organization • The uwm.edu local name server knows which computers match alphar.csd.uwm.edu or miller.cs.uwm.edu

    9. Local Name Servers • The name servers transform the domain name that humans can remember into an IP address the computers can work with • But what is an IP address?

    10. IP Addresses • Needed a way to identify individual computers on the internet • Each computer has a unique address • For one computer to send a message to another, it must know the IP address of the destination • IP stands for Internet Protocol

    11. IP Addresses • Format: • x.x.x.x • Where each x is a number from 0 to 255 • Do the math: • 256*256*256*256 = 4,294,967,296 addresses • Despite this, we are running out of IP addresses • Static vs Dynamic

    12. Packet Switching • A telephone line connection is fixed from start point to end point • This is called a circuit-switched network • In internet, the connection line is not fixed • There can be more than one path between source and destination • This is called a packet-switched network

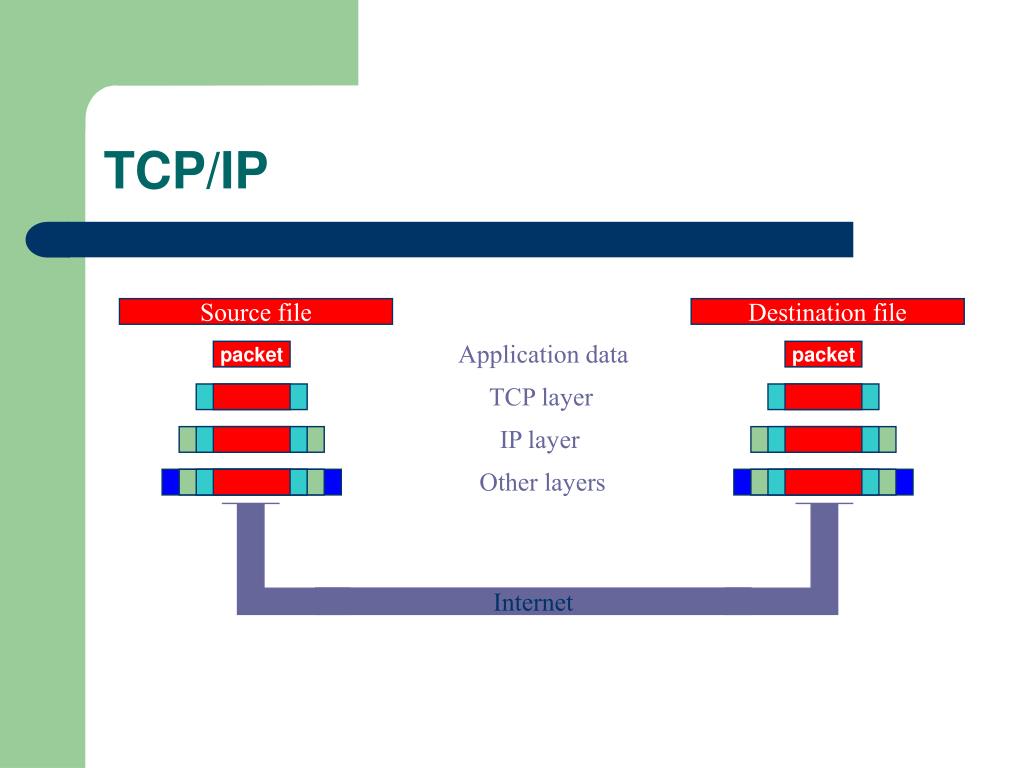

    13. Source file Destination file Application data packet packet TCP layer IP layer Other layers Internet TCP/IP

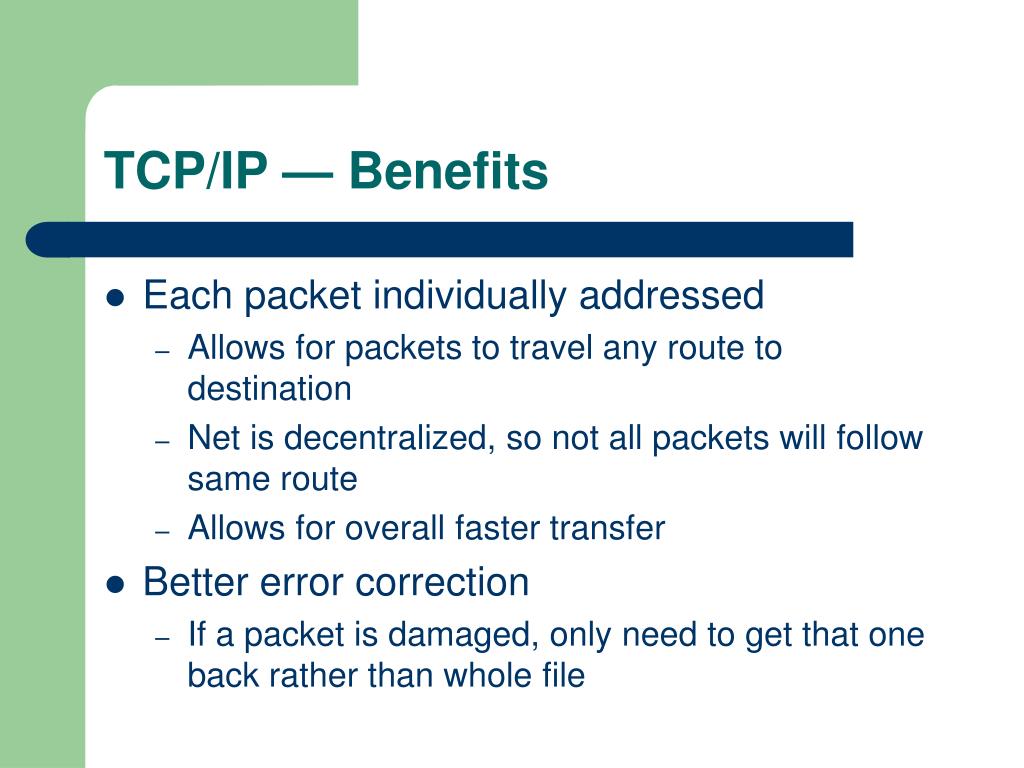

    14. TCP/IP — Benefits • Each packet individually addressed • Allows for packets to travel any route to destination • Net is decentralized, so not all packets will follow same route • Allows for overall faster transfer • Better error correction • If a packet is damaged, only need to get that one back rather than whole file

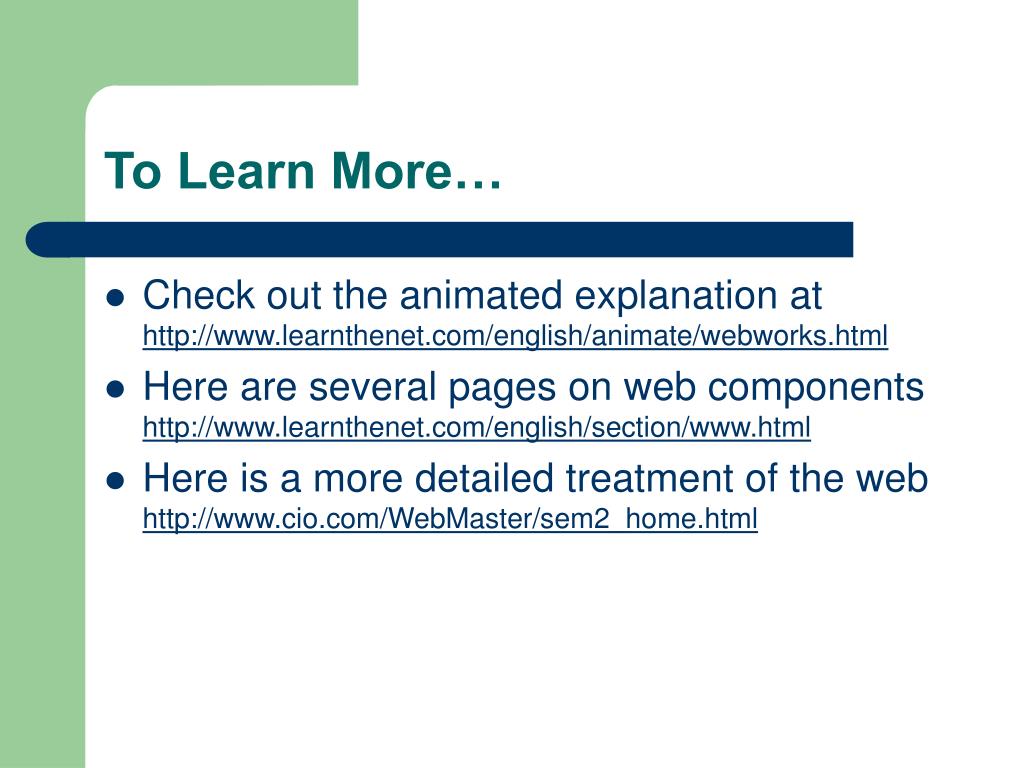

    15. To Learn More… • Check out the animated explanation athttp://www.learnthenet.com/english/animate/webworks.html • Here are several pages on web componentshttp://www.learnthenet.com/english/section/www.html • Here is a more detailed treatment of the webhttp://www.cio.com/WebMaster/sem2_home.html
