  1. Low and Mid Level VisionTom Ouyang

  2. papers

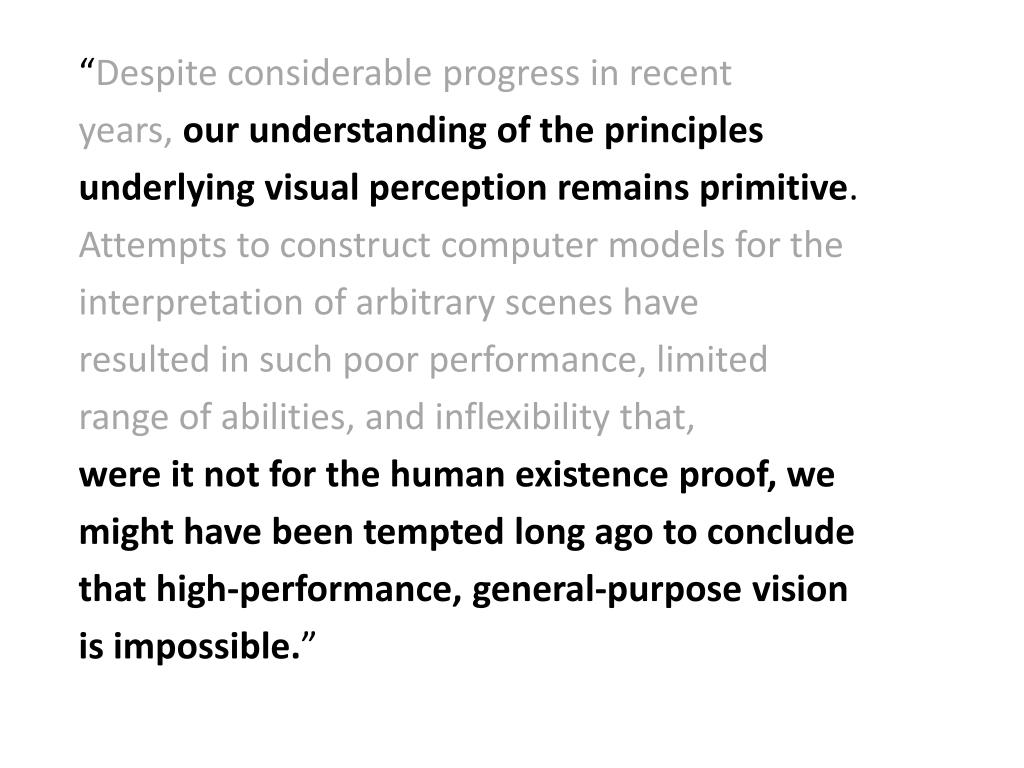

  3. “Despite considerable progress in recent years, our understanding of the principles underlying visual perception remains primitive. Attempts to construct computer models for the interpretation of arbitrary scenes have resulted in such poor performance, limited range of abilities, and inflexibility that, were it not for the human existence proof, we might have been tempted long ago to conclude that high-performance, general-purpose vision is impossible.”

  4. current machine vision • Works well in limited domains • Attempts to solve problems directly from intensity image • Jumps from pictorial features to descriptions of complete objects

  5. human vision • General solution, works over large variations in viewing conditions • Reflectance and color are estimated over a wide range of illuminations • Shadows are usually easily distinguished from changes in reflectance • Surface shape is easily discerned regardless of illumination or surface markings

  6. intrinsic images • Humans are very good at inferring intrinsic characteristics from intensity • Range • Orientation • Reflectance • Incident illumination • Even for new scenes unlike any seen before • Micrographs, abstract art, etc

  7. intrinsic images

  8. value of intrinsic characteristics • 3-D structure of the scene • Navigation and manipulation • More invariant and distinguishing description • Simply perception • Scene partitioning • Viewpoint independent description of objects

  9. value of intrinsic characteristics • 3-D structure of the scene • Navigation and manipulation • More invariant and distinguishing description • Simply perception • Scene partitioning • Viewpoint independent description of objects Alleviates many of the difficulties in current vision systems

  10. approach a visual system, whether for an animal or a machine, should be organized around an initial level of domain-independent processing, the purpose of which is the recovery of intrinsic scene characteristics from image intensities

  11. intrinsic images

  12. recovering intrinsic images • Is information in input intensity image sufficient? • Image formation: Intensity determined by three factors • Incident illumination • Local surface reflectance • Local surface orientation • Problem is ambiguous: must extract many attributes from single intensity value

  13. lighting intensity example (simple case of ideally diffusing surface)

  14. a solution for a simple world • Only hope of decoding the information is by making assumptions • Construct an idealized domain that… • is simple enough to exhaustively enumerate constraints and appearances • but complex enough for the recovery process to be non-trivial • Answer: world of colored Play-Doh

  15. constraints • Surfaces are continuous • continuous distance and orientation • Surfaces are lambertian • perfectly diffusive reflection • no surface markings or textures • Uniform diffuse background lighting • Illumination from distant point source

  16. illumination model “Sun and sky” • In shadowed areas • In illuminated areas

  17. interesting properties • Image intensity is independent of viewing direction • surface is lambertian, so reflected light is distributed uniformly over a hemisphere • Image intensity is independent of viewing distance • surface area increases as density decreases

  18. regions • For illuminated regions, variations in intensity due solely to variations in surface orientation • Since I0, I1, and R are constant • For shadowed regions, intensity is constant • Thus, we can catalog regions as either smoothly varying or constant

  19. shadowed edges • difference only in illumination • constant intensity on shadowed side • varying intensity on illuminated side • shadow darker than illuminated region

  20. surface (extremal) edges • local extremum of surface • where surface turns away from viewer • orientation normal to line of sight • adjacent regions independently illuminated

  21. tangency test • For a surface boundary, orientation is constant. • Possible to determine reflectance at any point • Uniform reflectance assumption -> reflectance estimates much agree

  22. edge catalog

  23. junctions Two classes of (T) junctions • Occlusion • crossbar = extremal edge • stem = occluded edge • Cast Shadow • crossbar = extremal edge • stem = shadowed edge occlusion cast shadow

  24. recovery using catalog • Detect edges in input intensity image • Determine intrinsic nature of regions and edges • Assign initial values for intrinsic characteristics • Propagate “boundary” values into interiors of regions (continuity assumption)

  25. initializing intrinsic values • Interpret edges using constancy and tangency tests (shadow or surface) • Applied to adjacent regions • Initialize intrinsic values using edge table • Assign defaults for unspecified values

  26. consistency • Establish consistency in intrinsic values • Constant reflectance (except at edges) • Continuous orientation (except at edges) • Continuous illumination (except in shadows) • Continuous distance (except at edges) • Implemented via asynchronous parallel processes • Continuity: Laplace’s equations for relaxation

  27. computational model • Edges (Sweeping arrows) • Catalog and propagate to intrinsic images • Local (circles) • Modify intrinsic values • Intra-image continuity and limit constraints • Xs • insert and delete edge elements

  28. impact and recent interest • Most papers seek to solve vision problems directly from the intensity image • Revival: recent methods in de-lighting produces reflectance and illumination image • Work remains on relaxation/propagation

  29. papers

  30. How many groups?

  31. “right” partition? • No single answer • Bayesian approach: Depends on prior world knowledge • Low Level: • coherence of brightness • color • texture • motion • Mid or High level • symmetries of objects

  32. no right answer • Returning a tree instead of a flat partition • Come up with hierarchical partitions • From big picture downward

  33. questions • Prior literature • Agglomerative/divisive clustering • Region based • MRF • What is the criterion for a good partition? • How can such a criterion be computed effectively?

  34. graph theoretic approach • Graph theoretic formulation of grouping • points represented as undirected graph • edges connect every pair of nodes • weight on each edge is a function of the similarity between the two points • Grouping • Maximize similarity within sets • Minimize similarity across sets

  35. graph cut • Definition: • Cut = total weight of edges removed • Optimal bi-partition is one that minimizes the cut value

  36. minimum cut • Well studied problem: efficient algorithms exist for finding the minimum cut of a graph • (Wu and Leahy): proposed a clustering method based on this criterion • can be used to produce good segmentation on some images

  37. minimum cut • Problem: • favors cutting smalls sets of isolated nodes • cut(A,B) increases with the number of edges going across the two partitions

  38. n (normalized) -cut • Instead of looking at total edge weights… • compute cut cost as a fraction of total edge connections (total connection from A to all nodes in the graph)

  39. n-cut • Partitions of small isolated points no longer have small Ncut value • cut is now a large percentage of total connections • Example: Min-cut 1 100% of total connections

  40. n-assoc • We can define measure of normalized association within a group • Reflects how tightly node within groups are connected to each other

  41. n-cut and n-assoc • Property: maximizing association and minimizing disassociation are identical

  42. computing the optimal partition • Matrix formulation • We can rewrite Ncut(A,B) as:

  43. matrix formulation

  44. matrix formulation (1+x)indicator for x>1 Nx1 vector of 1’s

  45. matrix formulation • After a bit of vector algebra we have… • Rayleigh quotient

  46. computing the optimal partition • Unfortunately problem is NP-complete • If we allow y to be real valued, we can approximate the solution by solving the equation: • Real-valued solution is the 2nd smallest eigenvector

  47. computing the optimal partition • Higher eigenvectors optimally subpartition the first two parts • However, accumulated quantization errors makes them less reliable • Solution: restart the partitioning on each subgraph recursively

  48. complexity • Finding eigenvectors for an n x n matrix: O(n3) • impractical for large images • Optimizations: • Make affinity matrix sparse, only local points are connected • Randomly selecting connections from neighborhood

  49. grouping algorithm
