new products at hf r adelberg 2009
New products at HF

R.Adelberg 2009

Hongfa Europe GmbH

slide2

C. Safety relays

  • HFA2
  • HFA4
  • HFA6
  • D. Latching relays
  • HFE20
  • HFE23
  • E. SSR
  • HFS32 SSR

A. Signal relays

  • HFD4
  • HFD31

B. Power relays

  • HF3FA
  • HF152F – double pin
  • HF7FD – double pin
  • HF32FA-G
  • HF46FA-G
  • HF49FD
  • HF115FD
  • HF115FP
  • HF118F reflow
  • HF118F 136
  • HF14FW 136
  • HF18FA

Hongfa Europe GmbH

slide3
HFD4
  • Samples & Serie now
  • SMD samples June 2009
  • Axicom IM
  • Omron G6K
  • PANASONIC AGQ

SMT = sureface mounting technology

(reflow soldering)

DIP = DIP terminations ( wave soldering)

Hongfa Europe GmbH

slide4
HFD4

Hongfa Europe GmbH

slide5
HFD4

FCC part 68 = Federal Communications Commission part 68:

This rules are to avoid any dangerous situation based on electrical hazards.

For the relays means this - surge withstand voltage :

10 x 160µs means = 10µs is the slew rate (Anstiegssteilheit) and

160µs is the duration time

Hongfa Europe GmbH

slide6
HFD4

Hongfa Europe GmbH

slide7
HFD4

Hongfa Europe GmbH

slide8
HFD4 Typ. application
  • Communications equipment
  • Linecard application – analog.ISDN , xDSL
  • Voice over IP
  • Office and business equipment
  • Measurment and control equipment
  • Consumer electronics
  • Medical equipment

Hongfa Europe GmbH

slide9
2. HFD31
  • Samples & Serie since July 09
  • Panasonic TQ2
  • Fujitsu A Serie
  • Zettler AZ850/851
  • Omron G6H,
  • TYCO FP2

Hongfa Europe GmbH

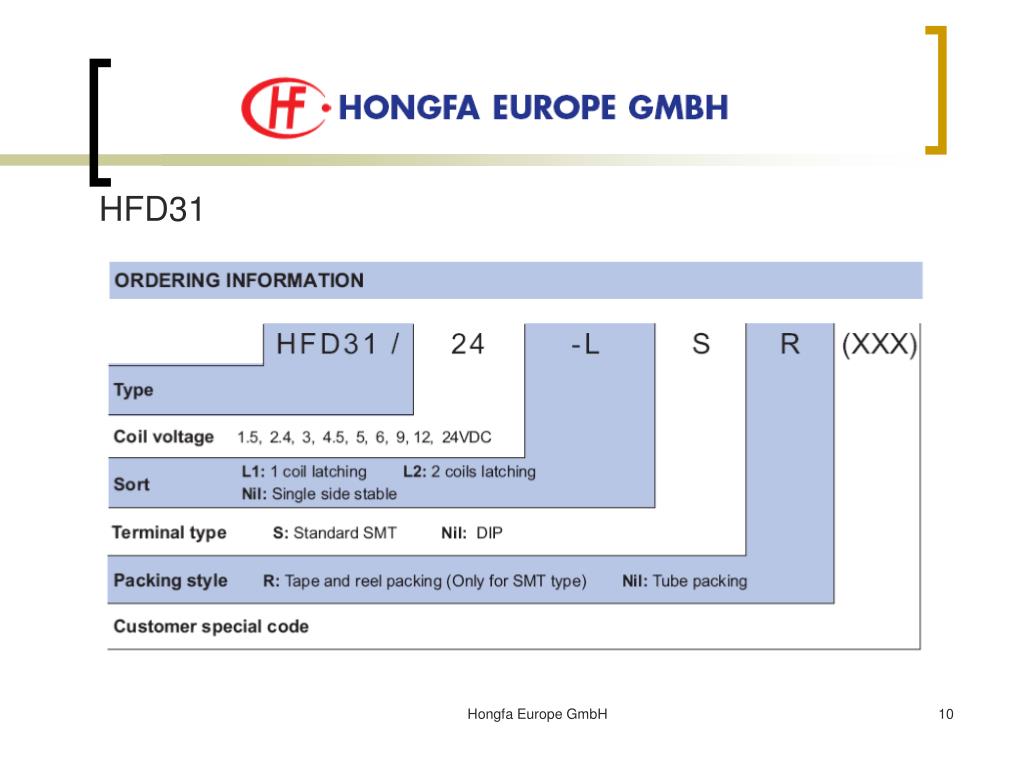

slide10
HFD31

Hongfa Europe GmbH

slide11

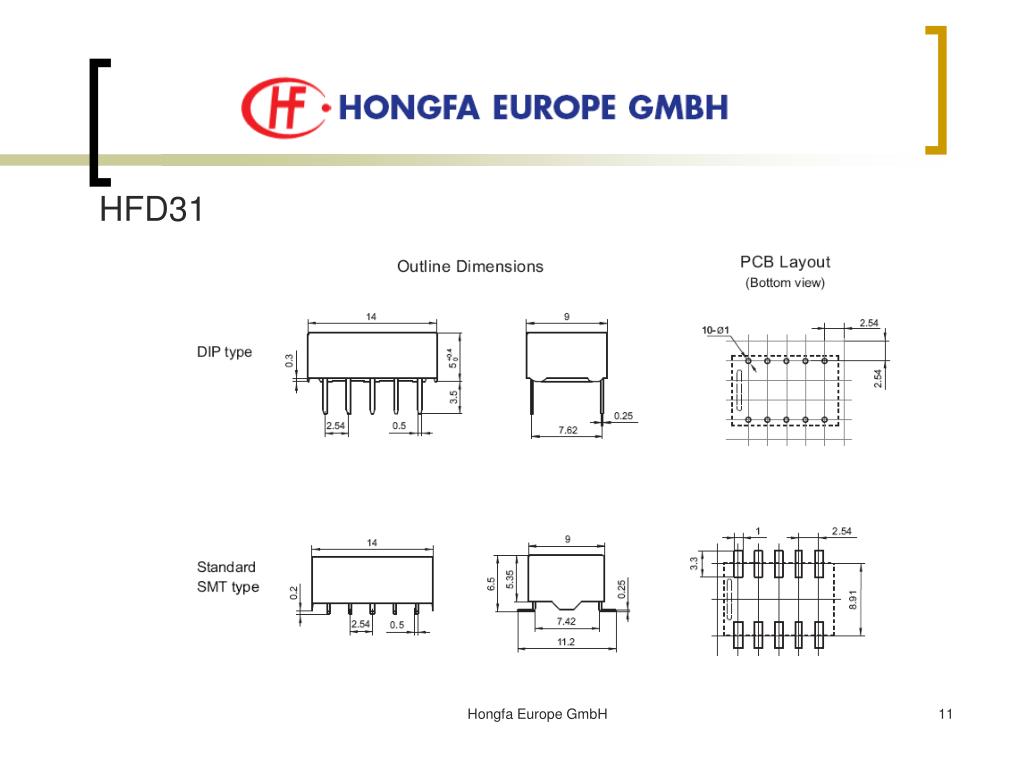

HFD31

Hongfa Europe GmbH

slide12

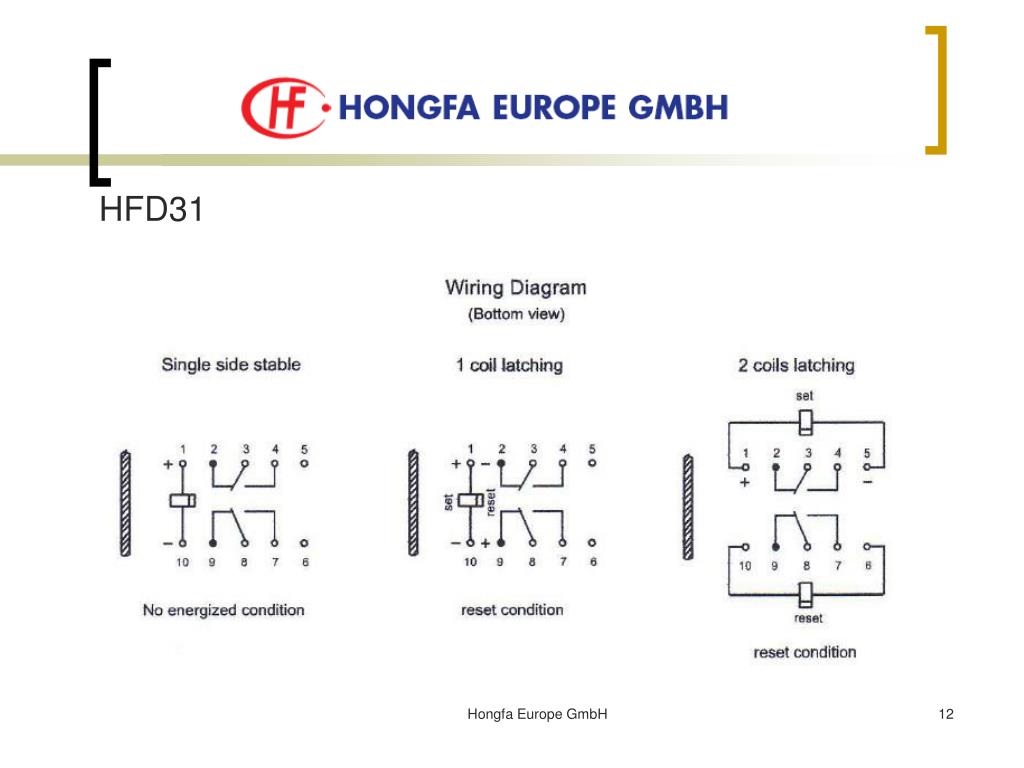

HFD31

Hongfa Europe GmbH

slide13
HFD31 Typ. application
  • Communications equipment
  • Linecard application – analog.ISDN , xDSL
  • Voice over IP
  • Office and business equipment
  • Measurment and control equipment
  • Consumer electronics
  • Medical equipment

Hongfa Europe GmbH

slide14

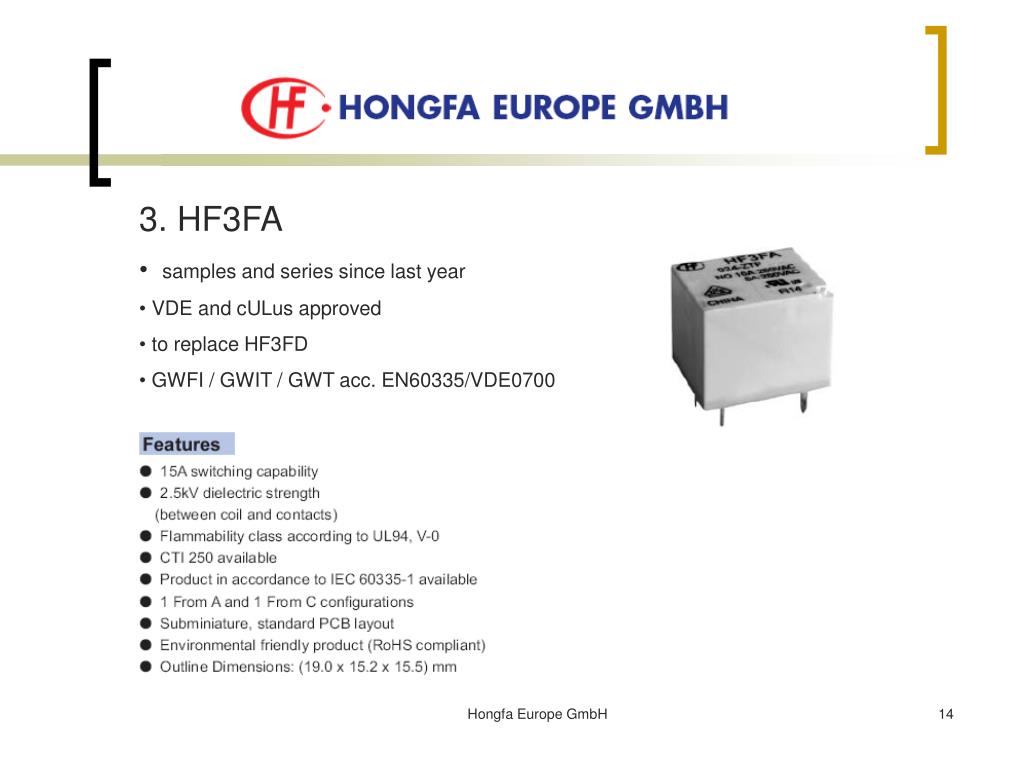

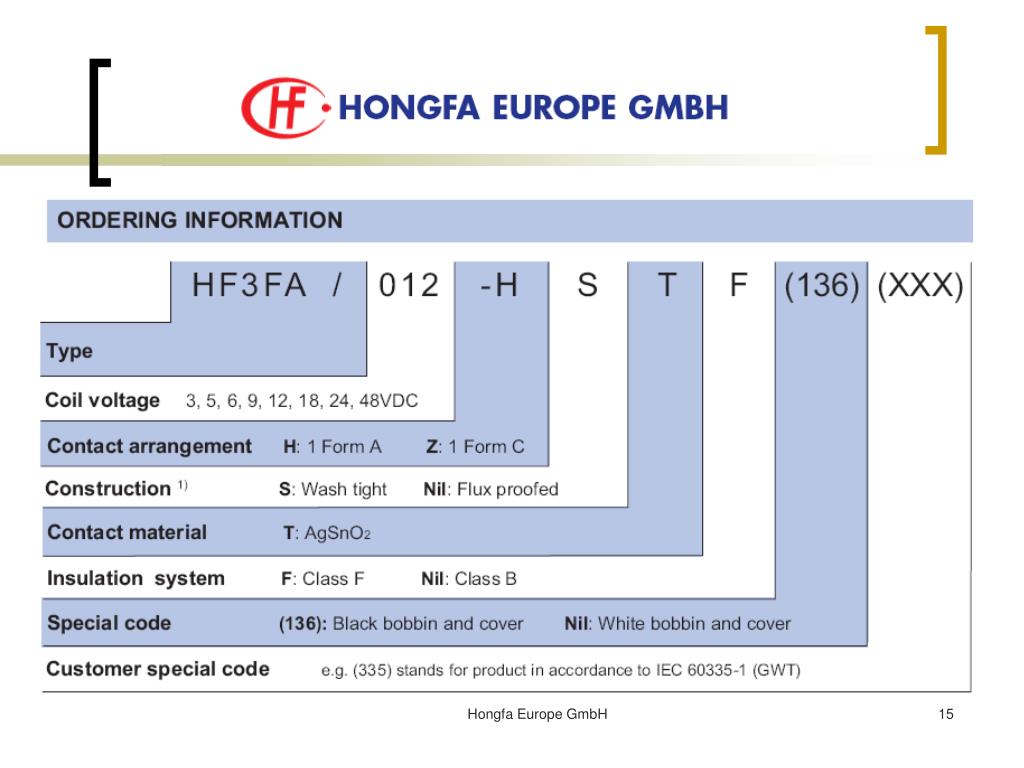

3. HF3FA

  • samples and series since last year
  • VDE and cULus approved
  • to replace HF3FD
  • GWFI / GWIT / GWT acc. EN60335/VDE0700

Hongfa Europe GmbH

slide16
Lay-out HF3FA

Hongfa Europe GmbH

slide17

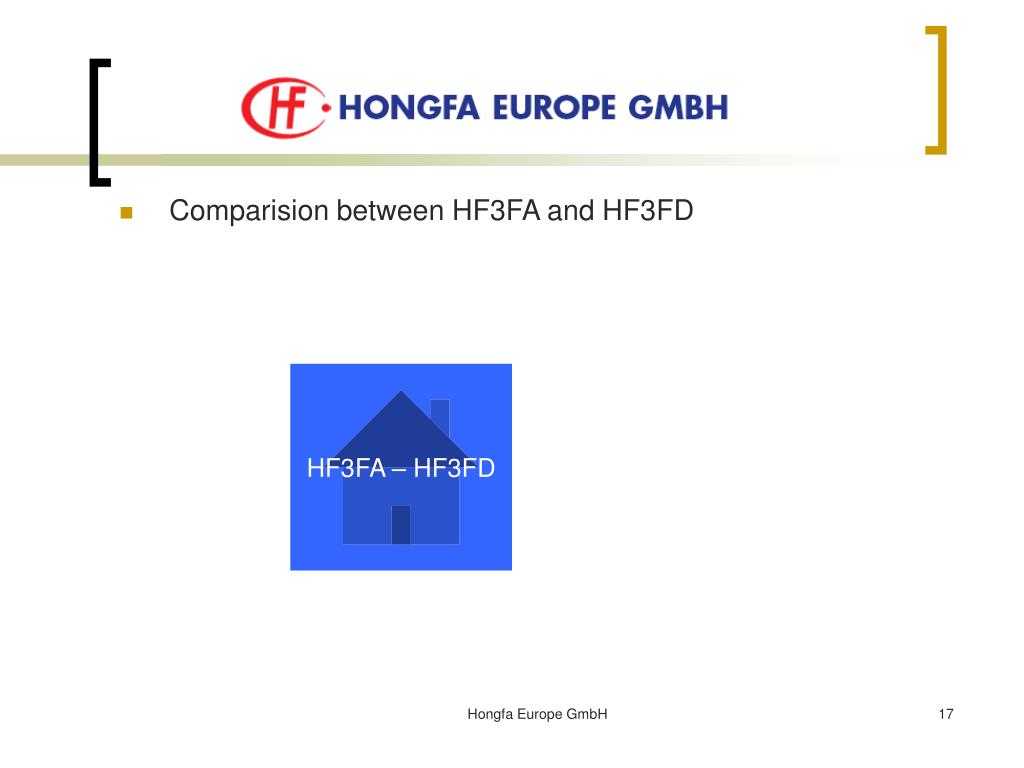

Comparision between HF3FA and HF3FD

HF3FA – HF3FD

Hongfa Europe GmbH

slide18
HF3FA typ. applications
  • white goods
  • door opener
  • coffee maker
  • motion sensor
  • water boiler
  • etc.

Hongfa Europe GmbH

slide19

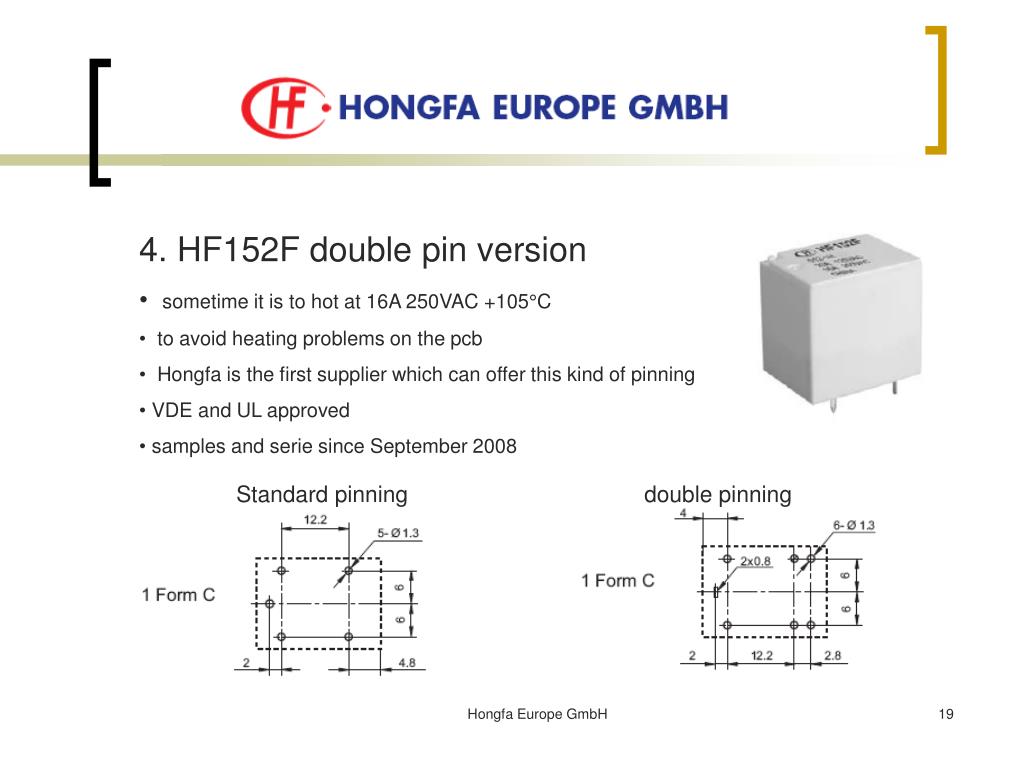

4. HF152F double pin version

  • sometime it is to hot at 16A 250VAC +105°C
  • to avoid heating problems on the pcb
  • Hongfa is the first supplier which can offer this kind of pinning
  • VDE and UL approved
  • samples and serie since September 2008

Standard pinning double pinning

Hongfa Europe GmbH

slide22

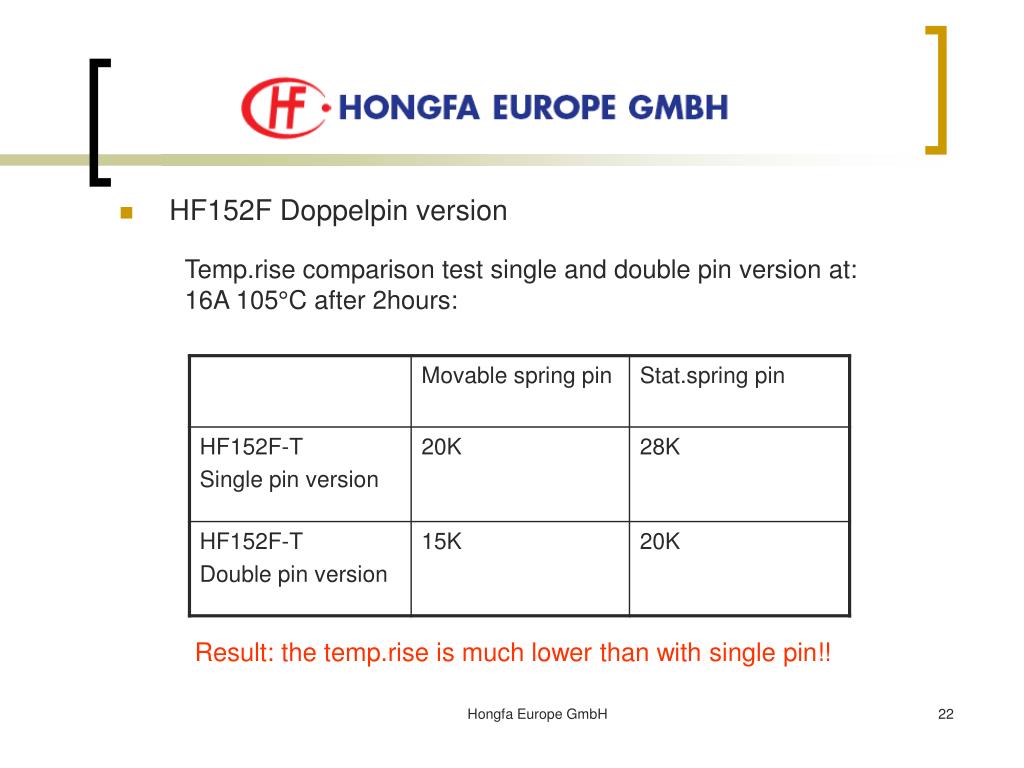

HF152F Doppelpin version

Temp.rise comparison test single and double pin version at: 16A 105°C after 2hours:

Result: the temp.rise is much lower than with single pin!!

Hongfa Europe GmbH

slide23
HF152F Doppelpin version typ. applications:
  • white goods
  • refrigerator compressor relay
  • washer heating relay
  • oven heating zone relay
  • light and building controls
  • actor
  • proximity switch (Näherungsschalter)
  • door opener
  • etc.

Hongfa Europe GmbH

slide24

5. HF7FD double pin version

  • to avoid heating problems on the pcb
  • more safety for the soldering connection relay - pcb
  • Hongfa is the first supplier which can offer this kind of pinning
  • VDE and UL approved
  • samples and serie since Juni 2009

HF7FD double pin is approved at VDE with:

12A / 250VAC +70°C 100k cycles !

Hongfa Europe GmbH

slide25

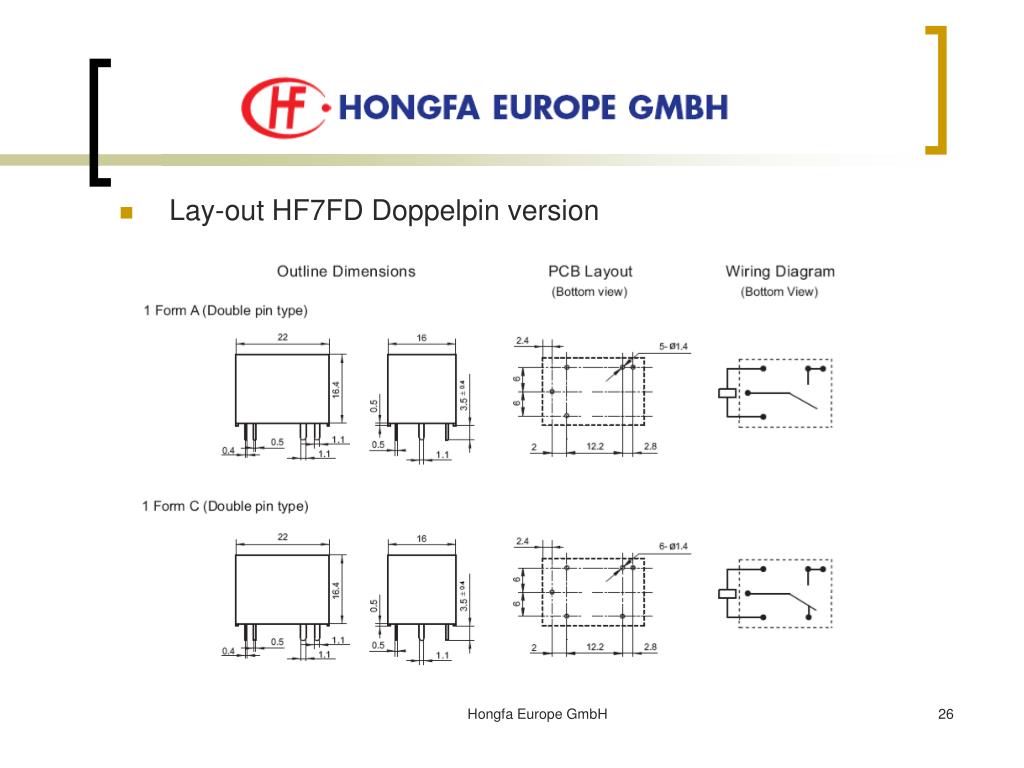

F7FD double pin version

Hongfa Europe GmbH

slide27
HF7FD doublelpin version typ. applications:
  • white goods
  • refrigerator compressor relay
  • washer heating relay
  • oven heating zone relay
  • light and building controls
  • actor
  • proximity switch (Näherungsschalter)
  • door opener
  • etc.

Hongfa Europe GmbH

slide28

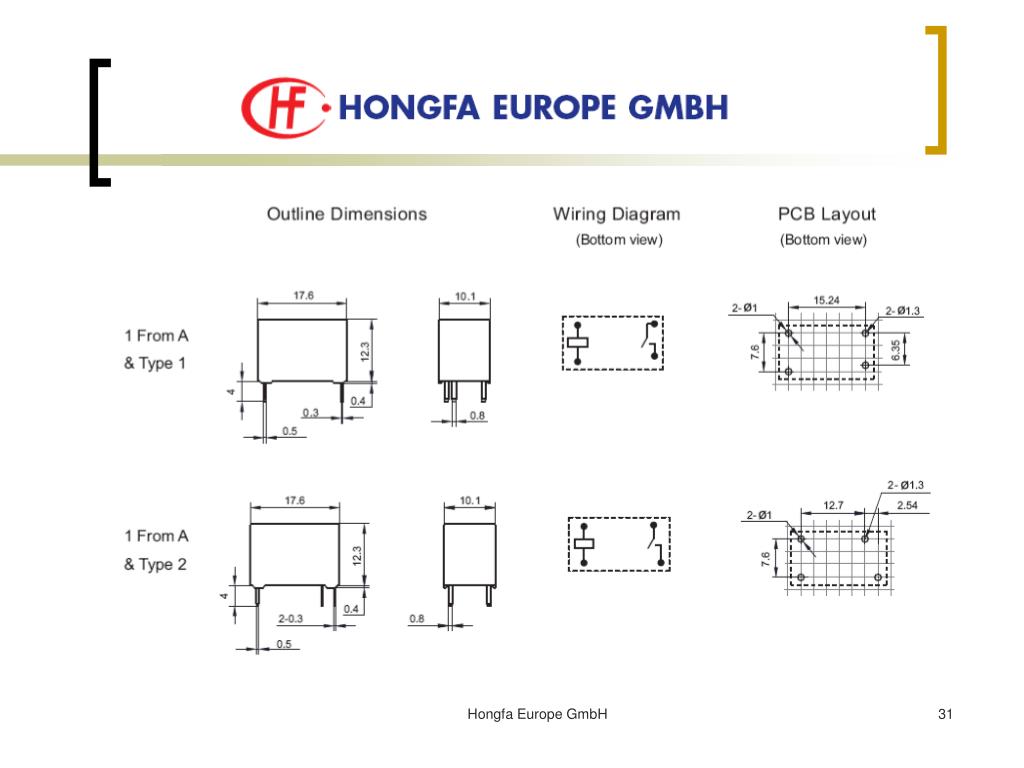

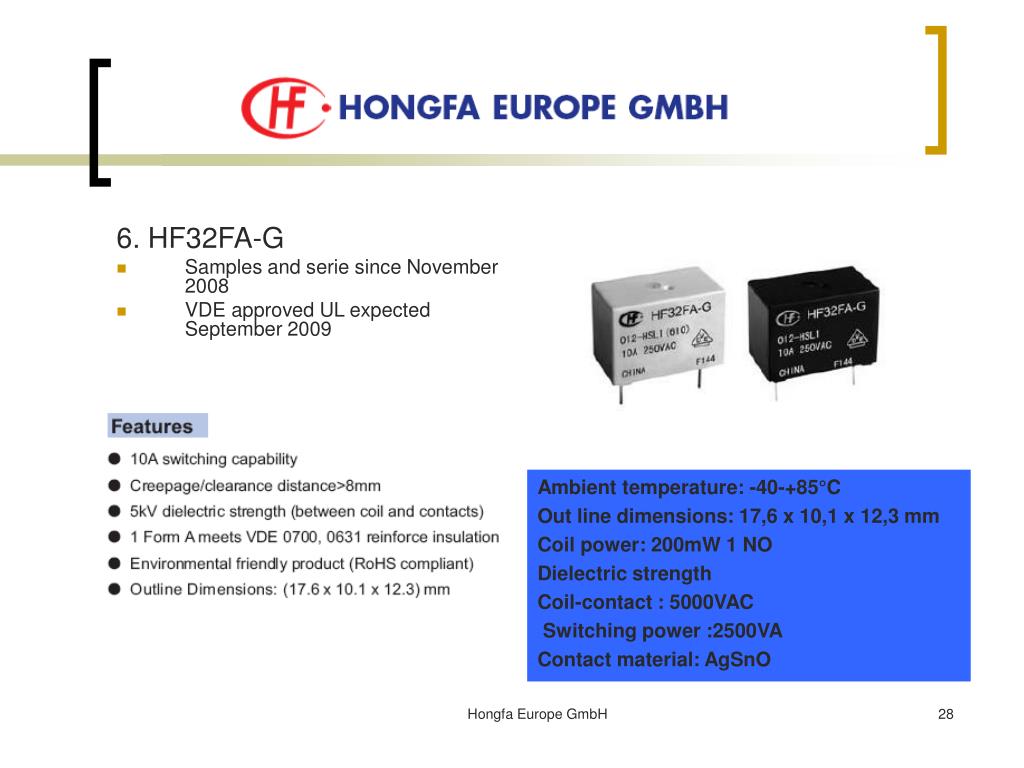

6. HF32FA-G
  • Samples and serie since November 2008
  • VDE approved UL expected September 2009

Ambient temperature: -40-+85°C

Out line dimensions: 17,6 x 10,1 x 12,3 mm

Coil power: 200mW 1 NO

Dielectric strength

Coil-contact : 5000VAC

Switching power :2500VA

Contact material: AgSnO

Hongfa Europe GmbH

slide29

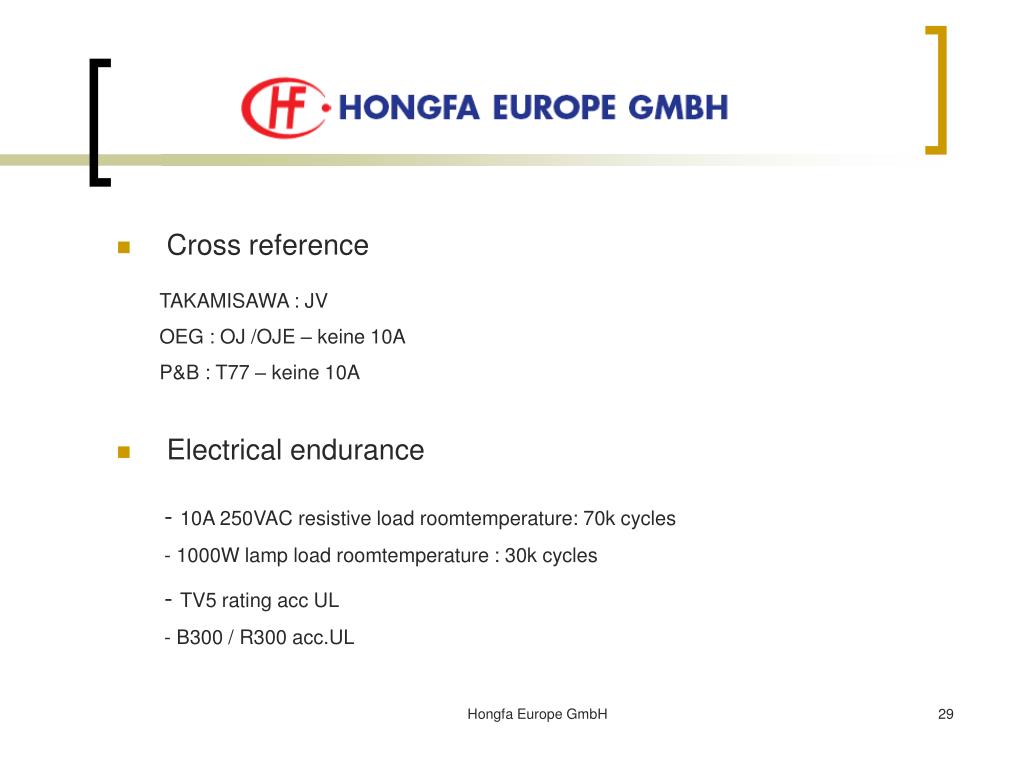

Cross reference
  • Electrical endurance

TAKAMISAWA : JV

OEG : OJ /OJE – keine 10A

P&B : T77 – keine 10A

  • 10A 250VAC resistive load roomtemperature: 70k cycles
  • 1000W lamp load roomtemperature : 30k cycles
  • TV5 rating acc UL
  • B300 / R300 acc.UL

Hongfa Europe GmbH

slide30

HF32FA-G is always with AgSnO contact material – no other contact material is available !

Hongfa Europe GmbH

slide32

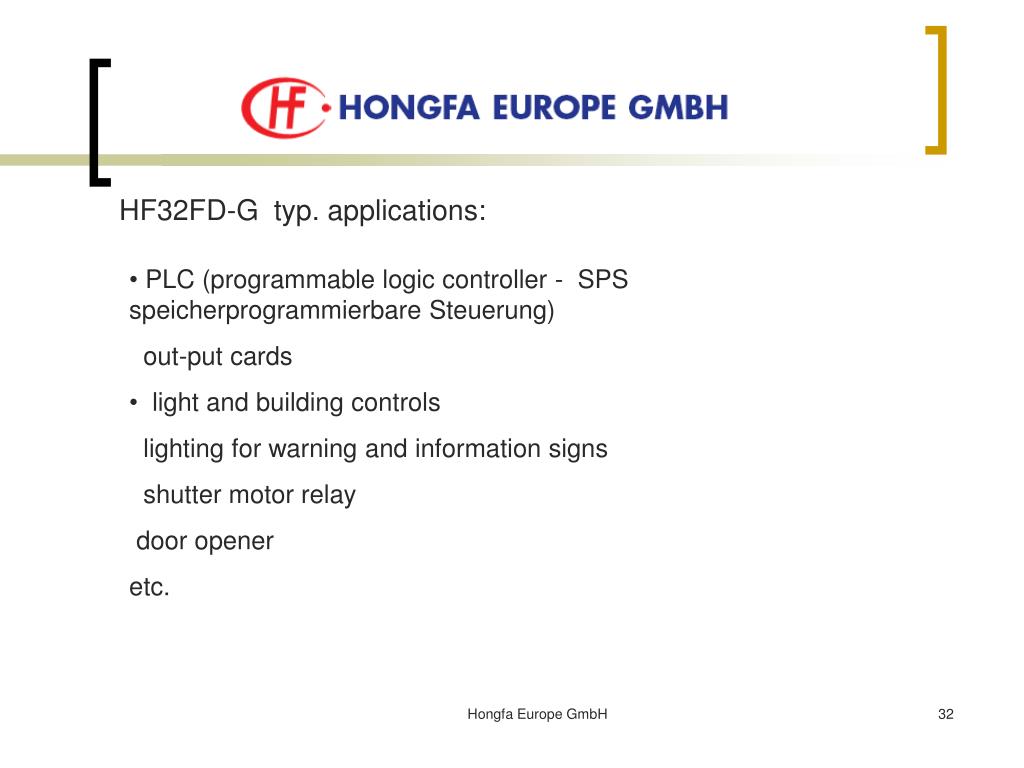

HF32FD-G typ. applications:
  • PLC (programmable logic controller - SPS speicherprogrammierbare Steuerung)
  • out-put cards
  • light and building controls
  • lighting for warning and information signs
  • shutter motor relay
  • door opener
  • etc.

Hongfa Europe GmbH

slide33

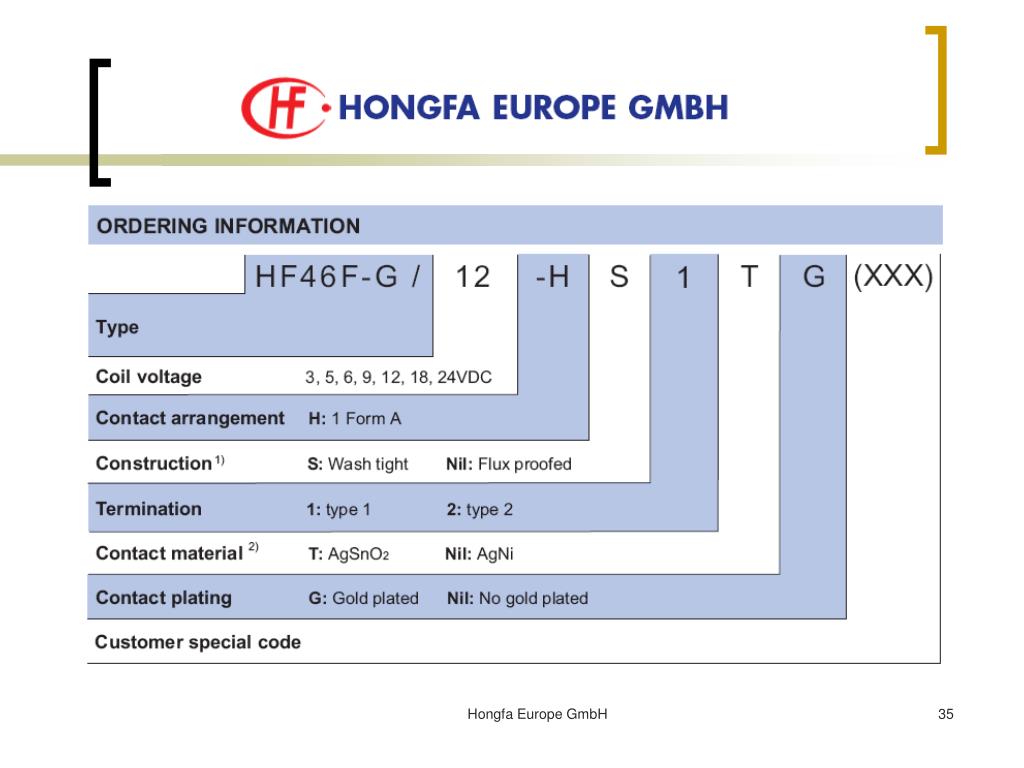

7. HF46F / HF46F-G
  • Samples and serie since November 2008
  • VDE and CUR approved
  • Replacement type for HF43F
  • OMRON G5NB

Panasonic LD

Hongfa Europe GmbH

slide36

Safety approval

HF46F HF46F-G

Hongfa Europe GmbH

slide37

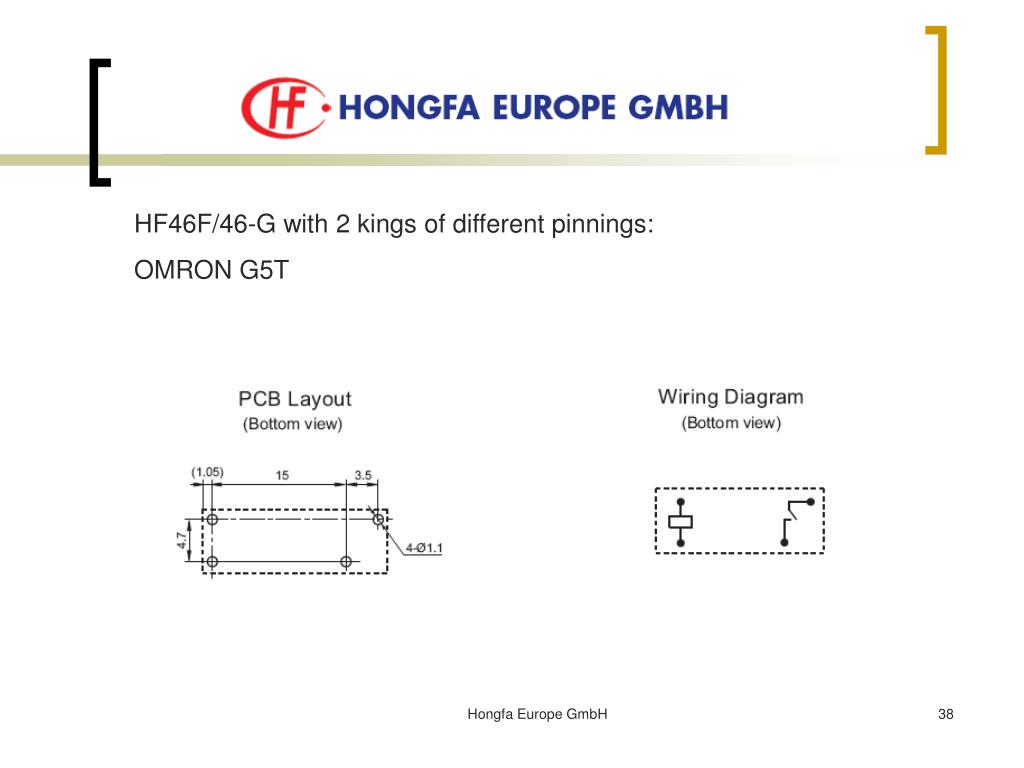

HF46F/46-G with 2 kings of different pinnings:

Panasonic LD / OMRON G5NB and Tyco PCJ

Hongfa Europe GmbH

slide39
HF46F/46F-G typ. applications:
  • white goods
  • washer door locking / inside light
  • light and building controls
  • lighting for warning and information signs
  • shutter motor relay
  • door opener
  • industry control systems
  • etc.

Hongfa Europe GmbH

slide40
Comparison between HF43F – HF46F

HF43F – HF46F

Hongfa Europe GmbH

slide41
8. HF49FD
  • Features:
    • Both single contact version and bifurcated contact version are available
    • Max. switching capability of contact: 5A
    • Dielectric strength between contact and coil: 3kV
    • High sensitive coil: 0.12W
    • Two versions of terminal placement, compatible for both HF49F and HF49FA
    • Socket available
    • Environmental friendly products, compliant to RoHS
    • Cross Reference:
    • Panasonic PA, OMRON G6DS, OEG PCN

(20.0×5.0×12.5) mm

Hongfa Europe GmbH

slide42

Contact pin distance:

5,08 = PANASONIC PA or

OMRON G6DS

7,62 = TYCO PCN

Hongfa Europe GmbH

slide43
HF49FD pcb lay-out

HF49FA

HF49F

Hongfa Europe GmbH

slide44

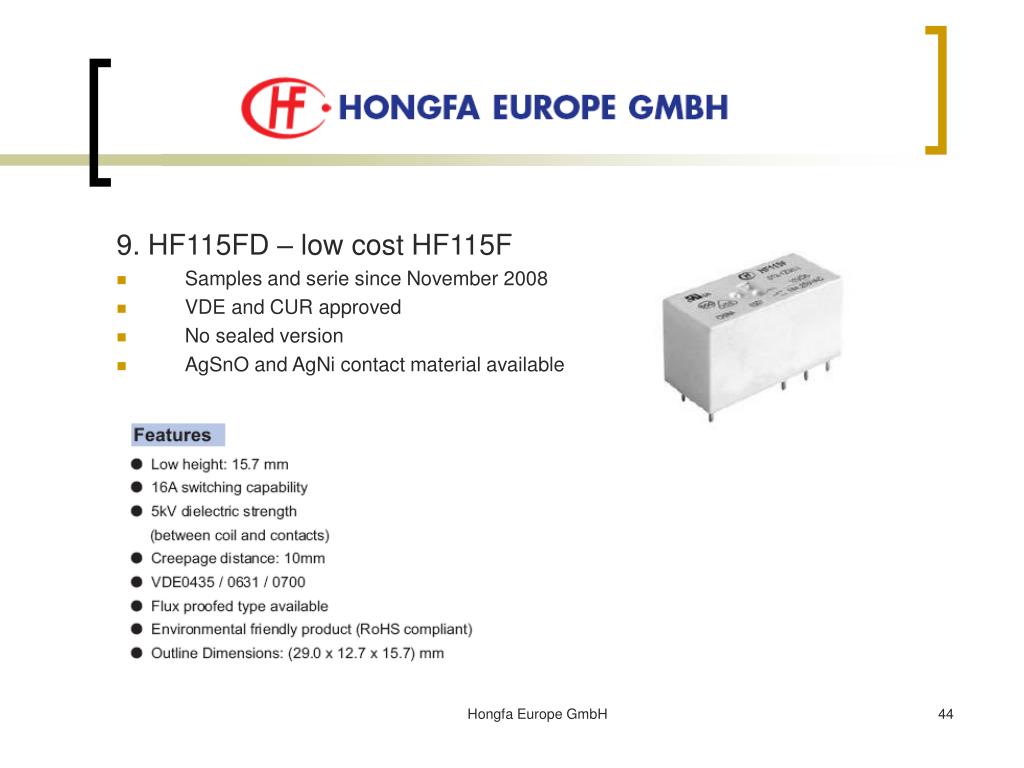

9. HF115FD – low cost HF115F
  • Samples and serie since November 2008
  • VDE and CUR approved
  • No sealed version
  • AgSnO and AgNi contact material available

Hongfa Europe GmbH

slide46
Comparison HF115FD – HF115F

HF115FD – HF115F

Hongfa Europe GmbH

slide47
10. HF115FP – with LED and manual tab
  • Samples and serie since November 2008
  • VDE and CUR approved
  • No sealed version
  • AgSnO and AgNi contact material available
  • Suitable for pcb or DIN rail sockets

Hongfa Europe GmbH

slide49
HF115FP advantage
  • Manual tab with slot for metall retainer – tab is useable on the pcb socket too
  • DC version with LED and protection diode (bipolare LED – means connection direction is arbitrary)
  • AC version with LED
  • For pcb- and DIN rail sockets

Hongfa Europe GmbH

slide50
HF115FP advantage
  • Manual tab with slot for metall retainer – tab is useable on the pcb socket too

Hongfa Europe GmbH

slide51
HF115FP typ. applications:
  • switch cabinets
  • I/O moduls
  • light and building controls
  • lighting for warning and information signs
  • shutter motor relay
  • door opener
  • industry control systems
  • etc.

Hongfa Europe GmbH

slide52
11. HF118F (253) reflow version (THT)
  • Samples and serie since December 2008
  • VDE and CUR
  • No sealed version
  • AgSnO and AgNi contact material available
  • Packaging real and tape available
  • 8A 250VAC +85°C 50k cycles

Hongfa Europe GmbH

slide53
HF118F (253) reflow version

Hongfa Europe GmbH

slide54
HF118F (253) reflow version
  • Packaging real and tape available

Hongfa Europe GmbH

slide55
HF118F (253) reflow version

Pre heating phase

Hongfa Europe GmbH

slide56
HF118F (253) reflow version
  • Advantage: only reflow soldering process – save time and money
  • Disadvantage: Relay is more expensive

Hongfa Europe GmbH

slide57
13. HF118F (136) low cost version
  • Samples and serie since December 2008
  • VDE and CUR pending
  • No sealed version
  • AgSnO and AgNi contact material available
  • 8A 250VAC +85°C 50k cycles

Hongfa Europe GmbH

slide60

Comparison HF118F 136 – HF118F

HF118F 136 – HF118F

Hongfa Europe GmbH

slide61
14. HF14FW 136
  • Features:
    • 20A switching capability
    • TV-10 load
    • 1.5mm contact distance is available
    • 4kV dielectric strength(between coil and contacts)
    • Sockets available
    • Environmental friendly products, compliant to RoHS
    • Application:
    • UPS, Power, home appliance, industrial control
    • Cross Reference:
    • Omron G2R, TYCO OMI, FUJISTU FBR610, Panasonic JR1, Songchuan 793

(29.0×13.0×26.5) mm

Hongfa Europe GmbH

slide62
15. HF18FA
  • Features:
    • 2 and 4 form C configurations
    • High load (2Z: 10A 30VDC/250VAC
    • 4Z: 6A30VDC/250VAC)
    • Surge withstand up to 2500V
    • Various terminals available
    • Environmental friendly products, compliant to RoHS
    • Application:
    • The product widely apply to industrial automation equipment, machinery equipment and other industrial control equipment.
    • Cross Reference:
    • Omron MY, Finder 55, TYCO PT

(21.5×28×35) mm

Hongfa Europe GmbH

slide64
16. HFA2 / HFA4 / HFA6
  • Samples 2 pol IIIQ. 2009 serie end 2009
  • Samples 4 pol IIIQ. 2010 serie end 2010
  • Samples 6 pol IIIQ. 2011 serie end 2011
  • Features of HFA2
    • 2 pole with either 1NO+1NC or 2CO contacts
    • Forcibly guided contacts according to EN50205
    • 10kV surge resistance among coils and contacts
    • 6kV surge resistance (between poles)
    • 6A 250VAC Res. Load, 3A 250VAC,AC-15 load
    • Environmental friendly products, compliant to RoHS
    • Application:
    • This product widely apply to elevator and escalator control, Emergency shut-off, machine control, light barrier, could also use in the process of automotive making , industrial automatic control device, security and protection system and etc.
    • Cross Reference:
    • TYCO SR2M, HENGSTLER K-RBS, DOLD OA5669, ELESTA SIR282

(29×12.6×25.5) mm

Hongfa Europe GmbH

slide65

Features of HFA4

    • 4 pole with either 2NO+2NC or 3NO+1NC contacts
    • Forcibly guided contacts according to EN50205
    • 10kV surge resistance among coils and contacts
    • High shock resistance (Functional:200m/s2)
    • Low operating power(360mW rate coil power)
    • 6A 250VAC Res. Load, 2A 250VAC, AC-15 load
    • Environmental friendly products, compliant to RoHS
    • Application:
    • This product widely apply to elevator and escalator control, Emergency shut-off, machine control, light barrier, could also use in the process of automotive machine tools , industrial automatic control device, security and protection system and etc.
    • Cross Reference:
    • Omron G7SA, Panasonic SFS, IDEC RF1V,
    • ELESTA SIR 4 contacts, TYCO SR4D

(40×13×24) mm

Hongfa Europe GmbH

slide66
Saftey relays are relays with special requirements acc. EN 50205 and ZH1/457 (ZH = Zweihandsteuerungen für Pressen) like:

- forcibly guided contacts (zwangsgeführte Kontakte)

- must have min. 1NO and 1NC

- contact gap must be never less 0,5mm over the hole life time of the

safety relays – not only under normal operating conditions, but also

when a fault occurs

- NC + NO can never simultanously in the closed position

Hongfa Europe GmbH

slide68
17. HFE20 – compare with RTx3T
  • Samples mid. of 2009 serie end 2009
  • Optinal pre-make contact tungsten (W)
  • Optional manual tab in preparation
  • Inrush current till165A 20msec
  • 5kV / 10mm creepage + clearance
  • Monostable 400mW and/or
  • latching 1 or 2 coils

Hongfa Europe GmbH

slide71

What is a pre-make contact ?

Twin contact electrically connected where one contact always closes first (pre-make) and opens last. The pre-make contact, for example out of tungsten (high resistive and very resistant to contact erosion), switches the current, while the second, like a low resistive silver contact, carries the load.

Pre-make contact is tungsten W and

second contact is AgSnO

Hongfa Europe GmbH

slide72

What is a pre-make contact ?

Pre-make absorb the inrush current !

Hongfa Europe GmbH

slide73
Cross reference

- Tyco RTx3T

  • Typ.application
  • building controls
  • actors
  • ripple control receiver (Rundsteuerempfänger)
  • etc.

Hongfa Europe GmbH

slide74
18. HFE21
  • Samples mid. of 2009 serie end 2009
  • 120A 250VAC max 440VAC
  • Two different kinds of terminal
  • latching 1 or 2 coils
  • Gruner

This are short circuit requirements !

Hongfa Europe GmbH

slide75
For example UC3-1 =

Hongfa Europe GmbH

slide76
HFE21 typ. application:

- electr. meter application

At the moment a lot of countries changed from electromechanical induction meter to solid state meters.

Hongfa Europe GmbH

slide77
HFE21 typ. application:

Solid state meters advantage:

Some newer electricity meters are solid state and display the power

used on an LCD, while newer electronic meters can be read automatically.

In addition to measuring electricity used, solid state meters can also record

other parameters of the load and supply such as maximum demand,

power factor and reactive power used etc.

They can also include electronic clock mechanisms to compute a value,

rather than an amount of electricity consumed, with the pricing varying

by the time of day, day of week, and seasonally.

It saves the cost of a human meter reader and the resulting mistakes, but

it also allows more measurements, and remote provisioning. Many smart

meters now include a switch to interrupt or restore service.

Hongfa Europe GmbH

slide78
19. HFE23
  • Samples mid. 2009 serie end 2009
  • 3 phase relay
  • 3 x 120A 250VAC max 440VAC
  • latching 2 coils
  • Gruner 733

Hongfa Europe GmbH

slide79
20. HFS32 SSR

- Samples now

- 1 Form A SSR

- Output current: vertical type 1 to 2Aa.c.

horizontal type 3 to 5Ad.c.

- Output voltage: 240/380 Va.c., 24/48 Vd.c

Hongfa Europe GmbH

slide80
HFS32 types:

Hongfa Europe GmbH

slide81

Cross Reference:

  • Tyco V23109, Crydom CR

Hongfa Europe GmbH

slide82
Sockets for HFS32:
  • 14FF-2Z-A1 – pcb
  • 14FF-2Z-C2 – DIN Rail
  • 14FF-2Z-C3 – DIN Rail
  • 41F-1Z-C2 – DIN Rail

Hongfa Europe GmbH

slide83
HFS32 typ. applications:
  • switch cabinets
  • I/O moduls
  • light and building controls
  • lighting for warning and information signs
  • industry control systems
  • medical equipments

Hongfa Europe GmbH

slide84

With power

to success !

Hongfa Europe GmbH
