  1. Industrial Ethernet Extender IVC-2004PT

  2. Presentation Outline • What is Ethernet Extender ? • Product Overview • Product Benefits • Product Features • Application • Comparison

  3. Data UTP Cable What is Ethernet Extender ? • The Limitation of Twisted-pair UTP cable • TIA/EIA 568b1 : Maximum segment length 100 meters (328 feet). IP Camera or Wireless AP Ethernet Switch 100m Only 100 meter maximum cable length is not able to meet a wide range of IP Surveillance / Wireless AP deployment.

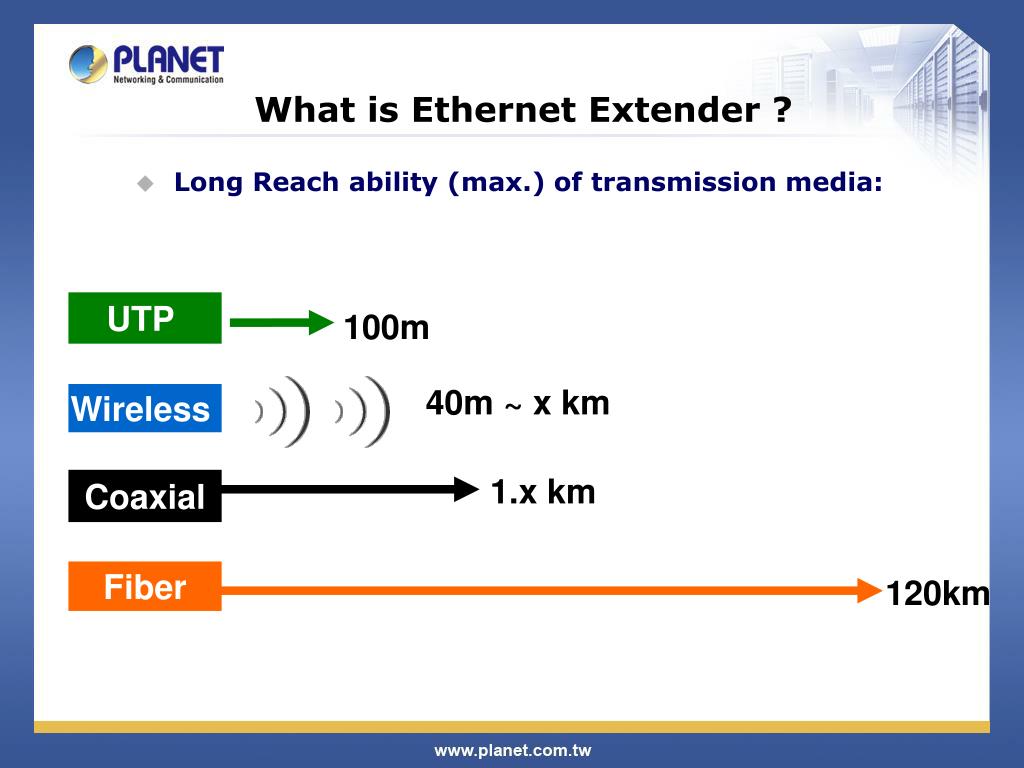

  4. UTP 100m 40m ~ x km Wireless 1.x km Coaxial Fiber 120km What is Ethernet Extender ? • Long Reach ability (max.) of transmission media:

  5. What is Ethernet Extender ? • PLANET Industrial Ethernet Extender Solution • Break 100-meter Ethernet limit of UTP cable • Utilize exist transmission media: • Phone Wire • Coaxial Cable • PLANET Ethernet Extender solution offers the absolute fastest possible data transmission speeds over existing copper telephone lines or coaxial cable without the need for rewiring. • It is based on two core networking technologies: • Ethernet (IEEE 802.3 and IEEE 802.3u) • VDSL2 (Very-high-data-rate Digital Subscriber Line 2)

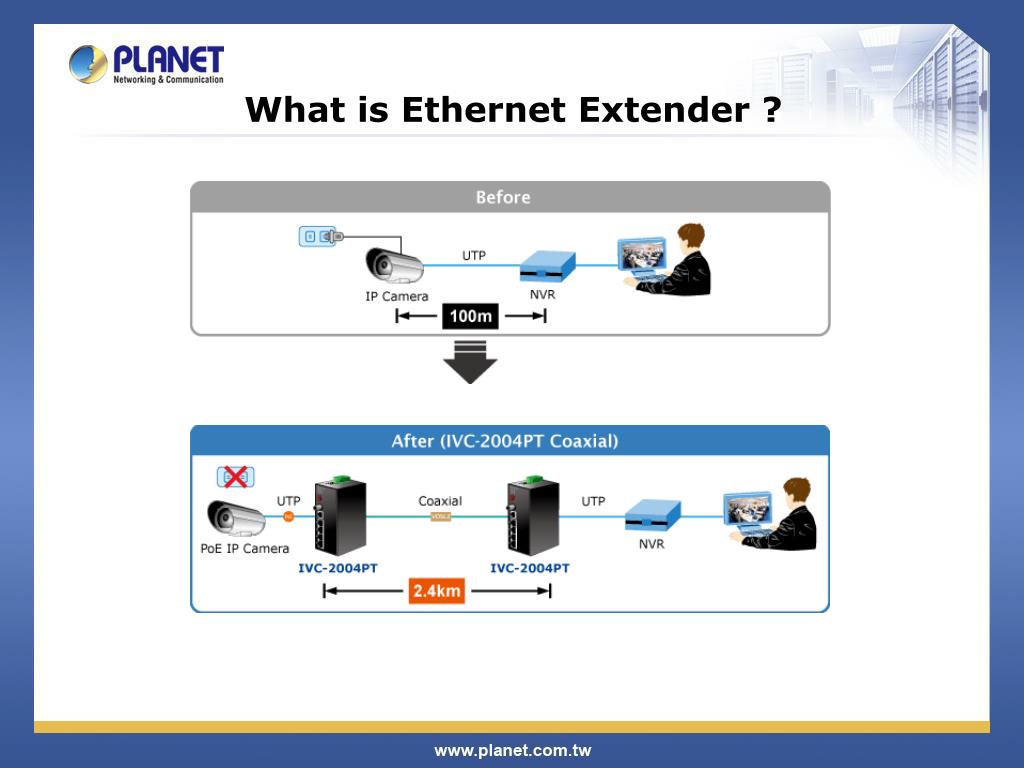

  6. What is Ethernet Extender ?

  7. 6-Pin Removable Terminal Block Redundant 12 ~ 48V DC power input 48V DC for PoE Function Power 1 & 2, Fault, VDSL2 Signal LED 4 Position DIP Switch BNC Female Connector RJ-11 Female Connector 10/100Mbps LNK/ACT / PoE In-Use LED for TP port Product Overview Front Panel of IVC-2004PT • Front Panel of IVC-2004PT • Extender Port • 1 BNCfemale connector VDSL2 Port, link with BNC, RG58 and RG 6 coaxial cable • 1 RJ-11 VDSL2 Port, link with Telephone Wire • Local LAN Port with PoE • 4 x RJ-45 10/100TX TP ports

  8. Product Overview – DIP Switch • Master / Salve • Master (Central Office): the Master device mode, usually the Master device will be located at the data center of ISP or enterprise to link to the backbone. • Slave (Customer Premises Equipment): the Slave device mode, usually the Slave device will be located at branch office, home or remote side as the long reach data receiver. The Slave also can be connected to the PC, IP Camera or wireless Access Point. • Fast and Interleave mode • Fast Mode: guarantees a minimum end to end latency less than 1 ms. • Interleaved mode: provides impulse noises protection with a duration less than 250 us. Interleaved mode has a maximum end to end latency of 10m sec.

  9. Product Overview – DIP Switch • Band Plan User can switch the Band Plan either Symmetric or Asymmetric by their own. When Symmetric is selected that provides better upstream performance, when Asymmetric is selected that provides better downstream performance. Refer to table above for details. • Target SNR (Signal Noise Ratio) Margin When fixed SNR margin is selected, the system will maintain the SNR margin at 9 dB across all usable loop length.

  10. Product Overview – IVC-2004PT Three View Drawing

  11. Product Overview • If want to extend the distance, why not to just using the VC-201A, VC-204 or VC-202A? IVC-2004PT: • Auto Adaptive Coaxial or RJ-11 Connective • Wide Range of Operating Temperature -40 to 75 Degree C • IEEE 802.3af Power over Ethernet Standard • Conformance of Industrial Design • Redundant 12 to 48V DC Power Input • IP- 30 Aluminum Metal Case • DIN-Rail and Wall Mount Installation

  12. Key Features Up to 2.4km Up to 1.4km BNC + RJ-11 Connection IP-30 Aluminum Metal Case PoE IEEE 802.3af Redundant Power -40~75 Degree C

  13. PoE function must use 48V DC. If power source is lower than 48V DC, the 802.af PoE function will not be activated. However, it will not influence the VDSL2 and 4-ports TP operation. Product Features • Power over Ethernet • Complies with IEEE 802.3af Power over Ethernet • End-Span PSE • Up to 4 IEEE 802.3af devices powered • Supports PoE Power up to 15.4 Watts for each PoE port • Auto detect powered device (PD) • Circuit protection prevent power interference between ports • Remote power feeding up to 100m

  14. PoE IP Surveillance Manufactory PoE Wireless AP PoE Splitter Product Features - PoE 48V DC Input Non-PoE equipment

  15. PoE IP Surveillance IVC-2004PT PoE Wireless AP PoE Splitter Product Features – Fiber Optic Link Coaxial Up to 2.4km Phone Wire Up to 1.4km Coaxial Cable or Telephone Wire Coaxial (BNC) Distance extend from 200m to 2.4km Phone Wire(RJ-11)Distance extend from 200m to 1.4km

  16. Asymmetric Asymmetric Symmetric Symmetric 200m 200m 99/63Mbps 99/65Mbps 95/99Mbps 91/99Mbps 2.4Km 2.4Km 31/4Mbps 28/2Mbps 21/10Mbps 19/13Mbps Product Benefits • Optional Ethernet Distance extension either Coaxial or RJ-11 • Coaxial: • RJ-11 • Easily deployment in Heavy Industrial demanding environments • -40 to 75 Degree Coperation temperature • 12V DC to 48V DC voltages input • IP-30 Aluminum metal shape • Protection: • 6KV DC EFT protection for power line • 6KV DC Ethernet ESD protection • Easy Installation – without Software Configuration • Compatible with PLANET IVC-2002, VC-202A and VC-201A

  17. Product Features • Industrial Conformance • 12 to 48V DC, redundant power • Polarity reverse protect function • Connective removable terminal block for master and slave power • Relay alarm for power failure • -40 to 75 Degree C operation temperature • IP-30Aluminummetal case • Stability testing with • IEC60068-2-32 (Free fall) • IEC60068-2-27 (Shock) • IEC60068-2-6 (Vibration)

  18. Product Features • Wide-range redundant power design • PWR1 & PWR2 12 to48VDC redundant power input • 1A@24V Relay alarm for power down and port down • Power polarity reverse protect • Connective removable terminal block for primary and backup power

  19. Warning Product Features • Real-Time Fault Relay Alarm Power FAIL Power 1 - Master - Power 2 - Backup - Warning Light or Speaker

  20. Product Features • Hardware • Extender Port: • Auto Adaptive Coaxial or RJ-11 Connective • PoE LAN Port: • 4-Port 10/100Mbps copper LAN ports with PoE • Auto Negotiation and Auto MDI/MDI-X function • Per port LED Status Monitoring for system diagnostic • Layer 2 Switching: • Store-and-Forward Switch Architecture • Back pressure for Half Duplex, IEEE 802.3x for Full Duplex Flow Control • 2K MAC Address, Auto aging and learning • Support up to 1536 bytes packet size, 802.1Q VLAN tag transparent • One terminal block connector within two DC power inputs. • DIN Rail and Wall Mount Design for fill installation demand in Heavy Industrial environments

  21. Installation – IVC-2004PT BNC / RJ-11 Proper Connection • PLANET Industrial Ethernet Extender has a DIP switch which can adjust to be Master or Slave mode. • Connection of two PLANET PoE Industrial Ethernet Extenders, one must be Master (CO) mode and the other one must be Slave (CPE) mode. Coaxial Cable Up to 2.4km Slave Master Telephone Wire Up to 1.4km UTP cable UTP cable

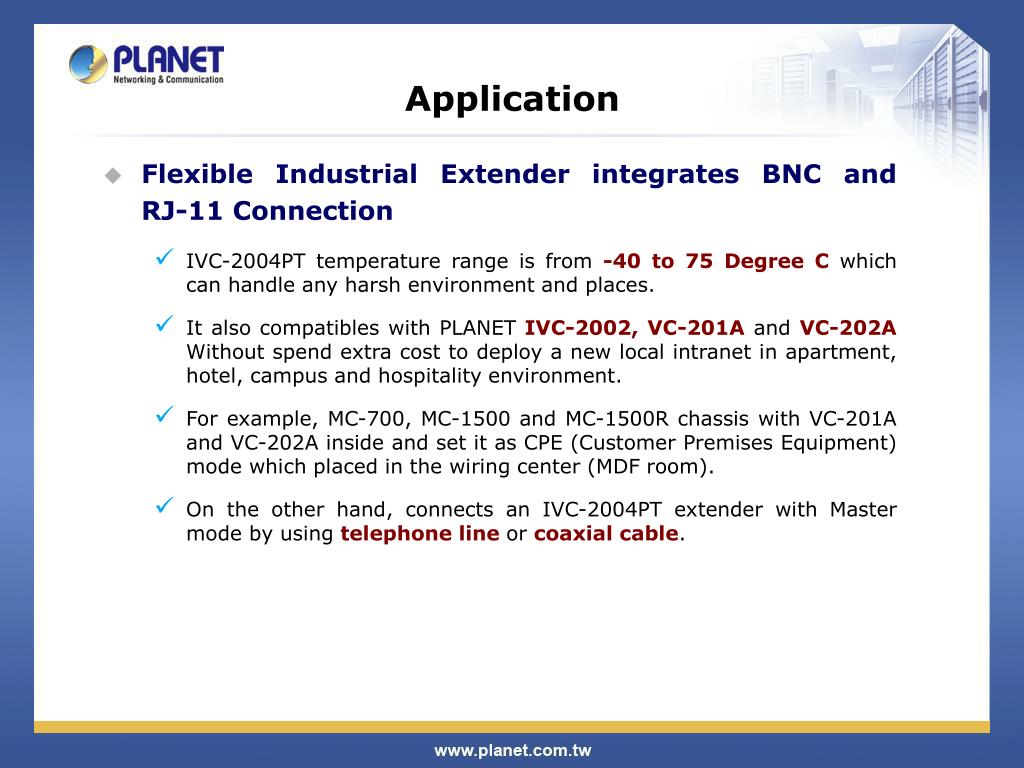

  22. Application • Flexible Industrial Extender integrates BNC and RJ-11 Connection • IVC-2004PT temperature range is from -40 to 75 Degree C which can handle any harsh environment and places. • It also compatibles with PLANET IVC-2002,VC-201A and VC-202A Without spend extra cost to deploy a new local intranet in apartment, hotel, campus and hospitality environment. • For example, MC-700, MC-1500 and MC-1500R chassis with VC-201A and VC-202A inside and set it as CPE (Customer Premises Equipment) mode which placed in the wiring center (MDF room). • On the other hand, connects an IVC-2004PT extender with Master mode by using telephone line or coaxial cable.

  23. Application Long Reach Ethernet, up to 2.4km Power over Ethernet, up to 15.4 watts

  24. Compatible Combination of IVC-2004PT • Utilize exist Phone wire – up to 1.4km • IVC-2004PT + IVC-2004PT • IVC-2004PT + IVC-2002 • IVC-2004PT + VC-201A (RJ-11) • IVC-2004PT + VC-204 • IVC-2004PT + VC-201A + MC-700 / MC-1500 / MC-1500R rack

  25. Compatible Combination of IVC-2004PT • Utilize exist Coaxial Cable – up to 2.4km • IVC-2004PT + IVC-2004PT • IVC-2004PT + IVC-2002 • IVC-2004PT + VC-202A (BNC) • IVC-2004PT + VC-202A + MC-700 / MC-1500 / MC-1500R rack

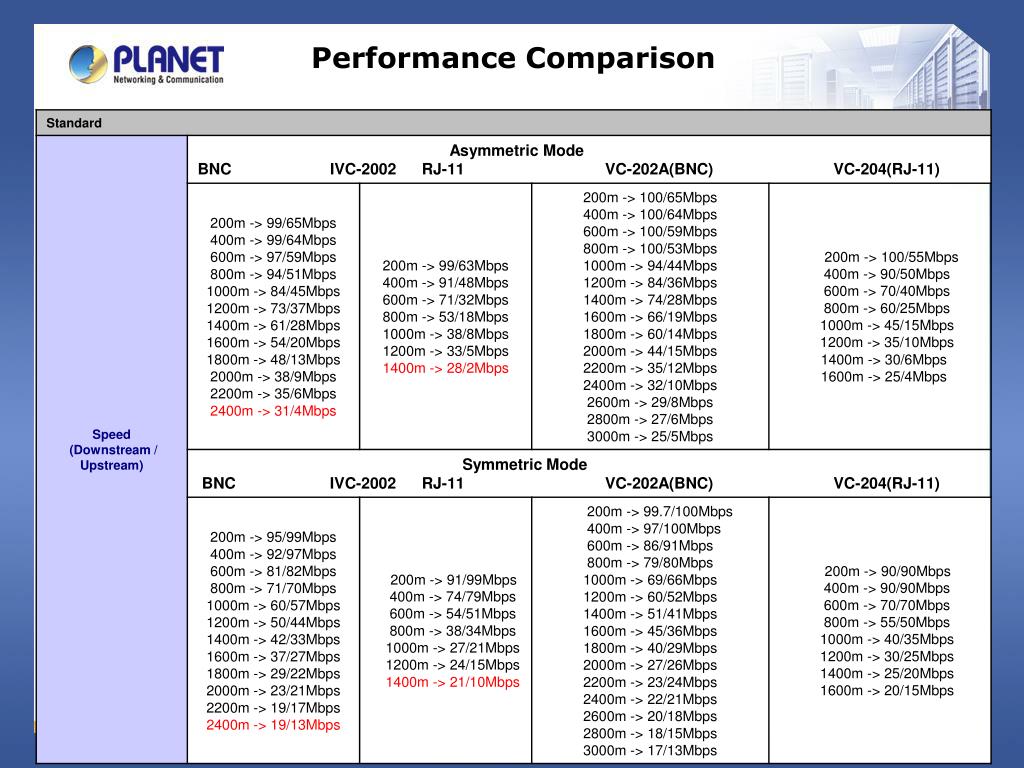

  26. Performance Comparison

  27. IVC-2002 / IVC-2004PT Performance – Asymmetric / Symmetric (BNC Coaxial)

  28. IVC-2002 / IVC-2004PT Performance – Asymmetric / Symmetric (Phone Wire RJ-11)

  29. Appendix Sales Target • Target Markets • Tender Market (Public construction) • IP Surveillance System Integrator • IE Distributor • Manufactory • Transportation • Hospital / Bank • Target Customers • Who buys PLANET Industrial Ethernet Switch: • ISW-5x4PT/PS series, ISW-1022MPT, ISW-511T, IGS-801, IFT-802 and etc. • Who buys PLANET VDSL Ethernet Media Converter: • VC-202, VC-202A, VC-204 and etc.. • Who buys PLANET PoE Power Source Equipment (PSE) or Powered Device (PD): • FGSW-2620PVM, FGSD-1022P, FSD-804PS, POE-151, POE-151S, etc. • Who buys PoE IP cameras • PLANET ICA-HM230, ICA-H312, ICA-HM135, ICA-HM350 and etc. • Who buys PoE Wireless Access points • PLANET WNAP-1120PE, WAP-4033PE, WNAP-3000PE

  30. Appendix • Relative Products: • IVC-2002 - 4 Port 10/100Base-TX + 1-Port BNC / RJ-11 Industrial Ethernet Extender (-40 ~ 75 Degree C) • VC-201A - Ethernet over VDSL2 Converter (1*RJ-45, 1*VDSL2 / RJ-11, 1*Phone-17a) • VC-202A - Ethernet over Coaxial Converter (1*RJ-45 and 1*BNC-17a)

  31. Appendix • Available DIN-Rail Power Supply: • PWR-40-24 40W 24V DC Industrial DIN Rail Power Supply (-20 ~ 70 Degree C) • PWR-75-24 75W 24V DC Industrial DIN Rail Power Supply (-10 ~ 60 Degree C) • PWR-120-48 120W 48V DC Industrial DIN Rail Power Supply (-10 ~ 60 Degree C) • PWR-240-48 240W 48V DC Industrial DIN Rail Power Supply (-10 ~ 60 Degree C)

  32. Appendix • Relative PoE Product: • POE Splitter / Extender • POE-151S IEEE 802.3af Power over Ethernet Splitter with 5V / 12V DC output • POE-E101 IEEE 802.3af Power over Ethernet Extender 100m 100m Non-PoE IP Camera PoE Splitter PoE Extender DATA DATA + Power 48V DC Power 12V DC

  33. Appendix • Relative PoE Product: • IP Surveillance • ICA-H312 H.264 25-meter IR Internet Camera • ICA-HM125 2 Mega-Pixel H.264 Box IP Camera • ICA-HM126 H.264 Full HD Box IP Camera • ICA-HM131 H.264 Full-HD Fixed Dome IP Camera • ICA-HM135 H.264 Mega-Pixel 20M IR Vandal Proof Dome IP Camera • ICA-HM240 H.264 Mega-Pixel Vandal Proof Pan/Tilt IP Camera

  34. Appendix • Relative PoE Product: • Wireless Access Point • WNAP-1120PE 802.11n Wireless Access Point with PoE • WNAP-3000PE 802.11n Enterprise PoE Access Point • WAP-4033PE 54Mbps Wireless PoE Access Point • MAP-3020 802.11a/b/g Outdoor MESH Access Point
