  1. Structure of the Earth and Mineralogy Environmental Science Earth Science Unit

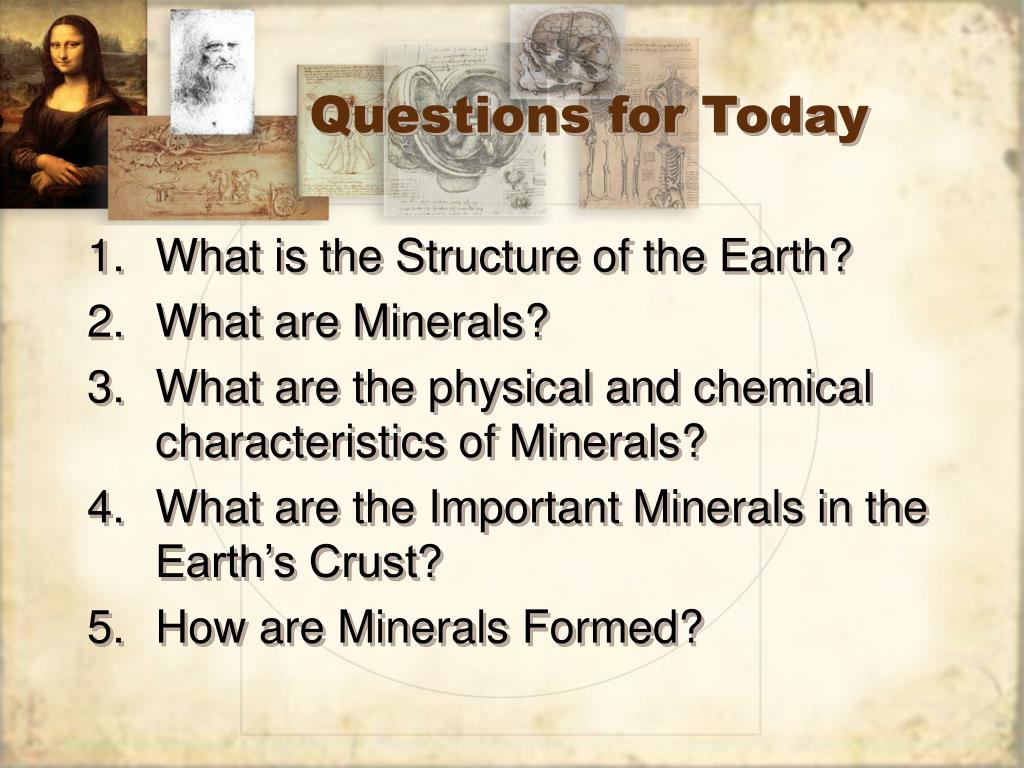

  2. Questions for Today • What is the Structure of the Earth? • What are Minerals? • What are the physical and chemical characteristics of Minerals? • What are the Important Minerals in the Earth’s Crust? • How are Minerals Formed?

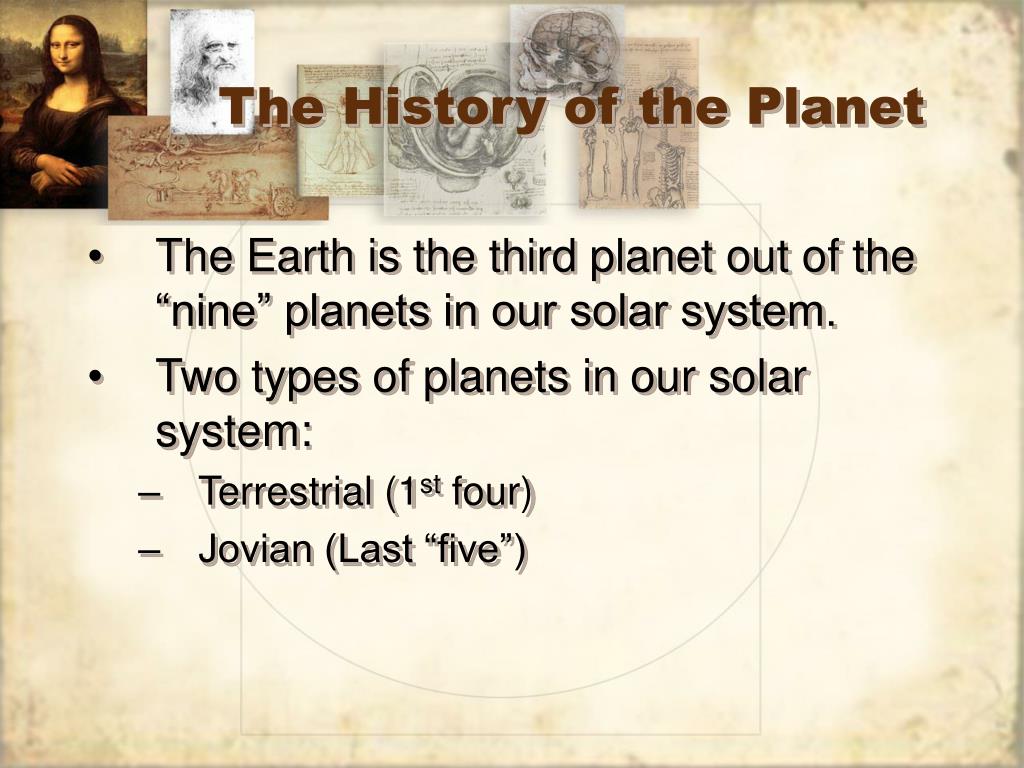

  3. The History of the Planet • The Earth is the third planet out of the “nine” planets in our solar system. • Two types of planets in our solar system: • Terrestrial (1st four) • Jovian (Last “five”)

  4. Interior Structure of the Earth • The Earth has a radius of about 6371 km, although it is about 22 km longer at equator than at poles. • Density, (mass/volume), Temperature, and Pressure increase with depth in the Earth.

  5. Interior Structure of the Earth • The Earth has a layered structure. • This layering can be viewed in two different ways: • Layers of different chemical composition • Layers of different physical composition

  6. Interior Structure of the Earth • Compositional Layering • Crust - variable thickness and composition • Continental 10 - 70 km thick • Oceanic 8 - 10 km thick • Mantle - 3488 km thick, made up of a rock called peridotite. • Core  - 2883 km radius, made up of Iron (Fe) with some Nickel (Ni)

  7. Interior Structure of the Earth • Layers of Differing Physical Properties • Lithosphere - about 100 km thick (up to 200 km thick beneath continents), very brittle, easily fractures at low temperature. • Asthenosphere  - about 250 km thick - solid rock, but  soft and flows easily (ductile). • Mesosphere - about 2500 km thick,  solid rock, but still capable of flowing. • Outer Core  - 2250 km thick, Fe and Ni,  liquid • Inner core  - 1230 km radius, Fe and Ni,  solid

  8. Minerals • Minerals are the building blocks of Rock. • A mineral is: • Naturally Formed (It forms on its own!) • Solid • With a definite chemical Composition • A Characteristic Crystalline Structure

  9. Examples of Minerals • Ice can be a mineral because of it’s solid form, it’s definite chemical Structure and crystalline structure • Halite is naturally formed salt.

  10. O, 45.2% by weight Si, 27.2% Al, 8.0% Fe, 5.8% Ca, 5.1% Mg, 2.8% Na, 2.3% K, 1.7% Ti, 0.9% H, 0.14% Mn, 0.1% P, 0.1% Important Minerals in Earth’s Crust The Variety of Minerals we see depend on the chemical elements available to form them. In the Earth’s Crust the most abundant elements are:

  11. Minerals in the Earth’s Crust • Because of the limited number of elements in the earth’s crust, there are only about 3000 minerals known. • Only 20 to 30 of these are common • The most common minerals are based on Si and O and are called Silicates.

  12. Formation of Minerals • Minerals are formed in nature by a variety of processes. Among them are: • Crystallization from melt • Precipitation of Water • Precipitation from living organisms • Change to a more stable state • Precipitation from vapor
