  1. Balek Lighting An integrated lighting system Bao Ngoc To1 and Malek Bessaad2 Health Systems Institute1, College of Architecture2, Georgia Institute of Technology, Atlanta GA 30332

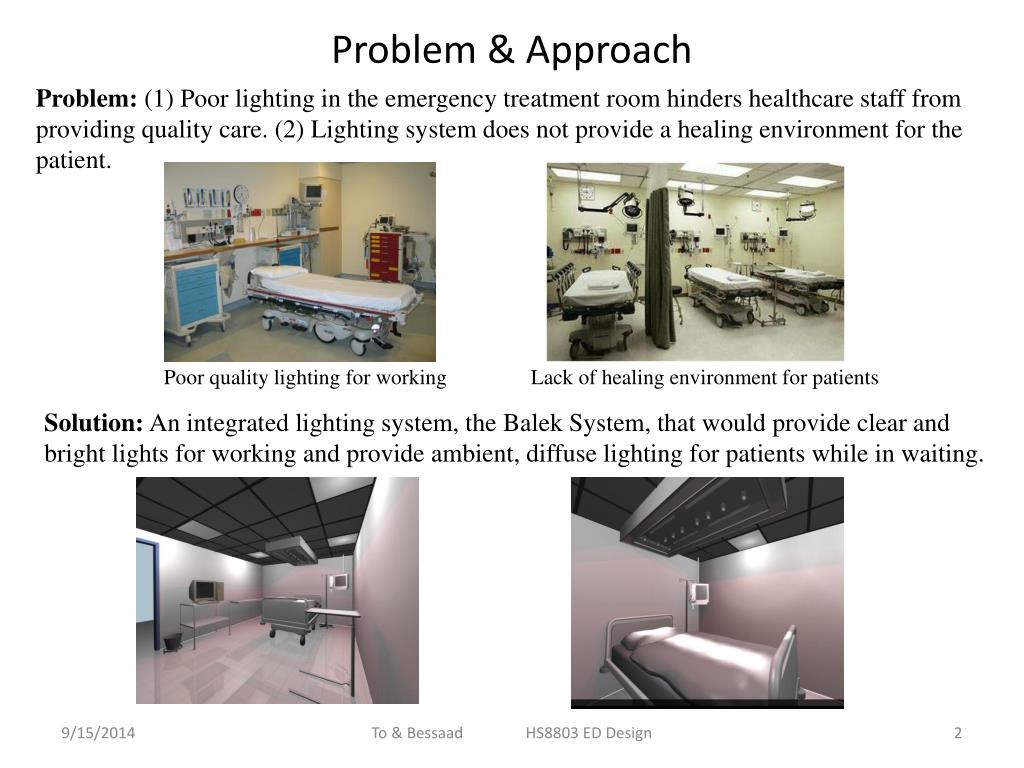

  2. Problem & Approach Problem: (1) Poor lighting in the emergency treatment room hinders healthcare staff from providing quality care. (2) Lighting system does not provide a healing environment for the patient. Poor quality lighting for working Lack of healing environment for patients Solution: An integrated lighting system, the Balek System, that would provide clear and bright lights for working and provide ambient, diffuse lighting for patients while in waiting. To & Bessaad HS8803 ED Design

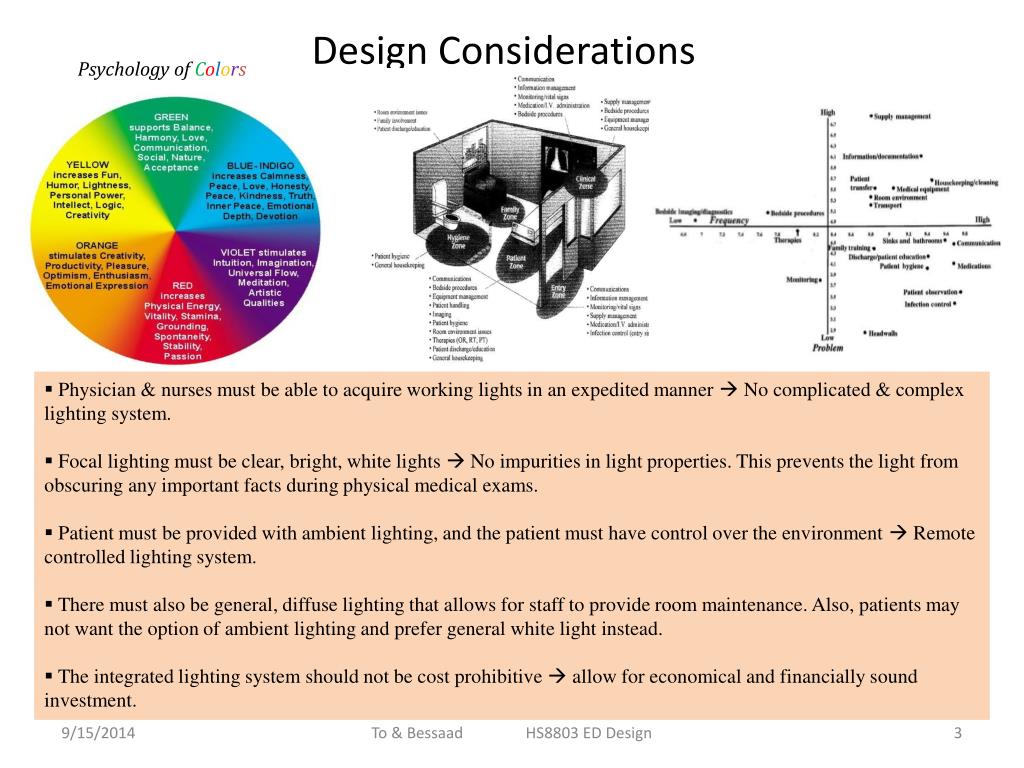

  3. Design Considerations Psychology of Colors • Physician & nurses must be able to acquire working lights in an expedited manner  No complicated & complex lighting system. • Focal lighting must be clear, bright, white lights  No impurities in light properties. This prevents the light from obscuring any important facts during physical medical exams. • Patient must be provided with ambient lighting, and the patient must have control over the environment  Remote controlled lighting system. • There must also be general, diffuse lighting that allows for staff to provide room maintenance. Also, patients may not want the option of ambient lighting and prefer general white light instead. • The integrated lighting system should not be cost prohibitive  allow for economical and financially sound investment. To & Bessaad HS8803 ED Design

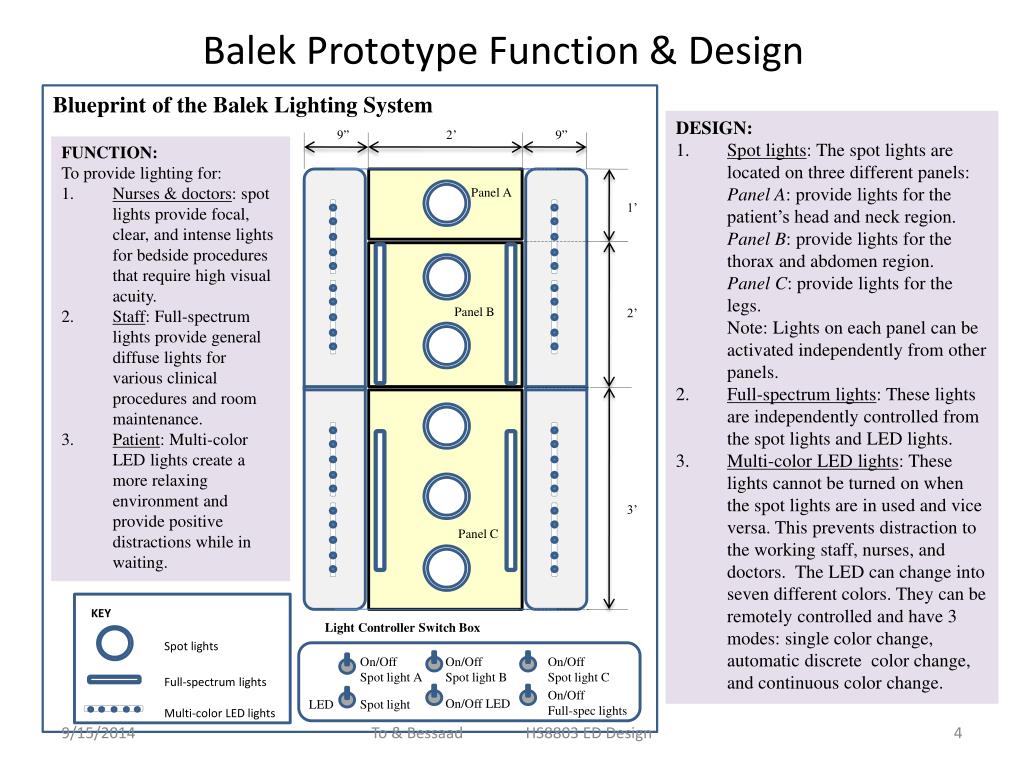

  4. Balek Prototype Function & Design Blueprint of the Balek Lighting System • DESIGN: • Spot lights: The spot lights are located on three different panels: • Panel A: provide lights for the patient’s head and neck region. • Panel B: provide lights for the thorax and abdomen region. • Panel C: provide lights for the legs. • Note: Lights on each panel can be activated independently from other panels. • 2. Full-spectrum lights: These lights are independently controlled from the spot lights and LED lights. • 3. Multi-color LED lights: These lights cannot be turned on when the spot lights are in used and vice versa. This prevents distraction to the working staff, nurses, and doctors. The LED can change into seven different colors. They can be remotely controlled and have 3 modes: single color change, automatic discrete color change, and continuous color change. • FUNCTION: • To provide lighting for: • Nurses & doctors: spot lights provide focal, clear, and intense lights for bedside procedures that require high visual acuity. • Staff: Full-spectrum lights provide general diffuse lights for various clinical procedures and room maintenance. • Patient: Multi-color LED lights create a more relaxing environment and provide positive distractions while in waiting. Light Controller Switch Box To & Bessaad HS8803 ED Design 9” 2’ 9” KEY 1’ Spot lights Full-spectrum lights Panel A Multi-color LED lights 2’ Panel B 3’ Panel C On/Off Spot light A On/Off Spot light C On/Off Spot light B On/Off Full-spec lights On/Off LED Spot light LED

  5. Balek Construction Expenses & Future Improvements Funding supported by: • Future Improvements • Implement RFID technology in place of spot lights. Allow for specific localized • lighting of points of interest. • Utilize Daylight and Full-Spectrum lighting technology to maximize healing capabilities from light source. • Improve ambient lighting with more research into effects of colors on socio-psychological health of patients. • Explore different geometric shapes & alternative materials for construction of system. • Explore different placement of light components. To & Bessaad HS8803 ED Design

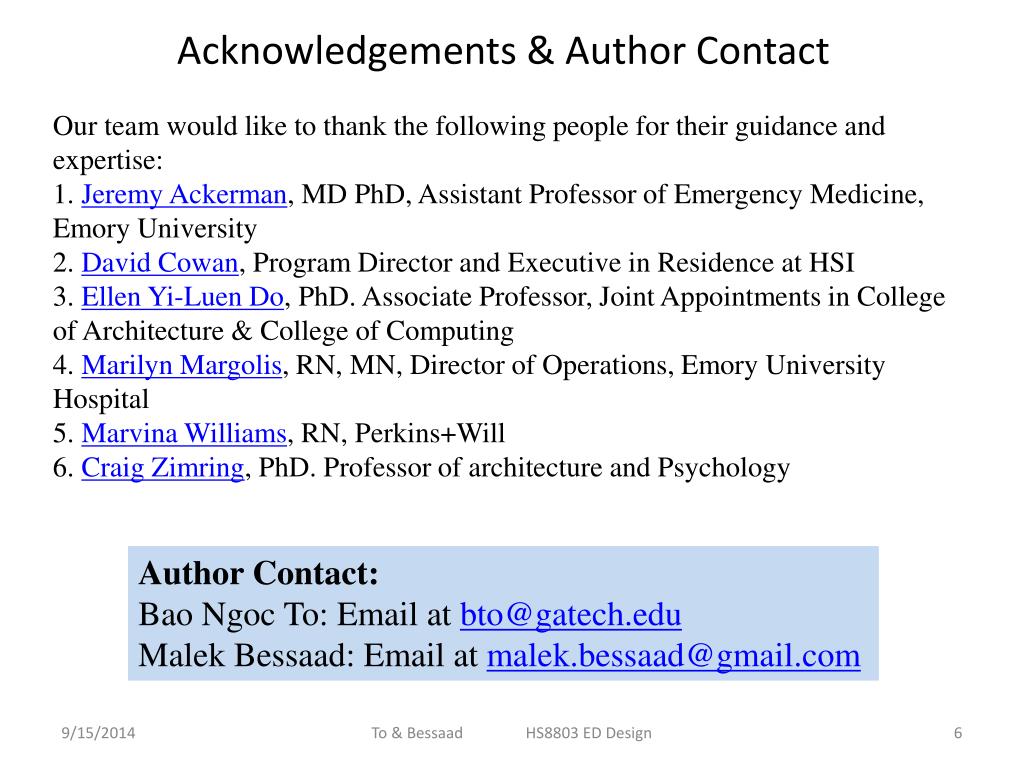

  6. Acknowledgements & Author Contact Our team would like to thank the following people for their guidance and expertise: 1. Jeremy Ackerman, MD PhD, Assistant Professor of Emergency Medicine, Emory University 2. David Cowan, Program Director and Executive in Residence at HSI 3. Ellen Yi-Luen Do, PhD. Associate Professor, Joint Appointments in College of Architecture & College of Computing 4. Marilyn Margolis, RN, MN, Director of Operations, Emory University Hospital 5. Marvina Williams, RN, Perkins+Will 6. Craig Zimring, PhD. Professor of architecture and Psychology Author Contact: Bao Ngoc To: Email at bto@gatech.edu MalekBessaad: Email at malek.bessaad@gmail.com To & Bessaad HS8803 ED Design
