Mcml implementation of gbps de multiplexer with dynamic power management

MCML Implementation of Gbps De-Multiplexer with Dynamic Power Management

Osman Abdulkarim

21 February 2005


  • MCML Power Management

  • Advantages

  • Disadvantages

  • Topologies

  • Dynamic Power management

  • Multiplexers/De-multiplexers

  • Proposal statement

  • References


Mos current mode logic

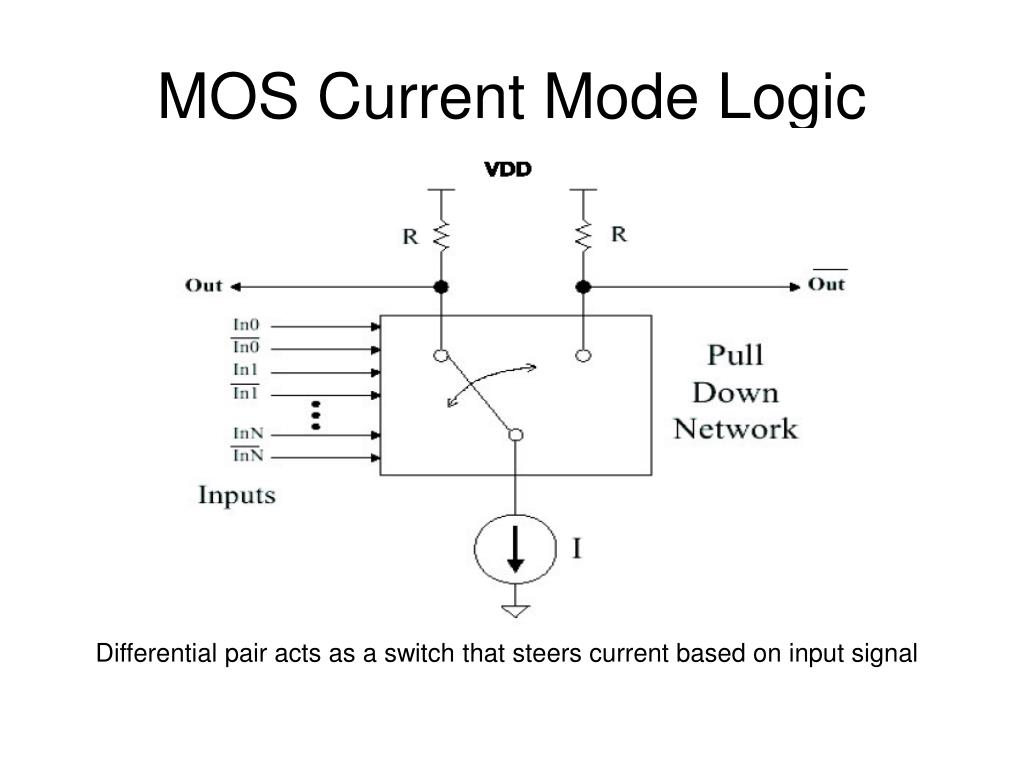

MOS Current Mode Logic Power Management

Differential pair acts as a switch that steers current based on input signal


Advantages of mcml
Advantages of MCML Power Management

  • SPEED

    ∆V = Vdd – IR, Typically 0.3 ~ 0.4 V

  • NOISE IMMUNITY

    Common Mode Rejection

  • Differential Signal  No need for Inverters


Disadvantages
Disadvantages Power Management

  • Static Power Dissipation

    P = Vdd . I

  • Hard to design and optimize

    Design Considerations include:

    -Load Biasing and sizing

    -Diff-pairs and current sink

    -Minimum Swing for compete steering


Threshold fluctuation tolerant mcml

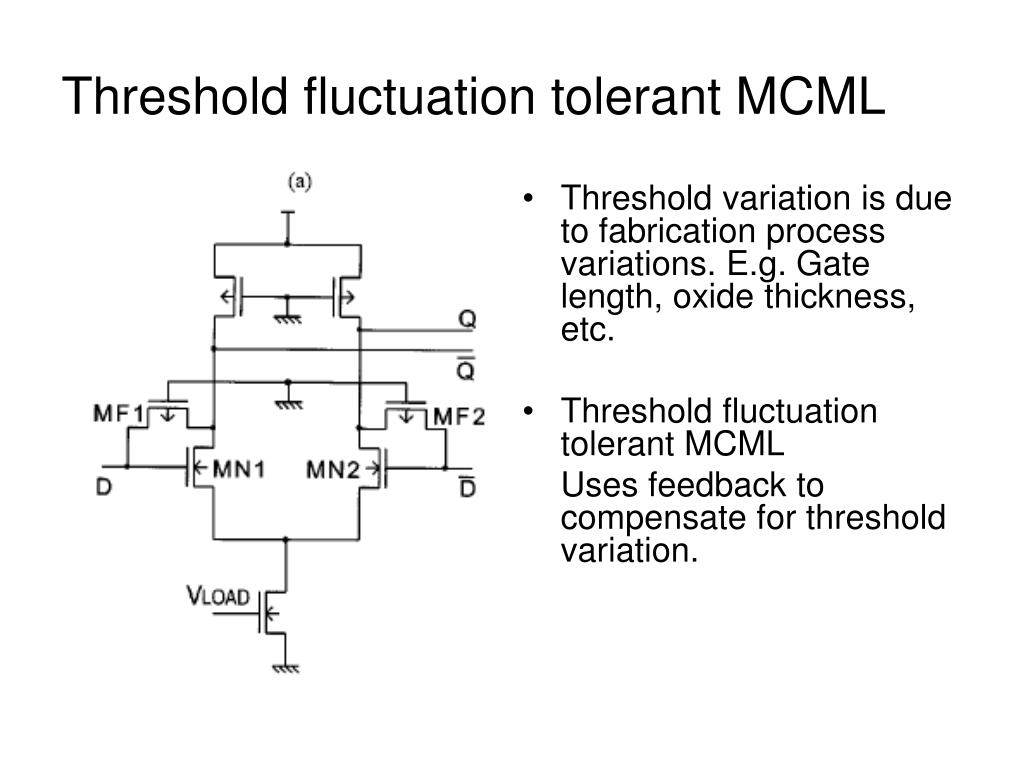

Threshold fluctuation tolerant MCML Power Management

  • Threshold variation is due to fabrication process variations. E.g. Gate length, oxide thickness, etc.

  • Threshold fluctuation tolerant MCML

    Uses feedback to compensate for threshold variation.

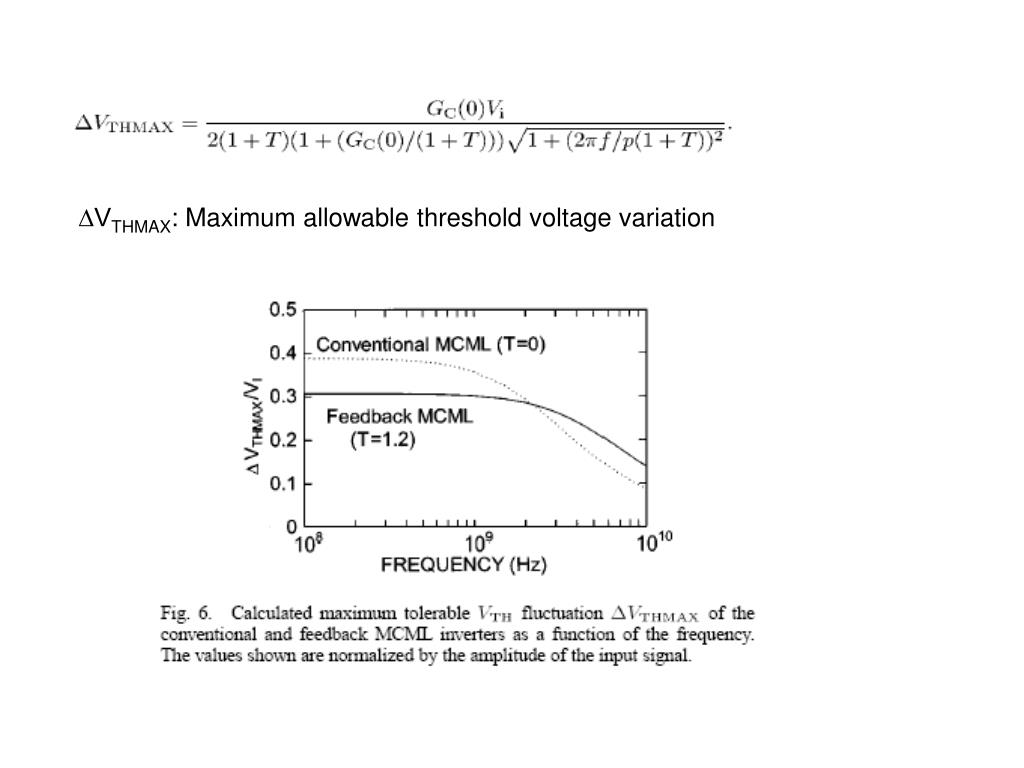

∆V Power Management THMAX: Maximum allowable threshold voltage variation


Dynamic cml

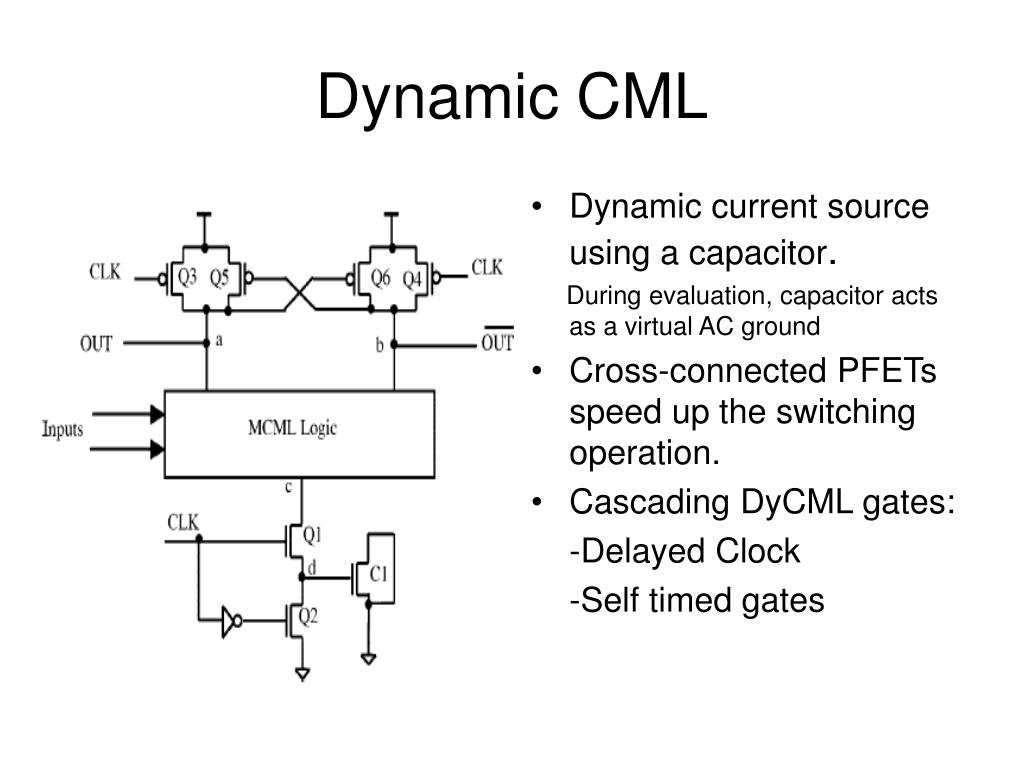

Dynamic CML Power Management

  • Dynamic current source using a capacitor.

    During evaluation, capacitor acts as a virtual AC ground

  • Cross-connected PFETs speed up the switching operation.

  • Cascading DyCML gates:

    -Delayed Clock

    -Self timed gates


Dynamic power management amcml

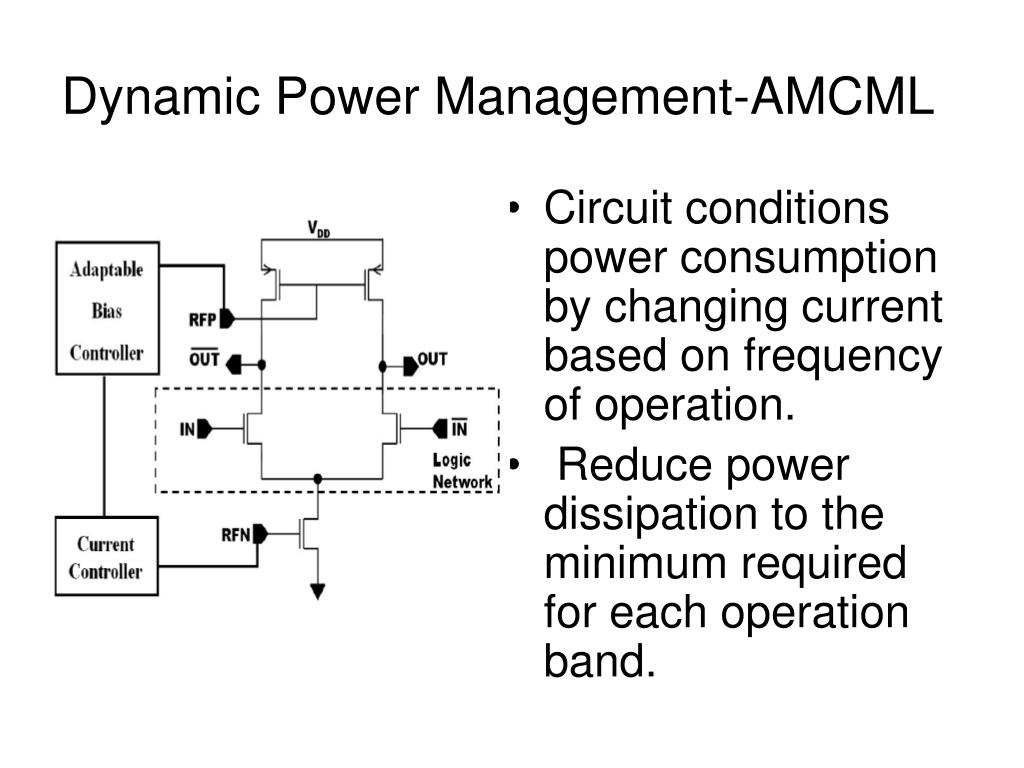

Dynamic Power Management-AMCML Power Management

  • Circuit conditions power consumption by changing current based on frequency of operation.

  • Reduce power dissipation to the minimum required for each operation band.


De multiplexers
De-Multiplexers Power Management

  • De-Multiplexers convert a serial bit stream into a parallel word format.

  • Used in serial communication systems

  • Can be modeled using shift registers, switches or D-Latches


2 1 demux
2:1 DeMUX Power Management


Proposal statement

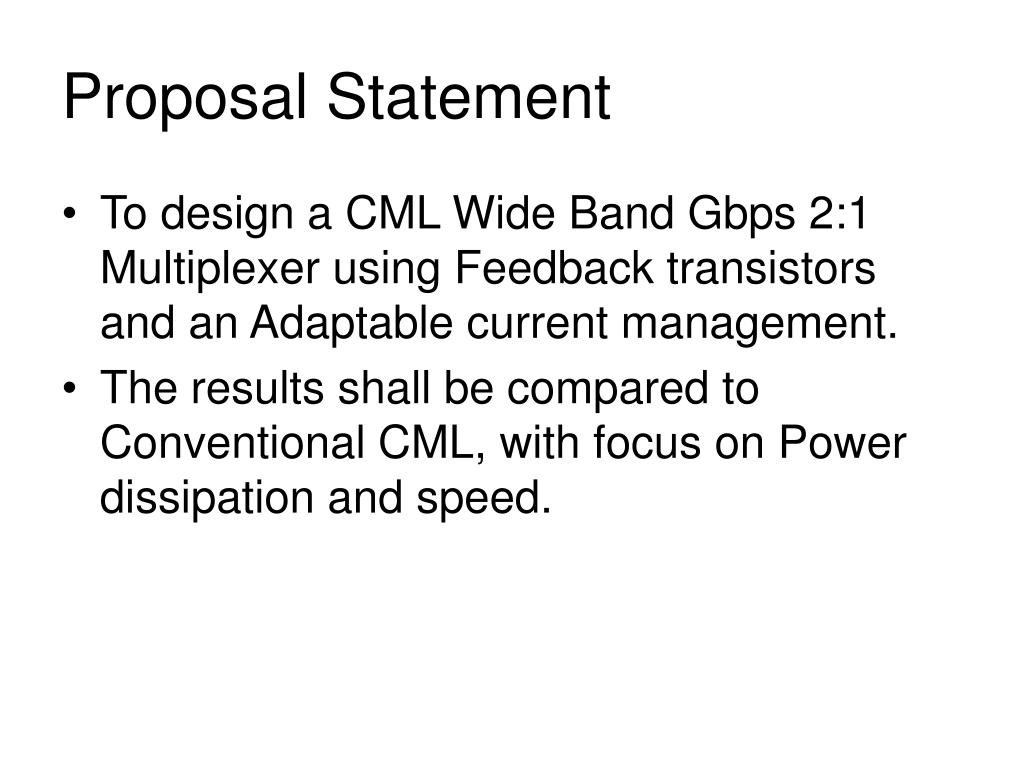

Proposal Statement Power Management

  • To design a CML Wide Band Gbps 2:1 Multiplexer using Feedback transistors and an Adaptable current management.

  • The results shall be compared to Conventional CML, with focus on Power dissipation and speed.


Time table
Time Table Power Management

  • Feb, 16

    Project Proposal

  • Feb, 16 – Mar, 1

    Research: Accumulate information on MCML, threshold voltage fluctuation theory and its effect on MCL switching speed. Define the problem, the performance requirements, the testing methodology and performance indicators measurement.

  • Mar, 1 – Mar, 25

    Circuit design and simulation

  • Mar, 25 – April 1

    Project Presentation

  • April 1 – April 25

    Simulation results recording and analysis. Conclusions and suggestions. Comprehensive report.


References

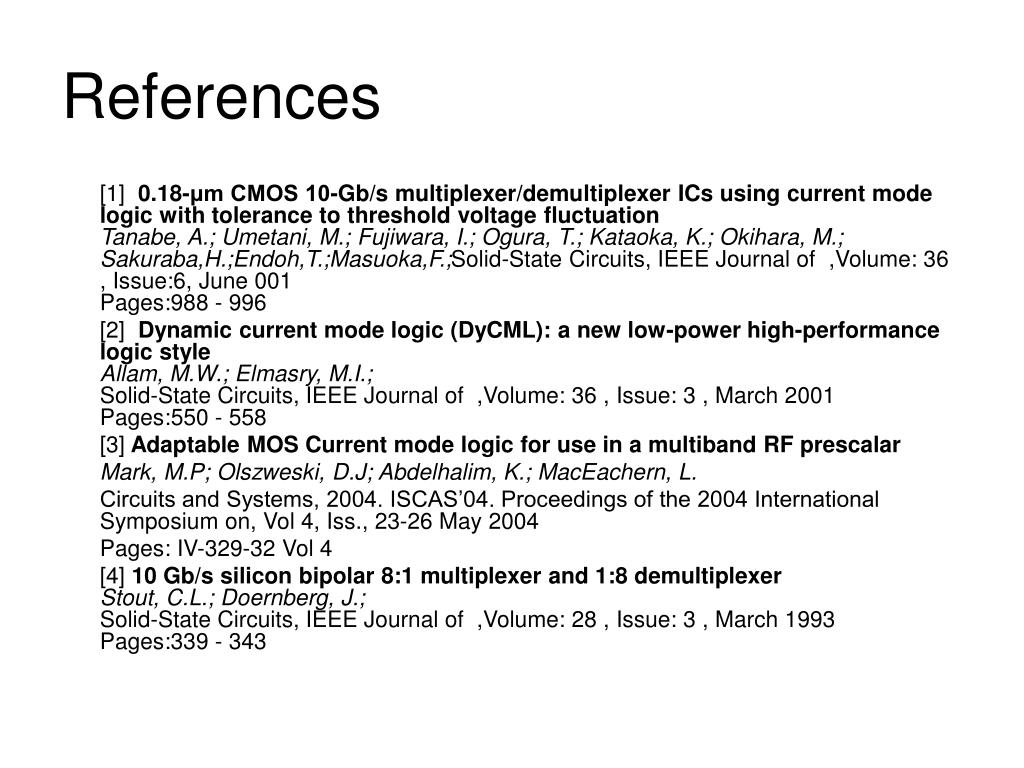

References Power Management

[1]  0.18-μm CMOS 10-Gb/s multiplexer/demultiplexer ICs using current mode logic with tolerance to threshold voltage fluctuationTanabe, A.; Umetani, M.; Fujiwara, I.; Ogura, T.; Kataoka, K.; Okihara, M.; Sakuraba,H.;Endoh,T.;Masuoka,F.;Solid-State Circuits, IEEE Journal of  ,Volume: 36 , Issue:6, June 001 Pages:988 - 996

[2]  Dynamic current mode logic (DyCML): a new low-power high-performance logic styleAllam, M.W.; Elmasry, M.I.;Solid-State Circuits, IEEE Journal of  ,Volume: 36 , Issue: 3 , March 2001 Pages:550 - 558

[3] Adaptable MOS Current mode logic for use in a multiband RF prescalar

Mark, M.P; Olszweski, D.J; Abdelhalim, K.; MacEachern, L.

Circuits and Systems, 2004. ISCAS’04. Proceedings of the 2004 International Symposium on, Vol 4, Iss., 23-26 May 2004

Pages: IV-329-32 Vol 4

[4] 10 Gb/s silicon bipolar 8:1 multiplexer and 1:8 demultiplexerStout, C.L.; Doernberg, J.;Solid-State Circuits, IEEE Journal of  ,Volume: 28 , Issue: 3 , March 1993 Pages:339 - 343
