sockets

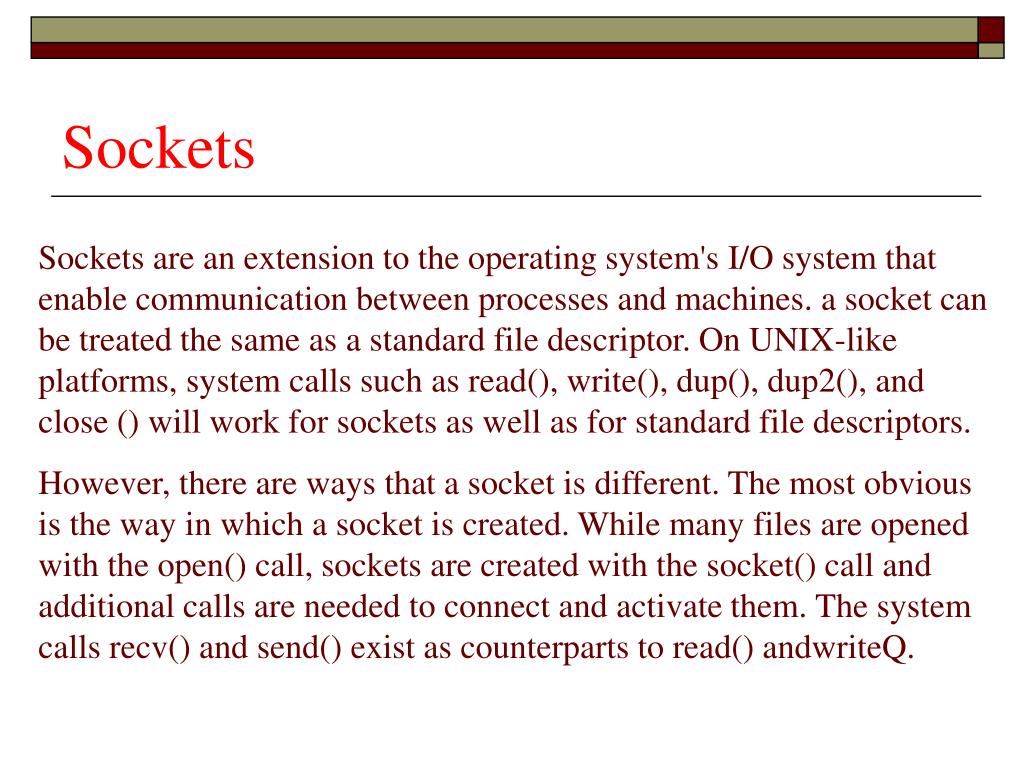

Sockets

Sockets are an extension to the operating system's I/O system that enable communication between processes and machines. a socket can be treated the same as a standard file descriptor. On UNIX-like platforms, system calls such as read(), write(), dup(), dup2(), and close () will work for sockets as well as for standard file descriptors.

However, there are ways that a socket is different. The most obvious is the way in which a socket is created. While many files are opened with the open() call, sockets are created with the socket() call and additional calls are needed to connect and activate them. The system calls recv() and send() exist as counterparts to read() andwriteQ.

sockets1
Sockets
  • The protocol family is typically either SOCK_STREAM for TCP communications or SOCK_DGRAM for UDP communications. For a TCP connection, creating a socket generally uses code like this:

s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)

  • To connect the socket, you'll generally need to provide a tuple containing the remote hostname or IP address and the remote port. Connecting a socket typically looks like this:

s.connect(("www.example.com", 80))

sockets program 01

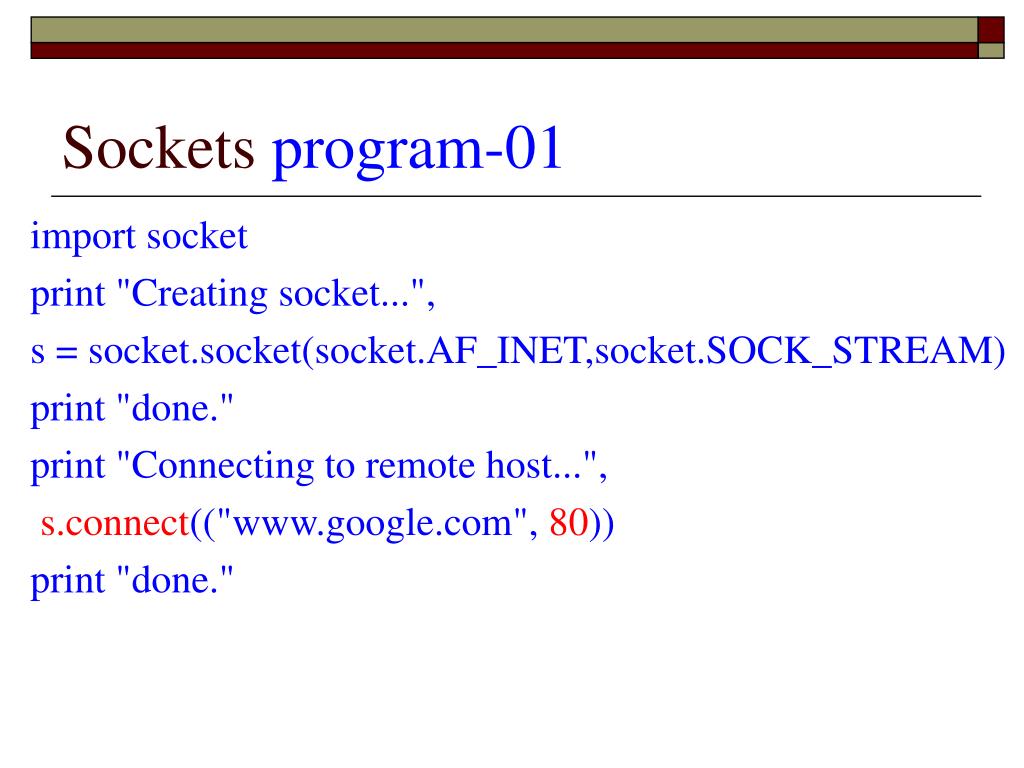

Sockets program-01

import socket

print "Creating socket...",

s = socket.socket(socket.AF_INET,socket.SOCK_STREAM)

print "done."

print "Connecting to remote host...",

s.connect(("www.google.com", 80))

print "done."

sockets program 02
Sockets program-02

import socket

print "Creating socket...",

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

print "done."

print "Looking up port number...",

port = socket.getservbyname('http', 'tcp')

print "done."

print "Connecting to remote host on port %d..." % port,

s.connect(("www.google.com", port))

print "done."

sockets program 03

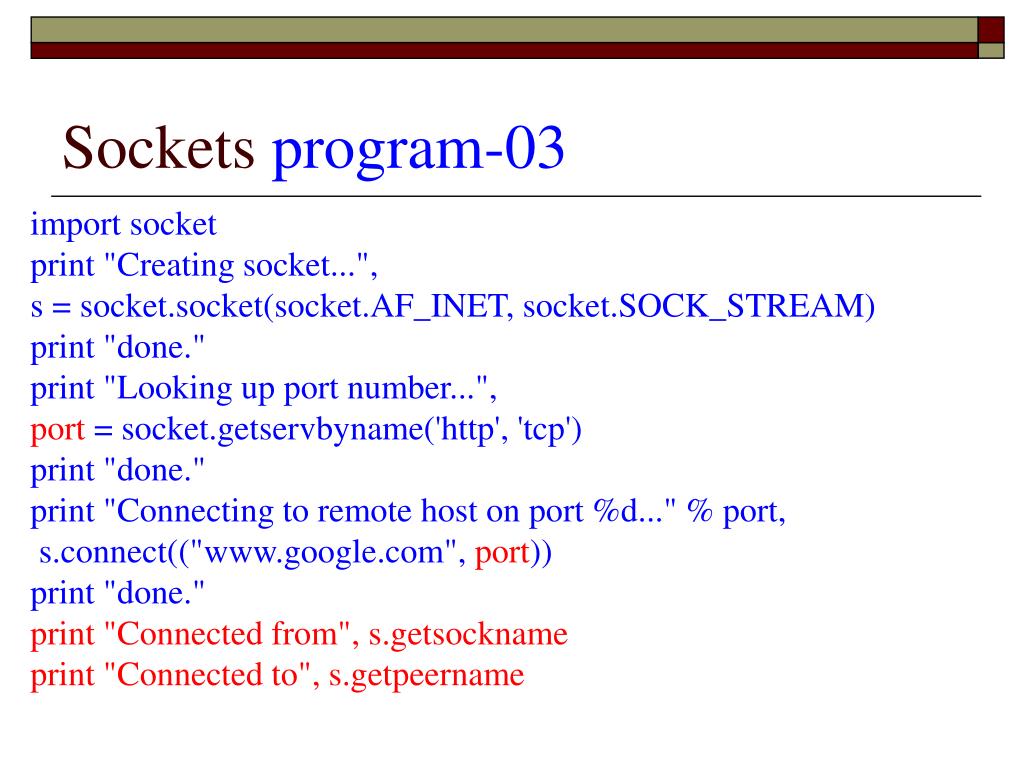

Sockets program-03

import socket

print "Creating socket...",

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

print "done."

print "Looking up port number...",

port = socket.getservbyname('http', 'tcp')

print "done."

print "Connecting to remote host on port %d..." % port,

s.connect(("www.google.com", port))

print "done."

print "Connected from", s.getsockname

print "Connected to", s.getpeername

socket errors

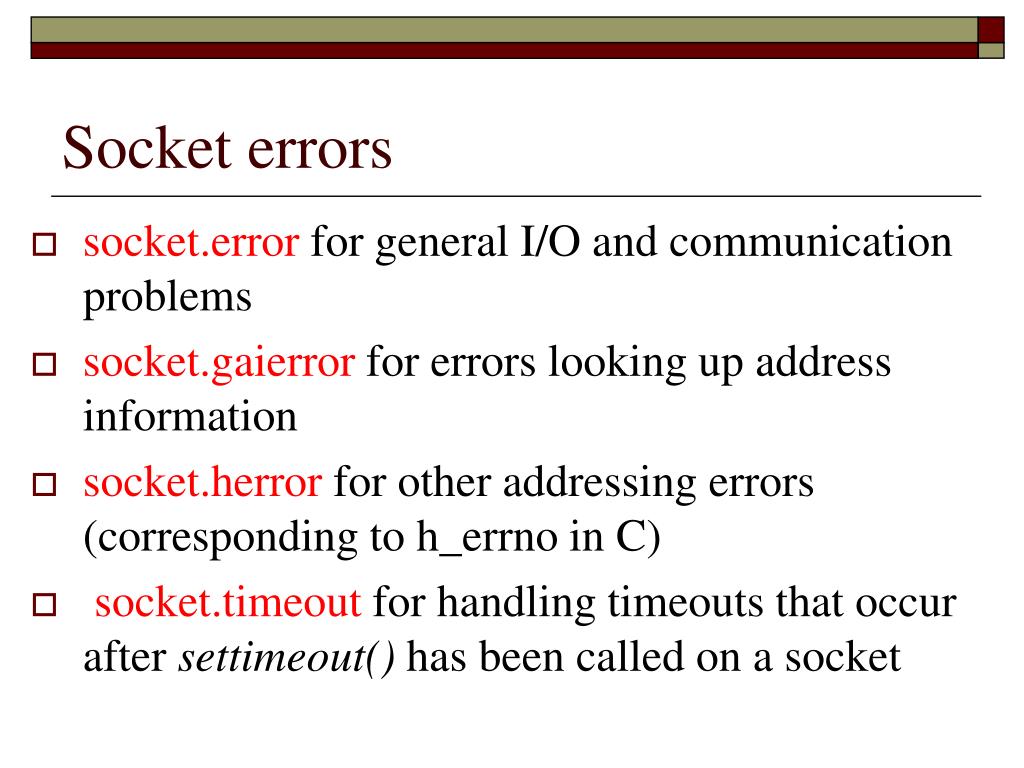

Socket errors
  • socket.error for general I/O and communication problems
  • socket.gaierror for errors looking up address information
  • socket.herror for other addressing errors (corresponding to h_errno in C)
  • socket.timeout for handling timeouts that occur after settimeout() has been called on a socket
socket errors example
Socket errors - example

import socket, sys, time

host = sys.argv[i]

textport = sys.argv[2]

filename = sys.argv[3]

try:

s = socket.socket(socket.AF_INET,\ socket.SOCK_STREAM)

except socket.error, e:

print "Strange error creating \

socket: %s" % e sys.exit(1)
