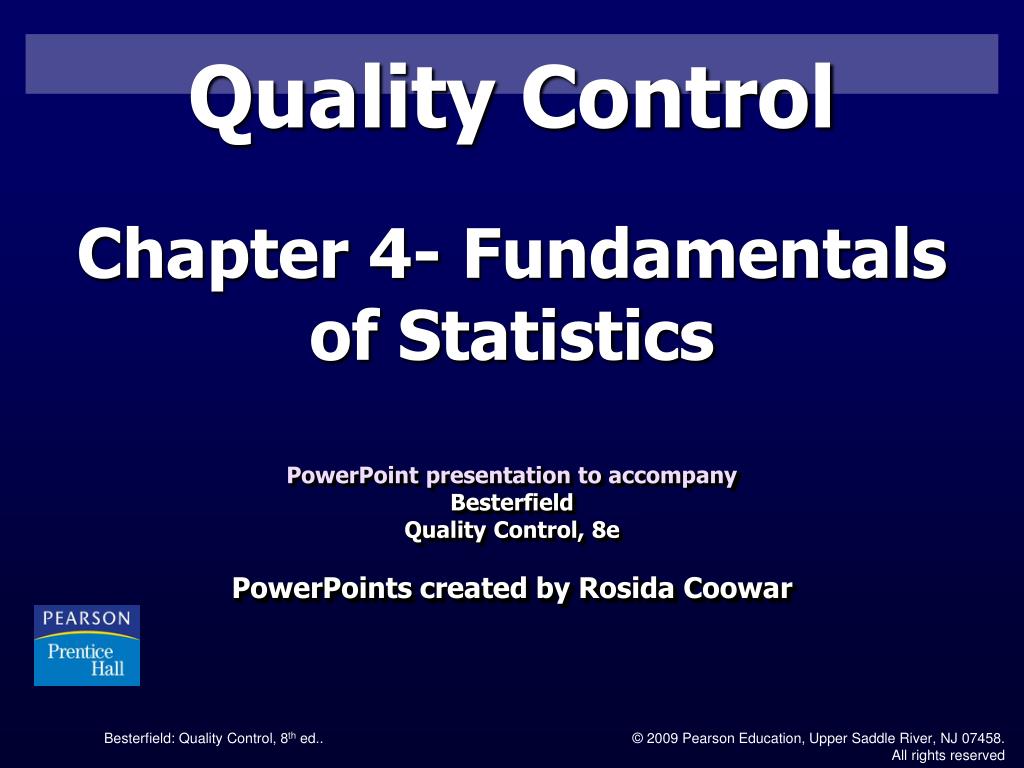

  1. Quality Control Chapter 4- Fundamentals of Statistics PowerPoint presentation to accompany Besterfield Quality Control, 8e PowerPoints created by Rosida Coowar

  2. Outline Introduction Frequency Distribution Measures of Central Tendency Measures of Dispersion

  3. Outline-Continued Other Measures Concept of a Population and Sample The Normal Curve Tests for Normality

  4. Introduction Definition of Statistics: • A collection of quantitative data pertaining to a subject or group. Examples are blood pressure statistics etc. • The science that deals with the collection, tabulation, analysis, interpretation, and presentation of quantitative data

  5. Introduction Two phases of statistics: • Descriptive Statistics: • Describes the characteristics of a product or process using information collected on it. • Inferential Statistics (Inductive): • Draws conclusions on unknown process parameters based on information contained in a sample. • Uses probability

  6. Collection of Data Types of Data: Attribute: Discrete data. Data values can only be integers. Counted data or attribute data. Examples include: • How many of the products are defective? • How often are the machines repaired? • How many people are absent each day?

  7. Collection of Data – Cont’d. Types of Data: Attribute: Discrete data. Data values can only be integers. Counted data or attribute data. Examples include: • How many days did it rain last month? • What kind of performance was achieved? • Number of defects, defectives

  8. Collection of Data Types of Data: Variable: Continuous data. Data values can be any real number. Measured data. Examples include: • How long is each item? • How long did it take to complete the task? • What is the weight of the product? • Length, volume, time

  9. Precision and Accuracy Precision The precision of a measurement is determined by how reproducible that measurement value is. For example if a sample is weighed by a student to be 42.58 g, and then measured by another student five different times with the resulting data: 42.09 g, 42.15 g, 42.1 g, 42.16 g, 42.12 g Then the original measurement is not very precise since it cannot be reproduced.

  10. Precision and Accuracy Accuracy • The accuracy of a measurement is determined by how close a measured value is to its “true” value. • For example, if a sample is known to weigh 3.182 g, then weighed five different times by a student with the resulting data: 3.200 g, 3.180 g, 3.152 g, 3.168 g, 3.189 g • The most accurate measurement would be 3.180 g, because it is closest to the true “weight” of the sample.

  11. Precision and Accuracy Figure 4-1 Difference between accuracy and precision

  12. DescribingData • Frequency Distribution • Measures of Central Tendency • Measures of Dispersion

  13. Frequency Distribution • Ungrouped Data • Grouped Data

  14. Frequency Distribution 2-7 There are three types of frequency distributions • Categorical frequency distributions • Ungrouped frequency distributions • Grouped frequency distributions

  15. Categorical 2-7 Categorical frequency distributions • Can be used for data that can be placed in specific categories, such as nominal- or ordinal-level data. • Examples - political affiliation, religious affiliation, blood type etc.

  16. Categorical Example :Blood Type Frequency Distribution 2-8

  17. Ungrouped 2-9 Ungrouped frequency distributions • Ungrouped frequency distributions - can be used for data that can be enumerated and when the range of values in the data set is not large. • Examples - number of miles your instructors have to travel from home to campus, number of girls in a 4-child family etc.

  18. Ungrouped Example :Number of Miles Traveled 2-10

  19. Grouped 2-11 • Grouped frequency distributions • Can be used when the range of values in the data set is very large. The data must be grouped into classes that are more than one unit in width. • Examples - the life of boat batteries in hours.

  20. Grouped Example: Lifetimes of Boat Batteries 2-12 Class Class Frequency Cumulative limits Boundaries frequency 24 - 37 23.5 - 37.5 4 4 38 - 51 37.5 - 51.5 14 18 52 - 65 51.5 - 65.5 7 25

  21. Frequency Distributions Table 4-3 Different Frequency Distributions of Data Given in Table 4-1

  22. Frequency Histogram

  23. Relative Frequency Histogram

  24. Cumulative Frequency Histogram

  25. The Histogram The histogram is the most important graphical tool for exploring the shape of data distributions. Check: http://quarknet.fnal.gov/toolkits/ati/histograms.html for the construction ,analysis and understanding of histograms

  26. Constructing a Histogram The Fast Way Step 1: Find range of distribution, largest - smallest values Step 2: Choose number of classes, 5 to 20 Step 3: Determine width of classes, one decimal place more than the data, class width = range/number of classes Step 4: Determine class boundaries Step 5: Draw frequency histogram

  27. Constructing a Histogram Number of groups or cells • If no. of observations < 100 – 5 to 9 cells • Between 100-500 – 8 to 17 cells • Greater than 500 – 15 to 20 cells

  28. Constructing a Histogram For a more accurate way of drawing a histogram see the section on grouped data in your textbook

  29. Other Types of Frequency Distribution Graphs • Bar Graph • Polygon of Data • Cumulative Frequency Distribution or Ogive

  30. Bar Graph and Polygon of Data

  31. Cumulative Frequency

  32. Characteristics of FrequencyDistribution Graphs Figure 4-6 Characteristics of frequency distributions

  33. Analysis of Histograms Figure 4-7 Differences due to location, spread, and shape

  34. Analysis of Histograms Figure 4-8 Histogram of Wash Concentration

  35. Measures of Central Tendency The three measures in common use are the: • Average • Median • Mode

  36. Average There are three different techniques available for calculating the average three measures in common use are the: • Ungrouped data • Grouped data • Weighted average

  37. Average-Ungrouped Data

  38. Average-Grouped Data h = number of cells fi=frequency Xi=midpoint

  39. Average-Weighted Average Used when a number of averages are combined with different frequencies

  40. Median-Grouped Data Lm=lower boundary of the cell with the median N=total number of observations Cfm=cumulative frequency of all cells below m Fm=frequency of median cell i=cell interval

  41. Example Problem Table 4-7 Frequency Distribution of the Life of 320 tires in 1000 km

  42. Median-Grouped Data Using data from Table 4-7

  43. Mode The Mode is the value that occurs with the greatest frequency. It is possible to have no modes in a series or numbers or to have more than one mode.

  44. Relationship Among theMeasures of Central Tendency Figure 4-9 Relationship among average, median and mode

  45. Measures of Dispersion • Range • Standard Deviation • Variance

  46. Measures of Dispersion-Range The range is the simplest and easiest to calculate of the measures of dispersion. Range = R = Xh - Xl • Largest value - Smallest value in data set

  47. Measures of Dispersion-Standard Deviation Sample Standard Deviation:

  48. Standard Deviation Ungrouped Technique

  49. Standard Deviation Grouped Technique

  50. Relationship Between the Measures of Dispersion • As n increases, accuracy of R decreases • Use R when there is small amount of data or data is too scattered • If n> 10 use standard deviation • A smaller standard deviation means better quality
