StratusLab Client Installation Tutorial for Cloud Infrastructure (Hanoi)

DESCRIPTION

This tutorial guides you through the installation of the StratusLab client to access cloud infrastructure. You can test StratusLab without installation, just request an account at support@stratuslab.eu. You'll need Python 2.6+, Java 1.6+, and an SSH client. Install the client via the provided OS-independent tarball, configure necessary environment variables, and authenticate using an SSH keypair. The endpoint for this tutorial is cloud-lal.stratuslab.eu. Follow the steps to configure and verify your setup.

1 / 8

Download Presentation

StratusLab Client Installation Tutorial for Cloud Infrastructure (Hanoi)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

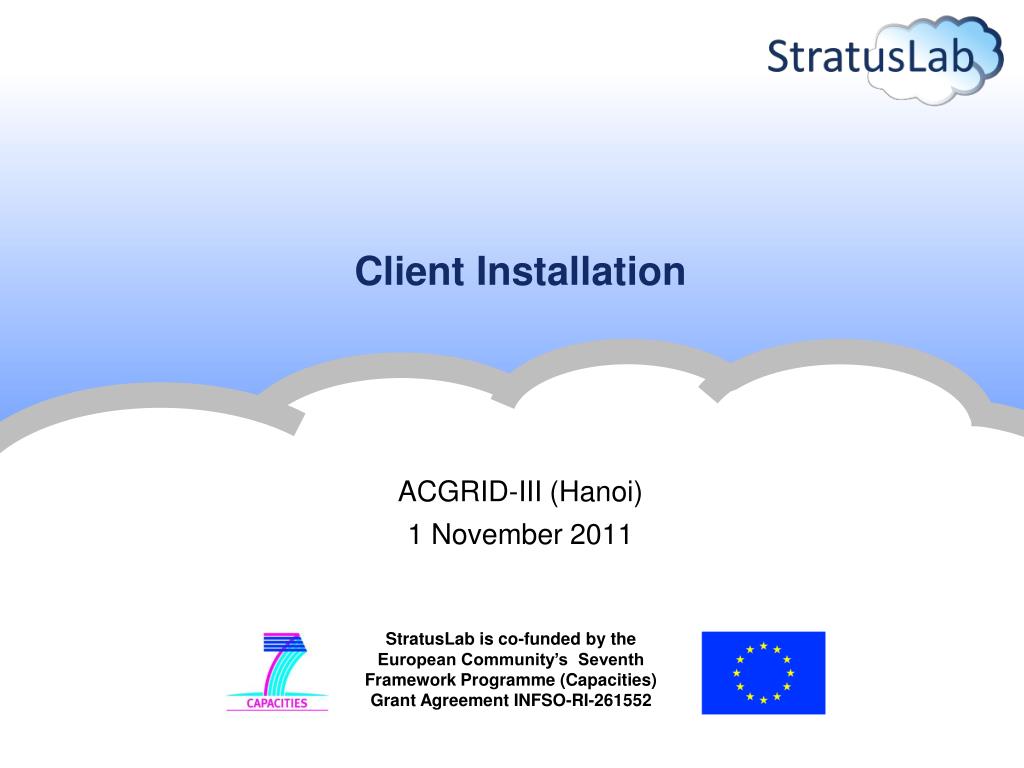

  1. Client Installation • ACGRID-III (Hanoi) • 1 November 2011

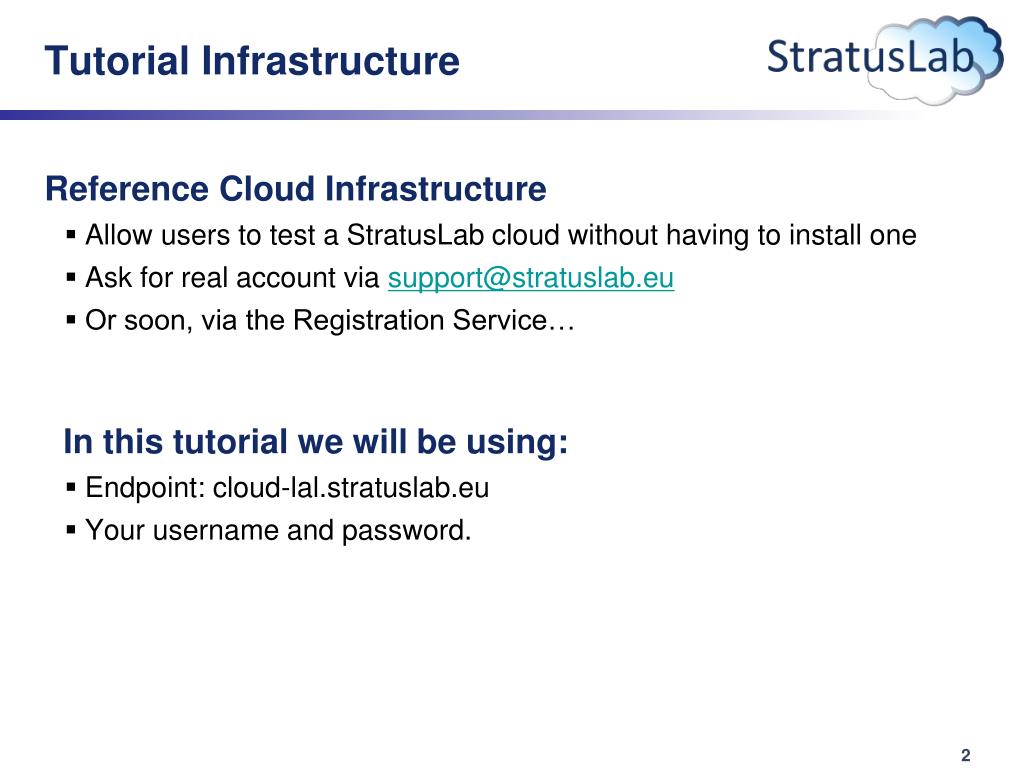

  2. Tutorial Infrastructure • Reference Cloud Infrastructure • Allow users to test a StratusLab cloud without having to install one • Ask for real account via support@stratuslab.eu • Or soon, via the Registration Service… • In this tutorial we will be using: • Endpoint: cloud-lal.stratuslab.eu • Your username and password.

  3. Prerequisites • Client allows remote access and control of VMs in cloud. • Client has minimal prerequisites: • Python 2.6+ (but not Python 3.x) • Java 1.6+ (for metadata signatures/validation) • SSH client with user keypair • Certificate (grid is OK) for signing image metadata entries • Support for multiple platforms: • Fedora 14(tarball and RPM package) • Other linux systems (tarball) • Mac OSX (tarball) • Windows (tarball)

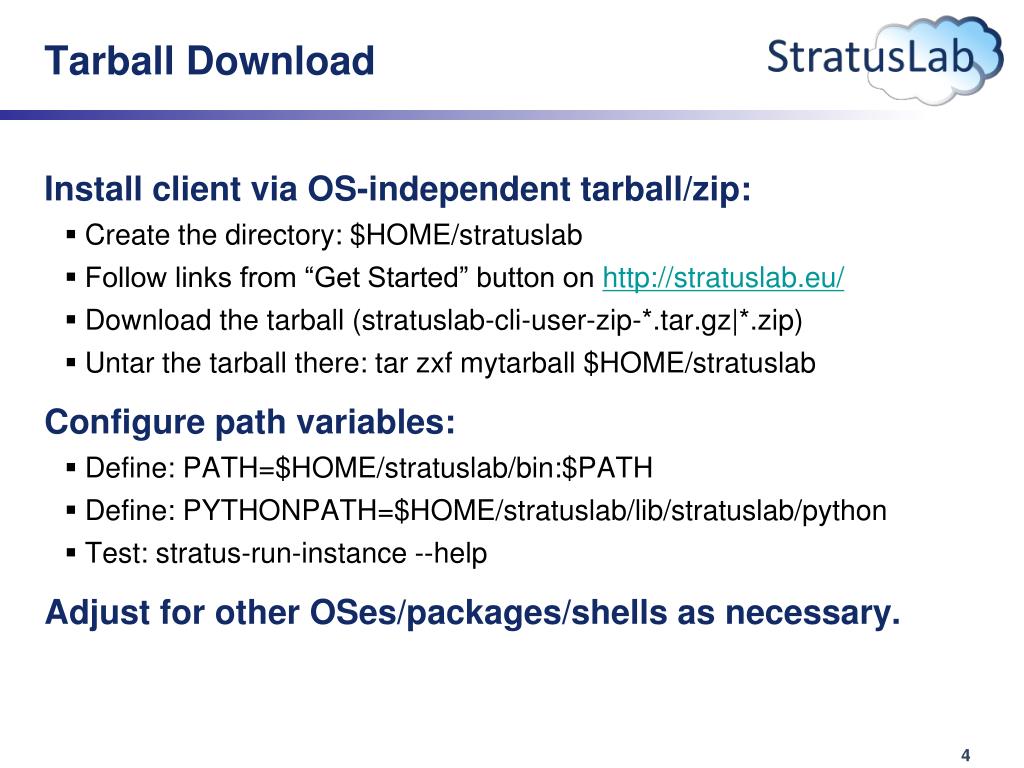

  4. Tarball Download • Install client via OS-independent tarball/zip: • Create the directory: $HOME/stratuslab • Follow links from “Get Started” button on http://stratuslab.eu/ • Download the tarball (stratuslab-cli-user-zip-*.tar.gz|*.zip) • Untar the tarball there: tar zxfmytarball $HOME/stratuslab • Configure path variables: • Define: PATH=$HOME/stratuslab/bin:$PATH • Define: PYTHONPATH=$HOME/stratuslab/lib/stratuslab/python • Test: stratus-run-instance --help • Adjust for other OSes/packages/shells as necessary.

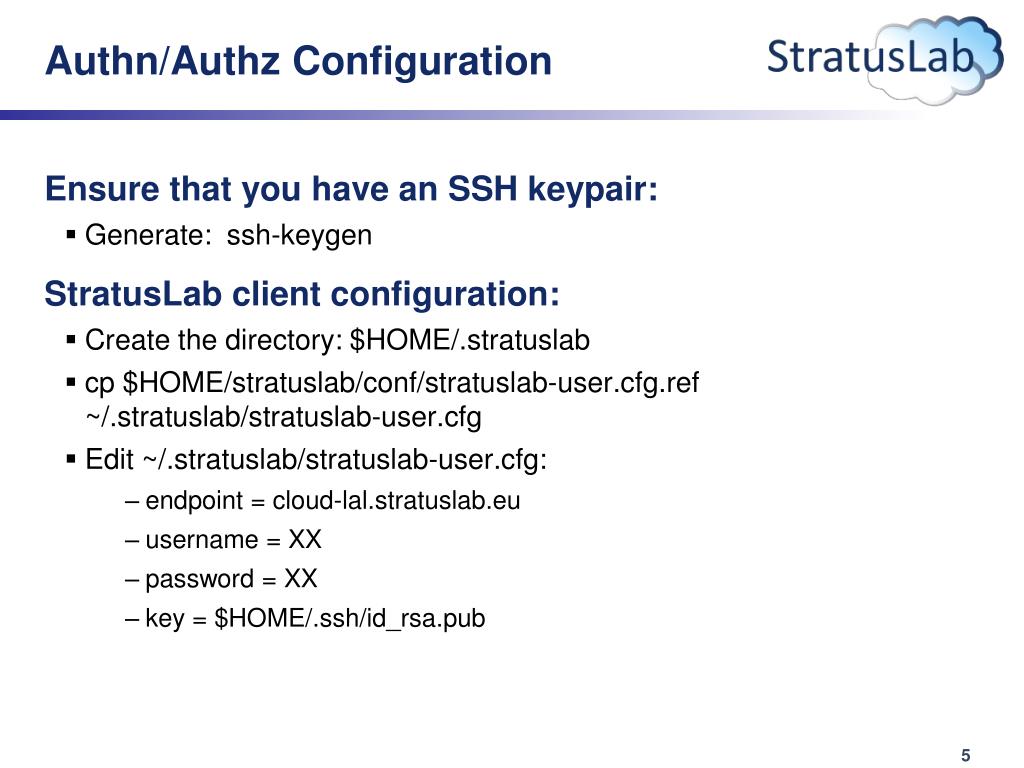

  5. Authn/Authz Configuration • Ensure that you have an SSH keypair: • Generate: ssh-keygen • StratusLab client configuration: • Create the directory: $HOME/.stratuslab • cp $HOME/stratuslab/conf/stratuslab-user.cfg.ref ~/.stratuslab/stratuslab-user.cfg • Edit ~/.stratuslab/stratuslab-user.cfg: • endpoint = cloud-lal.stratuslab.eu • username = XX • password = XX • key = $HOME/.ssh/id_rsa.pub

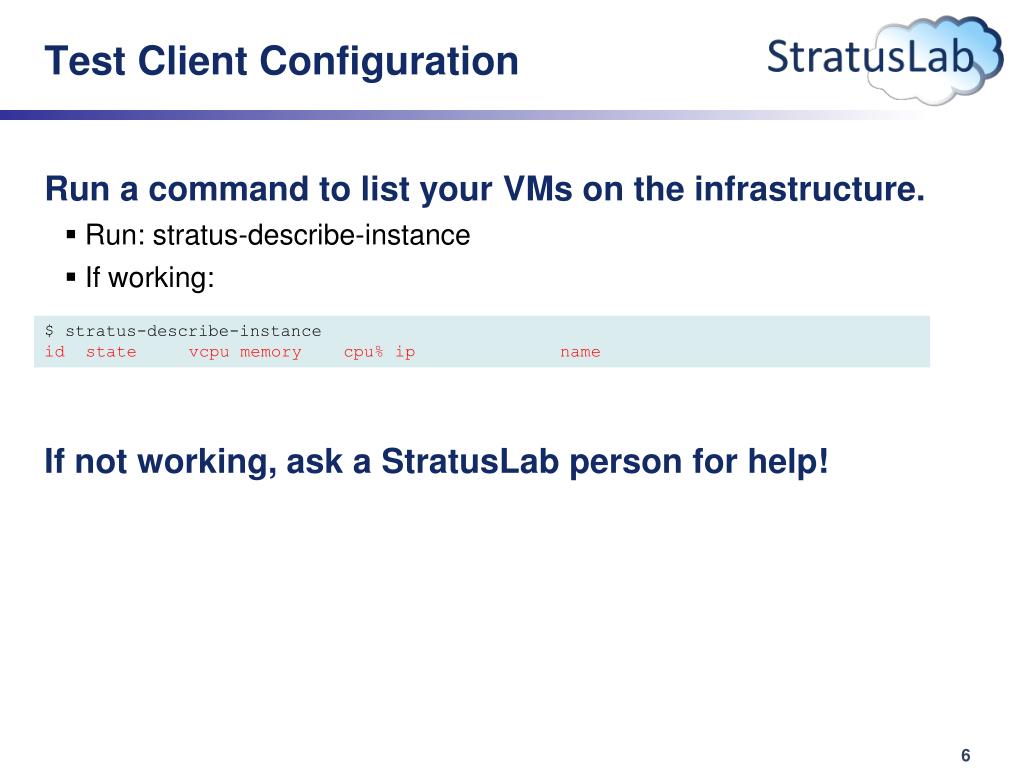

  6. Test Client Configuration • Run a command to list your VMs on the infrastructure. • Run: stratus-describe-instance • If working: • If not working, ask a StratusLab person for help! $ stratus-describe-instance id state vcpu memory cpu% ip name

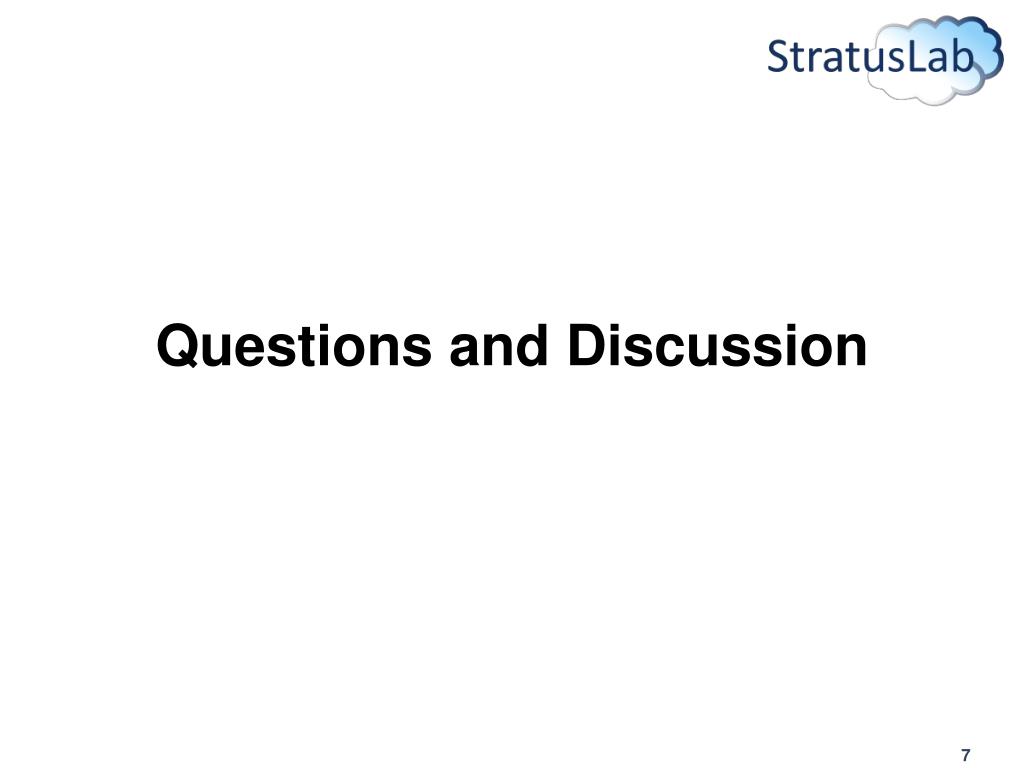

  7. Questions and Discussion
