Presentation Transcript

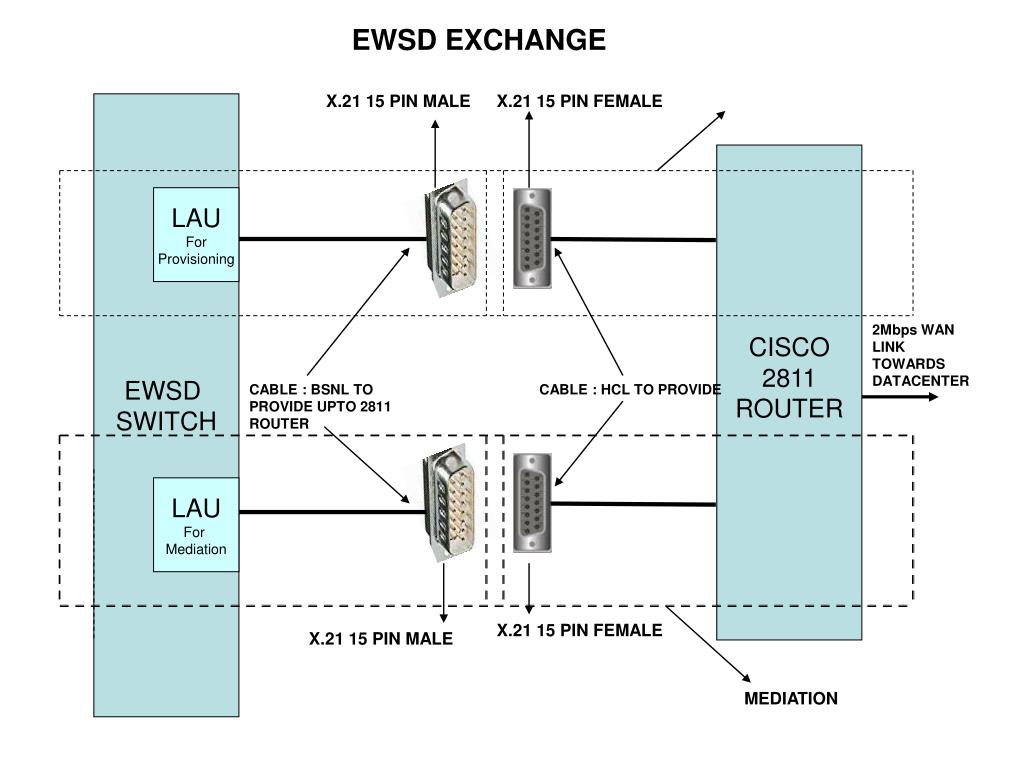

slide1

X.21 15 PIN MALE

X.21 15 PIN FEMALE

EWSD

SWITCH

CISCO

2811

ROUTER

LAU

For

Provisioning

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

LAU

For

Mediation

X.21 15 PIN FEMALE

X.21 15 PIN MALE

EWSD EXCHANGE

2Mbps WAN LINK TOWARDS DATACENTER

MEDIATION

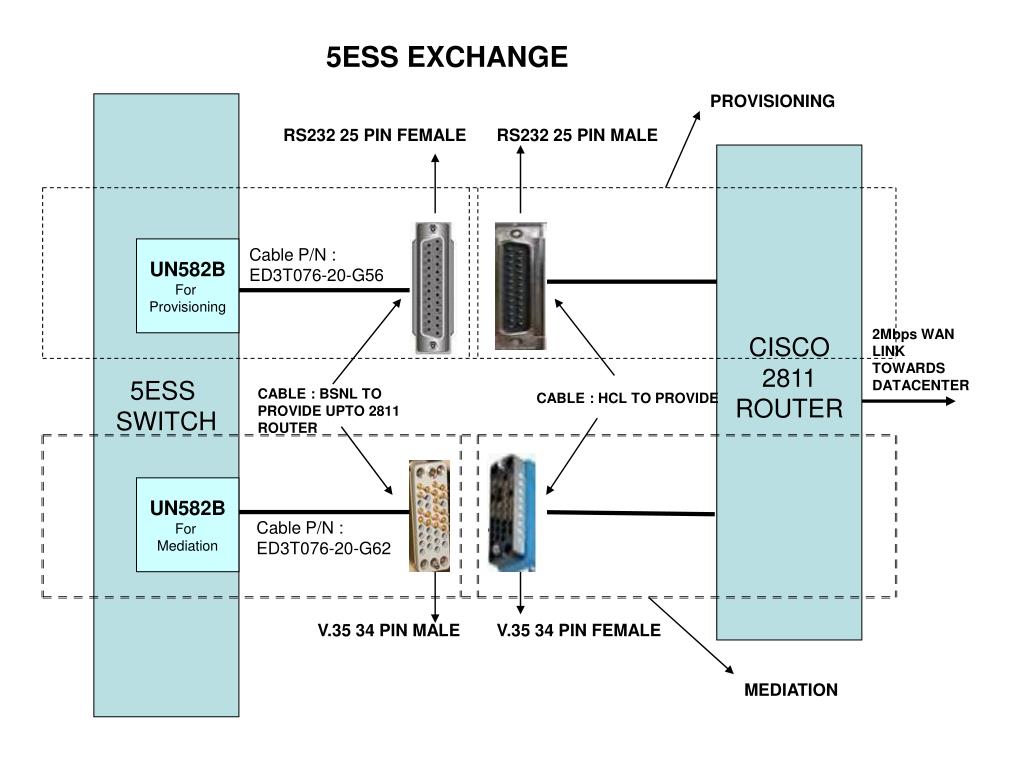

slide2

5ESS EXCHANGE

PROVISIONING

5ESS

SWITCH

RS232 25 PIN FEMALE

RS232 25 PIN MALE

CISCO

2811

ROUTER

UN582B

For

Provisioning

Cable P/N :

ED3T076-20-G56

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

UN582B

For

Mediation

Cable P/N :

ED3T076-20-G62

V.35 34 PIN MALE

V.35 34 PIN FEMALE

MEDIATION

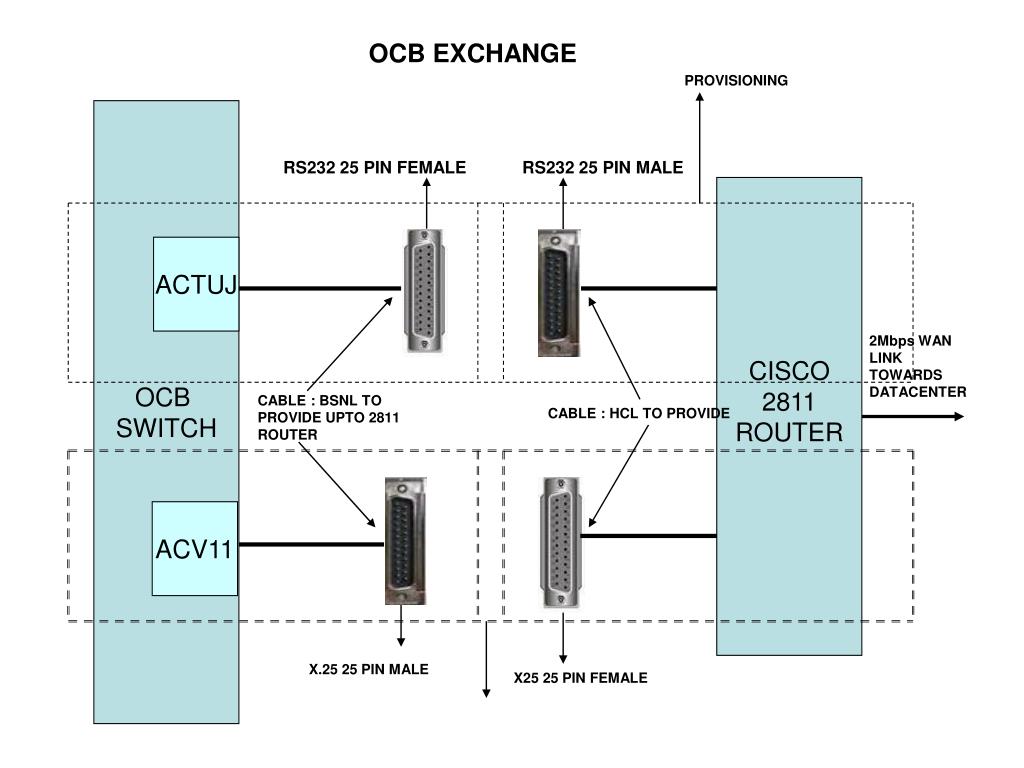

slide3

OCB EXCHANGE

PROVISIONING

OCB

SWITCH

RS232 25 PIN FEMALE

RS232 25 PIN MALE

CISCO

2811

ROUTER

ACTUJ

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

ACV11

X.25 25 PIN MALE

X25 25 PIN FEMALE

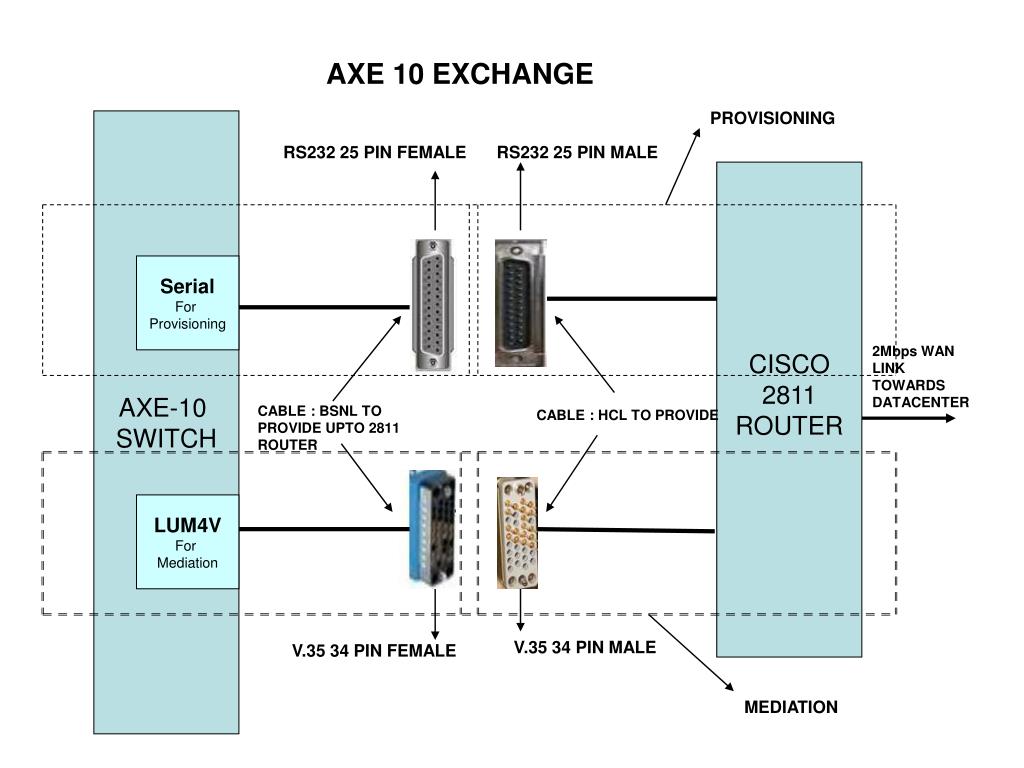

slide4

AXE 10 EXCHANGE

PROVISIONING

AXE-10

SWITCH

RS232 25 PIN FEMALE

RS232 25 PIN MALE

CISCO

2811

ROUTER

Serial

For

Provisioning

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

LUM4V

For

Mediation

V.35 34 PIN MALE

V.35 34 PIN FEMALE

MEDIATION

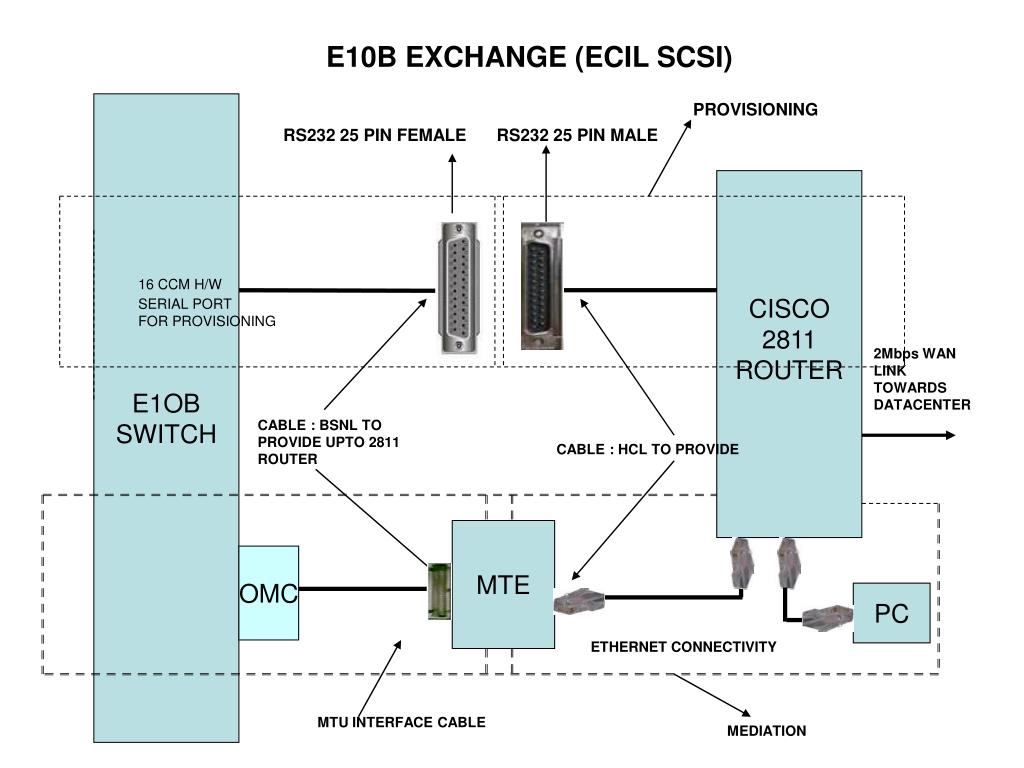

slide5

E10B EXCHANGE (ECIL SCSI)

E1OB

SWITCH

PROVISIONING

RS232 25 PIN FEMALE

RS232 25 PIN MALE

CISCO

2811

ROUTER

16 CCM H/W

SERIAL PORT

FOR PROVISIONING

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

MTE

OMC

PC

ETHERNET CONNECTIVITY

MTU INTERFACE CABLE

MEDIATION

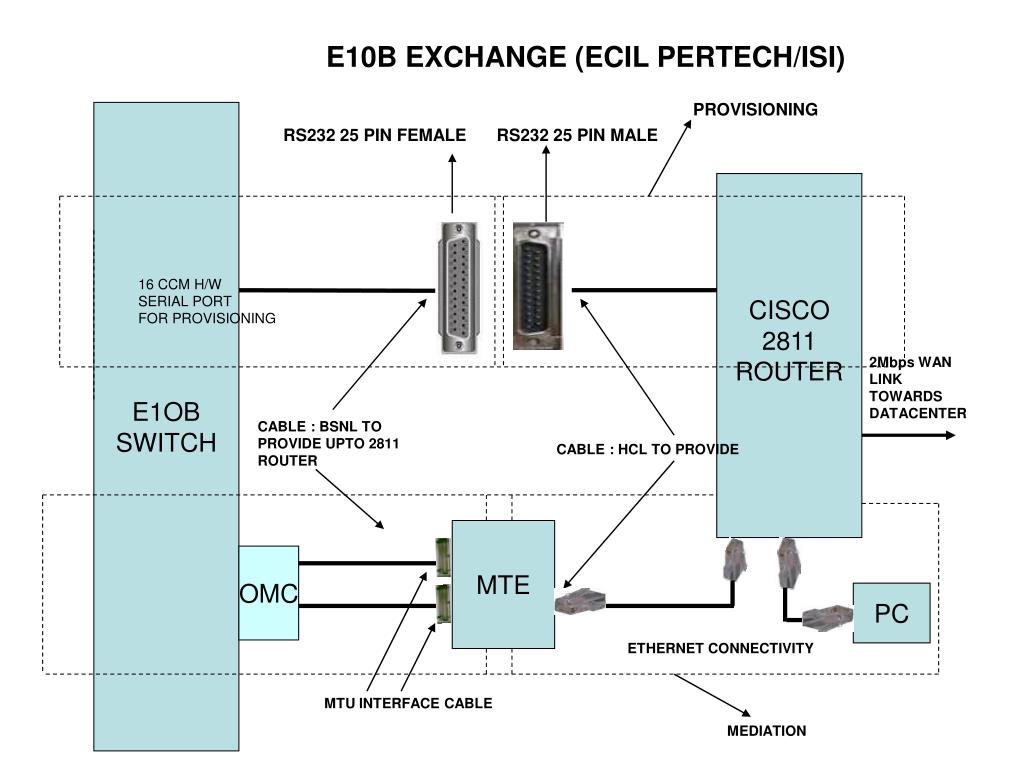

slide6

E10B EXCHANGE (ECIL PERTECH/ISI)

PROVISIONING

E1OB

SWITCH

RS232 25 PIN FEMALE

RS232 25 PIN MALE

CISCO

2811

ROUTER

16 CCM H/W

SERIAL PORT

FOR PROVISIONING

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

MTE

OMC

PC

ETHERNET CONNECTIVITY

MTU INTERFACE CABLE

MEDIATION

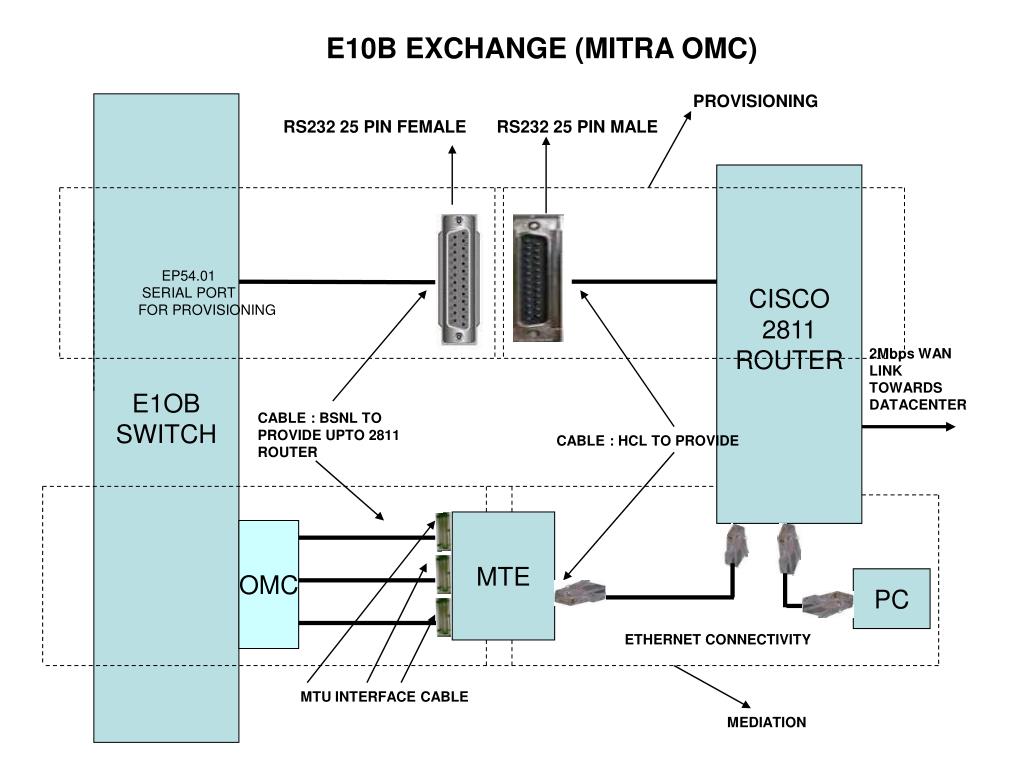

slide7

E10B EXCHANGE (MITRA OMC)

PROVISIONING

E1OB

SWITCH

RS232 25 PIN FEMALE

RS232 25 PIN MALE

CISCO

2811

ROUTER

EP54.01

SERIAL PORT

FOR PROVISIONING

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO 2811 ROUTER

CABLE : HCL TO PROVIDE

MTE

OMC

PC

ETHERNET CONNECTIVITY

MTU INTERFACE CABLE

MEDIATION

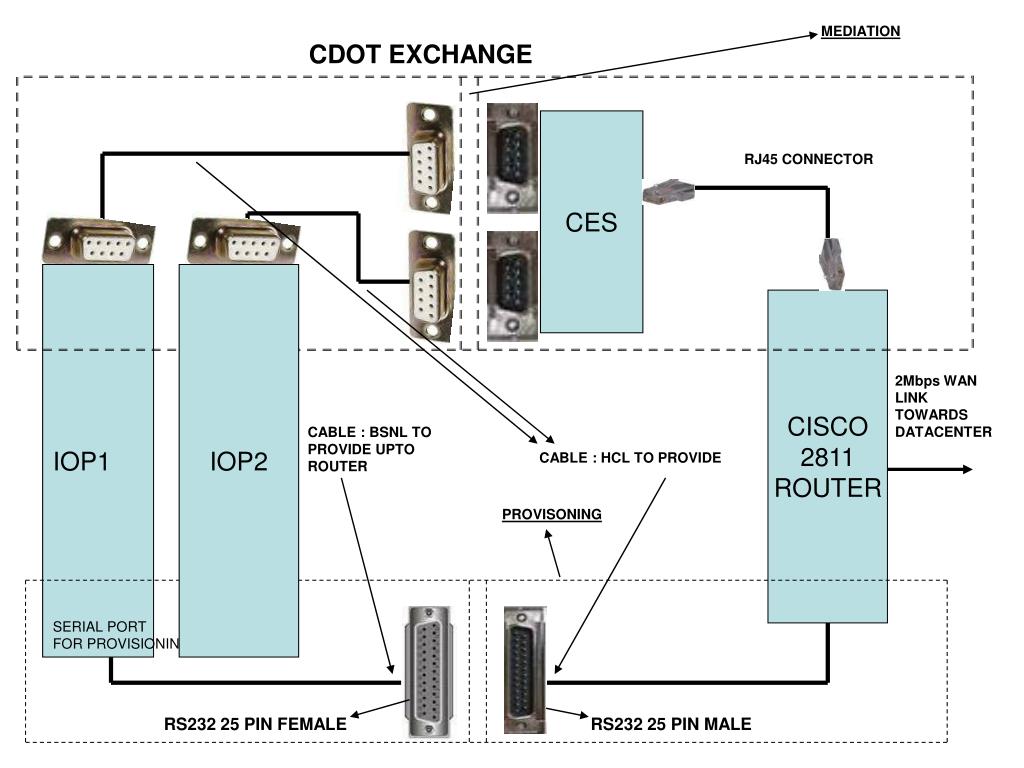

slide8

MEDIATION

CDOT EXCHANGE

CES

RJ45 CONNECTOR

IOP1

IOP2

CISCO

2811

ROUTER

2Mbps WAN LINK TOWARDS DATACENTER

CABLE : BSNL TO PROVIDE UPTO ROUTER

CABLE : HCL TO PROVIDE

PROVISONING

SERIAL PORT

FOR PROVISIONING

RS232 25 PIN FEMALE

RS232 25 PIN MALE
