HVCA EDI DIODE ALTERNATIVE REPLACEMENT

HVCA EDI DIODE ALTERNATIVE REPLACEMENT<br><br>Alternative Replacement of HVCA, EDI, High Voltage Diode,China Manufacturer Supply<br>HVC supply high voltage diode as alternative replacement of High Voltage Diode from HVCA( Dean Technology) and EDI diodes (electronic devices inc) ,10kv , 20kv, 30kv, 40kv high voltage diode manufacturer. Most of HVC Capacitor's customer use high voltage ceramic capacitor and high voltage diode to build Voltage multiplier, (CASCADE COCKCROFT-WALTON VOLTAGE MULTIPLIER in high voltage generator) which is basic circuit for X-ray, CT and NDT machine.<br><br>https://www.hv-caps.com/High_Voltage_Diode/2019/1212/3343.html<br>https://www.hv-caps.com/High_Voltage_Diode/2019/1211/3342.html<br><br>HVCA EDI DIODE ALTERNATIVE REPLACEMENT, HVCA, EDI, High Voltage Diode, Dean Technology, HVC diode

alviedb
Download Presentation

HVCA EDI DIODE ALTERNATIVE REPLACEMENT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

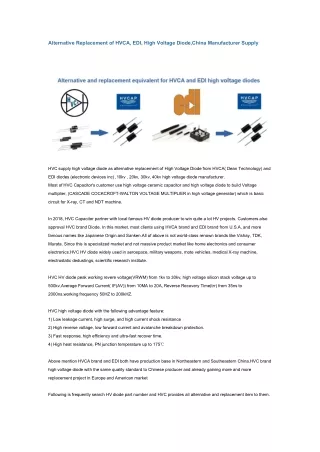

  1. Alternative Replacement of HVCA, EDI, High Voltage Diode,China Manufacturer Supply HVC supply high voltage diode as alternative replacement of High Voltage Diode from HVCA( Dean Technology) and EDI diodes (electronic devices inc) ,10kv , 20kv, 30kv, 40kv high voltage diode manufacturer. Most of HVC Capacitor's customer use high voltage ceramic capacitor and high voltage diode to build Voltage multiplier, (CASCADE COCKCROFT-WALTON VOLTAGE MULTIPLIER in high voltage generator) which is basic circuit for X-ray, CT and NDT machine. In 2018, HVC Capacitor partner with local famous HV diode producer to win quite a lot HV projects. Customers also approval HVC brand Diode. In this market, most clients using HVCA brand and EDI brand from U.S.A, and more famous names like Japanese Origin and Sanken.All of above is not world-class renown brands like Vishay, TDK, Murata. Since this is specialized market and not massive product market like home electronics and consumer electronics.HVC HV diode widely used in aerospace, military weapons, mote vehicles, medical X-ray machine, electrostatic dedustings, scientific research institute. HVC HV diode peak working revere voltage(VRWM) from 1kv to 30kv, high voltage silicon stack voltage up to 500kv,Average Forward Current( IF(AV)) from 10MA to 20A, Reverse Recovery Time(trr) from 35ns to 2000ns,working frequency 50HZ to 200kHZ. HVC high voltage diode with the following advantage feature: 1) Low leakage current, high surge, and high current shock resistance 2) High reverse voltage, low forward current and avalanche breakdown protection. 3) Fast response, high efficiency and ultra-fast recover time. 4) High heat resistance, PN junction temperature up to 175℃ Above mention HVCA brand and EDI both have production base in Northeastern and Southeastern China.HVC brand high voltage diode with the same quality standard to Chinese producer and already gaining more and more replacement project in Europe and American market Following is frequently search HV diode part number and HVC provides all alternative and replacement item to them.

  2. 1)2CL2FL, 2CL2FM, 2CL2FP,HV diode in 15kv to 30kv ,current from 100ma to 140ma. This is original HVCA and EDI part number, typical application like X-ray power supply, laser, voltage multiplier circuit, microwave transmission power supply,oil fume purification equipment,net dust removal equipment.HVC diode offer alternative model. 2)VT1500, RVT1000, RVT1200, RVT1500, HVRT300, HVRT120, HVRT150, HVRT200, this original HVCA item,major application is medical device, laser power supply and dust removal.CRT screen. HVC offer alternative item to above. 3)2CL77,voltage in 20kv and 5ma current, and similar model 2CL70, 2CL71, 2CL72, 2CL75, 2CL79, they are high voltage but low current diode, very popular and use in the market.EDI part number, sure HVC offer replacement and alternative to above item. 4)UX-F0B,UX-C2B, UX-F15B, UX-F30B, UX-F2CL15,this UX-FOB is very popular use in high voltage X-ray machine.UX-FOB original from Japanese Sanken, widely use in high frequency high voltage circuit.Datasheet show VRRM 8kv, "UX" means ultra fast recovery time to 40ns, This means high repsond and high efficiency for X-ray generator. this model withstands high frequency up to 300khz, surge current 20 Ampere.from our experience ,UX-FOB diode can be found from famous medical X ray client Konica Minolta (Mexico) ,VMI (Brazil) and CPI(Canada) 's (DR)Digital Radiography and many other copy PCB board from famous name. So the usage of UX-FOB is hugh. This model original produce by Japanese brand Sanken (SK), and later SK stop production,and American diode company HVCA (Dean Technology) start to produce it and market it in same part number "UX-F0B". It is most popular model design-in to world famous (high end) X-ray power source manufacturer's PCB board, due to very fast recovery time and high frequency (300khz) feature. (This is very similar to most popular Murata high voltage ceramic capacitor (15kv 102 ZM materaial, DHR4E4C102K2FB) also used in high end X-ray power source.) , DHR4E4C102K2FB market demand can be one million pcs globally. since this UX-FOB model is super hot,some less famous Japanese component manufacturer even produce replacement model call "MD8CP5" . HVC also offer alternative and replacement model to UX-FOB, HVC model call HVD-SL513G, which provide same 40ns respond and 13kv reverse voltage, higher voltage withstand can making component more reliable and customer can series connection less diode to achieve given value,and finally cost down to general PCB board. UX-2CB is Sanken's hv diode,8kv voltage and 500ma current,widely use microwave oven, typical model is Panasonic Siemens, Bosch GE 's Microwave Oven.We found HVCA also produce same name model before, but now already disappear from their catalogue.HVC offer alternative for HV diode UX-C2B with competitive cost. 5) HVC also offer alternative replacement for following hot hv diode model which use in more general application,like: --------Mainly used in electric mosquito swatter, ozone generator,high voltage power supply,lightning protection equipment,communication grid. RFC4K, RFC3K, R3000, R4000, R5000, R3000F, R4000F, R5000F, T2060, T0504 --------Mainly used in air purifier,TV set,anion generator, ozone power supply, copy machine,medical and computer cathode ray tube,laser. 2CL70, 2CL71, 2CL72, 2CL73, 2CL74, 2CL75, 2CL76, 2CL77, 2CL4, 2CL6, 2CL8, 2CL10, 2CL12, 2CL14, 2CL16, 2CL20, 2CL703, 2CL704, T71A, T72A, T73A, T74A, T75A, T77

  3. ----Mainly used in small household appliances such as microwave oven,power supply,hair dryer,dehumidifier,as well as high-voltage rectification in systems such as copier, laser, neon light power supply. 2CL70, TG3508, TS01, UX-C2B, T3512H, T4512H, T3509, T4509, 2CL3512H, 2CL4512H, HVM12, HVM15, 2CL103, 2CL104, HVRT080, HVRT120, HVRT150, HVRT300, T0504, 2CLG3512, FR02-60, CL01-12 ----Mainly used in X-ray power supply, laser, voltage multiplier circuit, microwave emission power supply, fume purification equipment, electrostatic precipitate. 2CL2FF, 2CL2FG, 2CL2FH, 2CL2FJ, 2CL2FK, 2CL2FL, 2CL2FM, 2CL2FP, HV37-08, HV37-20, BR2,BR4, CL, BR, HVRT Series, HVRL Series, TG1015, SHV049, 2CLG1015, DD2000, JB99T, HVRT200 Following frequently search high voltage diode part number from HVCA, EDI ,SANKEN... HVC offer alternative replacement item for all. Repetitive Maximum HVC Diode Average Reverse Reverse Alternative Part Number Output Voltage Recovery Replacement Current（ （IO） ） （ （VRRM） Time（ （Trr） Equivalent P/N ） ） HVCA Brand DV6P 6KV 75mA 75ns HVD-SL6G75 DV8P 8KV 60mA 75ns HVD-SL8G60 DV10P 10KV 55mA 75ns HVD-SL10G55 G6FS 6KV 25mA 100ns HVD-SL6G25 G7FS 7KV 25mA 100ns HVD-SL7G25 G8FS 8KV 25mA 100ns HVD-SL8G25 G10FS 10KV 25mA 100ns HVD-SL10G25 G12FS 12KV 25mA 100ns HVD-SL12G25 G15FS 15KV 25mA 100ns HVD-SL15G25 G20FS 20KV 25mA 100ns HVD-SL20G25 G25FS 25KV 25mA 100ns HVD-SL25G25 G30FS 30KV 25mA 100ns HVD-SL30G25 G2FSA 2KV 25mA 75ns HVD-SL2G25 G3FSA 3KV 25mA 75ns HVD-SL3G25 G4FSA 4KV 25mA 75ns HVD-SL4G25 G5FSA 5KV 25mA 75ns HVD-SL5G25 HL300 3KV 40mA 100ns HVD-SL3G40 HL500 5KV 40mA 100ns HVD-SL5G40 HL800 8KV 40mA 100ns HVD-SL8G40 HL1000 10KV 40mA 100ns HVD-SL10G40 HL1200 12KV 40mA 100ns HVD-SL12G40 HVEF8P 8KV 30mA 20ns

  4. HVEF10P 10KV 20mA 20ns HVEF12P 12KV 20mA 20ns NV20FP 2KV 20mA 80ns HVD-SL2G20 NV30FP 3KV 20mA 80ns HVD-SL3G20 NV40FP 4KV 20mA 80ns HVD-SL4G20 NV50FP 5KV 20mA 80ns HVD-SL5G20 HVRT080 8KV 30mA 100ns HVD-SL8G30 HVRT120 12KV 30mA 100ns HVD-SL12G30 HVRT150 15KV 30mA 100ns HVD-SL15G30 HVRT200 20KV 30mA 100ns HVD-SL20G30 HVRT250 25KV 30mA 100ns HVD-SL25G30 HVRT300 30KV 30mA 100ns HVD-SL30G30 HVRL150 15KV 30mA 100ns HVD-SL15G30 HVRL200 20KV 30mA 100ns HVD-SL20G30 HVRL250 25KV 30mA 100ns HVD-SL25G30 HVRL300 30KV 30mA 100ns HVD-SL30G30 HVRL400 40KV 30mA 100ns HVD-SL40G30 HV07-12B 12KV 225mA / HVD-SL312 HV37-08 8KV 210mA 150ns HVD-SL308G HV37-08F 8KV 210mA 50ns HVD-SL208G HV37-10 10KV 190mA 150ns HVD-SL310G HV37-10F 10KV 190mA 120ns HVD-SL310GF HV37-12 12KV 250mA 100ns HVD-SL312G HV37-12F 12KV 300mA 80ns HVD-SL312GF HV37-20 20KV 200mA 100ns HVD-SL220G HV37-20F 20KV 200mA 80ns HVD-SL220GF CL03-08 8KV 400mA 100ns HVD-SL03-08 CL03-10 10KV 300mA 100ns HVD-SL03-10 CL03-12 12KV 250mA 100ns HVD-SL03-12 CL03-15 15KV 200mA 100ns HVD-SL03-15 CL03-20 20KV 120mA 100ns HVD-SL03-20 CL03-30 30KV 120mA 100ns HVD-SL03-30 2CL2FF 8KV 60mA 150ns HVD-2CL2FF 2CL2F 8KV 100mA / HVD-2CL2F 2CL2FG 10KV 60mA 150ns HVD-2CL2FG 2CL2G 10KV 100mA / HVD-2CL2G 2CL2FK 10KV 140mA 100ns HVD-2CL2FK 2CL2FH 12KV 60mA 150ns HVD-2CL2FH 2CL2H 12KV 100mA / HVD-2CL2H 2CL2FJ 15KV 60mA 150ns HVD-2CL2FJ 2CL2J 15KV 100mA / HVD-2CL2J 2CL2FL 15KV 120mA 100ns HVD-2CL2FL

  5. 2CL2FM 20KV 100mA / HVD-2CL2FM 2CL2FP 30KV 140mA 100ns HVD-2CL2FP 2CL2FR 35KV 100mA 100ns HVD-2CL2FR 2CL105 9KV 450mA / HVD-2CL105 2CL106 12KV 450mA / HVD-2CL106 UX-FBR8 8KV 420mA / HVD-2CL8KV/420mA UX-FOB 8KV 500mA / HVD-SL513G UX-F2CL15 15KV 150mA 50ns HVD-2CLG15KV/150mA UX-F15B 15KV 200mA 50ns HVD-2CLG15KV/200mA UX-F30B 30KV 100mA 50ns HVD-2CLG30KV/100mA 2CL105 9KV 450mA / HVD-2CL105 2CL106 12KV 450mA / HVD-2CL106 BR2F 2KV 900mA 100ns HVD-SL2F BR2 2KV 1000mA / HVD-SL2 BR3F 3KV 900mA 100ns HVD-SL3F BR4F 4KV 600mA 100ns HVD-SL4F BR4 4KV 850mA / HVD-SL4 BR5F 5KV 600mA 100ns HVD-SL5F BR6F 6KV 500mA 100ns HVD-SL6F BR8F 8KV 400mA 100ns HVD-SL8F BR10F 10KV 250mA 100ns HVD-SL10F BRU10SF 10KV 250mA 75ns HVD-SLU10SF HV200UF3 3KV 375mA 50ns HVD-SL200UF3 HV200UF4 4KV 375mA 50ns HVD-SL200UF4 HV200UF5 5KV 375mA 50ns HVD-SL200UF5 HV550S08 8KV 550mA / HVD-HV600S08 HV550S10 10KV 450mA / HVD-HV600S10 HV550S12 12KV 400mA / HVD-HV600S12 HV550S15 15KV 350mA / HVD-HV600S15 HV550S20 20KV 250mA / HVD-HV600S20 HV550S25 25KV 200mA / HVD-HV600S25 HV550S30 30KV 200mA / HVD-HV600S30 HV550S45 45KV 100mA / HVD-HV600S45 HVCF25 2.5KV 1500mA 75ns HVD-2CLG2.5KV/1.5A HVCF50 5KV 1200mA 75ns HVD-2CLG5KV/1.2A HVCF100 10KV 650mA 75ns HVD-2CLG10KV/0.65A HVRW1 1KV 2500mA 150ns HVD-HVRW1 HVRW2 2KV 1500mA 150ns HVD-HVRW2 HVRW3 3KV 1500mA 150ns HVD-HVRW3 HVRW4 4KV 1000mA 150ns HVD-HVRW4 HVW3 3KV 2000mA / HVD-HVRM3 UFHV2K 2KV 550mA 75ns HVD-SL2G550

  6. UFHV3K 3KV 400mA 75ns HVD-SL3G400 UFHV4K 4KV 350mA 75ns HVD-SL4G350 EDI Brand EF100 1KV 600mA / HVD-SLF100 EF150 1.5KV 600mA / HVD-SLF150 EF200 2KV 600mA / HVD-SLF200 EG200 2KV 400mA / HVD-SLG200 EG250 2.5KV 400mA / HVD-SLG250 EG300 3KV 400mA / HVD-SLG300 EH300 3KV 300mA / HVD-SLH300 EH350 3.5KV 300mA / HVD-SLH350 EH400 4KV 300mA / HVD-SLH400 EK450 4.5KV 200mA / HVD-SLH450 EK500 5KV 200mA / HVD-SLH500 EK600 6KV 200mA / HVD-SLH600 EM700 7KV 175mA / HVD-SLM700 EM800 8KV 175mA / HVD-SLM800 EP900 9KV 150mA / HVD-SLP900 EP1000 10KV 150mA / HVD-SLP1000 ER1100 11KV 100mA / HVD-SLP1100 ER1200 12KV 100mA / HVD-SLP1200 RF160B 1.6KV 500mA 250ns HVD-SLF160B RF200B 2KV 500mA 250ns HVD-SLF200B RG300B 3KV 350mA 250ns HVD-SLG300B RK300B 3KV 150mA 250ns HVD-SLK300B RK400B 4KV 150mA 250ns HVD-SLK400B RK500B 5KV 150mA 250ns HVD-SLK500B RK600B 6KV 150mA 250ns HVD-SLK600B RM700B 7KV 125mA 250ns HVD-SLM700B RM800B 8KV 125mA 250ns HVD-SLM800B RP900B 9KV 100mA 250ns HVD-SLP900B RP1000B 10KV 100mA 250ns HVD-SLP1000B RR1100B 11KV 80mA 250ns HVD-SLP1100B RR1200B 12KV 80mA 250ns HVD-SLP1200B RF160A 1.6KV 500mA 150ns HVD-SLF160A RF200A 2KV 500mA 150ns HVD-SLF200A RG300A 3KV 350mA 150ns HVD-SLG300A RK300A 3KV 150mA 150ns HVD-SLK300A RK400A 4KV 150mA 150ns HVD-SLK400A RK500A 5KV 150mA 150ns HVD-SLK500A RK600A 6KV 150mA 150ns HVD-SLK600A RM800A 8KV 125mA 150ns HVD-SLM800A

  7. RP1000A 10KV 100mA 150ns HVD-SLP1000A RR1200A 12KV 80mA 150ns HVD-SLR100A FB4 4KV 2A / HVD-SL4 FB5 5KV 2A / HVD-SL5 FBR3 3KV 1.5A 250ns HVD-SLR3 FBR3.5 3.5KV 1.5A 250ns HVD-SLR3.5 FBR4 4KV 1.5A 250ns HVD-SLR4 3W2 2KV 2A / HVD-HVRM2 3W2.5 2.5KV 2A / HVD-HVRM2.5 3W3 3KV 2A / HVD-HVRM3 3RW2 2KV 1.5A 250ns HVD-HVRW2 3RW2.5 2.5KV 1.5A 250ns HVD-HVRW2.5 3RW3 3KV 1.5A 250ns HVD-HVRW3 XL10 9KV 220mA / HVD-SL10 XLR5 5KV 200mA 175ns HVD-SLR5 XLR10 9KV 200mA 175ns HVD-SLR10 XLU12 11KV 100mA 50ns HVD-SLU12 XLR20 18KV 100mA 175ns HVD-SLR20 XMR5 5KV 500mA 150ns HVD-SLMR5 XMU5 5KV 300mA 75ns HVD-SLMU5 XMU10 9KV 300mA 75ns HVD-SLMU10 DR300 3KV 25mA 100ns HVD-SL3G25 DR500 5KV 25mA 100ns HVD-SL5G25 DR800 8KV 25mA 100ns HVD-SL8G25 DR1000 10KV 25mA 100ns HVD-SL10G25 DR1200 12KV 25mA 100ns HVD-SL12G25 DR1500 15KV 25mA 100ns HVD-SL15G25 DL300 3KV 25mA 150ns HVD-SL3G25 DL500 5KV 25mA 150ns HVD-SL5G25 DL800 8KV 25mA 150ns HVD-SL8G25 DL1000 10KV 25mA 150ns HVD-SL10G25 DL1200 12KV 25mA 150ns HVD-SL12G25 QR12 12KV 6mA 100ns HVD-2CL73 TV6 6KV 5mA 100ns HVD-2CL70 TV8 8KV 5mA 100ns HVD-2CL71 TV10 10KV 5mA 100ns HVD-2CL72 TV12 12KV 5mA 100ns HVD-2CL73 TV14 14KV 5mA 100ns HVD-2CL74 TV16 16KV 5mA 100ns HVD-2CL75 TV20 20KV 5mA 100ns HVD-2CL77 TVR30 30KV 10mA 100ns HVD-2CL82 RUSH103 3KV 200mA 50ns HVD-SL200UF3

  8. RUSH104 4KV 200mA 50ns HVD-SL200UF4 RUSH105 5KV 200mA 50ns HVD-SL200UF5 VT1000 10KV 50mA / HVD-SL1000 VT1200 12KV 50mA / HVD-SL1200 VT1500 15KV 50mA / HVD-SL1500 RVT1000 10KV 50mA 100ns HVD-SL10G50 RVT1200 12KV 50mA 100ns HVD-SL12G50 RVT1500 15KV 50mA 100ns HVD-SL15G50 RUST2008 8KV 100mA 50ns HVD-SL8G100 RUST2010 10KV 100mA 50ns HVD-SL10G100 CRVT150 15KV 25mA 100ns CRVT200 20KV 25mA 100ns CRVT250 25KV 25mA 100ns CRVT300 30KV 25mA 100ns SL300 3KV 40mA 100ns HVD-SL3G40 SL500 5KV 40mA 100ns HVD-SL5G40 SL800 8KV 40mA 100ns HVD-SL8G40 SL1000 10KV 40mA 100ns HVD-SL10G40 SL1200 12KV 40mA 100ns HVD-SL12G40 SR300 3KV 25mA 100ns HVD-SL3G25 SR500 5KV 25mA 100ns HVD-SL5G25 SR800 8KV 25mA 100ns HVD-SL8G25 SR1000 10KV 25mA 100ns HVD-SL10G25 SR1200 12KV 25mA 100ns HVD-SL12G25 SR1500 15KV 25mA 100ns HVD-SL15G25 2CL69 4KV 5mA 100ns HVD-2CL69 2CL70 6KV 5mA 100ns HVD-2CL70 2CL71 8KV 5mA 100ns HVD-2CL71 2CL72 10KV 5mA 100ns HVD-2CL72 2CL73 12KV 5mA 100ns HVD-2CL73 2CL74 14KV 5mA 100ns HVD-2CL74 2CL75 16KV 5mA 100ns HVD-2CL75 2CL76 18KV 5mA 100ns HVD-2CL76 2CL77 20KV 5mA 100ns HVD-2CL77 2CL103 9KV 350mA / HVD-2CL103 2CL104 12KV 350mA / HVD-2CL104 2CL105 9KV 450mA / HVD-2CL105 2CL106 12KV 450mA / HVD-2CL106 Other Brand R3000 3KV 200mA / HVD-R3000 R3000F 3KV 200mA / HVD-R3000F R4000 4KV 200mA / HVD-R4000

  9. R4000F 4KV 200mA / HVD-R4000F R5000 5KV 200mA / R5000F 5KV 200mA / HVD-R5000F RFC3K 3KV 200mA / HVD-R3000 RFC4K 4KV 200mA / HVD-R4000 2CL4 4KV 5mA 100ns HVD-2CL69 2CL6 6KV 5mA 100ns HVD-2CL70 2CL8 8KV 5mA 100ns HVD-2CL71 2CL10 10KV 5mA 100ns HVD-2CL72 2CL12 12KV 5mA 100ns HVD-2CL73 2CL14 14KV 5mA 100ns HVD-2CL74 2CL16 16KV 5mA 100ns HVD-2CL75 2CL20 20KV 5mA 100ns HVD-2CL77 2CL703 3KV 5mA 80ns HVD-2CL703 2CL704 4KV 5mA 80ns HVD-2CL704 T71A 8KV 5mA 80ns HVD-2CLT71 T72A 10KV 5mA 80ns HVD-2CLT72 T73A 12KV 5mA 80ns HVD-2CLT73 T74A 14KV 5mA 80ns HVD-2CLT74 T75A 16KV 5mA 80ns HVD-2CLT75 TG3508 8KV 350mA 150ns HVD-SL3508G TS01 6KV 350mA / HVD-SL3506 UX-C2B 8KV 500mA 35ns T3512H 12KV 350mA / HVD-2CL3512 T4512H 12KV 450mA / HVD-2CL4512 T3509 9KV 350mA / HVD-2CL3509 T4509 9KV 450mA / HVD-2CL4509 2CL3512H 12KV 350mA / HVD-2CL3512 2CL4512H 12KV 450mA / HVD-2CL4512 BR2 2KV 1000mA / HVD-SL2 BR4 4KV 1000mA / HVD-SL4 TG1015 15KV 100mA 150ns HVD-2CL15KV/100mA SHV049 15KV 100mA 150ns HVD-2CL15KV/100mA 2CLG1015 15KV 100mA 150ns HVD-2CL15KV/100mA DD2000 30KV 10mA / HVD-SL30F10 JB99 20KV 20mA 100ns HVD-2CL20KV/20mA JB99T 20KV 20mA 100ns HVD-2CL20KV/20mA Know more HVC diode check following links: https://www.hv-caps.com/High_Voltage_Diode/2019/1212/3343.html https://www.hv-caps.com/High_Voltage_Diode/2019/1211/3342.html
