Short CTS. Authors:. Date: 2012-05-14. Short Ack. STF. LTF1. SIG. 22 bits (1MHz) 34 bits (  2MHz). It is natural to use the same short Ack format [1] for short CTS also. Short CTS indication use a reserved MCS value different from the short Ack indication CTS ID Bandwidth

alka
Download Presentation

Short CTS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Short CTS Authors: Date: 2012-05-14 Yong Liu, Marvell, et. al.

  2. Yong Liu, Marvell, et. al.

  3. Yong Liu, Marvell, et. al.

  4. Short Ack STF LTF1 SIG 22 bits (1MHz) 34 bits (2MHz) • It is natural to use the same short Ack format [1] for short CTS also Yong Liu, Marvell, et. al.

  5. Short CTS indication • use a reserved MCS value different from the short Ack indication • CTS ID • Bandwidth • indicate available bandwidth at receiver side (see next slide) • Duration • if time unit = 40us, 10 bits can indicate 40.96ms • CRC – 4 bits • Tail – 6 bits (TBD) • other subfields TBD Short CTS SIG Yong Liu, Marvell, et. al.

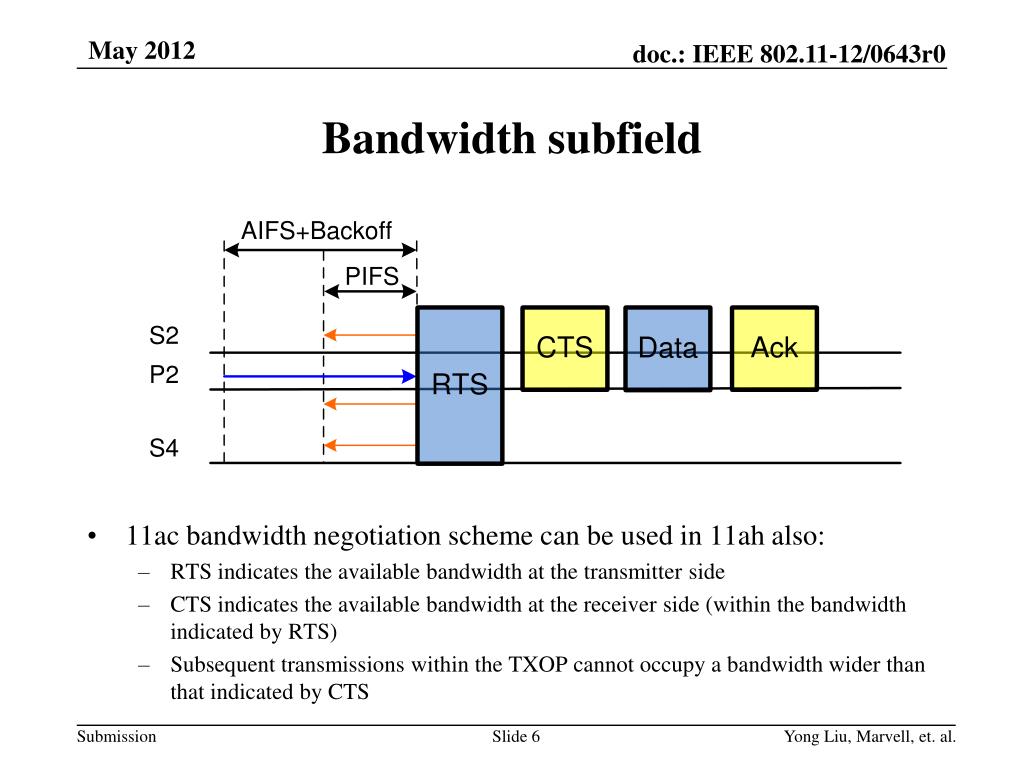

  6. 11ac bandwidth negotiation scheme can be used in 11ah also: • RTS indicates the available bandwidth at the transmitter side • CTS indicates the available bandwidth at the receiver side (within the bandwidth indicated by RTS) • Subsequent transmissions within the TXOP cannot occupy a bandwidth wider than that indicated by CTS Bandwidth subfield Yong Liu, Marvell, et. al.

  7. Bit calculation • 1MHz: 36 bits – MCS (4 bits) – bandwidth (2-3 bits) – duration (9-10 bits) – CRC and tail (10 bits) = 9 – 11 bits •  2MHz: 48 bits – MCS (4 bits) – bandwidth (2-3 bits) – duration (9-10 bits) – CRC and tail (10 bits) = 21 – 23 bits • Is it ok to have a shorter CTS ID than Ack ID? • Short CTS is sent less frequent than short Ack => the possibility of false CTS is extremely low • A false short CTS may potentially cause some interference to the medium, but its impact is much less severe than a false short Ack CTS ID (1) Yong Liu, Marvell, et. al.

  8. RTS/CTS • CTS ID: Partial FCS and scramble seed information from the received RTS (same as Ack ID but with fewer bits) • CTS-to-Self • CTS ID: partial TA of the transmitter CTS ID (2) Yong Liu, Marvell, et. al.

  9. Do you support to define a short CTS format as following with SIG field design TBD Straw poll STF LTF1 SIG Yong Liu, Marvell, et. al.

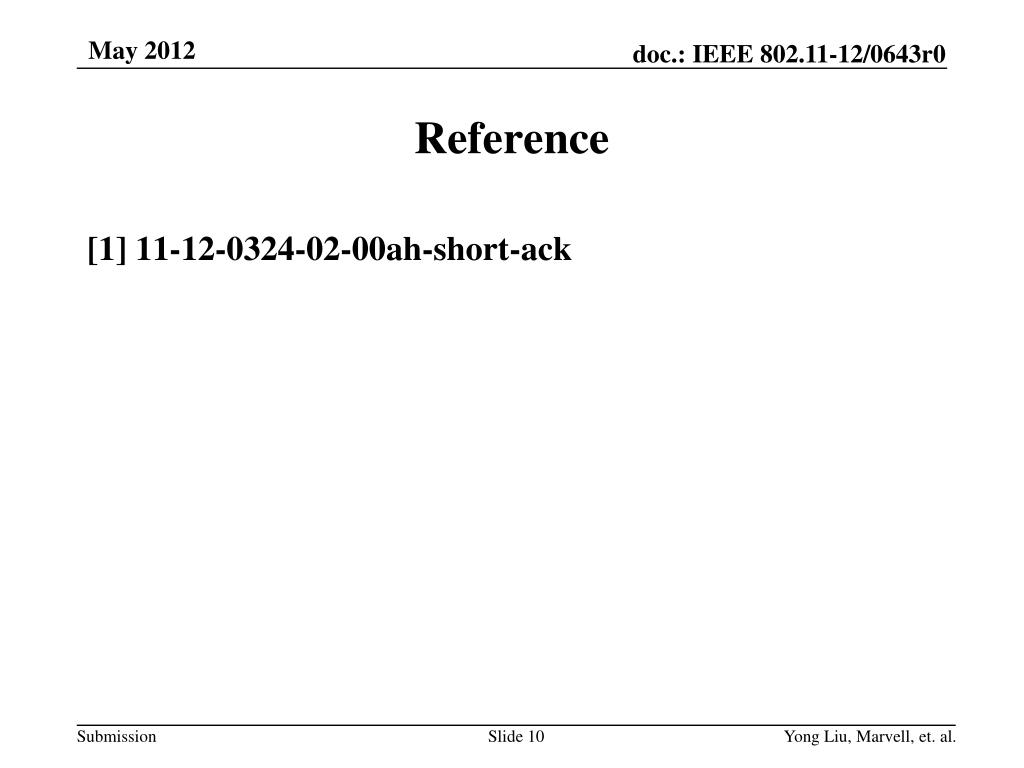

  10. [1] 11-12-0324-02-00ah-short-ack Reference Yong Liu, Marvell, et. al.
