  1. Chapter 5 Structured Query Language (SQL2) Revision

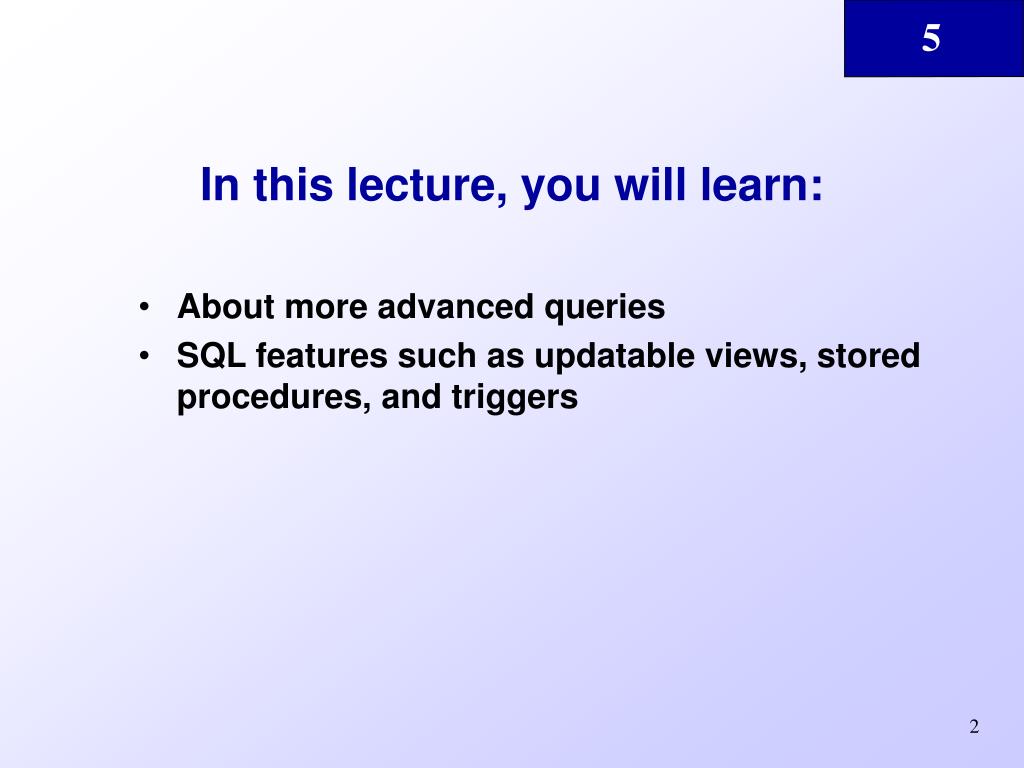

  2. In this lecture, you will learn: • About more advanced queries • SQL features such as updatable views, stored procedures, and triggers

  3. Four Question to Create A Query • What output do you want to see? • What do you already know (or what constraints are given)? • What tables are involved? • How are the tables joined together?

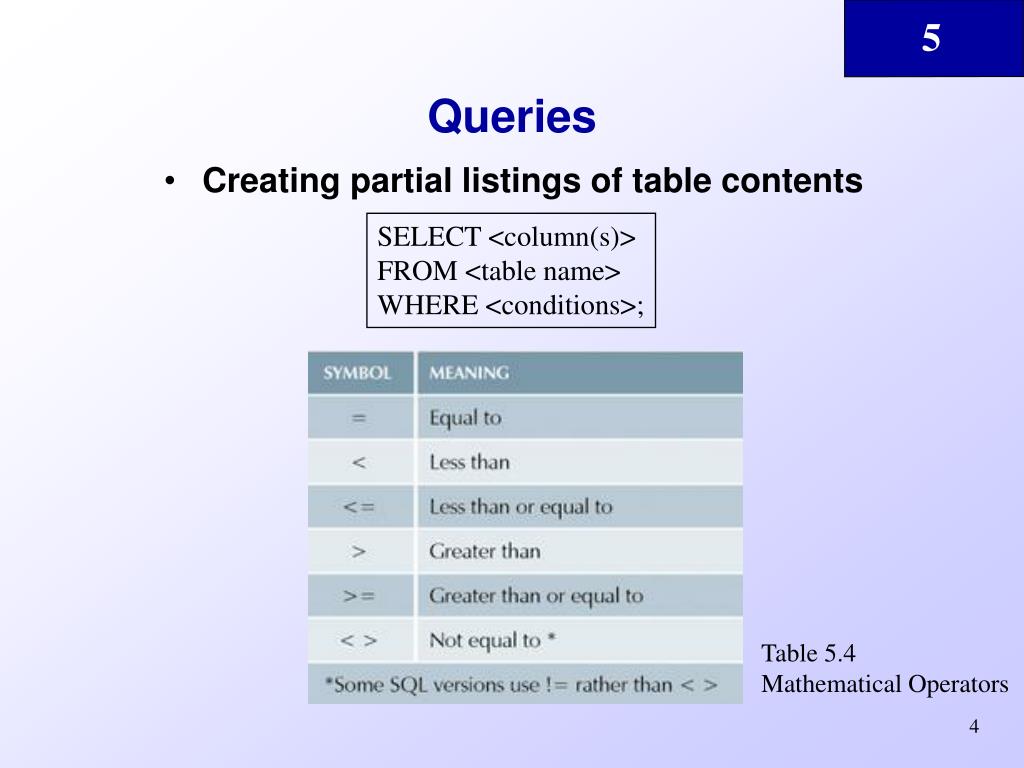

  4. Queries SELECT <column(s)>FROM <table name>WHERE <conditions>; • Creating partial listings of table contents Table 5.4 Mathematical Operators

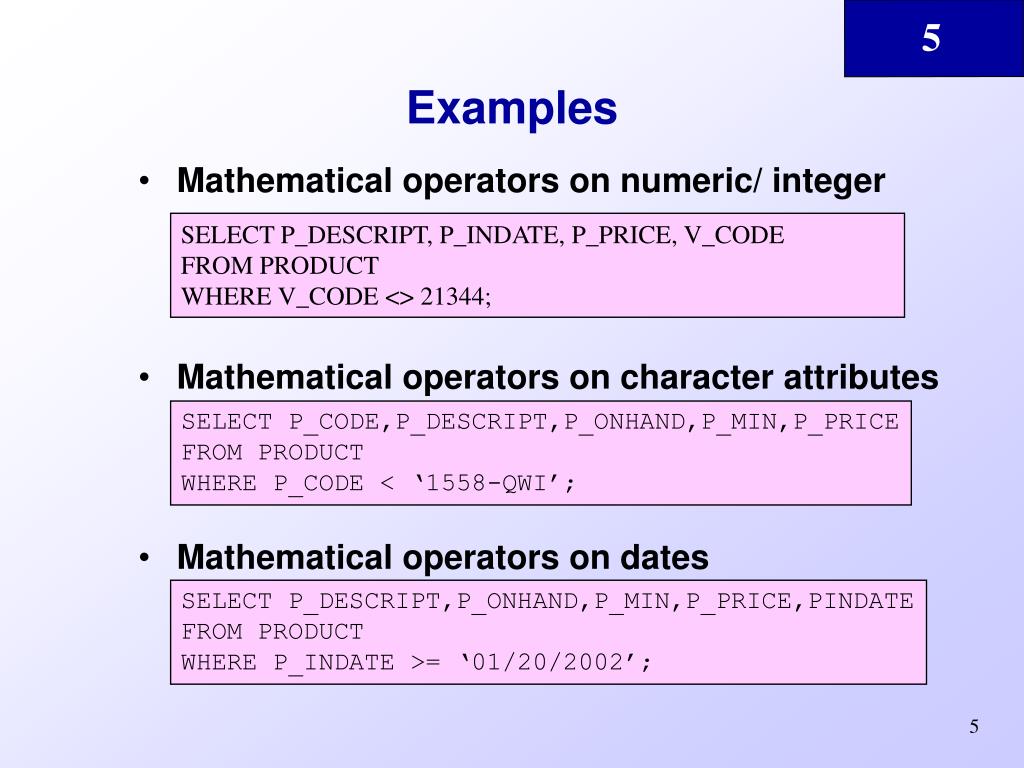

  5. Examples SELECT P_DESCRIPT, P_INDATE, P_PRICE, V_CODE FROM PRODUCT WHERE V_CODE <> 21344; • Mathematical operators on numeric/ integer • Mathematical operators on character attributes • Mathematical operators on dates SELECT P_CODE,P_DESCRIPT,P_ONHAND,P_MIN,P_PRICEFROM PRODUCTWHERE P_CODE < ‘1558-QWI’; SELECT P_DESCRIPT,P_ONHAND,P_MIN,P_PRICE,PINDATEFROM PRODUCTWHERE P_INDATE >= ‘01/20/2002’;

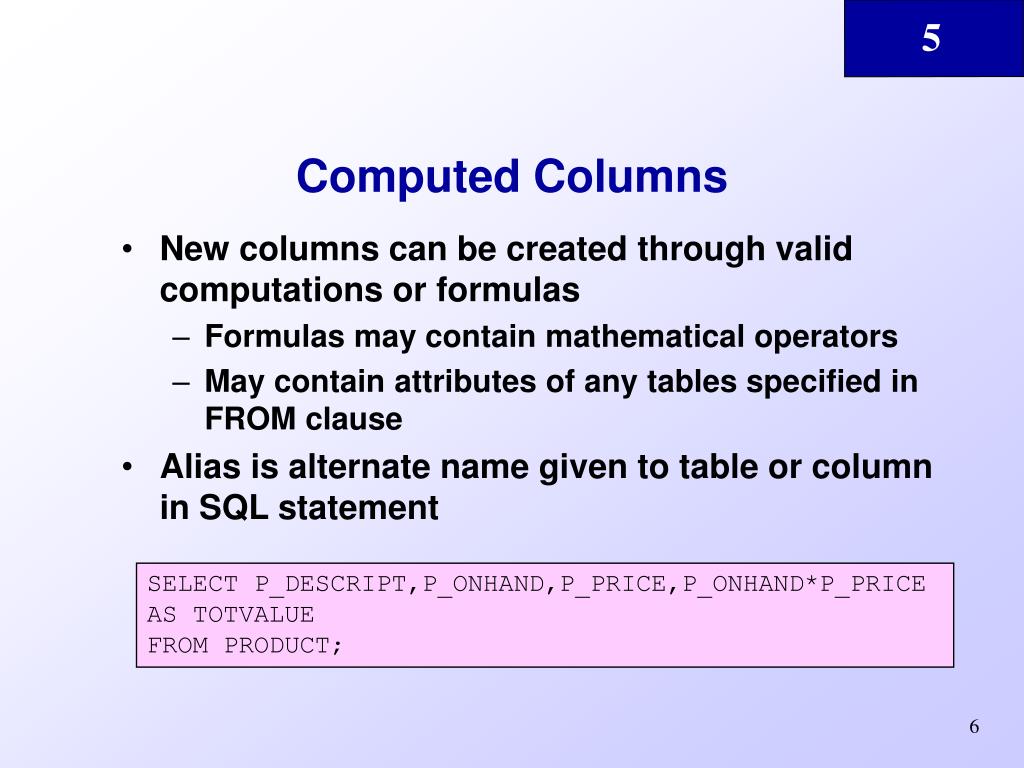

  6. Computed Columns • New columns can be created through valid computations or formulas • Formulas may contain mathematical operators • May contain attributes of any tables specified in FROM clause • Alias is alternate name given to table or column in SQL statement SELECT P_DESCRIPT,P_ONHAND,P_PRICE,P_ONHAND*P_PRICE AS TOTVALUE FROM PRODUCT;

  7. Operators SELECT * FROM PRODUCTWHERE V_CODE = 21344 OR V_CODE = 24288; • Logical: AND, OR, NOT • Rules of precedence • Conditions within parenthesis executed first • Boolean algebra • Special • BETWEEN - defines limits • IS NULL - checks for nulls • LIKE - checks for similar string • IN - checks for value in a set • EXISTS - opposite of IS NULL

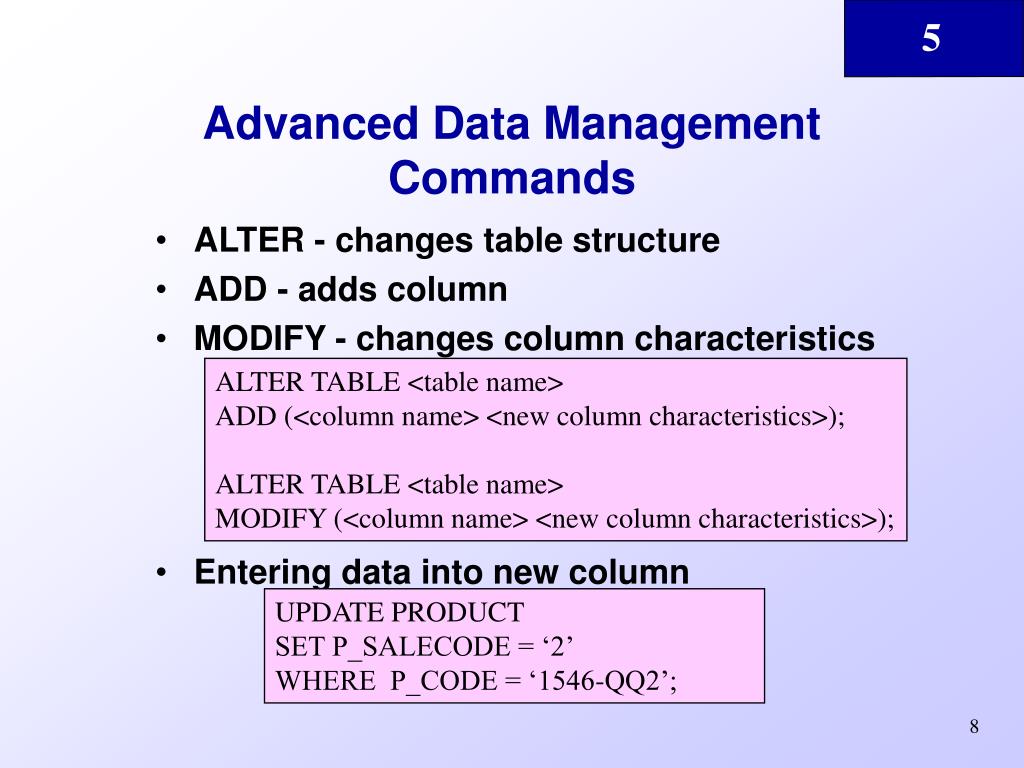

  8. Advanced Data ManagementCommands • ALTER - changes table structure • ADD - adds column • MODIFY - changes column characteristics • Entering data into new column ALTER TABLE <table name>ADD (<column name> <new column characteristics>); ALTER TABLE <table name>MODIFY (<column name> <new column characteristics>); UPDATE PRODUCTSET P_SALECODE = ‘2’WHERE P_CODE = ‘1546-QQ2’;

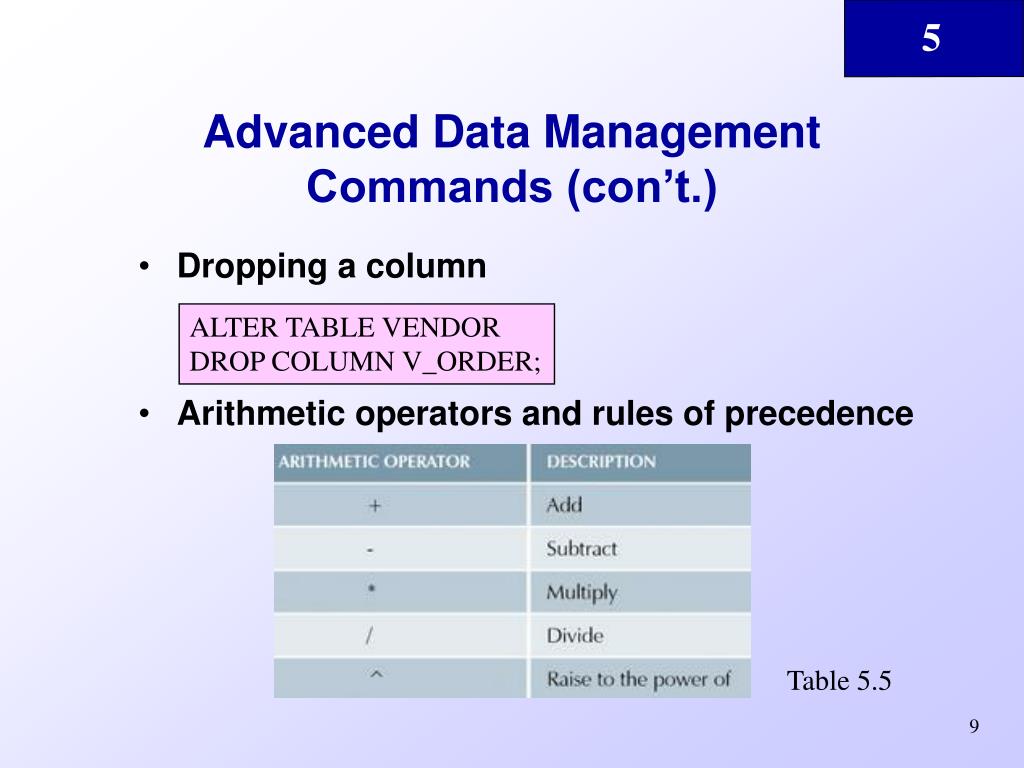

  9. Advanced Data Management Commands (con’t.) • Dropping a column • Arithmetic operators and rules of precedence ALTER TABLE VENDORDROP COLUMN V_ORDER; Table 5.5

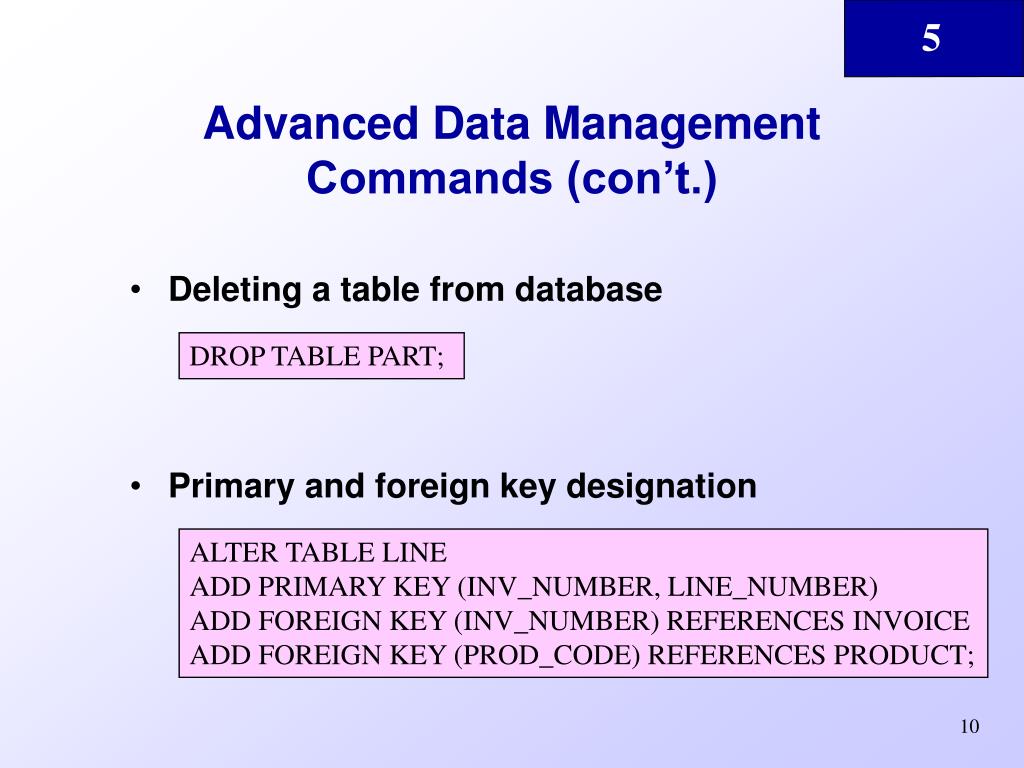

  10. Advanced Data Management Commands (con’t.) • Deleting a table from database • Primary and foreign key designation DROP TABLE PART; ALTER TABLE LINE ADD PRIMARY KEY (INV_NUMBER, LINE_NUMBER) ADD FOREIGN KEY (INV_NUMBER) REFERENCES INVOICE ADD FOREIGN KEY (PROD_CODE) REFERENCES PRODUCT;

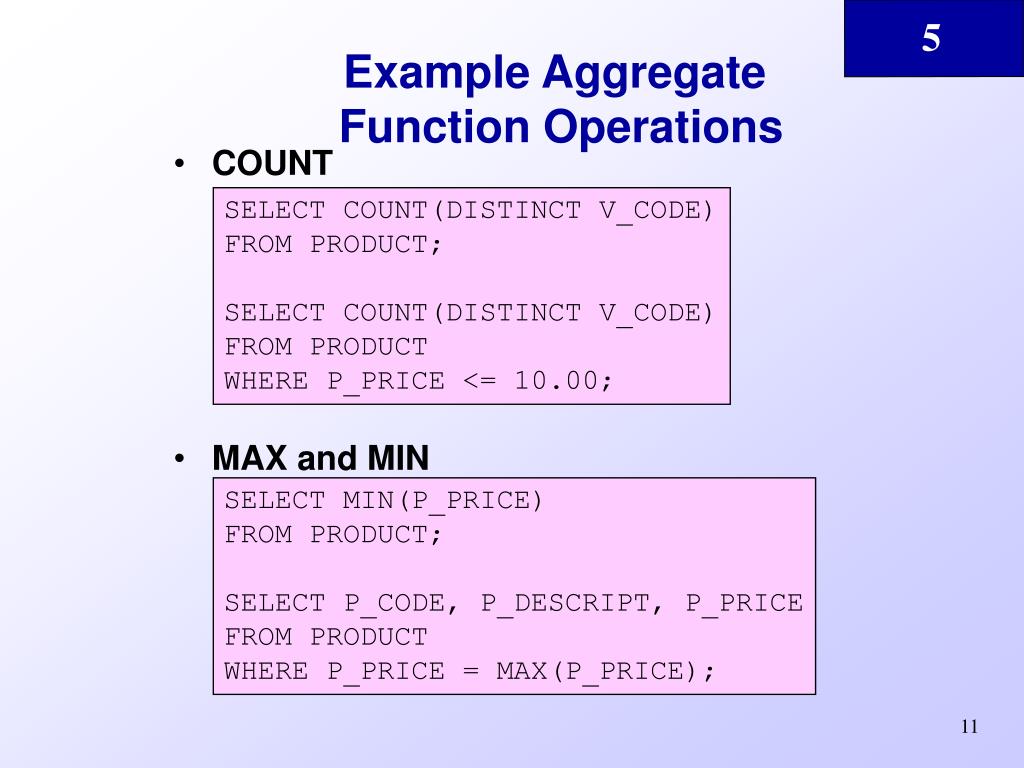

  11. Example Aggregate Function Operations SELECT COUNT(DISTINCT V_CODE)FROM PRODUCT; SELECT COUNT(DISTINCT V_CODE)FROM PRODUCTWHERE P_PRICE <= 10.00; • COUNT • MAX and MIN SELECT MIN(P_PRICE)FROM PRODUCT; SELECT P_CODE, P_DESCRIPT, P_PRICEFROM PRODUCTWHERE P_PRICE = MAX(P_PRICE);

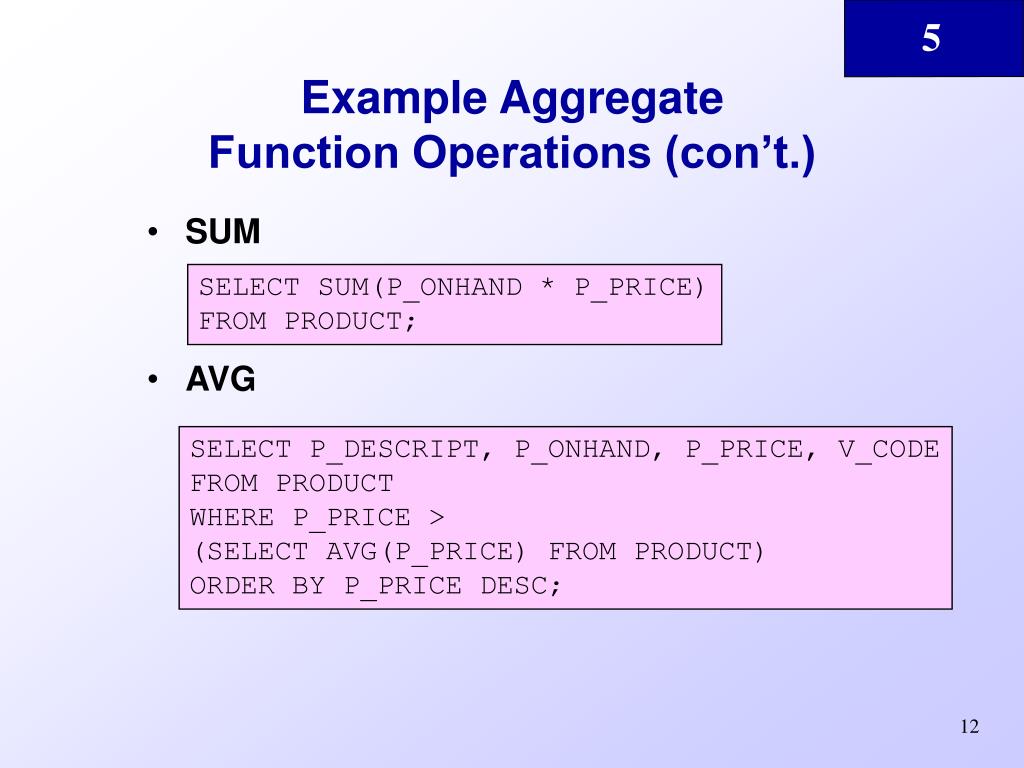

  12. Example Aggregate Function Operations (con’t.) • SUM • AVG SELECT SUM(P_ONHAND * P_PRICE)FROM PRODUCT; SELECT P_DESCRIPT, P_ONHAND, P_PRICE, V_CODEFROM PRODUCTWHERE P_PRICE > (SELECT AVG(P_PRICE) FROM PRODUCT)ORDER BY P_PRICE DESC;

  13. More Complex Queries and SQL Functions • Ordering a listing • Results ascending by default • Descending order uses DESC • Cascading order sequence ORDER BY <attributes> ORDER BY <attributes> DESC ORDER BY <attribute 1, attribute 2, ...>

  14. More Complex Queries and SQL Functions (con’t.) • Listing unique values • DISTINCT clause produces list of different values • Aggregate functions • Mathematical summaries SELECT DISTINCT V_CODE FROM PRODUCT; Table 5.6

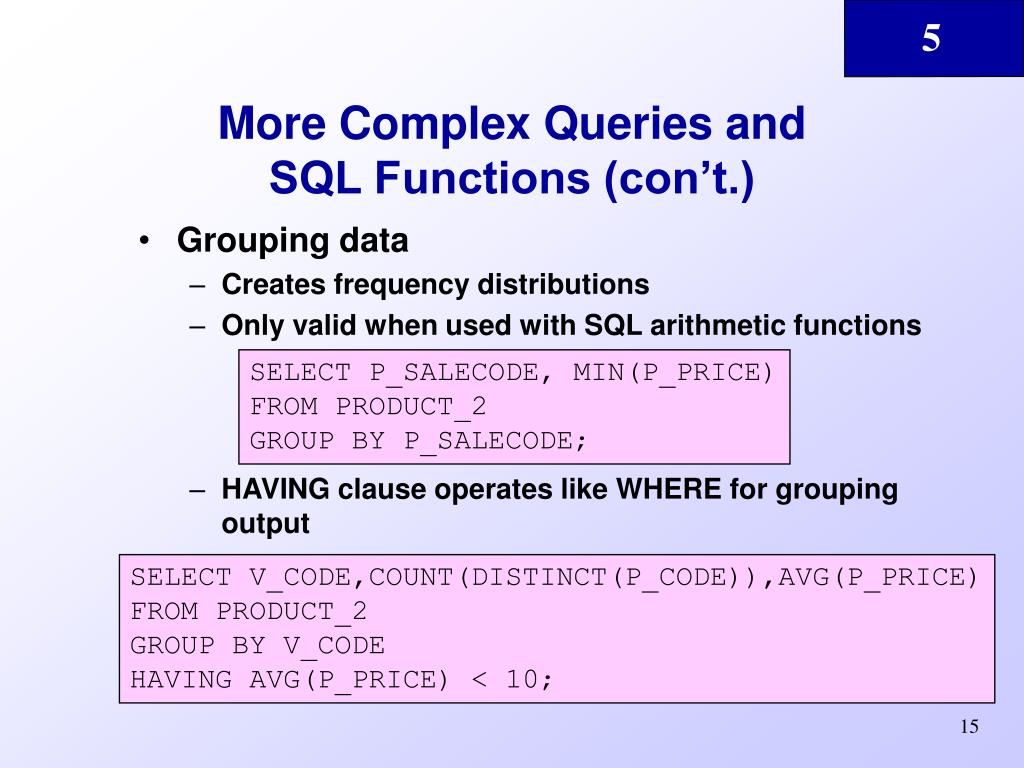

  15. More Complex Queries and SQL Functions (con’t.) • Grouping data • Creates frequency distributions • Only valid when used with SQL arithmetic functions • HAVING clause operates like WHERE for grouping output SELECT P_SALECODE, MIN(P_PRICE)FROM PRODUCT_2GROUP BY P_SALECODE; SELECT V_CODE,COUNT(DISTINCT(P_CODE)),AVG(P_PRICE) FROM PRODUCT_2 GROUP BY V_CODE HAVING AVG(P_PRICE) < 10;

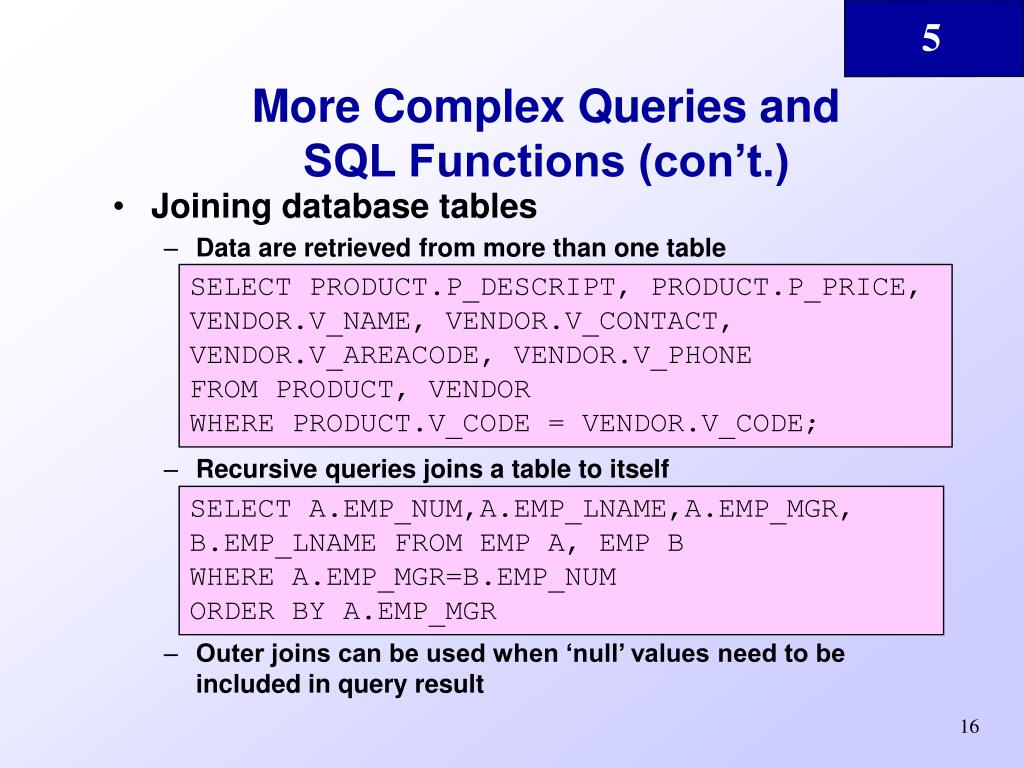

  16. More Complex Queries and SQL Functions (con’t.) • Joining database tables • Data are retrieved from more than one table • Recursive queries joins a table to itself • Outer joins can be used when ‘null’ values need to be included in query result SELECT PRODUCT.P_DESCRIPT, PRODUCT.P_PRICE, VENDOR.V_NAME, VENDOR.V_CONTACT, VENDOR.V_AREACODE, VENDOR.V_PHONEFROM PRODUCT, VENDORWHERE PRODUCT.V_CODE = VENDOR.V_CODE; SELECT A.EMP_NUM,A.EMP_LNAME,A.EMP_MGR, B.EMP_LNAME FROM EMP A, EMP B WHERE A.EMP_MGR=B.EMP_NUM ORDER BY A.EMP_MGR

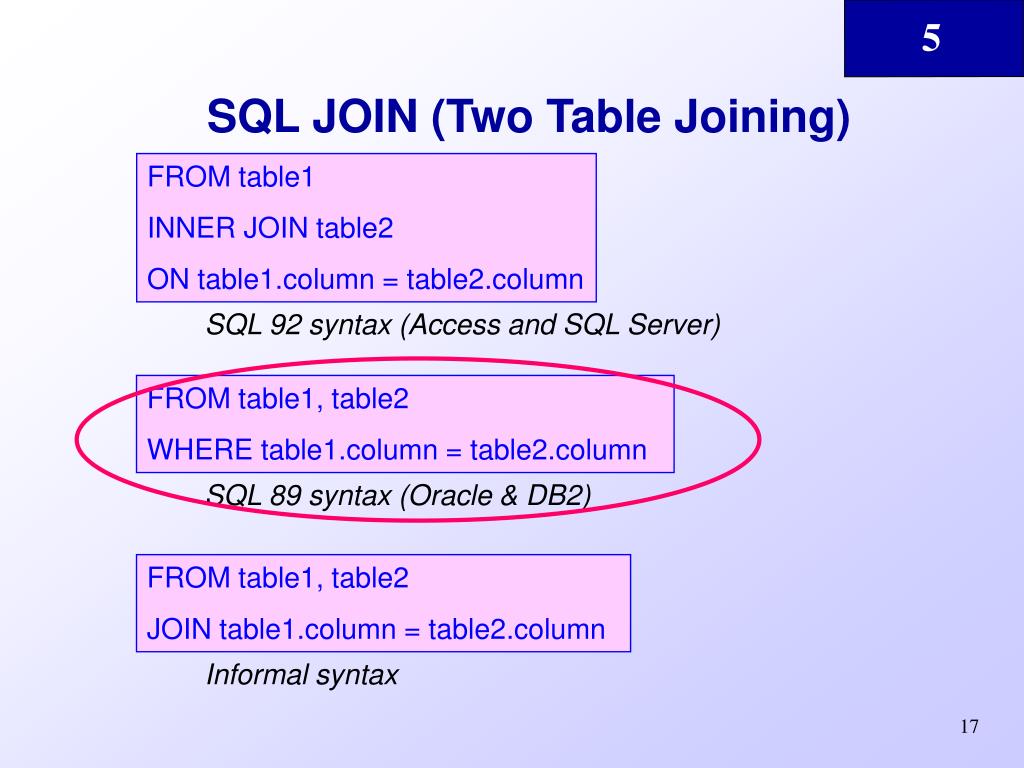

  17. SQL JOIN (Two Table Joining) FROM table1 INNER JOIN table2 ON table1.column = table2.column SQL 92 syntax (Access and SQL Server) FROM table1, table2 WHERE table1.column = table2.column SQL 89 syntax (Oracle & DB2) FROM table1, table2 JOIN table1.column = table2.column Informal syntax

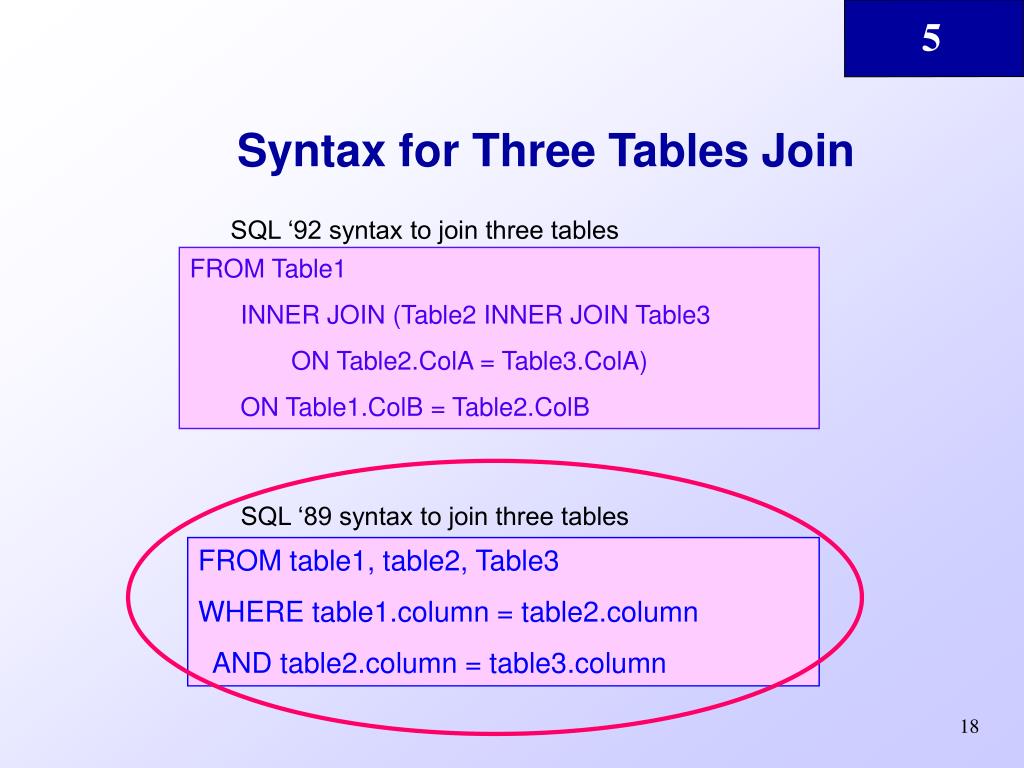

  18. Syntax for Three Tables Join SQL ‘92 syntax to join three tables FROM Table1 INNER JOIN (Table2 INNER JOIN Table3 ON Table2.ColA = Table3.ColA) ON Table1.ColB = Table2.ColB SQL ‘89 syntax to join three tables FROM table1, table2, Table3 WHERE table1.column = table2.column AND table2.column = table3.column

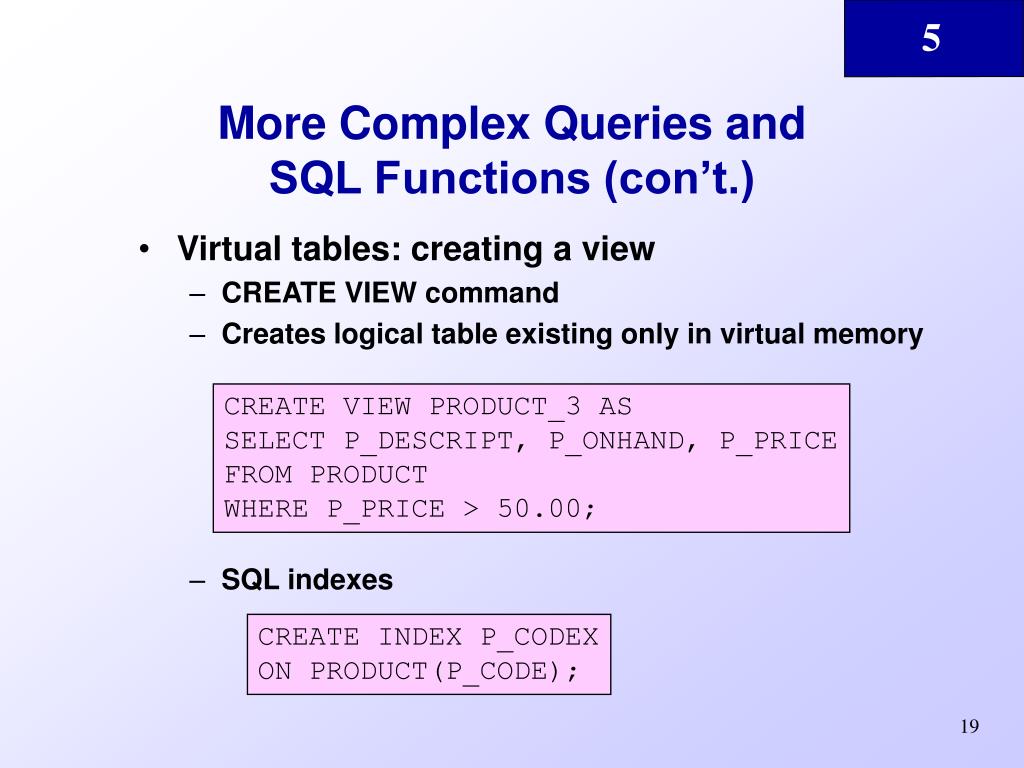

  19. More Complex Queries and SQL Functions (con’t.) • Virtual tables: creating a view • CREATE VIEW command • Creates logical table existing only in virtual memory • SQL indexes CREATE VIEW PRODUCT_3 ASSELECT P_DESCRIPT, P_ONHAND, P_PRICEFROM PRODUCTWHERE P_PRICE > 50.00; CREATE INDEX P_CODEXON PRODUCT(P_CODE);

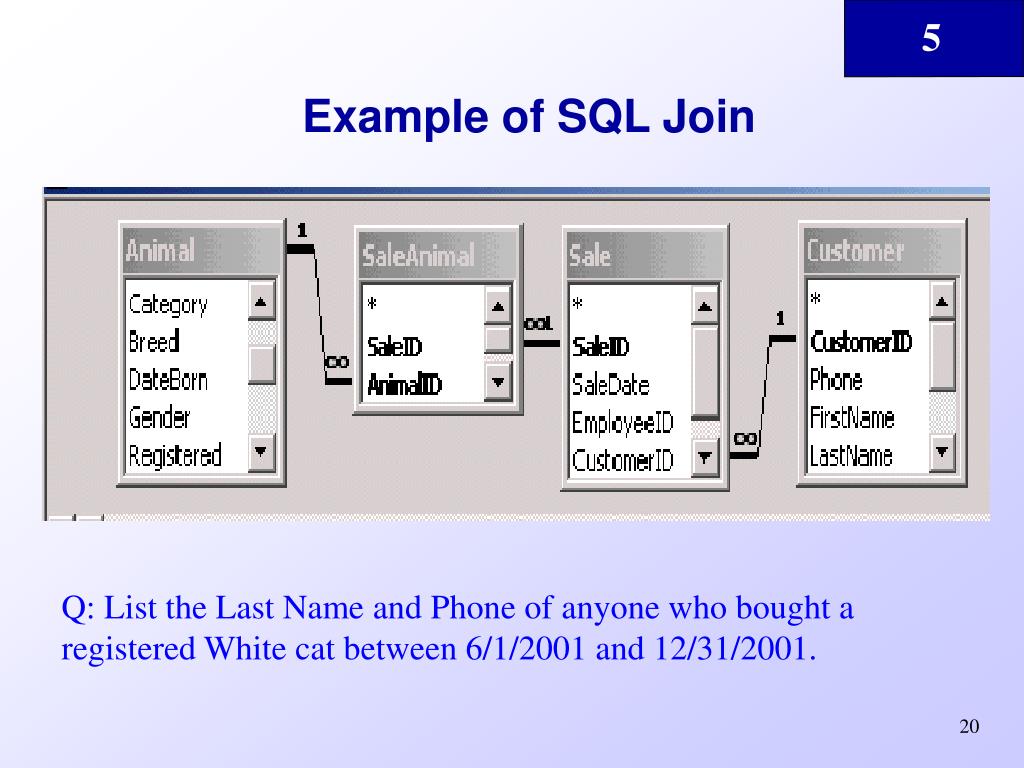

  20. Example of SQL Join Q: List the Last Name and Phone of anyone who bought a registered White cat between 6/1/2001 and 12/31/2001.

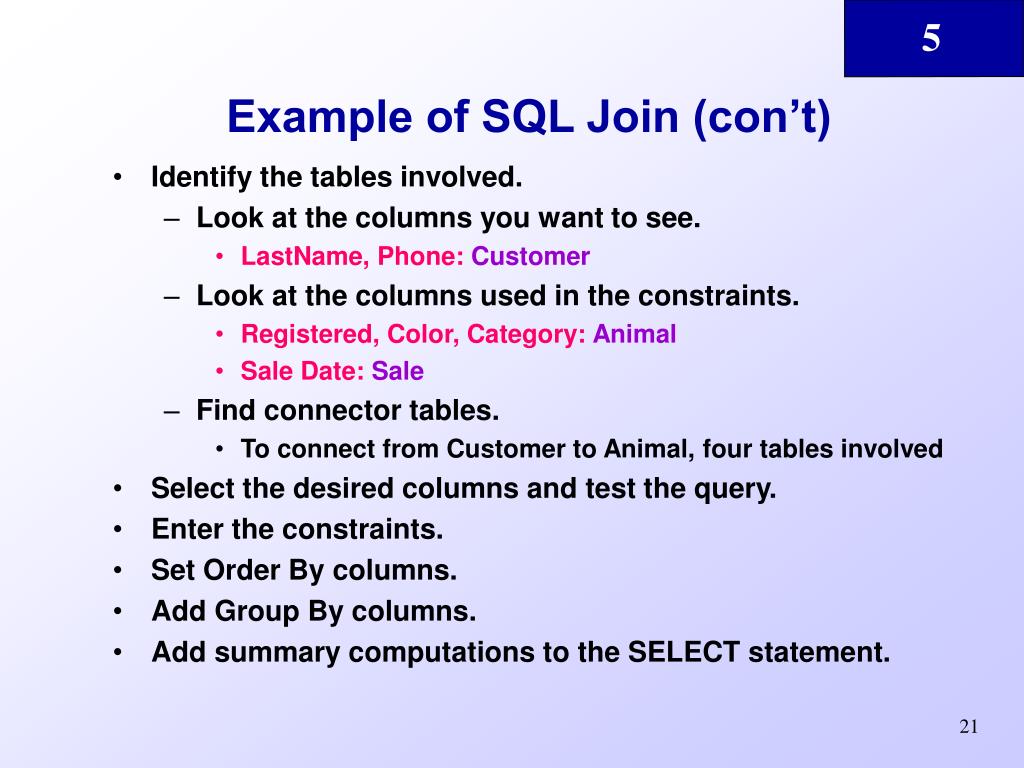

  21. Example of SQL Join (con’t) • Identify the tables involved. • Look at the columns you want to see. • LastName, Phone: Customer • Look at the columns used in the constraints. • Registered, Color, Category: Animal • Sale Date: Sale • Find connector tables. • To connect from Customer to Animal, four tables involved • Select the desired columns and test the query. • Enter the constraints. • Set Order By columns. • Add Group By columns. • Add summary computations to the SELECT statement.

  22. Example of SQL Join (con’t) • SELECT LastName, Phone FROM Customer, Animal, SaleAnimal, Sale • WHERE Customer.CustomerID = Sale.CustomerID • AND Sale.SaleID = SaleAnimal.SaleID • AND SaleAnimal.AnimalID = Animal.AnimalID • AND Category="Cat“ • AND Registered Is Not Null • AND Color Like "*White*" • AND SaleDate Between ‘6/1/2001’ And ‘12/31/2001’);

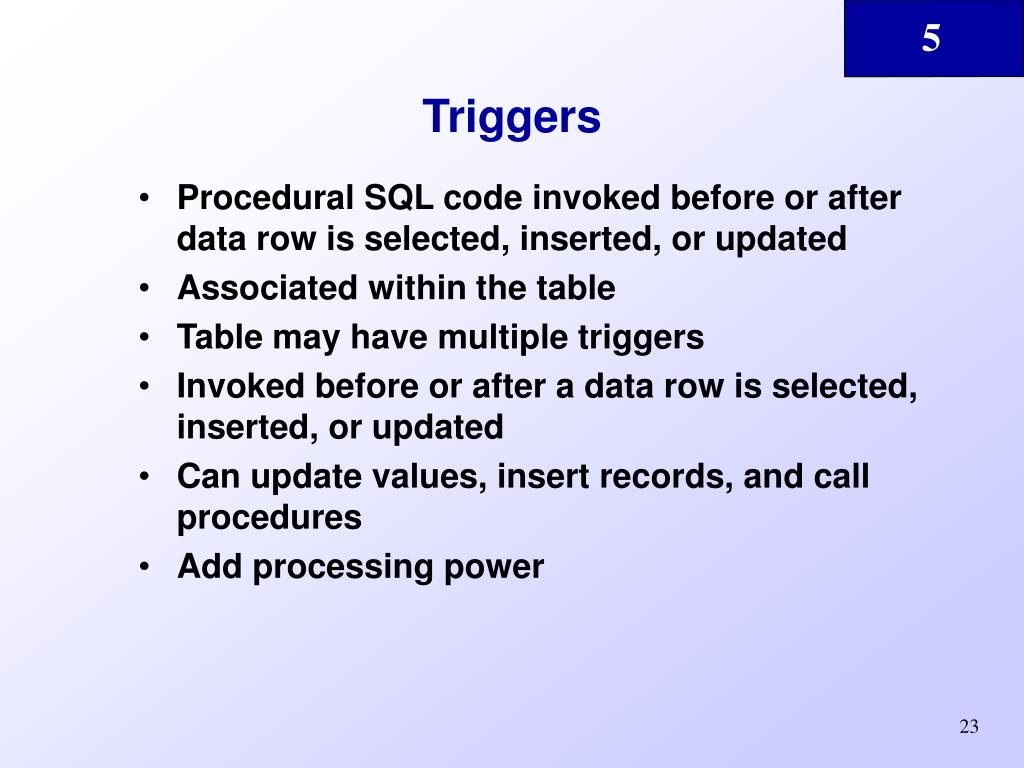

  23. Triggers • Procedural SQL code invoked before or after data row is selected, inserted, or updated • Associated within the table • Table may have multiple triggers • Invoked before or after a data row is selected, inserted, or updated • Can update values, insert records, and call procedures • Add processing power

  24. Triggers (con’t.) • DB2 example CREATE TRIGGER <trigger_name>[BEFORE/AFTER] [DELETE/INSERT/UPDATE OF <column_name] ON <table_name>[FOR EACH ROW MODE DB2SQL]BEGIN PL/SQL instructions;……………END;

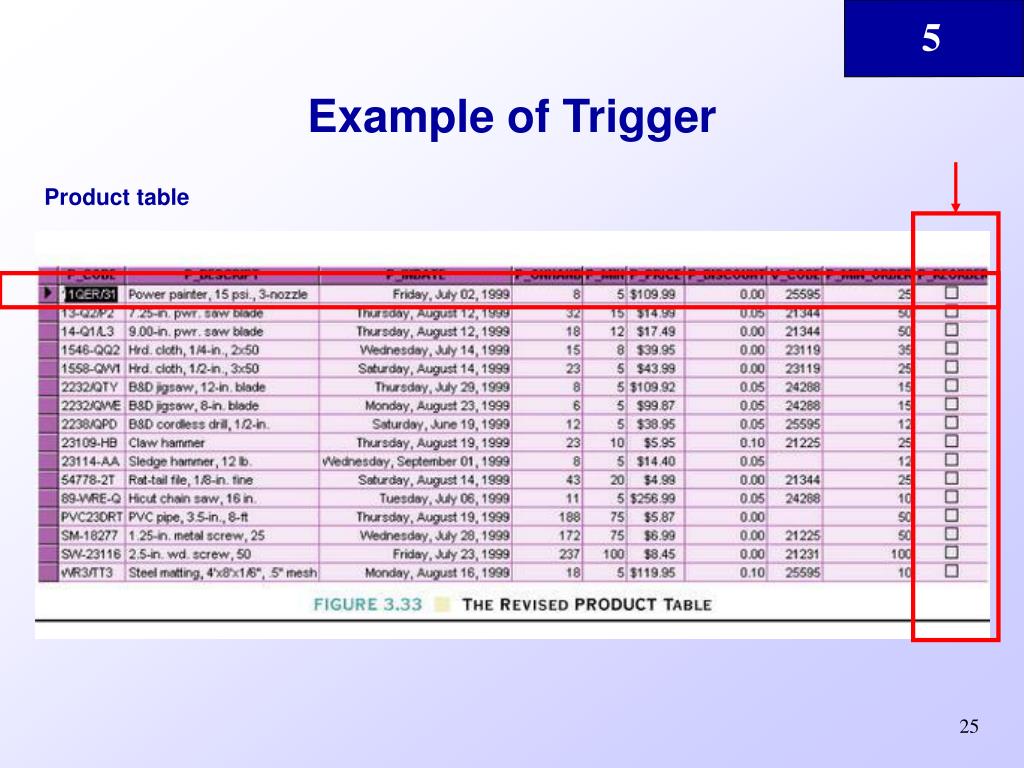

  25. Example of Trigger Product table

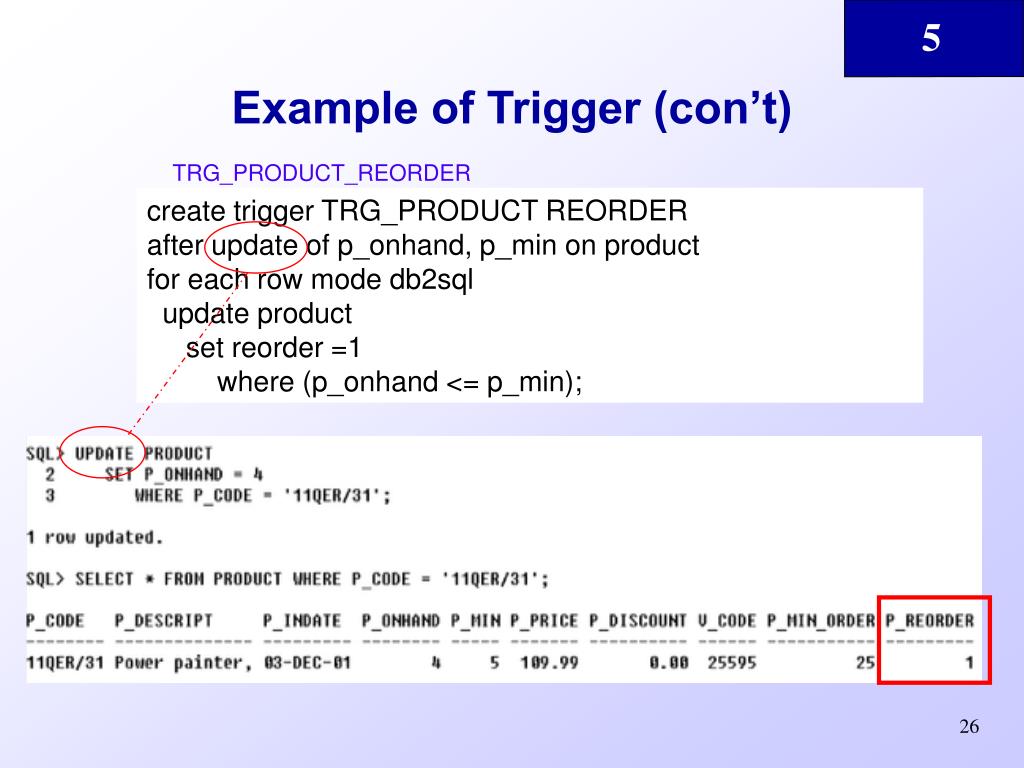

  26. Example of Trigger (con’t) TRG_PRODUCT_REORDER create trigger TRG_PRODUCT REORDER after update of p_onhand, p_min on product for each row mode db2sql update product set reorder =1 where (p_onhand <= p_min);
