Covalent Compounds

Covalent Compounds. Why do atoms bond?. When a + nucleus attracts electrons of another atom Or oppositely charged ions attract( ionic bonds-metals and nonmetals) We know the octet rule- atoms tend to gain or lose or share e - in order to acquire a full set of 8 valence e -. Properties.

alijah
Download Presentation

Covalent Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Covalent Compounds

  2. Why do atoms bond? • When a + nucleus attracts electrons of another atom • Or oppositely charged ions attract( ionic bonds-metals and nonmetals) • We know the octet rule- atoms tend to gain or lose or share e- in order to acquire a full set of 8 valence e-

  3. Properties • 1)  Covalent compounds generally have much lower melting and boiling points than ionic compounds.  • 2)  Covalent compounds are soft and squishy (compared to ionic compounds, anyway • On the other hand, covalent compounds have these molecules which can very easily move around each other, because there are no bonds between them.  As a result, covalent compounds are frequently flexible rather than hard.

  4. More Properties • 3)  Covalent compounds tend to be more flammable than ionic compounds. • 4)  Covalent compounds don't conduct electricity in water. • 5)  Covalent compounds aren't usually very soluble in water.

  5. More Properties • There's a saying that, "Like dissolves like".  This means that compounds tend to dissolve in other compounds that have similar properties (particularly polarity).  Since water is a polar solvent and most covalent compounds are fairly nonpolar, many covalent compounds don't dissolve in water.  Of course, this is a generalization and not set in stone - there are many covalent compounds that dissolve quite well in water.

  6. Covalent Bond • Chemical bond that results from sharing valence electrons. (Generally occurs when elements are close to each other on the periodic table and between nonmetallic elements) • Molecule- a another name for covalent compound, is formed when two or more atoms bond covalently.

  7. more • Diatomic molecules- are molecules that occur in nature not as single atoms because the molecules formed are more stable than the individual atoms. There are 7 of these: Hydrogen (H2), Nitrogen (N2), Oxygen (O2), Fluorine (F2), Chlorine (Cl2), Bromine (Br2), and Iodine (I2).

  8. Naming Covalent Compounds • Rule 1. The element with the lower group number is written first in the name; the element with the higher group number is written second in the name. • Exception: when the compound contains oxygen and a halogen, the name of the halogen is the first word in the name. • Rule 2. If both elements are in the same group, the element with the higher period number is written first in the name.

  9. More Naming Rules • Rule 3. The second element in the name is named as if it were an anion, i.e., by adding the suffix -ide to the name of the element.Rule 4. Greek prefixes are used to indicate the number of atoms of each nonmetal element in the chemical formula for the compound. • Exception: if the compound contains one atom of the element that is written first in the name, the prefix "mono-" is not used.

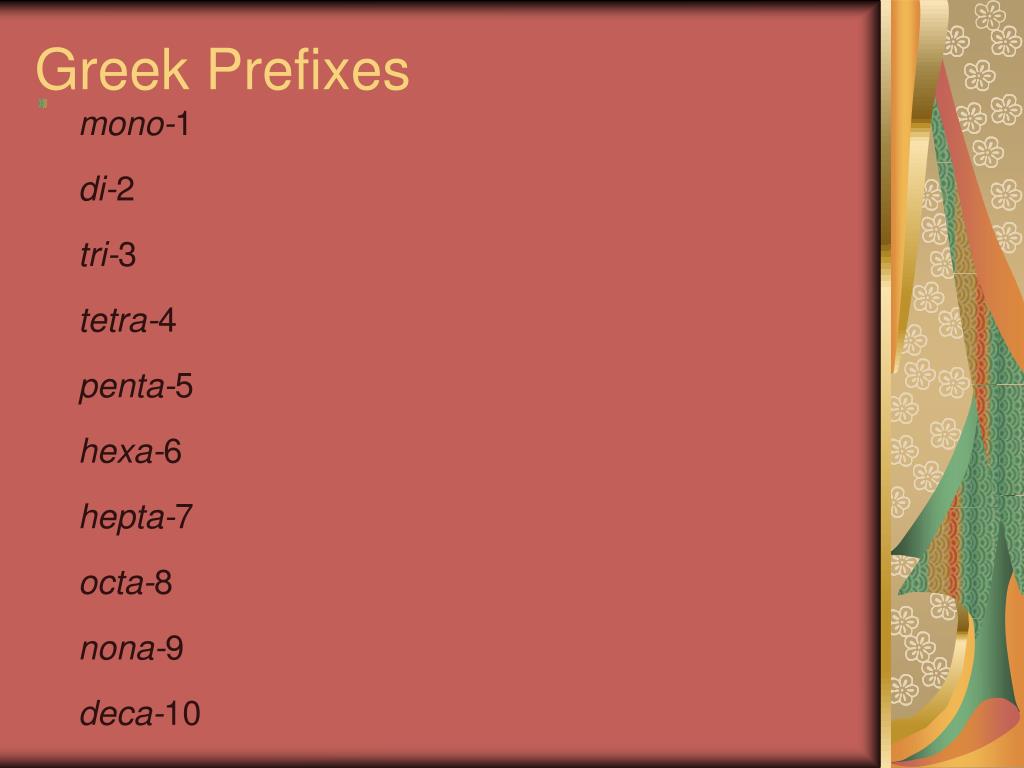

  10. Greek Prefixes • mono-1di-2tri-3tetra-4penta-5hexa-6hepta-7octa-8nona-9deca-10

  11. Covalent Bonds • When showing the bonding between atoms of covalent compounds, either a pair of dots or a line is the Lewis structure of a molecule. Lewis structures- use electron-dot diagrams to show how electrons are arranged in molecules

  12. more • Group 7A atoms have 7 valence e- and need 1 e- to fulfill the octet rule and become stable. So they will form a single covalent bond • Do example • Group 6A need 2 e- and will form 2 covalent bonds • Group 5A need 3e- and will form 3 covalent bonds • Group 4A will form 4 covalent bonds. • Let’s practice!!!

  13. Molecular Structures • Several models can be used to represent a molecular structure: Molecular formula, structural formula, Lewis structure and ball and stick. • Predicting the location of certain atoms: • Hydrogen is always terminal • Halogens usually terminal • Elements with more than one atom are usually terminal • Central atom- smallest electronegativity • Find total number of electrons for bonding9 total valence electrons) • Determine pairs (divide valence electrons by 2) • Draw Bonds from central atom to other atoms • Subtract bonded e- for total valence e- • Place remaining e- around to complete octets • If there are not enough electrons to give the atoms 8, except for hydrogen, make double and triple bonds. • C,N,O and S can form double and triple bonds with same element and others.

  14. Single and Multiple Bonds • The sigma bond(σ)- single covalent bond (overlapping of the valence atomic orbitals resulting in the e- being in a bonding orbital between the two atoms) • Multiple Covalent Bonds- atoms can attain a noble gas configuration by sharing more than one pair of electrons between two atoms.

  15. Atoms can have • Single - 1 pair of e- • Double – 2 pair of e- • Triple – 3 pair of e- • Try CO2, O2, N2

  16. Electronegativity and Lewis Dot Structures • When these atoms share electrons they are often not equally shared. This is due to electronegativity. • Hydrogen and halogens usually bond to only one other atom and are usually on the outside of the molecule. • The atom with the smallest electronegativity is often the central atom of the compound. • When a molecule contains more atoms of one element than the others, these atoms often surround a central atom.

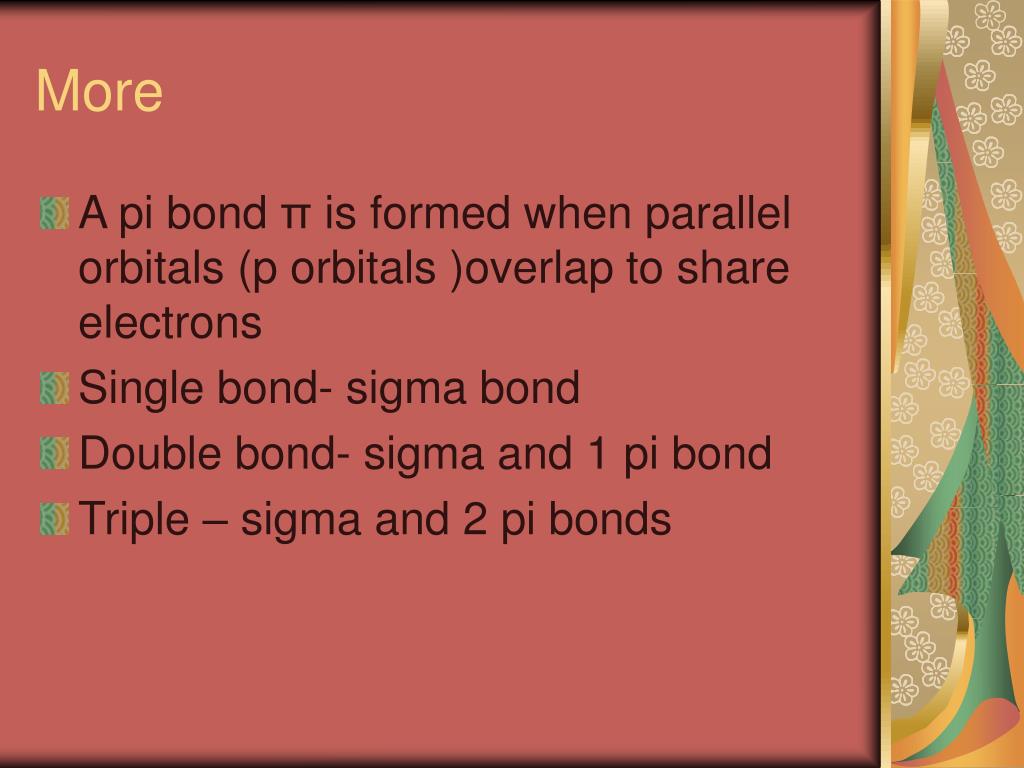

  17. More • A pi bond π is formed when parallel orbitals (p orbitals )overlap to share electrons • Single bond- sigma bond • Double bond- sigma and 1 pi bond • Triple – sigma and 2 pi bonds

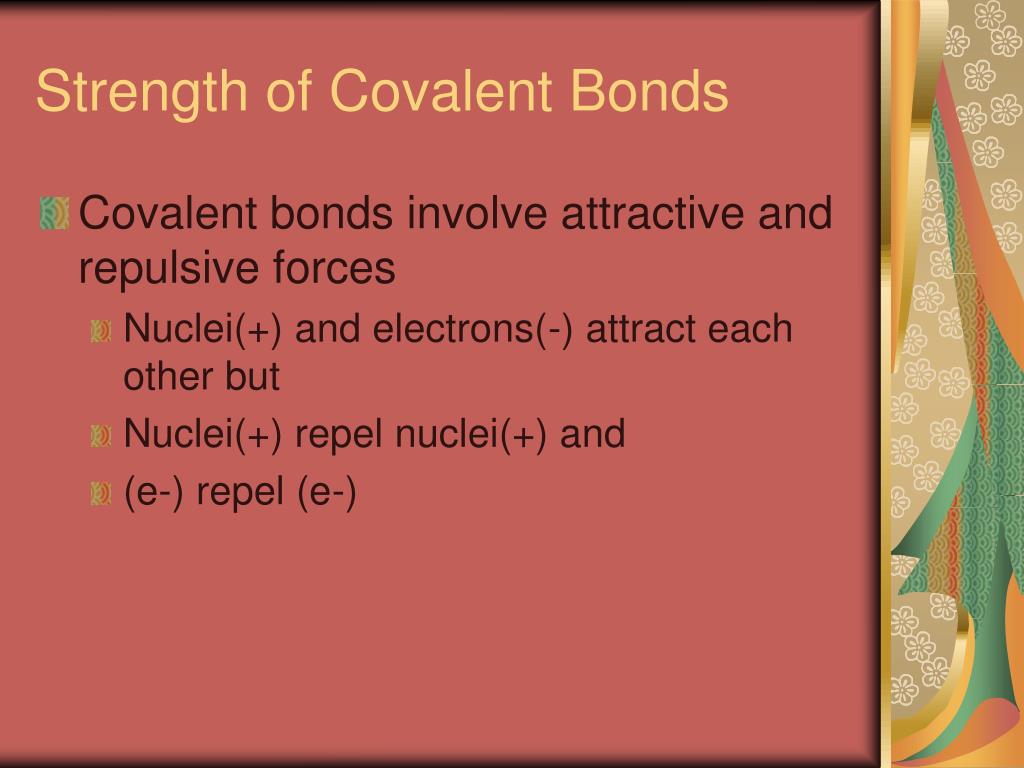

  18. Strength of Covalent Bonds • Covalent bonds involve attractive and repulsive forces • Nuclei(+) and electrons(-) attract each other but • Nuclei(+) repel nuclei(+) and • (e-) repel (e-)

  19. More • There is a balance of attractive and repulsive forces • When this balance is disrupted the bond could break • Factors controlling Bond Strength • 1. distance between nuclei= bond length

  20. More • Bond length • Determined by size of atoms and number of shared electrons • Size- length decreases when number of bonds increases • Example- a triple bond ( 3 shared pairs of e-) is shorter than a double bond (2 shared pairs of electrons) • Strength- shorter the length –stronger the bond

  21. Bond Energy • Energy change occurs when bonds are formed • Bond Dissociation Energy- the amount of energy required to break a specific covalent bond- this is always a + value because energy is added to break a bond • The sum of BDE for all bonds in a compound= the amt. of chemical PE available in one molecule of a compound • BDE= the strength of the bond • **as two atoms are bonded closer together the BDE increases • Formation- energy released-exothermic • Broken- energy added-endothermic

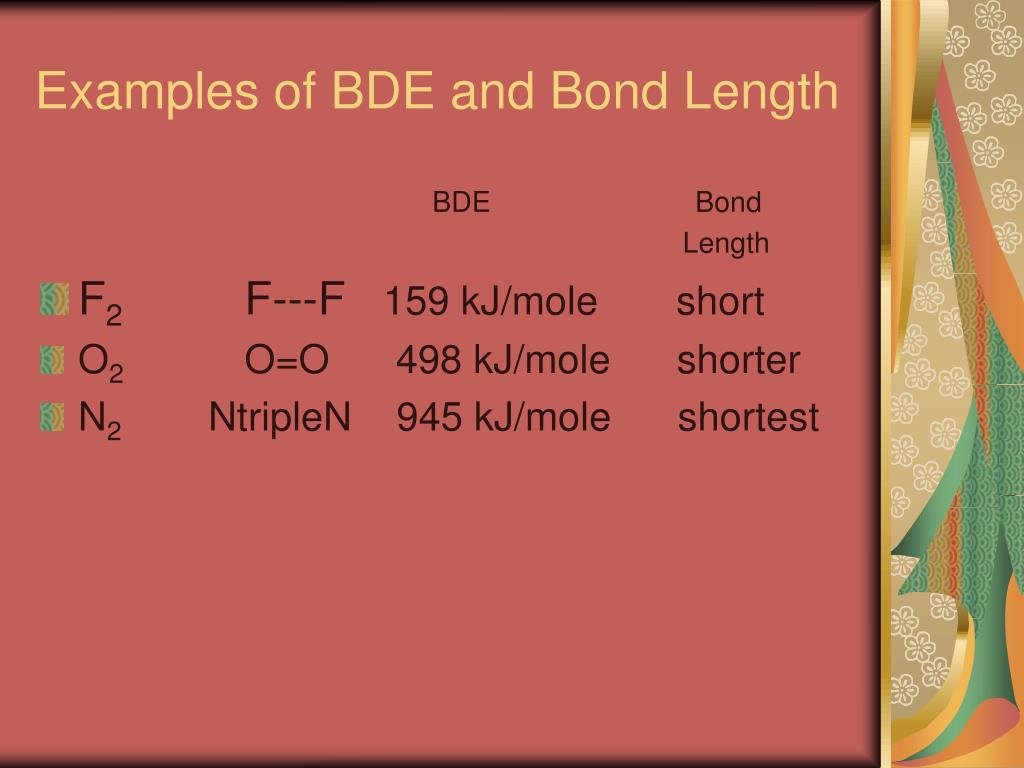

  22. Examples of BDE and Bond Length BDE Bond Length • F2 F---F 159 kJ/mole short • O2 O=O 498 kJ/mole shorter • N2 NtripleN 945 kJ/mole shortest

  23. Exceptions • Some molecules and ions do not obey the octet rule. • Reasons • 1. some group has an odd number of valence e- and can’t form an octet • Ex. NO2 • 2. some groups form with few than 8 e- present. This is very reactive and will share an entire pair of e- which is a coordinate covalent bond. • exBH3 • 3. central atom contains more than 8 e- (expanded octet)- usually occurs with elements in period 3 or higher. • Ex. PCl5 or SF6

  24. Resonance Structures • A condition when more than one valid Lewis structure can be written for a molecule or ion. This occurs when a molecule or ion has a combination of single and double bonds. • Let’s try to draw the resonance structures of NO3- • Now you try for homework • SO3, SO2, O3, NO2-

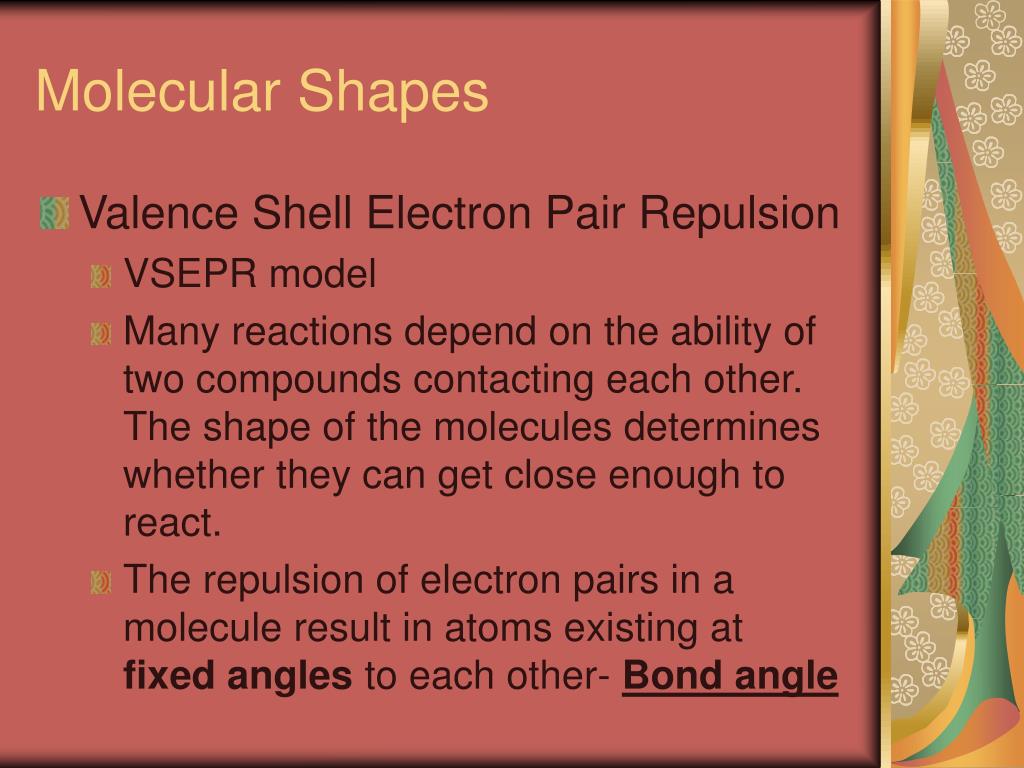

  25. Molecular Shapes • Valence Shell Electron Pair Repulsion • VSEPR model • Many reactions depend on the ability of two compounds contacting each other. The shape of the molecules determines whether they can get close enough to react. • The repulsion of electron pairs in a molecule result in atoms existing at fixed angles to each other- Bond angle

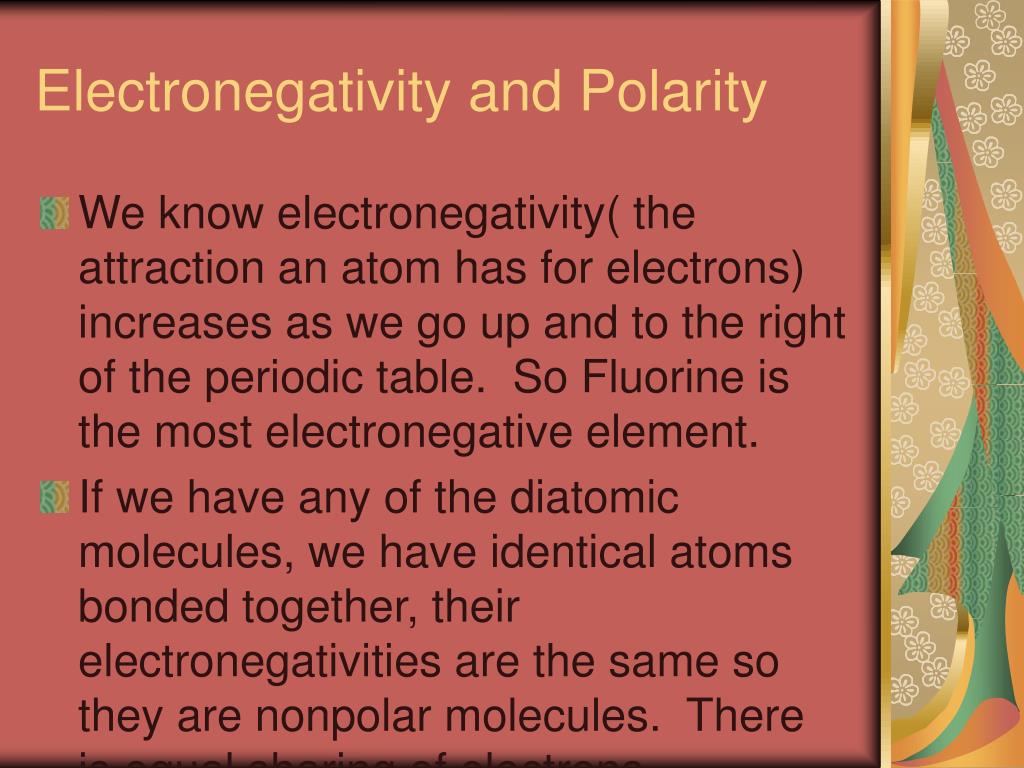

  26. Electronegativity and Polarity • We know electronegativity( the attraction an atom has for electrons) increases as we go up and to the right of the periodic table. So Fluorine is the most electronegative element. • If we have any of the diatomic molecules, we have identical atoms bonded together, their electronegativities are the same so they are nonpolar molecules. There is equal sharing of electrons

  27. More • Chemical bonds between elements are never completely ionic or covalent. • When the difference in electronegativity between atoms increases it is more ionic • When the difference in electronegativity between atoms is less it is more covalent • Unequal sharing of electrons results in a Polar Covalent Bond

  28. More

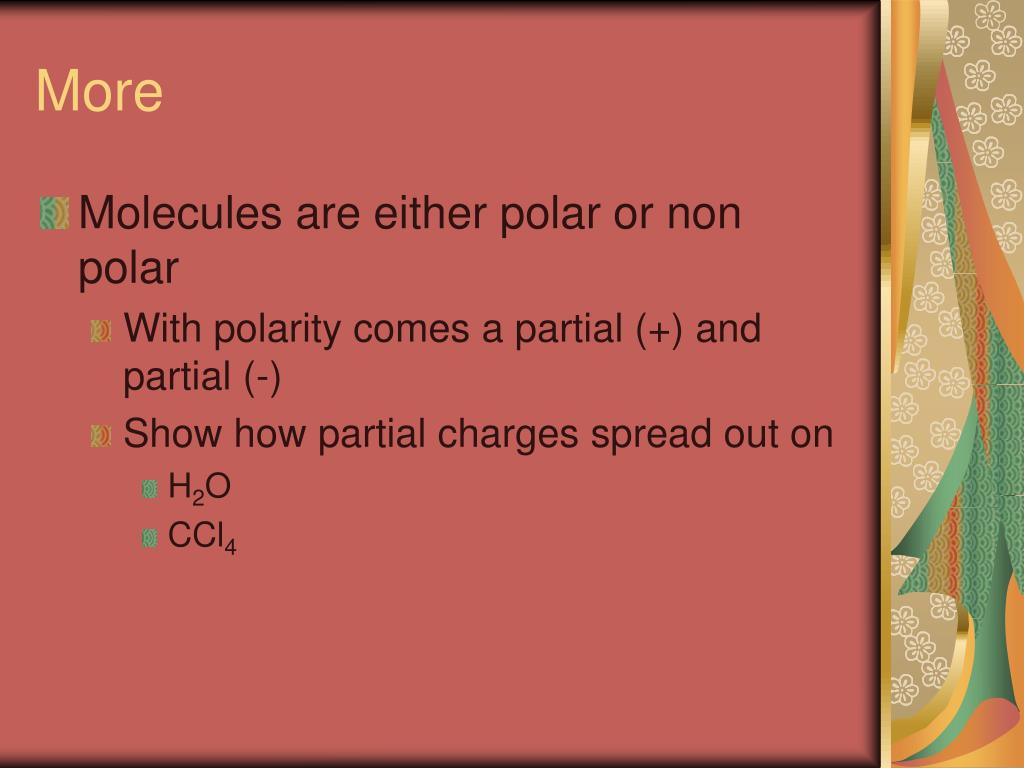

  29. More • Molecules are either polar or non polar • With polarity comes a partial (+) and partial (-) • Show how partial charges spread out on • H2O • CCl4

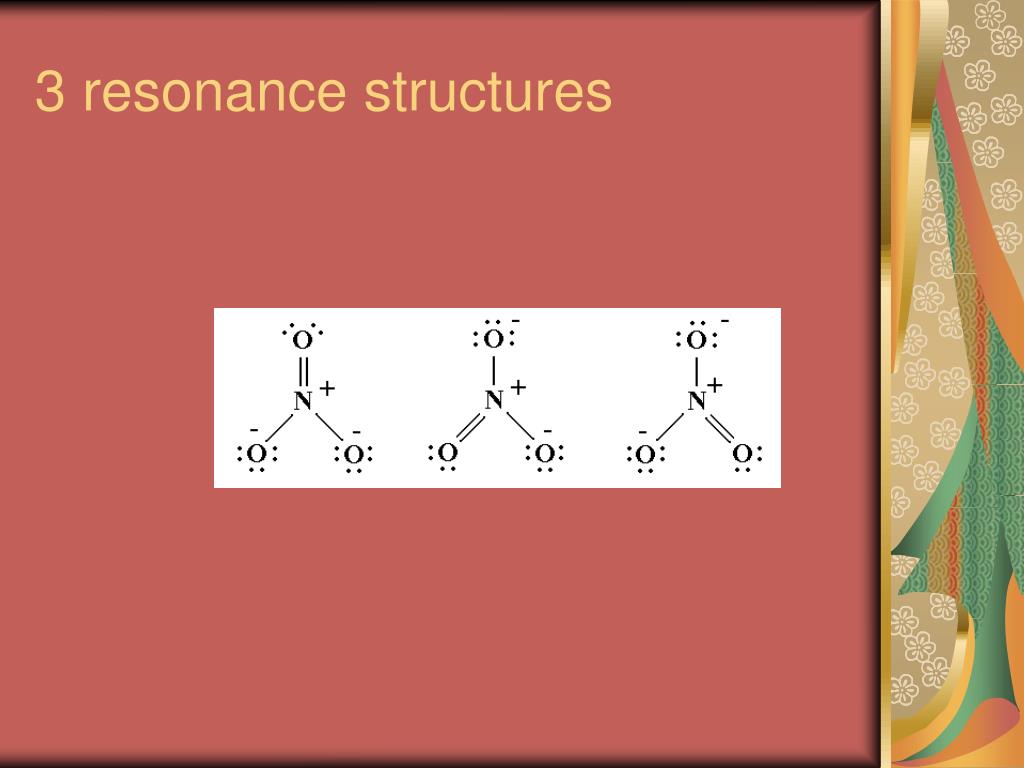

  30. 3 resonance structures

  31. Dichromate Ion • Lewis Structure • Cr2O72- 56 valence electrons
