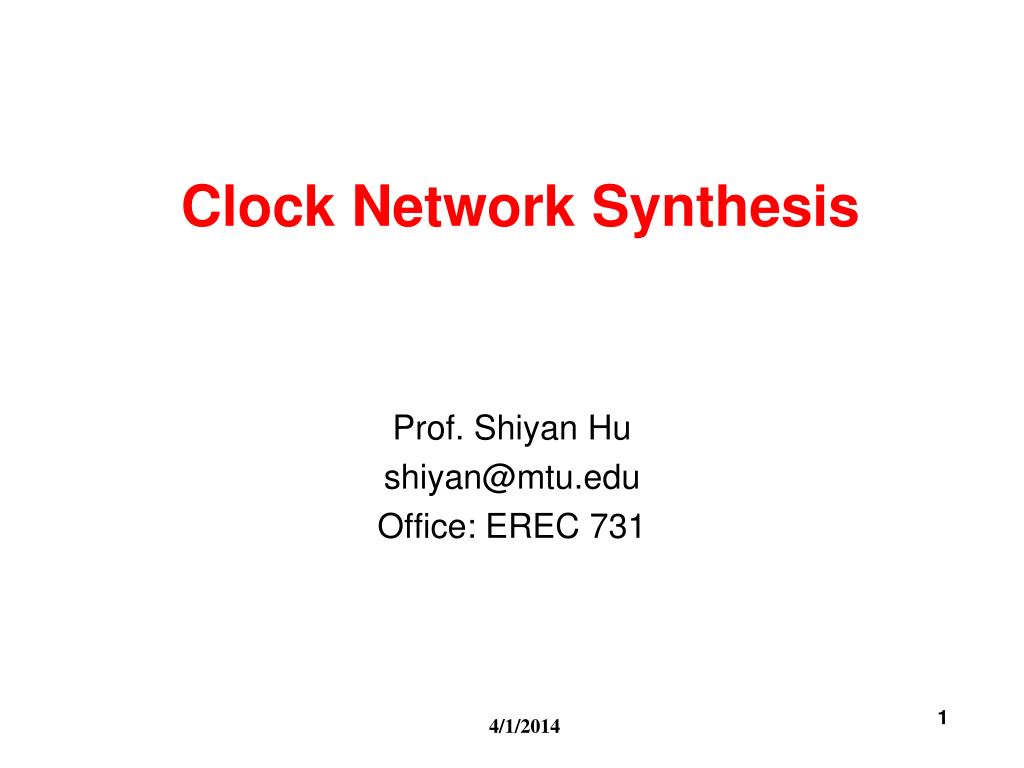

### Clock Network Synthesis

Prof. Shiyan Hu

shiyan@mtu.edu

Office: EREC 731

Outline
• Introduction
• H-tree
• Zero skew clock
• DME and its extension

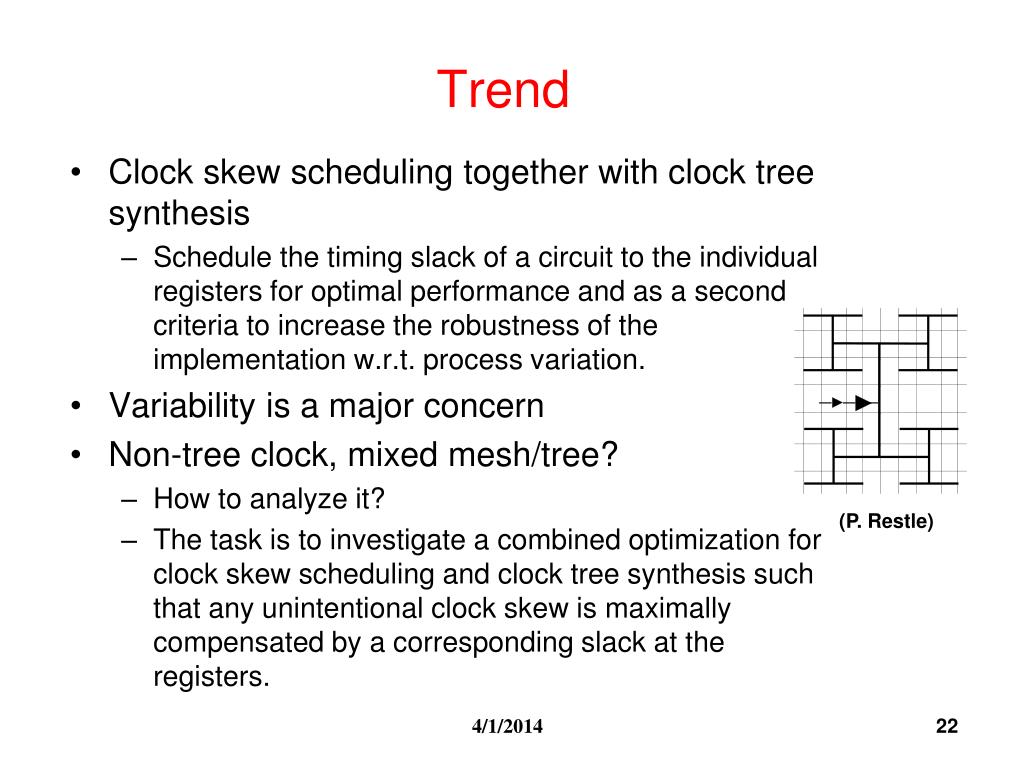

• New trends

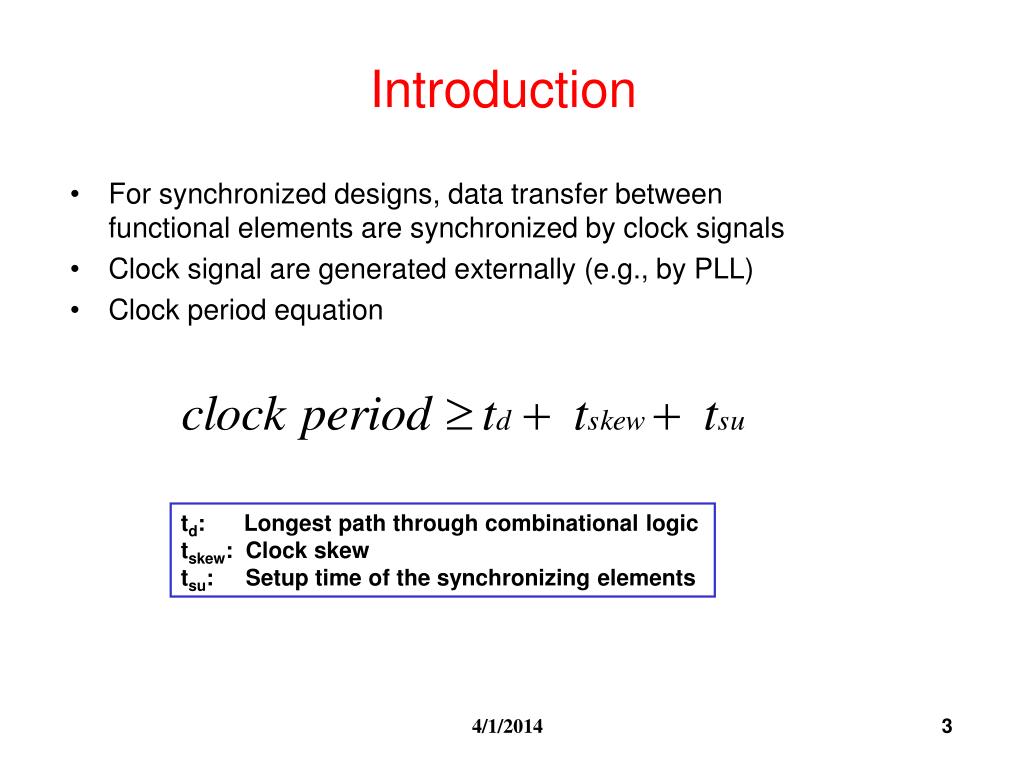

Introduction
• For synchronized designs, data transfer between functional elements are synchronized by clock signals
• Clock signal are generated externally (e.g., by PLL)
• Clock period equation

td: Longest path through combinational logic

tskew: Clock skew

tsu: Setup time of the synchronizing elements

Clock Skew
• Clock skew is the maximum difference in the arrival time of a clock signal at two different components.
• Clock skew forces designers to use a large time period between clock pulses. This makes the system slower.
• So, in addition to other objectives, clock skew should be minimized during clock routing.

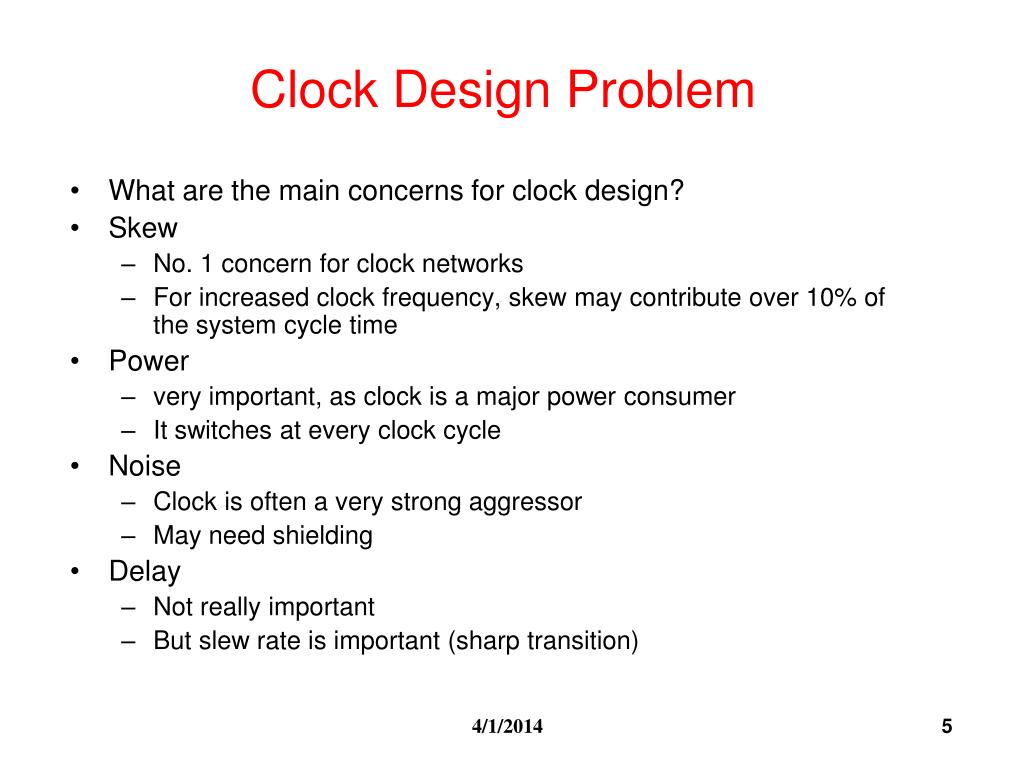

Clock Design Problem
• What are the main concerns for clock design?
• Skew
• No. 1 concern for clock networks
• For increased clock frequency, skew may contribute over 10% of the system cycle time
• Power
• very important, as clock is a major power consumer
• It switches at every clock cycle
• Noise
• Clock is often a very strong aggressor
• May need shielding
• Delay
• Not really important
• But slew rate is important (sharp transition)

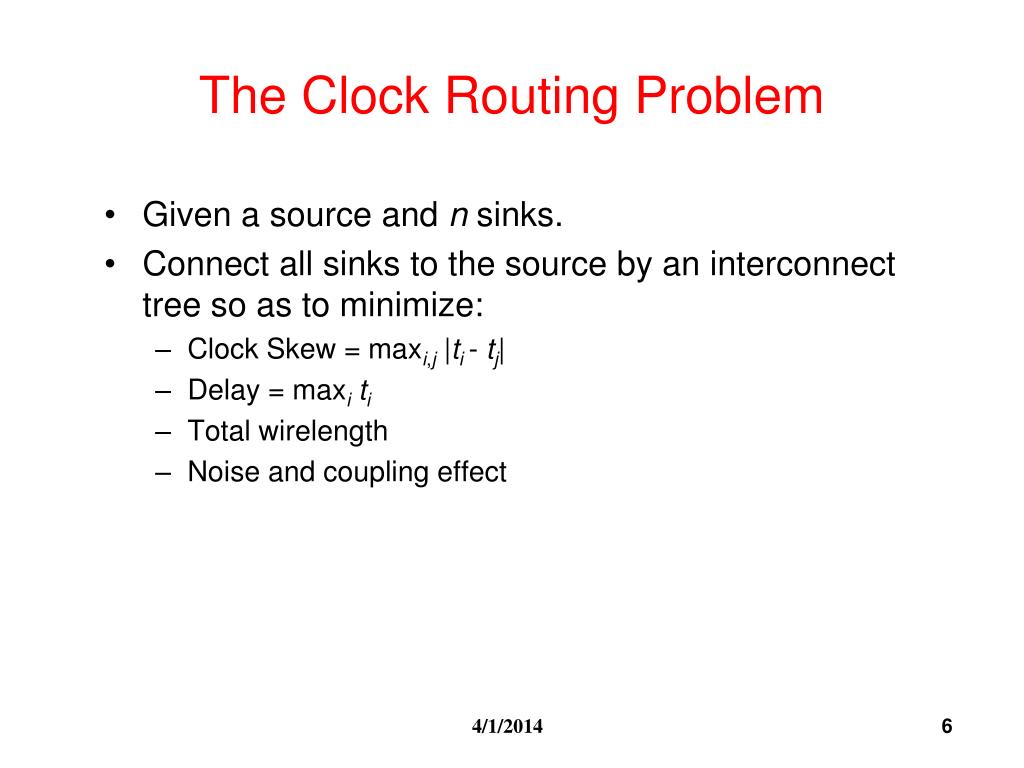

The Clock Routing Problem
• Given a source and n sinks.
• Connect all sinks to the source by an interconnect tree so as to minimize:
• Clock Skew = maxi,j |ti- tj|
• Delay = maxiti
• Total wirelength
• Noise and coupling effect
Clock Design Considerations
• Clock signal is global in nature, so clock nets are usually very long.
• Significant interconnect capacitance and resistance
• So what are the techniques?
• Routing
• Clock tree versus clock clock mesh (grid)
• Balance skew and total wire length
• Buffer insertion
• Clock buffers to reduce clock skew, delay, and distortion in waveform.
• Wire sizing
• To further tune the clock tree/mesh

Clock Source

FF

FF

FF

FF

FF

FF

FF

FF

FF

FF

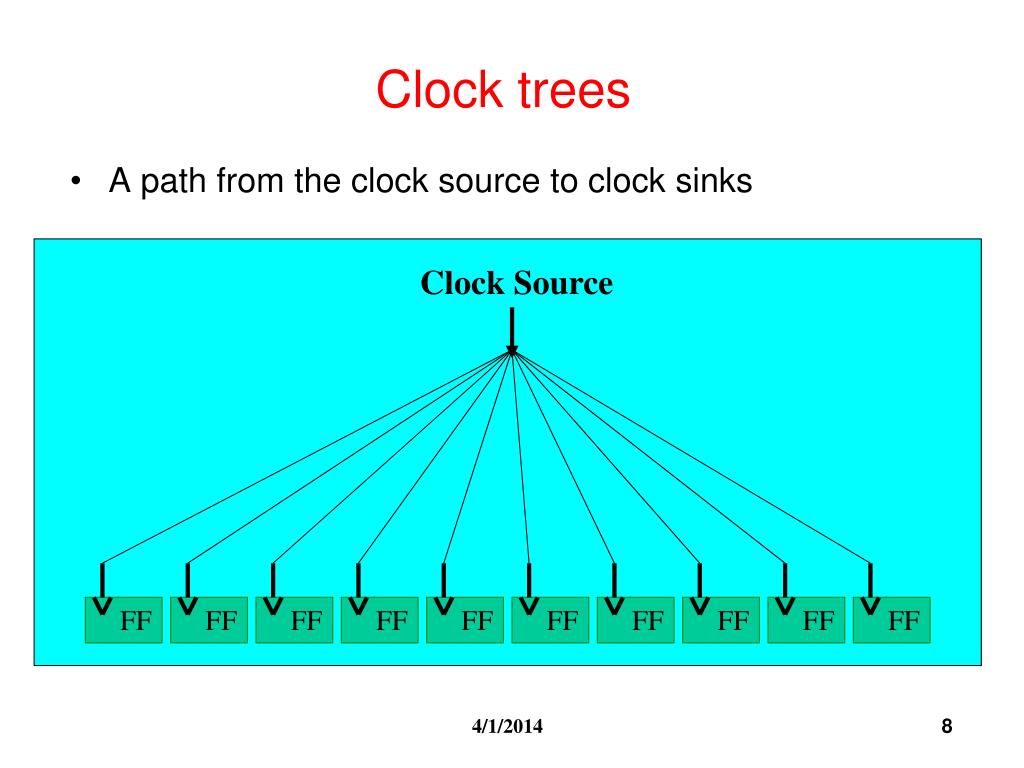

Clock trees
• A path from the clock source to clock sinks

Clock Source

FF

FF

FF

FF

FF

FF

FF

FF

FF

FF

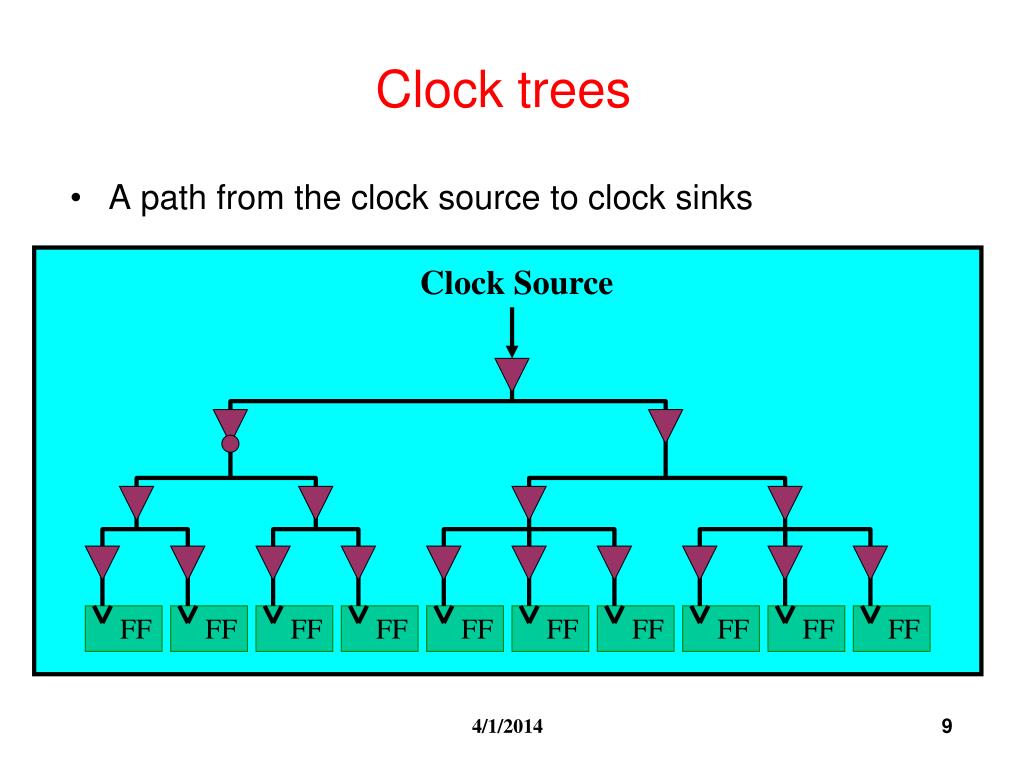

Clock trees
• A path from the clock source to clock sinks
H-tree Algorithm
• Minimize skew by making interconnections to subunits equal in length
• Regular pattern
• Can be used when terminals are evenly distributed
• However, this is never the case in practice
• So strict (pure) H-trees are rarely used
• However, still popular for top-level clock network design
• Cons: too costly is used everywhere
A Zero Skew Algorithm
• Use Elmore delay model to compute delay
• Try to minimize wire length, but not done very well
• Lots of follow up works to minimize total wire length while maintaining zero skew
• DME and its extensions

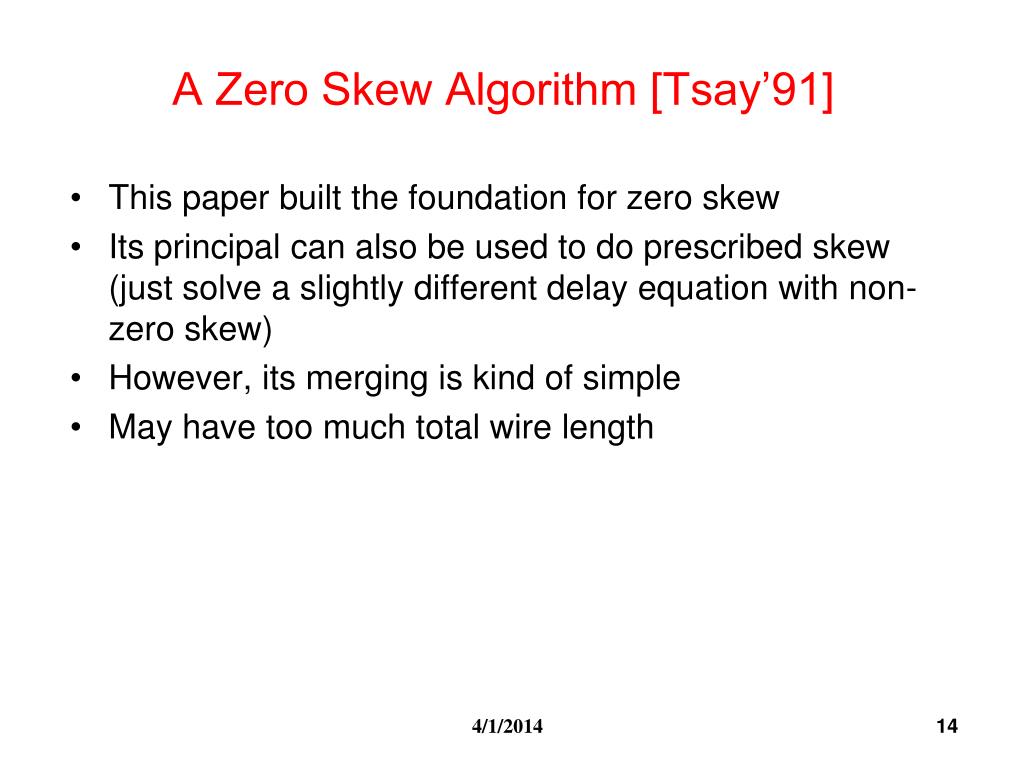

A Zero Skew Algorithm [Tsay’91]
• This paper built the foundation for zero skew
• Its principal can also be used to do prescribed skew (just solve a slightly different delay equation with non-zero skew)
• However, its merging is kind of simple
• May have too much total wire length

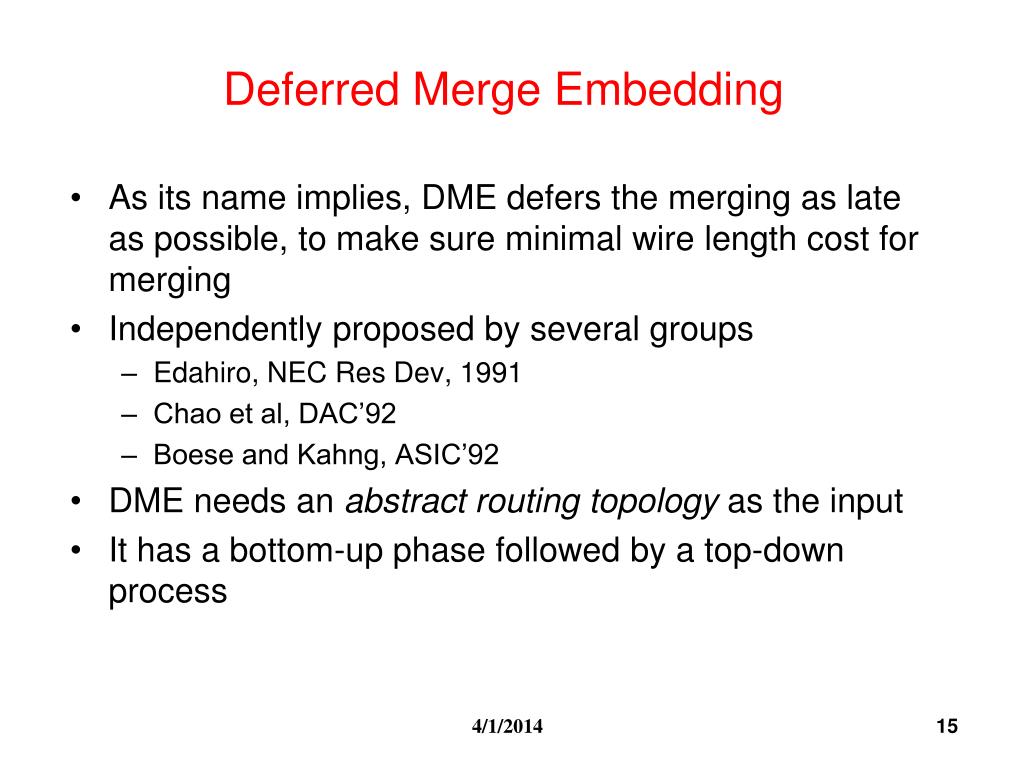

Deferred Merge Embedding
• As its name implies, DME defers the merging as late as possible, to make sure minimal wire length cost for merging
• Independently proposed by several groups
• Edahiro, NEC Res Dev, 1991
• Chao et al, DAC’92
• Boese and Kahng, ASIC’92
• DME needs an abstractrouting topology as the input
• It has a bottom-up phase followed by a top-down process

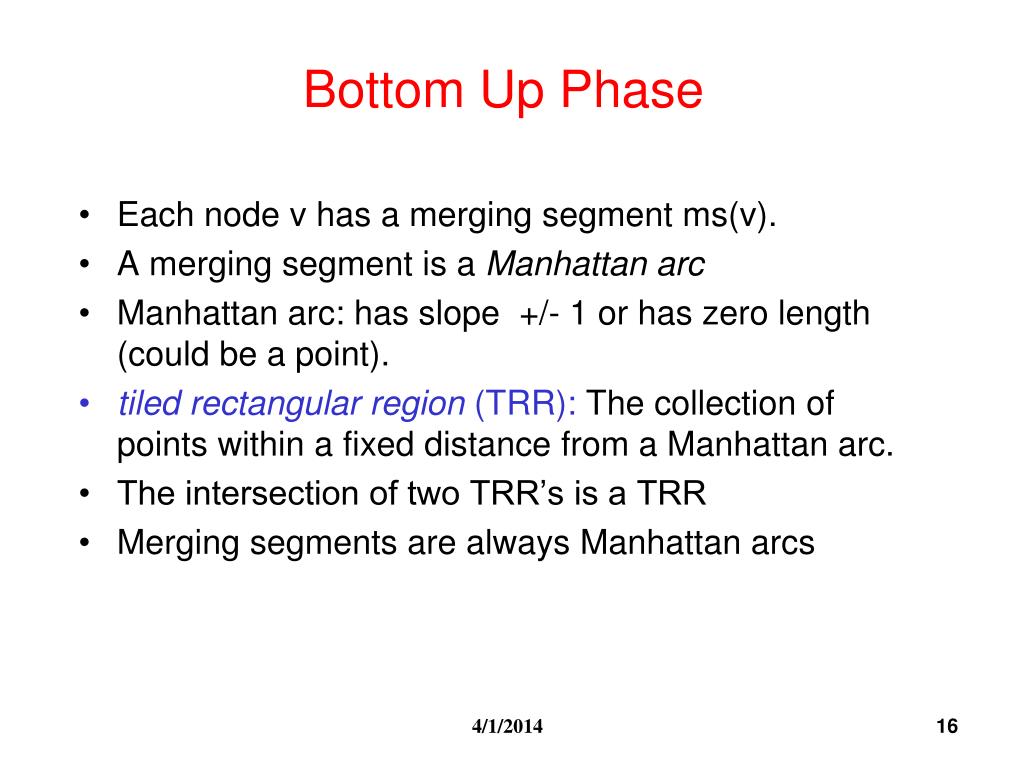

Bottom Up Phase
• Each node v has a merging segment ms(v).
• A merging segment is a Manhattan arc
• Manhattan arc: has slope +/- 1 or has zero length (could be a point).
• tiled rectangular region (TRR): The collection of points within a fixed distance from a Manhattan arc.
• The intersection of two TRR’s is a TRR
• Merging segments are always Manhattan arcs

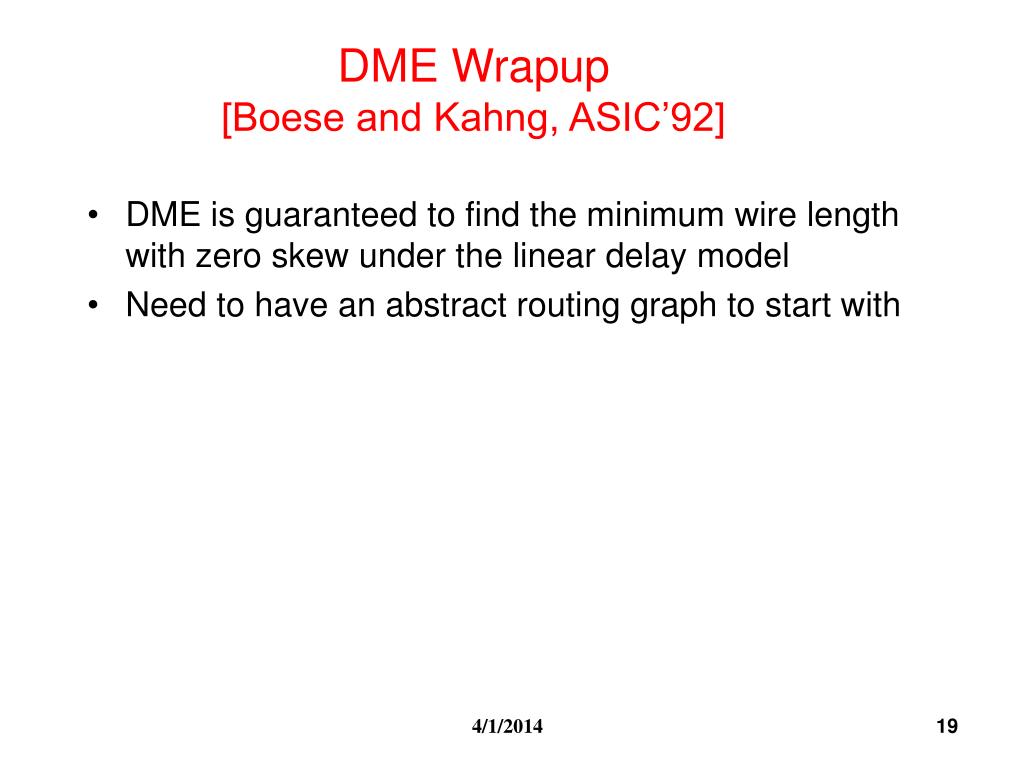

DME Wrapup[Boese and Kahng, ASIC’92]

• DME is guaranteed to find the minimum wire length with zero skew under the linear delay model

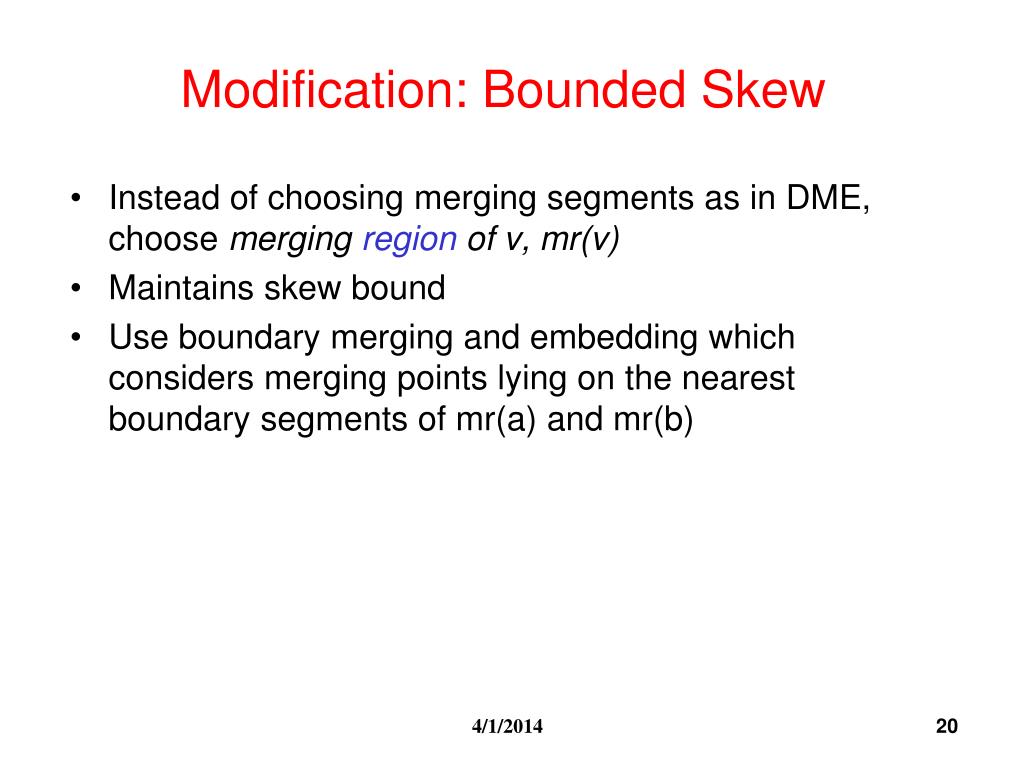

Modification: Bounded Skew
• Instead of choosing merging segments as in DME, choose merging region of v, mr(v)
• Maintains skew bound
• Use boundary merging and embedding which considers merging points lying on the nearest boundary segments of mr(a) and mr(b)

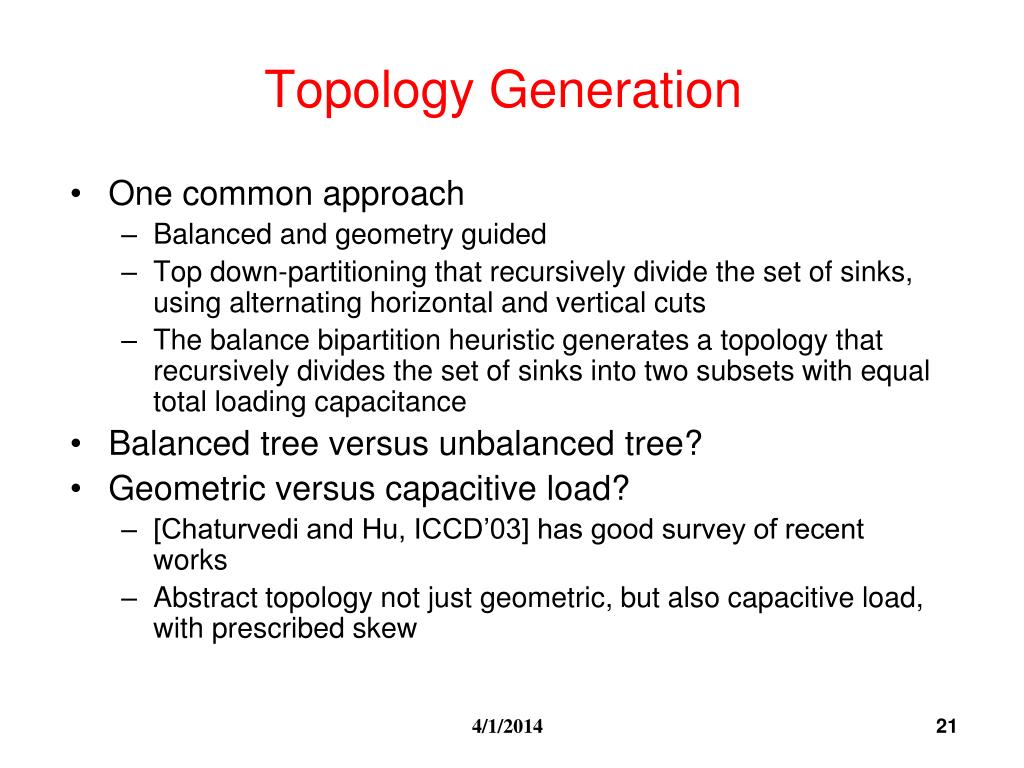

Topology Generation
• One common approach
• Balanced and geometry guided
• Top down-partitioning that recursively divide the set of sinks, using alternating horizontal and vertical cuts
• The balance bipartition heuristic generates a topology that recursively divides the set of sinks into two subsets with equal total loading capacitance
• Balanced tree versus unbalanced tree?
