  1. Native IPv6 link between Brussels and Basel Marcin MICHALAK, ULB-STC michalak@helios.iihe.ac.be

  2. Connection Eurodemo-MCLab VUB/ULB BELNET 100BaseT Eurodemo LAN ATM DANTE TEN-155 UNI BASEL MCLab LAN ATM ATM SWITCH

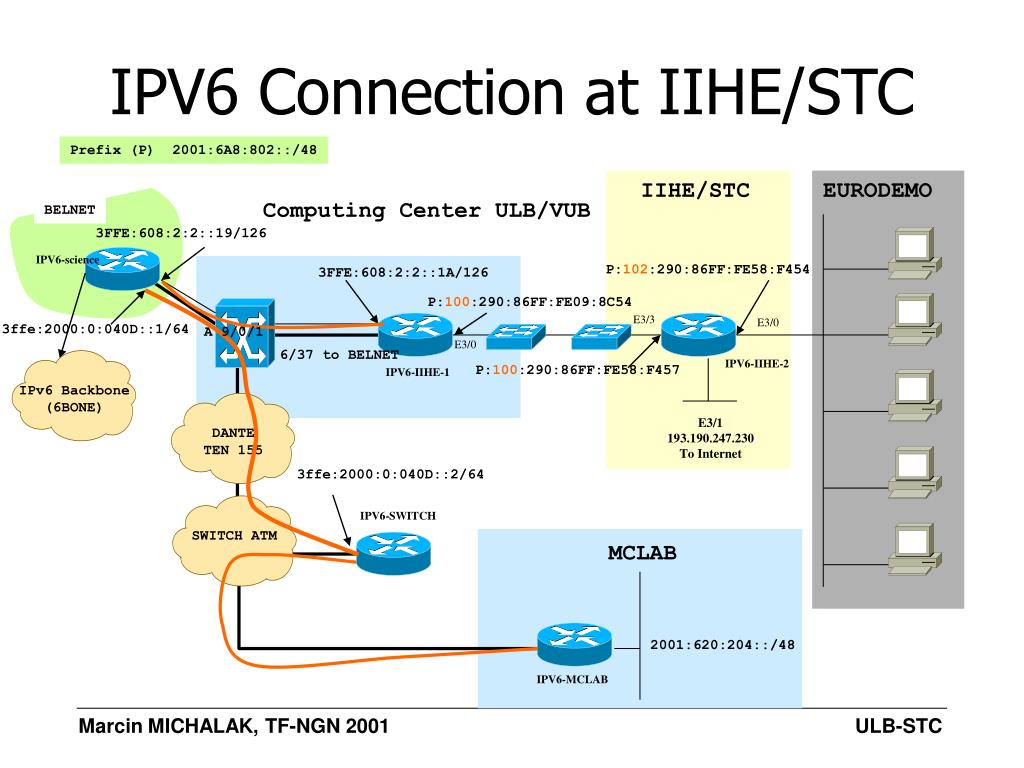

  3. IPv6 Backbone (6BONE) SWITCH ATM DANTE TEN 155 IPV6 Connection at IIHE/STC Prefix (P) 2001:6A8:802::/48 IIHE/STC EURODEMO Computing Center ULB/VUB BELNET 3FFE:608:2:2::19/126 IPV6-science P:102:290:86FF:FE58:F454 3FFE:608:2:2::1A/126 P:100:290:86FF:FE09:8C54 E3/3 E3/0 3ffe:2000:0:040D::1/64 A 9/0/1 E3/0 6/37 to BELNET IPV6-IIHE-2 P:100:290:86FF:FE58:F457 IPV6-IIHE-1 E3/1 193.190.247.230 To Internet 3ffe:2000:0:040D::2/64 IPV6-SWITCH MCLAB 2001:620:204::/48 IPV6-MCLAB

  4. Basel IPv6 infrastructure Uni Basel MCLab Dedicated (& protected) bandwidths Ethernet switch 1Mbit/s 2Mbit/s guaranteed to „the Internet“ + 10Mbit/s orderable on demand a 256kbit/s b 128kbit/s c Opto-electric media converters Web hosting & housing 1 2 MCLab mail server 3 7206 7507 7206 100Mbit/s Fast Ethernet ATM switch MCLab Ethernet LAN 2Mbit/s ATM VP to „the Internet“ (+ 10Mbit/s orderable on demand to Géant) MCLab ATM LAN 155Mbit/s ATM - 1.9Mbit/s guaranteed on port 1, segregated according to specific IP addresses allocated to a, b, and c - 100 kbit/s guaranteed on port 2 (maybe traffic above this level can be treated as „best effort“ ? - up to 10Mbit/s orderable on demand to/from port 2 or port 3

  5. Conclusion • common testbed for IPv6 connectivity, • You’re: • welcome to use it, • welcome to join/connect. IPv6 Contact: Paul van Binst vanbinst@helios.iihe.ac.be Rosette VANDENBROUCKE vandenbroucke@helios.iihe.ac.be Marcin Michalak michalak@helios.iihe.ac.be
