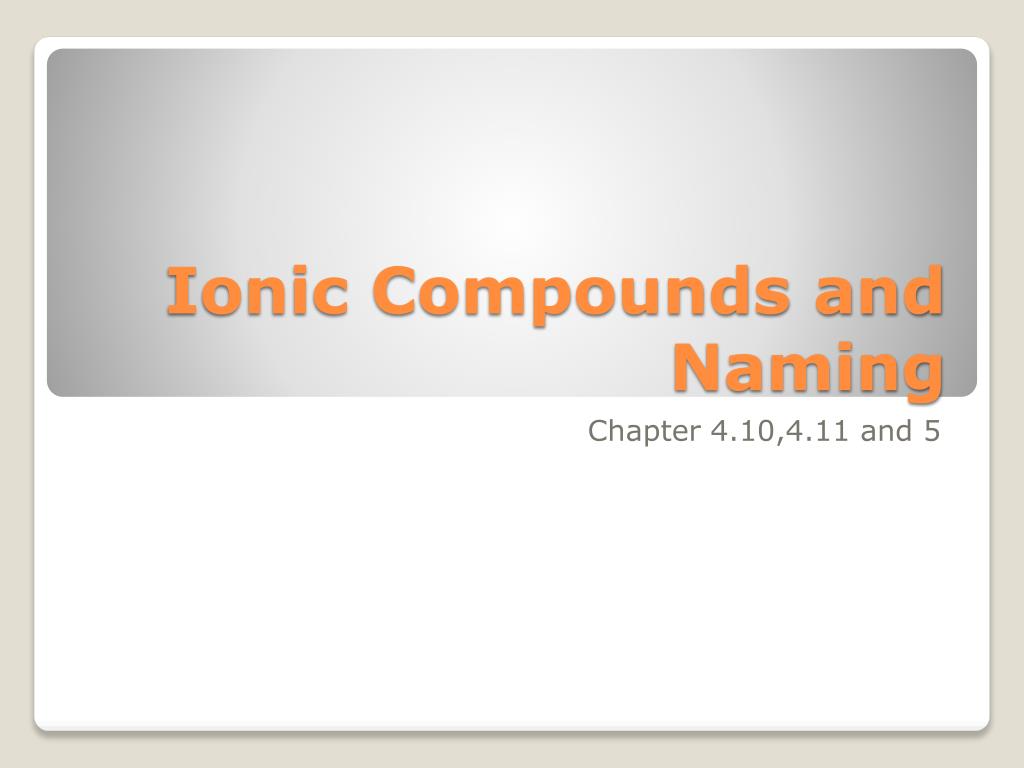

  1. Ionic Compounds and Naming Chapter 4.10,4.11 and 5

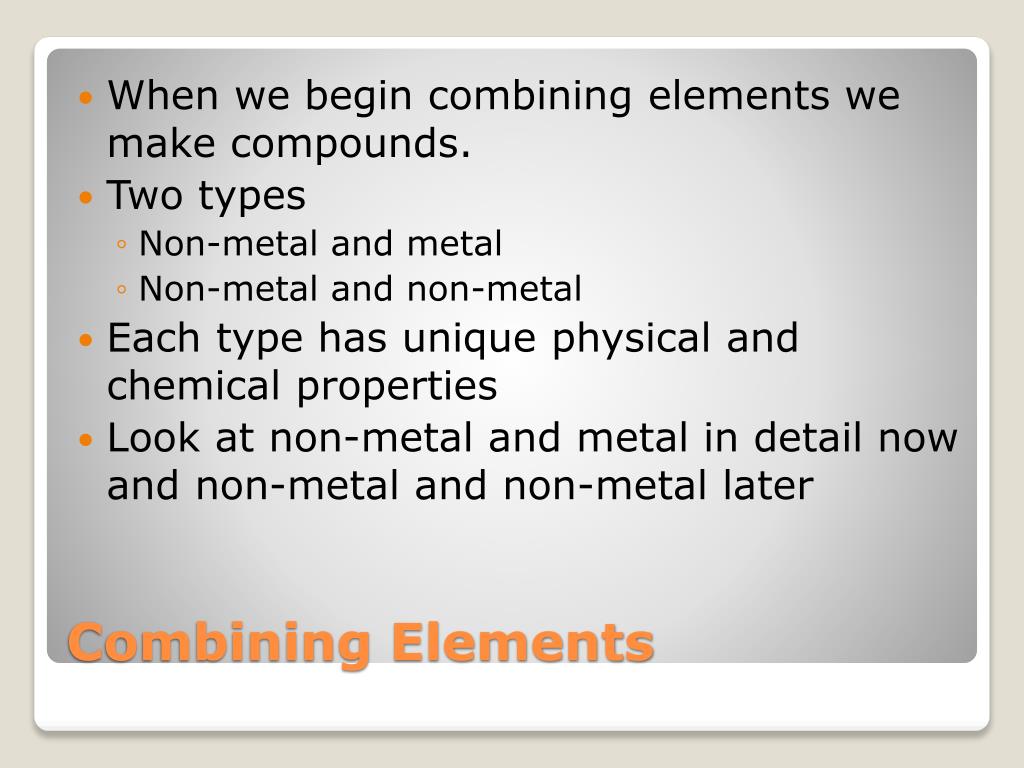

  2. When we begin combining elements we make compounds. • Two types • Non-metal and metal • Non-metal and non-metal • Each type has unique physical and chemical properties • Look at non-metal and metal in detail now and non-metal and non-metal later Combining Elements

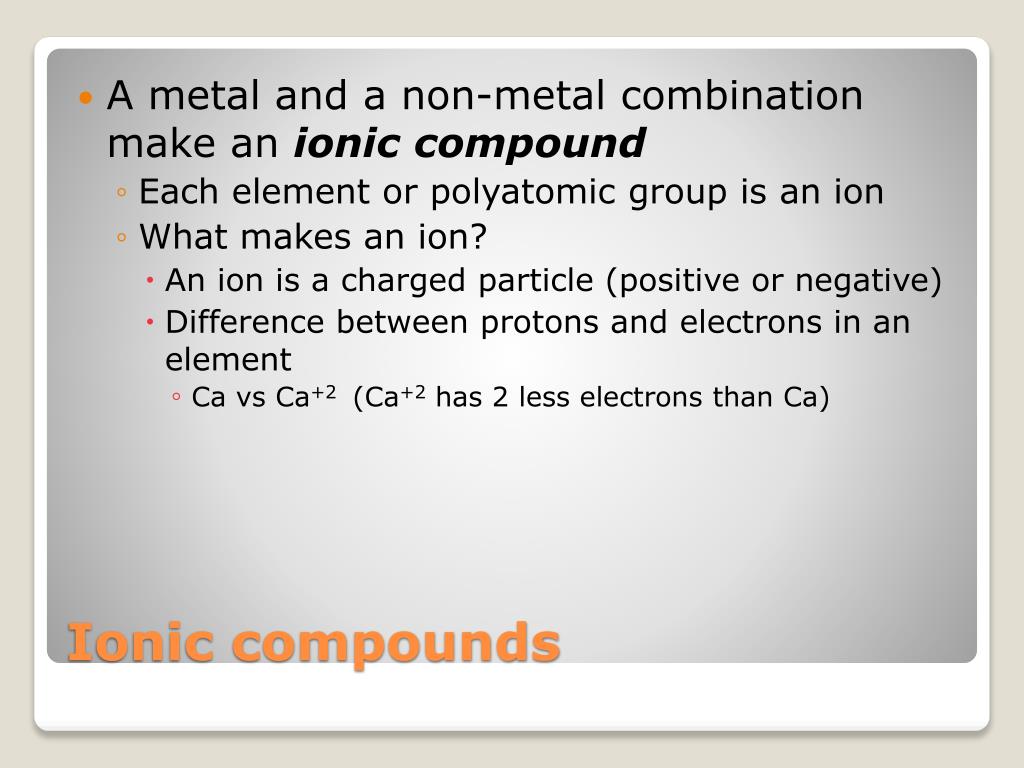

  3. A metal and a non-metal combination make an ionic compound • Each element or polyatomic group is an ion • What makes an ion? • An ion is a charged particle (positive or negative) • Difference between protons and electrons in an element • Ca vs Ca+2 (Ca+2 has 2 less electrons than Ca) Ionic compounds

  4. The number of valence electrons determines the type of ion formed • Trying to reach noble gas state • Lose or gain electrons to reach magic number 8 • Valence electrons are known by group number • Main group elements only • These atoms follow a pattern down the column

  5. Valence electrons vs charge

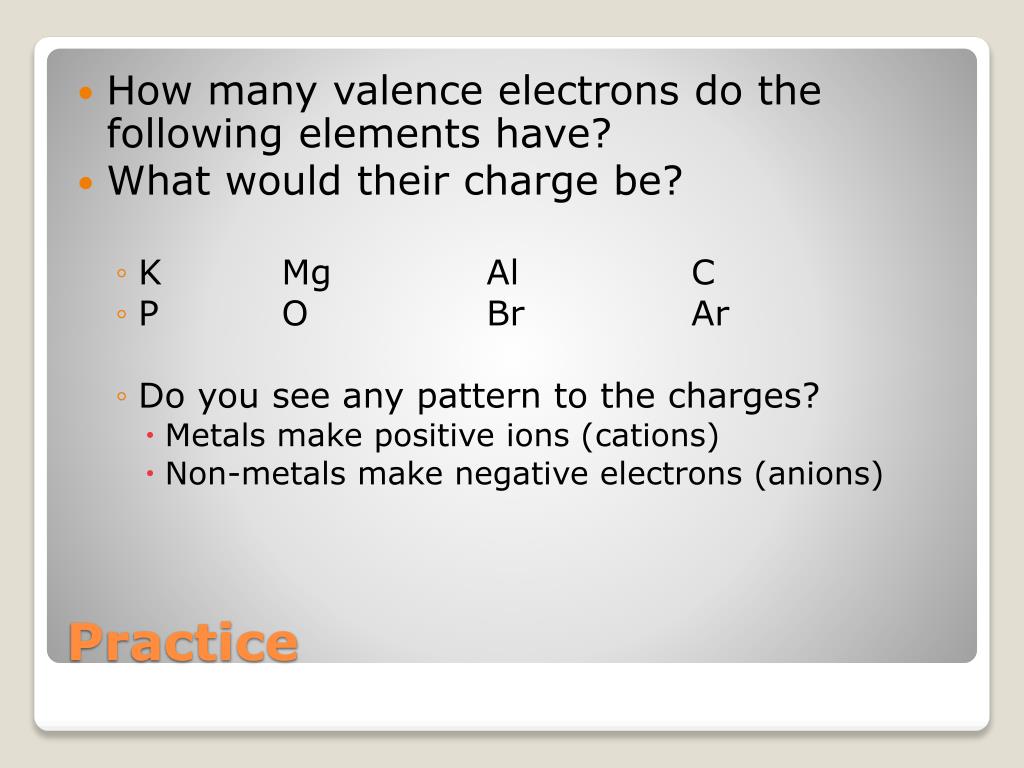

  6. How many valence electrons do the following elements have? • What would their charge be? • K Mg Al C • P O Br Ar • Do you see any pattern to the charges? • Metals make positive ions (cations) • Non-metals make negative electrons (anions) Practice

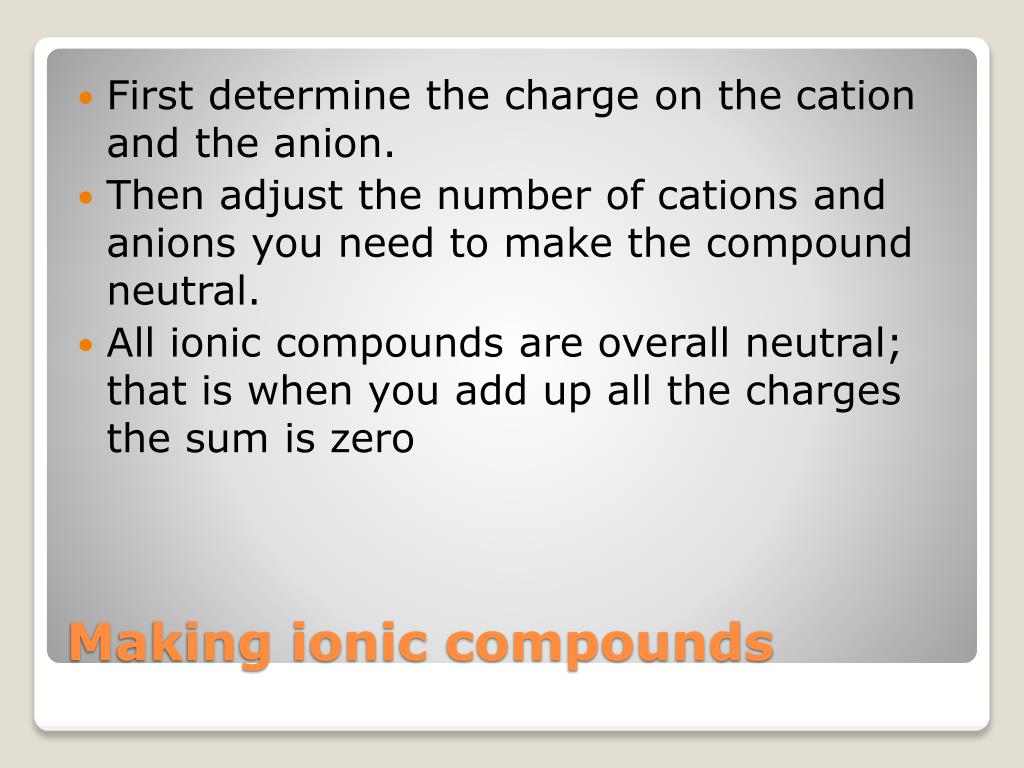

  7. First determine the charge on the cation and the anion. • Then adjust the number of cations and anions you need to make the compound neutral. • All ionic compounds are overall neutral; that is when you add up all the charges the sum is zero Making ionic compounds

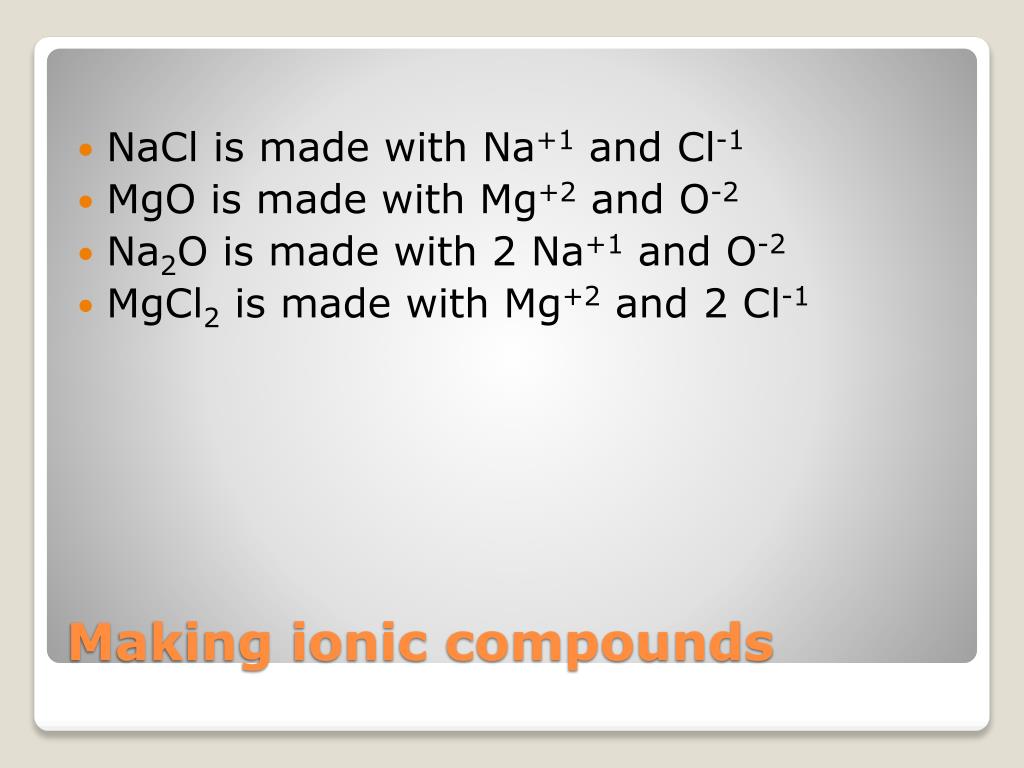

  8. NaCl is made with Na+1 and Cl-1 • MgO is made with Mg+2 and O-2 • Na2O is made with 2 Na+1 and O-2 • MgCl2 is made with Mg+2 and 2 Cl-1 Making ionic compounds

  9. Combine K and F to make a neutral compound • K makes a K+1 ion • F makes a F-1 ion • Need one of each to make the ionic compound neutral • KF • Put the following elements together to make ionic compounds • Be and F • Li and S • Ba and N • K and As • Cs and C Practice

  10. What about the elements in-between group II and III? • Called transition metals because they can make more than one positive charge • On our tables you can tell by the small black number above the symbol….. Transition metals

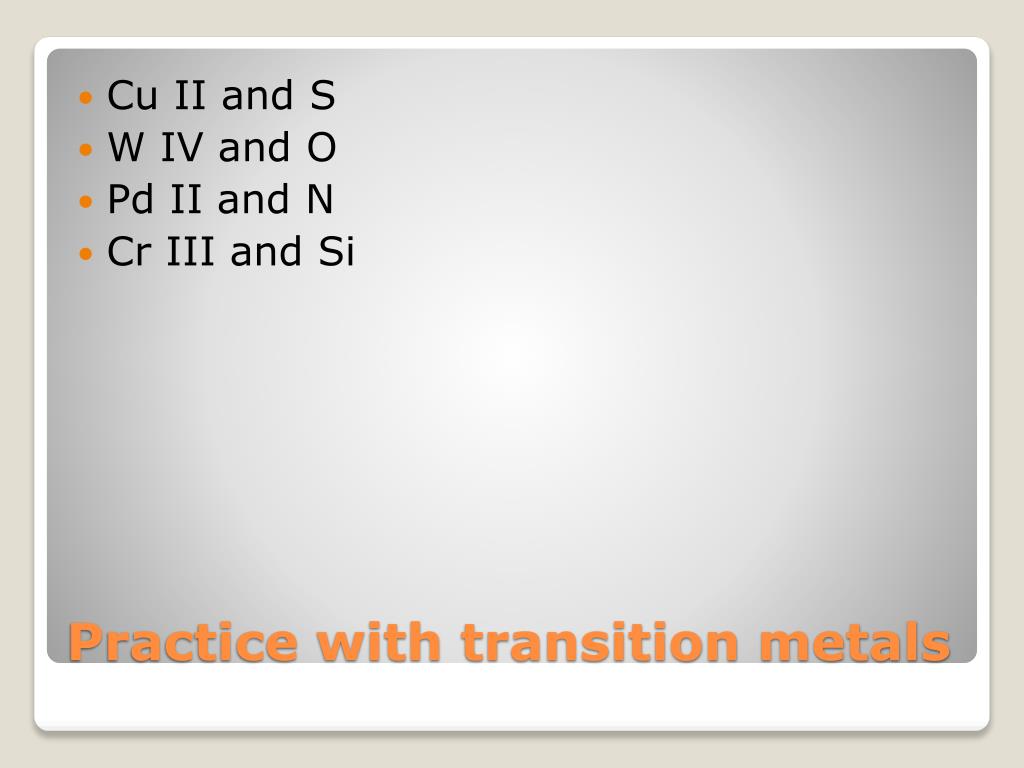

  11. Cu II and S • W IV and O • Pd II and N • Cr III and Si Practice with transition metals

  12. Some ions are actually a group of elements combined together • Can not be broken apart • Act as one unit • These are known as polyatomic ions • See handout Polyatomic Ions

  13. Naming Binary Compounds

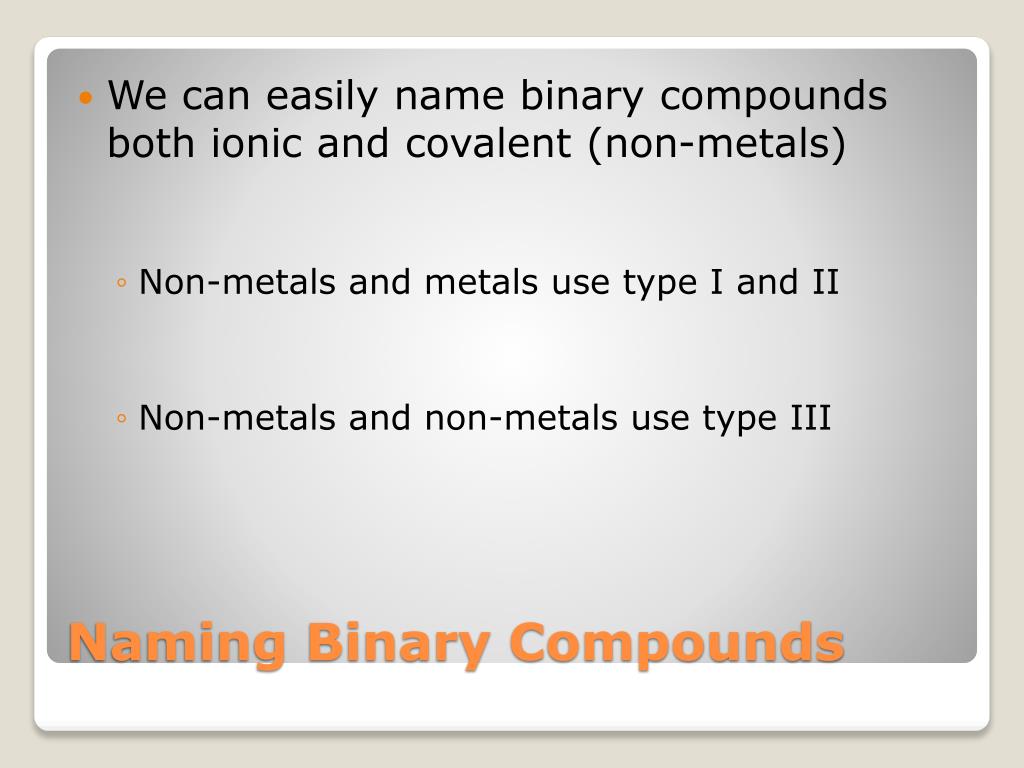

  14. We can easily name binary compounds both ionic and covalent (non-metals) • Non-metals and metals use type I and II • Non-metals and non-metals use type III Naming Binary Compounds

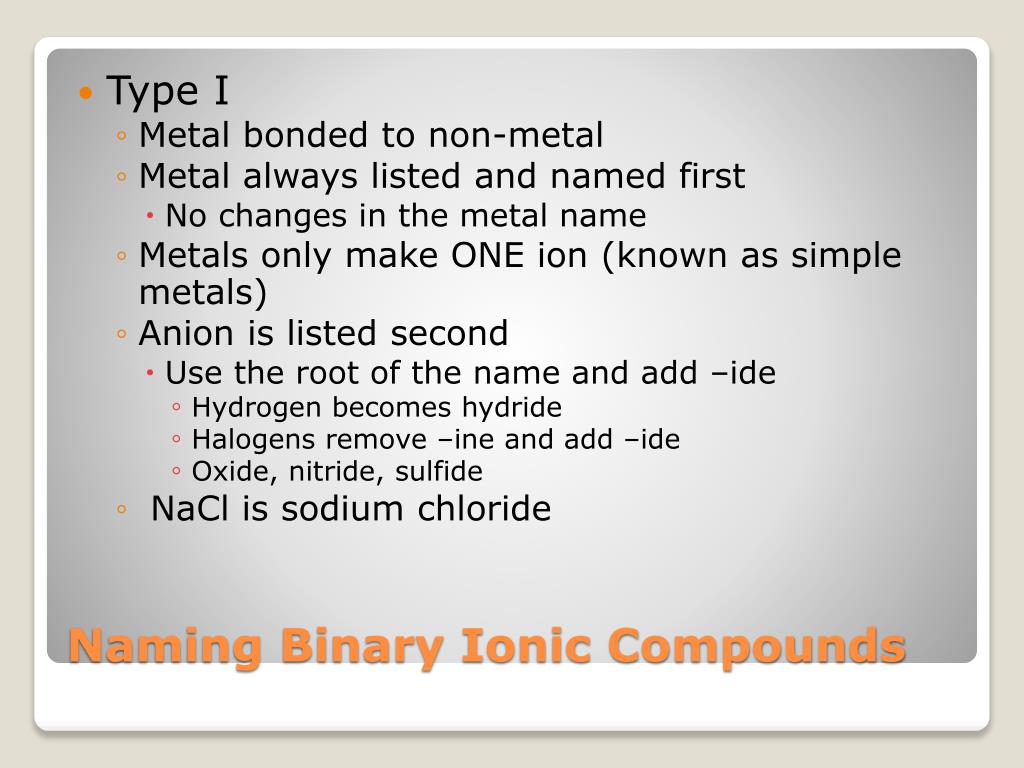

  15. Type I • Metal bonded to non-metal • Metal always listed and named first • No changes in the metal name • Metals only make ONE ion (known as simple metals) • Anion is listed second • Use the root of the name and add –ide • Hydrogen becomes hydride • Halogens remove –ine and add –ide • Oxide, nitride, sulfide • NaCl is sodium chloride Naming Binary Ionic Compounds

  16. Type II • use transition metals • Cation is first again and anion is changed the same as type I • The difference is that we need to designate the charge of the transition metal with a Roman Number • USE THE ANION TO DETERMINE THE CHARGE OF THE CATION!!! • CuO • Oxygen is -2 • The compound must be neutral • So the copper (Cu) must be +2 • The compound is named copper II oxide

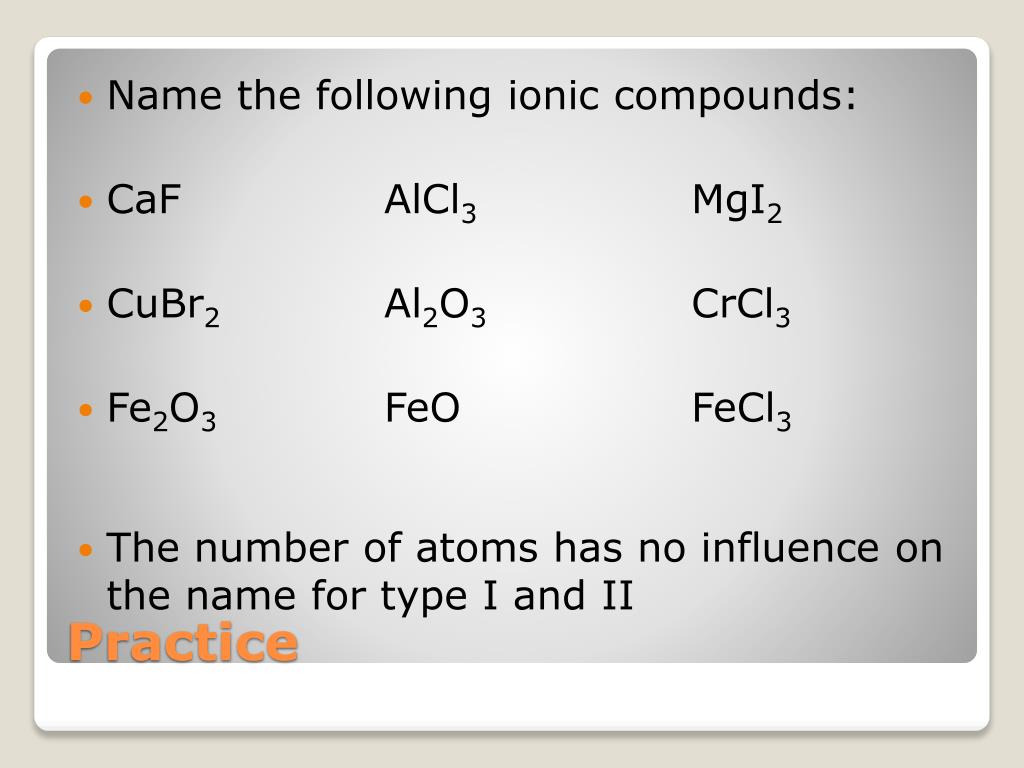

  17. Name the following ionic compounds: • CaF AlCl3 MgI2 • CuBr2 Al2O3 CrCl3 • Fe2O3FeO FeCl3 • The number of atoms has no influence on the name for type I and II Practice

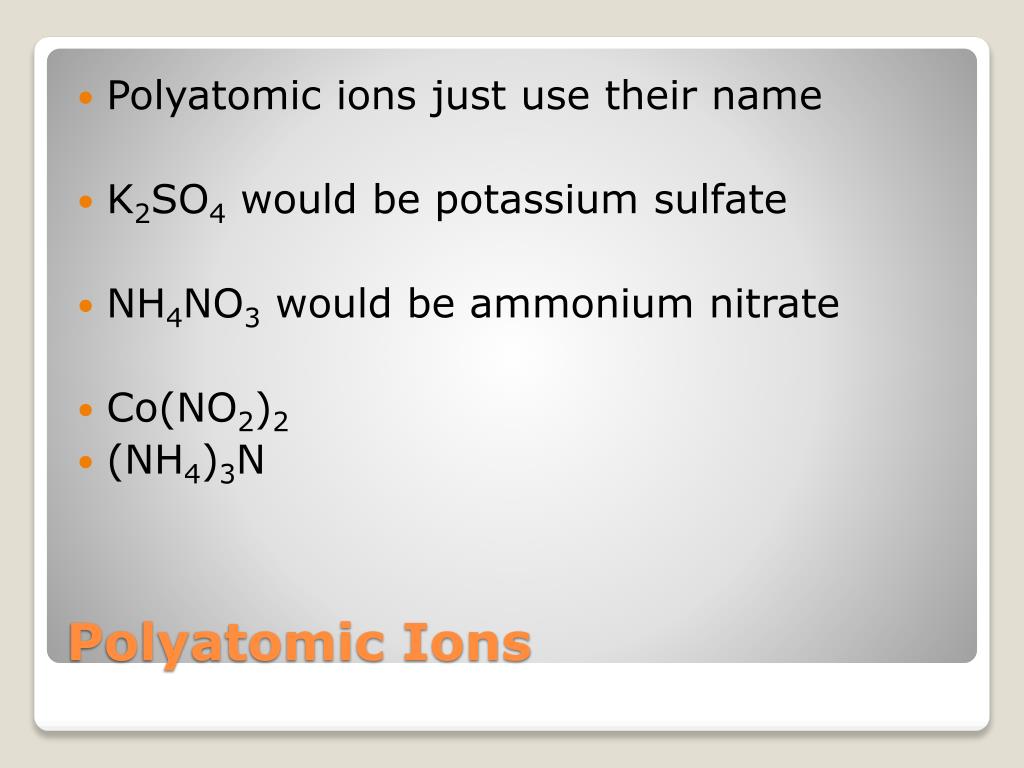

  18. Polyatomic ions just use their name • K2SO4 would be potassium sulfate • NH4NO3 would be ammonium nitrate • Co(NO2)2 • (NH4)3N Polyatomic Ions

  19. Type III • Non-metal to non-metals • NUMBER OF ATOMS IS IMPORTANT FOR TYPE III • Use prefixes to determine the number of atoms in the name • Same naming scheme as type I • Use entire name for 1st element • -ide for 2nd • Add prefixes for multiple atoms • Note: mono- is never used on 1st element

  20. Prefixes • 1 – mono • 2 – di • 3- tri • 4- tetra • 5- penta • 6- hexa • 7- hepta • 8- octa • 9- nona • 10- deca

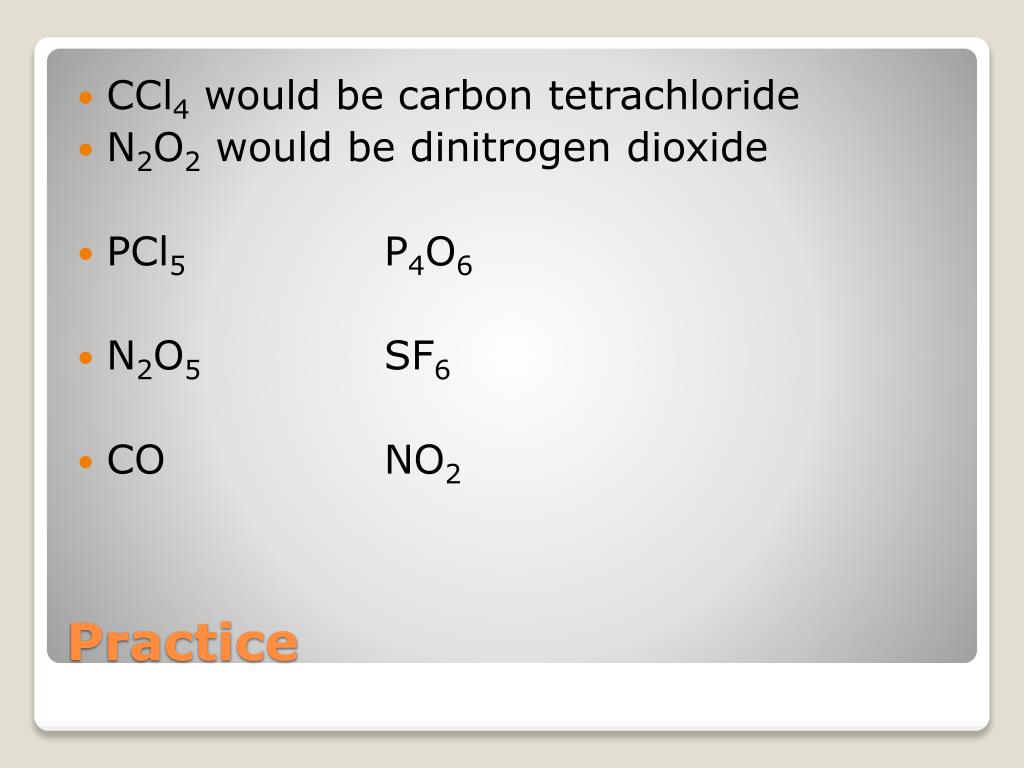

  21. CCl4 would be carbon tetrachloride • N2O2 would be dinitrogen dioxide • PCl5 P4O6 • N2O5 SF6 • CO NO2 Practice

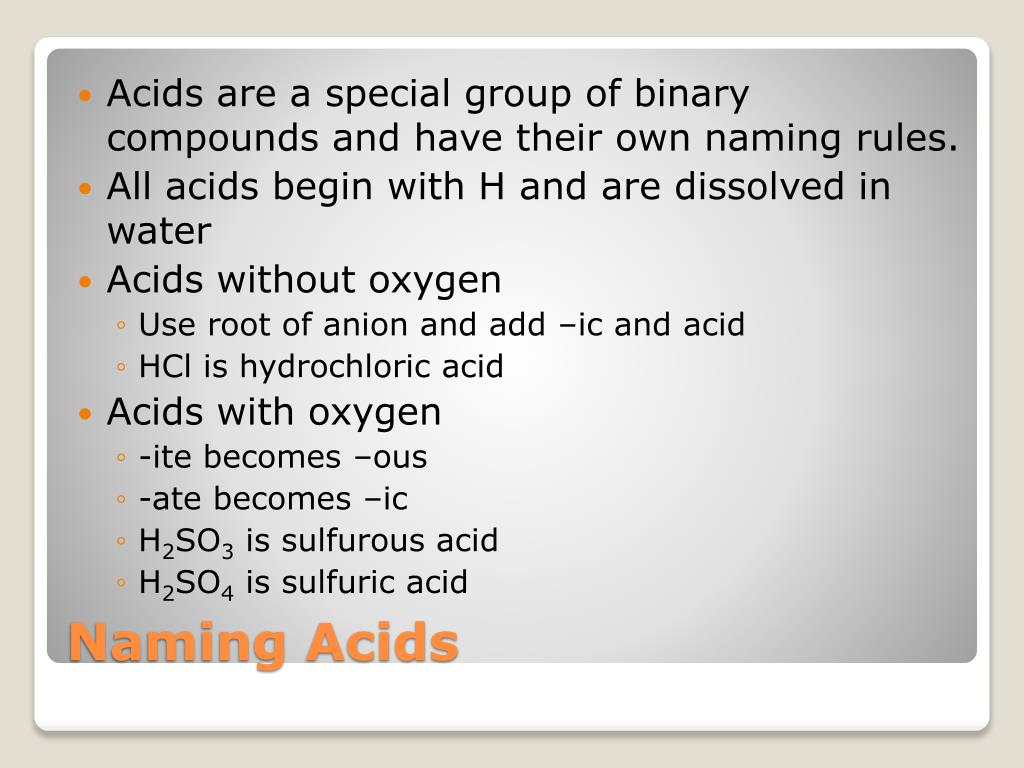

  22. Acids are a special group of binary compounds and have their own naming rules. • All acids begin with H and are dissolved in water • Acids without oxygen • Use root of anion and add –ic and acid • HCl is hydrochloric acid • Acids with oxygen • -ite becomes –ous • -ate becomes –ic • H2SO3 is sulfurous acid • H2SO4 is sulfuric acid Naming Acids

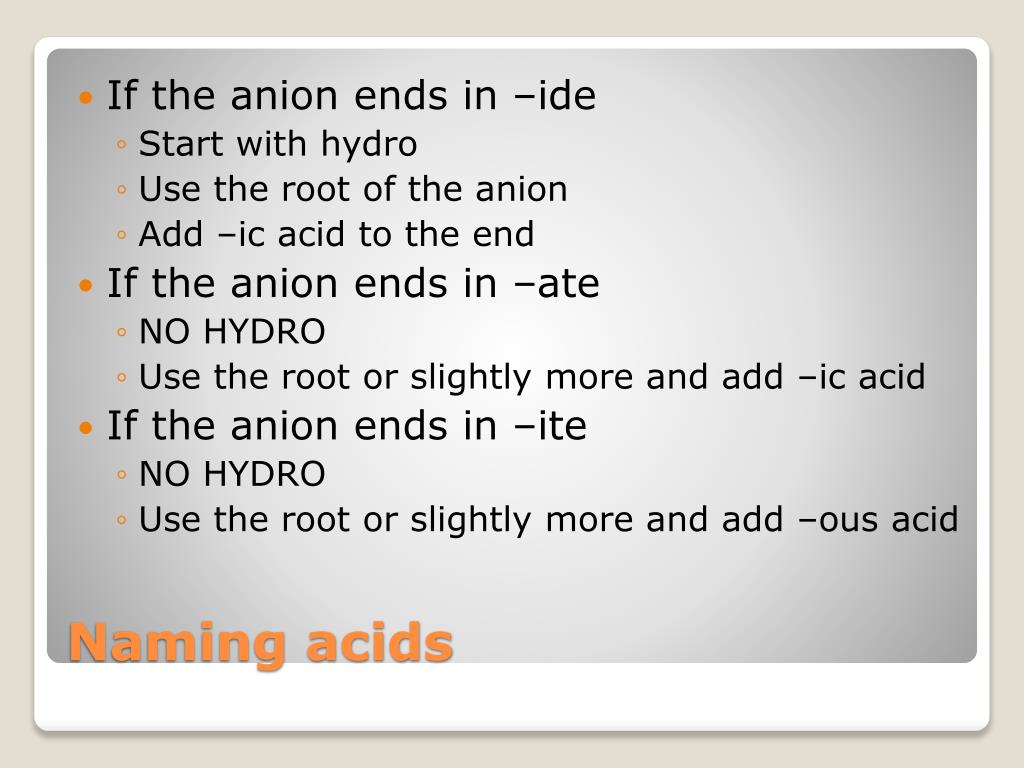

  23. If the anion ends in –ide • Start with hydro • Use the root of the anion • Add –ic acid to the end • If the anion ends in –ate • NO HYDRO • Use the root or slightly more and add –ic acid • If the anion ends in –ite • NO HYDRO • Use the root or slightly more and add –ous acid Naming acids

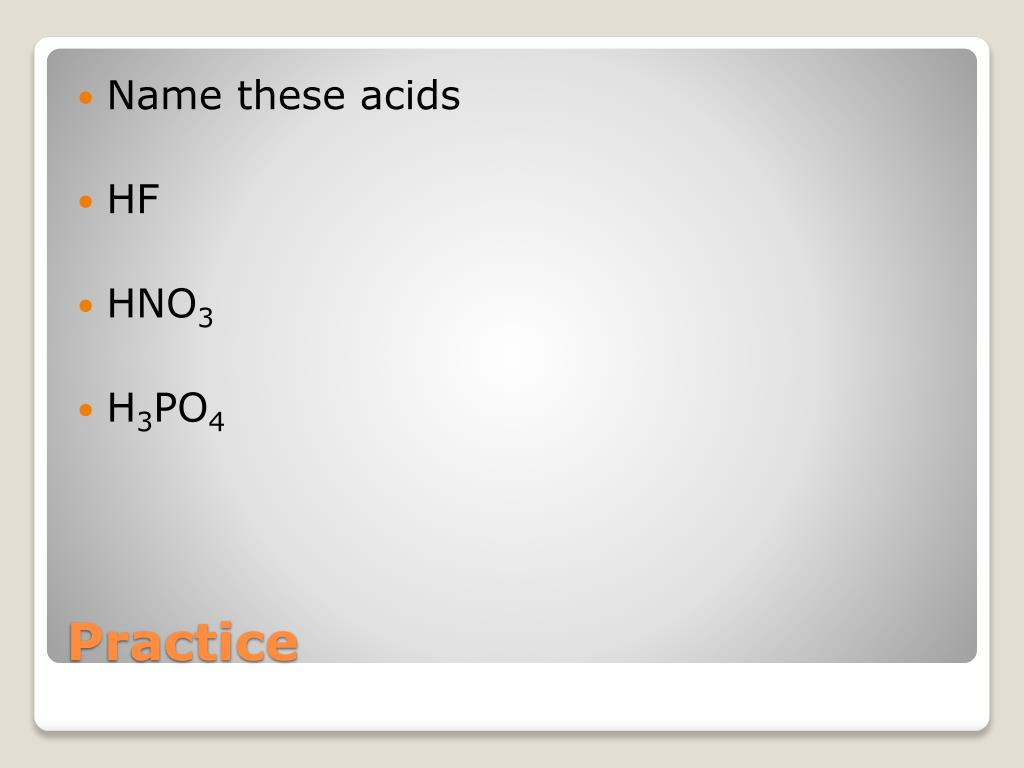

  24. Name these acids • HF • HNO3 • H3PO4 Practice

  25. Write the formulas from these names: • Nitric acid • Potassium sulfide • Sodium carbonate • Dinitrogenpentoxide Reversing the process
