nano sunscreen

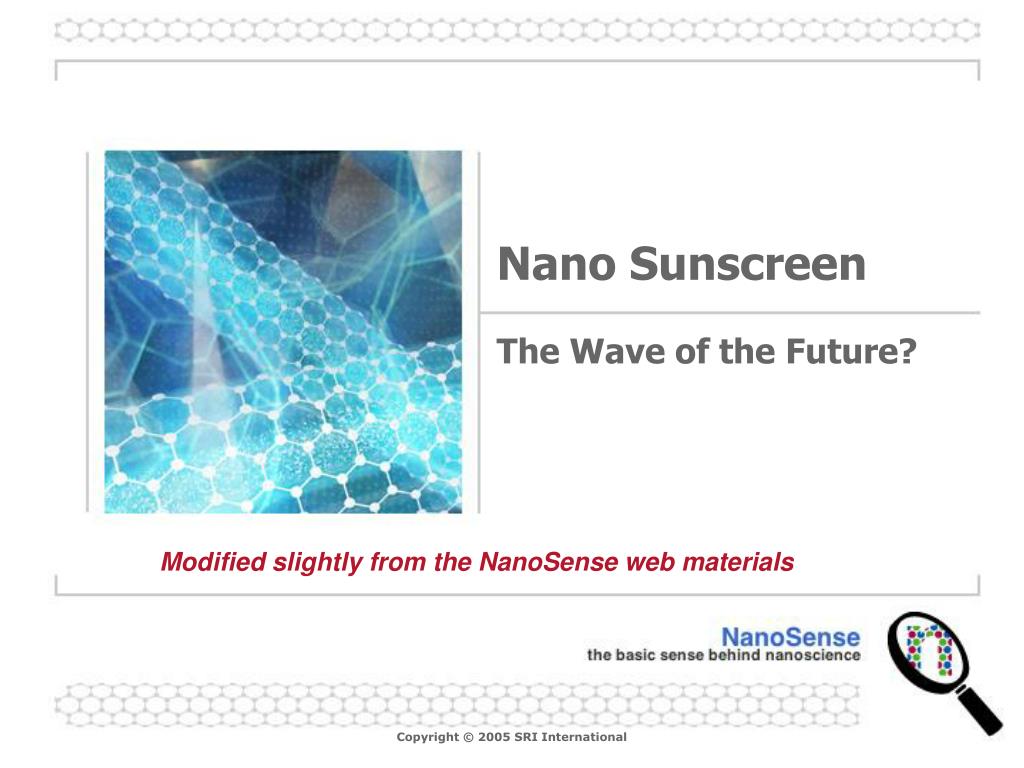

Nano Sunscreen

The Wave of the Future?

Modified slightly from the NanoSense web materials

nano products
Nano Products
  • Number of products using nanomaterials is growing very rapidly
    • Doubling every year?
  • Clothing, food and beverages, sporting goods, coatings, cosmetics, personal care
  • Sunscreens: many use nanomaterials
    • Some labeled as containing nanoparticles
    • Some not labeled
why use sunscreen
Why Use Sunscreen?

Too much unprotected sun exposure leads to:

  • Premature skin aging (e.g. wrinkles)
  • Sunburns
  • Skin cancer

Sources: http://www.oasishospital.org/previousnews.html; http://wohba.com/archive/2005_03_01_archive.html

skin cancer rates are rising fast
Skin Cancer Rates are Rising Fast

Probability of getting skin cancer:

1930 : 1 in 5,000

2004 : 1 in 65

2050 : 1 in 10…

Skin cancer:

  • Is ~50% of all cancer cases
  • Has > 1 million cases diagnosed each year
  • Causes 1 person to die every hour

Causes of the increase:

  • Decrease ozone protection
  • Increased time in the sun
  • Increased use of tanning beds

Sources: http://www.msnbc.msn.com/id/8379291/site/newsweek/ ;

http://www.skincarephysicians.com/skincancernet/whatis.html; http://www.msu.edu/~aslocum/sun/skincancer.htm

what are sun rays

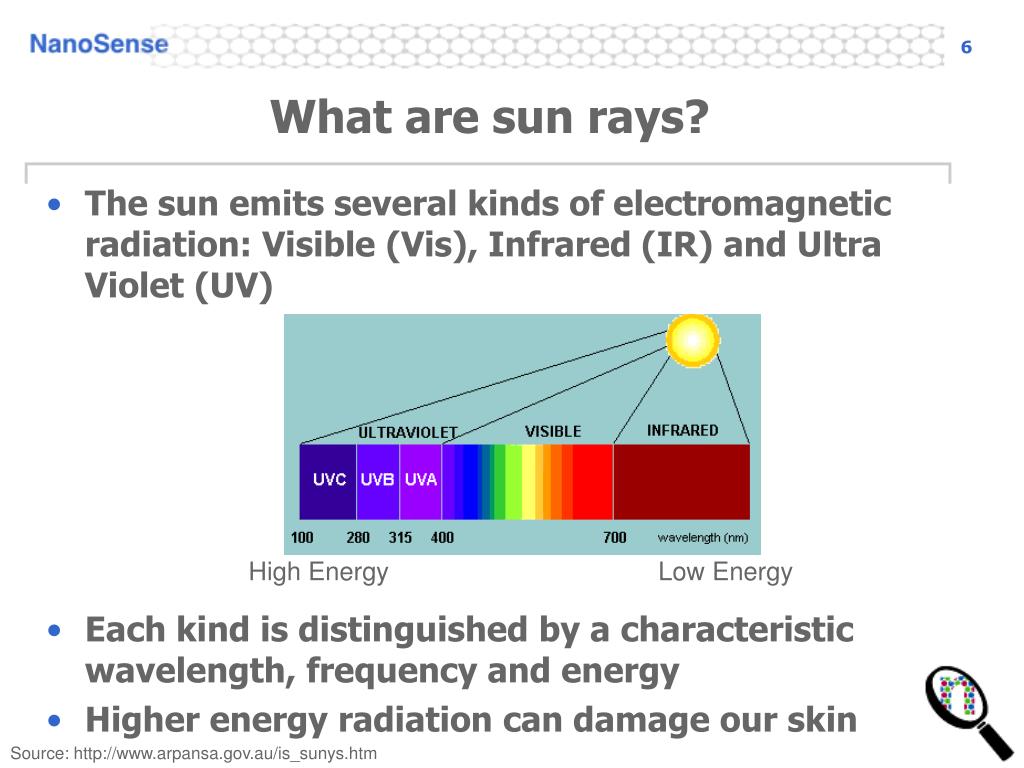

What are sun rays?
  • The sun emits several kinds of electromagnetic radiation: Visible (Vis), Infrared (IR) and Ultra Violet (UV)
  • Each kind is distinguished by a characteristic wavelength, frequency and energy
  • Higher energy radiation can damage our skin

High Energy Low Energy

Source: http://www.arpansa.gov.au/is_sunys.htm

the full electromagnetic spectrum

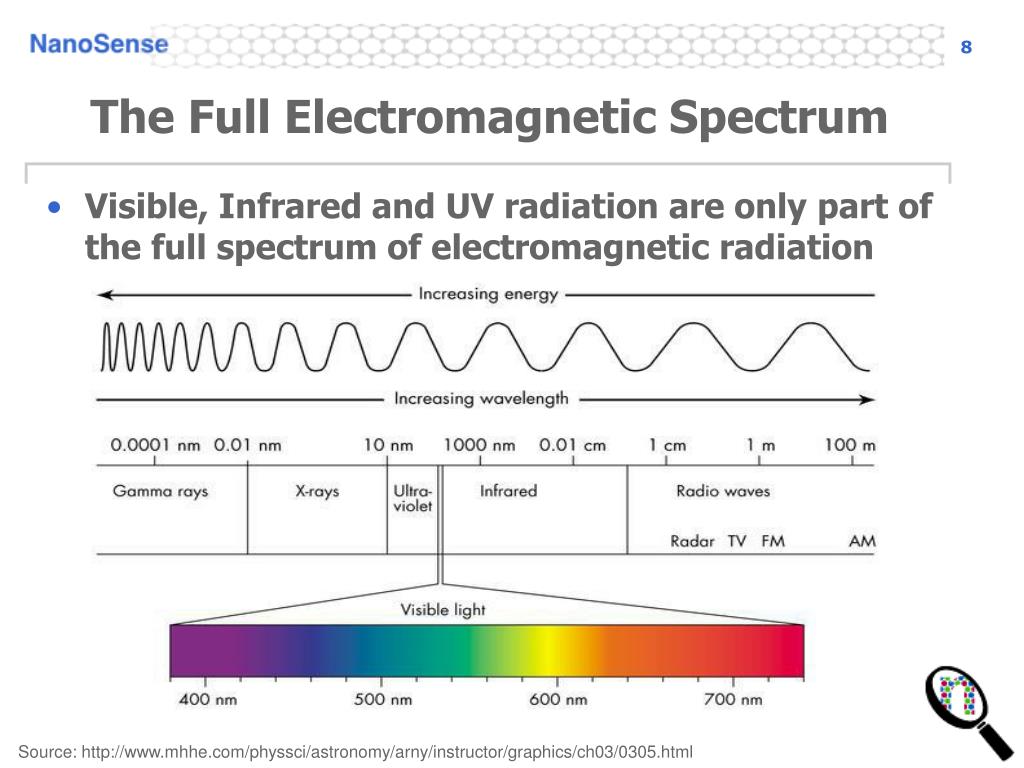

The Full Electromagnetic Spectrum
  • Visible, Infrared and UV radiation are only part of the full spectrum of electromagnetic radiation

Source: http://www.mhhe.com/physsci/astronomy/arny/instructor/graphics/ch03/0305.html

the sun s radiation spectrum
The Sun’s Radiation Spectrum
  • ~ 43% is in the visible range
  • ~ 49% is in the near infrared range
  • ~ 7% is in the ultraviolet range
  • < 1% is x-rays, gamma waves, and radio waves

Most of the sun’s radiation is UV, Vis & IR :

.

Source: Adapted from http://www.ucar.edu/learn/imgcat.htm

what is radiation

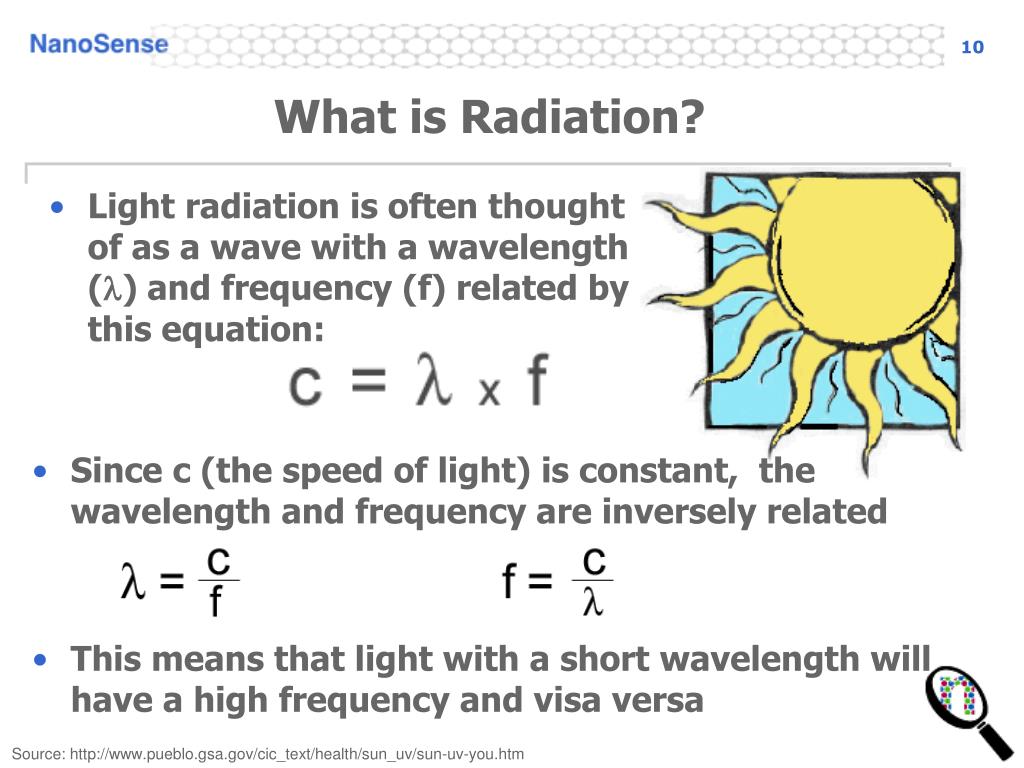

What is Radiation?
  • Light radiation is often thought of as a wave with a wavelength (l) and frequency (f) related by this equation:
  • Since c (the speed of light) is constant, the wavelength and frequency are inversely related
  • This means that light with a short wavelength will have a high frequency and visa versa

Source: http://www.pueblo.gsa.gov/cic_text/health/sun_uv/sun-uv-you.htm

two ways to think about radiation energy

E

E  f

f

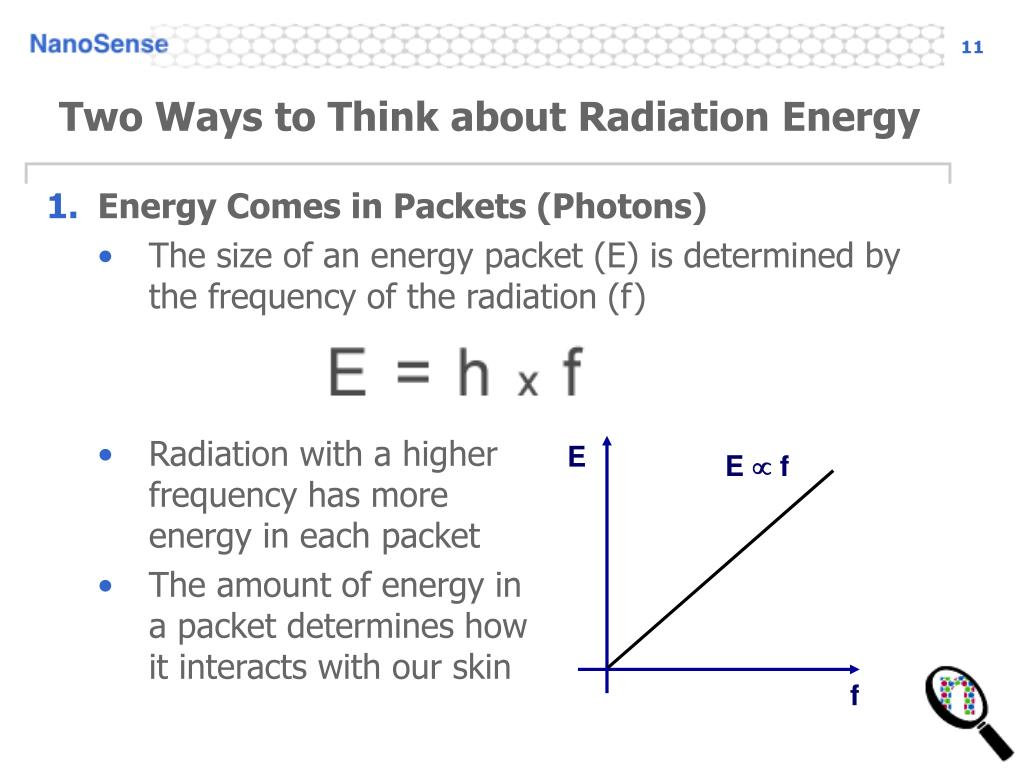

Two Ways to Think about Radiation Energy
  • Energy Comes in Packets (Photons)
    • The size of an energy packet (E) is determined by the frequency of the radiation (f)
  • Radiation with a higher frequency has more energy in each packet
  • The amount of energy in a packet determines how it interacts with our skin
two ways to think about radiation energy1
Two Ways to Think about Radiation Energy
  • Total Energy
    • This relates not only to how much energy is in each packet but also to the total number of packets arriving at a given location (such as our skin)
  • Total Energy depends on many factors including the intensity of sunlight
  • The UV Index rates the total intensity of UV light for many locations in the US daily: http://www.epa.gov/sunwise/uvindex.html

Source: http://www.epa.gov/sunwise/uvwhat.html

skin damage
Skin Damage

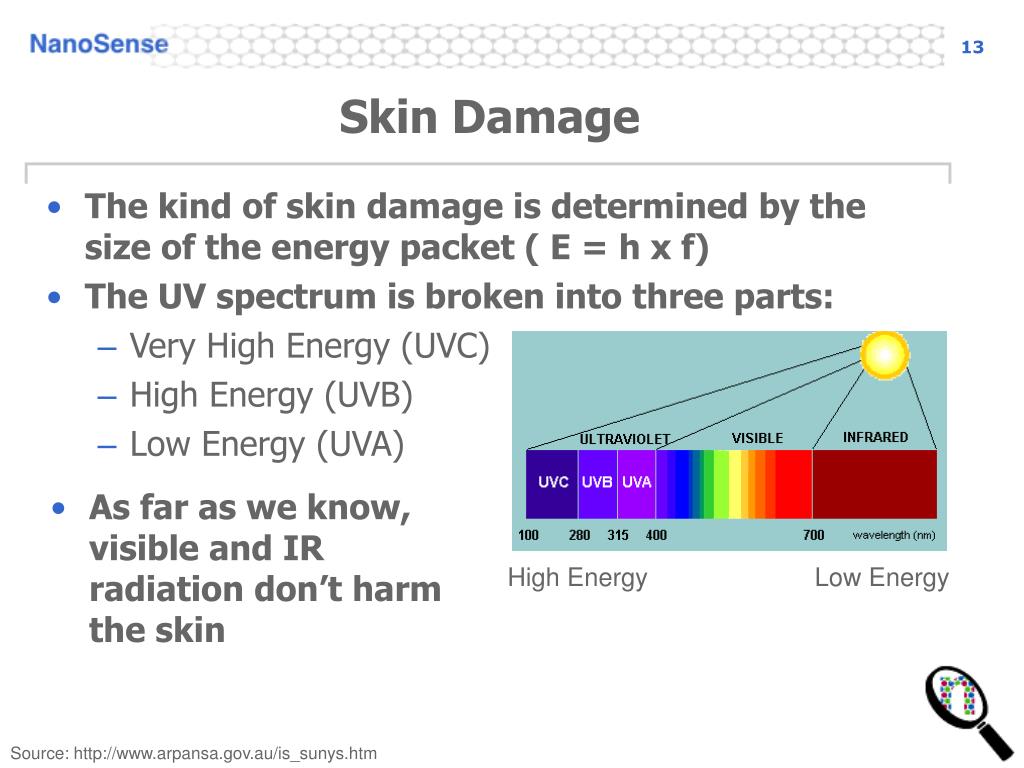

  • The kind of skin damage is determined by the size of the energy packet ( E = h x f)
  • The UV spectrum is broken into three parts:
    • Very High Energy (UVC)
    • High Energy (UVB)
    • Low Energy (UVA)
  • As far as we know, visible and IR radiation don’t harm the skin

High Energy Low Energy

Source: http://www.arpansa.gov.au/is_sunys.htm

skin damage ii
Skin Damage II
  • Very high energy radiation (UVC) is currently blocked by the ozone layer (ozone hole issue)
  • High energy radiation (UVB) does the most immediate damage (sunburns)
  • But lower energy radiation (UVA) can penetrate deeper into the skin, leading to long term damage

Source: N.A. Shaath. The Chemistry of Sunscreens. In: Lowe NJ, Shaath NA, Pathak MA, editors. Sunscreens, development, evaluation, and regulatory aspects. New York: Marcel Dekker; 1997. p. 263-283.

sun radiation summary
Sun Radiation Summary

Increasing

Energy

Increasing

Wavelength

slide16

With all of this possible damage, it pays to wear sunscreen, but which one should you use?

Source: http://www.niehs.nih.gov/oc/factsheets/genes/home.htm

which sunscreen should you use
Which Sunscreen Should You Use???

New and Improved

Now with Nano-Z

Broadband Protection

Safe for Children

SPF 50

Goes on Clear

the challenge 3 essential questions

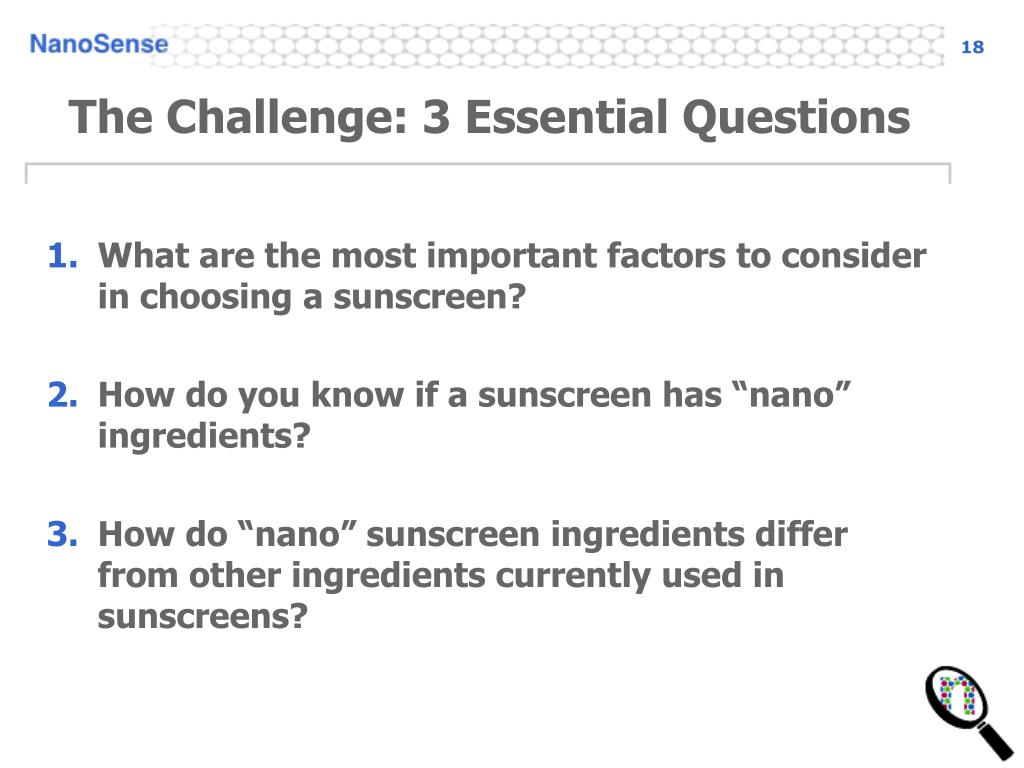

The Challenge: 3 Essential Questions
  • What are the most important factors to consider in choosing a sunscreen?
  • How do you know if a sunscreen has “nano” ingredients?
  • How do “nano” sunscreen ingredients differ from other ingredients currently used in sunscreens?
a brief history of sunscreens the beginning

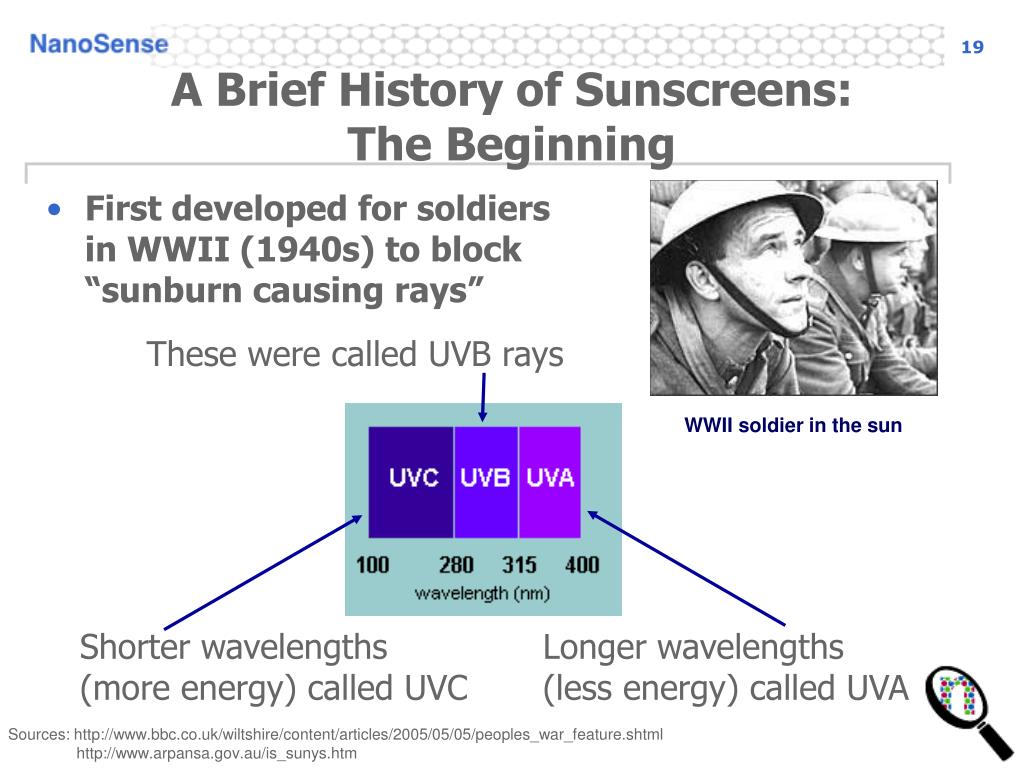

A Brief History of Sunscreens: The Beginning
  • First developed for soldiers in WWII (1940s) to block “sunburn causing rays”

These were called UVB rays

WWII soldier in the sun

Shorter wavelengths (more energy) called UVC

Longer wavelengths (less energy) called UVA

Sources: http://www.bbc.co.uk/wiltshire/content/articles/2005/05/05/peoples_war_feature.shtml

http://www.arpansa.gov.au/is_sunys.htm

a brief history of sunscreens the spf rating

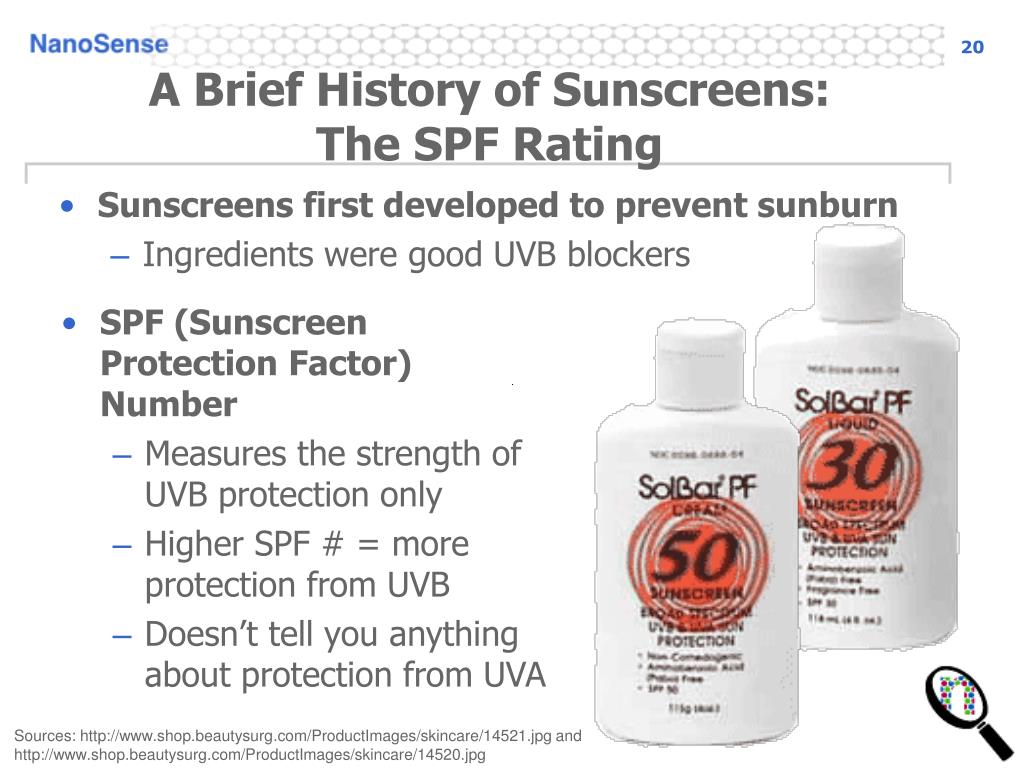

A Brief History of Sunscreens: The SPF Rating
  • Sunscreens first developed to prevent sunburn
    • Ingredients were good UVB blockers
  • SPF (Sunscreen Protection Factor) Number
    • Measures the strength of UVB protection only
    • Higher SPF # = more protection from UVB
    • Doesn’t tell you anything about protection from UVA

Sources: http://www.shop.beautysurg.com/ProductImages/skincare/14521.jpg and http://www.shop.beautysurg.com/ProductImages/skincare/14520.jpg

a brief history of sunscreens the uva problem
A Brief History of Sunscreens: The UVA Problem
  • UVA rays have no immediate visible effects but cause serious long term damage
    • Cancer
    • Skin aging
  • Sunscreen makers working to find UVA blockers
    • No official rating of UVA protection yet

Twenty different skin cancer lesions

Source: http://www.cs.wright.edu/~agoshtas/fig8.jpg

know your sunscreen look at the ingredients

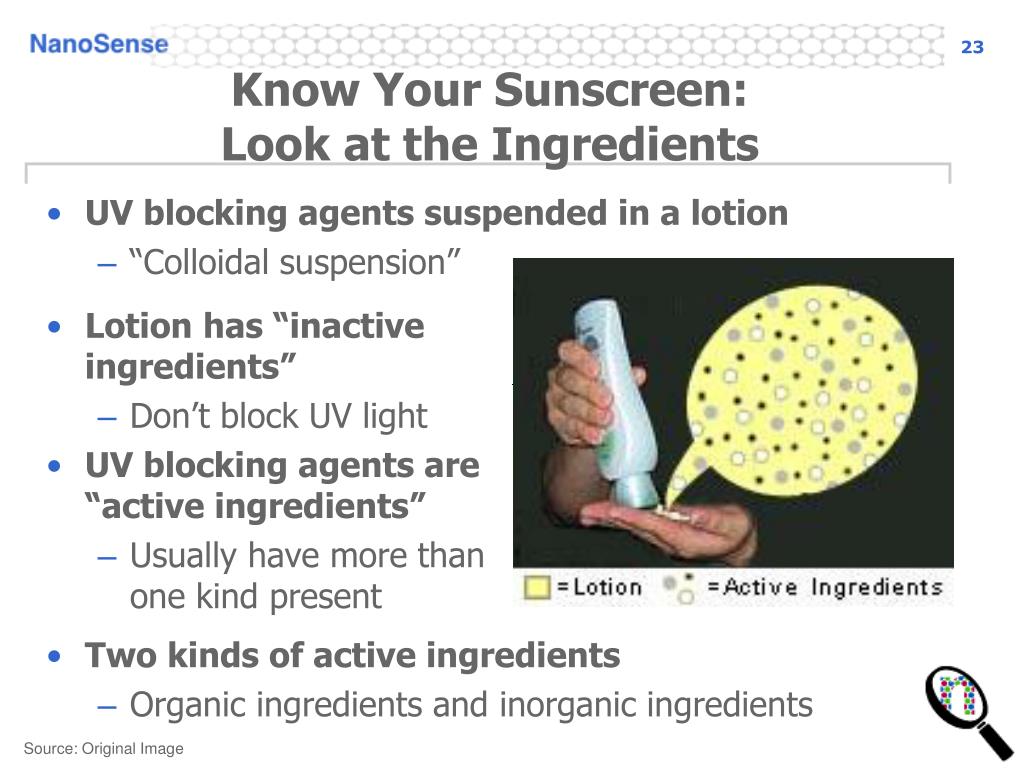

Know Your Sunscreen:Look at the Ingredients
  • Lotion has “inactive ingredients”
    • Don’t block UV light
  • UV blocking agents are “active ingredients”
    • Usually have more than one kind present
  • UV blocking agents suspended in a lotion
    • “Colloidal suspension”
  • Two kinds of active ingredients
    • Organic ingredients and inorganic ingredients

Source: Original Image

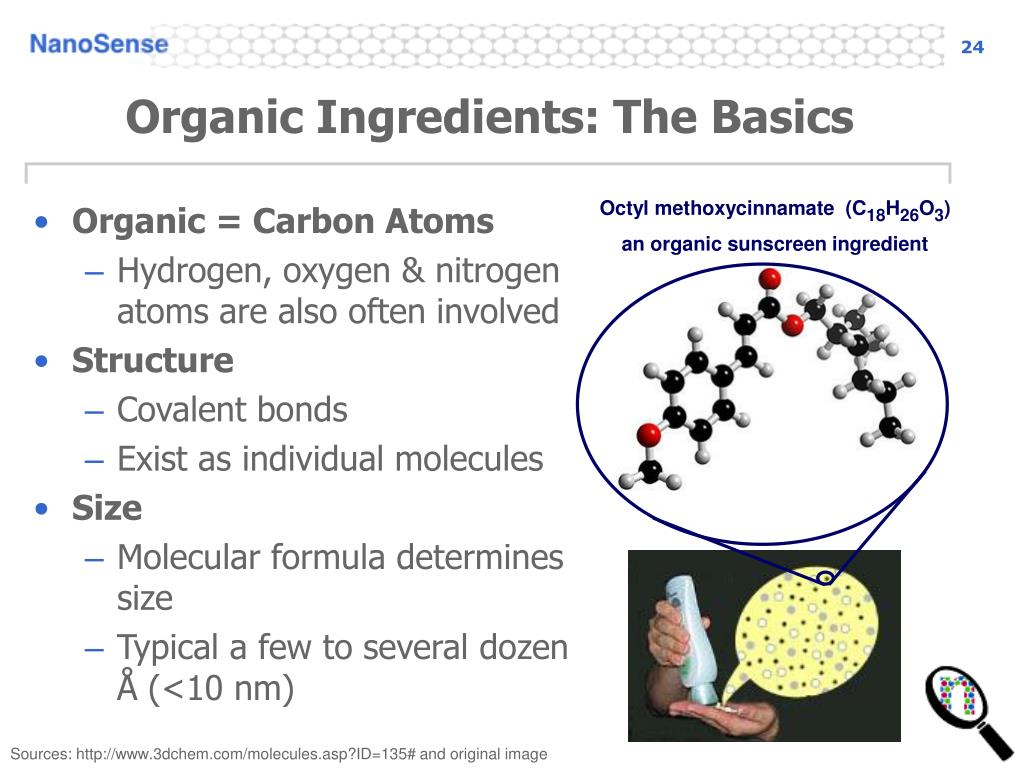

organic ingredients the basics
Organic Ingredients: The Basics
  • Organic = Carbon Atoms
    • Hydrogen, oxygen & nitrogen atoms are also often involved
  • Structure
    • Covalent bonds
    • Exist as individual molecules
  • Size
    • Molecular formula determines size
    • Typical a few to several dozen Å (<10 nm)

Octyl methoxycinnamate (C18H26O3)

an organic sunscreen ingredient

Sources: http://www.3dchem.com/molecules.asp?ID=135# and original image

organic ingredients uv absorption

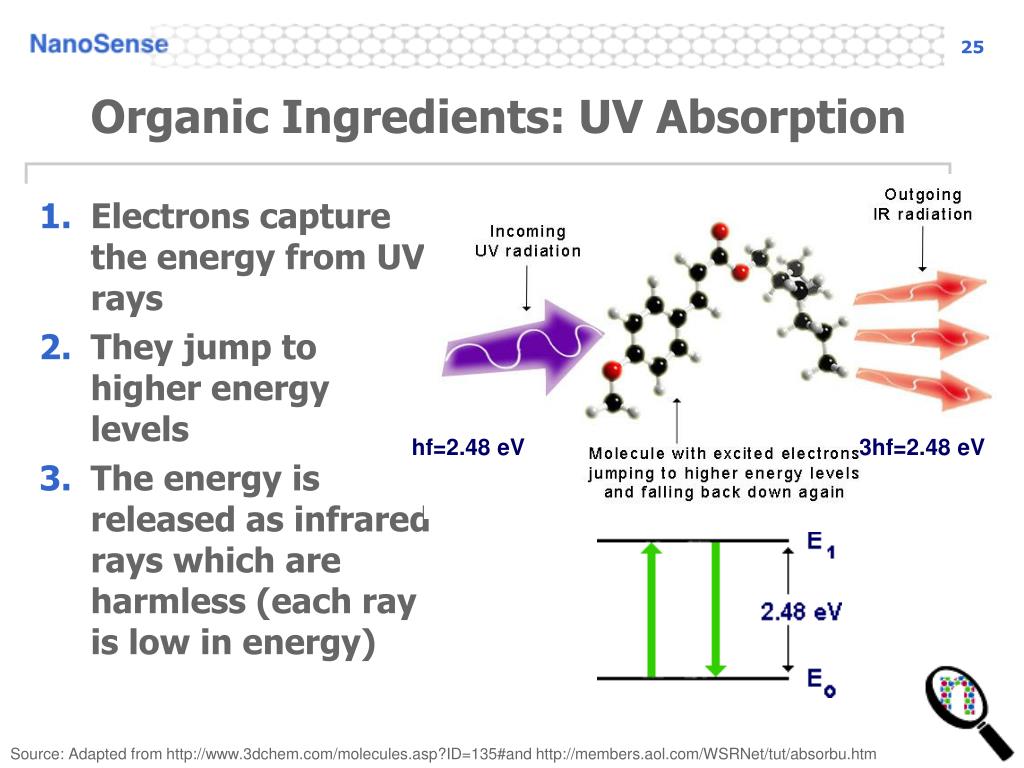

Organic Ingredients: UV Absorption
  • Electrons capture the energy from UV rays
  • They jump to higher energy levels
  • The energy is released as infrared rays which are harmless (each ray is low in energy)

hf=2.48 eV

3hf=2.48 eV

Source: Adapted from http://www.3dchem.com/molecules.asp?ID=135#and http://members.aol.com/WSRNet/tut/absorbu.htm

organic ingredients absorption range
Organic Ingredients: Absorption Range
  • Organic molecules only absorb UV rays whose energy matches difference between electron energy levels
    • Different kinds of molecules have different peaks and ranges of absorption
    • Using more than one kind of ingredient (molecule) gives broader protection

One Ingredient Two Ingredients Three Ingredients

Source: Graphs adapted from http://www.aims.gov.au/pages/research/projects/sunscreens/pages/sunscreens02.html

organic ingredients absorption range cont
Organic Ingredients: Absorption Range cont.

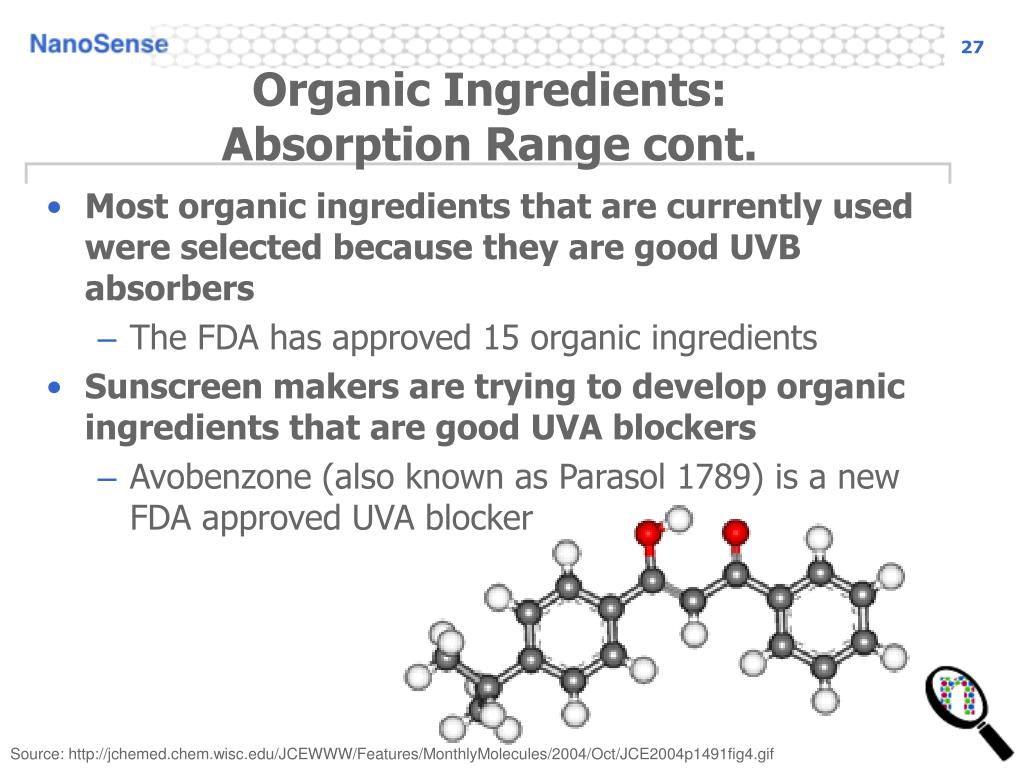

  • Most organic ingredients that are currently used were selected because they are good UVB absorbers
    • The FDA has approved 15 organic ingredients
  • Sunscreen makers are trying to develop organic ingredients that are good UVA blockers
    • Avobenzone (also known as Parasol 1789) is a new FDA approved UVA blocker

Source: http://jchemed.chem.wisc.edu/JCEWWW/Features/MonthlyMolecules/2004/Oct/JCE2004p1491fig4.gif

slide28

How are inorganic sunscreen ingredients different from organic ones?

How might this affect the way they absorb UV light?

inorganic ingredients the basics
Inorganic Ingredients: The Basics
  • Atoms Involved
    • Zinc or Titanium
    • Oxygen
  • Structure
    • Ionic attraction
    • Cluster of ions
    • Formula unit doesn’t dictate size
  • Size
    • Varies with # of ions in cluster
    • ~10 nm – 300 nm

Detail of the ions in one cluster

Group of TiO2 particles

Source: http://www.microspheres-nanospheres.com/Images/Titania/TIO2%20P7.jpg and image adapted from http://www.cse.clrc.ac.uk/msi/projects/ropa.shtml

inorganic ingredients cluster size
Inorganic Ingredients: Cluster Size
  • Inorganic ingredients come in different cluster sizes (sometimes called “particles”)
    • Different number of ions can cluster together
    • Must be a multiple of the formula unit
      • ZnO always has equal numbers of Zn and O atoms
      • TiO2 always has twice as many O as Ti atoms

~100 nm TiO2 particle ~200 nm TiO2 particle

Source: Images adapted from http://www.cse.clrc.ac.uk/msi/projects/ropa.shtml

inorganic ingredients uv absorption

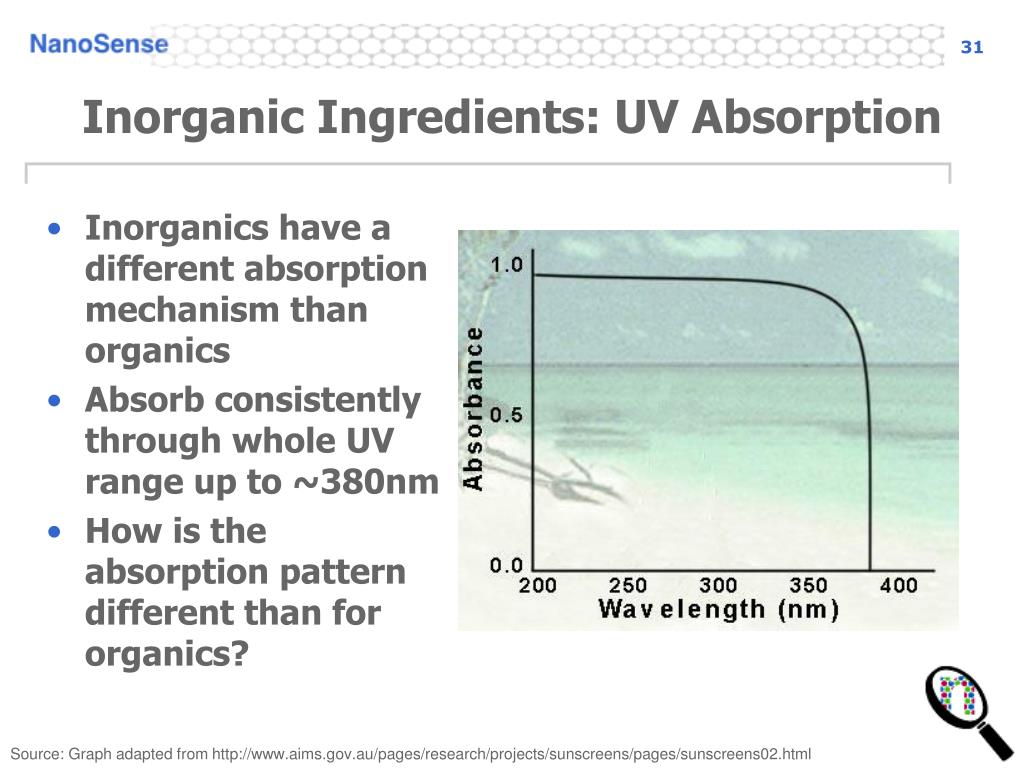

Inorganic Ingredients: UV Absorption
  • Inorganics have a different absorption mechanism than organics
  • Absorb consistently through whole UV range up to ~380nm
  • How is the absorption pattern different than for organics?

Source: Graph adapted from http://www.aims.gov.au/pages/research/projects/sunscreens/pages/sunscreens02.html

slide32

If inorganic sunscreen ingredients block UVA light, why doesn’t everybody use them?

Source: http://www.loc.gov/rr/scitech/mysteries/images/sunscreen2.jpg

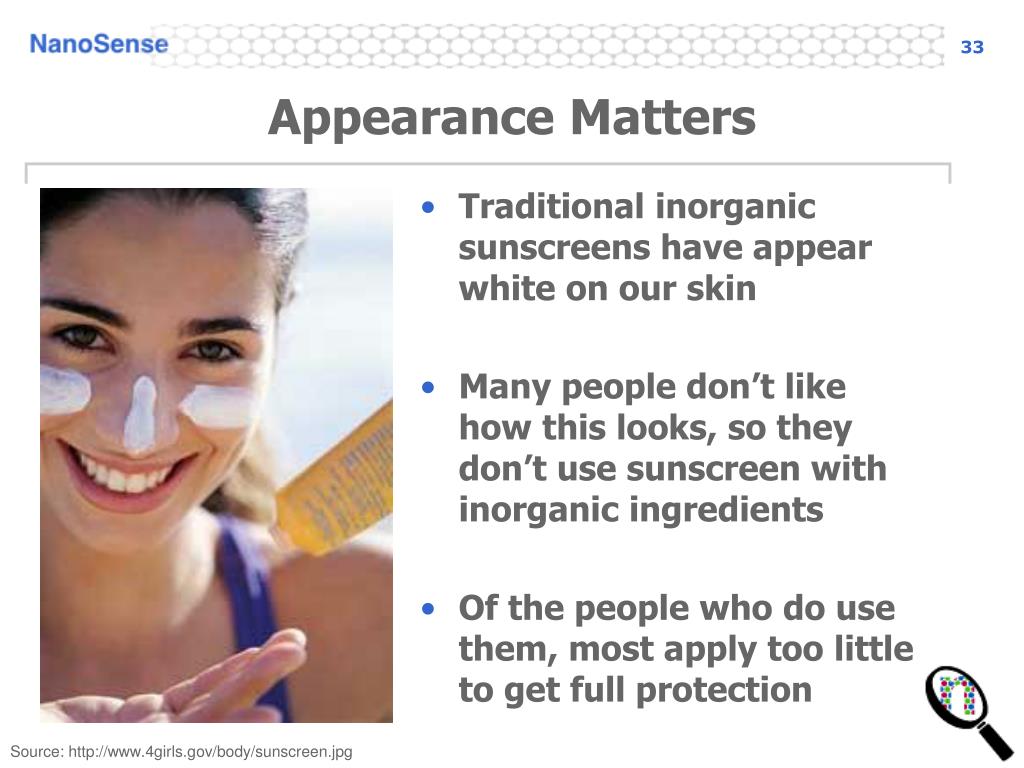

appearance matters
Appearance Matters
  • Traditional inorganic sunscreens have appear white on our skin
  • Many people don’t like how this looks, so they don’t use sunscreen with inorganic ingredients
  • Of the people who do use them, most apply too little to get full protection

Source: http://www.4girls.gov/body/sunscreen.jpg

why do they appear white

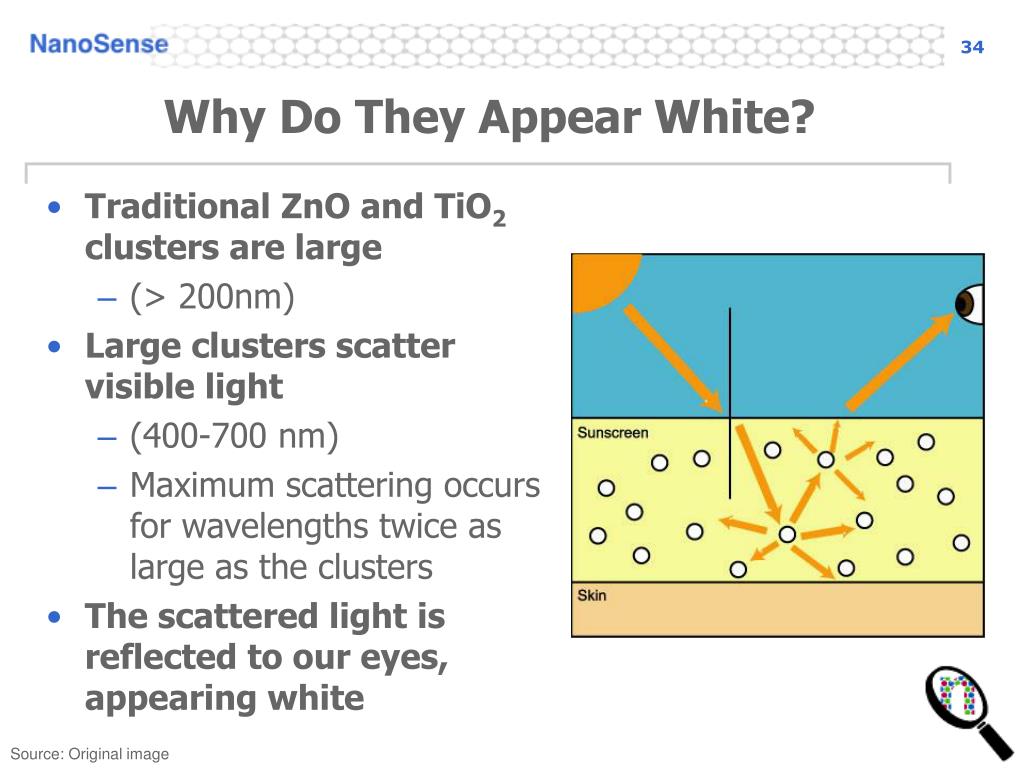

Why Do They Appear White?
  • Traditional ZnO and TiO2 clusters are large
    • (> 200nm)
  • Large clusters scatter visible light
    • (400-700 nm)
    • Maximum scattering occurs for wavelengths twice as large as the clusters
  • The scattered light is reflected to our eyes, appearing white

Source: Original image

slide35

Why don’t organic sunscreen ingredients scatter visible light?

Source: Adapted from http://www.loc.gov/rr/scitech/mysteries/images/sunscreen2.jpg

organic sunscreen molecules are too small to scatter light

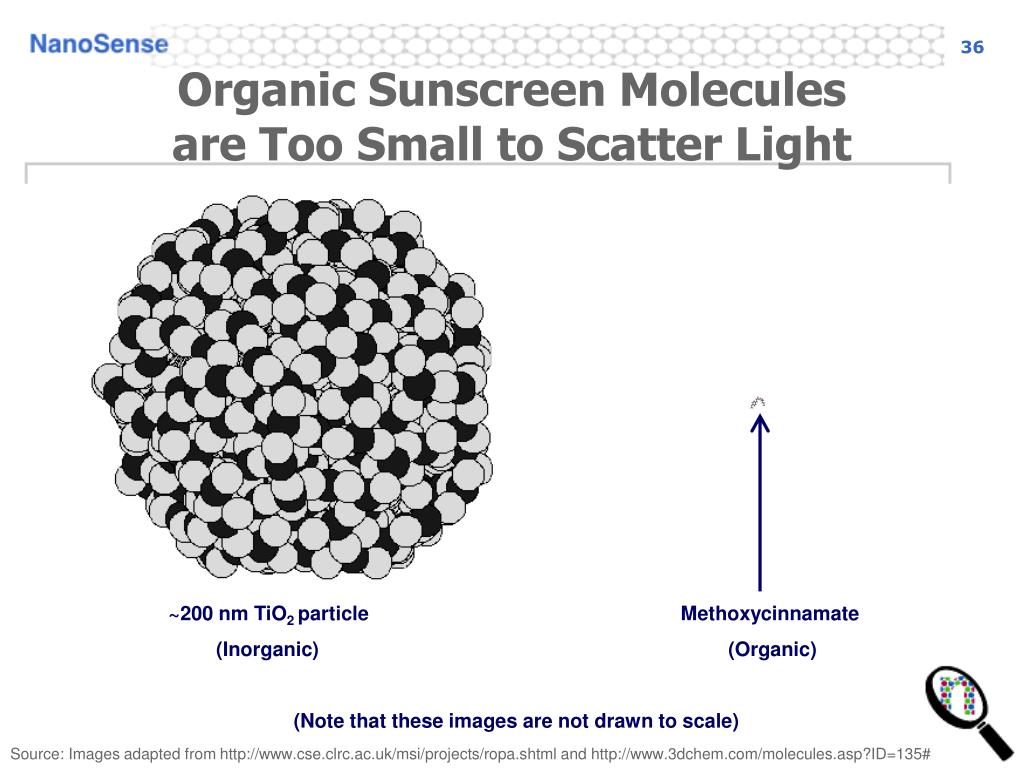

Organic Sunscreen Molecules are Too Small to Scatter Light

~200 nm TiO2 particle Methoxycinnamate

(Inorganic) (Organic)

(Note that these images are not drawn to scale)

Source: Images adapted from http://www.cse.clrc.ac.uk/msi/projects/ropa.shtml and http://www.3dchem.com/molecules.asp?ID=135#

waves and obstacles
Waves and obstacles
  • Waves go around small obstacles
  • Waves scatter all around from obstacles of sizes comparable to a wavelength
  • Water wave (ripple tank) simulation: http://www.falstad.com/ripple/
slide38

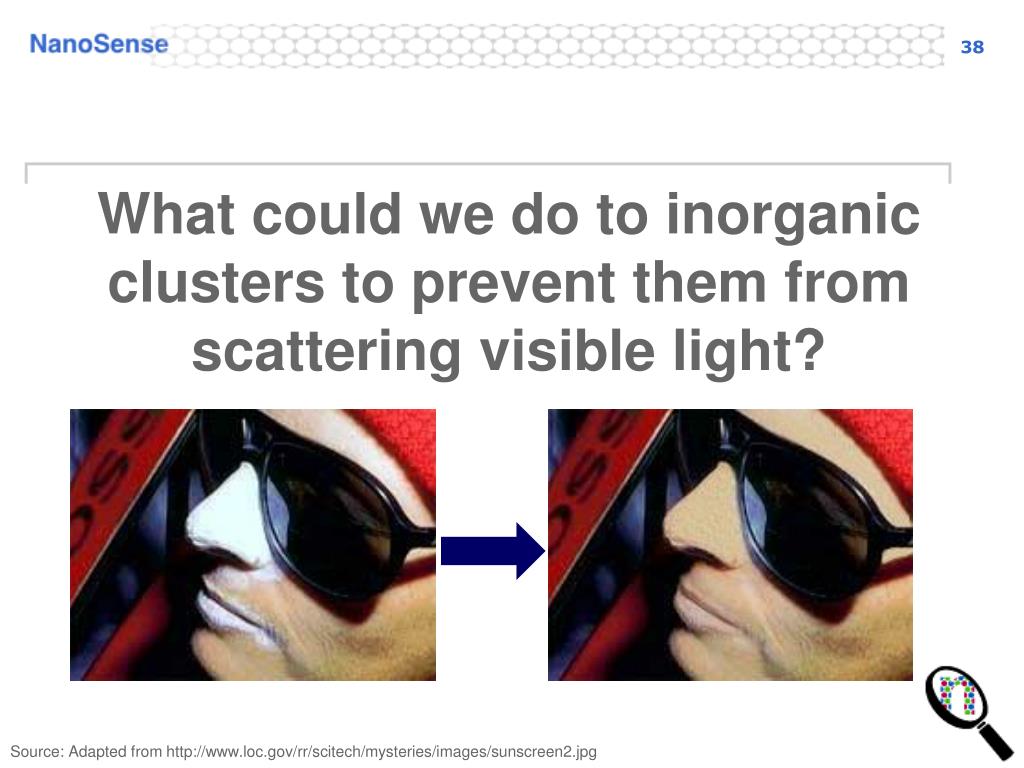

What could we do to inorganic clusters to prevent them from scattering visible light?

Source: Adapted from http://www.loc.gov/rr/scitech/mysteries/images/sunscreen2.jpg

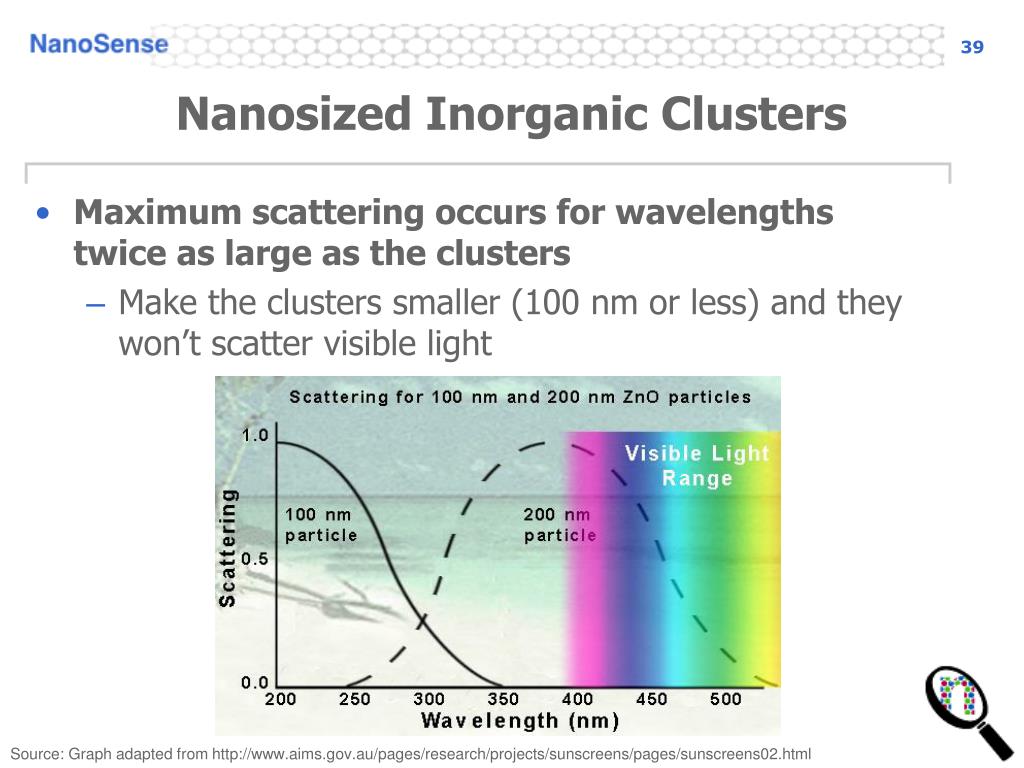

nanosized inorganic clusters
Nanosized Inorganic Clusters
  • Maximum scattering occurs for wavelengths twice as large as the clusters
    • Make the clusters smaller (100 nm or less) and they won’t scatter visible light

Source: Graph adapted from http://www.aims.gov.au/pages/research/projects/sunscreens/pages/sunscreens02.html

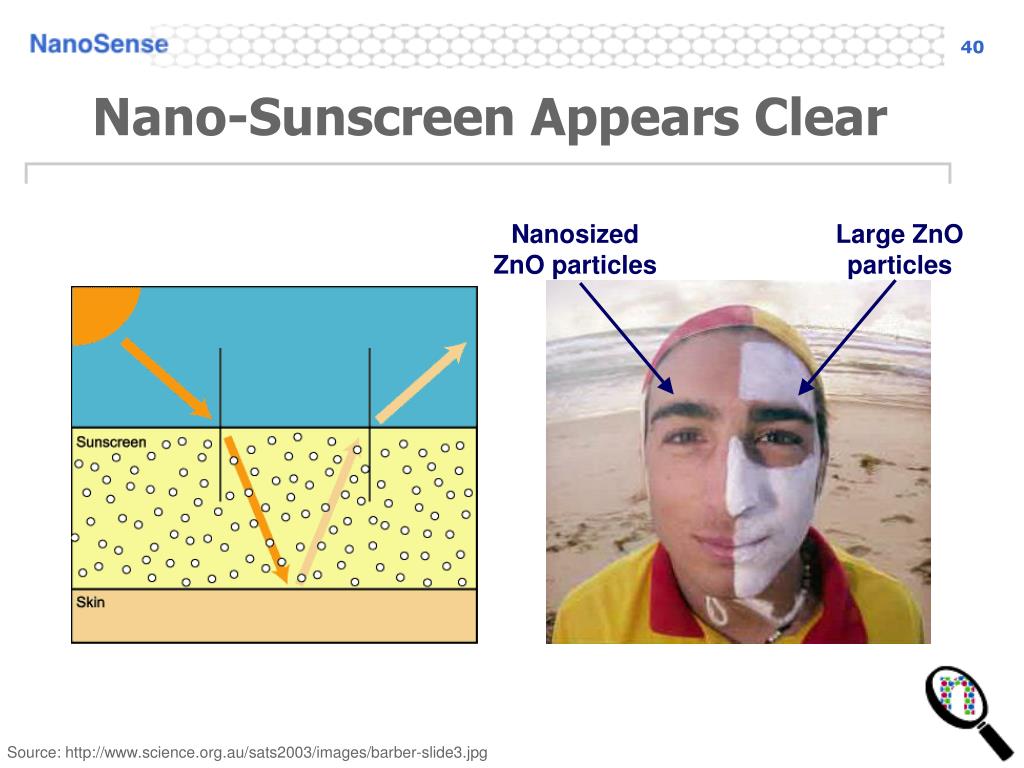

nano sunscreen appears clear

Nanosized ZnO particles

Large ZnO particles

Nano-Sunscreen Appears Clear

Source: http://www.science.org.au/sats2003/images/barber-slide3.jpg

let s look at some real data
Let’s Look at Some Real Data…

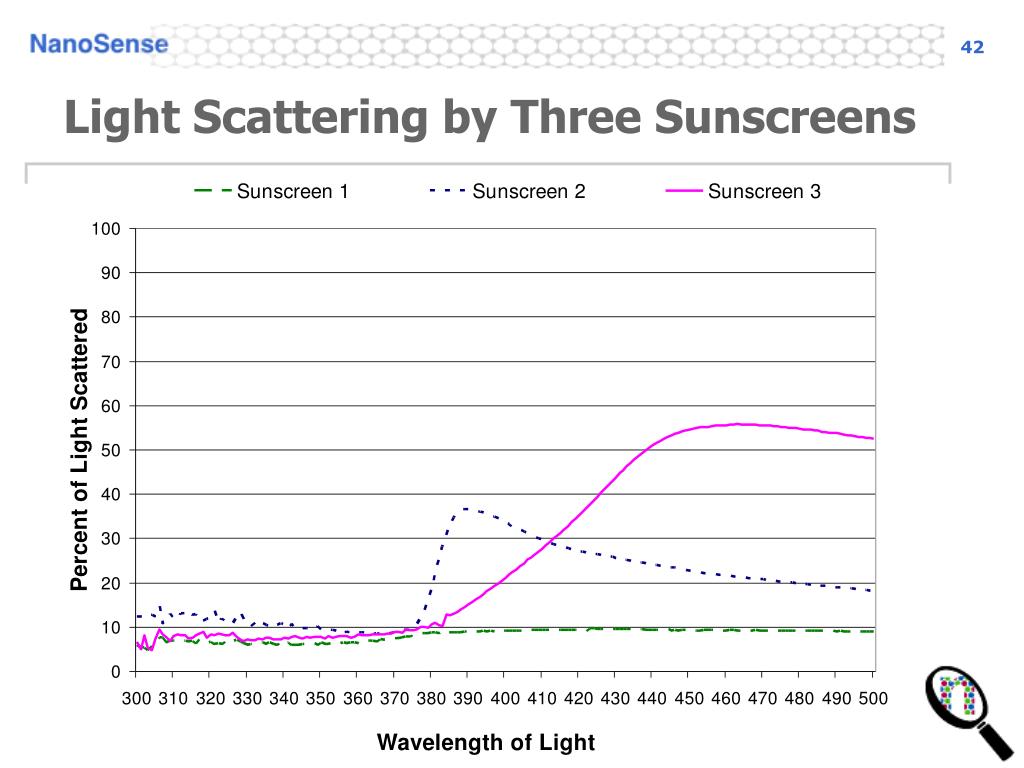

  • Three sunscreens were tested for scattering with different wavelengths of light
    • One contains nanosized inorganic ingredients
    • One contains traditional inorganic ingredients
    • One contains organic ingredients
  • Can you answer these three questions:
    • Which one is which and how do you know?
    • Will each one appear white or clear on your skin?
    • What size (approximately) are the clusters in each sunscreen?

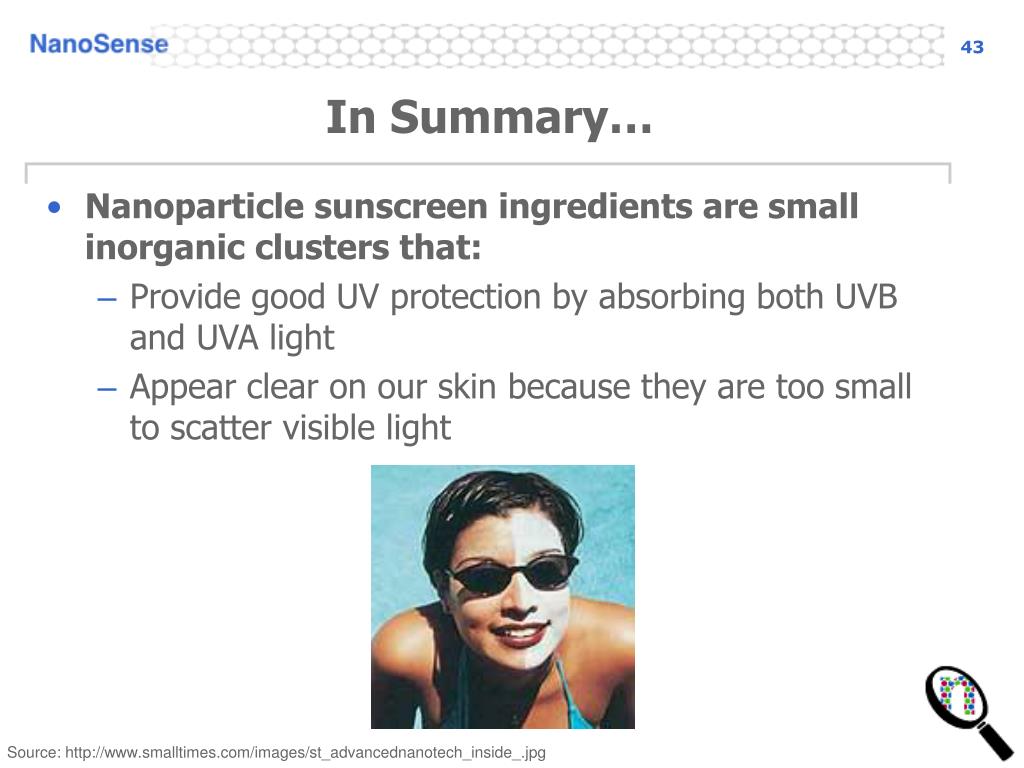

in summary
In Summary…
  • Nanoparticle sunscreen ingredients are small inorganic clusters that:
    • Provide good UV protection by absorbing both UVB and UVA light
    • Appear clear on our skin because they are too small to scatter visible light

Source: http://www.smalltimes.com/images/st_advancednanotech_inside_.jpg

essential questions time for answers
Essential Questions: Time for Answers
  • What are the most important factors to consider in choosing a sunscreen?
  • How do you know if a sunscreen has “nano” ingredients?
  • How do “nano” sunscreen ingredients differ from other ingredients currently used in sunscreens?
