  1. Respiratory System

  2. Respiratory System • Upper Respiratory System • Nose • Nasal cavity • Pharynx • Lower Respiratory System • Larynx • Trachea • Bronchi • Lungs

  3. Respiratory Tract • Conducting portion • Nasal cavity to smallest bronchioles of lung • Getting air to the exchange zone • Respiratory portion • Alveoli • Gas exchange

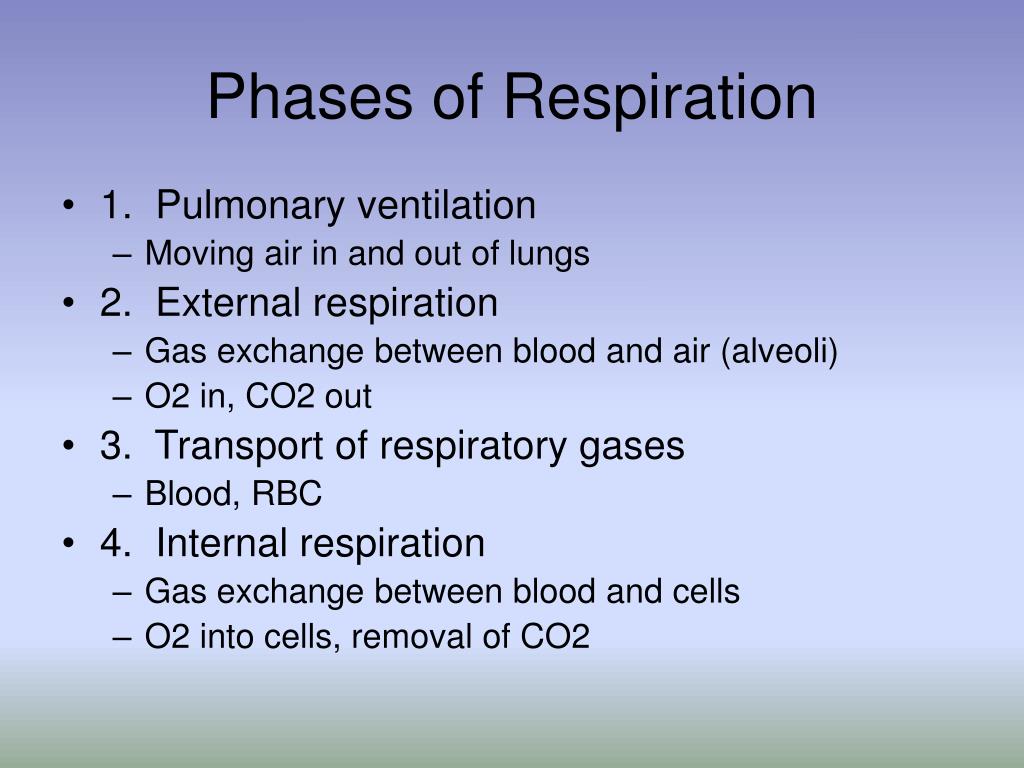

  4. Phases of Respiration • 1. Pulmonary ventilation • Moving air in and out of lungs • 2. External respiration • Gas exchange between blood and air (alveoli) • O2 in, CO2 out • 3. Transport of respiratory gases • Blood, RBC • 4. Internal respiration • Gas exchange between blood and cells • O2 into cells, removal of CO2

  5. Nose • Visible part of respiratory system • Airway for respiration • Moistens and warms air • Filters air • Resonating chamber for speech • Smell receptors • PSCC epithelium • Conchae bones

  6. Pharynx (Throat) • Food and air passage way • Three divisions • NASOPHARYNX: air only. Back of nasal cavity. PSCC epithelium • OROPHARYNX: food and air. Back of mouth. Stratified squamous epithelium. • LARYNGOPHARYNX: air and food. Distal region of the pharynx. Extends to the larynx. Stratified squamous epithelium

  7. Larynx • From the pharynx air passes through an opening called the GLOTTIS • The larynx protects the glottis • The larynx is composed of several cartilages • Thyroid cartilage (Hyaline) – laryngeal prominence • Cricoid cartilage (Hyaline) • Epiglottis (Elastic) • Arytenoid cartilage (Hyaline) • Corniculate cartilage (Hyaline) • Cuneiform cartilage (Hyaline)

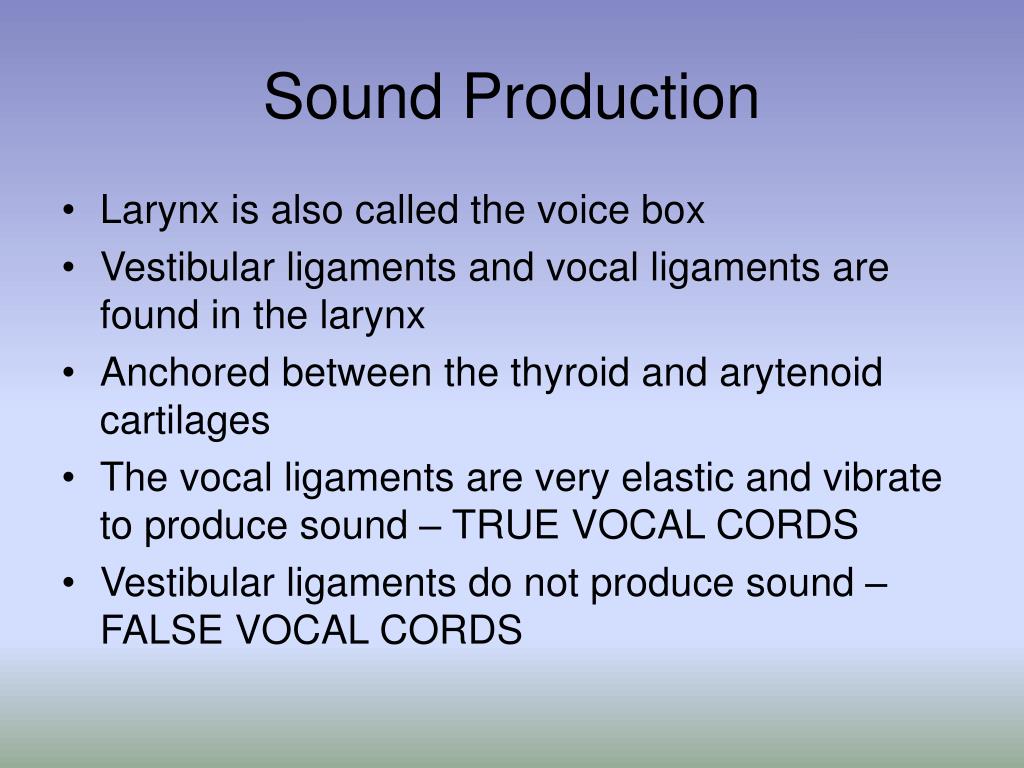

  8. Sound Production • Larynx is also called the voice box • Vestibular ligaments and vocal ligaments are found in the larynx • Anchored between the thyroid and arytenoid cartilages • The vocal ligaments are very elastic and vibrate to produce sound – TRUE VOCAL CORDS • Vestibular ligaments do not produce sound – FALSE VOCAL CORDS

  9. Trachea • Windpipe • Passage for air to the lungs • About 1 inch in diameter, and 4.25 inches long • Consists of 15-20 tracheal cartilages • Tracheal cartilages are hyaline cartilage and are “C” shaped • Respiratory epithelium is PSCC • Trachea ends at the CARINA • Divides into the right and left primary bronchi

  10. Trachea

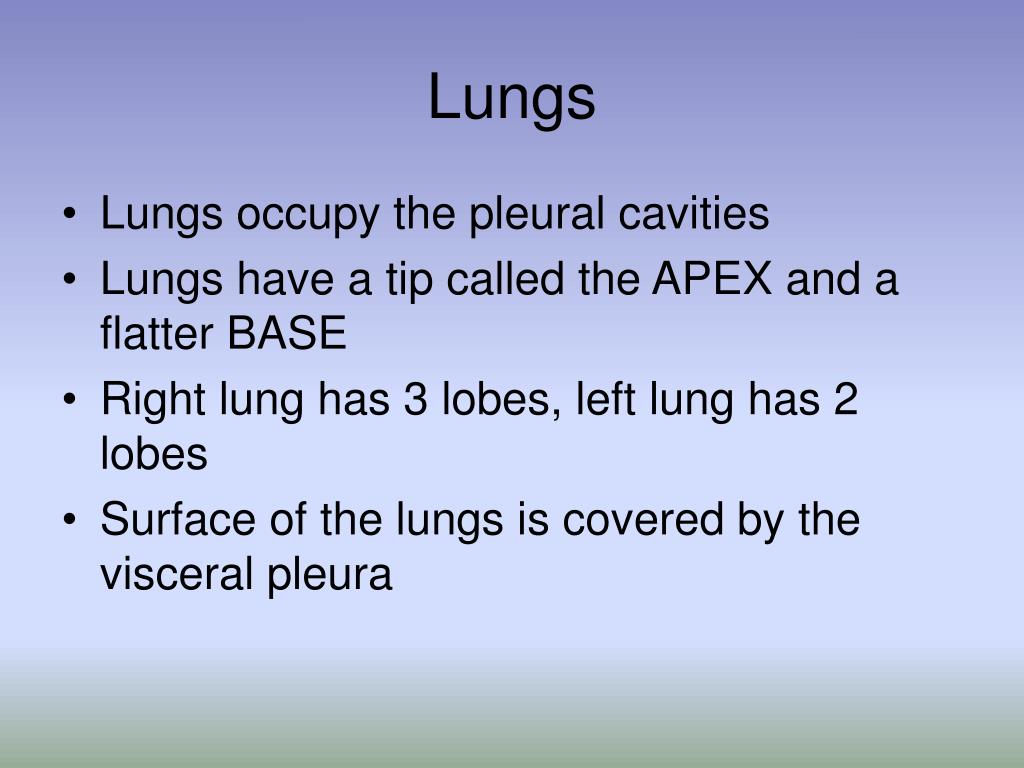

  11. Lungs • Lungs occupy the pleural cavities • Lungs have a tip called the APEX and a flatter BASE • Right lung has 3 lobes, left lung has 2 lobes • Surface of the lungs is covered by the visceral pleura

  12. Bronchial Tree • Primary bronchus • Secondary bronchus – one for each lobe • Tertiary bronchus • Terminal bronchioles • Respiratory bronchioles • Alveolar ducts • Alveolar sacs – gas exchange

  13. Lung Lobule

  14. Changes in the bronchial tree • As the bronchial passageways get smaller the cartilage rings are replaced by cartilage plates • Terminal bronchioles lack cartilage, mostly smooth muscle • Epithelium changes as well: • PSCC in the primary, secondary, tertiary bronchi • Ciliated simple columnar in the larger bronchioles • Ciliated simple cuboidal in the smaller bronchioles • Simple cuboidal in the terminal bronchioles

  15. Respiratory Membrane • Alveolar endothelium = simple squamous • Pulmonary endothelium = simple squamous • These endothelial membranes fuse to form the respiratory membrane • Gases diffuse across this tiny space: oxygen in, carbon dioxide out

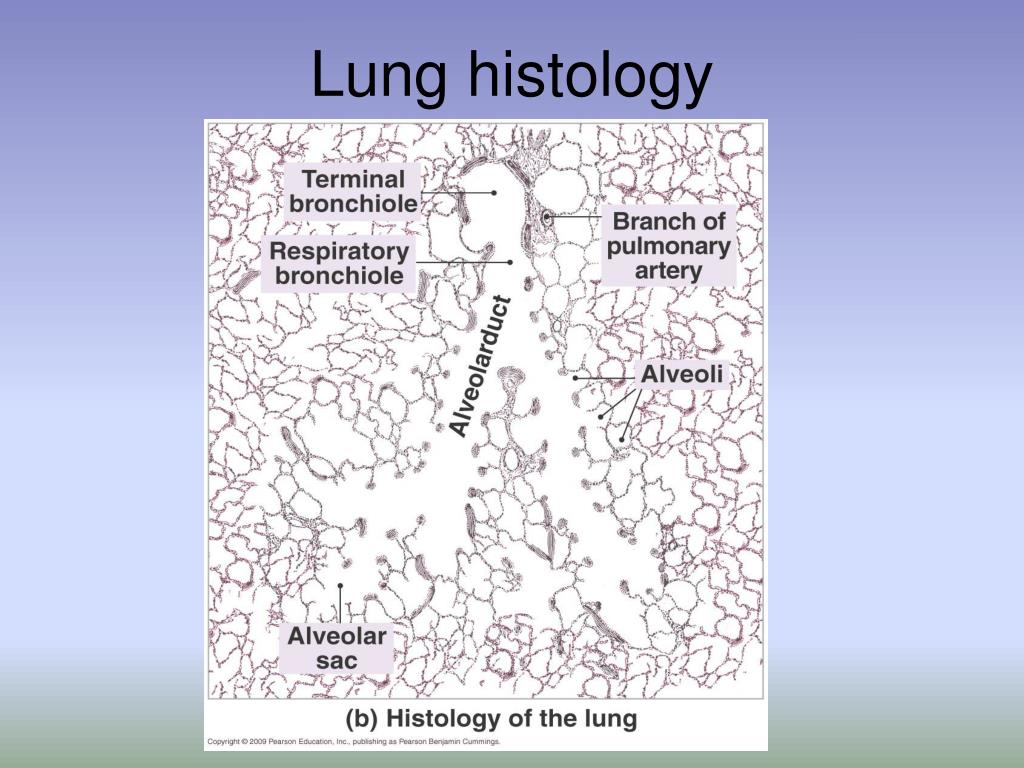

  16. Lung histology

  17. Respiratory Membrane

  18. Respiratory Muscles • Diaphragm • Increases the volume of thoracic cavity to draw air into lungs • External intercostals • Assist in inspiration by elevating ribs • Internal intercostals • Depress the ribs, reduce the width of the thoracic cavity and assist in expiration
