Presentation Transcript
slide1

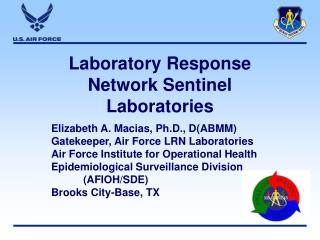

Laboratory Response Network Sentinel Laboratories

Elizabeth A. Macias, Ph.D., D(ABMM)

Gatekeeper, Air Force LRN Laboratories

Air Force Institute for Operational Health

Epidemiological Surveillance Division (AFIOH/SDE)

Brooks City-Base, TX

slide3

Laboratory Response Network (LRN)

  • Established in 1999 by the Centers for Disease Control and Prevention (CDC)
  • Integrated network of laboratories – state and local public health, hospital, military, veterinary, and international
  • Respond quickly to biological and chemical terrorism, as well as emerging infectious diseases and other public health threats
slide5

AF LRN

  • August 2007 - National Laboratory Response Network Policy Letter
  • Discusses definition of Basic and Advanced Sentinel laboratories
  • “AFMS laboratories will have the CDC technical protocols, notification procedures, and procedures to properly ship clinical samples in place by 1 October 2007…”
slide6

LRN Sentinel Laboratories

If you perform routine diagnostic Microbiology cultures, then you are a Sentinel laboratory.

Minimum requirements:

- Follow BSL-2 guidelines

- Plate cultures on blood and chocolate agar

- Microscopy capability (Gram stains, wet mounts)

slide7

LRN Sentinel Laboratories

  • Perform testing on clinical specimens, not environmental samples
  • Presumptive testing - protocols on American Society for Microbiology (ASM) website http://www.asm.org/Policy/index.asp?bid=6342
  • Recognize, rule-out, and refer to Reference or National laboratories for further testing
slide8

LRN Structure

Basic Sentinel

Clinical Laboratory

Advanced Sentinel

Clinical Laboratory

lrn sentinel labs
LRN Sentinel Labs

Serve as “sentinels” for early detection of an agent that cannot be ruled out as a possible bioterrorism-associated organism

lrn sentinel labs10
LRN Sentinel Labs

Must utilize standardized testing protocols designed to utilize conventional tests to facilitate the “rule out” or “referral” of suspicious isolates to an LRN Reference lab

ASM website: http://www.asm.org/Policy/index.asp?bid=6342

lrn sentinel labs13
LRN Sentinel Labs

Sentinel labs should not accept environmental (powders, letters, packages), animal, food, or water specimens for examination, culture, or transport for bioterrorism-associated agents

Such specimens should be submitted directly to the nearest LRN Reference laboratory.

X

slide14

LRN Sentinel Labs – Important Reminders

Very likely that the lab will not be contacted in advance and informed that one of the potential agents of bioterrorism is suspected in the patients’ specimens

lrn sentinel labs important reminders
LRN Sentinel Labs – Important Reminders

Essential that appropriate safeguards are taken including:

  • All blood cultures should be subcultured in a biosafety cabinet
  • Follow flowcharts for suspicious agents
  • Always considering the possibility of bioterrorist agents.
lrn sentinel labs important reminders16
LRN Sentinel Labs – Important Reminders

Your lab should know how to assist clinicians in the diagnosis and management of patients who have been overtly or covertly exposed to a BT agent by:

  • Promptly providing accurate information on the selection and collection specimens
lrn sentinel labs important reminders17
LRN Sentinel Labs – Important Reminders

Your lab must know how to…

  • Handle these specimens in a manner that will result in the greatest probability of success in establishing a diagnosis
  • Collect proper specimens
  • Store and transport specimens at proper temperatures to ensure stability
lrn sentinel labs important reminders18
LRN Sentinel Labs – Important Reminders

Your lab must know how to…

  • Minimize exposure of hospital personnel and patients to infectious agents
  • Proper PPE
  • Lab safety
  • Proper packaging and transport of specimens
lrn sentinel labs important reminders19
LRN Sentinel Labs – Important Reminders

In a suspected or confirmed BT event, immediate and effective communication is imperative

You should notify:

  • Appropriate institutional and medical personnel
  • Designated BT coordinator (usually PHO or Infection Control
lrn sentinel labs important reminders20
LRN Sentinel Labs – Important Reminders

The Sentinel laboratory is NOT responsible for and SHOULD NOT make the decision that a BT event has occurred

That responsibility rests with local, state, and federal health and law enforcement officials

lrn sentinel labs important reminders21
LRN Sentinel Labs – Important Reminders

NOTE: Certain geographic areas are known to have natural human cases of infection due to BT agents. For example:

  • Tularemia in Nantucket and Martha’s Vineyard, Massachusetts, as well as Missouri, Oklahoma, and neighboring areas
  • Plague in much of the southwestern United States, especially New Mexico
college of american pathology proficiency testing cap pt
COLLEGE OF AMERICAN PATHOLOGY PROFICIENCY TESTING (CAP PT)

2007 “Laboratory Preparedness Survey” (LPS)

2008 “Laboratory Preparedness Exercise” (LPX)

cap laboratory preparedness pt
CAP Laboratory Preparedness PT
  • Developed as a collaborative effort between CAP, CDC, and APHL
  • Tests the preparedness of labs across the U.S. to handle potential PH emergencies related to BT agents
  • Labs are sent live organisms that exhibit characteristics of BT agents and expected to respond following LRN protocols

Excerpt from 2008 CAP PT catalog

cap laboratory preparedness pt24
CAP Laboratory Preparedness PT
  • All agents are excluded from the CDC’s select agent list
  • May include strains of B. anthracis, Y. pestis, F. tularensis, and B. abortus that have been modified and are safe for testing in a lab that contains a certified, properly functioning Class II Biological Safety Cabinet (BSC) and is capable of handling Category A and B agents

Excerpt from 2008 CAP PT catalog

cap laboratory preparedness pt25
CAP Laboratory Preparedness PT

Placing an order for the Lab Preparedness PT requires a signature by the Laboratory Director on a “Certificate of Acceptance” form

  • “I have reviewed the list of potential organisms to be provided …”
  • “Our facility has a properly functioning, certified Class II BSC and we are capable of handling Category A and B agents….”
cap pt lps b 2007
CAP PT – LPS-B 2007

Biohazard Warning – p.1, bold font

cap pt lps b 200727
CAP PT – LPS-B 2007

LPS – B, Shipped October 2007

Kit Instructions state on page 1, “Biohazard Warning”:

  • Your lab must have a properly functioning Class II Biological Safety Cabinet in order to participate in this Survey
  • All specimens in this Survey should be handled in a Biological Safety Cabinet with BSL-3 primary barriers and safety equipment
cap pt lps b 200728
CAP PT – LPS-B 2007

Biohazard Warning (continued):

  • These strains are attenuated but they represent potentially dangerous pathogens and should be handled as if they are capable of transmitting disease.
  • Participants should wear gloves and protective clothing with a solid-front and perform all manipulations in a Class II BSC
cap pt lps b 200729
CAP PT – LPS-B 2007

Biohazard Warning (continued):

  • Additional information on laboratory safety and agent specific precautions can be found on the CDC website: http://www.cdc.gov/od/ohs/biosfty/biosfty.htm
cap pt lps b 200731
CAP PT – LPS-B 2007

All five specimens (LPS06 – LPS10) had the following for testing instructions: “Labs are instructed to follow the LRN procedures to rule out or refer potential BT agents….”

  • Bottom line: Labs were notified up front that these were potential BT agents
  • More often than not, we will not have that happen with actual clinical specimens.
brucella exposure overview
Brucella Exposure Overview
  • CAP LPS-B survey sent 15 Oct 2007
  • CDC notified on 27 Nov by the New York State Dept of Health (NYSDOH) of potential exposures to the Brucella RB51 strain during the LPS exercise
  • Exposure initially occurred after a RB51 specimen was mislabeled as a routine patient specimen and submitted to the NYSDOH lab
brucella exposure overview33
Brucella Exposure Overview
  • Personnel (24) exposed in the NYSDOH lab
  • Survey conducted by NYSDOH of their sentinel labs determined that 17 LPS participating labs did not handle the survey correctly
  • As of 14 January, 2008, follow up in labs across the U.S. identified a total of 916 lab workers in 254 labs with potential RB51 exposure
brucella exposure overview34
Brucella Exposure Overview

Some examples of how the exposures occurred:

  • Improper shipping and handling of isolates
  • Subculturing of isolates on routine lab bench
  • Sniffing subcultures
  • Setting up susceptibility tests on routine bench
  • Spilling blood culture bottles
  • Aerosol generation from ruptured centrifuge tubes
brucella exposure overview35
Brucella Exposure Overview
  • Brucella abortus RB51 is an attenuated veterinary vaccine strain that rarely causes infections in humans
  • Risk assessment tools, post-exposure prophylaxis and follow up guidelines were sent to LRN sentinel labs
lessons learned
Lessons Learned
  • Read all PT kit instructions
  • Emphasize adherence to biosafety practices
  • Annual biosafety training+ +
  • Include proper use of biosafety cabinet
  • Frequent spot checks to ensure personnel are using PPE and safety equipment properly
  • Perform risk assessments if you isolate a highly pathogenic organism (i.e., Brucella or Francisella)
lessons learned37
Lessons Learned

Lab readiness should include training in the characteristics of particular agents (i.e., Brucella) and the biosafety recommended for handling and testing

  • For example, if Gram-negative coccobacilli are seen on a Gram stain, Brucella and Francisella should be thought of, especially if the patient has compatible symptoms
lessons learned38
Lessons Learned

Brucella spp. Gram stain characteristics:

  • Poorly staining
  • Small gram-negative coccobacilli (0.5-0.7 x 0.6-1.5 um)
  • Mostly seen as single cells and appearing like "fine sand"

CDC/PHIL

lessons learned39
Lessons Learned

Brucella spp. colony characteristics:

  • Fastidious
  • Usually not visible at 24h
  • Grows slowly on most standard laboratory media (e.g. SBA, choc and TSA)
  • Pinpoint, smooth, entire translucent, non-hemolytic at 48h

CDC/PHIL

slide40

BMBL

http://www.cdc.gov/od/ohs/biosfty/bmbl5/bmbl5toc.htm

influenza testing
Influenza testing

Pandemic Influenza Plans – HHS, DoD, State-specific, WHO, … .

Appendix 4, from the HHS Pandemic Influenza Plan: “Laboratory Biosafety Guidelines for Handling and Processing Specimens or Isolates of Novel Influenza Strains”

influenza testing novel strains
Influenza testing (novel strains)
  • Commercial antigen detection testing for influenza may be conducted under BSL-2 containment conditions if a Class II biological safety cabinet is used
  • Clinical specimens from suspected novel influenza cases may be tested by RT-PCR using standard BSL-2 work practices in a Class II biological safety cabinet for initial processing of patient specimens
influenza testing novel strains44
Influenza testing (novel strains)
  • If a specimen is confirmed positive for influenza A (H5N1) by RT-PCR, additional testing should be performed only under BSL-3 conditions with enhancements
  • CDC’s Influenza Branch should be informed immediately by contacting the CDC Director’s Emergency Operations Center (DEOC) at 770-488-7100
slide45

Lab Safety Summary

  • All clinical labs can potential handle highly pathogenic organisms
  • High emphasis must be placed on training and risk management
questions
Questions?

Elizabeth A. Macias, Ph.D., D(ABMM)

Laboratory Director

Air Force Institute for Operational Health,

Epidemiological Surveillance Division (AFIOH/SDE)

2730 Louis Bauer Drive

Brooks City-Base, TX 78235-5132

COMM: 210.536.1271

DSN: 240.1271

Email: elizabeth.macias@brooks.af.mil
