Fdir spacecraft fault protection system

Project 1

Problemunderstanding &

UI design

FDIRSpacecraftfault protection system

Euro Team

Alauzet Pierre, Ahvenniemi Mikko,

Colin Julien, Starck Benoit

CS554 - Design for Software & Systems


Table of contents

Table of Contents

  • Problemunderstanding

  • Functionalrequirements (use-case model)

  • Non-functionalrequirements

  • Usabilityanalysis & design


Fdir spacecraft fault protection system

1. Problemunderstanding

Business purpose & problem frames

Problem understanding

Functional requirements (use-case model)

Non-functional requirements

Usability analysis & design


Business purpose requirements

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Business purpose & requirements

  • Fault Detection, Isolation and Recovery (FDIR) system is monitoring systems for spacecraft.

  • FDIR

    • Guarantee the completion of any time critical activities

    • Providemanual control

    • Display information continuously

    • Collect data to data storage

    • Locate the fault

    • Store irresolvable conditions in reports

    • Automaticrecovery to failure

    • Keep the control with safety, observability & commandability


Problem frames

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Problem frames

Ground Control

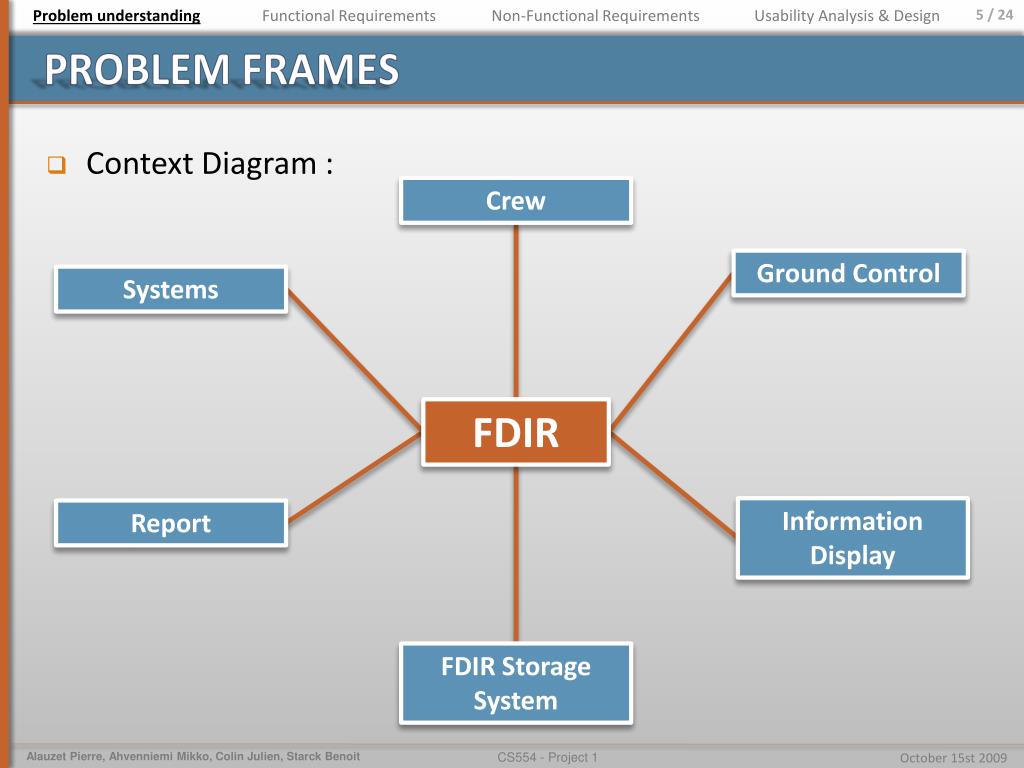

  • Context Diagram :

Crew

Systems

FDIR

Information Display

Report

FDIR Storage System


Problem frames cont

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Problem frames (cont.)

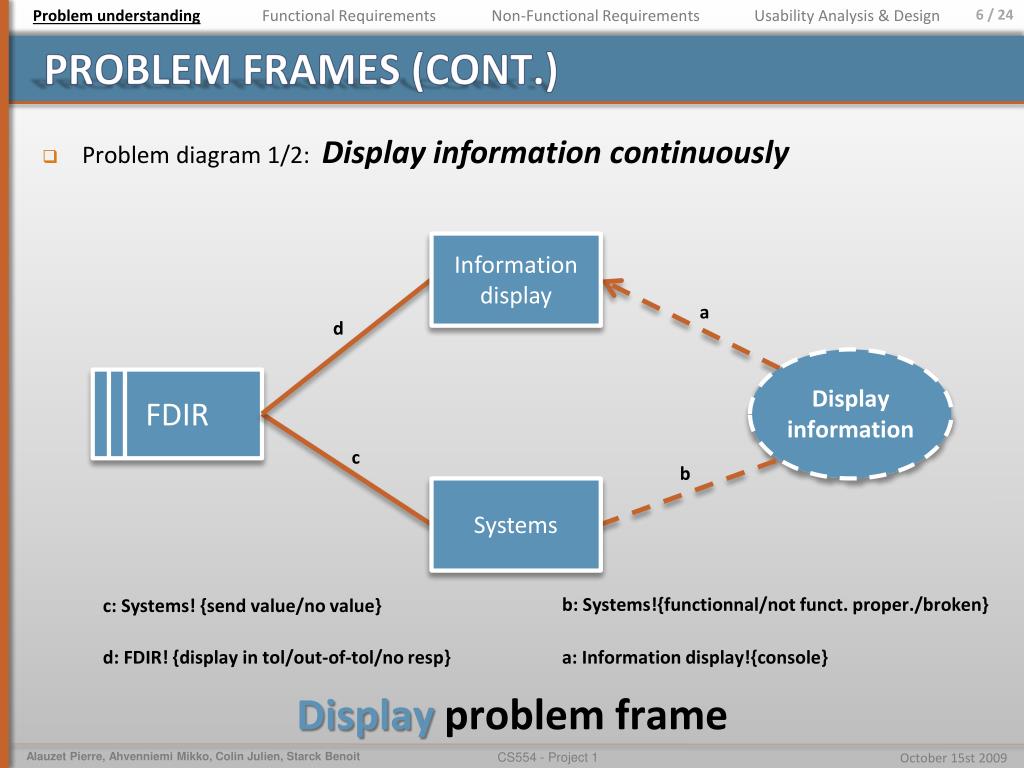

  • Problemdiagram 1/2: Display information continuously

Information display

a

d

FDIR

Display information

c

b

Systems

b: Systems!{functionnal/not funct. proper./broken}

c: Systems! {send value/no value}

d: FDIR! {display in tol/out-of-tol/no resp}

a: Information display!{console}

Displayproblem frame


Problem frames cont1

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Problem frames (cont.)

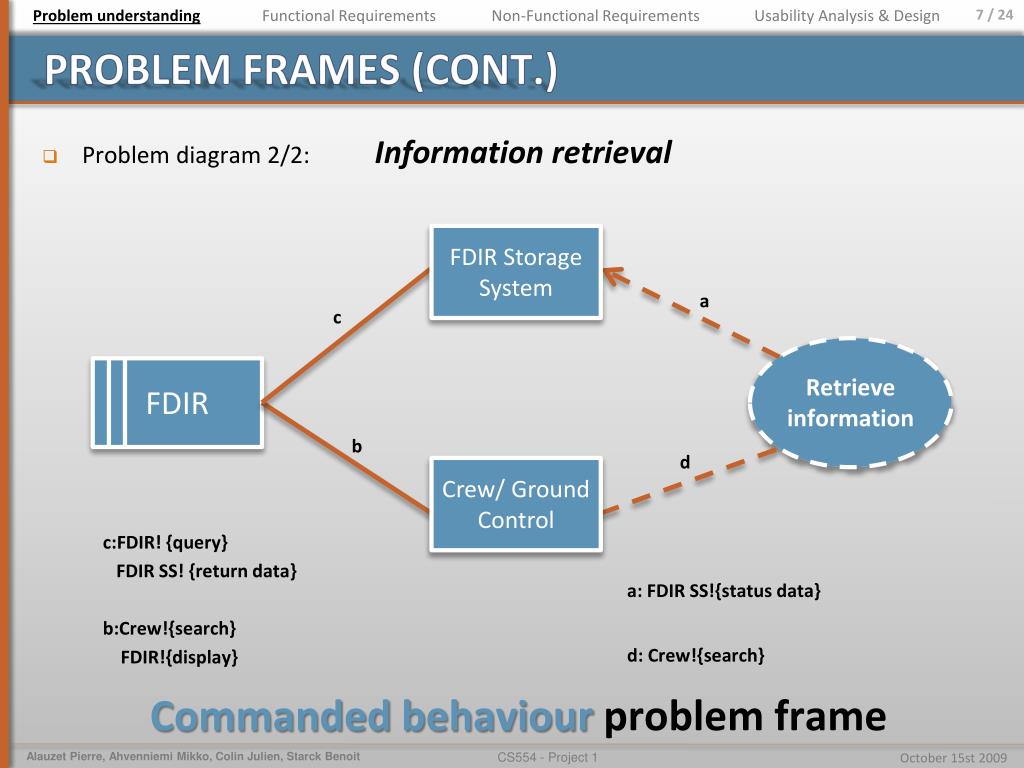

  • Problemdiagram 2/2: Information retrieval

FDIR Storage System

a

c

FDIR

Retrieve information

b

d

Crew/ Ground Control

c:FDIR! {query}

FDIR SS! {return data}

a: FDIR SS!{status data}

b:Crew!{search}

FDIR!{display}

d: Crew!{search}

Commandedbehaviourproblem frame


Problem frames cont2

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Problemframes (cont.)

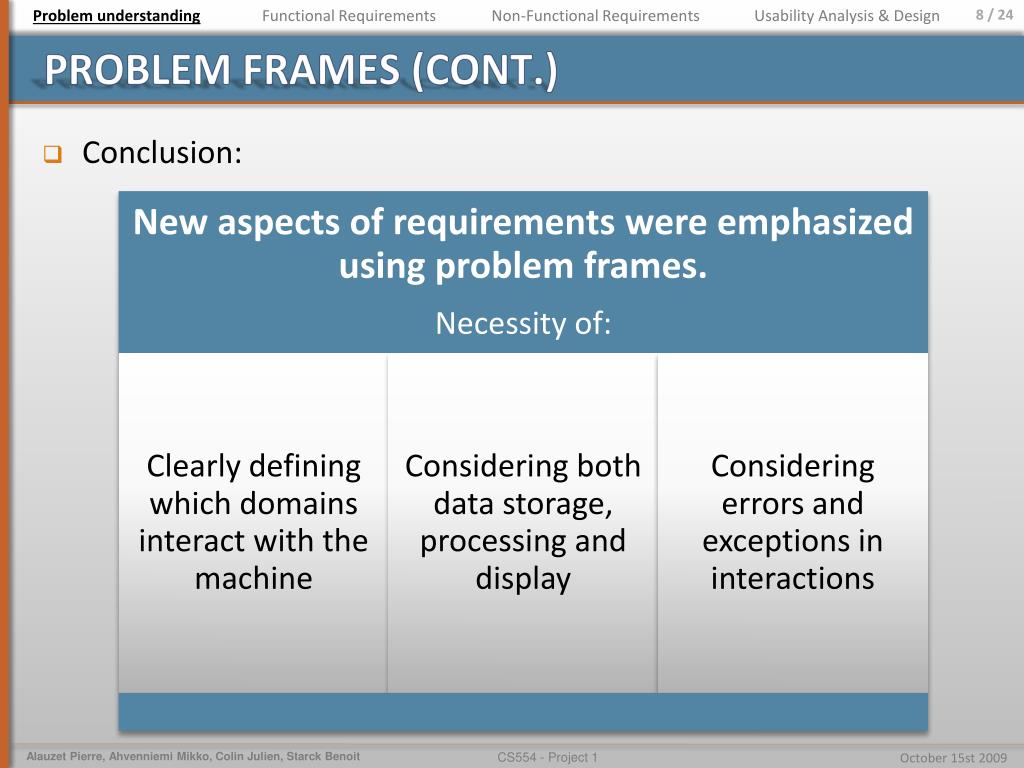

  • Conclusion:


Fdir spacecraft fault protection system

2. Functionalrequirements

Use-case & sequencesdiagrams

Problem understanding

Functional requirements (use-case model)

Non-functional requirements

Usability analysis & design


Use case diagram

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

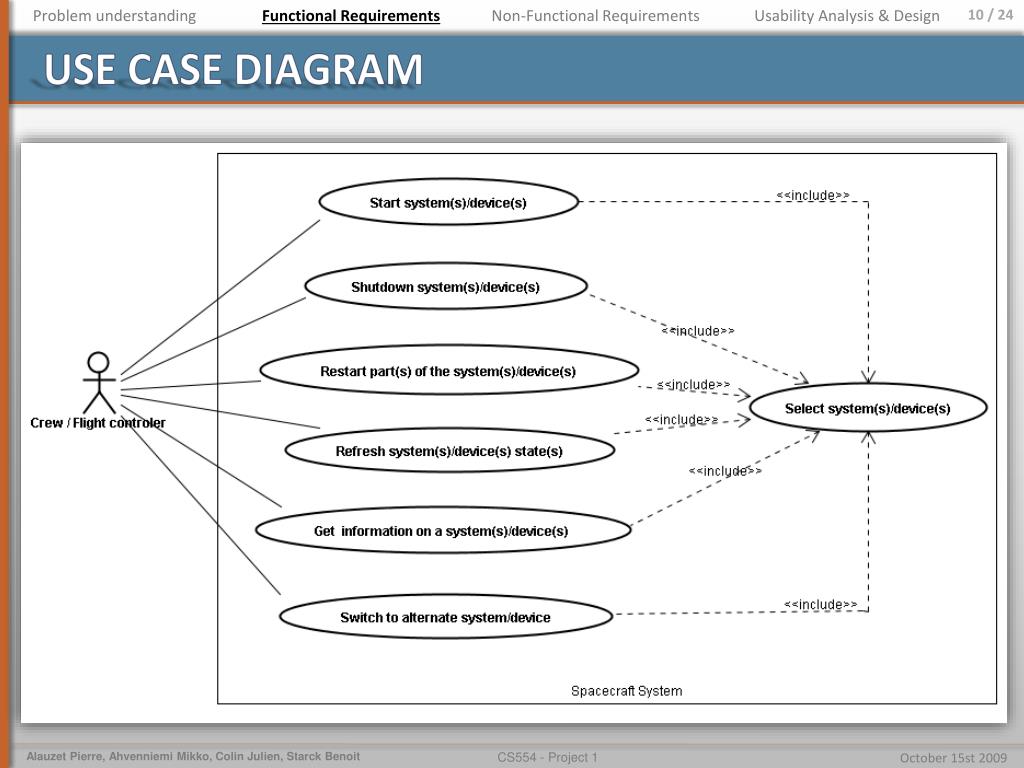

Use case diagram


Sequence diagrams

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Sequencediagrams

  • Safe response in case of hazardous conditions :


Sequence diagrams cont

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Sequencediagrams (cont.)

  • Start system, restart system & refresh system state :


Fdir spacecraft fault protection system

3. Non-functionalrequirements

Identified & improvisedqualityattributes

Problem understanding

Functional requirements (use-case model)

Non-functional requirements

Usability analysis & design


Identified attributes

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Identifiedattributes


Improvised attributes

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Improvisedattributes


Improvised attributes cont

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Improvisedattributes (cont.)


Fdir spacecraft fault protection system

4. Usabilityanalysis & design

Prototypes & usability scenarios discussions

Problem understanding

Functional requirements (use-case model)

Non-functional requirements

Usability analysis & design


User interface design

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

User interface design

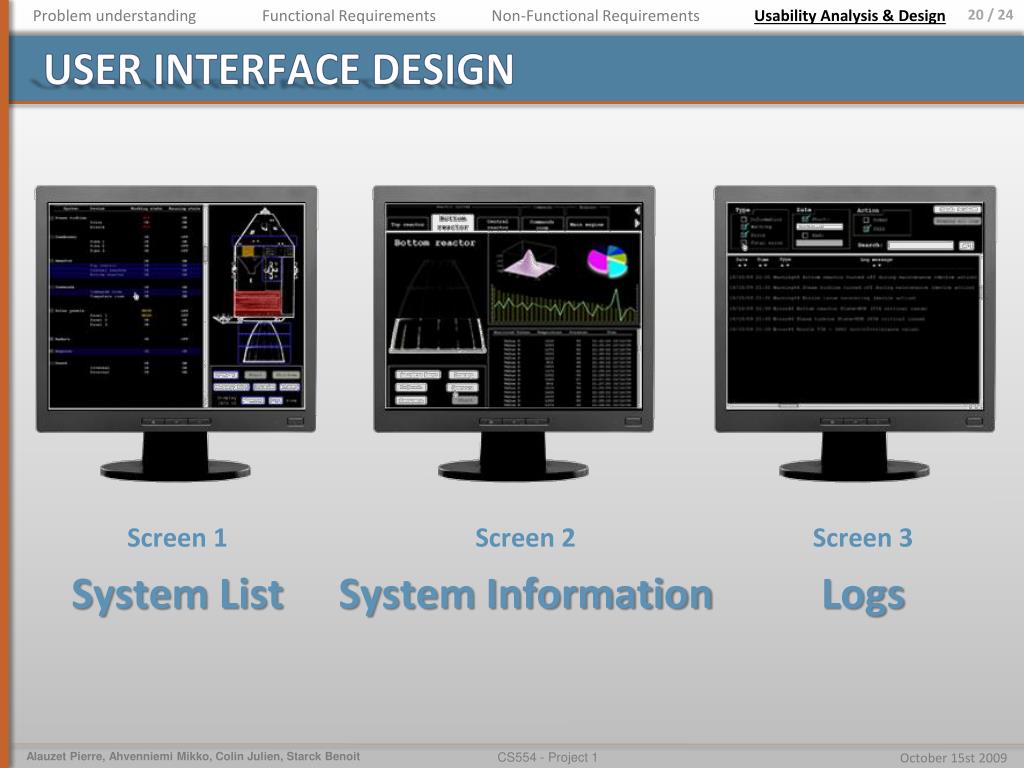

Screen 1

System List

Screen 2

System Information

Screen 3

Logs


Usability scenarios discussions

Problemunderstanding

FunctionalRequirements

Non-FunctionalRequirements

UsabilityAnalysis & Design

Usability scenarios discussions

24Views has to be consistent from one to another

25Modification in one screen affect the others

15Concurrent activities

16 Navigation within a single view

26Displaying in different views & ways

03 Canceling actions

19 Display expected duration of any action



Fdir spacecraft fault protection system1

Project 1

Problemunderstanding &

UI design

FDIRSpacecraft fault protection system

Euro Team

Alauzet Pierre, Ahvenniemi Mikko,

Colin Julien, Starck Benoit

CS554 - Design for Software & Systems


References

references

  • [Eas98] Steve Easterbrook, and et al., Experiences Using Lightweight Formal Methods for Requirements Modeling” IEEE Transactions on Software Engineering, Vol. 24, No. 1, January 1998.

  • [Jac05] Michael Jackson, Problem frames and software engineering, Information and Software Technology, Special Issue: 1st Int Workshop on Advances and Applications of Problem Frames, K. Cox, et al. eds, Vol. 47 No. 14, pp. 903-912, Nov. 2005.

  • http://www.bredemeyer.com/pdf_files/NonFunctReq.PDF,about non-function requirements
