  1. SPEECH RECOGNITION: An Overview of Statistical Modeling of Acoustics Joseph Picone, PhD Intelligent Electronic Systems Human and Systems Engineering Department of Electrical and Computer Engineering

  2. Abstract and Biography ABSTRACT: Speech technology has quietly become a pervasive influence in our daily lives despite widespread concerns about research progress over the past 20 years. Central to this progress has been the use of advanced statistical models such as hidden Markov models to explain (and predict) variations in the acoustic signal. Generative models that attempt to explain variation in the training data have given way to discriminative models that attempt to directly optimize objective measures such as word error rate. In this talk, we will present a unified view of the acoustic modeling problem and describe typical components in a state of the art speech recognition system. BIOGRAPHY: Joseph Picone is a Professor in the Department of Electrical and Computer Engineering at Mississippi State University, where he also directs the Intelligent Electronic Systems program at the Center for Advanced Vehicular Systems. He is currently on sabbatical with the Department of Defense. His principal research interests are the development of new statistical modeling techniques for speech recognition. He has previously been employed by Texas Instruments and AT&T Bell Laboratories. Dr. Picone received his Ph.D. in Electrical Engineering from Illinois Institute of Technology in 1983. He is a Senior Member of the IEEE.

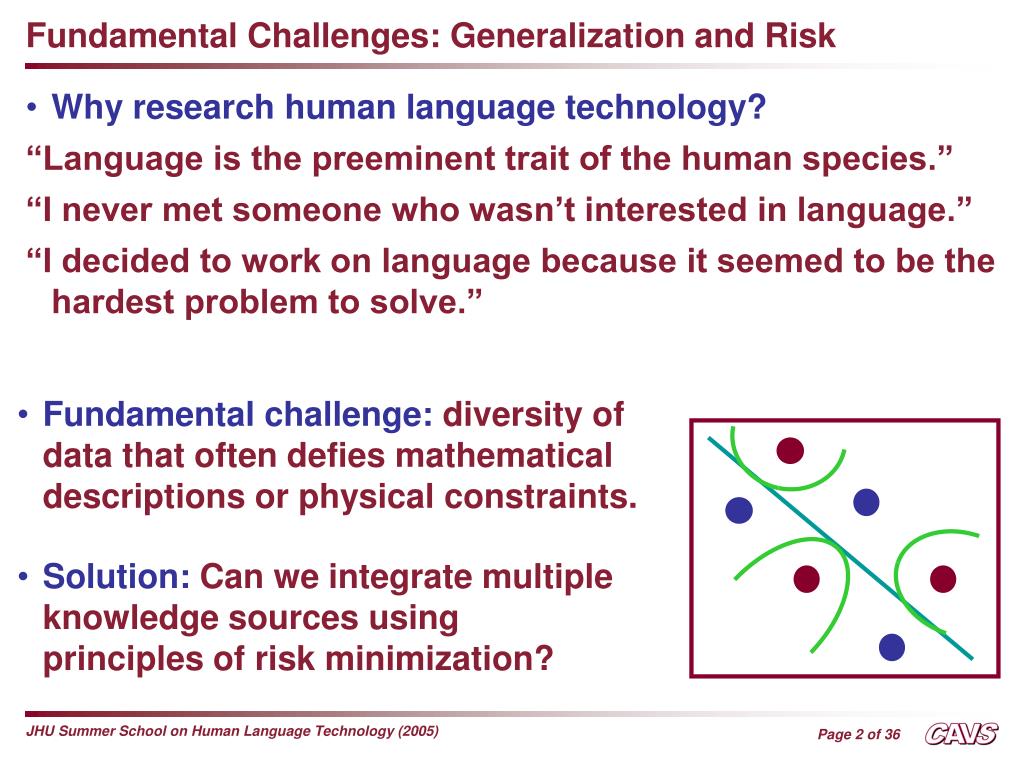

  3. Fundamental Challenges: Generalization and Risk • Why research human language technology? “Language is the preeminent trait of the human species.” “I never met someone who wasn’t interested in language.” “I decided to work on language because it seemed to be the hardest problem to solve.” • Fundamental challenge: diversity of data that often defies mathematical descriptions or physical constraints. • Solution: Can we integrate multiple knowledge sources using principles of risk minimization?

  4. Speech Recognition Is Information Extraction • Traditional Output: • best word sequence • time alignment of information • Other Outputs: • word graphs • N-best sentences • confidence measures • metadata such as speaker identity, accent, and prosody • Applications: • Information localization • data mining • emotional state • stress, fatigue, deception

  5. What Makes Acoustic Modeling So Challenging?

  6. Regions of overlap represent classification error • Reduce overlap by introducing acoustic and linguistic context • Comparison of “aa” in “lOck” and “iy” in “bEAt” for conversational speech • Variations in Signal Measurements Are Real

  7. Statistical Approach: Noisy Communication Channel Model

  8. Given an observation sequence, O, and a word sequence, W, we want minimal uncertainty about the correct answer(i.e., minimize the conditional entropy): • The mutual information, I(W;O) between W and O: • Information Theoretic Basis • To accomplish this, the probability of the word sequence given the observation must increase. • Two choices: minimize H(W) or maximize I(W;O)

  9. Relationship to Maximum Likelihood Methods • Maximizing the mutual information is equivalent to choosing the parameter set  to maximize: • Maximization implies increasing the numerator term (maximum likelihood estimation – MLE) or decreasing the denominator term (maximum mutual information estimation – MMIE) • The latter is accomplished by reducing the probabilities of incorrect, or competing, hypotheses.

  10. Speech Recognition Architectures • Core components: • transduction • feature extraction • acoustic modeling (hidden Markov models) • language modeling (statistical N-grams) • search (Viterbi beam) • knowledge sources Our focus will be on the acoustic modeling components of the system.

  11. Signal Processing in Speech Recognition

  12. Feature Extraction in Speech Recognition

  13. Adding More Knowledge to the Front End

  14. Noise Compensation Techniques

  15. Acoustic Modeling: Hidden Markov Models

  16. Markov Chains and Hidden Markov Models

  17. Why “Hidden” Markov Models?

  18. Doubly Stochastic Systems • The 1-coin model is observable because the output sequence can be mapped to a specific sequence of state transitions • The remaining models are hidden because the underlying state sequence cannot be directly inferred from the output sequence

  19. Discrete Markov Models

  20. Markov Models Are Computationally Simple

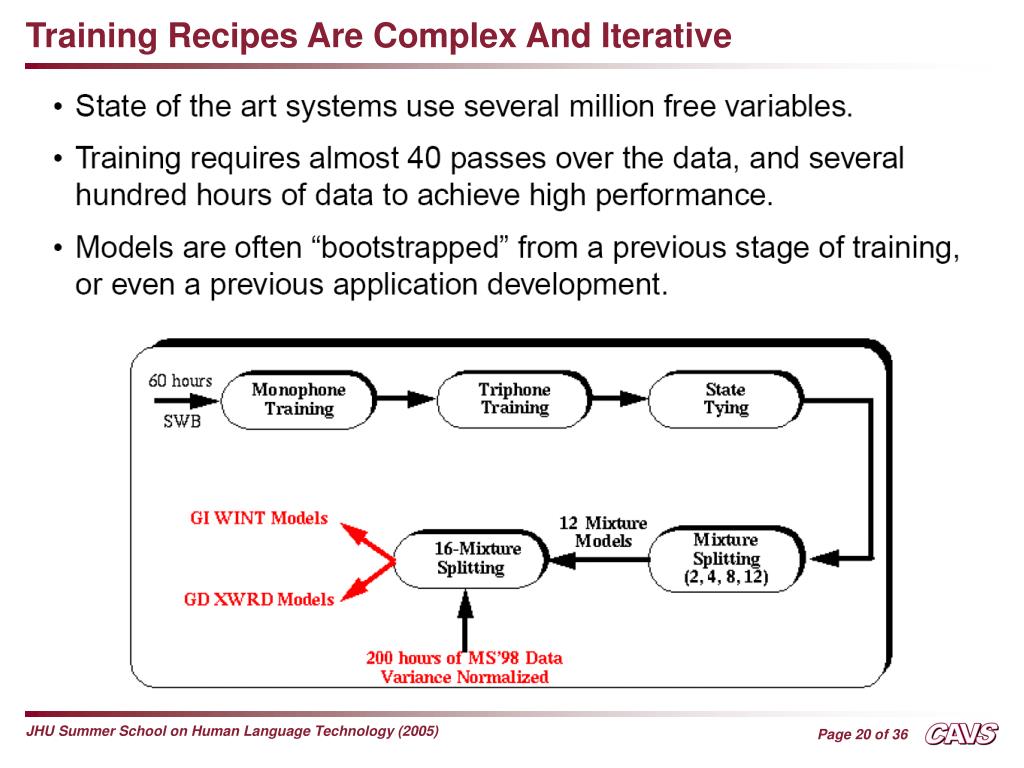

  21. Training Recipes Are Complex And Iterative

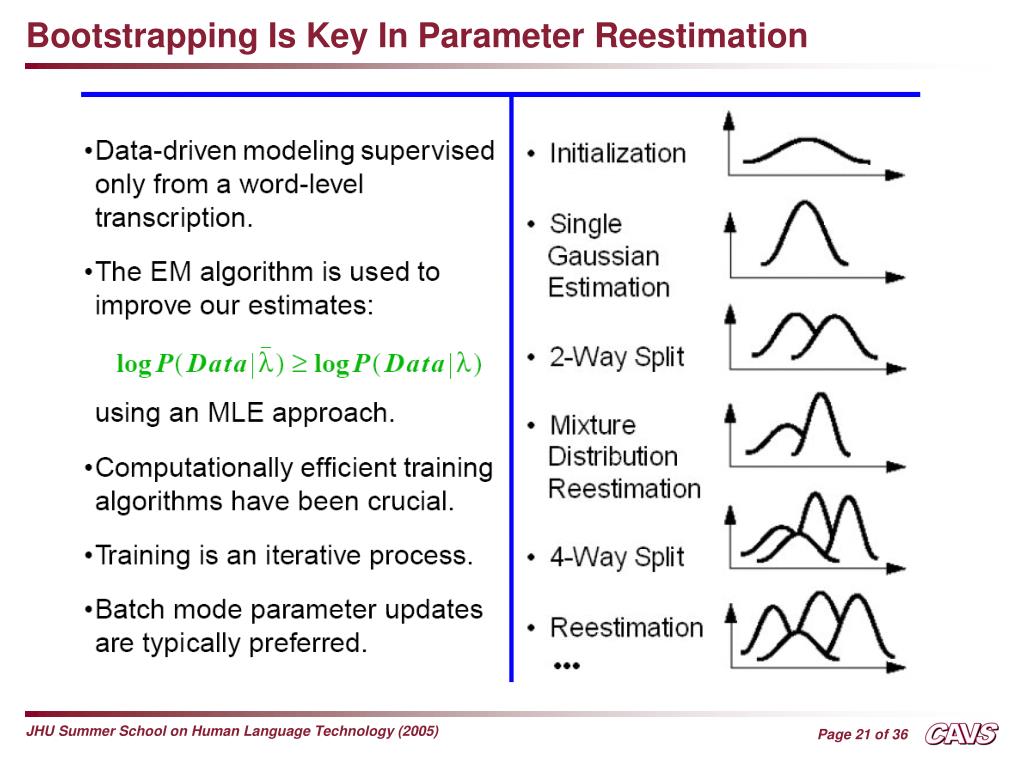

  22. Bootstrapping Is Key In Parameter Reestimation

  23. The Expectation-Maximization Algorithm (EM)

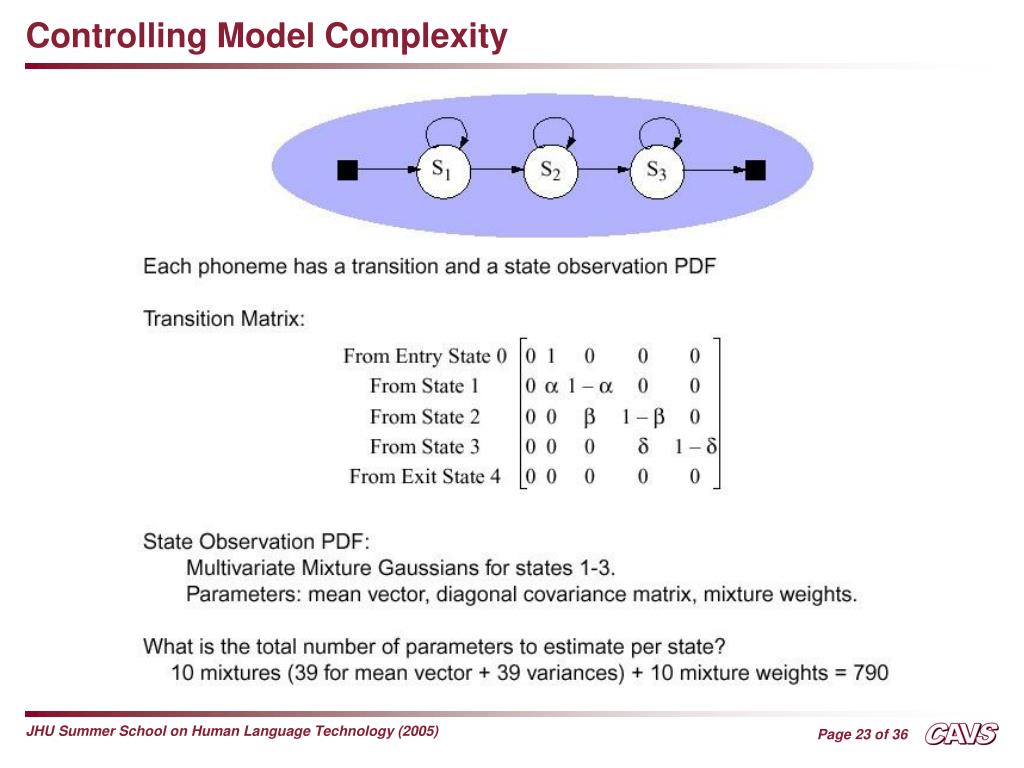

  24. Controlling Model Complexity

  25. Data-Driven Parameter Sharing Is Crucial

  26. Context-Dependent Acoustic Units

  27. Open-Loop Error Error Optimum Training Set Error Model Complexity • Machine Learning in Acoustic Modeling • Structural optimization often guided by an Occam’s Razor approach • Trading goodness of fit and model complexity • Examples: MDL, BIC, AIC, Structural Risk Minimization, Automatic Relevance Determination

  28. Summary • What we haven’t talked about: duration models, adaptation, normalization, confidence measures, posterior-based scoring, hybrid systems, discriminative training, and much, much more… • Applications of these models to language (Hazen), dialog (Phillips, Seneff), machine translation (Vogel, Papineni), and other HLT applications • Machine learning approaches to human language technology are still in their infancy (Bilmes) • A mathematical framework for integration of knowledge and metadata will be critical in the next 10 years. • Information extraction in a multilingual environment -- a time of great opportunity!

  29. Appendix: Relevant Publications • Useful textbooks: • X. Huang, A. Acero, and H.W. Hon, Spoken Language Processing - A Guide to Theory, Algorithm, and System Development, Prentice Hall, ISBN: 0-13-022616-5, 2001. • D. Jurafsky and J.H. Martin, SPEECH and LANGUAGE PROCESSING: An Introduction to Natural Language Processing, Computational Linguistics, and Speech Recognition, Prentice-Hall, ISBN: 0-13-095069-6, 2000. • F. Jelinek, Statistical Methods for Speech Recognition, MIT Press, ISBN: 0-262-10066-5, 1998. • L.R. Rabiner and B.W. Juang, Fundamentals of Speech Recognition, Prentice-Hall, ISBN: 0-13-015157-2, 1993. • J. Deller, et. al., Discrete-Time Processing of Speech Signals, MacMillan Publishing Co., ISBN: 0-7803-5386-2, 2000. • R.O. Duda, P.E. Hart, and D.G. Stork, Pattern Classification, Second Edition, Wiley Interscience, ISBN: 0-471-05669-3, 2000 (supporting material available at • D. MacKay, Information Theory, Inference, and Learning Algorithms, Cambridge University Press, 2003. • Relevant online resources: • “Intelligent Electronic Systems,”, Center for Advanced Vehicular Systems, Mississippi State University, Mississippi State, Mississippi, USA, June 2005. • Internet-Accessible Speech Recognition Technology,”, June 2005. • “Speech and Signal Processing Demonstrations,”, June 2005. • “Fundamentals of Speech Recognition,”, September 2004.

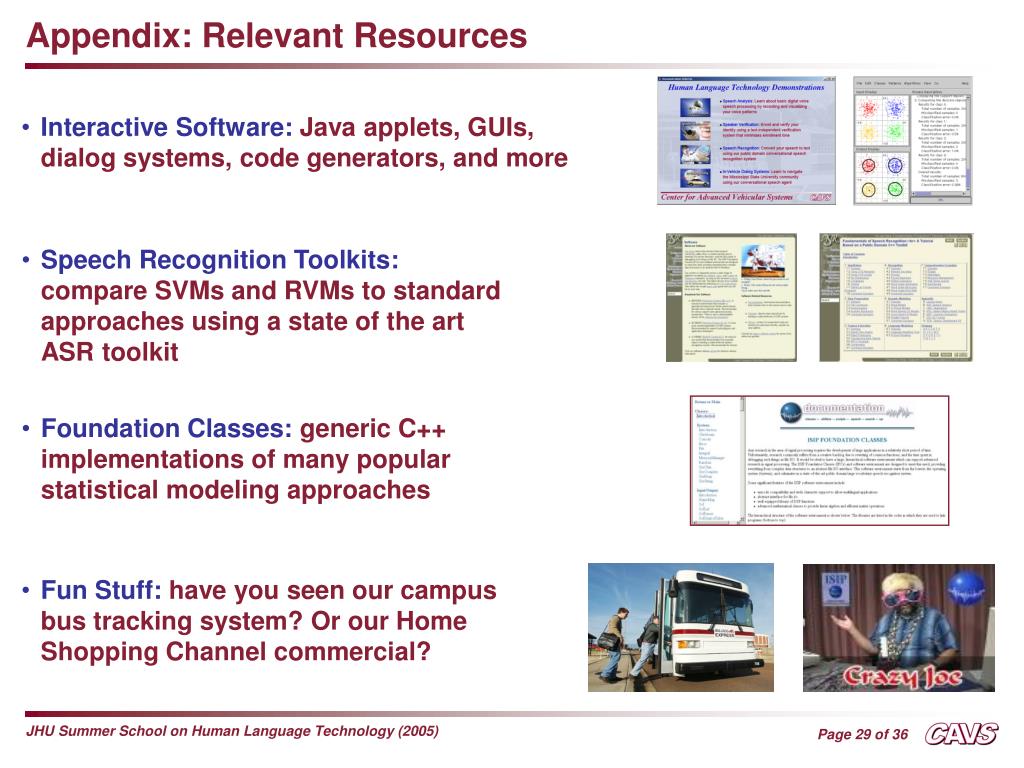

  30. Interactive Software: Java applets, GUIs, dialog systems, code generators, and more • Speech Recognition Toolkits: compare SVMs and RVMs to standard approaches using a state of the art ASR toolkit • Foundation Classes: generic C++ implementations of many popular statistical modeling approaches • Fun Stuff: have you seen our campus bus tracking system? Or our Home Shopping Channel commercial? • Appendix: Relevant Resources

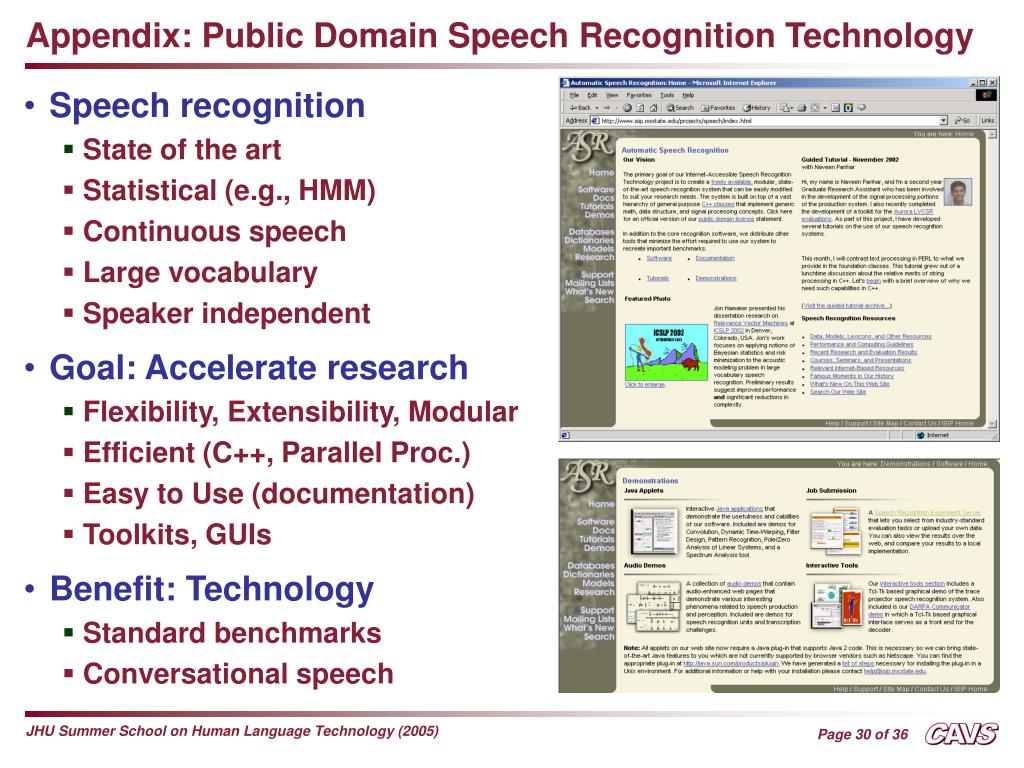

  31. Speech recognition • State of the art • Statistical (e.g., HMM) • Continuous speech • Large vocabulary • Speaker independent • Goal: Accelerate research • Flexibility, Extensibility, Modular • Efficient (C++, Parallel Proc.) • Easy to Use (documentation) • Toolkits, GUIs • Benefit: Technology • Standard benchmarks • Conversational speech • Appendix: Public Domain Speech Recognition Technology

  32. Extensive online software documentation, tutorials, and training materials • Graduate courses and web-based instruction • Self-documenting software • Summer workshops at which students receive intensive hands-on training • Jointly develop advanced prototypes in partnerships with commercial entities • Appendix: IES Is More Than Just Software

  33. “Though linear statistical models have dominated the literature for the past 100 years, they have yet to explain simple physical phenomena.” • Motivated by a phase-locked loop analogy • Application of principles of chaos and strange attractor theory to acoustic modeling in speech • Baseline comparisons to other nonlinear methods • Expected outcomes: • Reduced complexity of statistical models for speech (two order of magnitude reduction) • High performance channel-independent text-independent speaker verification/identification • Appendix: Nonlinear Statistical Modeling of Speech

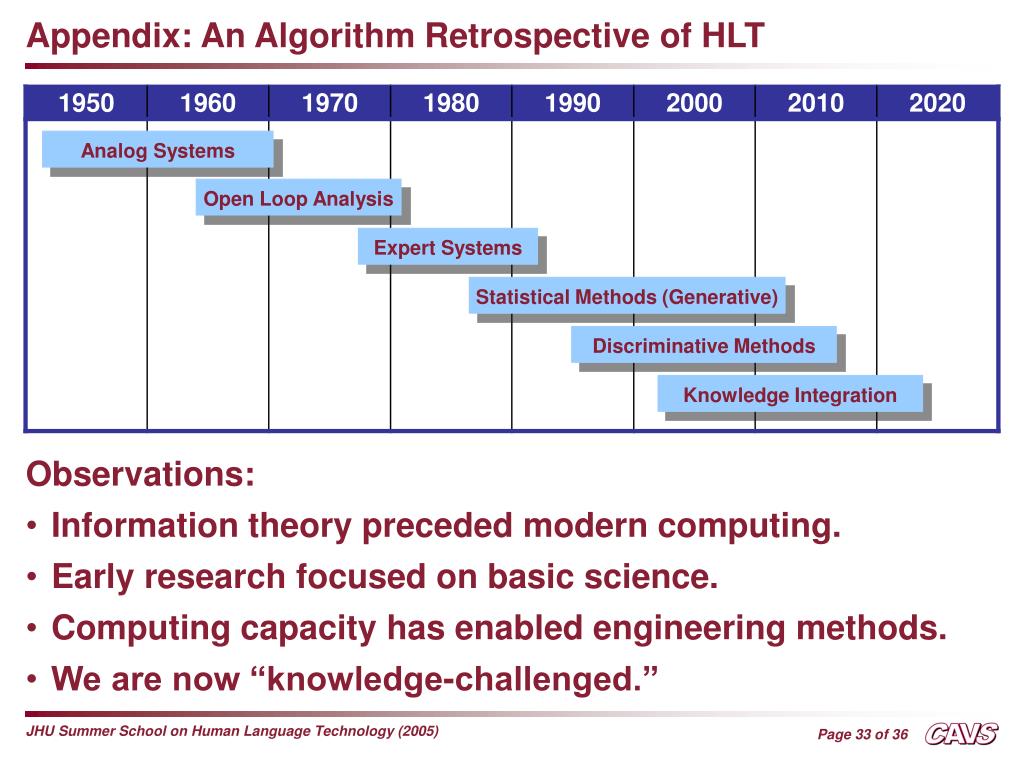

  34. Expert Systems Discriminative Methods Statistical Methods (Generative) Knowledge Integration Analog Systems Open Loop Analysis • Appendix: An Algorithm Retrospective of HLT • Observations: • Information theory preceded modern computing. • Early research focused on basic science. • Computing capacity has enabled engineering methods. • We are now “knowledge-challenged.”

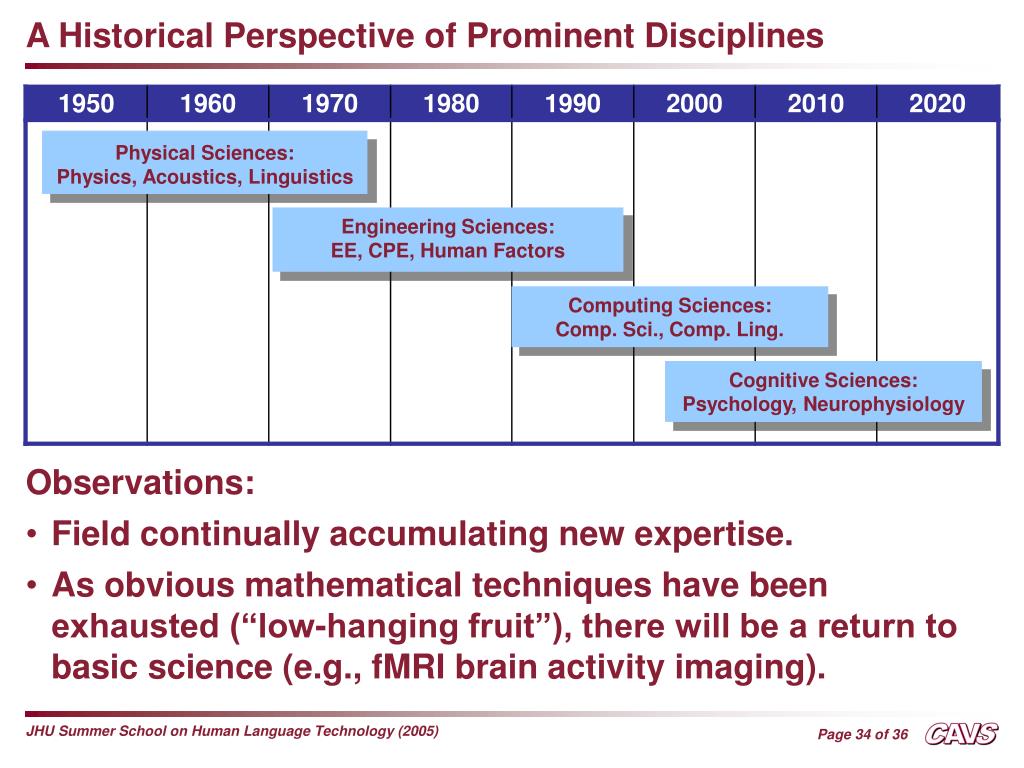

  35. Physical Sciences:Physics, Acoustics, Linguistics Engineering Sciences:EE, CPE, Human Factors Computing Sciences: Comp. Sci., Comp. Ling. Cognitive Sciences:Psychology, Neurophysiology • A Historical Perspective of Prominent Disciplines • Observations: • Field continually accumulating new expertise. • As obvious mathematical techniques have been exhausted (“low-hanging fruit”), there will be a return to basic science (e.g., fMRI brain activity imaging).

  36. A priori expert knowledge created a generation of highly constrained systems (e.g. isolated word recognition, parsing of written text, fixed-font OCR). Performance • Statistical methods created a generation of data-driven approaches that supplanted expert systems (e.g., conversational speech to text, speech synthesis, machine translation from parallel text). … but that isn’t the end of the story … Source of Knowledge • Evolution of Knowledge and Intelligence in HLT Systems • A number of fundamental problem still remain (e.g., channel and noise robustness, less dense or less common languages). • The solution will require approaches that use expert knowledge from related, more dense domains (e.g., similar languages) and the ability to learn from small amounts of target data (e.g., autonomic).

  37. Appendix: The Impact of Supercomputers on Research • Total available cycles for speech research from 1983 to 1993: 90 TeraMIPS • MS State Empire cluster (1,000 1 GHz processors):90 TeraMIPS per day • A Day in a Life: 24 hours of idle time on a modern supercomputer is equivalent to 10 years of speech research at Texas Instruments! • Cost: $1M is the nominal cost for scientific computing (from a 1 MIP VAX in 1983 to a 1,000-node supercomputer)
