  1. DBMS: Direct-Access andSQL File Types Nico Spence, Chief Marketing Officer Nick Decker,Engineering Supervisor BASIS International Ltd.

  2. Overview • BASIS DBMS • Direct-result-set navigation and maintenance • SQL-result-set navigation and maintenance • New DBMS Objects • BBjFileInfo • BBjOpenFileInfo • IOLISTS vs. Templates • Extended File Types • DBMS Deployment Options

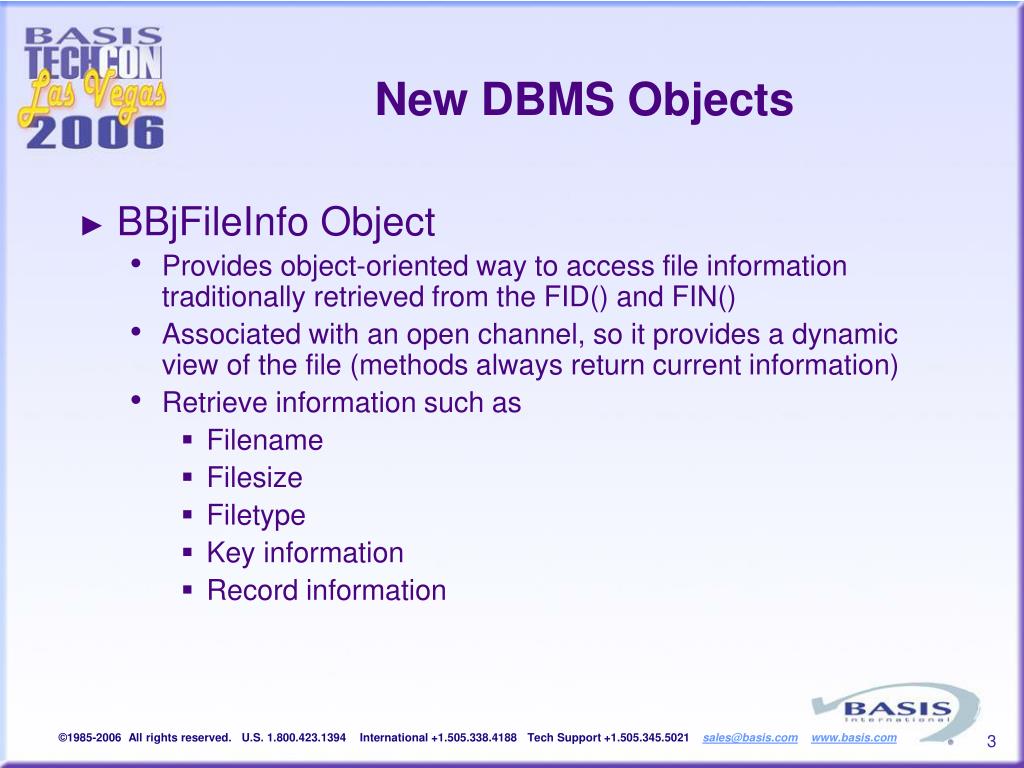

  3. New DBMS Objects • BBjFileInfo Object • Provides object-oriented way to access file information traditionally retrieved from the FID() and FIN() • Associated with an open channel, so it provides a dynamic view of the file (methods always return current information) • Retrieve information such as • Filename • Filesize • Filetype • Key information • Record information

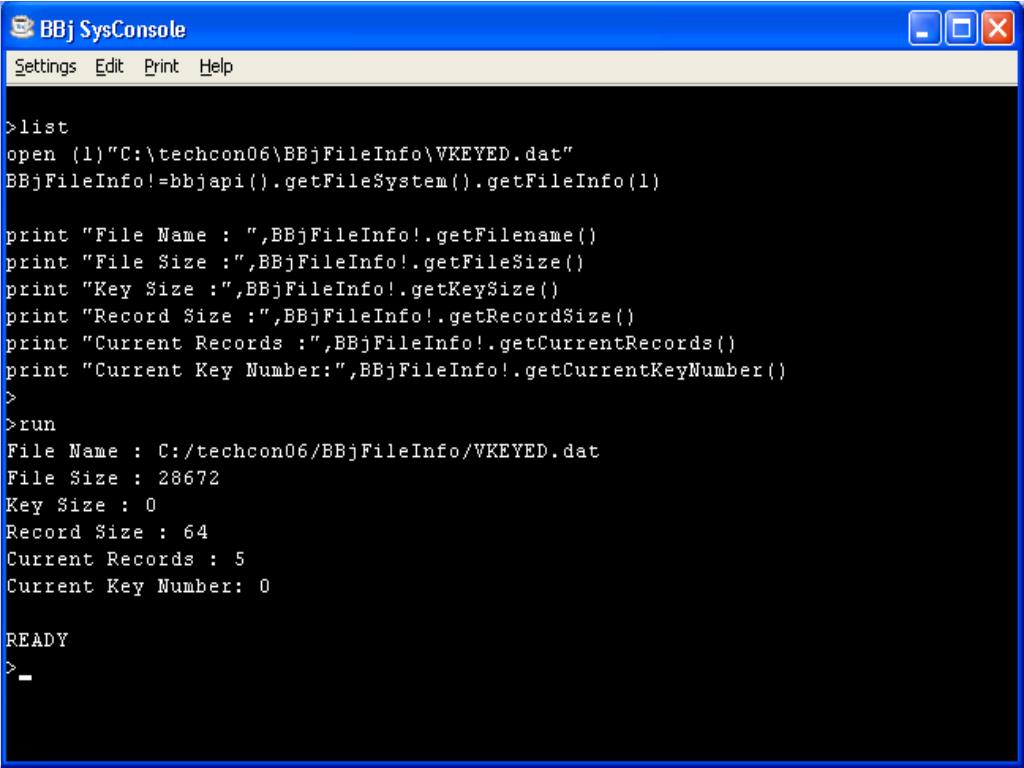

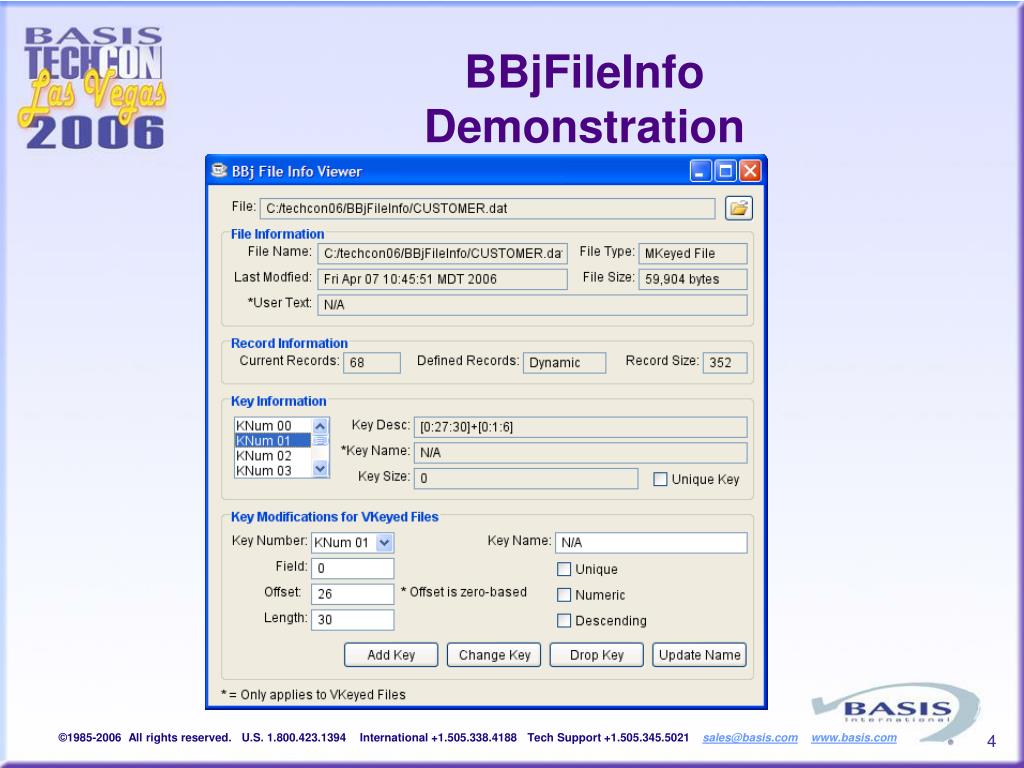

  4. BBjFileInfo Demonstration

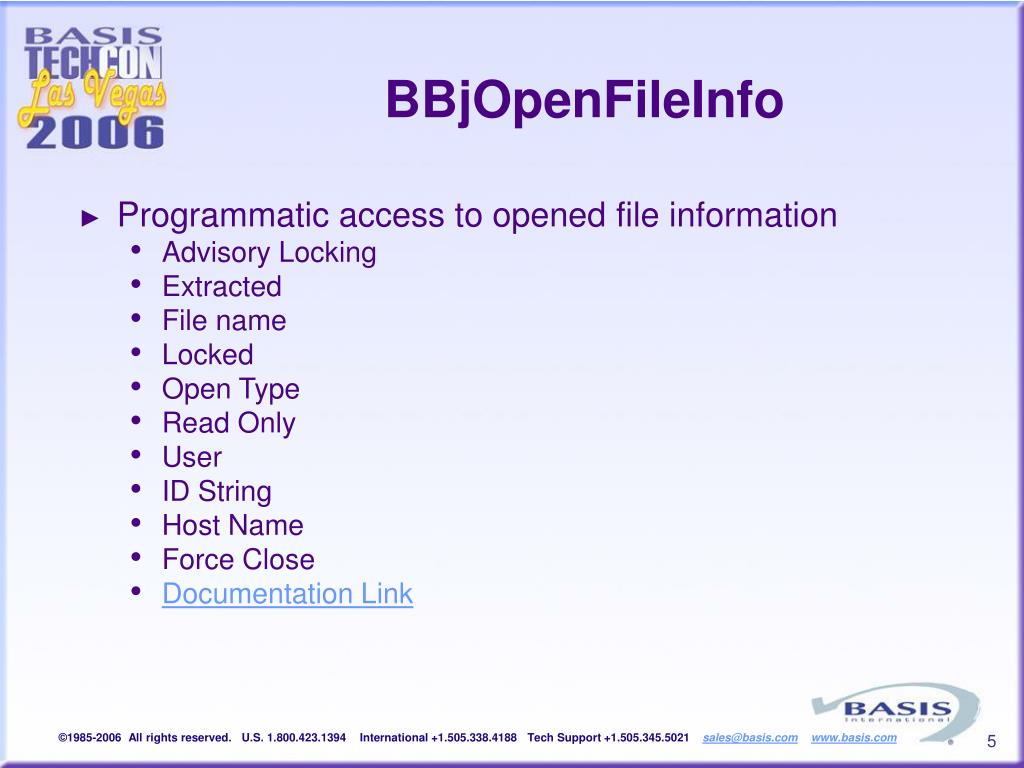

  5. BBjOpenFileInfo • Programmatic access to opened file information • Advisory Locking • Extracted • File name • Locked • Open Type • Read Only • User • ID String • Host Name • Force Close • Documentation Link

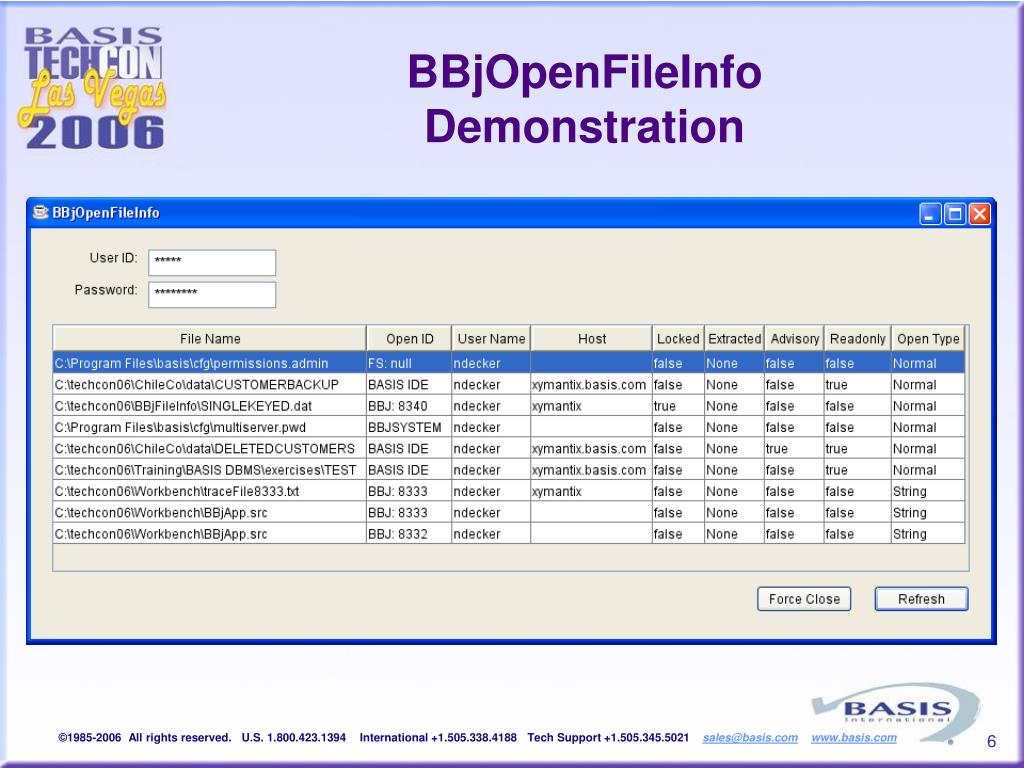

  6. BBjOpenFileInfoDemonstration

  7. Extracted Record Demonstration

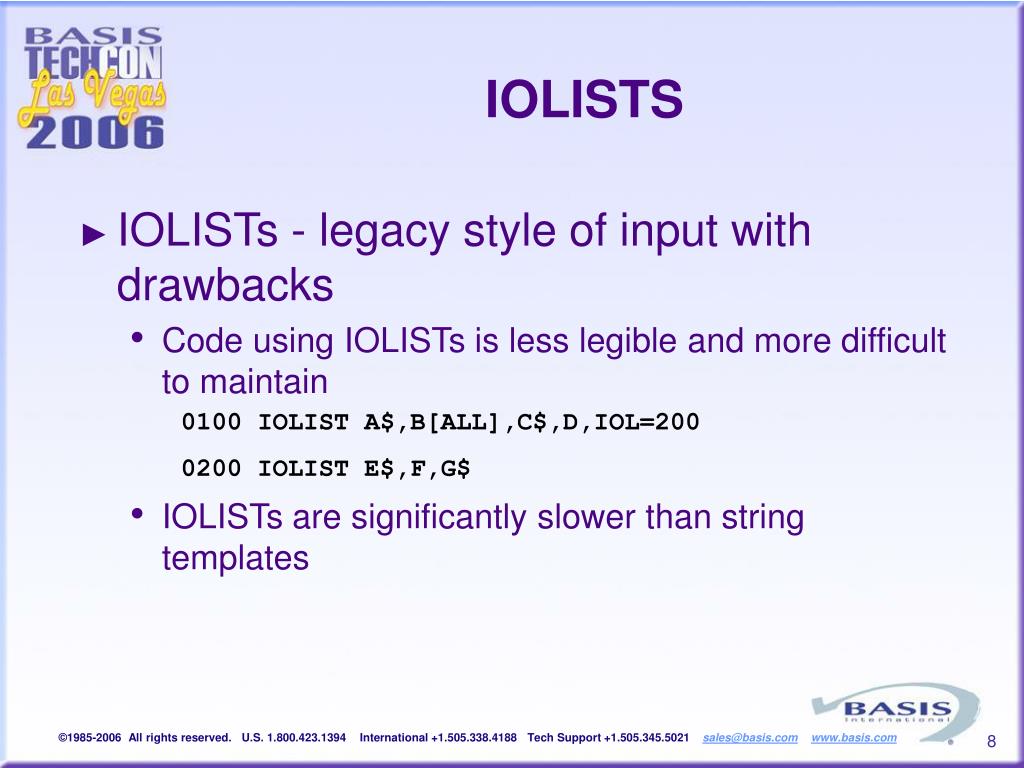

  8. IOLISTS • IOLISTs - legacy style of input with drawbacks • Code using IOLISTs is less legible and more difficult to maintain 0100 IOLIST A$,B[ALL],C$,D,IOL=200 0200 IOLIST E$,F,G$ • IOLISTs are significantly slower than string templates

  9. String Templates • String templates – modern input style with advantages • Describes a record in a file or SQL result set • Field name • Data type (character, numeric, etc.) • Fixed or variable length • Terminators, padding characters

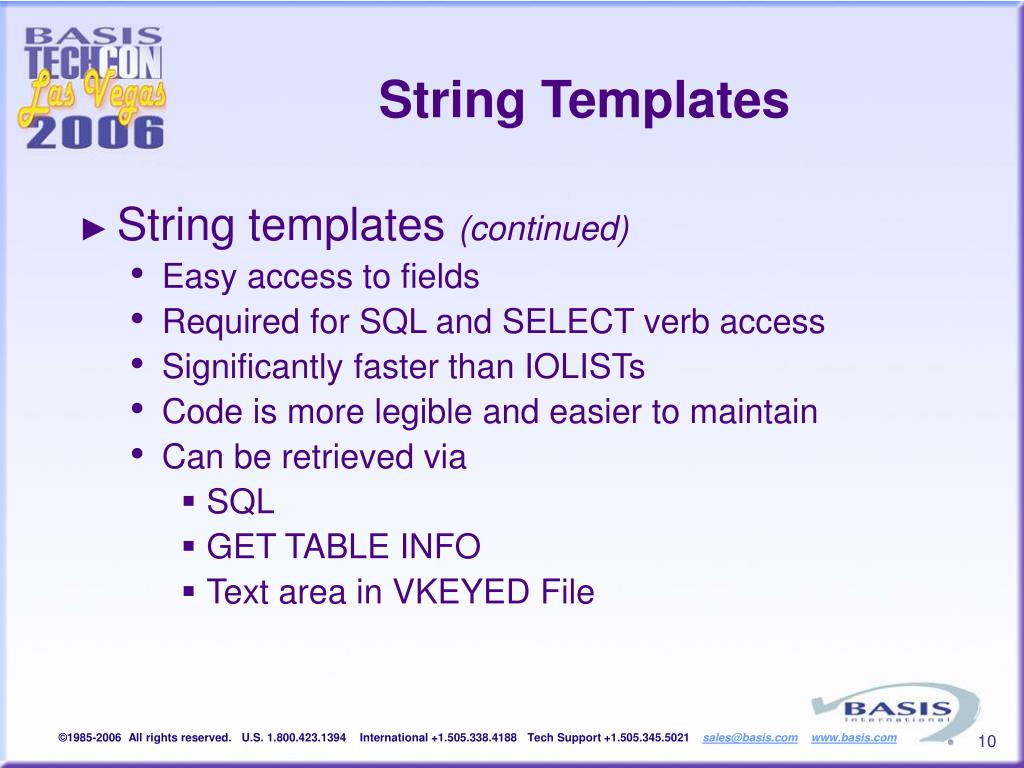

  10. String Templates • String templates (continued) • Easy access to fields • Required for SQL and SELECT verb access • Significantly faster than IOLISTs • Code is more legible and easier to maintain • Can be retrieved via • SQL • GET TABLE INFO • Text area in VKEYED File

  11. Extended File Types • XKEYED files • JKEYED files • VKEYED files • ESQL Files

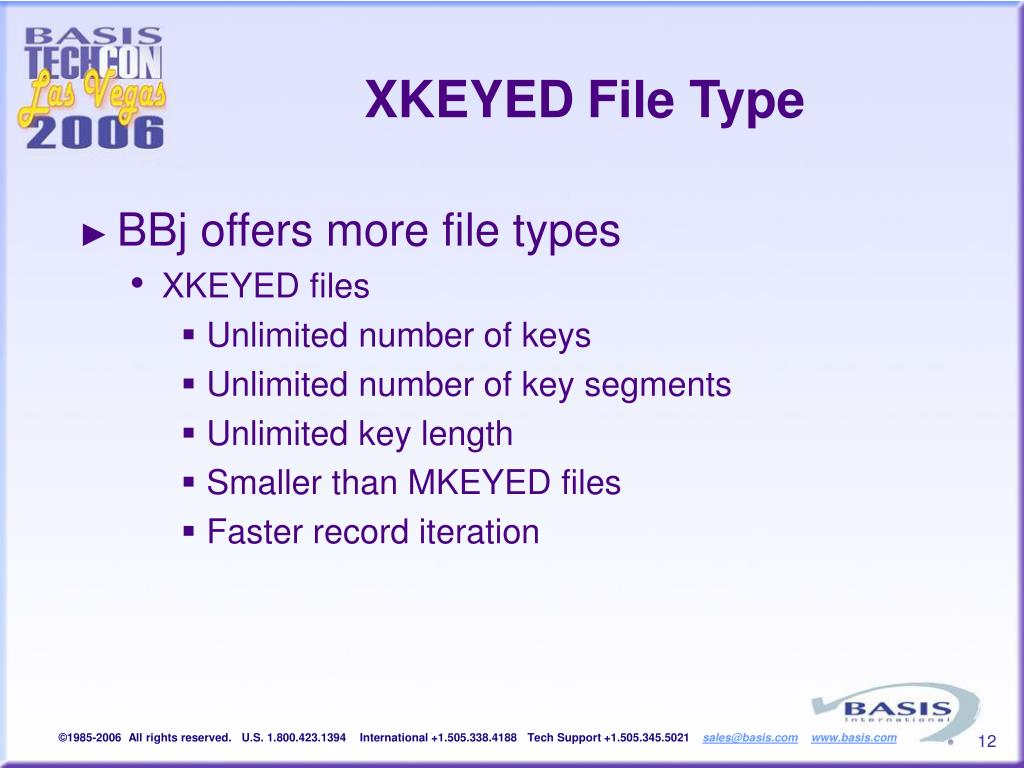

  12. XKEYEDFile Type • BBj offers more file types • XKEYED files • Unlimited number of keys • Unlimited number of key segments • Unlimited key length • Smaller than MKEYED files • Faster record iteration

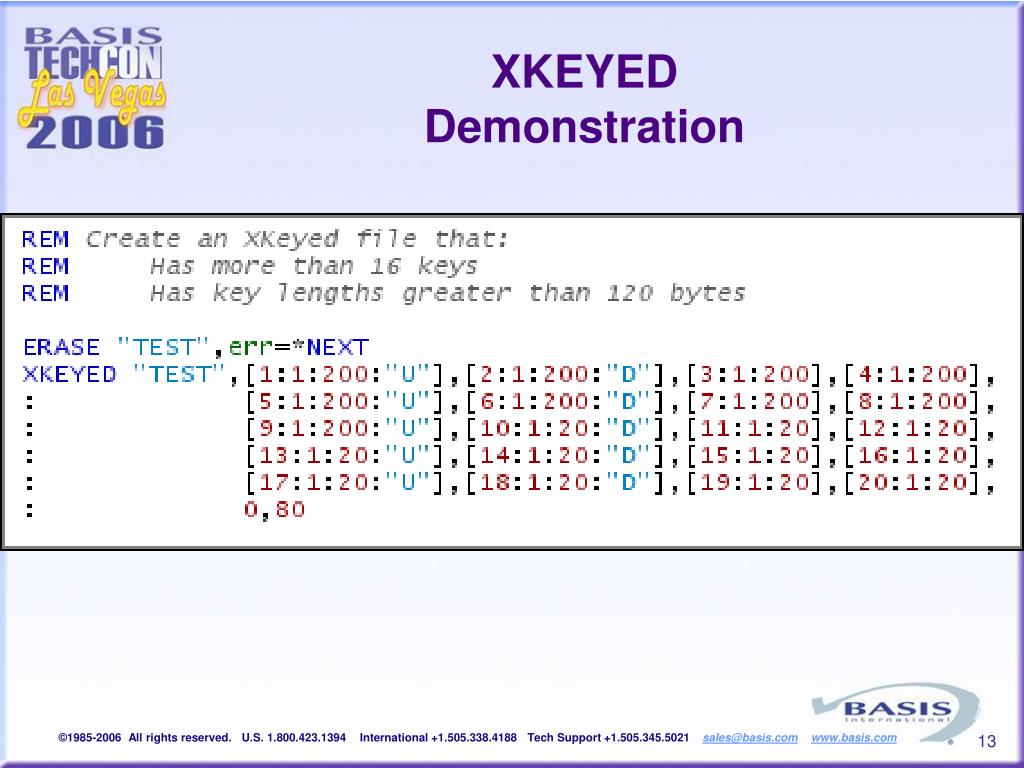

  13. XKEYED Demonstration

  14. XKEYED Demonstration

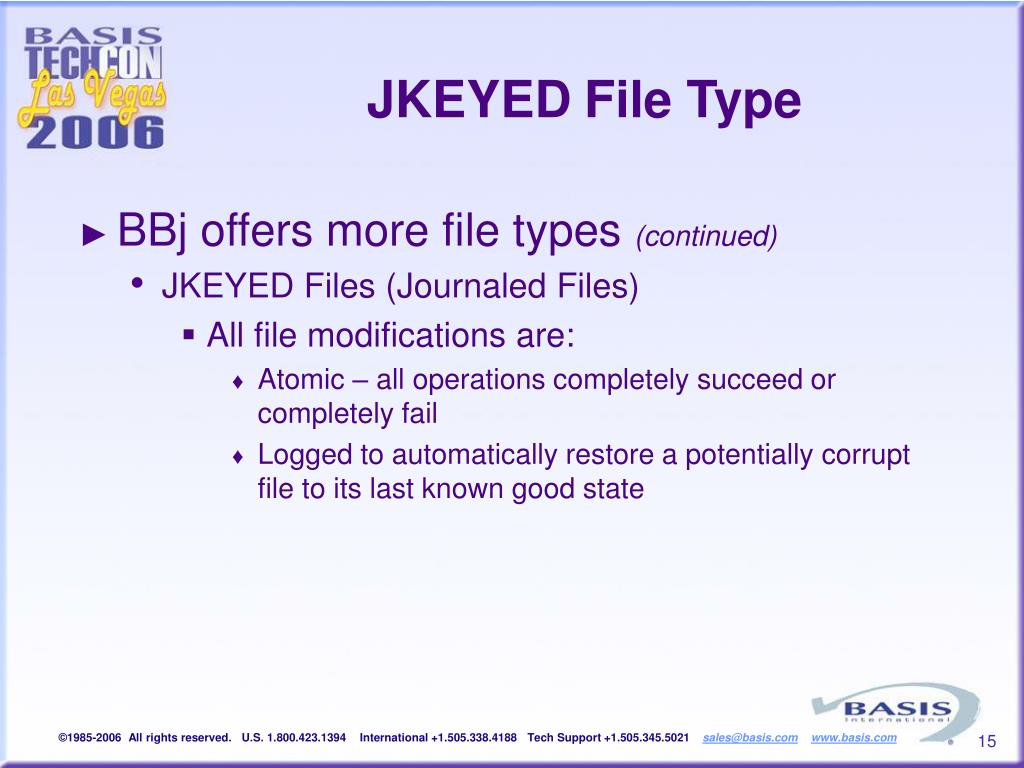

  15. JKEYEDFile Type • BBj offers more file types (continued) • JKEYED Files (Journaled Files) • All file modifications are: • Atomic – all operations completely succeed or completely fail • Logged to automatically restore a potentially corrupt file to its last known good state

  16. JKEYED File Type • BBj offers more file types (continued) • JKEYED Files (Journaled Files) • Transaction Tracking • Allows the programmer to define a set of operations on multiple files to be treated as a single operation • Allows programmer to commit or rollback the entire operation

  17. JKEYEDFile Type • BBj offers more file types (continued) • JKEYED Files (Journaled Files) • True variable length records • Perfect for BLOBs (Binary Large Objects) to store • Images • Audio • Video • Complete documents

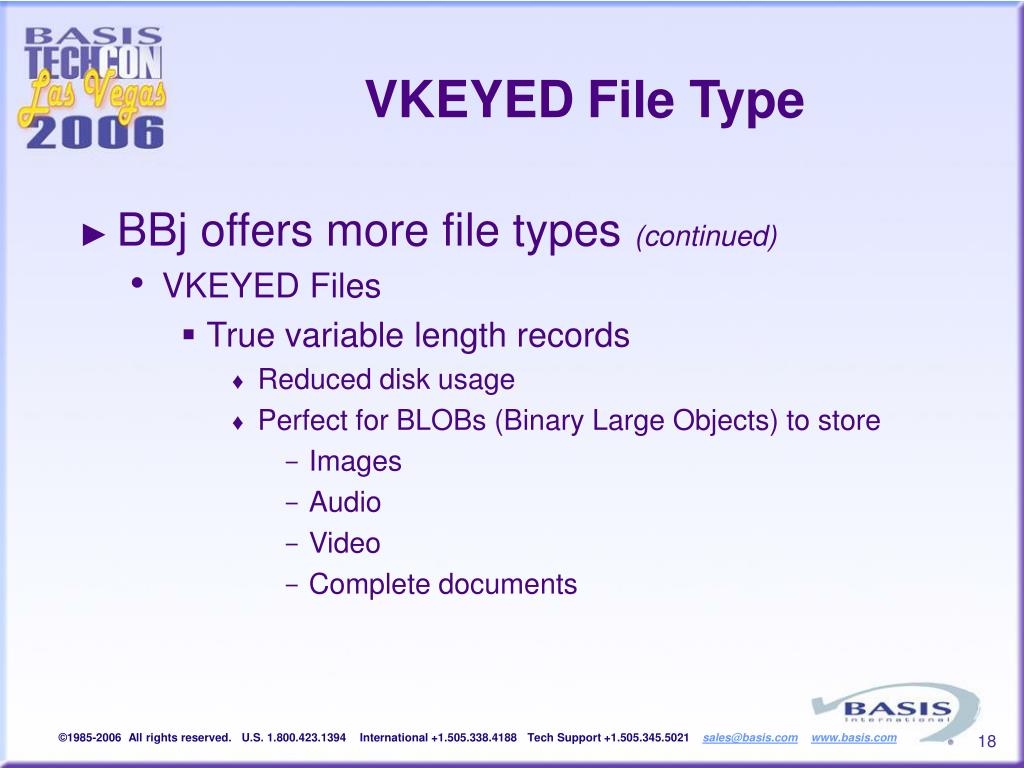

  18. VKEYEDFile Type • BBj offers more file types (continued) • VKEYED Files • True variable length records • Reduced disk usage • Perfect for BLOBs (Binary Large Objects) to store • Images • Audio • Video • Complete documents

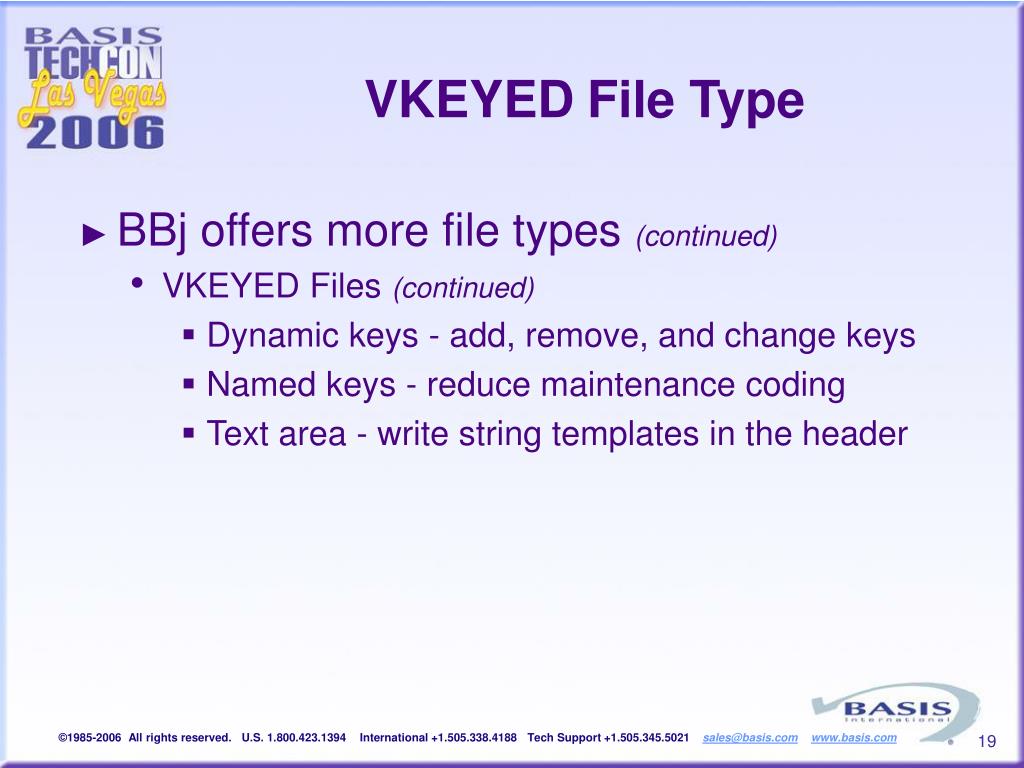

  19. VKEYEDFile Type • BBj offers more file types (continued) • VKEYED Files (continued) • Dynamic keys - add, remove, and change keys • Named keys - reduce maintenance coding • Text area - write string templates in the header

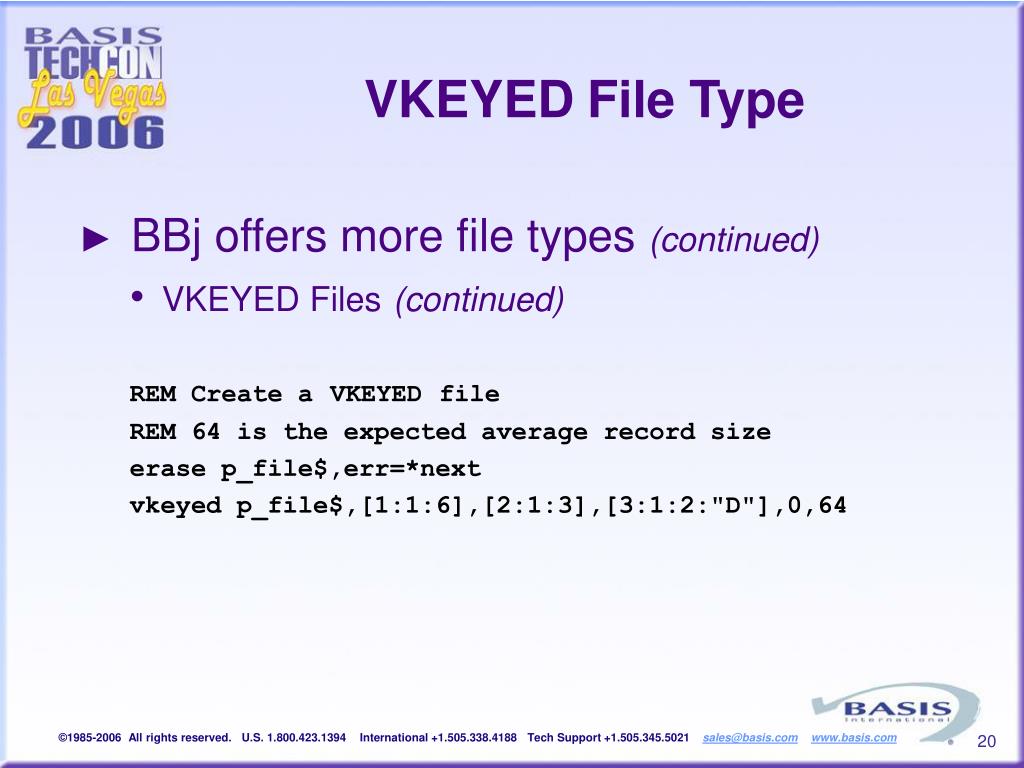

  20. VKEYEDFile Type • BBj offers more file types (continued) • VKEYED Files(continued) REM Create aVKEYEDfile REM 64 is the expected average record size erase p_file$,err=*next vkeyed p_file$,[1:1:6],[2:1:3],[3:1:2:"D"],0,64

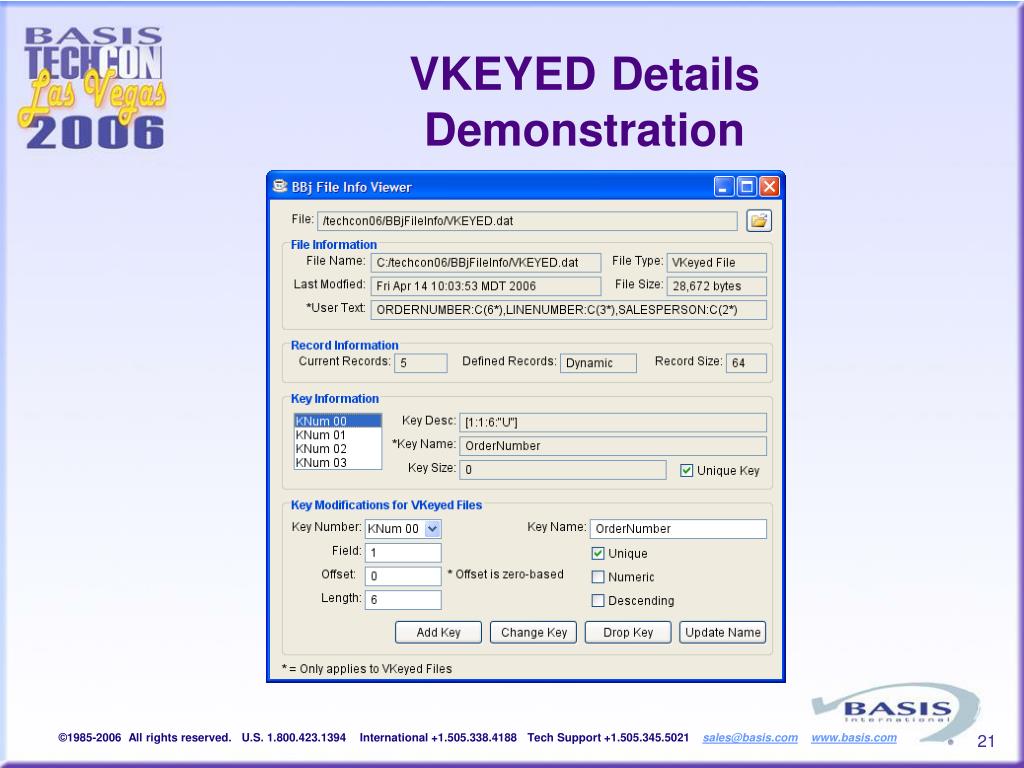

  21. VKEYEDDetails Demonstration

  22. BBjFileInfo • BBjFileInfo Object (continued) Special VKEYED functionality • Add keys • Remove keys • Change existing keys • Set key names • Set associated text

  23. BASIS DBMS – New File Types

  24. BASIS DBMS – New File Types

  25. BASIS DBMS – New File Types

  26. VKEYEDFile Size Demonstration

  27. VKEYED File Speed Consideration • Disk Speed • Network Speed • File structure • Differences measured in milliseconds

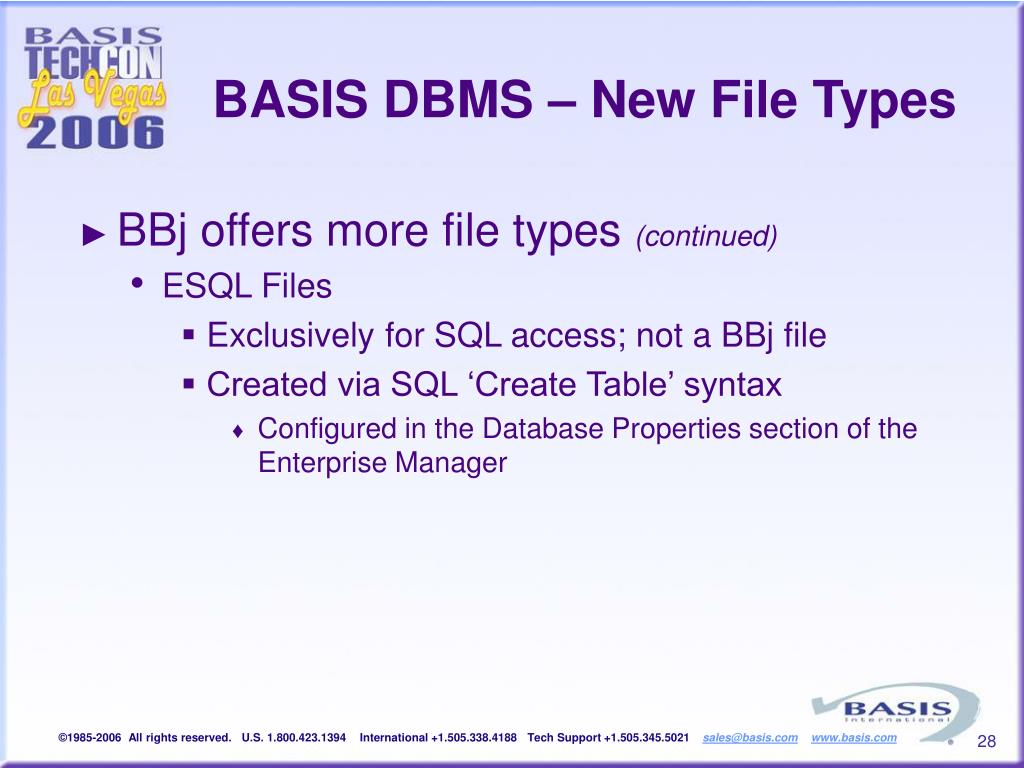

  28. BASIS DBMS – New File Types • BBj offers more file types (continued) • ESQL Files • Exclusively for SQL access; not a BBj file • Created via SQL ‘Create Table’ syntax • Configured in the Database Properties section of the Enterprise Manager

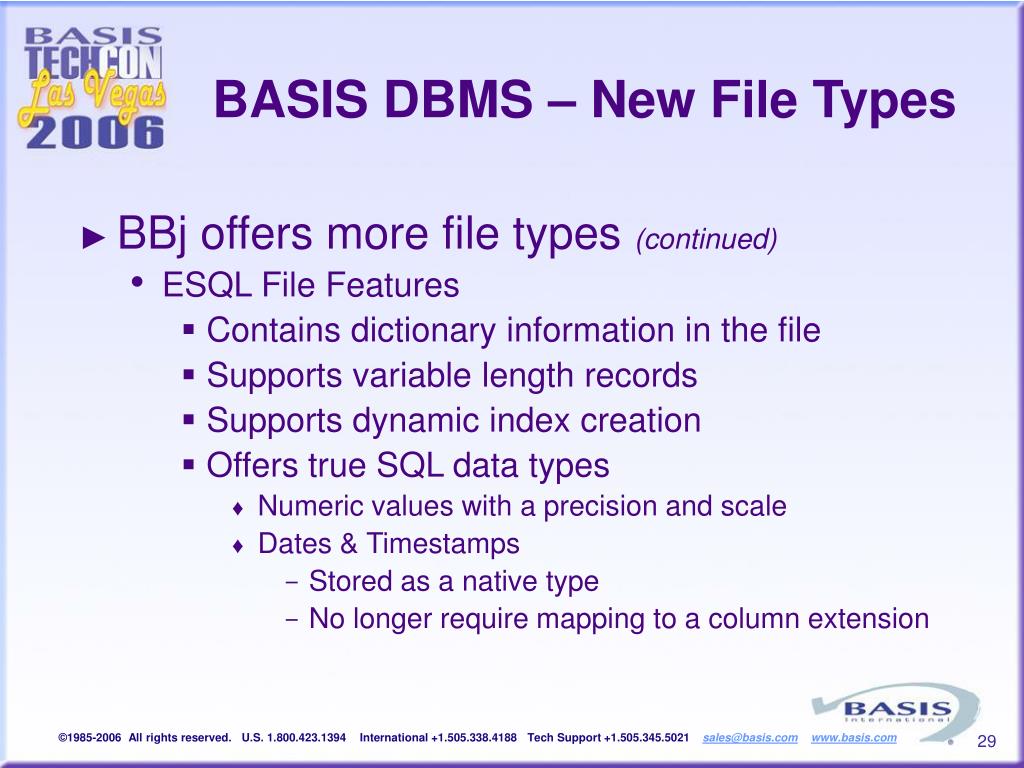

  29. BASIS DBMS – New File Types • BBj offers more file types (continued) • ESQL File Features • Contains dictionary information in the file • Supports variable length records • Supports dynamic index creation • Offers true SQL data types • Numeric values with a precision and scale • Dates & Timestamps • Stored as a native type • No longer require mapping to a column extension

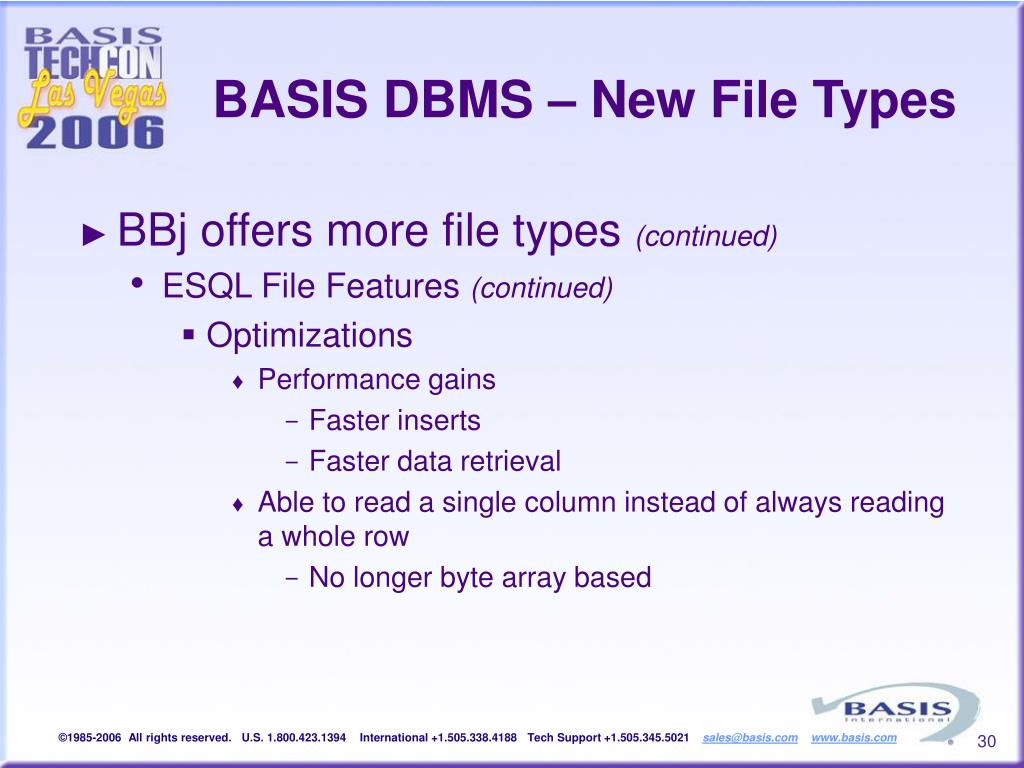

  30. BASIS DBMS – New File Types • BBj offers more file types (continued) • ESQL File Features (continued) • Optimizations • Performance gains • Faster inserts • Faster data retrieval • Able to read a single column instead of always reading a whole row • No longer byte array based

  31. BASIS DBMS – New File Types • BBj offers more file types (continued) • ESQL File Features (continued) • Future enhancement possibilities include • Identity columns (auto increment) • Column and row constraints • Foreign key relations • Not NULL constraint • Default values • Optional Case-Sensitivity • Support for advanced ALTER TABLE syntax

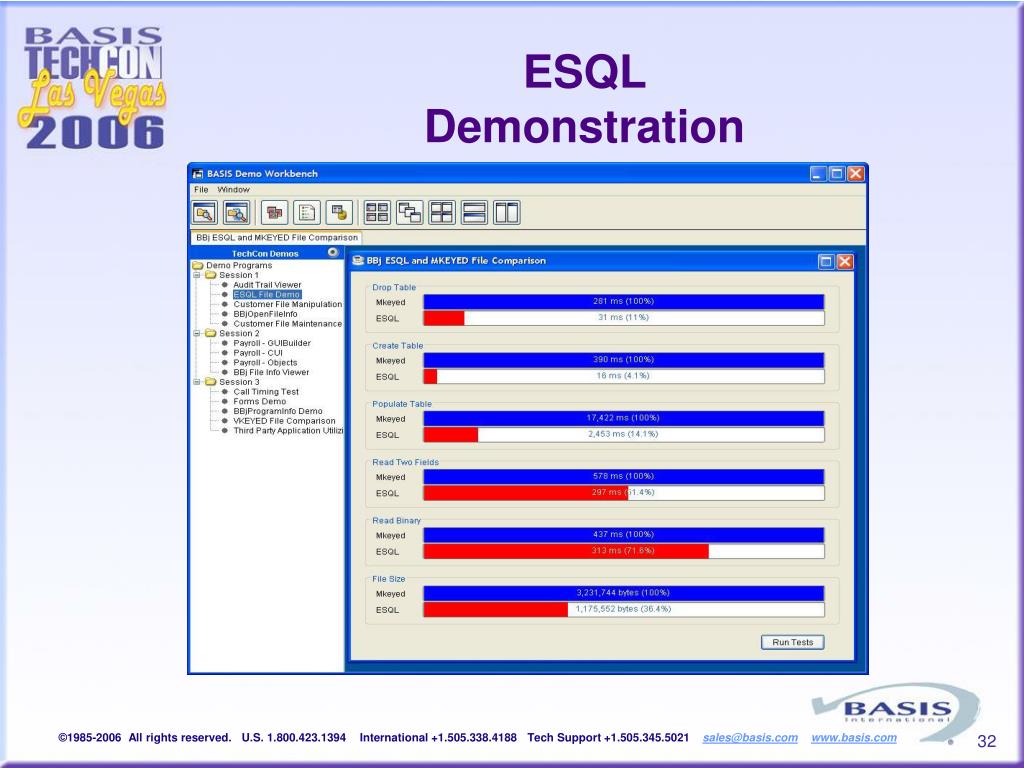

  32. ESQL Demonstration

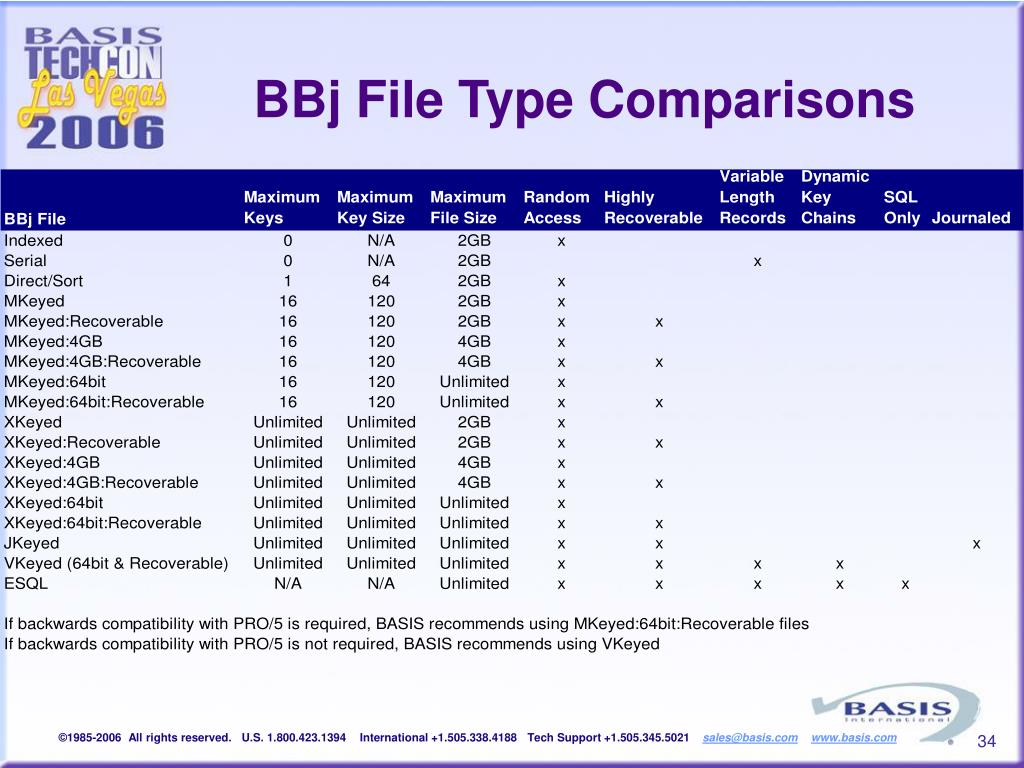

  33. BBj File Type Comparisons

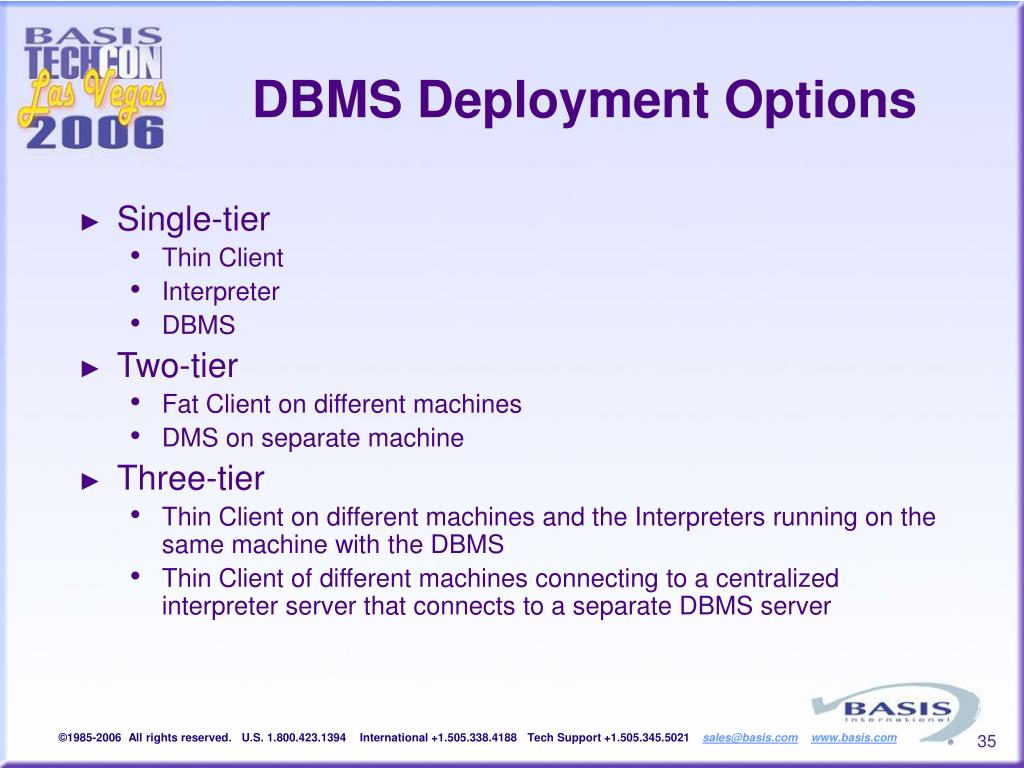

  34. DBMS Deployment Options • Single-tier • Thin Client • Interpreter • DBMS • Two-tier • Fat Client on different machines • DMS on separate machine • Three-tier • Thin Client on different machines and the Interpreters running on the same machine with the DBMS • Thin Client of different machines connecting to a centralized interpreter server that connects to a separate DBMS server

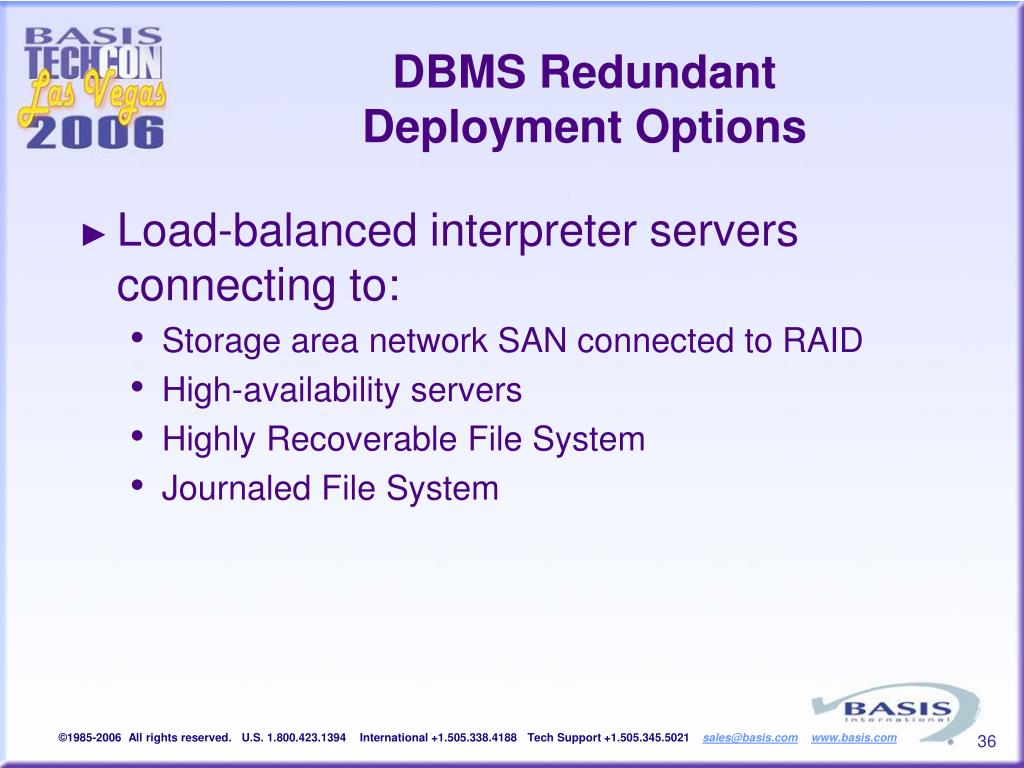

  35. DBMS RedundantDeployment Options • Load-balanced interpreter servers connecting to: • Storage area network SAN connected to RAID • High-availability servers • Highly Recoverable File System • Journaled File System

  36. Summary • BASIS DBMS • Direct-result-set navigation and maintenance • SQL-result-set navigation and maintenance • New DBMS Objects • BBjFileInfo • BBjOpenFileInfo • IOLISTS vs. Templates • Extended File Types • DBMS Deployment Options
