Presentation Transcript
lg e cane run station
LG&E - Cane Run Station
  • Capacity: 610 MW

3 Units

  • Burn:

1.5 MM TPY

  • Receipts By:

Rail and Barge (via Riverport)

  • Quality:

Moisture 12%

Ash 12%

SO2 6.2

BTU/# 11,000

lg e trimble county station
LG&E – Trimble County Station
  • Capacity: 547 MW

1 Units

  • Burn:

1.6 MM TPY

  • Receipts By:

Barge

  • Quality:

Moisture 15%

Ash 14%

SO2 6.5

BTU/# 11,000

lg e mill creek station
LG&E – Mill Creek Station
  • Capacity: 1,610 MW

4 Units

  • Burn:

4.4 MM TPY

  • Receipts By:

Rail and Barge

  • Quality:

Moisture 13%

Ash 14%

SO2 6.2

BTU/# 11,000

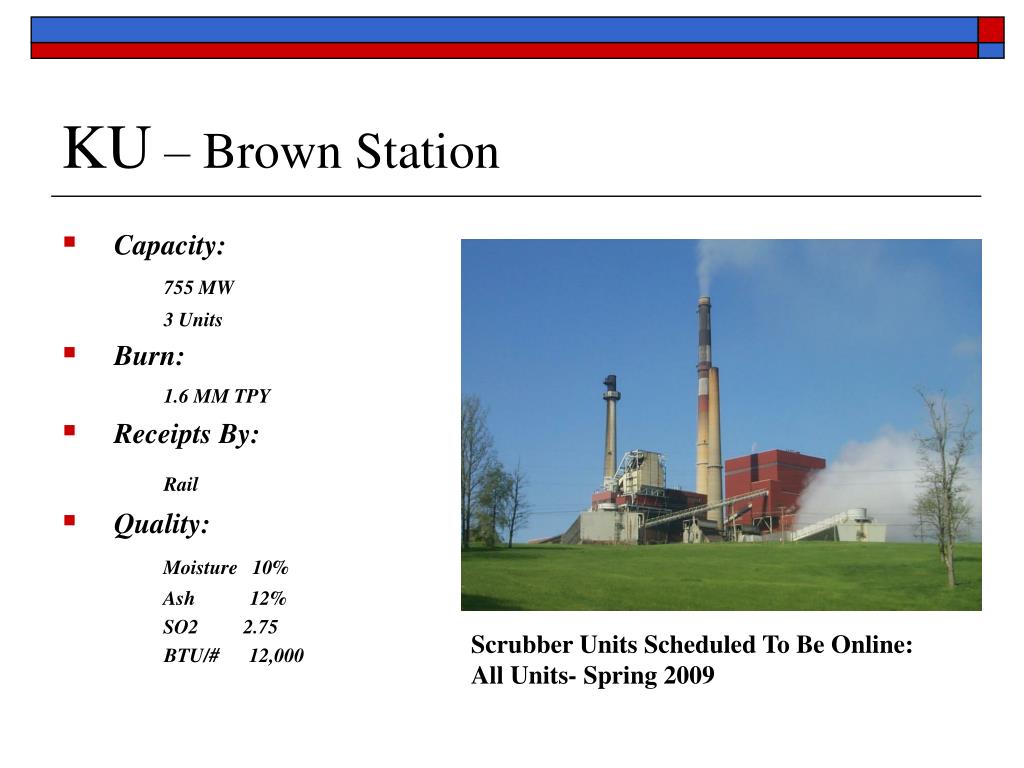

ku brown station
KU – Brown Station
  • Capacity: 755 MW

3 Units

  • Burn:

1.6 MM TPY

  • Receipts By:

Rail

  • Quality:

Moisture 10%

Ash 12%

SO2 2.75

BTU/# 12,000

Scrubber Units Scheduled To Be Online:

All Units- Spring 2009

ku ghent station
KU – Ghent Station
  • Capacity:2,189 MW

4 Units

  • Burn:

1.4 MM TPY High Sulfur

3.9 MM TPY Compliance

  • Receipts By:

Barge

  • Quality:

Unit #1 Unit #2,3,4

Moisture 10% 10%

Ash 12% 12%

SO2 6.25 1.2

BTU/# 11,000 12,000

Scrubber Units Scheduled To Be Online:

Unit 2- Spring 2007

Unit 3- Spring 2008

Unit 4- Spring 2009

ku green river and tyrone stations
KU – Green River and Tyrone Stations

Green River

  • Capacity: 175 MW

2 Units

  • Burn:

.350 MM TPY High Sulfur

  • Receipts By:

Truck

  • Quality:

Moisture 12%

Ash 12%

SO2 4.57

BTU/# 11,500

Tyrone

  • Capacity: 75 MW

1 Units

  • Burn:

.150 MM TPY High Sulfur

  • Receipts By:

Truck

  • Quality:

Moisture 8%

Ash 10%

SO2 1.8

BTU/# 12,000
