Presentation Transcript
asbestos mineral
Asbestos Mineral
  • Natural occurring mineral
  • Mined in open pits or underground
  • Three largest asbestos producers are Canada, China and Brazil
what is asbestos
What is Asbestos?

Asbestos is the name applied to six naturally occurring minerals that are mined from the earth. The different types of asbestos are:

  • Amosite
  • Chrysotile
  • Tremolite
  • Actinolite
  • Anthophyllite
  • Crocidolite
what is asbestos4
What is Asbestos?

Chrysotile (white) is the most common

Amosite (brown / off-white), or

Crocidolite (blue) as well.

common types of asbestos
Common Types of Asbestos
  • Chrysotile
  • Amosite
  • Crocidolite
asbestos properties
Asbestos Properties
  • Heat, cold and sound insulator
  • Tensile strength
  • Resistant to chemicals
asbestos properties11
Asbestos Properties

Asbestos fibers are also virtually indestructible

They are resistant to chemicals and heat, and they are very stable in the environment

They do not evaporate into air or dissolve in water, and they are not broken down over time

Asbestos is probably the best insulator known to man

aerodynamic properties
Aerodynamic Properties

Because asbestos fibers are so small, once released into the air, they may stay suspended there for hours or even days (i.e. 72 hours)

when is asbestos dangerous
When is Asbestos Dangerous?
  • The most common way for asbestos fibers to enter the body is through breathing.
when is asbestos dangerous15
When is Asbestos Dangerous?

Asbestos containing material is not generally considered to be harmful unless it is releasing dust or fibers into the air where they can be inhaled or ingested

Many of the fibers will become trapped in the mucous membranes of the nose and throat where they can then be removed, but some may pass deep into the lungs, or, if swallowed, into the digestive tract

Once they are trapped in the body, the fibers can cause health problems

when is asbestos dangerous16
When is Asbestos Dangerous?

Damage and deterioration will increase the friability of asbestos-containing materials. Water damage, continual vibration, aging, and physical impact such as drilling, grinding, buffing, cutting, sawing, or striking can break the materials down making fiber release more likely

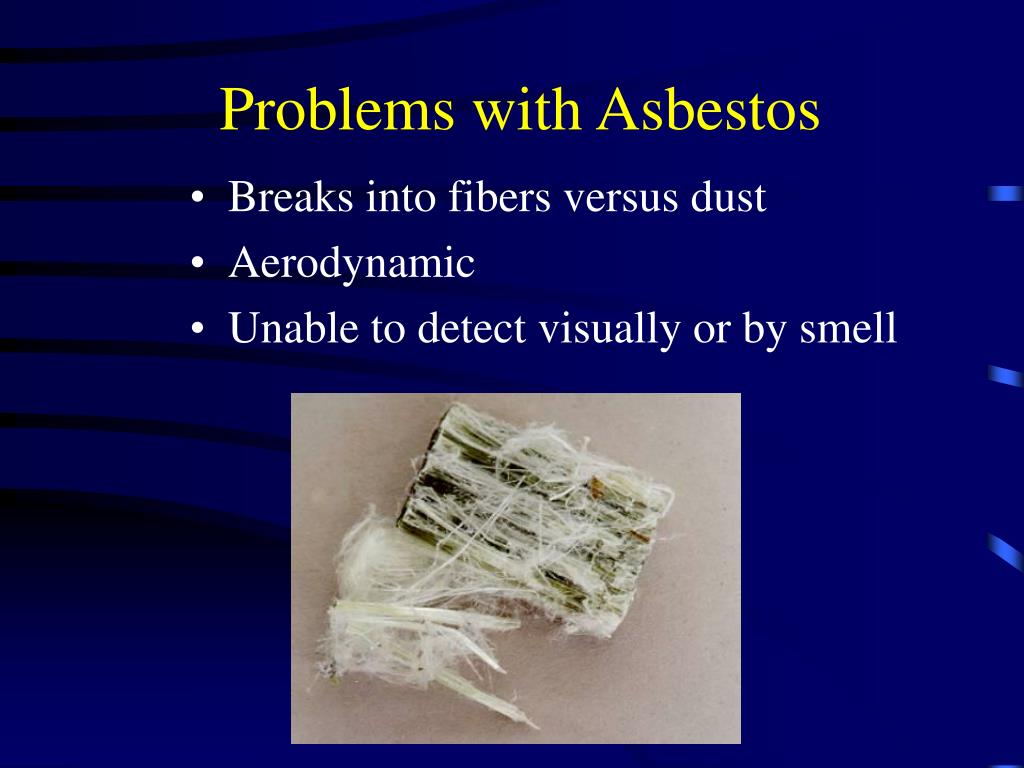

problems with asbestos
Problems with Asbestos
  • Breaks into fibers versus dust
  • Aerodynamic
  • Unable to detect visually or by smell
health effects
Health Effects

Because it is so hard to destroy asbestos fibers, the body cannot break them down or remove them once they are lodged in lung or body tissues. They remain in place where they can cause disease

There are three primary diseases associated with asbestos exposure:

  • Asbestosis
  • Lung Cancer
  • Mesothelioma
health effects of asbestos
Health Effects of Asbestos

Healthy Lungs

Asbestosis

Mesothelioma

defense mechanisms
Defense Mechanisms
  • Nose and Mouth
  • Mucous Lined Breathing Passages
  • Cilia in Trachea
smoking impact
Smoking Impact
  • Impairs Body’s Defense Mechanism
  • Increased Risk of Lung Cancer
relationship between smoking and asbestos
Relationship Between Smoking and Asbestos

Risk of Lung Cancer

2% - Non smoker with no asbestos exposure

5% - Non smoker with asbestos exposure

10% - Smoker with no asbestos exposure

50% - Smoker with asbestos exposure

asbestosis
Asbestosis

Asbestosis is a serious, chronic, non-cancerous respiratory disease. Inhaled asbestos fibers aggravate lung tissues, which cause them to scar.

Symptoms of asbestosis include shortness of breath and a dry crackling sound in the lungs while inhaling. In its advanced stages, the disease may cause cardiac failure.

Why?

asbestosis24
Asbestosis

There is no effective treatment for asbestosis; the disease is usually disabling or fatal. The risk of asbestosis is minimal for those who do not work with asbestos; the disease is rarely caused by neighborhood or family exposure

Those who renovate or demolish buildings that contain asbestos may be at significant risk, depending on the nature of the exposure and precautions taken

lung cancer
Lung Cancer

Lung cancer causes the largest number of deaths related to asbestos exposure. The incidence of lung cancer in people who are directly involved in the mining, milling, manufacturing and use of asbestos and its products is much higher than in the general population

The most common symptoms of lung cancer are coughing and a change in breathing. Other symptoms include shortness of breath, persistent chest pains, hoarseness, and anemia

mesothelioma
Mesothelioma

Mesothelioma is a rare form of cancer that most often occurs in the thin membrane lining of the lungs, chest, abdomen, and (rarely) heart. About 200 cases are diagnosed each year in the United States. Virtually all cases of mesothelioma are linked with asbestos exposure.

Approximately 2 percent of all miners and textile workers who work with asbestos, and 10 percent of all workers who were involved in the manufacture of asbestos-containing gas masks, contract mesothelioma.

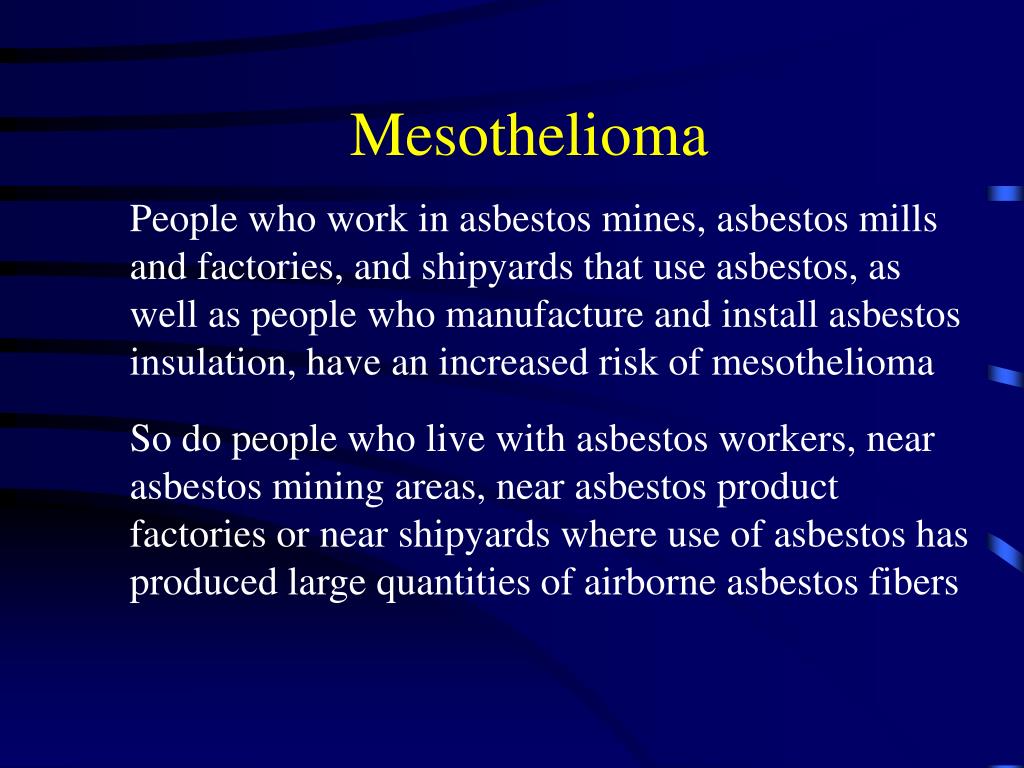

mesothelioma27
Mesothelioma

People who work in asbestos mines, asbestos mills and factories, and shipyards that use asbestos, as well as people who manufacture and install asbestos insulation, have an increased risk of mesothelioma

So do people who live with asbestos workers, near asbestos mining areas, near asbestos product factories or near shipyards where use of asbestos has produced large quantities of airborne asbestos fibers

other cancers
Other Cancers

Evidence suggests that cancers in the esophagus, larynx, oral cavity, stomach, colon and kidney may be caused by ingesting asbestos

famous persons mesothelioma
Famous Persons – Mesothelioma
  • Steve McQueen
  • Warren Zevon
  • Bruce Vento
  • Paul Gleason
  • Bob Miner
  • Terrence McCann
  • Merlin Olsen
what is an asbestos containing material acm
What Is An Asbestos Containing Material (ACM)?
  • Any material that is >1% asbestos
    • Thermal System Insulation (TSI): pipe, boiler, duct & furnace insulation
    • Surfacing Materials: plaster & textured ceilings
    • Miscellaneous Materials: siding & floor tile

Over 3,000 products may contain asbestos

mdh definition of friable material
MDH Definition of Friable Material

"Friable asbestos material" means any material containing more than one percent asbestos by microscopic visual estimation by area, that hand pressure can crumble, pulverize, or reduce to powder when dry.

mdh definition of friable material32
MDH Definition ofFriable Material

Friable asbestos material includes previously non-friable asbestos material which becomes damaged to the extent that when dry all or a portion of the material may be crumbled, pulverized, or reduced to powder by hand pressure.

common asbestos containing materials
Common Asbestos-Containing Materials

Insulation around heating,

air and water systems

common asbestos containing materials34
Common Asbestos-Containing Materials

Wall and ceiling insulation (vermiculite)

vermiculite
Vermiculite
  • Has been used in approximately 2.5 - 16 million homes.
  • Recently identified as being contaminated with asbestos.
  • May not be “regulated”, but has shown to create a health hazard in the form of high airborne fiber concentrations in materials with low asbestos concentrations.
common asbestos containing materials36
Common Asbestos-Containing Materials

Fireproofed Ceiling Space

common asbestos containing materials37
Common Asbestos-Containing Materials

Textured ceilings and ceiling tiles

common asbestos containing material
Common Asbestos-Containing Material

Floor tiles and linoleum backing

common asbestos containing materials39
Common Asbestos-Containing Materials

Transite roofing, siding, panels, and flue pipes

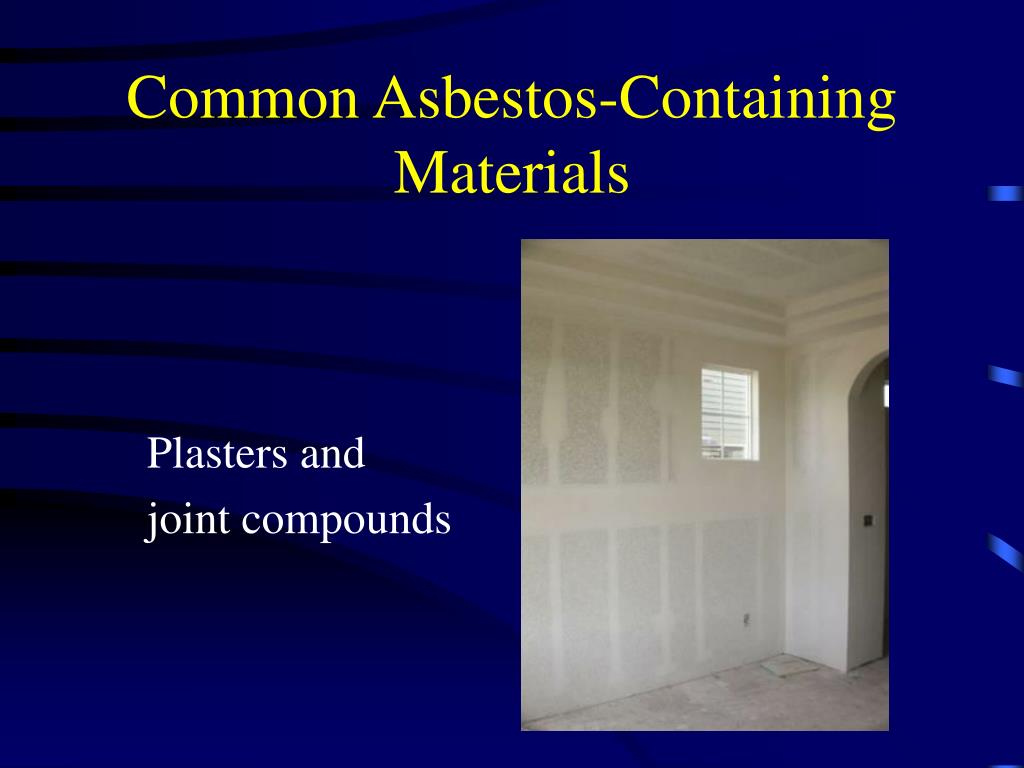

common asbestos containing materials40
Common Asbestos-Containing Materials

Plasters and

joint compounds

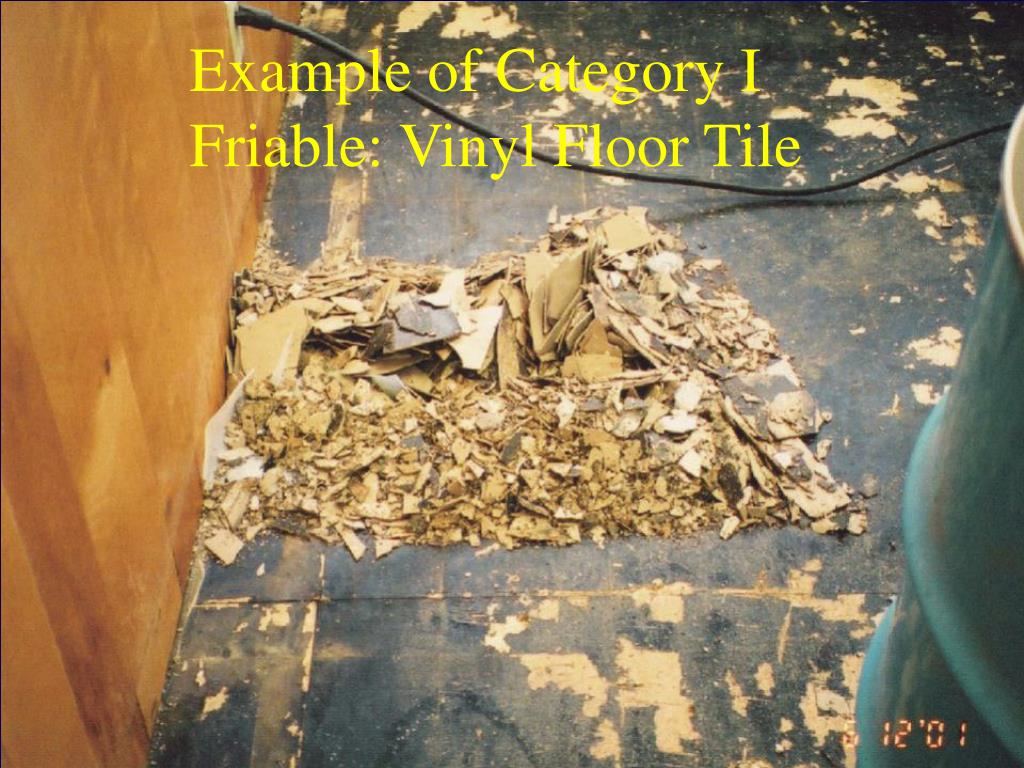

slide42

Example of Category I

Friable: Vinyl Floor Tile

asbestos building surveys
Asbestos Building Surveys
  • MPCA and MNOSHA require surveys
    • When there is no survey
    • When the survey does not include the material that will be disturbed
  • Surveys must be completed by a MN certified asbestos inspector
  • MDH rules define sampling and reporting protocols
building survey report
Building Survey Report
  • Must contain exact locations of all asbestos-containing materials (ACM)
  • Must be signed and dated by the MN certified inspector
  • Must include a copy of the MN certified inspector’s certification
regulated asbestos work
Regulated Asbestos Work
  • Material is greater than 1% asbestos by microscopic determination
  • Material is Friable
  • Material amounts are greater than 160 square feet, 260 linear feet, 35 cubic feet in a commercial setting or greater than 6 square feet, 10 linear feet, 1 cubic foot in a residential setting
regulation of acm in minnesota
Regulation of ACM in Minnesota?
  • Minnesota Department of Health (MDH)
    • Protects Public Health
      • Minnesota Statues, sections 326.70 – 326.81
      • Minnesota Rules, parts 4620.3000 – 4620.3724
  • Minnesota Pollution Control Agency (MPCA)
    • Protects the Environment
      • Environmental Protection Agency – Title 40 CFR Part 61, Subpart
  • Minnesota Department of Labor & Industry (MNOSHA)
    • Protects Workers
      • US Dept of Labor & Industry – Title 29 CFR Part 1926.1101
regulated asbestos work61
Regulated Asbestos Work

Requires the following:

  • Notification of the Project
  • Use of Appropriate Work Practices
  • Use of Licensed Asbestos Contractors
  • Use of Certified Asbestos Disciplines
asbestos abatement activities
Asbestos Abatement Activities
  • Encapsulation
  • Enclosure
  • Removal
asbestos abatement activities63
Asbestos Abatement Activities
  • Survey to identify ACM?
  • Specifications/project design
  • Notification
  • Work Area Containment
  • Posting of Work Areas
  • Engineering Controls/PPE
  • Air Monitoring – I/O
  • Disposal of ACM Waste
  • Clearance Testing
who can remove asbestos containing materials
Who Can Remove Asbestos-Containing Materials?

MDH and MPCA requires MN licensed asbestos abatement contractors to:

  • Submit a notification
  • Employ and use certified workers and supervisors
  • Comply with MDH work practices

MDH allows homeowners to do own removal in the residence they live in and own

MNOSHA requires a competent person at a minimum

suspect material acm
Suspect Material – ACM?
  • Before starting a project make sure that asbestos-containing material will not be disturbed
  • Assume all suspect material contains asbestos if no data
  • If you encounter suspect material when performing work STOP immediately
what to do
What To Do?
  • If you see something that strikes you as wrong or suspicious, do not enter the area
  • Instruct other workers, contractors and building occupants to stay out of the area
  • Contact MDH, MPCA or MNOSHA
agency assistance
Agency Assistance
  • Provide clarification/interpretation of regulations
  • Assist property owners or contracting entities in understanding their responsibilities
  • Assist licensed asbestos contractors and other contractors in maintaining compliance with the regulations
  • Provide lists of:
    • licensed asbestos contractors
    • environmental consulting firms
    • analytical laboratories
    • Hazardous waste landfills
  • Provide compliance history
why does mdh conduct compliance inspections
Why does MDH conduct compliance inspections?
  • To determine compliance with the Minnesota Asbestos Abatement Act and Rules
  • To protect Public Health and the Environment
agency inspections
Agency Inspections

Three Primary Types

  • Pre-Project (variance)
  • Scheduled (based on notifications)
  • Complaint (workers, contractor, homeowner)
how are violations determined
How are violations determined?
  • Violations are identified
    • On-site observation
    • Through project documentation review
what are the types of violations
What are the Types of Violations?
  • Administrative Violations
  • Work Practice Violations
common administrative violations
Common Administrative Violations
  • Certification (Hard Card) Issues
    • Expired
    • Not On Site
  • License, Permit, Notification Issues
  • Project Plan Issues
    • Incomplete
  • Manometer Record Issues
    • Not Recorded
    • Missing Records
common work practice violations
Common Work Practice Violations
  • Installation of Critical Barriers
  • Containment
  • Decontamination Units
  • Removal of ACM
  • Completion of Abatement
  • Glove Bag Procedures
  • Facility Component Removal (Wrap and Cut)
  • Air Monitoring
what causes violations
What Causes Violations?
  • Multiple Distractions
  • Working Too Fast
  • Working Carelessly
  • Relying On The Hygienist
questions
Questions?

MDH – 651-201-4620

www.health.state.mn.us/divs/eh/asbestos

MPCA – 651-296-6300

http://www.pca.state.mn.us

MNOSHA – 651-284-5050

http://www.doli.state.mn.us
