  1. ATA Spec 100 Recommendations for Conversion to Guidelines

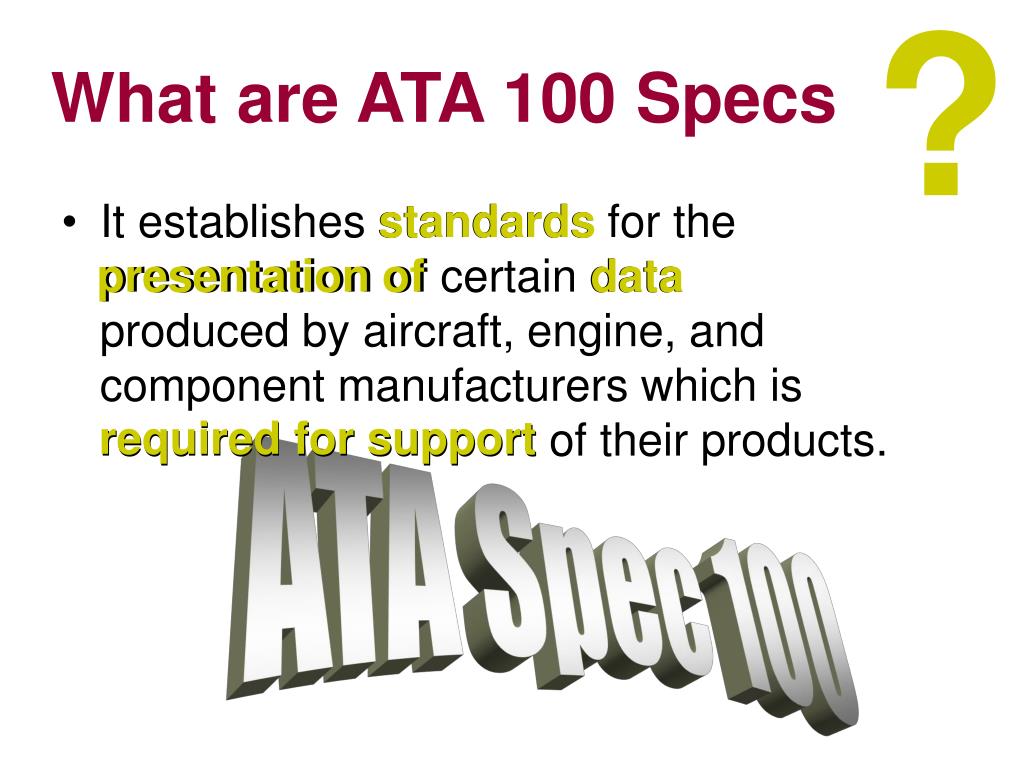

  2. ? What are ATA 100 Specs • It establishes standards for the presentation of certain data produced by aircraft, engine, and component manufacturers which is required for support of their products. standards presentation of data required for support ATA Spec 100

  3. A D V A N T A G E S minimizes cost • It minimizes cost and effort of operators to make the manufacturer’s datamore compatible for the publishers, engineers, airframe manufacturers, owners, and mechanics. compatible ATA Spec 100

  4. General Rules • FORMAT • STYLE • METHOD ATA Spec 100

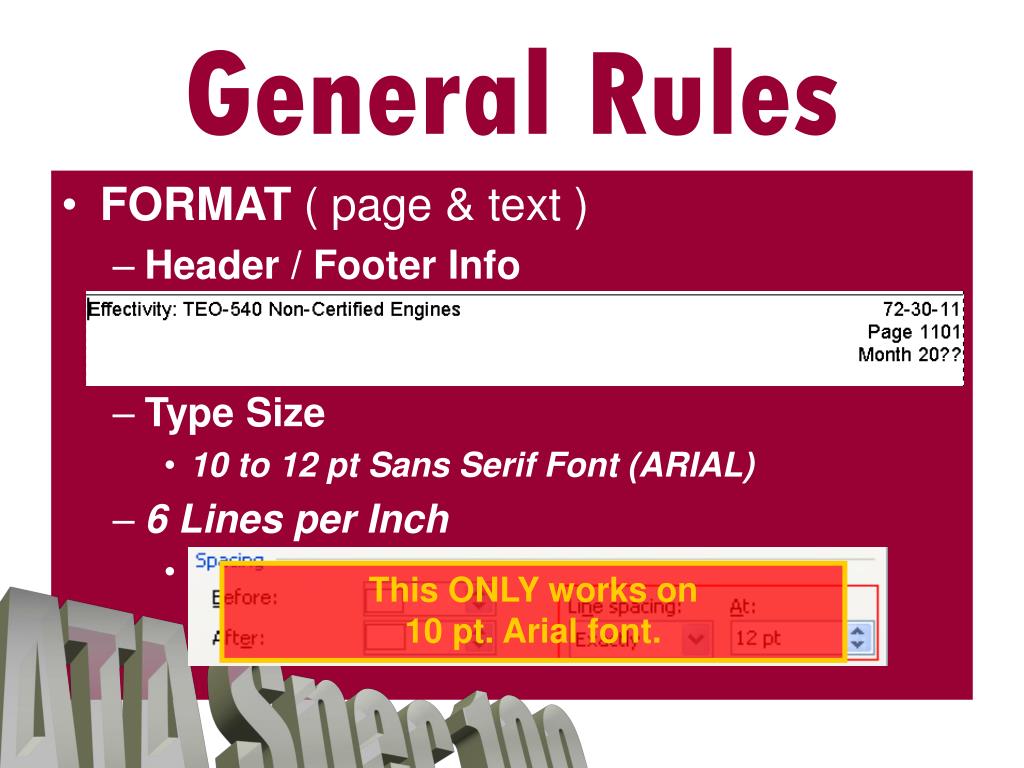

  5. General Rules • FORMAT ( page & text ) • Header / Footer Info • Manufacturer, Model, Effectivity, Chapt-Sec-Sub, Date, Page Numbering • Type Size • 10 to 12 pt Sans Serif Font (ARIAL) • 6 Lines per Inch • An inch is 72 points, so 6 lpi is paragraph spacing of Exactly 12 points This ONLY works on 10 pt. Arial font. ATA Spec 100

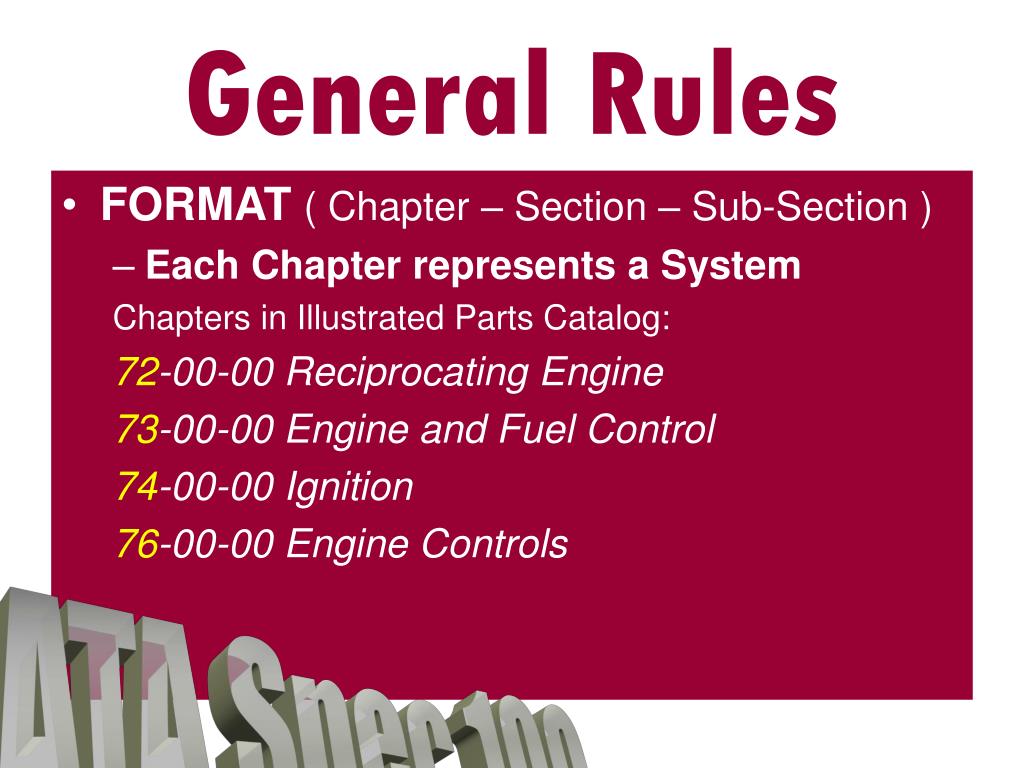

  6. General Rules • FORMAT ( Chapter – Section – Sub-Section ) • Each Chapter represents a System Chapters in Illustrated Parts Catalog: 72-00-00 Reciprocating Engine 73-00-00 Engine and Fuel Control 74-00-00 Ignition 76-00-00 Engine Controls ATA Spec 100

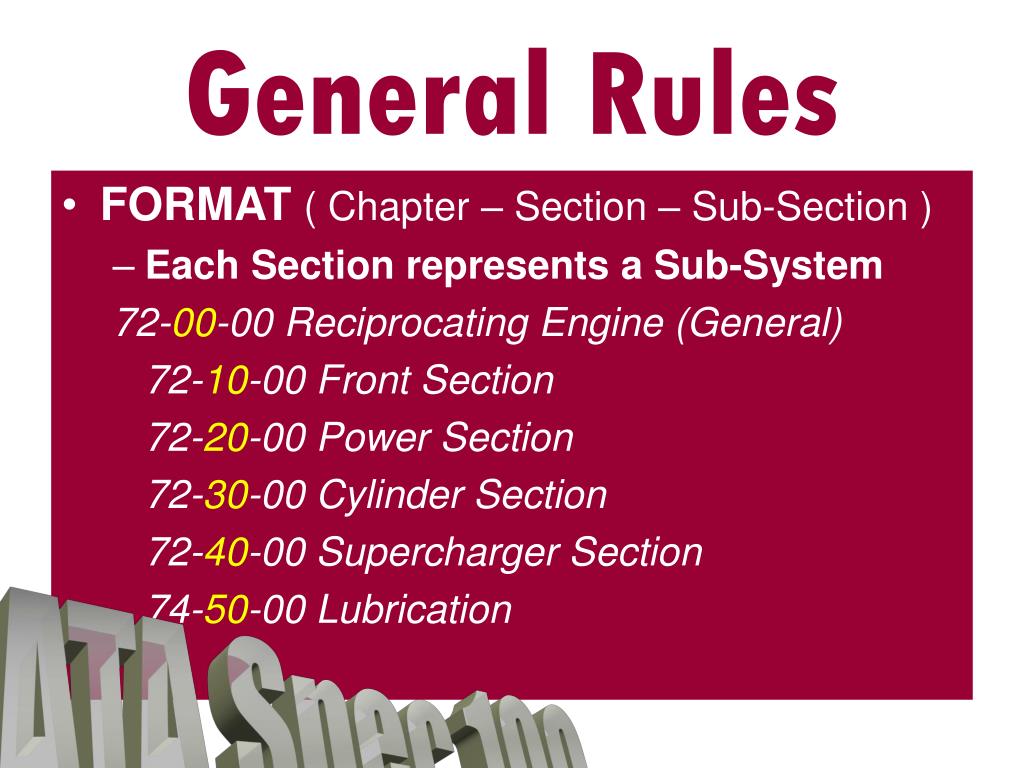

  7. General Rules • FORMAT ( Chapter – Section – Sub-Section ) • Each Section represents a Sub-System 72-00-00 Reciprocating Engine (General) 72-10-00 Front Section 72-20-00 Power Section 72-30-00 Cylinder Section 72-40-00 Supercharger Section 74-50-00 Lubrication ATA Spec 100

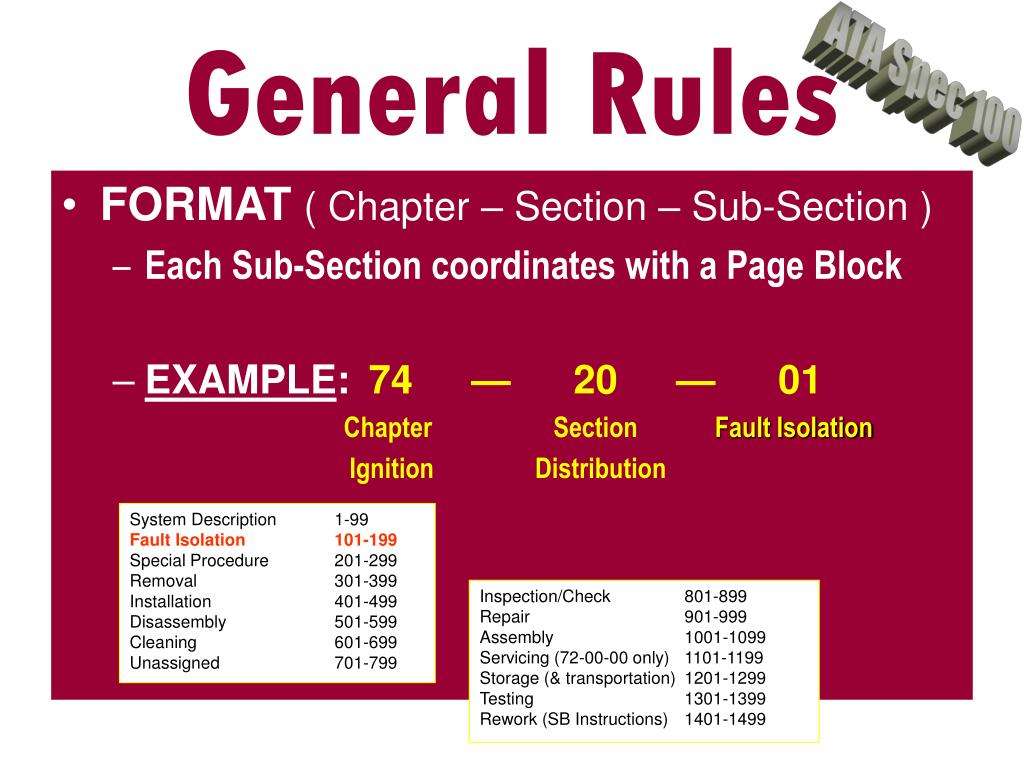

  8. General Rules ATA Spec 100 • FORMAT ( Chapter – Section – Sub-Section ) • Each Sub-Section coordinates with a Page Block • EXAMPLE: 74 — 20 — 01 Chapter Section Fault Isolation Ignition Distribution System Description 1-99 Fault Isolation101-199 Special Procedure 201-299 Removal 301-399 Installation 401-499 Disassembly 501-599 Cleaning 601-699 Unassigned 701-799 Inspection/Check 801-899 Repair 901-999 Assembly 1001-1099 Servicing (72-00-00 only) 1101-1199 Storage (& transportation) 1201-1299 Testing 1301-1399 Rework (SB Instructions) 1401-1499

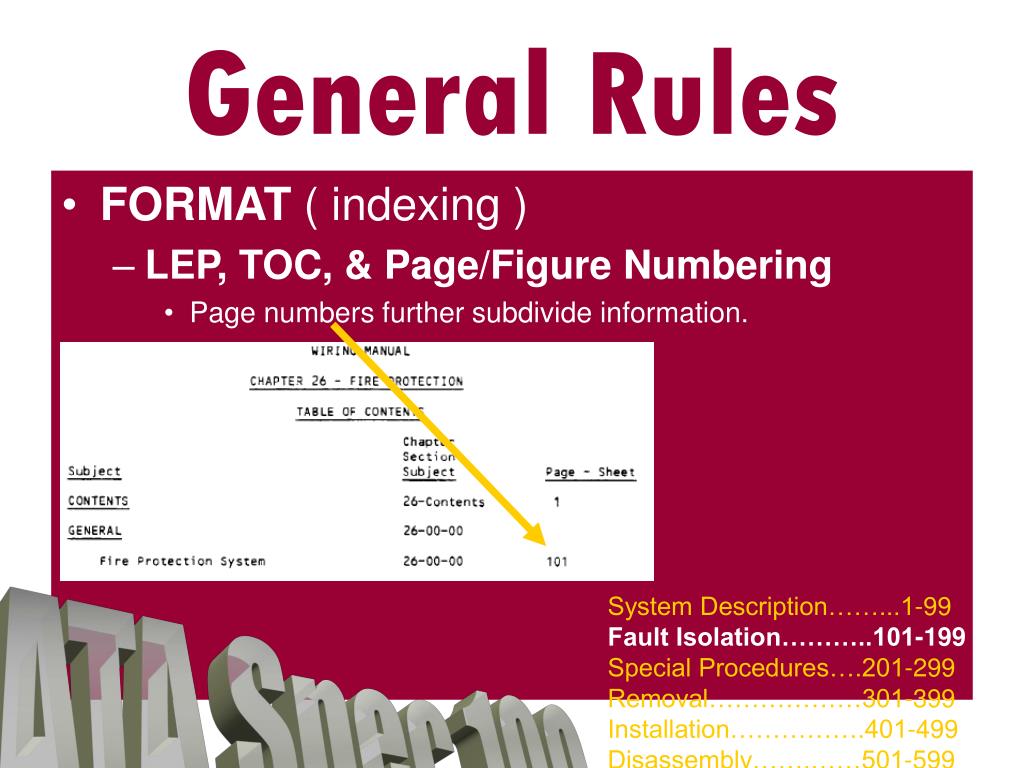

  9. General Rules • FORMAT ( indexing ) • LEP, TOC, & Page/Figure Numbering • Page numbers further subdivide information. System Description……...1-99 Fault Isolation………..101-199 Special Procedures…201-299 Removal………………301-399 Installation…………….401-499 Disassembly…………501-599 Cleaning……..............601-699 Unassigned….............701-799 Inspection/Check…….801-899 Etc… ATA Spec 100

  10. General Rules • FORMAT ( indexing ) • LEP, TOC, & Page/Figure Numbering • Page numbers further subdivide information. System Description……...1-99 Fault Isolation………..101-199 Special Procedures….201-299 Removal………………301-399 Installation…………….401-499 Disassembly…….……501-599 Cleaning……...............601-699 Unassigned…..............701-799 Inspection/Check…….801-899 Etc… ATA Spec 100

  11. General Rules • FORMAT ( indexing ) • LEP, TOC, & Page/Figure Numbering • Figure numbering style matches page numbering. System Description……...1-99 Fault Isolation………..101-199 Special Procedures…201-299 Removal………………301-399 Installation…………….401-499 Disassembly…………500-599 Cleaning……..............600-699 Unassigned….............701-799 Inspection/Check…….801-899 ATA Spec 100

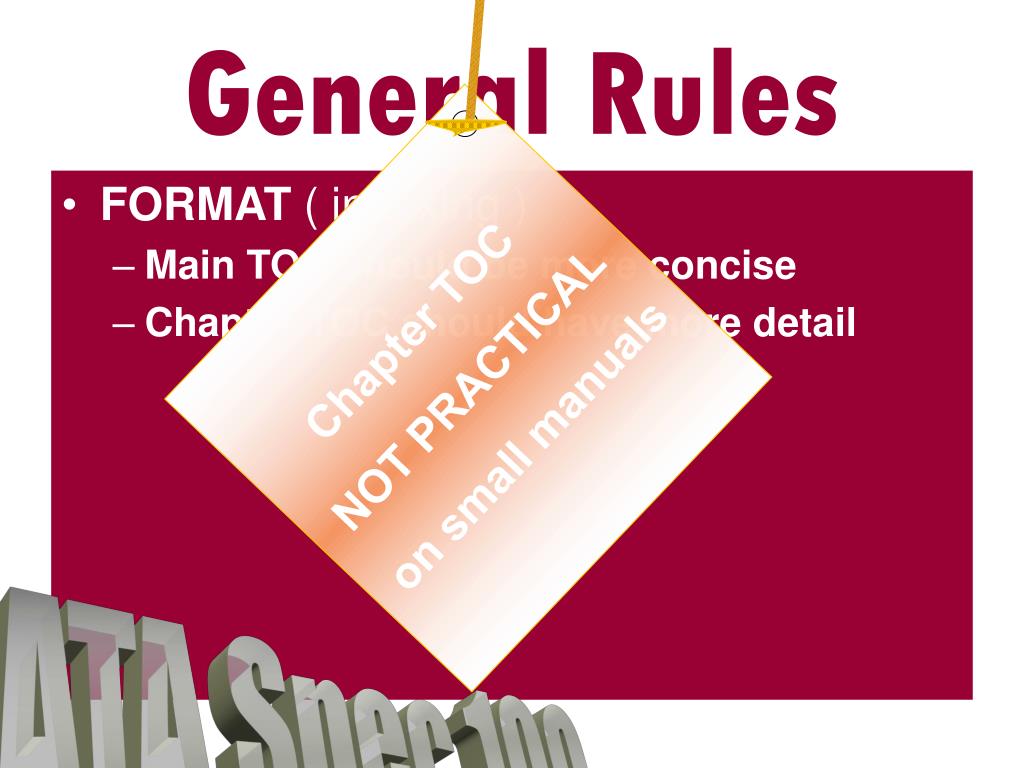

  12. Chapter TOC NOT PRACTICAL on small manuals General Rules • FORMAT ( indexing ) • Main TOC should be more concise • Chapter TOC should have more detail ATA Spec 100

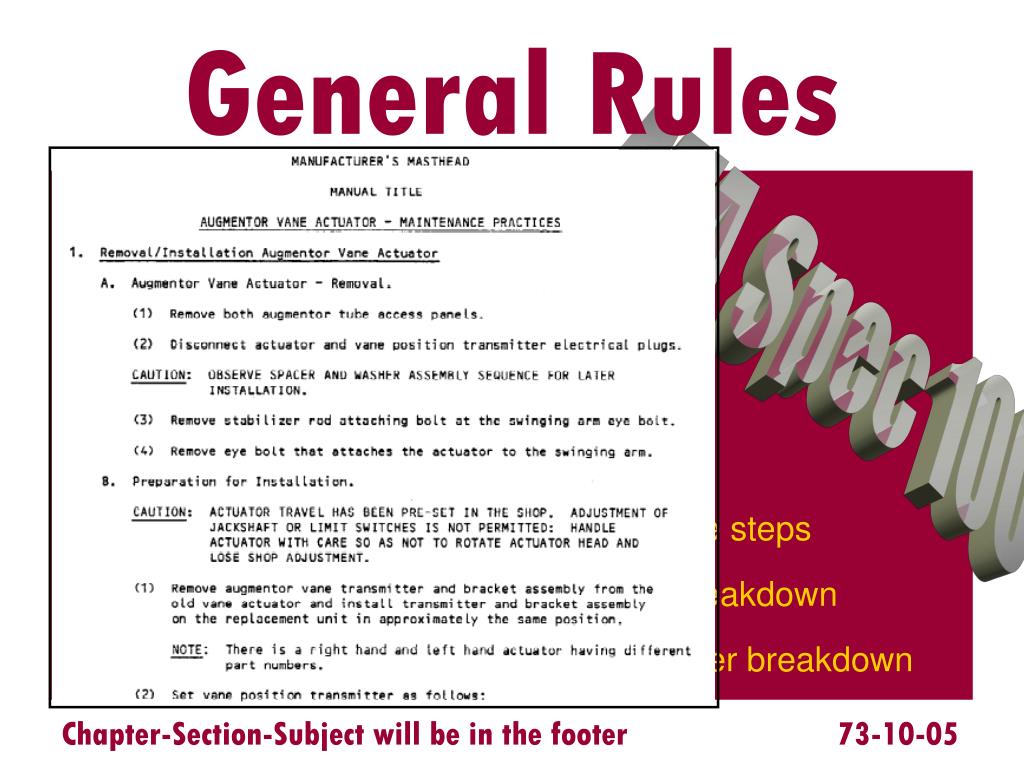

  13. General Rules • METHOD 1.Major Breakdown A.Major Subdivision (1)Steps of Procedure (a)Any further breakdown of the steps 1Any necessary further breakdown aAny necessary further breakdown ATA Spec 100 Chapter-Section-Subject will be in the footer 73-10-05

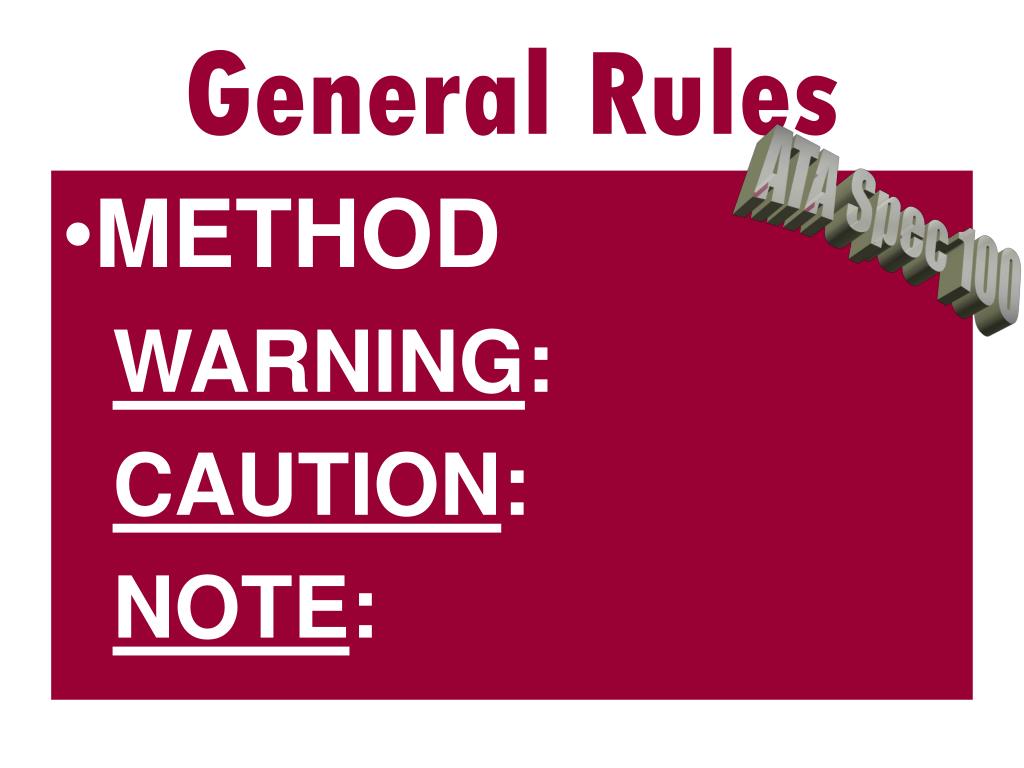

  14. General Rules • METHOD WARNING: CAUTION: NOTE: ATA Spec 100

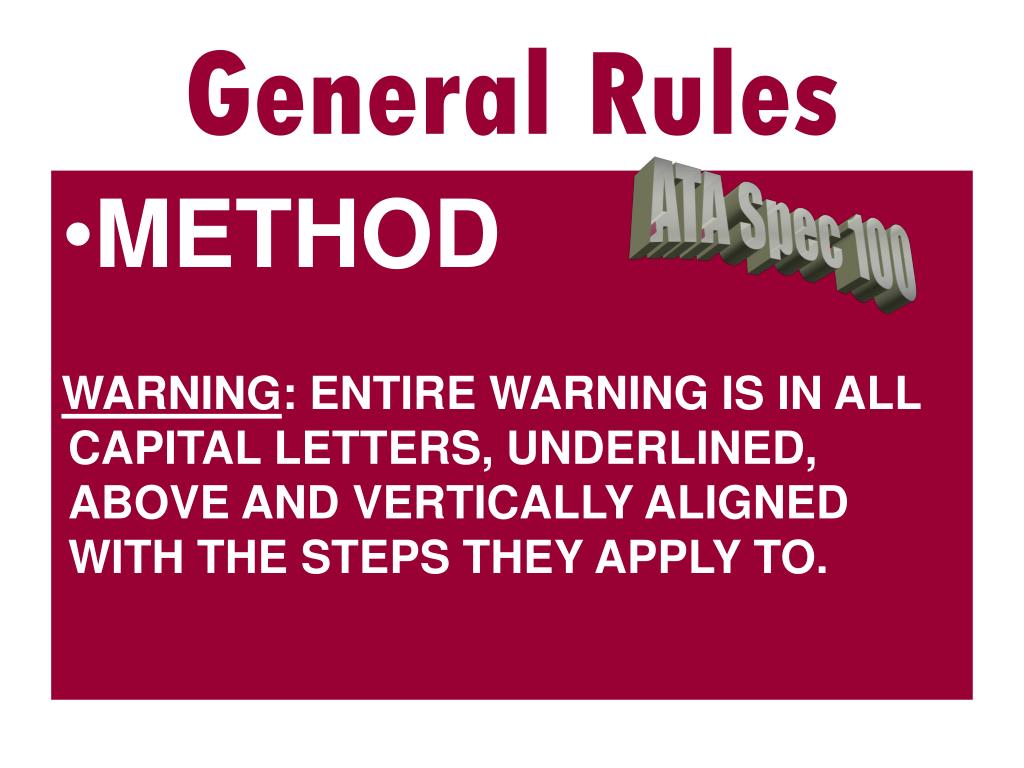

  15. General Rules • METHOD WARNING: ENTIRE WARNING IS IN ALL CAPITAL LETTERS, UNDERLINED, ABOVE AND VERTICALLY ALIGNED WITH THE STEPS THEY APPLY TO. ATA Spec 100

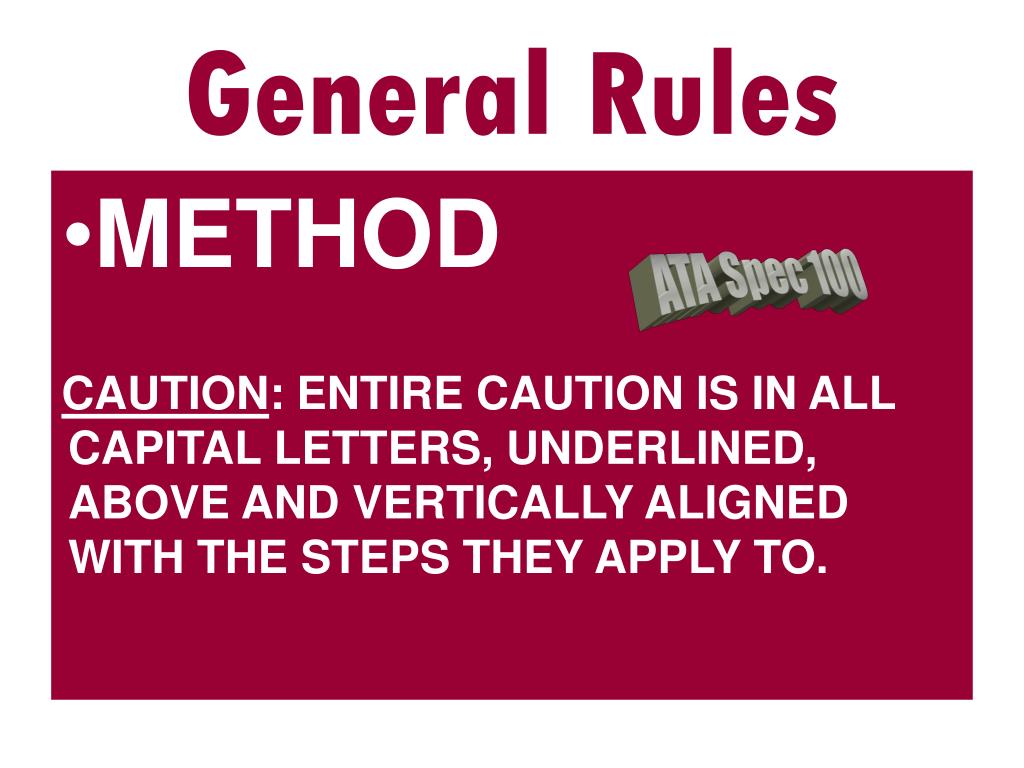

  16. General Rules • METHOD CAUTION: ENTIRE CAUTION IS IN ALL CAPITAL LETTERS, UNDERLINED, ABOVE AND VERTICALLY ALIGNED WITH THE STEPS THEY APPLY TO. ATA Spec 100

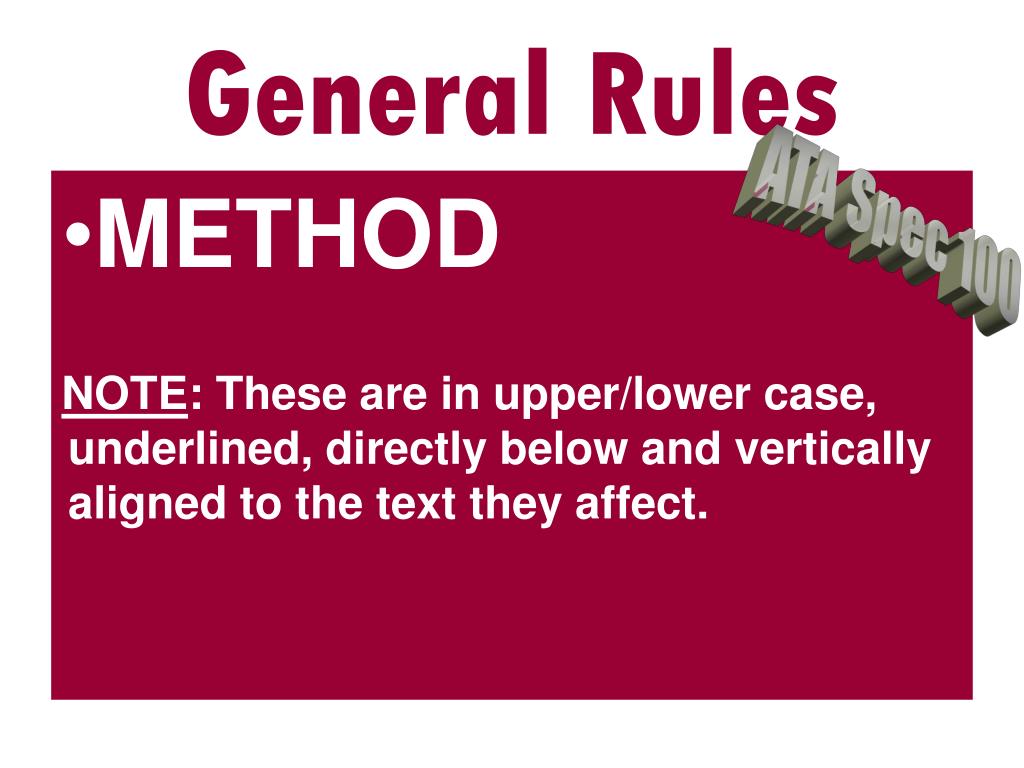

  17. General Rules • METHOD NOTE: These are in upper/lower case, underlined, directly below and vertically aligned to the text they affect. ATA Spec 100

  18. General Rules • METHOD WARNING: CAUTION: NOTE: ATA Spec 100

  19. General Rules ATA Spec 100 • Illustrated Parts Catalog Standard Practices for Maintenance_________________________________________________ System Description.................................................................. 70-00-00.......... 1-6 Standard Practices 1. Electronic Standards 2. Recommended Maintenance Tools Cleaning.................................................................................... 70-00-06.......... 601-699 Cleaning (Standard Practices) 1. Preparation 2. Cleaning Agents and Materials 3. Electrical / Electronics 4. Post-Cleaning Reciprocating Engine Maintenance__________________________________________________ System Description.................................................................. 72-00-00.......... 1-6 1. General Description 2. Performance 3. Power Section 4. Cylinder Section 5. Cooling System 6. Sensors 7. Lubrication System 8. Turbocharger System 9. Electronic Engine Control 10. Engine Specifications Fault Isolation............................................................................ 72-00-01.......... 101-199 Troubleshooting 1. General 2. Engine Troubleshooting Chart Special Procedures.................................................................. 72-00-02.......... 201-299 Operating Information 1. General 2. Pre-Start Checklist 3. Starting 4. Cold Weather Starting 5. Ground Running and Warm-Up 6. Operations Checklist 7. Stopping and Shut-Down 8. Engine Ordering and Return 9. Return of Runout Engines 10. Return of Engines for Special Adjustment Consideration 11. Parts Return – International 12. Parts Return – Domestic 13. Unscheduled Maintenance Removal (SEE ATTACHMENT).............................................. 72-00-03.......... 301-399 Engine Removal 1. Disconnecting the Engine 2. Removing External Accessories 3. Lifting Installation (SEE ATTACHMENT)........................................... 72-00-04.......... 401-499 Engine Installation 1. General 2. Uncrating 3. Un-inhibiting 4. Installation Set-Up 5. Installation Procedure 6. Connecting External Accessories 7. Pre-Oiling Engines Prior to Start

  20. ATA Spec 100 General Rules • IPC Table of Contents • ILLUSTRATED PARTS CATALOG • 72-00-00 Reciprocating Engine • 72-10-00 Front Section • 1. Propeller Drive Assy. • 72-20-00 Power Section • 1. Crankcase Assy. • 2. Crankshaft Idler Gears • 72-30-00 Cylinder Section • 1. Connecting Rods, Pistons • 2. Valve Assy. • 72-40-00 Supercharger Section • 1. Compressor Mounting Parts • 2. Intake Pipes, Air Inlet • 74-50-00 Lubrication • 1. Oil Sump and Induction Housing • MAINTENANCE MANUAL • 72-00-00 Reciprocating Engine Maintenance • Power Section • System Description 72-20-00 1-99 • Power Section Maintenance • 1. General • 2. Crankcase • 3. Crankshaft and Counterweights • 4. Camshaft • 5. Bearings • Fault Isolation 72-20-01 101-199 • 1. Crankcase • 2. Crankshaft and Counterweights • 3. Camshaft • M M • Divided by • Procedures • IPC • Divided by Systems

  21. ATA Spec 100 Recommendations for Conversion to Guidelines
