tba team 5 launch readiness review

Fall 2011 Rev A

11-01-11

TBA (Team #5)Launch Readiness Review

Quinn Kostelecky, Vincent Staverosky, Gloria Chen, Roshan Misra, Jacqueline Godina, Raymond Auyeung

mission overview
Mission Overview
  • Measure the Earth’s magnetic field intensity
  • Measure the voltage produced
  • Determine the orientation of pictures
mission overview1
Mission Overview
  • Purpose of Mission:
  • Prove or disprove Tesla’s Free Energy Theory
  • Discover intensity of Earth’s magnetic field
  • Test the viability of a magnetometer as an attitude determination system
design overview
Design Overview
  • Low Current Sensor and Magnetometer
  • Arduino UNO and MicroSD Shield
  • Camera, Hobo, Heater, Batteries
experiment testing current solenoid system

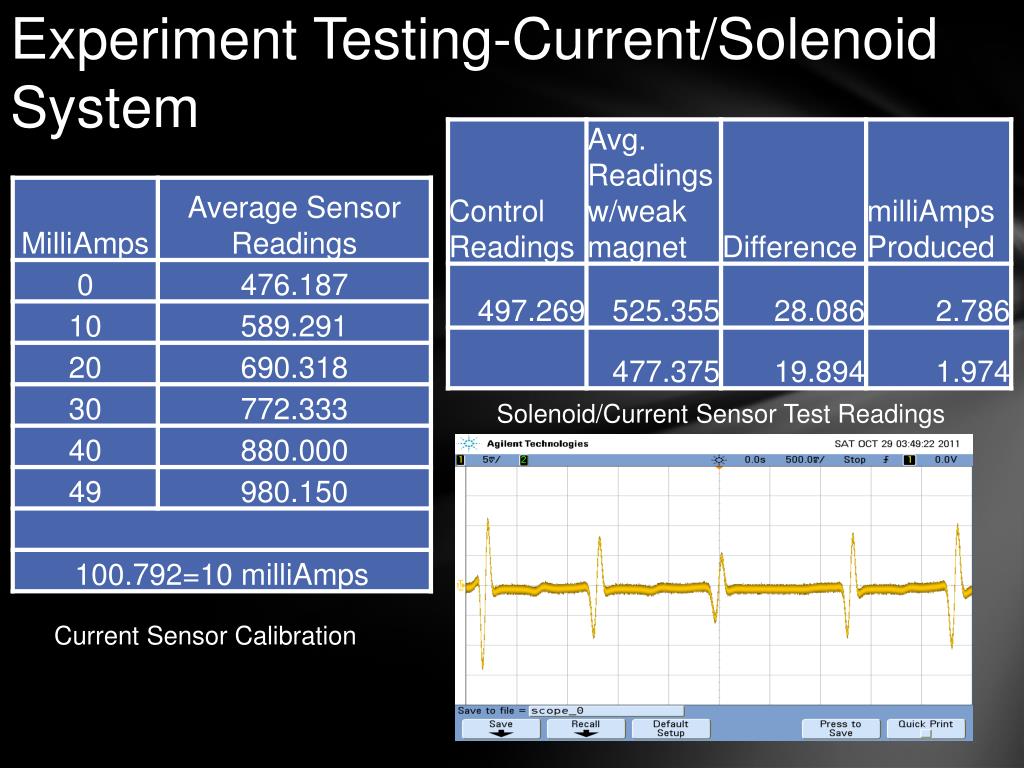

Experiment Testing-Current/Solenoid System

Solenoid/Current Sensor Test Readings

Current Sensor Calibration

Current Sensor Calibration

experiment testing camera magnetometer
Experiment Testing-Camera/Magnetometer
  • Sync Magnetometer readings with camera pictures
  • First picture taken on the eighth reading
  • Picture taken every two readings after eighth
structure testing
Structure Testing

Drop Test

Staircase Test

Whip Test

After Drop and Staircase Test

cooler testing
Cooler Testing
  • Heater malfunctioned during cooler test
  • Need to turn on heater in advance of cooler test to maintain temperature
  • Another cooler test to be run today
hobo testing
HOBO Testing

HOBO placed in freezer

Internal Temperature

Relative Humidity

HOBO

HOBO placed outside spout of hot kettle

HOBO taken out of freezer

expected results
Expected Results
  • Low current generated by solenoid during flight
  • Magnetic field intensity decreases as altitude increases
  • Accurately predict orientation of satellite
biggest worries
Biggest Worries
  • Keeping satellite at proper operating temperatures
  • Arduino doesn’t run for flight duration
