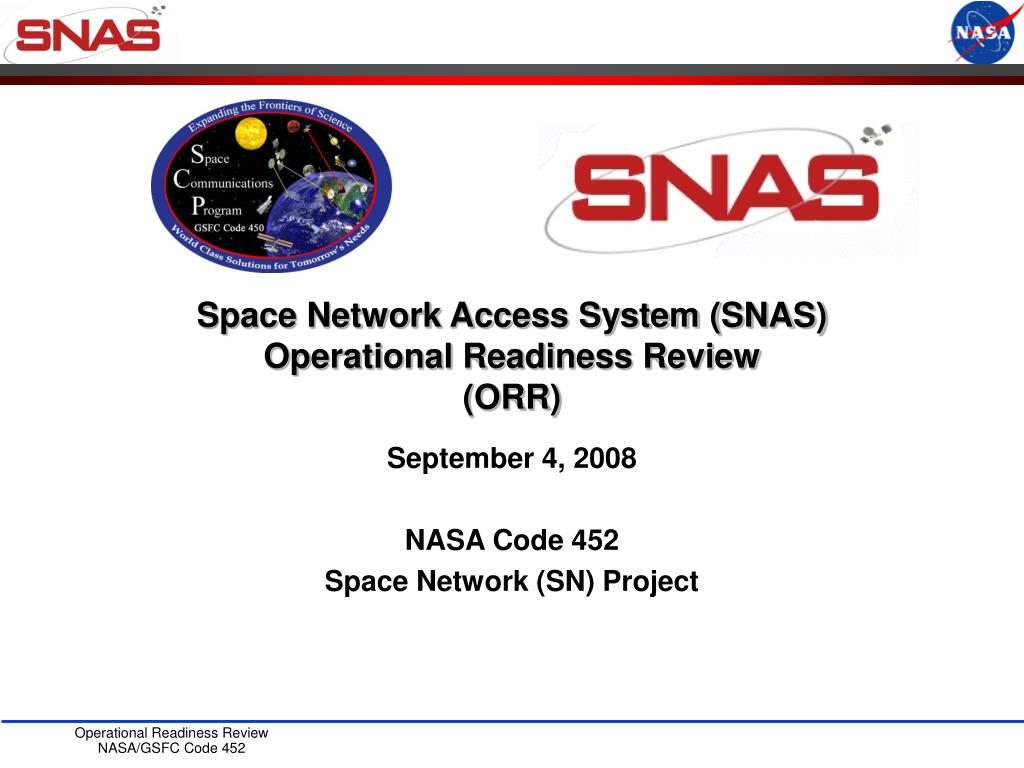

  1. Space Network Access System (SNAS) Operational Readiness Review (ORR) September 4, 2008 NASA Code 452 Space Network (SN) Project

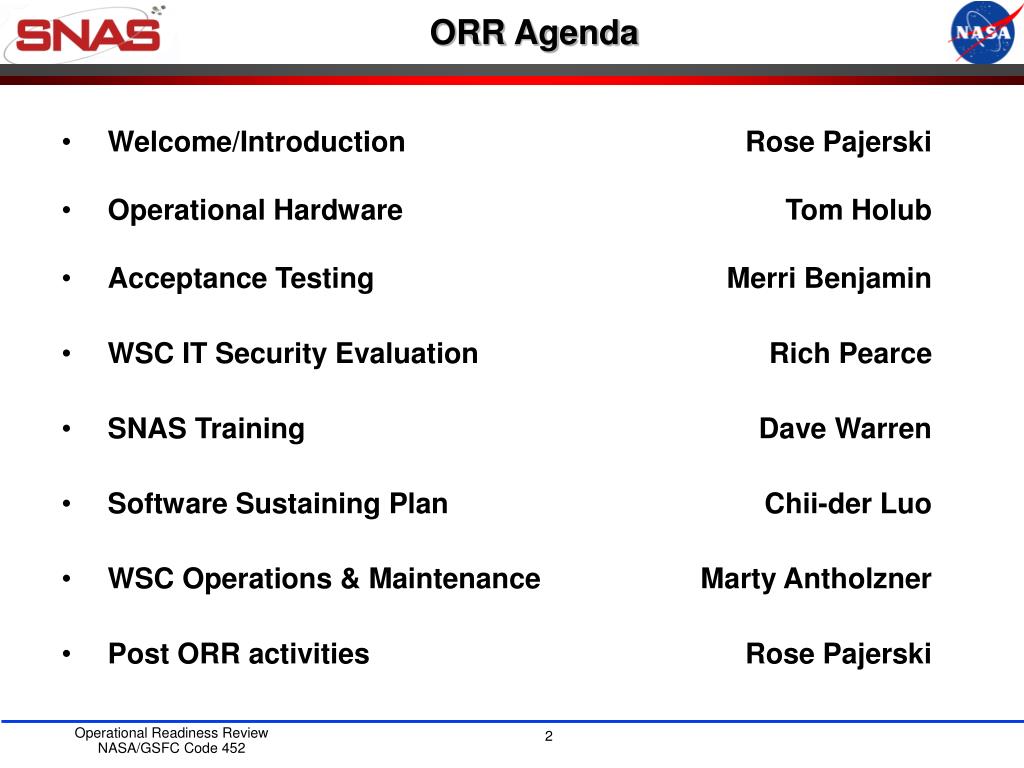

  2. ORR Agenda • Welcome/Introduction Rose Pajerski • Operational Hardware Tom Holub • Acceptance Testing Merri Benjamin • WSC IT Security Evaluation Rich Pearce • SNAS Training Dave Warren • Software Sustaining Plan Chii-der Luo • WSC Operations & Maintenance Marty Antholzner • Post ORR activities Rose Pajerski

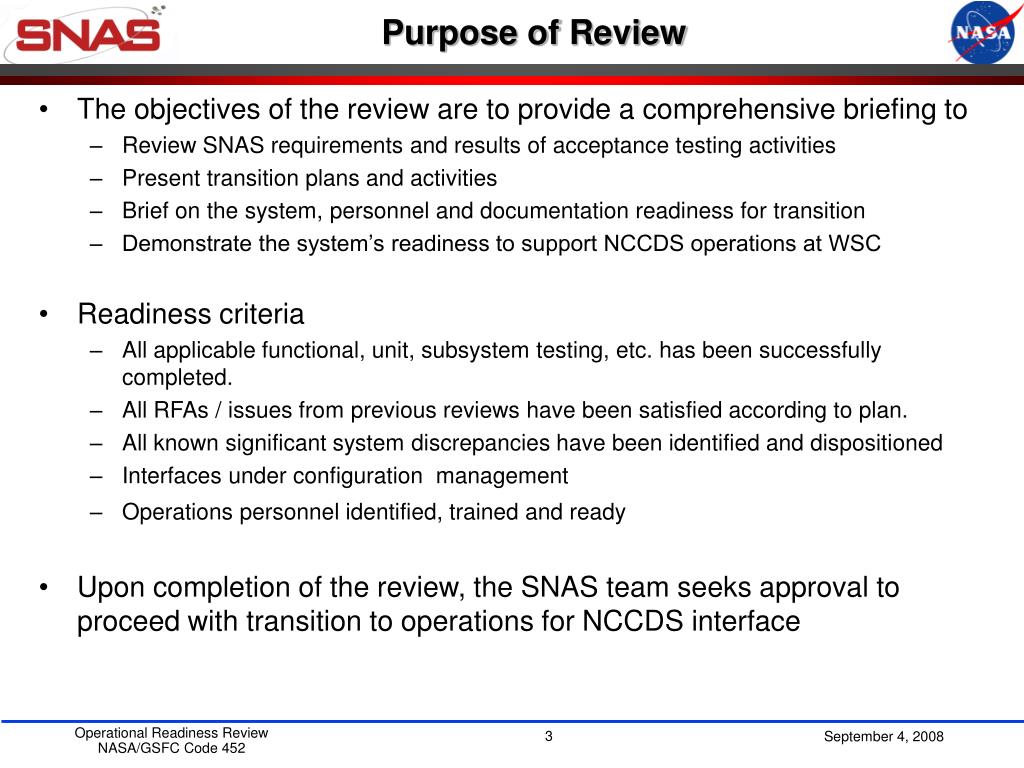

  3. Purpose of Review • The objectives of the review are to provide a comprehensive briefing to • Review SNAS requirements and results of acceptance testing activities • Present transition plans and activities • Brief on the system, personnel and documentation readiness for transition • Demonstrate the system’s readiness to support NCCDS operations at WSC • Readiness criteria • All applicable functional, unit, subsystem testing, etc. has been successfully completed. • All RFAs / issues from previous reviews have been satisfied according to plan. • All known significant system discrepancies have been identified and dispositioned • Interfaces under configuration management • Operations personnel identified, trained and ready • Upon completion of the review, the SNAS team seeks approval to proceed with transition to operations for NCCDS interface

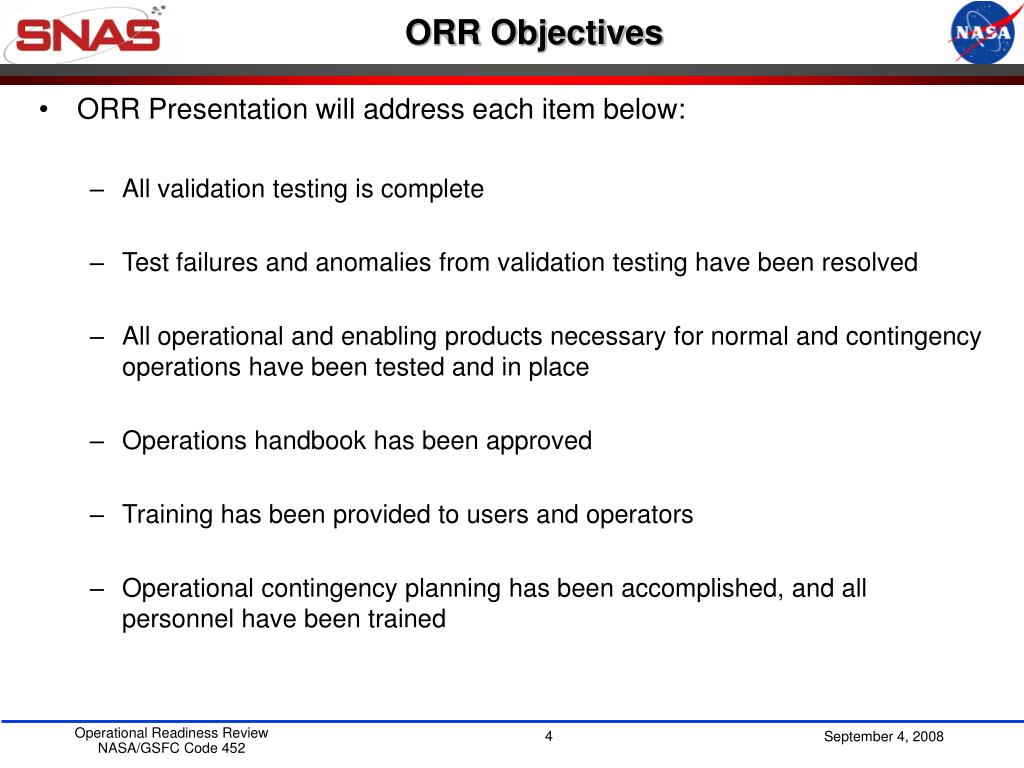

  4. ORR Objectives • ORR Presentation will address each item below: • All validation testing is complete • Test failures and anomalies from validation testing have been resolved • All operational and enabling products necessary for normal and contingency operations have been tested and in place • Operations handbook has been approved • Training has been provided to users and operators • Operational contingency planning has been accomplished, and all personnel have been trained

  5. Welcome / Introduction Rose Pajerski

  6. Review Board • Joe Stevens, (chair), NASA GSFC Code 730 • Joe Aquino, NASA JSC ISS/SST • Markland Benson, NASA WSC Code 583 • Dave Campbell, NASA GSFC Code 584, HST • Curtis Emerson, NASA GSFC Code 530 • Lynn Myers, NASA GSFC Code 450 6

  7. Prior Milestones • SNAS Release 1 Milestones • System Requirements Review 7/08/03 • Delta-System Requirements Design Review 4/28/05 • Preliminary Design Review 9/12/05 • Critical Design Review 5/04/06 • Implementation 6/5/06 - 7/20/07 • Integration/System Testing 8/07 - 5/08 • Beta Testing 8/07 - 8/08 • Server Shipment to WSC 5/06-12/08 • System Installation and Checkout 5/14-30/08 • Test Readiness Review 6/6/08 • NCCDS Acceptance Testing 6/23-8/29/08 • Customer Training 7/08-8/08 • WSC Operations Training 8/26/08 • Performance test 8/28/08 7

  8. Moving Forward Schedule Scheduled Completion • Operational Readiness Review today • Operational Availability (NCCDS) 9/23/08 • SNAS/DAS Acceptance Testing Complete Oct08 • Delta-ORR for SNAS/DAS Oct08 • Customer Training (CIM #9, WSC, customer sites) Nov08 • Operational Availability (DAS) TBS • DAS Customers Transition to SNAS (as a group) TBS • End SWSI and UPS fixes/releases TBS 8

  9. Customer Community Milestones • Group Customer Interface Meetings • April 2005 (pre-SRR) through July 2008 (AT) • Beta Testing • Participants: NOMs, WSC, HST, JSC, TRMM, SP&M, SPTR • Release 1: 4/07 – 8/08 • Acceptance Testing • MOC operational data sets: HST, JSC, TRMM, Landsat, SWIFT • MOC operational scenarios: JSC, SP&M, SWIFT • WSC AT participants: JSC ISS & Shuttle, NOMs, Development Team (performance) 9

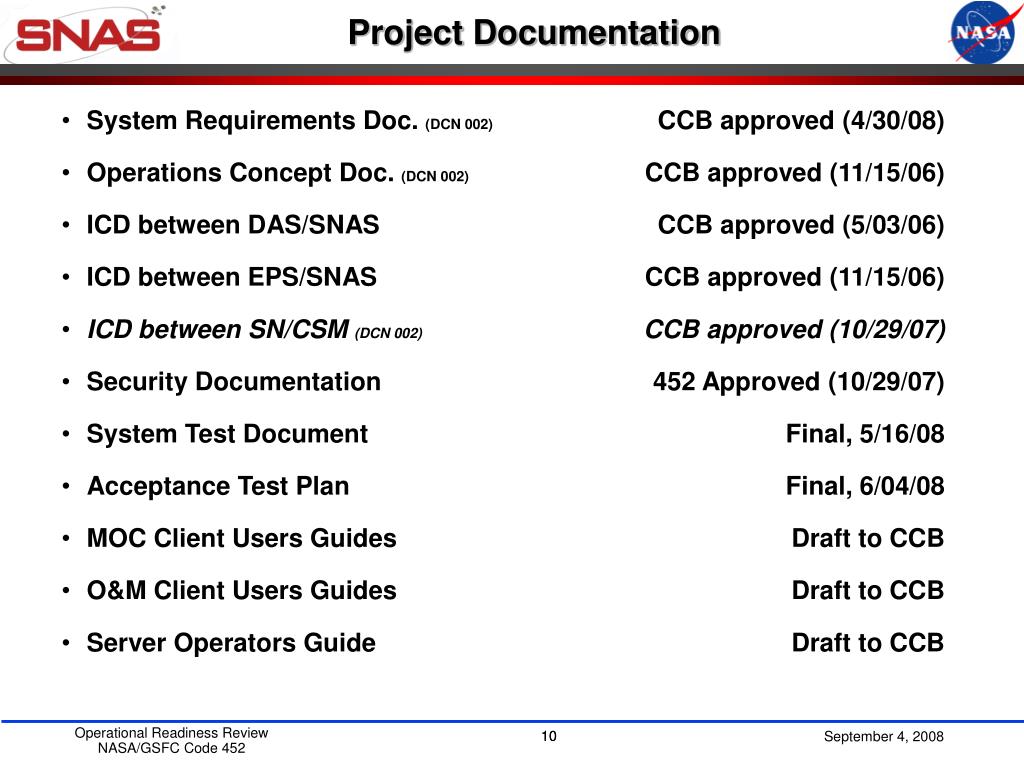

  10. Project Documentation System Requirements Doc. (DCN 002) CCB approved (4/30/08) Operations Concept Doc. (DCN 002) CCB approved (11/15/06) ICD between DAS/SNAS CCB approved (5/03/06) ICD between EPS/SNAS CCB approved (11/15/06) ICD between SN/CSM (DCN 002) CCB approved (10/29/07) Security Documentation 452 Approved (10/29/07) System Test Document Final, 5/16/08 Acceptance Test Plan Final, 6/04/08 MOC Client Users Guides Draft to CCB O&M Client Users Guides Draft to CCB Server Operators Guide Draft to CCB 10

  11. Operational Server Hardware Tom Holub

  12. Hardware Status • SNAS Server System • Two racks • 2 Open Servers • 2 Closed Servers • 2 Closed Data Servers • Closed RAID Array • UPS • NISN-managed switches • Installed with EC-TO 060-1 • SNAS Server System connections • Open and Closed IONet complete except for Out-of-Band Connectivity • Sparing plan • One APS UPS battery • One HP system disk • One EMC Clariion NAS disk • Maintenance Plan for servers • Warranty documents have been transferred

  13. Hardware Status (cont’d)

  14. SNAS (AT) Architecture

  15. Acceptance Testing Merri Benjamin

  16. Acceptance Test Overview (1 of 3) • Testing Overview – Scope • Both MOC and O&M Client functionality • SNAS/NCCDS interface (ANCC) • SNAS/DAS interface (HMD DAS) • Limited EPS/SNAS interface testing • Used PC Client platform directory as pseudo-EPS • JSC EPS end-to-end with Beta System • Server operations (e.g., High Availability (HA), logging) • Exercised operational procedures (e.g., database recovery, SW delivery, etc.) • Test Cases executed and procedures exercised to verify system functional and performance requirements

  17. Acceptance Test Overview (2 of 3) • Testing Environment • SNAS Servers connected to IONet with data passed to and from the ANCC and HMD DAS • Clients connected to Open and Closed IONET • Clients hosted on Windows PC platforms only • Tested in OPS mode only (OPS database instance) • Test Support • WSC Testers - TO&A, OPS, and SE Departments • WSC SA/Oracle DBA, NCCDS and DAS - Software Department • JSC representatives (Jeremy Gibson and Mike Duffy) • Traveled to WSC • Tested recurrent scheduling, orbital input processing, and EPS functions • Performed Schedule Planning and Schedule execution for ISS, STS, and ATV (functional and performance testing)

  18. Acceptance Test Overview (3 of 3) • Status Meetings • Held AT status meetings – Mondays and Thursdays • Meeting agenda – outstanding test issues, IDR review and work-off plan • Test CM • Discrepancies maintained and tracked in CDS Remedy -IDR database • Five patches delivered • Fixes tested and regression tests • Results presented – Release Candidate 5 baseline • Acceptance Test Report will be delivered: 10/03/08

  19. Acceptance Test Results MOC Client Functionality O&M Client Functionality Server/System Testing IT Security Controls

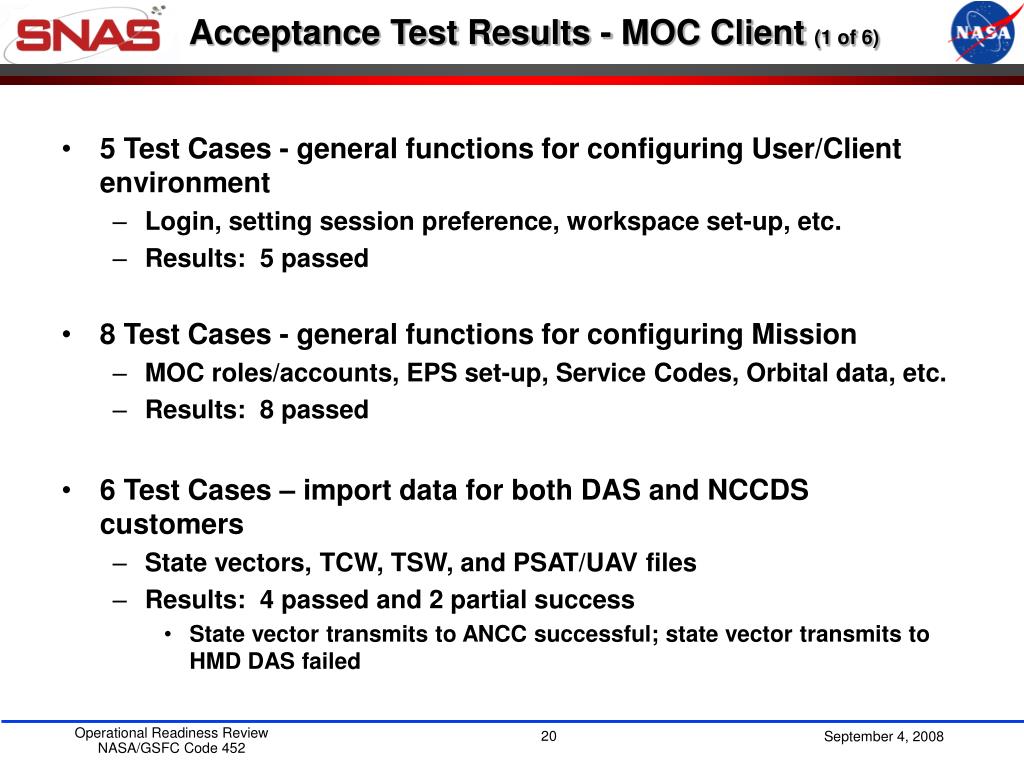

  20. Acceptance Test Results - MOC Client (1 of 6) • 5 Test Cases - general functions for configuring User/Client environment • Login, setting session preference, workspace set-up, etc. • Results: 5 passed • 8 Test Cases - general functions for configuring Mission • MOC roles/accounts, EPS set-up, Service Codes, Orbital data, etc. • Results: 8 passed • 6 Test Cases – import data for both DAS and NCCDS customers • State vectors, TCW, TSW, and PSAT/UAV files • Results: 4 passed and 2 partial success • State vector transmits to ANCC successful; state vector transmits to HMD DAS failed

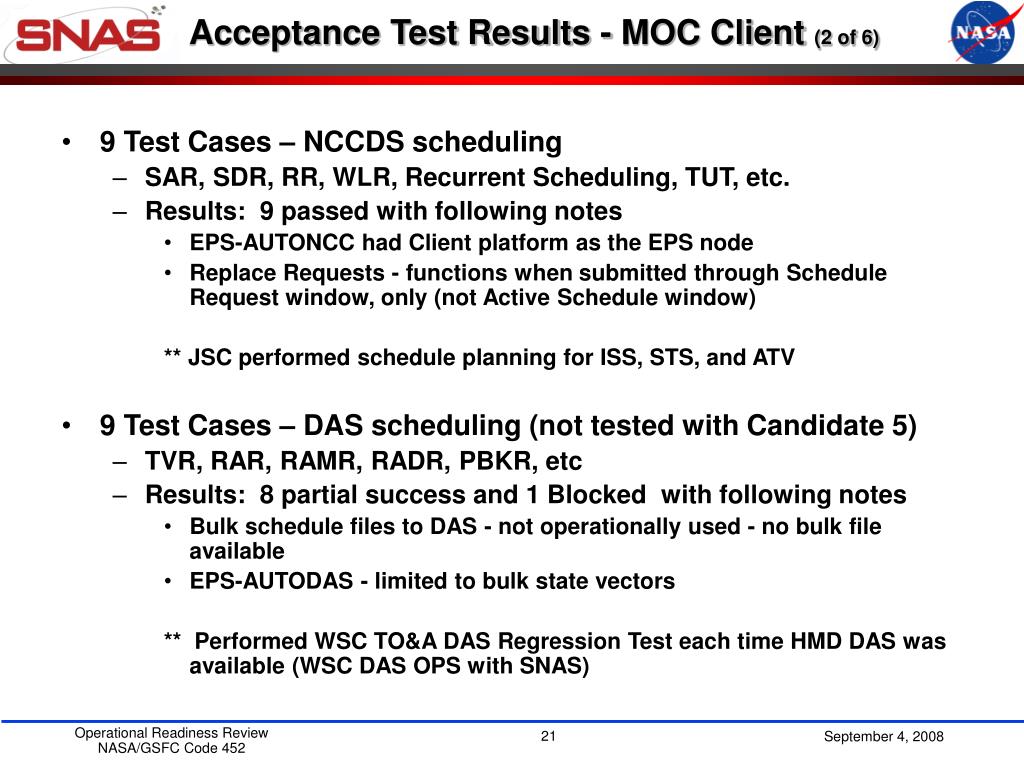

  21. Acceptance Test Results - MOC Client (2 of 6) • 9 Test Cases – NCCDS scheduling • SAR, SDR, RR, WLR, Recurrent Scheduling, TUT, etc. • Results: 9 passed with following notes • EPS-AUTONCC had Client platform as the EPS node • Replace Requests - functions when submitted through Schedule Request window, only (not Active Schedule window) ** JSC performed schedule planning for ISS, STS, and ATV • 9 Test Cases – DAS scheduling (not tested with Candidate 5) • TVR, RAR, RAMR, RADR, PBKR, etc • Results: 8 partial success and 1 Blocked with following notes • Bulk schedule files to DAS - not operationally used - no bulk file available • EPS-AUTODAS - limited to bulk state vectors ** Performed WSC TO&A DAS Regression Test each time HMD DAS was available (WSC DAS OPS with SNAS)

  22. Acceptance Test Results - MOC Client (3 of 6) • 6 Test Cases – Scheduling Tools (both NCCDS and DAS) • Active Schedule Summary, Request Schedule Summary, TSW shift, etc. • Results: 6 passed • 2 Test Cases – Real-time monitoring • UPDs, Switch User • Results: 2 passed • 3 Test Cases – Reports and Queries • Confirmed events report, Rejected/Decline report, User environment displays, etc. • Results: 3 passed

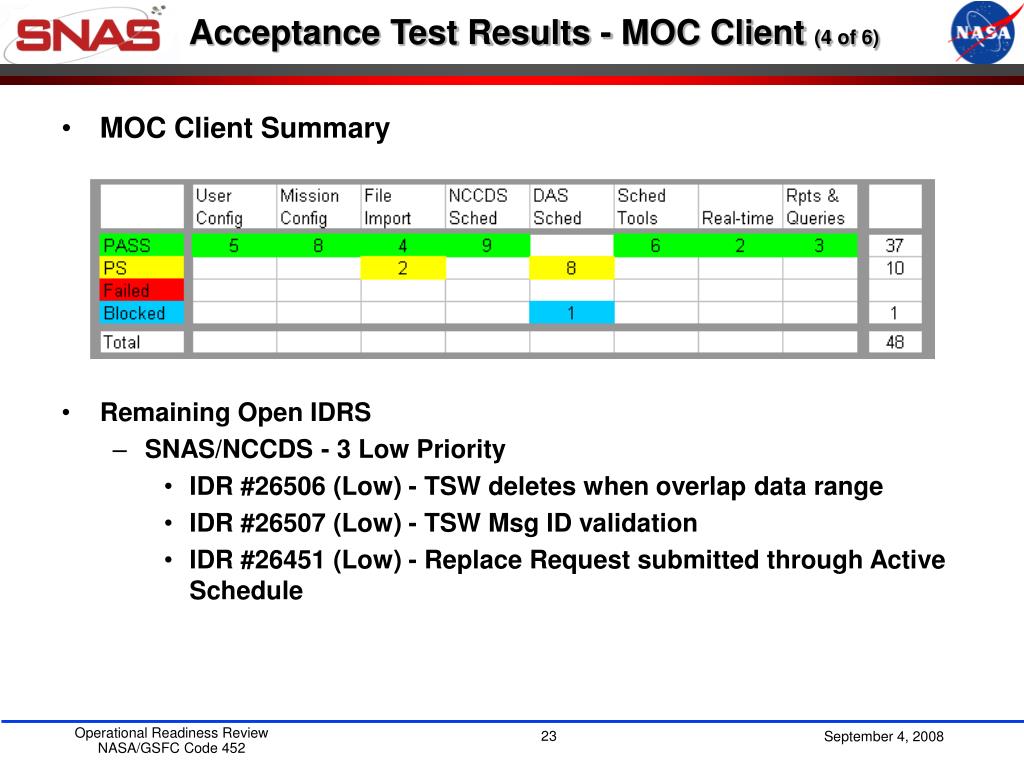

  23. Acceptance Test Results - MOC Client (4 of 6) • MOC Client Summary • Remaining Open IDRS • SNAS/NCCDS - 3 Low Priority • IDR #26506 (Low) - TSW deletes when overlap data range • IDR #26507 (Low) - TSW Msg ID validation • IDR #26451 (Low) - Replace Request submitted through Active Schedule

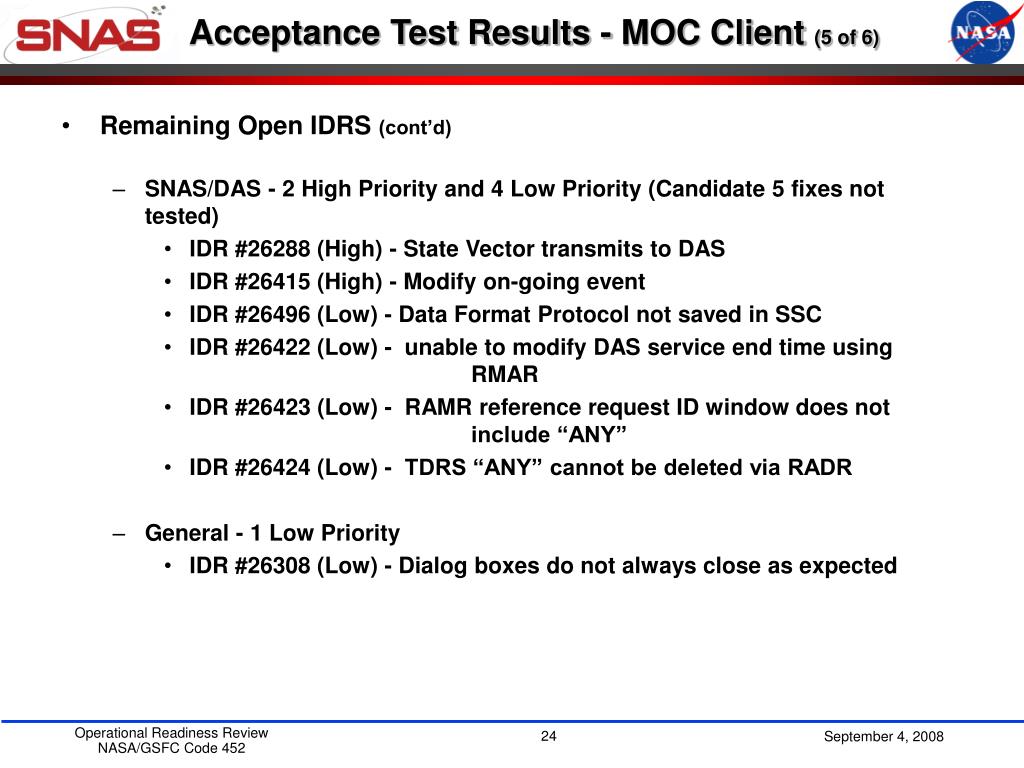

  24. Acceptance Test Results - MOC Client (5 of 6) • Remaining Open IDRS (cont’d) • SNAS/DAS - 2 High Priority and 4 Low Priority (Candidate 5 fixes not tested) • IDR #26288 (High) - State Vector transmits to DAS • IDR #26415 (High) - Modify on-going event • IDR #26496 (Low) - Data Format Protocol not saved in SSC • IDR #26422 (Low) - unable to modify DAS service end time using RMAR • IDR #26423 (Low) - RAMR reference request ID window does not include “ANY” • IDR #26424 (Low) - TDRS “ANY” cannot be deleted via RADR • General - 1 Low Priority • IDR #26308 (Low) - Dialog boxes do not always close as expected

  25. Acceptance Test Results - MOC Client (6 of 6) • Recommended additions to “wish list” for consideration for future releases • Add a combined Scheduler/Controller role • Add in GUI the listing of SSC/Service type naming convention • Add capability to add SSC by copying existing SSC • Add capability to delete TSW by TSW Set ID and TDRS ID • Add capability to filter Active Schedule and Schedule Request windows by date range • Change vector import and transmit windows to default to NCC • Add reload button for TSW Summary

  26. Acceptance Test Results MOC Client Functionality O&M Client Functionality Server/System Testing IT Security Controls

  27. Acceptance Test Results - O&M Client (1 of 2) • 3 Test Cases – General Client/Session Configuration • Login, View status • Results: 3 passed • 9 Test Cases - Mission and User Configurations • SSC update, SUPIDEN, TDRS, establish connections, etc. • Results: 9 passed • 2 Test Cases - System Monitoring • Results: 2 passed

  28. Acceptance Test Results – O&M Client(2 of 2) • O&M Client Summary • Remaining Open IDRS – none • Alert window will be delivered in next release • Recommended additions to “wish list” for consideration for future releases • Add capability to add SSC by copying existing SSC • Add role/access privileges – allows for system monitoring without DBA account • O&M approval window • Mark the changes being requested from the MOC Client • Allow for dialog for approval (not just rejected requests)

  29. Acceptance Test Results MOC Client Functionality O&M Client Functionality Server/System Testing IT Security Controls

  30. Acceptance Test Results - Server/System(1 of 8) • Test overview • High Availability application and configuration • System/Application Logging • SNAS/SN Interface • End-to-end testing – EPS–Client- Server-ANCC/HMD DAS • EPS to Client – same platform • Limited HMD DAS availability • System Performance and Loading Test

  31. Acceptance Test Results - Server/System(2 of 8) • High Availability (HA) Testing • Linux HA product • Runs on all three clusters (Open Servers, Closed Servers, and Data Servers) • Provides for “prime” and “backup” to meet high availability/performance requirements • Each cluster has two nodes with resources (applications) distributed • Supports two modes of operations – OPS and EIF • Tested basic operations of application with command statements and with GUI • Start, Stop, Banish, Allow, etc. • Resource failure operations • Component (node) failure operations (server powered-off) • Results – Partial Success • Some unexpected bouncing of resources between nodes • Following failure, state returns to last state not standby • Failure counts not incrementing

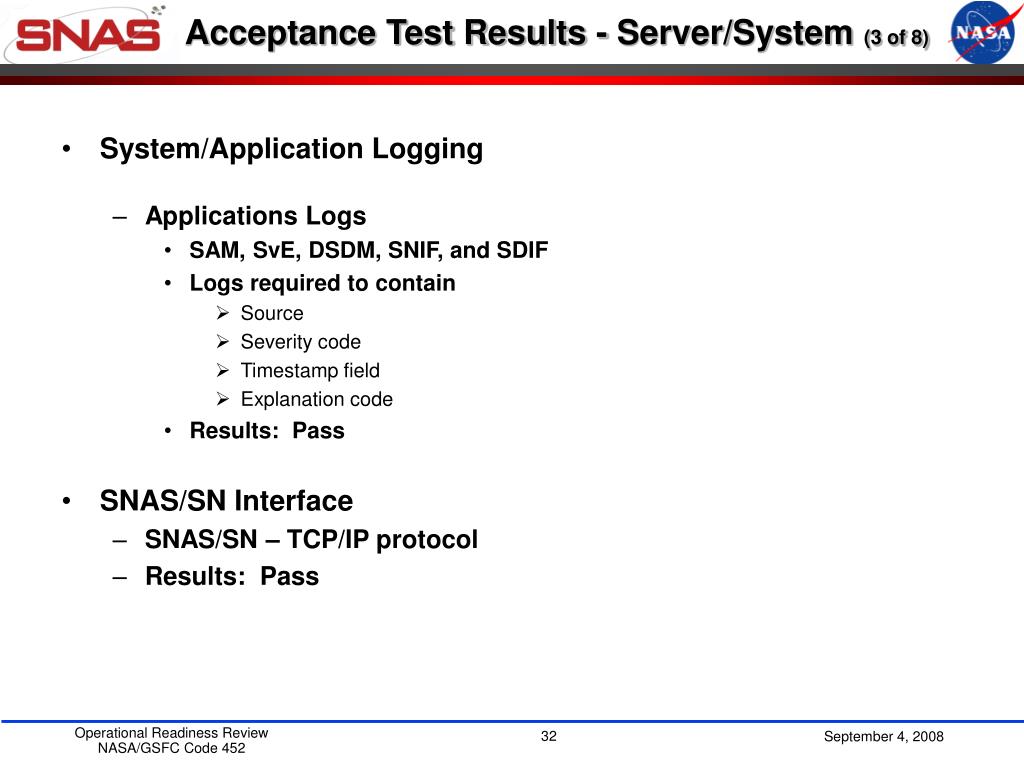

  32. Acceptance Test Results - Server/System (3 of 8) • System/Application Logging • Applications Logs • SAM, SvE, DSDM, SNIF, and SDIF • Logs required to contain • Source • Severity code • Timestamp field • Explanation code • Results: Pass • SNAS/SN Interface • SNAS/SN – TCP/IP protocol • Results: Pass

  33. Acceptance Test Results - Server/System(4 of 8) • End-to-end System Testing • EPS - Client - Server - ANCC/HMD DAS • Interfaces verified during Performance Test • Part of Candidate 5 regression testing • Results: Partial Success • Limited EPS to Client testing - EPS simulation not a function of ANCC (JSC verified in Beta environment) • Limited time available for SNAS/HMD DAS testing - no regression testing for Candidate 5

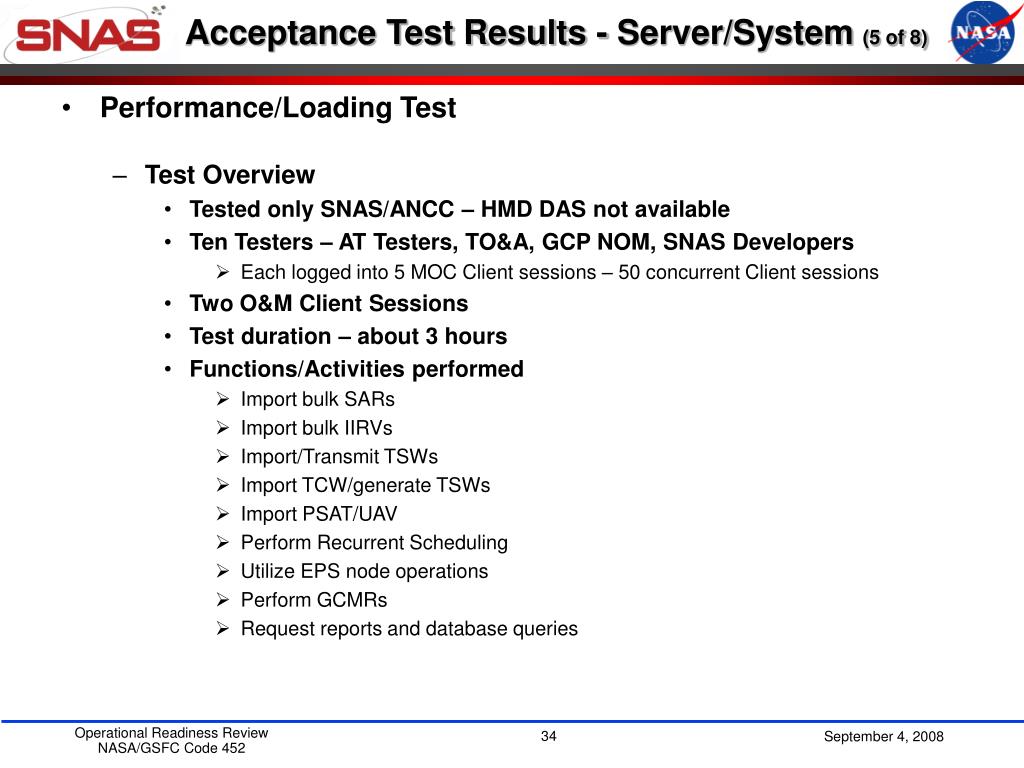

  34. Acceptance Test Results - Server/System(5 of 8) • Performance/Loading Test • Test Overview • Tested only SNAS/ANCC – HMD DAS not available • Ten Testers – AT Testers, TO&A, GCP NOM, SNAS Developers • Each logged into 5 MOC Client sessions – 50 concurrent Client sessions • Two O&M Client Sessions • Test duration – about 3 hours • Functions/Activities performed • Import bulk SARs • Import bulk IIRVs • Import/Transmit TSWs • Import TCW/generate TSWs • Import PSAT/UAV • Perform Recurrent Scheduling • Utilize EPS node operations • Perform GCMRs • Request reports and database queries

  35. Acceptance Test Results - Server/System(6 of 8) • Performance/Loading Test (cont’d) • Data Collected • Server Performance Logs • Eldorado – OPS Data Server – (241/1720-241/2350) • Roadrunner – OPS Open Server – (241/0000-242/0000) • Fury – Ops Closed Server- (241/0000-242/0000) • Client Alert Logs / Tester’s notes • Results: Passed • No node/resource failures noted • Over 900 requests/interactions with ANCC at one time (~200 normal ops) • Some delay noted at Client for window refresh (e.g. Active Summary) • Alert logs indicate no latency in server processing • Interactions between SvE and SNIF < 2 seconds • Interactions between SvE and DSDM < 5 seconds • Available MEM at pre-test ~30%. 50 simultaneous Client sessions, added ~2%. Assuming 250 simultaneous Client session, add ~ 10%, then available MEM > 60%.

  36. Acceptance Test Results - Server/System(7 of 8) • Performance/Loading Test (cont’d) • Server Performance Log Data

  37. Acceptance Test Results - Server/System(8 of 8) • Server/System Summary • Remaining Open IDRS – all related to HA • IDR #26487 - Unexpected resources moving between nodes • IDR #26489 - Explore modification to configuration to return node to standby state vice last state • IDR #26488 - Failed counts not incrementing • Possible documented Linux HA BUG

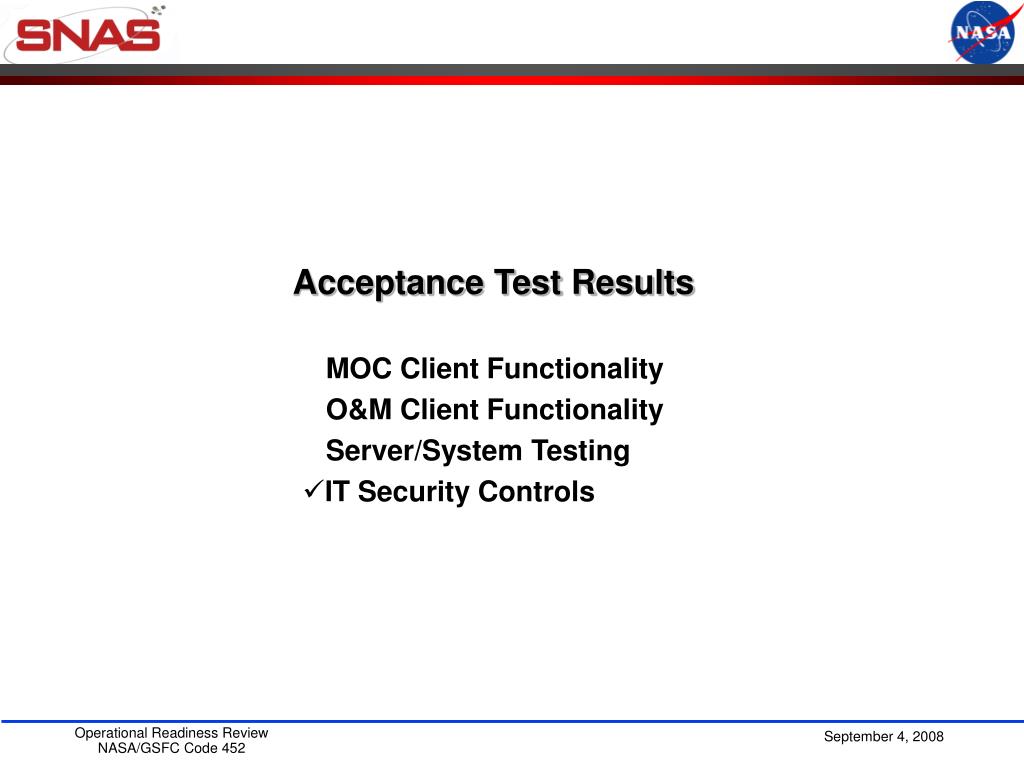

  38. Acceptance Test Results MOC Client Functionality O&M Client Functionality Server/System Testing IT Security Controls

  39. Acceptance Test Results – Security Controls • 100 Security Controls recommended: • 66 Implementation Acceptable • 4 Certification and Accreditation • 7 Not Applicable to SNAS • 9 Documentation needed • 13 Further verification required • 1 Waiver request planned

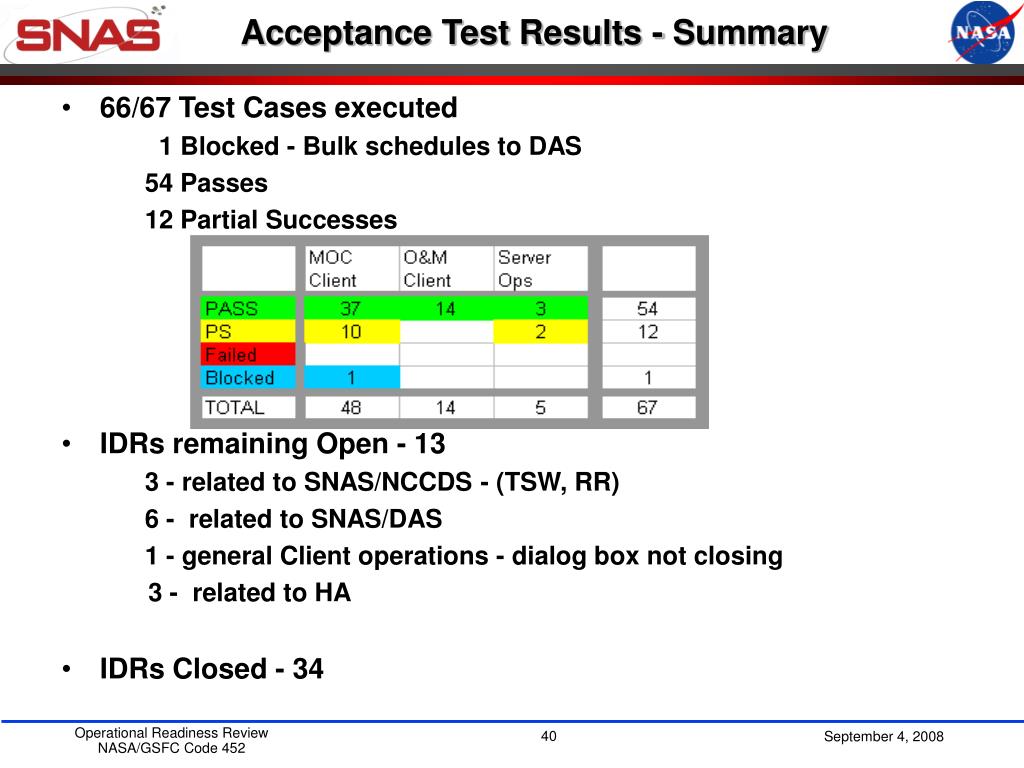

  40. Acceptance Test Results - Summary • 66/67 Test Cases executed 1 Blocked - Bulk schedules to DAS 54 Passes 12 Partial Successes • IDRs remaining Open - 13 3 - related to SNAS/NCCDS - (TSW, RR) 6 - related to SNAS/DAS 1 - general Client operations - dialog box not closing 3 - related to HA • IDRs Closed - 34

  41. WSC IT Security Evaluation Rich Pearce

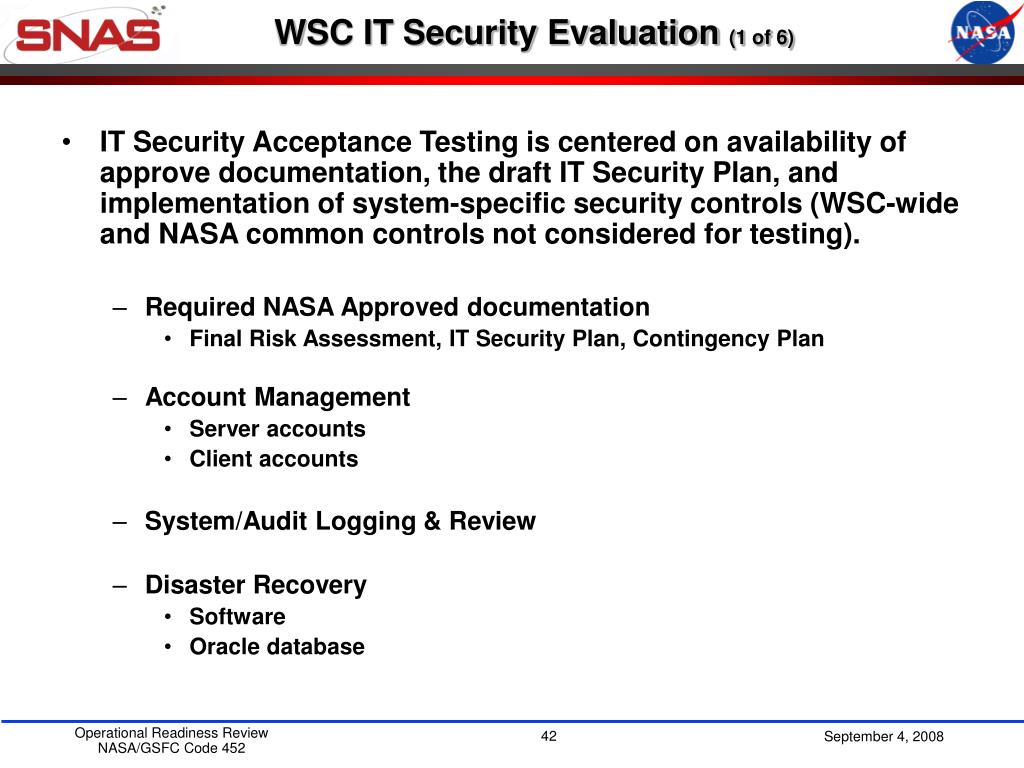

  42. WSC IT Security Evaluation (1 of 6) • IT Security Acceptance Testing is centered on availability of approve documentation, the draft IT Security Plan, and implementation of system-specific security controls (WSC-wide and NASA common controls not considered for testing). • Required NASA Approved documentation • Final Risk Assessment, IT Security Plan, Contingency Plan • Account Management • Server accounts • Client accounts • System/Audit Logging & Review • Disaster Recovery • Software • Oracle database

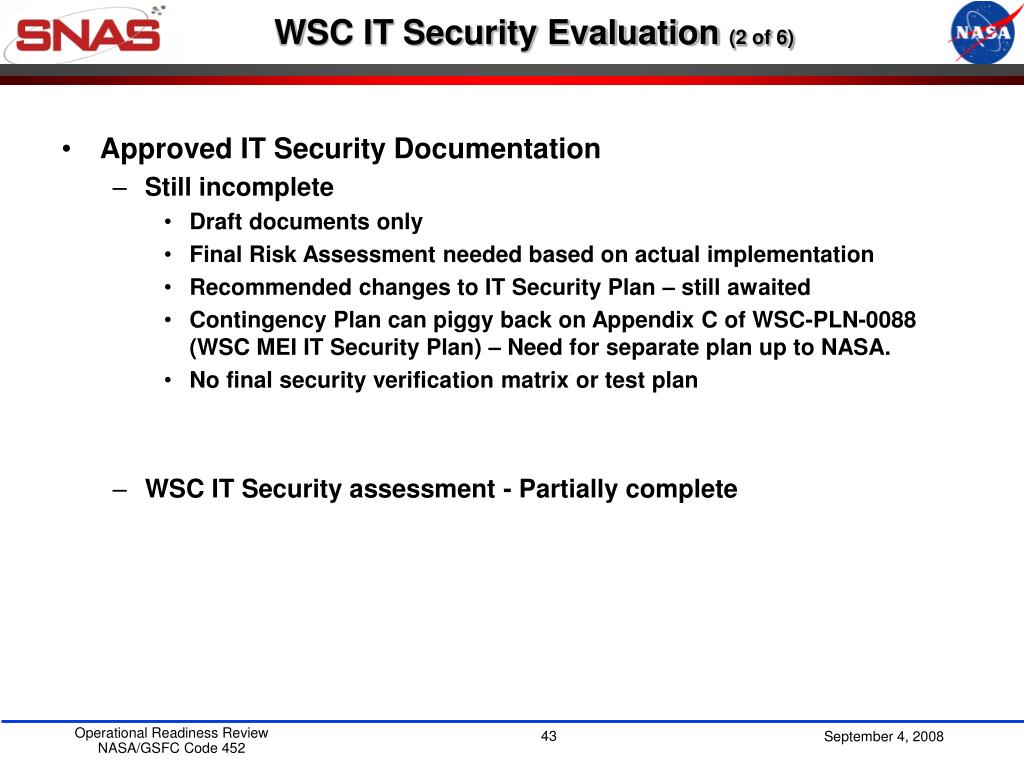

  43. WSC IT Security Evaluation (2 of 6) • Approved IT Security Documentation • Still incomplete • Draft documents only • Final Risk Assessment needed based on actual implementation • Recommended changes to IT Security Plan – still awaited • Contingency Plan can piggy back on Appendix C of WSC-PLN-0088 (WSC MEI IT Security Plan) – Need for separate plan up to NASA. • No final security verification matrix or test plan • WSC IT Security assessment - Partially complete

  44. WSC IT Security Evaluation (3 of 6) • Account Management • Server Account Management • Server accounts created and managed based on approved account request (Form WSC-0325) • WSC SA responsible for creating and configuring accounts based on the approved form • Server accounts will be restricted to System Admins (SA), Database Admins (DBAs), ADPE Techs and IT Security • MOC and O&M Client Account Management • No provision for account requests. MOC User Guide requires list of users and data required • Completed/signed SNAS Rules of Behavior will be required of all users • Local O&M Client accounts (for WSC O&M personnel only) will follow MOC requirements • OPS DBA is responsible for MOC and O&M Client account management through O&M tools and procedures • WSC IT Security assessment - PASS • Local procedure needed for Server account management or change to existing LOP, as necessary

  45. WSC IT Security Evaluation (4 of 6) • System/Audit Logging and Review • Audit logging still not configured for security requirements • Server application log containing audit data (violates separation of duties requirements) • Designated “Audit” log empty • No tools for syslog or audit data review (dependence on System Messages) • Unable to test alerting for audit process failure (could not stop audit process) • WSC IT Security assessment - Fail • Need to finalize syslog and audit data locations and ensure only IT Security/Root-level access • Need tools for audit data extraction and syslog/audit log backup to removable media

  46. WSC IT Security Evaluation (5 of 6) • Disaster Recovery • No procedure/plan for system/database backups including off-site storage • SNAS software disaster recovery procedure • WSC LOP Volume IV - Book 2, LOP #32 “Software Configuration Management Disaster Control” provides for SW recovery • Five software patches (Client/Server/DB) have been delivered during AT - GSFC remote access for software delivery exercised • Oracle database recovery • EIF instance – auto backup is functioning • Open IDR #26368 – repeat for OPS instance • EIF shutdown and database recovery successfully exercised • Open IDR #26433 – repeat for Ops instance • Procedure to be documented • Procedure exercised on OPS instance • WSC IT Security assessment – Partially complete • Document procedures for database and system backup – Close IDRs #26368 and #26433

  47. WSC IT Security Evaluation (6 of 6) • IT Security Summary/Action Plan • Much remains for developer and WSC • Correction of issues presented – especially regarding auditing • Create tools/procedures to assist in System Admin/IT Security work • Finalize required documents • Final system check, including updated full system vulnerability scan by WSC • Those controls in Security Plan that cannot be met/risk accepted need a POA&M for correction. • Overall Readiness Assessment – Not Ready • Primarily due to audit issues • Need for finalized documentation • Need for system/database backup procedures

  48. SNAS Training David Warren

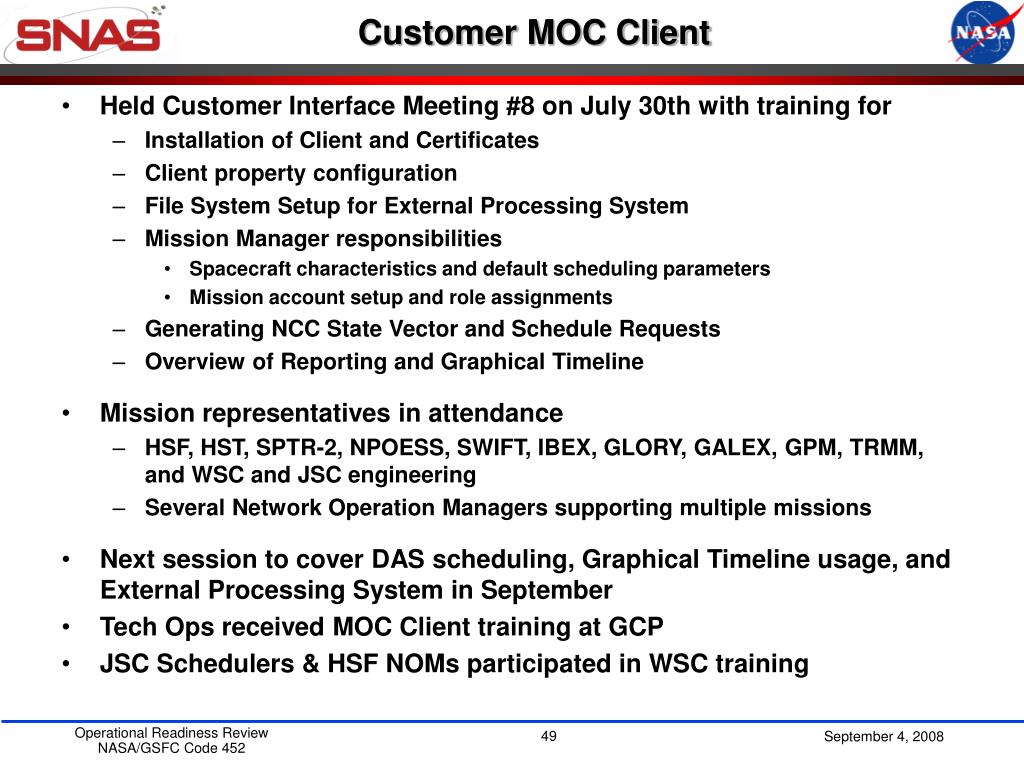

  49. Customer MOC Client • Held Customer Interface Meeting #8 on July 30th with training for • Installation of Client and Certificates • Client property configuration • File System Setup for External Processing System • Mission Manager responsibilities • Spacecraft characteristics and default scheduling parameters • Mission account setup and role assignments • Generating NCC State Vector and Schedule Requests • Overview of Reporting and Graphical Timeline • Mission representatives in attendance • HSF, HST, SPTR-2, NPOESS, SWIFT, IBEX, GLORY, GALEX, GPM, TRMM, and WSC and JSC engineering • Several Network Operation Managers supporting multiple missions • Next session to cover DAS scheduling, Graphical Timeline usage, and External Processing System in September • Tech Ops received MOC Client training at GCP • JSC Schedulers & HSF NOMs participated in WSC training

  50. WSC O&M • Held session on August 26th with training for • Server Architecture and Components • Server Configuration and Operation • High Availability • O&M Client • 2nd Session week of 9/15/2008 to cover • Database Design and Management • Digital Certificate Management • System Administration Procedures • Problem Reporting and Tracking • Troubleshooting Procedures • WSC representatives in attendance • Sys Admin, Oracle DB Admin, O&M DB Admin, TO&A, Ops Trainer • WSC Oracle DBA received Oracle Backup/Recovery Training
